Seat Ibiza
Date of manufacture
2008 – 2012 (Three-door hatchback)
2008 – 2012 (Five-door hatchback)
2010 – 2012 (Estate)
Platform
Volkswagen Group A05 (PQ25)
Manufacturing locations
Martorell, Spain
Designer
Luc Donckerwolke
Tags
B-segment
Spanish cars
The Seat Ibiza is available in three body styles - three-door hatchback, five-door hatchback and estate. It has been manufactured in Spain since 2008 on the Volkswagen Group A05 (PQ25) platform. It offers petrol and diesel engines, the most powerful of which is the Cupra with 132 kW. It reaches a top speed of 225 km/h and the best acceleration 0-100 km/h in 7.2 seconds. The most economical engine is the 1.2 TDI CR Ecomotive with a combined consumption of 3.4 l/100 km and CO2 emissions of 89 g/km. The luggage compartment volume of the three-door hatchback model is 284 l, the five-door hatchback 292 l and the estate 430 l. In 2011, this model was tested in the EURONCAP safety area, where it achieved an overall rating of 5 out of 5 points.
Car body style

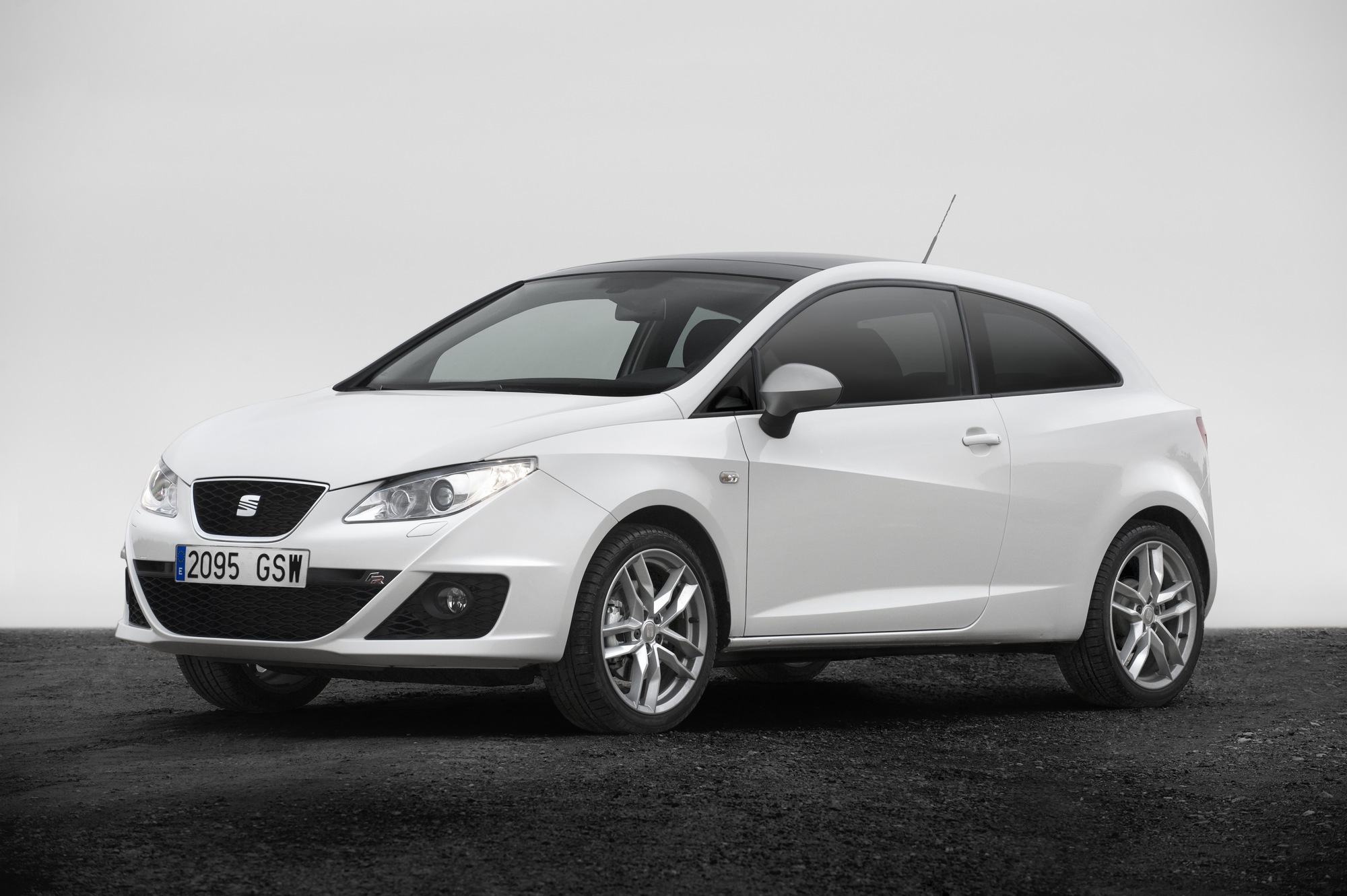

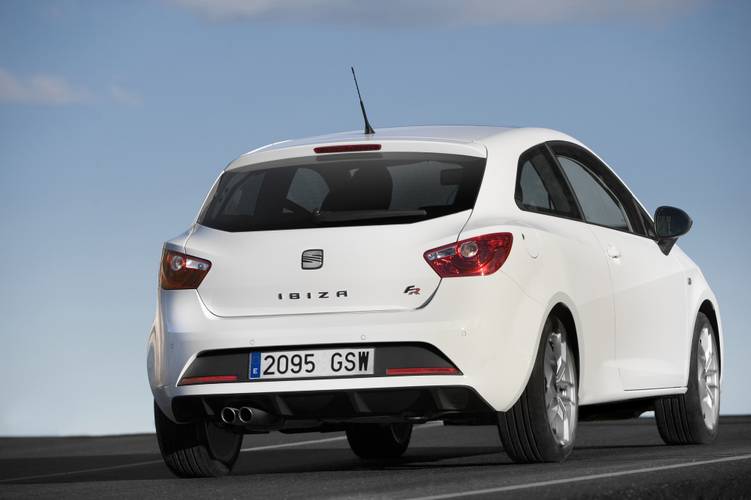

Three-door hatchback
Date of manufacture
2008 – 2012Internal designation
6JFive-door hatchback
Date of manufacture
2008 – 2012Internal designation

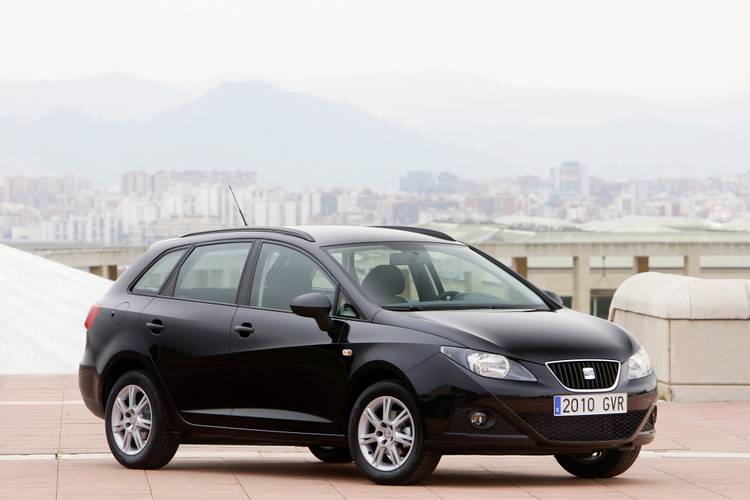

6JEstate (ST)
Date of manufacture
2010 – 2012Internal designation
6JEngine size
Technical data
Three-door hatchback
| 1.2 12V | 1.2 12V | 1.4 16V | 1.6 16V | 1.6 16V | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1198 | 1198 | 1390 | 1598 | 1598 | 1197 |
| Maximum output / speed [kW/min-1] | 44/5200 | 51/5400 | 63/5000 | 77/5600 | 77/5600 | 77/5000 |
| Maximum torque [Nm/min-1] | 108/3000 | 112/3000 | 132/3800 | 153/3800 | 153/3800 | 175/4100 |
| Bore and stroke [mm x mm] | 76,5 x 88,9 | 76,5 x 88,9 | 76,5 x 75,6 | 76,5 x 86,9 | 76,5 x 86,9 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - | - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 155 | 165 | 177 | 189 | 188 | 190 |
| Acceleration 0–100 km/h [s] | 15.9 | 13.9-14.4 | 11.8 | 10.4 | 10.1 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1-7.3 | 7.1-7.6 | 8.0-8.2 | 8.4 | 7.7 | 6.8 |
| Out of town [l] | 4.4-4.5 | 4.4-4.9 | 4.7-5.1 | 5.0 | 4.8 | 4.5 |
| Combined [l] | 5.4-5.5 | 5.4-5.9 | 5.9-6.2 | 6.3 | 5.8 | 5.3 |
| CO2 emissions [g/km] | 125-128 | 125-139 | 139-149 | 149 | 139 | 124 |
| Emission standard | EU5 | EU4-EU5 | EU4-EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1049 | 1047 | 1075 | 1115 | 1120 | 1090 |
| Overall weight [kg] | 1475-1500 | 1475-1500 | 1526 | 1541 | 1546 | 1541 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 284 | 284 | 284 | 284 | 284 | 284 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | - | - | 256 x 22 |
| Brake dimensions rear | - | - | - | - | - | 232 x 9 |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 |
| Overall length [mm] | 4034 | 4034 | 4034 | 4034 | 4034 | 4034 |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- |
| Overall height [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 717 | 717 | 717 | 717 | 717 | 717 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Headroom rear [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Front elbow/shoulder width [mm] | -/1343 | -/1343 | -/1343 | -/1343 | -/1343 | -/1343 |
| Rear elbow/shoulder width [mm] | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI | 1.4 TSI | Cupra | 1.2 TDI CR Ecomotiove | 1.4 TDI | 1.4 TDI Ecomotiove | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 3/12 | 3/6 | 3/6 |
| Engine displacement [cm³] | 1197 | 1390 | 1390 | 1199 | 1442 | 1442 |
| Maximum output / speed [kW/min-1] | 77/5000 | 110/5800 | 132/6200 | 55/4000 | 59/4000 | 59/4000 |
| Maximum torque [Nm/min-1] | 175/4100 | 220/4500 | 250/5600 | 180/1500-3450 | 195/2200 | 195/2200 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 95,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 16,5:1 | 19,5:1 | 19,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
|
| - | - | - |
| Top speed [km/h] | 190 | 212 | 225 | 173 | 170 | 177 |
| Acceleration 0–100 km/h [s] | 9.7 | 7.7 | 7.2 | 13.9 | 12.9 | 12.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0 | 8.1 | 8.3-8.4 | 4.1 | 5.6 | 4.9 |
| Out of town [l] | 4.4 | 5.3 | 5.3-5.7 | 3.0 | 3.6 | 3.0 |
| Combined [l] | 5.3 | 6.3 | 6.4-6.7 | 3.4 | 4.3 | 3.7 |
| CO2 emissions [g/km] | 124 | 146 | 148-159 | 89 | 114 | 98 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1115 | 1167-1187 | 1145-1172 | 1150 | 1150 | 1140 |
| Overall weight [kg] | 1566 | 1668 | 1673 | 1601 | 1576-1601 | 1566 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 284 | 284 | 284 | 284 | 284 | 284 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 215/40 R17 | 215/40 R17 | 185/60 R15 | 175/70 R14 | 175/70 R14 |
| Tyre dimensions rear | 185/60 R15 | 215/40 R17 | 215/40 R17 | 185/60 R15 | 175/70 R14 | 175/70 R14 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 256 x 22 | 288 x 25 | 312 x 25 | 256 x 22 | - | - |
| Brake dimensions rear | 232 x 9 | 232 x 9 | 232 x 9 | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 |
| Overall length [mm] | 4034 | 4034 | 4034 | 4034 | 4034 | 4034 |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- |
| Overall height [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1465 | 1465 | 1449 | 1465 | 1465 | 1465 |
| Rear wheel track [mm] | 1457 | 1457 | 1441 | 1457 | 1457 | 1457 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 717 | 717 | 717 | 717 | 717 | 717 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Headroom rear [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Front elbow/shoulder width [mm] | -/1343 | -/1343 | -/1343 | -/1343 | -/1343 | -/1343 |
| Rear elbow/shoulder width [mm] | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 TDI | 1.6 TDI CR | 1.9 TDI | 1.6 TDI CR | 2.0 TDI CR | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/16 | 4/8 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1896 | 1598 | 1896 | 1598 | 1968 | |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4200 | 77/4000 | 77/4400 | 105/4200 | |
| Maximum torque [Nm/min-1] | 210/2500 | 230/2500 | 240/1900 | 250/1500-2500 | 320/1750-2500 | |
| Bore and stroke [mm x mm] | 79,5 x 95,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 80,5 | 81,0 x 95,5 | |
| Compression ratio | 18,5:1 | 16,5:1 | 18,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 178 | 178 | 187 | 188 | 210 | |
| Acceleration 0–100 km/h [s] | 11.8 | 11.8 | 10.4 | 10.5 | 8.2-8.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.0 | 5.1 | 6.0 | 5.4 | 5.8-5.9 | |
| Out of town [l] | 3.7 | 3.6 | 3.7 | 3.6 | 3.8-3.9 | |
| Combined [l] | 4.5 | 4.2 | 4.5 | 4.3 | 4.5-4.6 | |
| CO2 emissions [g/km] | 119 | 109 | 119 | 112 | 119 | |
| Emission standard | EU4 | EU5 | EU4 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1175 | 1170 | 1175 | 1170 | 1245 | |
| Overall weight [kg] | 1601 | 1621 | 1601 | 1596-1621 | 1678-1696 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 284 | 284 | 284 | 284 | 284 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 3 | 3 | 3 | 3 | 3 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 215/40 R17 | |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 215/40 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | 256 x 22 | - | 288 x 28 | 288 x 28 | |
| Brake dimensions rear | - | 232 x 9 | - | 232 x 9 | 232 x 9 | |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | |
| Overall length [mm] | 4034 | 4034 | 4034 | 4034 | 4034 | |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | |
| Overall height [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1449 | |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1441 | |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | |
| Rear overhang [mm] | 717 | 717 | 717 | 717 | 717 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 980 | 980 | 980 | 980 | 980 | |
| Headroom rear [mm] | 928 | 928 | 928 | 928 | 928 | |
| Front elbow/shoulder width [mm] | -/1343 | -/1343 | -/1343 | -/1343 | -/1343 | |
| Rear elbow/shoulder width [mm] | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Five-door hatchback
| 1.2 12V | 1.2 12V | 1.4 16V | 1.6 16V | 1.6 16V | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1198 | 1198 | 1390 | 1598 | 1598 | 1197 |
| Maximum output / speed [kW/min-1] | 44/5200 | 51/5400 | 63/5000 | 77/5600 | 77/5600 | 77/5000 |
| Maximum torque [Nm/min-1] | 108/3000 | 112/3000 | 132/3800 | 153/3800 | 153/3800 | 175/4100 |
| Bore and stroke [mm x mm] | 76,5 x 88,9 | 76,5 x 88,9 | 76,5 x 75,6 | 76,5 x 86,9 | 76,5 x 86,9 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - | - |
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 155 | 163 | 175 | 187 | 186 | 190 |
| Acceleration 0–100 km/h [s] | 15.9-16.3 | 13.9-15.0 | 11.8-12.2 | 10.5 | 10.3 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1-7.3 | 7.1-7.6 | 8.0-8.2 | 8.4-8.9 | 8.1 | 6.8 |
| Out of town [l] | 4.4-4.5 | 4.4-4.9 | 4.7-5.1 | 5.0-5.3 | 4.8-5.1 | 4.5 |
| Combined [l] | 5.4-5.5 | 5.4-5.9 | 5.9-6.2 | 6.3-6.6 | 5.8-6.2 | 5.3 |
| CO2 emissions [g/km] | 125-128 | 125-139 | 139-149 | 149-157 | 139-148 | 124 |
| Emission standard | EU5 | EU4-EU5 | EU4-EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1049-1074 | 1049-1074 | 1075-1100 | 1115 | 1145 | 1090 |
| Overall weight [kg] | 1500 | 1500 | 1526 | 1541 | 1571 | 1541 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | - | - | 256 x 22 |
| Brake dimensions rear | - | - | - | - | - | 232 x 9 |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 |
| Overall length [mm] | 4052 | 4052 | 4052 | 4052 | 4052 | 4052 |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 735 | 735 | 735 | 735 | 735 | 735 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Rear elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI | 1.4 TSI | 1.2 TDI CR | 1.2 TDI CR Ecomotiove | 1.4 TDI | 1.4 TDI Ecomotiove | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 3/12 | 3/12 | 3/6 | 3/6 |
| Engine displacement [cm³] | 1197 | 1390 | 1199 | 1199 | 1442 | 1442 |
| Maximum output / speed [kW/min-1] | 77/5000 | 110/5800 | 55/4000 | 55/4000 | 59/4000 | 59/4000 |
| Maximum torque [Nm/min-1] | 175/4100 | 220/4500 | 180/1500-3450 | 180/1500-3450 | 195/2200 | 195/2200 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 76,5 x 75,6 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 95,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,5:1 | 16,5:1 | 19,5:1 | 19,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications |
|
| - | - | - | - |
| Top speed [km/h] | 190 | 211 | 168 | 173 | 176 | 177 |
| Acceleration 0–100 km/h [s] | 9.7 | 7.8 | 13.9 | 13.9 | 12.9 | 12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.0 | 8.1 | 4.6 | 4.1 | 5.6 | 4.9 |
| Out of town [l] | 4.4 | 5.3 | 3.3 | 3.0 | 3.6 | 3.0 |
| Combined [l] | 5.3 | 6.3 | 3.8 | 3.4 | 4.3 | 3.7 |
| CO2 emissions [g/km] | 124 | 146 | 99 | 89 | 114 | 98 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1115 | 1192 | 1135 | 1150 | 1175 | 1140 |
| Overall weight [kg] | 1566 | 1693 | 1586 | 1601 | 1601 | 1566 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | 292 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | -/900 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 215/40 R17 | 175/70 R14 | 185/60 R15 | 175/70 R14 | 175/70 R14 |
| Tyre dimensions rear | 185/60 R15 | 215/40 R17 | 175/70 R14 | 185/60 R15 | 175/70 R14 | 175/70 R14 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 256 x 22 | 288 x 25 | 256 x 22 | 256 x 22 | - | - |
| Brake dimensions rear | 232 x 9 | 232 x 9 | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 |
| Overall length [mm] | 4052 | 4052 | 4052 | 4052 | 4052 | 4052 |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 735 | 735 | 735 | 735 | 735 | 735 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Rear elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 TDI | 1.6 TDI CR | 1.9 TDI | 1.6 TDI CR | 2.0 TDI CR | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/16 | 4/8 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1896 | 1598 | 1896 | 1598 | 1968 | |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4200 | 77/4000 | 77/4400 | 105/4200 | |
| Maximum torque [Nm/min-1] | 210/2500 | 230/2500 | 240/1900 | 250/1500-2500 | 320/1750-2500 | |
| Bore and stroke [mm x mm] | 79,5 x 95,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 80,5 | 81,0 x 95,5 | |
| Compression ratio | 18,5:1 | 16,5:1 | 18,5:1 | 16,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 176 | 178 | 186 | 188 | 208-210 | |
| Acceleration 0–100 km/h [s] | 12.0 | 11.8-12.0 | 10.6 | 10.5-10.7 | 8.2-8.7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.0 | 5.1 | 6.0 | 5.4 | 5.8-5.9 | |
| Out of town [l] | 3.7 | 3.6 | 3.7 | 3.6 | 3.8-3.9 | |
| Combined [l] | 4.5 | 4.2 | 4.5 | 4.3 | 4.5-4.6 | |
| CO2 emissions [g/km] | 119 | 109 | 119 | 112 | 119 | |
| Emission standard | EU4 | EU5 | EU4 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1200 | 1170 | 1200 | 1170 | 1245-1277 | |
| Overall weight [kg] | 1626 | 1621 | 1626 | 1621 | 1696-1703 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 292 | 292 | 292 | 292 | 292 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/900 | -/900 | -/900 | -/900 | -/900 | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/40 R17 | |
| Tyre dimensions rear | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 215/40 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | 256 x 22 | - | 288 x 28 | 288 x 28 | |
| Brake dimensions rear | - | 232 x 9 | - | 232 x 9 | 232 x 9 | |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | |
| Overall length [mm] | 4052 | 4052 | 4052 | 4052 | 4052 | |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1449 | |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1441 | |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | |
| Rear overhang [mm] | 735 | 735 | 735 | 735 | 735 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | |
| Front elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | |
| Rear elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate (ST)
| 1.2 12V | 1.2 12V | 1.4 16V | 1.2 TSI | 1.2 TSI | 1.2 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/8 | 4/8 | 3/12 |
| Engine displacement [cm³] | 1198 | 1198 | 1390 | 1197 | 1197 | 1199 |
| Maximum output / speed [kW/min-1] | 44/5200 | 51/5400 | 63/5000 | 77/5000 | 77/5000 | 55/4000 |
| Maximum torque [Nm/min-1] | 108/3000 | 112/3000 | 132/3800 | 175/4100 | 175/4100 | 180/1500-3450 |
| Bore and stroke [mm x mm] | 76,5 x 88,9 | 76,5 x 88,9 | 76,5 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 79,5 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 155 | 163 | 177 | 190 | 190 | 168 |
| Acceleration 0–100 km/h [s] | 15.9 | 14.6 | 12.4 | 10.2 | 10.0 | 14.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 7.3 | 8.0 | 6.8 | 7.0 | 4.9 |
| Out of town [l] | 4.5 | 4.5 | 4.7 | 4.5 | 4.4 | 3.4 |
| Combined [l] | 5.5 | 5.5 | 5.9 | 5.3 | 5.3 | 3.9 |
| CO2 emissions [g/km] | 128 | 128 | 139 | 124 | 124 | 102 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1049 | 1110 | 1130 | 1145 | 1165 | 1190 |
| Overall weight [kg] | 1550 | 1550 | 1570 | 1585 | 1605 | 1630 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1164 | -/1164 | -/1164 | -/1164 | -/1164 | -/1164 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 175/70 R14 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 175/70 R14 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 |
| Brake dimensions rear | - | - | - | 232 x 9 | 232 x 9 | - |
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 | -/10.48 |
| Overall length [mm] | 4227 | 4227 | 4227 | 4227 | 4227 | 4227 |
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- | 1693/- |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2469 | 2469 | 2469 | 2469 | 2469 | 2469 |
| Front wheel track [mm] | 1465 | 1465 | 1465 | 1465 | 1465 | 1465 |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 986 | 986 | 986 | 986 | 986 | 986 |
| Headroom rear [mm] | 952 | 952 | 952 | 952 | 952 | 952 |
| Front elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Rear elbow/shoulder width [mm] | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 | -/1333 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TDI CR Ecomotiove | 1.6 TDI CR | 1.6 TDI CR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1199 | 1598 | 1598 | |||
| Maximum output / speed [kW/min-1] | 55/4000 | 66/4200 | 77/4400 | |||
| Maximum torque [Nm/min-1] | 180/1500-3450 | 230/2500 | 250/1500-2500 | |||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 173 | 178 | 188 | |||
| Acceleration 0–100 km/h [s] | 14.6 | 12.2 | 10.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4.1 | 5.1 | 5.1 | |||
| Out of town [l] | 3.0 | 3.6 | 3.6 | |||
| Combined [l] | 3.4 | 4.2 | 4.2 | |||
| CO2 emissions [g/km] | 89 | 109 | 109 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1205 | 1225 | 1225 | |||
| Overall weight [kg] | 1645 | 1665 | 1665 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 430 | 430 | 430 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1164 | -/1164 | -/1164 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 45 | 45 | 45 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | |||
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 256 x 22 | 256 x 22 | 288 x 28 | |||
| Brake dimensions rear | - | 232 x 9 | 232 x 9 | |||
| Steering | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | rack & pinion with electro-hydraulic power steering EHPS | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/10.48 | -/10.48 | -/10.48 | |||
| Overall length [mm] | 4227 | 4227 | 4227 | |||
| Overall width without/including mirrors [mm] | 1693/- | 1693/- | 1693/- | |||
| Overall height [mm] | 1445 | 1445 | 1445 | |||
| Wheelbase [mm] | 2469 | 2469 | 2469 | |||
| Front wheel track [mm] | 1465 | 1465 | 1465 | |||
| Rear wheel track [mm] | 1457 | 1457 | 1457 | |||
| Forward overhang [mm] | 848 | 848 | 848 | |||
| Rear overhang [mm] | 910 | 910 | 910 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 986 | 986 | 986 | |||
| Headroom rear [mm] | 952 | 952 | 952 | |||
| Front elbow/shoulder width [mm] | -/1335 | -/1335 | -/1335 | |||
| Rear elbow/shoulder width [mm] | -/1333 | -/1333 | -/1333 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
