Seat Leon
Date of manufacture
2009 – 2012 (Five-door hatchback)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Martorell, Spain
Designer
Walter de Silva
Tags
C-segment
Spanish cars
The new Seat Leon is available in a five-door hatchback version. This car was first manufactured in 2009 and is built on the Volkswagen Group A5 (PQ35) platform. The engine range includes petrol and diesel engines, with the most powerful model being the Cupra R with 195 kW. It reaches a top speed of 250 km/h and the best acceleration from 0-100 km/h in 6.2 seconds. The most fuel-efficient version is the 1.6 TDI CR E-Ecomotive, with 3.8 l/100 km and 99 g/km of CO2 emissions. The boot has a capacity of 341 l. The model has undergone EURONCAP safety tests and has been rated 4 out of 5.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2009 – 2012Internal designation
1P
Technical data
Five-door hatchback
| 1.4 | 1.6 | 1.2 TSI | 1.2 TSI | 1.4 TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1595 | 1197 | 1197 | 1390 | 1798 |
| Maximum output / speed [kW/min-1] | 63/5000 | 75/5600 | 77/5000 | 77/5000 | 92/5000 | 118/4500-6200 |
| Maximum torque [Nm/min-1] | 132/3800 | 148/3800 | 175/1550-4100 | 175/1550-4100 | 200/1500-4000 | 250/1500-4500 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 81,0 x 77,4 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 82,5 x 84,2 |
| Compression ratio | 10,5:2 | 10,3:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 172 | 184 | 187 | 187 | 197 | 213 |
| Acceleration 0–100 km/h [s] | 13.7-14.1 | 11.7 | 10.9 | 10.9 | 9.8 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4-8.6 | 9.9-10.3 | 7.1 | 6.5 | 8.0-8.1 | 9.0 |
| Out of town [l] | 5.1-5.2 | 5.6-5.9 | 4.9 | 4.7 | 5.1-5.2 | 5.5 |
| Combined [l] | 6.3-6.5 | 7.2-7.5 | 5.7 | 5.4 | 6.2 | 6.8 |
| CO2 emissions [g/km] | 147-154 | 169-154 | 132 | 124 | 146-148 | 159 |
| Emission standard | EU4-EU5 | EU4 | EU5 | EU5 | EU4-EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1250 | 1280 | 1275 | 1280 | 1324 | 1355 |
| Overall weight [kg] | 1746 | 1783 | 1775 | 1775 | 1819 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 620/1000 | - | 640/1200 | 640/1200 | 660/1300 | 670/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | 6.5J x 16 |
| Wheel size rear | - | - | - | - | - | 6.5J x 16 |
| Brake dimensions front | 280 x 22 | 280 x 22 | 288 x 22 | 288 x 22 | 288 x 25 | 288 x 25 |
| Brake dimensions rear | 255 x 10 | 255 x 10 | 253 x 10 | 253 x 10 | 253 x 10 | 253 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4315 | 4315 | 4315 | 4315 | 4315 | 4315 |
| Overall width without/including mirrors [mm] | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1535 |
| Rear wheel track [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | 1511 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 |
| Rear elbow/shoulder width [mm] | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.8 TSI | FR 2.0 TSI | FR 2.0 TSI | Cupra | Cupra R | 1.9 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1798 | 1984 | 1984 | 1984 | 1984 | 1896 |
| Maximum output / speed [kW/min-1] | 118/4500-6200 | 155/5300-6200 | 155/5300-6200 | 177/5700-6300 | 195/6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 250/1500-4500 | 280/1700-5200 | 280/1700-5200 | 300/2200-5500 | 350/2500-5000 | 210/1800 |
| Bore and stroke [mm x mm] | 82,5 x 84,2 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 95,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,8:1 | 9,8:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 5 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 213 | 233 | 233 | 247 | 250 | 174 |
| Acceleration 0–100 km/h [s] | 7.8 | 6.9 | 6.9 | 6.4 | 6.2 | 13.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 10.0 | 9.9 | 10.7 | 10.7 | 6.5 |
| Out of town [l] | 5.3 | 5.7 | 6.0 | 6.6 | 6.6 | 4.3 |
| Combined [l] | 6.6 | 7.3 | 7.5 | 8.1 | 8.1 | 5.0 |
| CO2 emissions [g/km] | 153 | 170 | 174 | 190 | 190 | 135 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1370 | 1395 | 1425 | 1450 | 1450 | 1365 |
| Overall weight [kg] | 1865 | 1890 | 1920 | 1945 | 1945 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | - | 690/1400 | 710/1400 | - | 720/1400 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 235/35 R19 | 195/65 R15 |
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 235/35 R19 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 8.0J x 19 | - |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 8.0J x 19 | - |
| Brake dimensions front | 288 x 25 | 312 x 25 | 312 x 25 | 345 x 30 | 345 x 30 | 280 x 22 |
| Brake dimensions rear | 253 x 10 | 272 x 10 | 272 x 10 | 286 x 12 | 286 x 12 | 255 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4315 | 4309 | 4309 | 4309 | 4309 | 4315 |
| Overall width without/including mirrors [mm] | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- |
| Overall height [mm] | 1455 | 1449 | 1449 | 1443 | 1443 | 1455 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1535 | 1527 | 1527 | 1533 | 1528 | 1541 |
| Rear wheel track [mm] | 1511 | 1503 | 1503 | 1515 | 1510 | 1517 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 |
| Rear elbow/shoulder width [mm] | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR | 1.6 TDI CR | 1.6 TDI CR | 1.6 TDI CR E-Ecomotive | 1.9 TDI | 1.9 TDI DPF | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1896 | 1896 |
| Maximum output / speed [kW/min-1] | 77/4400 | 77/4400 | 77/4400 | 77/4400 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1900 | 250/1900 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 185 | 185 | 185 | 190 | 185 | 185 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.3 | 11.7 | 11.5 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.1 | 5.6 | 4.7 | 6.5 | 6.6 |
| Out of town [l] | 3.9 | 3.7 | 4.2 | 3.4 | 4.3 | 4.4 |
| Combined [l] | 4.5 | 4.2 | 4.7 | 3.8 | 5.0 | 5.2 |
| CO2 emissions [g/km] | 119 | 109 | 123 | 99 | 135 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1325 | 1385 | 1325 | 1365 | 1365 |
| Overall weight [kg] | 1860 | 1820 | 1880 | 1820 | 1860 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 680/1400 | 680/1400 | - | 680/1400 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Wheel size front | - | 6.5J x 16 | - | 6.5J x 16 | - | - |
| Wheel size rear | - | 6.5J x 16 | - | 6.5J x 16 | - | - |
| Brake dimensions front | 280 x 22 | 280 x 22 | 280 x 22 | 280 x 22 | 280 x 22 | 280 x 22 |
| Brake dimensions rear | 253 x 10 | 253 x 10 | 253 x 10 | 253 x 10 | 255 x 10 | 255 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4315 | 4315 | 4315 | 4315 | 4315 | 4315 |
| Overall width without/including mirrors [mm] | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1517 | 1517 | 1517 | 1517 | 1517 | 1517 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 |
| Rear elbow/shoulder width [mm] | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 TDI | 1.9 TDI Ecomotive | 2.0 TDI | 2.0 TDI DPF | 2.0 TDI | 2.0 TDI DPF | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/8 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1896 | 1896 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 103/4000 | 103/4000 | 103/4000 | 103/4000 |
| Maximum torque [Nm/min-1] | 250/1900 | 250/1900 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 |
| Bore and stroke [mm x mm] | 79,5 x 95,5 | 79,5 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - | - | - |
|
|
| Top speed [km/h] | 185 | 186 | 205 | 205 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 11.7 | 10.9 | 9.3 | 9.3 | 9.3 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 5.7 | 7.4 | 7.0 | 7.3 | 7.5 |
| Out of town [l] | 4.9 | 3.9 | 4.6 | 4.7 | 4.9 | 5.0 |
| Combined [l] | 5.8 | 4.5 | 5.6 | 5.5 | 5.7 | 5.9 |
| CO2 emissions [g/km] | 154 | 119 | 147 | 147 | 154 | 156 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1225 | 1390 | 1390 | 1430 | 1430 |
| Overall weight [kg] | 1890 | 1820 | 1885 | 1885 | 1925 | 1925 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 341 | 341 | 341 | 341 | 341 | 341 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 | -/1166 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 280 x 22 | 280 x 22 | 288 x 25 | 288 x 25 | 288 x 25 | 288 x 25 |
| Brake dimensions rear | 255 x 10 | 255 x 10 | 255 x 10 | 255 x 10 | 255 x 10 | 255 x 10 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4315 | 4315 | 4315 | 4315 | 4315 | 4315 |
| Overall width without/including mirrors [mm] | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- | 1768/- |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1517 | 1517 | 1511 | 1511 | 1511 | 1511 |
| Forward overhang [mm] | 941 | 941 | 941 | 941 | 941 | 941 |
| Rear overhang [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 |
| Rear elbow/shoulder width [mm] | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 | -/1352 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI CR | 2.0 TDI CR | FR 2.0 TDI CR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 103/4000 | 103/4000 | 125/4200 | |||
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 16,0:1 | 16,0:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | |||
| Drive specifications | - |
| - | |||
| Top speed [km/h] | 205 | 205 | 214 | |||
| Acceleration 0–100 km/h [s] | 9.5 | 9.5 | 8.0-8.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.1 | 6.7 | 6.5-6.9 | |||
| Out of town [l] | 4.1 | 4.5 | 4.3-4.4 | |||
| Combined [l] | 4.8 | 5.3 | 5.1-5.3 | |||
| CO2 emissions [g/km] | 125 | 139 | 134-139 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1380 | 1400 | 1395 | |||
| Overall weight [kg] | 1875 | 1895 | 1890 | |||
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 700/1400 | 690/1400 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 341 | 341 | 341 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1166 | -/1166 | -/1166 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | |||
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | |||
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 225/45 R17 | |||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | |||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | |||
| Brake dimensions front | 288 x 25 | 288 x 25 | 312 x 25 | |||
| Brake dimensions rear | 253 x 10 | 253 x 10 | 253 x 10 | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | |||
| Overall length [mm] | 4315 | 4315 | 4309 | |||
| Overall width without/including mirrors [mm] | 1768/- | 1768/- | 1768/- | |||
| Overall height [mm] | 1455 | 1455 | 1449 | |||
| Wheelbase [mm] | 2578 | 2578 | 2578 | |||
| Front wheel track [mm] | 1535 | 1535 | 1527 | |||
| Rear wheel track [mm] | 1511 | 1511 | 1503 | |||
| Forward overhang [mm] | 941 | 941 | 941 | |||
| Rear overhang [mm] | 796 | 796 | 796 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 957 | 957 | 957 | |||
| Headroom rear [mm] | 963 | 963 | 963 | |||
| Front elbow/shoulder width [mm] | -/1400 | -/1400 | -/1400 | |||
| Rear elbow/shoulder width [mm] | -/1352 | -/1352 | -/1352 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

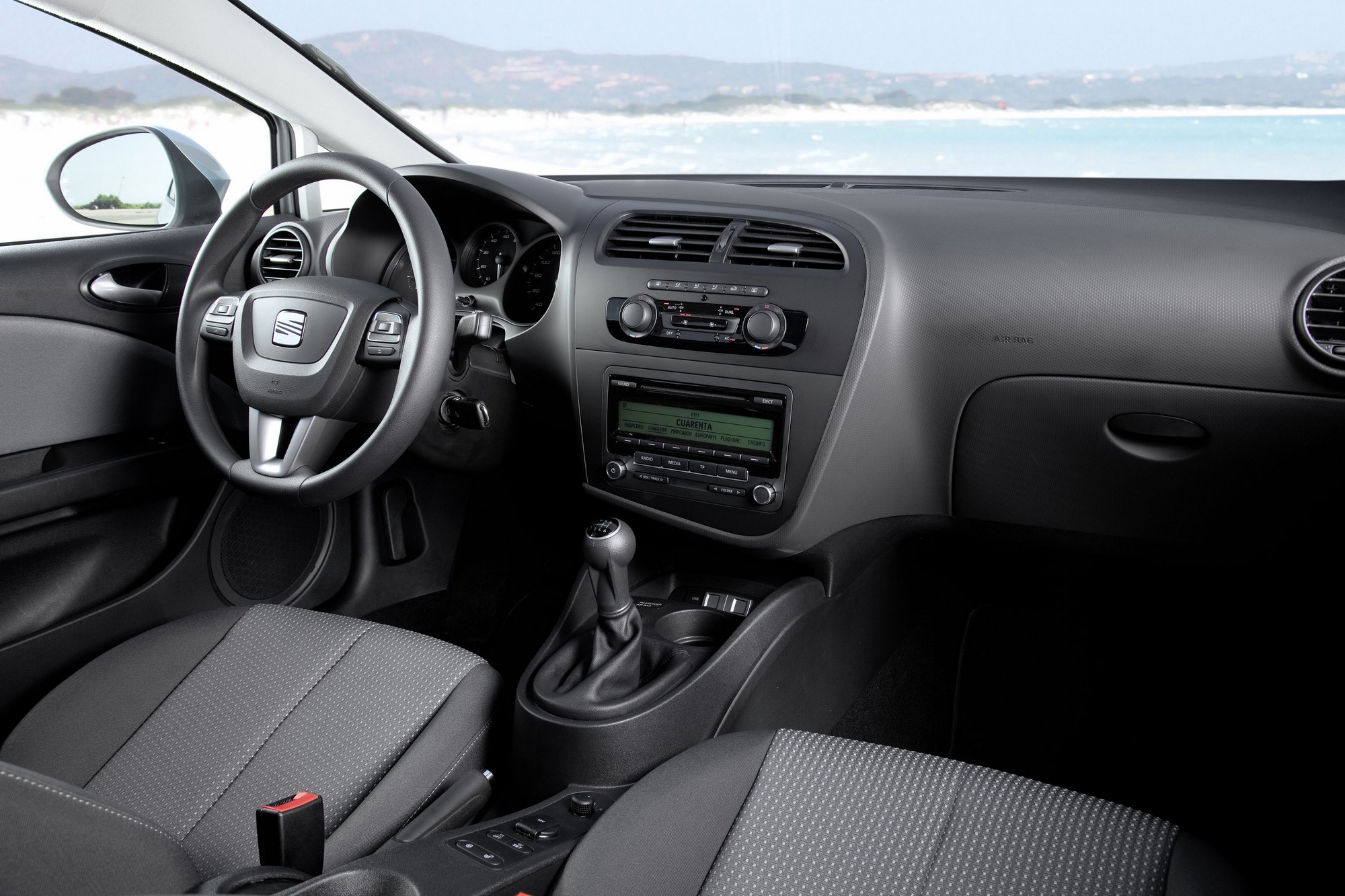

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
