Seat Leon
Date of manufacture
2020 – to this day (Five-door hatchback)
2020 – to this day (Estate)
Platform
Volkswagen Group MQB Evo
Manufacturing locations
Martorell, Spain
Designer
Alejandro Mesonero-Romanos
Tags
C-segment
Spanish cars
The new Seat Leon is available in a five-door hatchback and estate version. The car was first manufactured in 2020 in Spain on the Volkswagen Group MQB Evo platform. The engine range includes petrol, diesel and hybrid engines, the highest power is provided by the 1.4 e-HYBRID 204 with 150 kW and the best acceleration 0-100 km/h is achieved by the 2.0 TSI 190 with a top speed of 231 km/h. The lowest fuel consumption of 1.2 l/100 km and emissions of 27 g/km are provided by the 1.4 e-HYBRID 204. The five-door hatchback has a boot capacity of 380 l and the estate version 620 l. The new Seat Leon has successfully passed the EURONCAP safety tests, where it achieved a rating of 5 out of 5.
Car body style
Five-door hatchback
Date of manufacture
2020 – to this dayInternal designation
KL1Engine size
Estate (Sportstourer)
Date of manufacture
2020 – to this dayInternal designation
KL8Engine size
Technical data
Five-door hatchback
| 1.0 TSI 90 | 1.0 TSI 110 | 1.0 eTSI 110 | 1.5 TSI 130 | 1.5 TGI | 1.5 TGI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 66/5000-5500 | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1600-3000 | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 183 | 197 | 192 | 208 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 12,6 | 10,9 | 10,8 | 9,4 | 9,8 | 9,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5 | 5,9 | 5,2 | 6,5 | 5,1 kg | 4,6 kg |
| Out of town [l] | 4,1 | 4,2 | 4,2 | 4,4 | 3,0 kg | 3,2 kg |
| Combined [l] | 4,6 | 4,8 | 4,6 | 5,2 | 3,8 kg | 3,6 kg |
| CO2 emissions [g/km] | 106 | 110 | 104 | 119 | 102 | 99 |
| Low speed [l] | 7.0 | 7.1 | 6.6 | 7.5 | 5.3 kg | 5.8 kg |
| Medium speed [l] | 5.4 | 5.4 | 5.1 | 5.4 | 3.8 kg | 4.0 kg |
| High speed [l] | 4.7 | 4.8 | 4.7 | 4.7 | 3.3 kg | 3.4 kg |
| Extra high speed [l] | 5.7 | 5.7 | 5.8 | 5.5 | 3.7 kg | 3.8 kg |
| Combined speed [l] | 5,4-5,6 | 5,5-5,8 | 5,9-5,5 | 5,5-5,8 | 4,0-3,8 kg | 4,2-4,0 kg |
| CO2 emissions [g/km] | 123-128 | 125-131 | 135-124 | 124-132 | 109-103 | 115-109 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | - | - | - |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1275 | 1279 | 1330 | 1318 | 1382 | 1411 |
| Overall weight [kg] | 1750 | 1750 | 1860 | 1860 | 1860 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 630/1100 | 630/1300 | 630/1300 | 650/1400 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

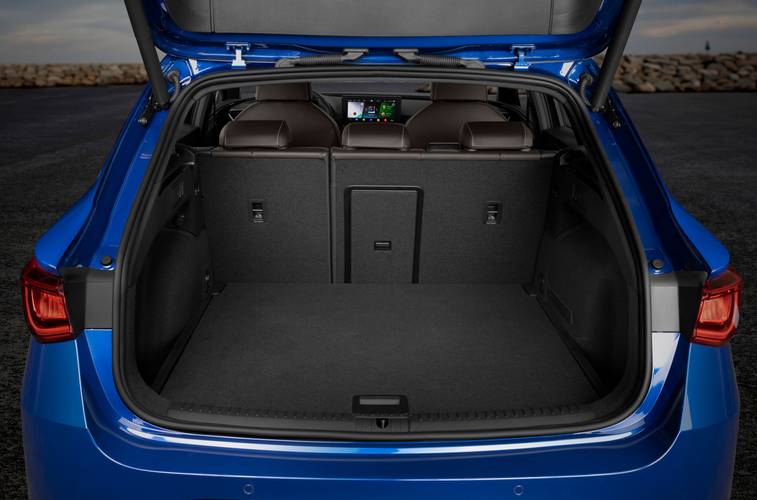

| Boot volume [l] | 380 | 380 | 380 | 380 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1301 | -/1220 | -/1220 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 9 [17.3 kg] | 9 [17.3 kg] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V |
| Wheel size front | 6J x 15 ET43 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 |
| Wheel size rear | 6J x 15 ET43 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 |
| Brake dimensions front | 276 x 24 | 276 x 24 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 |
| Overall length [mm] | 4368 | 4368 | 4368 | 4368 | 4368 | 4368 |
| Overall width without/including mirrors [mm] | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Rear elbow/shoulder width [mm] | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI 150 | 1.5 eTSI 150 | 2.0 TSI 190 | 1.4 e-HYBRID 204 | 2.0 TDI 115 | 2.0 TDI 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2021 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1395 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 110/5000-6000 85 el. 150 total | 85/2750-4250 | 110/3000-4200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 250/1550-3500 350 total | 300/1500-2500 | 360/1700-2750 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 74,5 x 80.0 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 9.3:1 | 10,0:1 | 16.0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - |
|
| - |
|
| Top speed [km/h] | 217 | 217 | 231 | 220 | 200 | 215 |
| Acceleration 0–100 km/h [s] | 8,7 | 8,5 | 7,4 | 7.5 | 10,2 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,6 | 5,9 | 8,1 | - | 5,1 | 4,7 |
| Out of town [l] | 4,6 | 4,2 | 5,0 | - | 3,3 | 3,6 |
| Combined [l] | 5,3 | 4,8 | 6,1 | 1.4 [11.9 kWh] | 4,0 | 4,0 |
| CO2 emissions [g/km] | 121 | 110 | 140 | 32 | 104 | 106 |
| Low speed [l] | 7.7 | 7.5 | 9.2 | 8.5 | 5.9 | 6.0 |
| Medium speed [l] | 5.7 | 5.4 | 6.8 | 5.2 | 4.1 | 4.3 |
| High speed [l] | 5.0 | 5.0 | 5.7 | 5.1 | 3.7 | 3.8 |
| Extra high speed [l] | 5.8 | 6.1 | 6.4 | 6.4 | 4.4 | 4.4 |
| Combined speed [l] | 5,7-6,0 | 6,0-5,7 | 6,7-6,9 | 1.2-1.1 [15.0-14.6 kWh] | 4,6-4,3 | 4,7-4,4 |
| CO2 emissions [g/km] | 130-135 | 136-130 | 151-157 | 27-25 | 119-112 | 124-115 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 12.8 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 58-64 [WLTP] | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1330 | 1361 | 1457 | 1614 | 1393 | 1448 |
| Overall weight [kg] | 1870 | 1900 | 1970 | 2060 | 1930 | 1980 |
| Maximum trailer weight unbraked/braked [kg] | 660/1500 | 680/1500 | 720/1600 | 750/1500 | 700/1500 | 720/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 270 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1301 | -/1301 | -/1301 | -/1191 | -/1301 | -/1301 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 50 | 40 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | multilink | multilink | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 195/65 R15 91H | 205/55 R16 91V |
| Tyre dimensions rear | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 195/65 R15 91H | 205/55 R16 91V |
| Wheel size front | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 6J x 15 ET43 | 6.5J x 16 ET46 |
| Wheel size rear | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 6J x 15 ET43 | 6.5J x 16 ET46 |
| Brake dimensions front | 310 x 25 | 310 x 25 | 310 x 25 | 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 |
| Overall length [mm] | 4368 | 4368 | 4368 | 4368 | 4368 | 4368 |
| Overall width without/including mirrors [mm] | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2685 | 2685 | 2685 | 2685 | 2685 | 2685 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Rear elbow/shoulder width [mm] | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - | - | - |   |
| Clean Air Index | - | - | - | - | - | 6.7/10 |
| Energy Efficiency Index | - | - | - | - | - | 6.5/10 |
| GHG index | - | - | - | - | - | 3.6/10 |
Estate (Sportstourer)
| 1.0 TSI 90 | 1.0 TSI 110 | 1.0 eTSI 110 | 1.5 TSI 130 | 1.5 TGI | 1.5 TSI 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 66/5000-5500 | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1600-3000 | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 184 | 199 | 199 | 209 | 203 | 218 |
| Acceleration 0–100 km/h [s] | 13,2 | 11,2 | 10,9 | 9,7 | 9.9 | 8,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,6 | 5,9 | 5,3 | 6,6 | 4.6 kg | 6,6 |
| Out of town [l] | 4,2 | 4,2 | 4,2 | 4,4 | 3.2 kg | 4,5 |
| Combined [l] | 4,7 | 4,8 | 4,6 | 5,2 | 3.6 kg | 5,3 |
| CO2 emissions [g/km] | 108 | 110 | 105 | 119 | 99 | 121 |
| Low speed [l] | 7.0 | 7.3 | 6.7 | 7.6 | 5.9 kg | 7.7 |
| Medium speed [l] | 5.4 | 5.5 | 5.3 | 5.5 | 4.1 kg | 5.6 |
| High speed [l] | 4.8 | 4.8 | 4.8 | 4.7 | 3.4 kg | 4.9 |
| Extra high speed [l] | 5.7 | 5.7 | 5.9 | 5.5 | 3.9 kg | 5.7 |
| Combined speed [l] | 5,4-5,7 | 5,5-5,9 | 5,5-5,9 | 5,5-5,9 | 4.3-4.1 kg | 5,7-6,1 |
| CO2 emissions [g/km] | 124-129 | 126-134 | 126-135 | 125-134 | 117-110 | 129-139 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | - | - | - |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1324 | 1332 | 1373 | 1362 | 1457 | 1374 |
| Overall weight [kg] | 1750 | 1900 | 1950 | 1960 | 1990 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 660/1100 | 630/1300 | 680/1300 | 680/1400 | - | 680/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 620 | 620 | 620 | 620 | 480 | 620 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1460 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 9 [17.3 kg] | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V | 225/45 R17 91W |
| Tyre dimensions rear | 195/65 R15 91H | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V | 205/55 R16 91V | 225/45 R17 91W |
| Wheel size front | 6J x 15 ET43 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 7,5J x 17 ET46 |
| Wheel size rear | 6J x 15 ET43 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 6.5J x 16 ET46 | 7,5J x 17 ET46 |
| Brake dimensions front | 276 x 24 | 276 x 24 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 | 310 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 |
| Overall length [mm] | 4642 | 4642 | 4642 | 4642 | 4642 | 4642 |
| Overall width without/including mirrors [mm] | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 |
| Overall height [mm] | 1448 | 1448 | 1448 | 1448 | 1448 | 1448 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Rear elbow/shoulder width [mm] | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 eTSI 150 | 2.0 TSI 190 | 1.4 e-HYBRID 204 | 2.0 TDI 115 | 2.0 TDI 150 | 2.0 TDI 150 4Drive | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2021 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1984 | 1395 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 140/4200-6000 | 110/5000-6000 85 el. 150 total | 85/2750-4250 | 110/3000-4200 | 110/3000-4200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 320/1500-4100 | 250/1550-3500 350 total | 300/1500-2500 | 360/1700-2750 | 360/1600-2750 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 82,5 x 92,8 | 74,5 x 80.0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 9.3:1 | 10,0:1 | 16.0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 218 | 231 | 220 | 200 | 217 | 214 |
| Acceleration 0–100 km/h [s] | 8,7 | 7,4 | 7.7 | 10,5 | 8,8 | 8,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,1 | 8,1 | - | 5,1 | 4,9 | 5,3 |
| Out of town [l] | 4,2 | 5,0 | - | 3,3 | 3,7 | 4,1 |
| Combined [l] | 4,9 | 6,2 | 1.4 [12.0 kWh] | 4,0 | 4,1 | 4,6 |
| CO2 emissions [g/km] | 113 | 141 | 32 | 104 | 109 | 120 |
| Low speed [l] | 7.5 | 9.4 | - | 5.9 | 6.1 | 6.6 |
| Medium speed [l] | 5.4 | 6.9 | - | 4.2 | 4.4 | 5.1 |
| High speed [l] | 4.8 | 5.7 | - | 3.7 | 3.8 | 4.4 |
| Extra high speed [l] | 5.9 | 6.3 | - | 4.5 | 4.4 | 5.1 |
| Combined speed [l] | 5,7-6,1 | 6,7-6,9 | 1.2-1.1 [15.1-14.7 kWh] | 4,3-4,6 | 4,4-4,8 | 5,1-5,4 |
| CO2 emissions [g/km] | 129-137 | 151-157 | 28-26 | 114-121 | 116-125 | 133-141 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | - | - | - | - | - |
| Battery type and capacity | - | - | Lithium-Ionen-Akkumulator, 12.8 kWh | - | - | - |
| Range with fully charged battery [km] | - | - | 58-63 [WLTP] | - | - | - |
| Charging time | - | - |
| - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1410 | 1503 | 1658 | 1436 | 1491 | 1598 |
| Overall weight [kg] | 2000 | 2050 | 2080 | 2030 | 2080 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 750/1600 | 750/1500 | 710/1500 | 740/1600 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 620 | 620 | 470 | 620 | 620 | 620 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1450 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 50 | 40 | 45 | 45 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | twist beam axle with trailing arms and torsion bar | multilink | multilink | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V |
| Tyre dimensions rear | 225/45 R17 91W | 225/45 R17 91W | 225/45 R17 91W | 195/65 R15 91H | 205/55 R16 91V | 205/55 R16 91V |
| Wheel size front | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 |
| Wheel size rear | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 7,5J x 17 ET46 | 6J x 15 ET43 | 6.5J x 16 ET46 | 6.5J x 16 ET46 |
| Brake dimensions front | 310 x 25 | 310 x 25 | 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 | 288 x 25 or 312 x 25 |
| Brake dimensions rear | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 | 272 x 10 |
| Steering | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS | Rack & pinion with electric power steering R-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 | 10.5/11.2 |
| Overall length [mm] | 4642 | 4642 | 4642 | 4642 | 4642 | 4642 |
| Overall width without/including mirrors [mm] | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 | 1799/1991 |
| Overall height [mm] | 1448 | 1448 | 1448 | 1448 | 1448 | 1448 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Rear wheel track [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1516 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1068 | 1068 | 1068 | 1068 | 1068 | 1068 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 977 | 977 | 977 | 977 | 977 | 977 |
| Front elbow/shoulder width [mm] | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- | 1452/- |
| Rear elbow/shoulder width [mm] | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- | 1433/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
