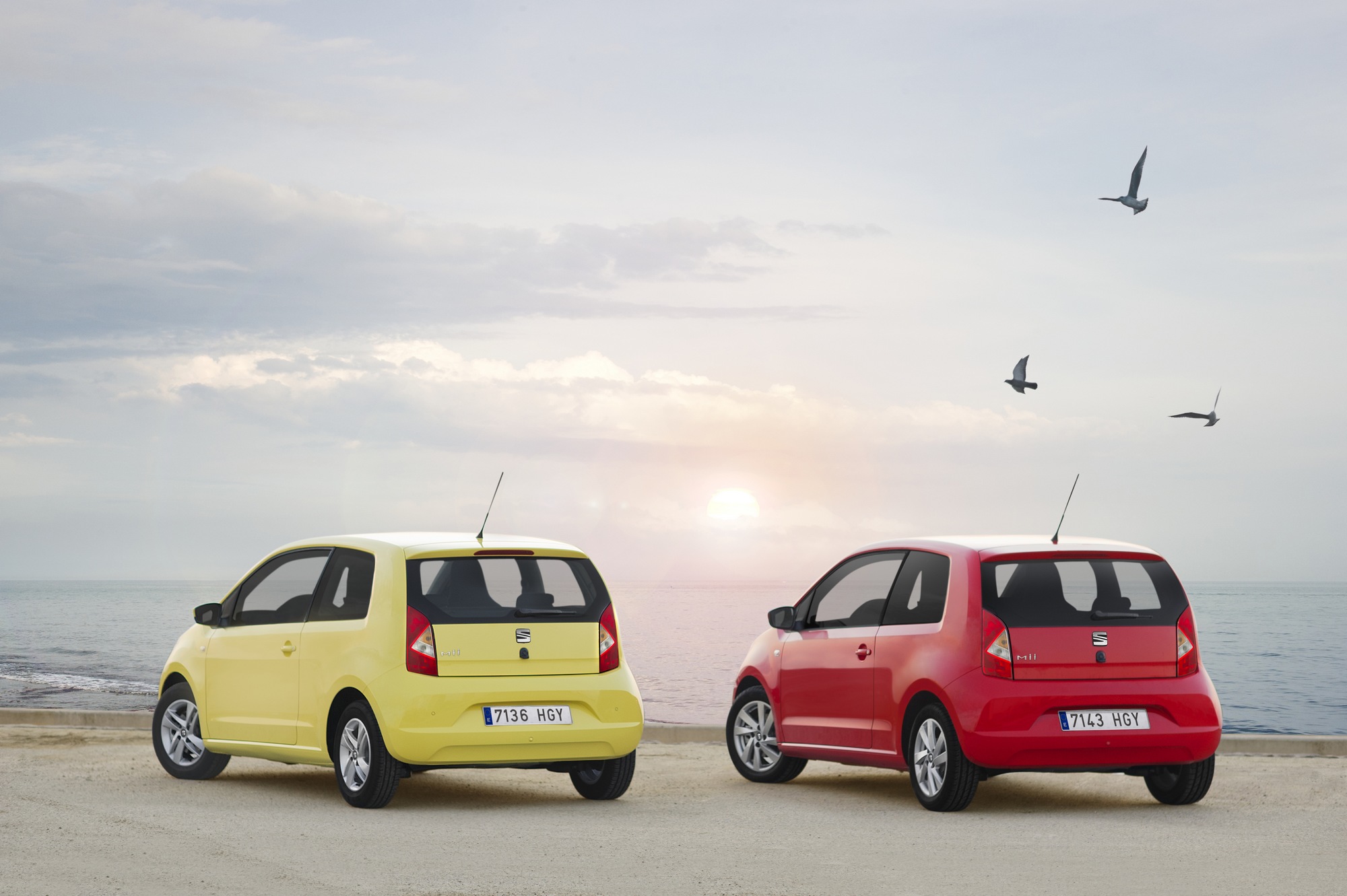

Seat Mii

Date of manufacture

12/2011 – 2018 (Three-door hatchback)

12/2011 – 2020 (Five-door hatchback)

Platform

Volkswagen Group NSF

Manufacturing locations

Bratislava, Slovakia

Designer

Car body style

Three-door hatchback

Date of manufacture

12/2011 – 2018

Internal designation

KF1

Engine size

1.0

1.0 CNG

Five-door hatchback

Date of manufacture

12/2011 – 2020

Internal designation

KF1

Engine size

Petrol

1.0

1.0 CNG

Electric

Mii electric

Euro NCAP

Technical data

Three-door hatchback

	1.0	1.0	1.0	1.0 CNG
Date of sale	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	3/12	3/12	3/12	3/12
Engine displacement [cm³]	999	999	999	999
Maximum output / speed [kW/min-1]	44/5000-6000	55/6200	55/6200	50/6200
Maximum torque [Nm/min-1]	95/3000-4300	95/3000-4300	95/3000-4300	90/3000
Bore and stroke [mm x mm]	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4
Compression ratio	10,5:1	10,5:1	10,5:1	11,5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	variable timing of intake valves	variable timing of intake valves	variable timing of intake valves	variable timing of intake valves start&stop system combustion of petrol or CNG

Drive axle	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear robotic manual	5 gear manual
Drive specifications	gearbox type MQ100‐5F	gearbox type MQ100‐5F	robotic gearbox SQ100‐5F	gearbox type MQ100‐5F

Top speed [km/h]	160	171	171	164
Acceleration 0–100 km/h [s]	14.4	13.2	13.9	16.3
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	5.6	5.9	5.5	5.5 [3.6 kg]
Out of town [l]	3.9	4.0	4.0	3.8 [2.5 kg]
Combined [l]	4.5	4.7	4.5	4.4 [2.9 kg]
CO2 emissions [g/km]	105	108	105	79

Emission standard	EU5-EU6	EU5-EU6	EU5-EU6	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	929	929	932	1031
Overall weight [kg]	1290	1290	1290	1370
Maximum trailer weight unbraked/braked [kg]	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-

Boot volume [l]	251	251	251	213
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/951	-/951	-/951	-/913
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	3	3	3	3
Number of seats	4	4	4	4
Fuel tank volume [l]	35	35	35	35 [11-12 kg]
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.32	0.32	0.32	0.32
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	165/70 R14	165/70 R14	165/70 R14	165/70 R14
Tyre dimensions rear	165/70 R14	165/70 R14	165/70 R14	165/70 R14
Wheel size front	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Wheel size rear	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Brake dimensions front	256 x 22	256 x 22	256 x 22	256 x 22
Brake dimensions rear	-	-	-	-
Steering	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	-/9.8	-/9.8	-/9.8	-/9.8

Overall length [mm]	3557	3557	3557	3557
Overall width without/including mirrors [mm]	1641/1910	1641/1910	1641/1910	1641/1910
Overall height [mm]	1478	1478	1478	1478
Wheelbase [mm]	2420	2420	2420	2420
Front wheel track [mm]	1428	1428	1428	1428
Rear wheel track [mm]	1424	1424	1424	1424
Forward overhang [mm]	595	595	595	595
Rear overhang [mm]	542	542	542	542
Clearance [mm]	-	-	-	-
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	993	993	993	993
Headroom rear [mm]	947	947	947	947
Front elbow/shoulder width [mm]	1417/-	1417/-	1417/-	1417/-
Rear elbow/shoulder width [mm]	1389/-	1389/-	1389/-	1389/-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Five-door hatchback

	1.0	1.0	1.0	1.0	1.0	1.0 CNG
Date of sale	from to 2018	from 2018 to	from to 2018	from to 2018	from 2018 to	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	3/12	3/12	3/12	3/12	3/12	3/12
Engine displacement [cm³]	999	999	999	999	999	999
Maximum output / speed [kW/min-1]	44/5000-6000	44/5000-6000	55/6200	55/6200	55/6200	50/6200
Maximum torque [Nm/min-1]	95/3000-4300	95/3000-4300	95/3000-4300	95/3000-4300	95/3000-4300	90/3000
Bore and stroke [mm x mm]	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4	74,5 x 76,4
Compression ratio	10,5:1	10,5:1	10,5:1	10,5:1	10,5:1	11,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake valves	variable timing of intake valves start&stop system	variable timing of intake valves	variable timing of intake valves	variable timing of intake valves start&stop system	variable timing of intake valves start&stop system combustion of petrol or CNG

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	5 gear robotic manual	5 gear manual	5 gear manual
Drive specifications	gearbox type MQ100‐5F	gearbox type MQ100‐5F	gearbox type MQ100‐5F	robotic gearbox SQ100‐5F	gearbox type MQ100‐5F	gearbox type MQ100‐5F

Top speed [km/h]	160	161	171	171	172	164
Acceleration 0–100 km/h [s]	14.4	14.4	13.2	13.9	13.5	16.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.6	4.9-4.8	5.9	5.5	5.1-5.0	5.6-5.5 [3.7-3.6 kg]
Out of town [l]	3.9	3.9	4.0	4.0	3.8	4.0-3.8 [2.7-2.5 kg]
Combined [l]	4.5	4.3	4.7	4.5	4.3	4.6-4.4 [3.1-2.9 kg]
CO2 emissions [g/km]	105	97-96	108	105	97-96	82-79

Emission standard	EU5-EU6	Euro 6d-TEMP	EU5-EU6	EU5-EU6	Euro 6d-TEMP	EU5-EU6
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	929	934	929	932	936	1031
Overall weight [kg]	1290	1330	1290	1290	1330	1370-1380
Maximum trailer weight unbraked/braked [kg]	-	-	-	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	50/-	50/-	50/-	50/-	50/-	50/-

Boot volume [l]	251	251	251	251	251	213
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/951	-/951	-/951	-/951	-/951	-/913
Boot length [mm]	-	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	35	35	35	35	35	35 [11-12 kg]
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.32	0.32	0.32	0.32	0.32	0.32
Front suspension	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms	twist beam axle with trailing arms
Tyre dimensions front	165/70 R14	165/70 R14	165/70 R14	165/70 R14	165/70 R14	165/70 R14
Tyre dimensions rear	165/70 R14	165/70 R14	165/70 R14	165/70 R14	165/70 R14	165/70 R14
Wheel size front	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Wheel size rear	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14	5.0J x 14
Brake dimensions front	256 x 22	256 x 22	256 x 22	256 x 22	256 x 22	256 x 22
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS	Rack & pinion with electric power steering m EHPS
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	-/9.8	-/9.8	-/9.8	-/9.8	-/9.8	-/9.8

Overall length [mm]	3557	3557	3557	3557	3557	3557
Overall width without/including mirrors [mm]	1645/1910	1645/1910	1645/1910	1645/1910	1645/1910	1645/1910
Overall height [mm]	1478	1478	1478	1478	1478	1478
Wheelbase [mm]	2420	2420	2420	2420	2420	2420
Front wheel track [mm]	1428	1428	1428	1428	1428	1428
Rear wheel track [mm]	1424	1424	1424	1424	1424	1424
Forward overhang [mm]	595	595	595	595	595	595
Rear overhang [mm]	542	542	542	542	542	542
Clearance [mm]	-	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-	-
Transition angle [°]	-	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	993	993	993	993	993	993
Headroom rear [mm]	947	947	947	947	947	947
Front elbow/shoulder width [mm]	1369/-	1369/-	1369/-	1369/-	1369/-	1369/-
Rear elbow/shoulder width [mm]	1388/-	1388/-	1388/-	1388/-	1388/-	1388/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

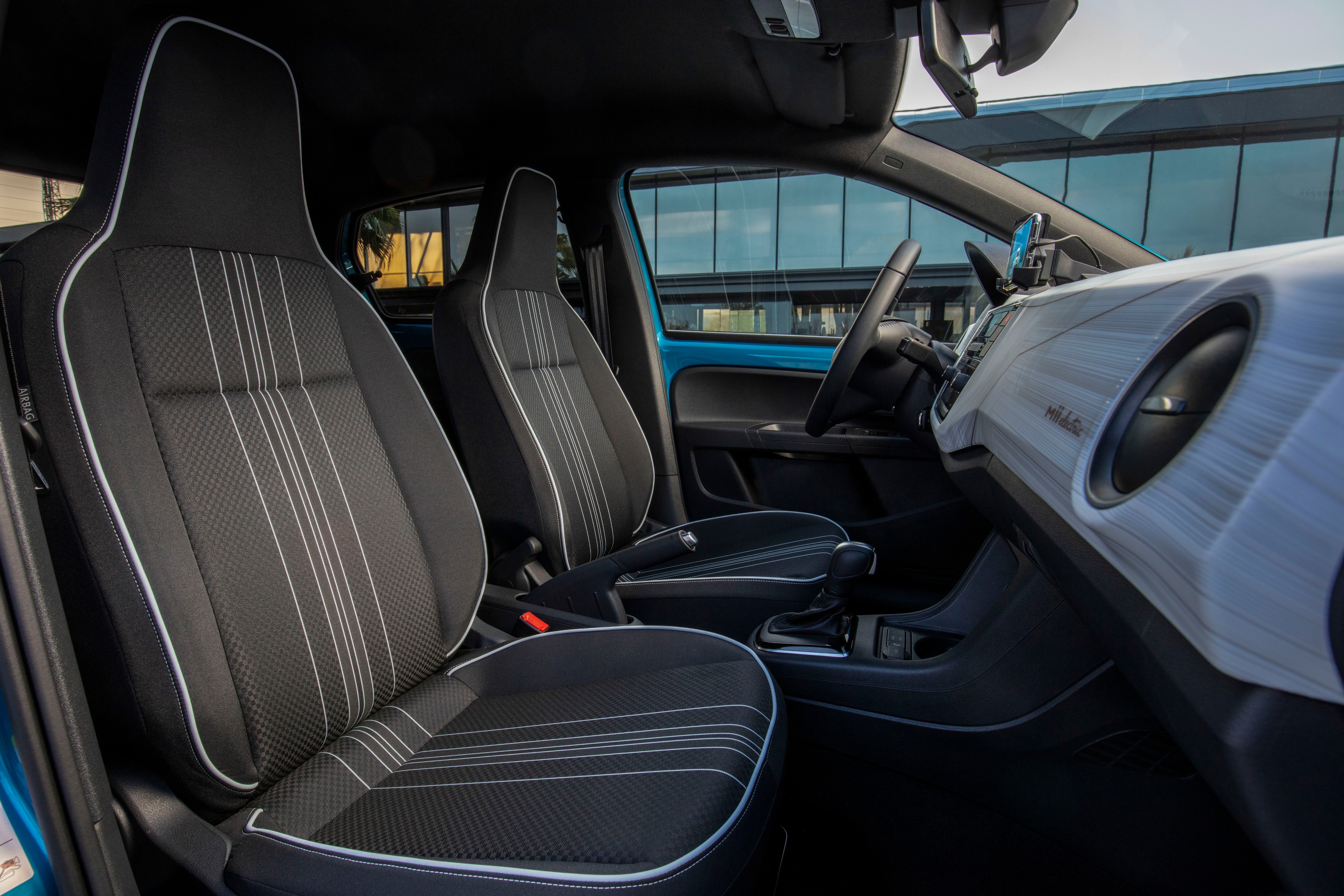

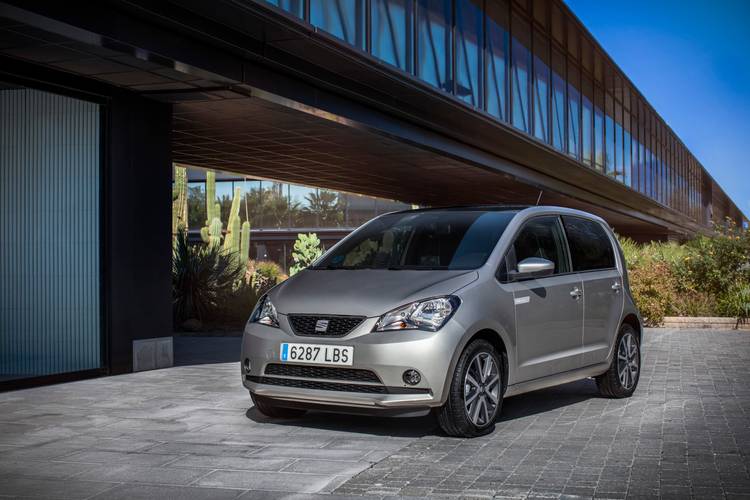

	Mii electric
Date of sale	from 2019 to
Engine type	Electric
Number of cylinders/valves	-
Engine displacement [cm³]	-
Maximum output / speed [kW/min-1]	61/2750-11000
Maximum torque [Nm/min-1]	212/0-2750
Bore and stroke [mm x mm]	-
Compression ratio	-
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	electric synchronous motor with permanent magnet

Drive axle	Front
Gearbox	1 gear automatic
Drive specifications	constant ratio gearbox

Top speed [km/h]	130
Acceleration 0–100 km/h [s]	12.3
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	-
Out of town [l]	-
Combined [l]	12.9-12.7 kWh
CO2 emissions [g/km]	-

Low speed [l]	-
Medium speed [l]	-
High speed [l]	-
Extra high speed [l]	-
Combined speed [l]	14.9-14.4 kWh
CO2 emissions [g/km]	-

Emission standard	-
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

System voltage [V]	307
Battery type and capacity	Lithium-ion, 36.8 kWh (32.3 net)
Range with fully charged battery [km]	250-259
Charging time	4:15 hours, charger 7.2 kW AC 1:00 hours, charger 40 kW DC
Number of modules/cells	-
Battery weight [kg]	-
Charger	-

Standby weight [kg]	1235
Overall weight [kg]	1530
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	50/-

Boot volume [l]	251
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/951
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	4
Fuel tank volume [l]	-
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, lower triangular arms, torsion stabiliser
Rear suspension	twist beam axle with trailing arms
Tyre dimensions front	165/70 R14
Tyre dimensions rear	165/70 R14
Wheel size front	5.0J x 14
Wheel size rear	5.0J x 14
Brake dimensions front	256 x 22
Brake dimensions rear	200 x 40 drum
Steering	Rack & pinion with electric power steering C-EPS
Number of steering wheel turns	-
Turning diameter track/circumference [m]	-/9.8

Overall length [mm]	3556
Overall width without/including mirrors [mm]	1645/1910
Overall height [mm]	1481
Wheelbase [mm]	2421
Front wheel track [mm]	1428
Rear wheel track [mm]	1424
Forward overhang [mm]	595
Rear overhang [mm]	542
Clearance [mm]	-
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	993
Headroom rear [mm]	947
Front elbow/shoulder width [mm]	1369/-
Rear elbow/shoulder width [mm]	1388/-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.

Seat Mii

Date of manufacture

Platform

Manufacturing locations

Designer

Tags

Car body style

Three-door hatchback

Five-door hatchback

Euro NCAP

Technical data

Three-door hatchback

Five-door hatchback

Gallery
