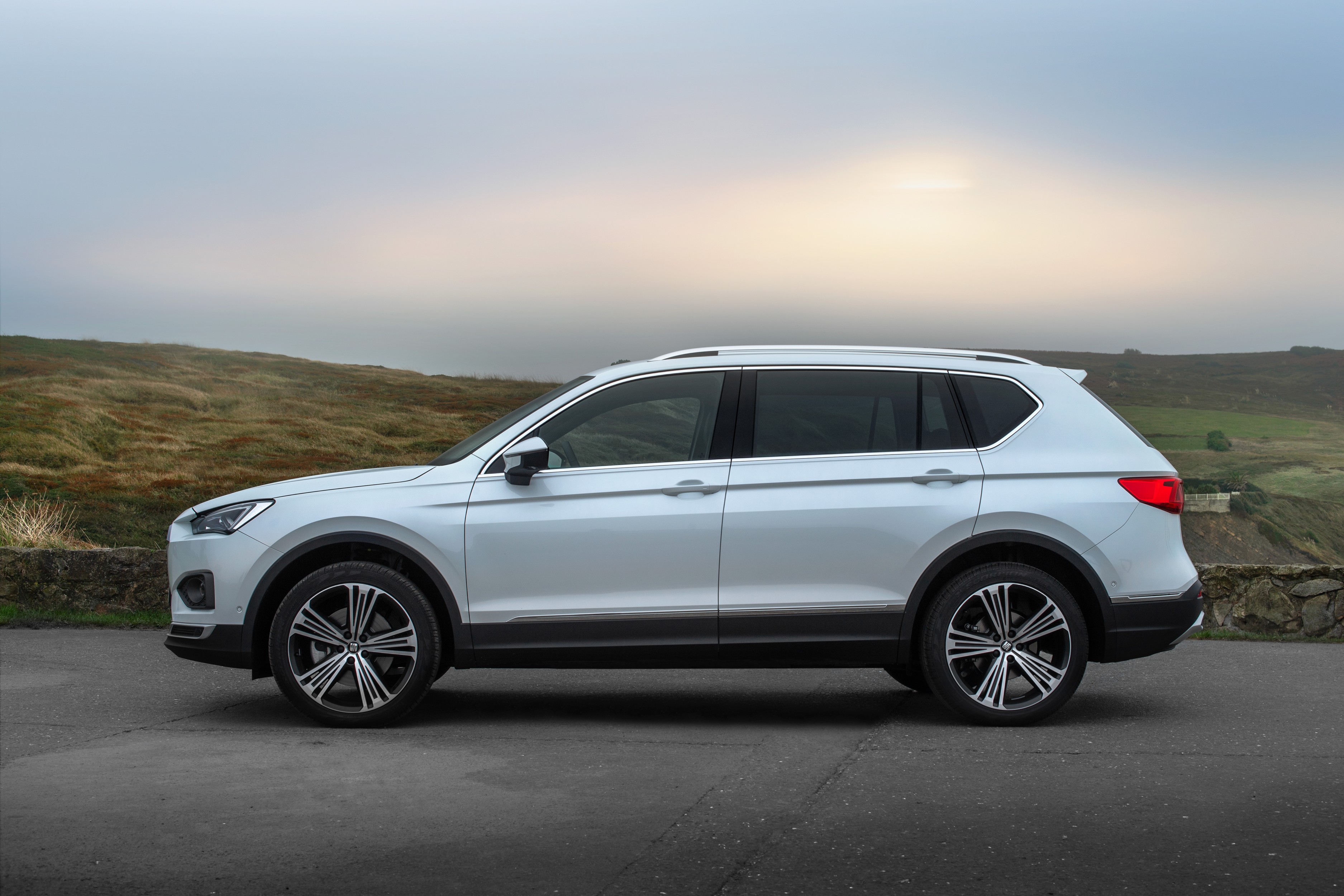

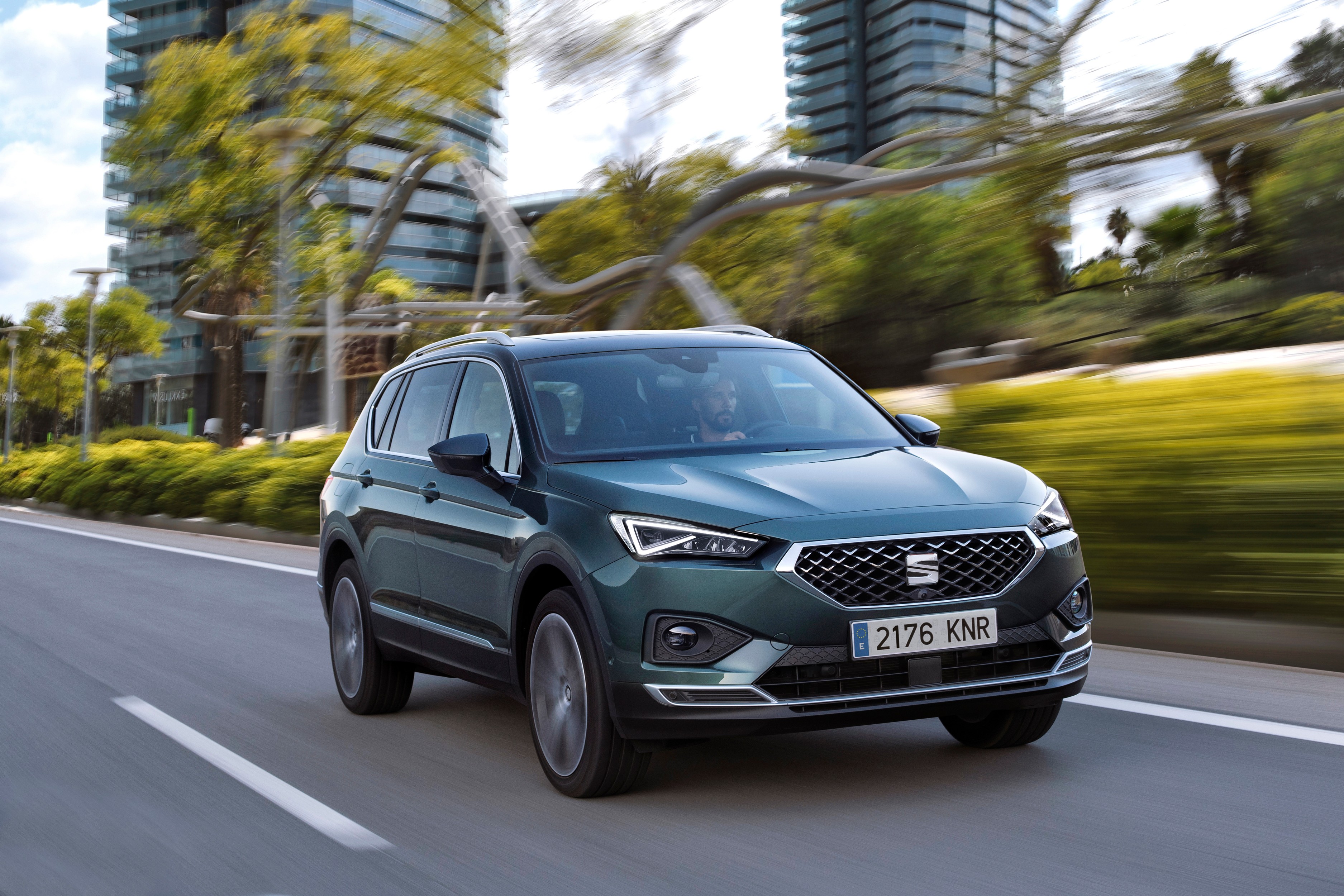

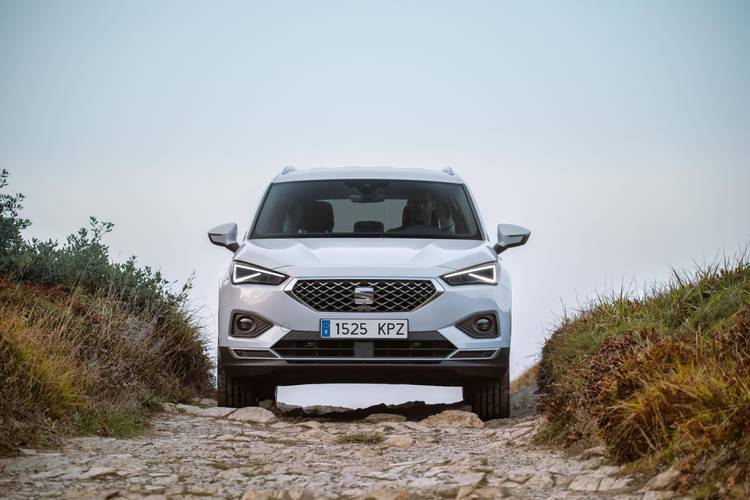

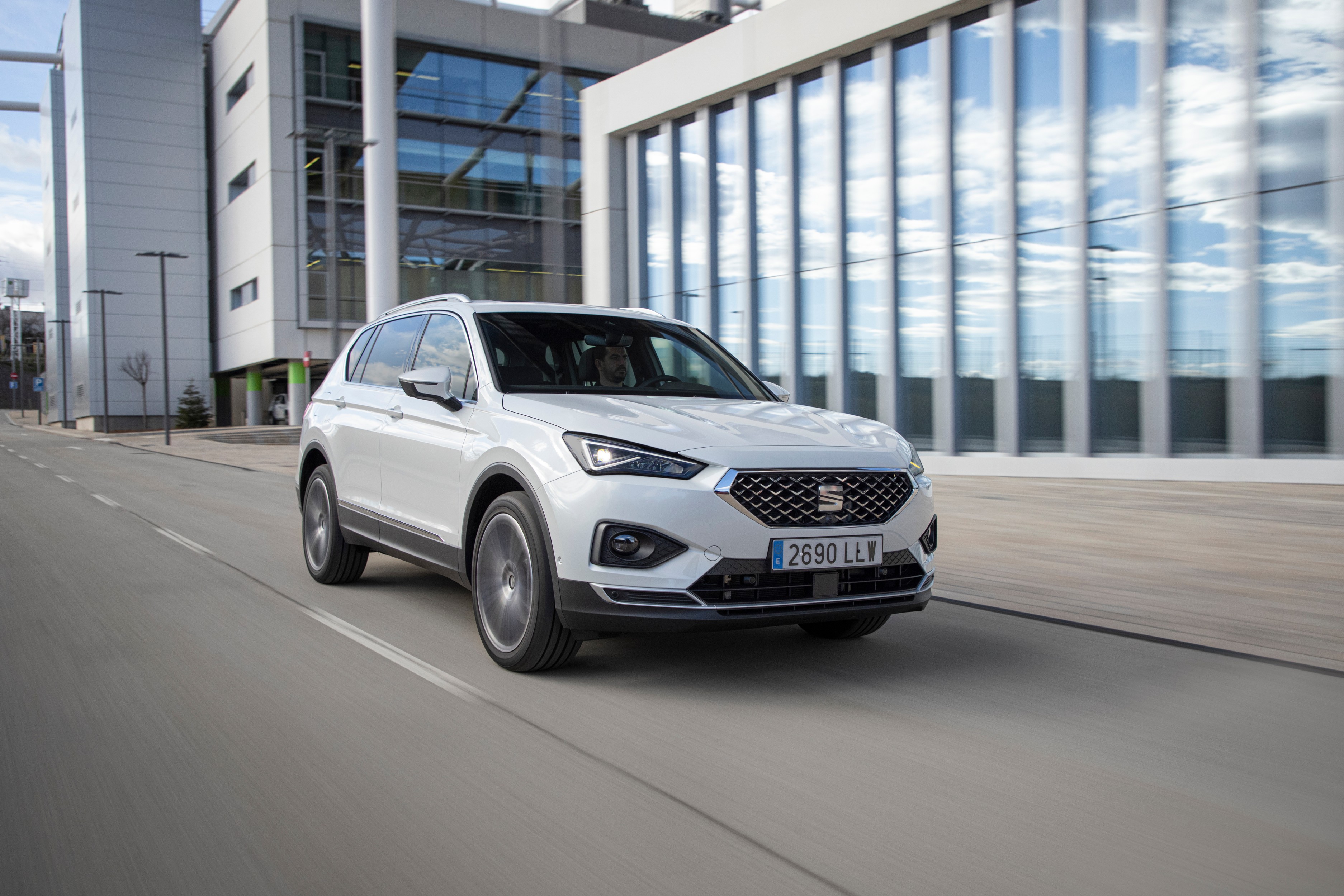

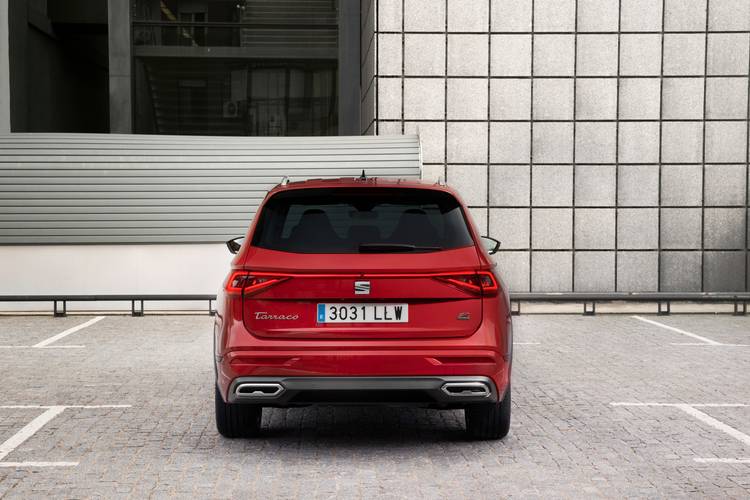

Seat Tarraco
Date of manufacture
10/2018 – to this day (Medium SUV)
Platform
Volkswagen Group MQB A2
Manufacturing locations
Wolfsburg, Germany
Designer
Alejandro Mesonero-Romanos
Tags
Compact SUV
Spanish cars
The Seat Tarraco is a mid-sized SUV that was launched in 2018. It is manufactured in Germany and built on the Volkswagen Group MQB A2 platform. It offers a wide range of engines, from petrol to hybrid and plug-in hybrid. The most powerful model is the 1.4 e-HYBRID 245 with 180 kW of power and the fastest model is the 2.0 TSI 245 4Drive, which reaches a top speed of 228 km/h and accelerates from 0-100 km/h in 6.2 seconds. In terms of fuel consumption, the 1.4 e-HYBRID 245 performs best with 2.1 l/100 km and emissions of 44 g/km. The boot size is 610 l and the model has successfully passed EURONCAP safety tests, scoring 5 out of 5.
Car body style
Medium SUV
Date of manufacture
10/2018 – to this dayInternal designation
KN2Engine size
Technical data
Medium SUV
| 1.5 TSI 150 | 1.5 TSI 150 | 2.0 TSI 190 4Drive | 2.0 TSI 245 4Drive | 1.4 e-HYBRID 245 | 2.0 TDI 150 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2019 to | - | from 2021 to | from 2021 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 180/5250-6500 | 110/5000-6000 85 el. 180 total | 110/3500 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 370/1600-4300 | 250/1550-3500 400 total | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80.0 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 11.65-12.2:1 | 9,6:1 | 10,0:1 | 16,2:1 |
| Oil volume [l] | 4.8 | 4.8 | 6.6 | - | - | 5.3 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 199-201 | 199 | 210-211 | 228 | 205 | 199-202 |
| Acceleration 0–100 km/h [s] | 9,7-9,9 | 9,5 | 7,8-8,0 | 6,2 | 7.5 | 9,8-10,2 |
| Acceleration 0–80 km/h [s] | 6.5 | 6.6 | 5.3 | - | - | 6.8 |
| Acceleration 80–120 km/h [s] | 11.9 | 12.5 | 13.6 | - | - | 14.4 |
| City [l] | 6,8-8,5 | 6,7 | 8,7-9,0 | 9,4 | - | 5,8-6,2 |
| Out of town [l] | 5,6 | 5,8 | 6,3 | 6,6 | - | 4,2-4,7 |
| Combined [l] | 6,1-6,6 | 6,1 | 7,2-7,3 | 7,6 | 1.8 [14.5 kWh] | 4,9-5,0 |
| CO2 emissions [g/km] | 139-152 | 140 | 164-166 | 175 | 41 | 129-131 |
| Low speed [l] | 8.4 | 9.1 | 10.0 | 11.9 | - | 6.7 |
| Medium speed [l] | 6.6 | 7.3 | 7.9 | 8.4 | - | 5.2 |
| High speed [l] | 6.0 | 6.3 | 7.0 | 7.3 | - | 4.7 |
| Extra high speed [l] | 7.4 | 7.6 | 8.1 | 8.3 | - | 5.8 |
| Combined speed [l] | 7,7-6,7 | 8,1-7,1 | 8,7-8,0 | 9,2-8,5 | 2.1-1.9 [18.0-16.9 kWh] | 6,0-5,4 |
| CO2 emissions [g/km] | 174-152 | 184-162 | 198-181 | 208-193 | 44-47 | 156-141 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.0 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 44-49 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1576-1599 | 1611 | 1749-1773 | 1769 | 1868 | 1687-1695 |
| Overall weight [kg] | 2150-2220 | 2180 | 2360-2380 | 2360 | 2390 | 2230-2290 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2250 | 2300/750 | 750/1800 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80-100 | 100 | 80-100 | 100 | 100 | 80-100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 760 | 760 | 760 | 760 | 610 | 760 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 60 | 60 | 45 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/65 R17 99V | 215/65 R17 99V | 235/50 R19 99V | 215/65 R17 99V | 235/50 R19 99V | 215/65 R17 99V |
| Tyre dimensions rear | 215/65 R17 99V | 215/65 R17 99V | 235/50 R19 99V | 215/65 R17 99V | 235/50 R19 99V | 215/65 R17 99V |
| Wheel size front | 7J x 17 ET40 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 17 ET40 |
| Wheel size rear | 7J x 17 ET40 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 17 ET40 |
| Brake dimensions front | 314 x 30 | 314 x 30 | 340 x 30 | 340 x 30 | 340 x 30 | 314 x 30 |
| Brake dimensions rear | 300 x 12 | 300 x 12 | 300 x 12 | 310 x 22 | 310 x 22 | 300 x 12 |
| Steering | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4735 | 4735 | 4735 | 4735 | 4735 | 4735 |
| Overall width without/including mirrors [mm] | 1839/2118 | 1839/2118 | 1839/2118 | 1839/2118 | 1839/2118 | 1839/2118 |
| Overall height [mm] | 1658 | 1658 | 1658 | 1658 | 1658 | 1658 |
| Wheelbase [mm] | 2790 | 2790 | 2790 | 2790 | 2790 | 2790 |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Rear wheel track [mm] | 1574 | 1574 | 1574 | 1574 | 1574 | 1574 |
| Forward overhang [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Rear overhang [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1054 | 1054 | 1054 | 1054 | 1054 | 1054 |
| Headroom rear [mm] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 859 | 859 | 859 | 859 | 859 | 859 |
| Third row elbow/shoulder width [mm] | 1278/- | 1278/- | 1278/- | 1278/- | 1278/- | 1278/- |
| 2.0 TDI 150 | 2.0 TDI 150 4Drive | 2.0 TDI 190 4Drive | 2.0 TDI 200 4Drive | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2020 | from 2021 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 140/3500-4000 | 147/3600-4100 | ||
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 400/1750-3250 | 400/1750-3500 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 15.5:1 | 15.5:1 | ||
| Oil volume [l] | 5.3 | 5.3 | 5.3 | 5.3 | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 196 | 198 | 210 | 210 | ||
| Acceleration 0–100 km/h [s] | 10,1 | 9,8 | 8,0 | 7,8 | ||
| Acceleration 0–80 km/h [s] | - | 6.3 | 5.2 | - | ||
| Acceleration 80–120 km/h [s] | - | 13.2 | 15.5 | - | ||
| City [l] | 5,8 | 6,2 | 6,4 | 6,6 | ||
| Out of town [l] | 4,3 | 5,2 | 5,1 | 5,0 | ||
| Combined [l] | 4,9 | 5,6 | 5,6 | 5,6 | ||
| CO2 emissions [g/km] | 128 | 146 | 147 | 148 | ||
| Low speed [l] | 7.2 | - | - | 8.5 | ||
| Medium speed [l] | 5.3 | - | - | 6.2 | ||
| High speed [l] | 4.7 | - | - | 5.6 | ||
| Extra high speed [l] | 5.6 | - | - | 6.7 | ||
| Combined speed [l] | 6,0-5,4 | - | - | 7,0-6,5 | ||
| CO2 emissions [g/km] | 157-142 | - | - | 183-170 | ||
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1728 | 1803 | 1816 | 1780 | ||
| Overall weight [kg] | 2270 | 2410 | 2410 | 2380 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2300 | 750/2300 | 2300/750 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 80-100 | 80-100 | 80-100 | 80-100 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 760 | 760 | 760 | 760 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot volume, third row of seats [l] | - | - | - | - | ||
| Boot volume, third row seats folded [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | ||
| Fuel tank volume [l] | 58 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/65 R17 99V | 215/65 R17 99V | 235/50 R19 99V | 235/50 R19 99V | ||
| Tyre dimensions rear | 215/65 R17 99V | 215/65 R17 99V | 235/50 R19 99V | 235/50 R19 99V | ||
| Wheel size front | 7J x 17 ET40 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 19 ET43 | ||
| Wheel size rear | 7J x 17 ET40 | 7J x 17 ET40 | 7J x 19 ET43 | 7J x 19 ET43 | ||
| Brake dimensions front | 314 x 30 | 314 x 30 | 340 x 30 | 340 x 30 | ||
| Brake dimensions rear | 300 x 12 | 300 x 12 | 300 x 12 | 300 x 12 | ||
| Steering | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS | Electric power steering R-EPS | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | ||
| Overall length [mm] | 4735 | 4735 | 4735 | 4735 | ||
| Overall width without/including mirrors [mm] | 1839/2118 | 1839/2118 | 1839/2118 | 1839/2118 | ||
| Overall height [mm] | 1658 | 1658 | 1658 | 1658 | ||
| Wheelbase [mm] | 2790 | 2790 | 2790 | 2790 | ||
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | ||
| Rear wheel track [mm] | 1574 | 1574 | 1574 | 1574 | ||
| Forward overhang [mm] | 926 | 926 | 926 | 926 | ||
| Rear overhang [mm] | 1019 | 1019 | 1019 | 1019 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1054 | 1054 | 1054 | 1054 | ||
| Headroom rear [mm] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | 1003 [1002 seven seats] | ||
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | ||
| Rear elbow/shoulder width [mm] | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 | 1494/- [1500 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - | ||
| Third row of seats, headroom [mm] | 859 | 859 | 859 | 859 | ||
| Third row elbow/shoulder width [mm] | 1278/- | 1278/- | 1278/- | 1278/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
