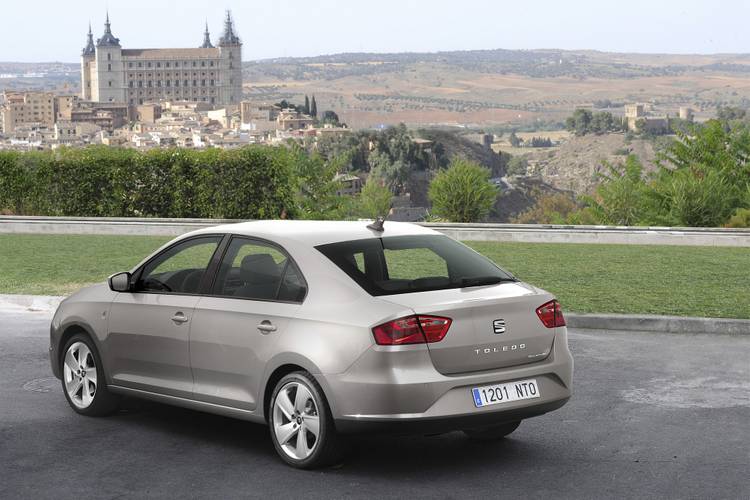

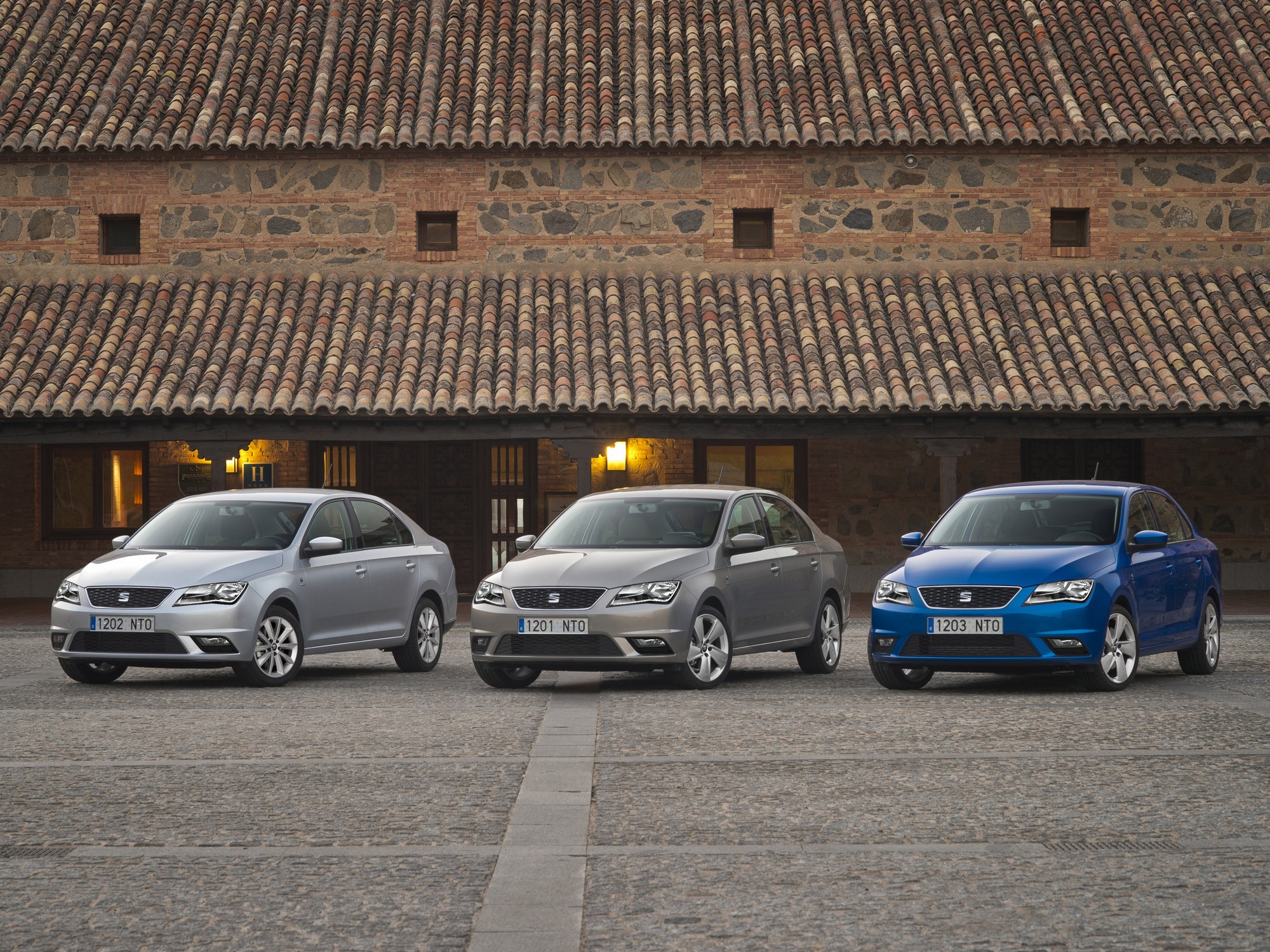

Seat Toledo
Date of manufacture
2012 – 2019 (Liftback)
Platform
Volkswagen Group A05+
Manufacturing locations
Mladá Boleslav, Czechia
Designer
Alejandro Mesonero-Romanos
Tags
B-segment
Spanish cars
The Seat Toledo sedan has been produced since 2012 and the Czech Republic is the country where this car is manufactured. The car is built on the Volkswagen Group A05+ platform. The engine range includes petrol and diesel engines. The most powerful model is the 1.4 TSI with 92 kW, which is also the fastest version of the car with a maximum speed of 208 km/h and the best acceleration 0-100 km/h in 9.0 seconds. The most economical version is the 1.4 TDI CR with a combined fuel consumption of 3.6 l/100 km and CO2 emissions of 94 g/km. The luggage compartment volume reaches 550 liters and in 2012 it was tested in the EURONCAP safety area, where it achieved a rating of 5 out of 5.
Car body style
Liftback
Date of manufacture
2012 – 2019Internal designation
NH
Technical data
Liftback
| 1.2 MPI | 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.0 TSI 95 | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to 2017 | from 2015 to 2017 | from 2017 to | from to 2015 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/8 | 4/16 | 4/16 | 3/12 | 4/8 |
| Engine displacement [cm³] | 1198 | 1197 | 1197 | 1197 | 999 | 1197 |
| Maximum output / speed [kW/min-1] | 55/5400 | 63/4800 | 66/4400-5400 | 66/4400-5400 | 70/5000-5500 | 77/5000 |
| Maximum torque [Nm/min-1] | 112/3750 | 160/1500-3500 | 160/1400-3500 | 160/1400-3500 | 175/2000-3500 | 175/1550-4100 |
| Bore and stroke [mm x mm] | 76,5 x 86,9 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 76,4 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 175 | 183 | 186 | 186 | 187 | 195 |
| Acceleration 0–100 km/h [s] | 13.9 | 11.8 | 11.3 | 11.3 | 11.0 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 6.5 | 6.2 | 5.9 | - | 6.9 |
| Out of town [l] | 4.8 | 4.4 | 3.8 | 3.9 | - | 4.6 |
| Combined [l] | 6.1 | 5.1 | 4.7 | 4.6 | 4.5 | 5.4 |
| CO2 emissions [g/km] | 137 | 119 | 112 | 105 | 103 | 125 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | Euro 6 - Euro 6d-TEMP | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1135 | 1155 | 1156 | 1156 | 1170 | 1175 |
| Overall weight [kg] | 1595 | 1615 | 1616 | 1616 | 1630 | 1635 |
| Maximum trailer weight unbraked/braked [kg] | 560/750 | 570/900 | 570/900 | 580/900 | - | 580/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 5 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 195/55 R15 | 195/55 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 195/55 R15 | 195/55 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 | 256 x 22 | 288 x 25 |
| Brake dimensions rear | - | - | - | - | 230 x 9 or 228 x 32 drum | - |
| Steering | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4482 | 4482 | 4482 | 4482 | 4482 | 4482 |
| Overall width without/including mirrors [mm] | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Rear wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Forward overhang [mm] | 876 | 876 | 876 | 876 | 876 | 876 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.0 TSI 110 | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from 2015 to 2017 | from 2015 to 2017 | from 2017 to | from to 2015 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 999 | 1390 | 1395 |
| Maximum output / speed [kW/min-1] | 77/5000 | 81/4600-5600 | 81/4600-5600 | 81/5500 | 90/5000 | 92/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1400-4000 | 175/1400-4000 | 200/2000-3500 | 200/1500-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 76,4 | 76,5 x 75,6 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,5:1 | 10.5:1 | 10,0:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 195 | 200 | 200 | 200 | 206 | 208 |
| Acceleration 0–100 km/h [s] | 10.3 | 9.8 | 9.9 | 9.8 | 9.5 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.7 | 6.1 | - | 7.4 | 6.0 |
| Out of town [l] | 4.2 | 3.2 | 4.1 | - | 4.8 | 4.0 |
| Combined [l] | 5.0 | 5.1 | 4.8 | 4.6 | 5.8 | 4.7-4.9 |
| CO2 emissions [g/km] | 116 | 117 | 108 | 106 | 134 | 112-115 |
| Emission standard | EU5 | EU6 | EU6 | Euro 6 - Euro 6d-TEMP | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1175 | 1176 | 1185 | 1190 | 1230 | 1226 |
| Overall weight [kg] | 1635 | 1636 | 1645 | 1650 | 1690 | 1686 |
| Maximum trailer weight unbraked/braked [kg] | 580/1100 | 580/1100 | 590/1100 | - | 610/1200 | 610/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 5 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R15 | 195/55 R15 | 195/55 R15 | 195/55 R15 | 215/45 R16 | 215/45 R16 |
| Tyre dimensions rear | 195/55 R15 | 195/55 R15 | 195/55 R15 | 195/55 R15 | 215/45 R16 | 215/45 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | 288 x 25 | 288 x 25 | 288 x 25 | 256 x 22 | 288 x 25 | 288 x 25 |
| Brake dimensions rear | - | 230 x 9 | 230 x 9 | 230 x 9 | 230 x 9 | 230 x 9 |
| Steering | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4482 | 4482 | 4482 | 4482 | 4482 | 4482 |
| Overall width without/including mirrors [mm] | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Rear wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Forward overhang [mm] | 876 | 876 | 876 | 876 | 876 | 876 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TDI CR | 1.4 TDI CR | 1.4 TDI CR | 1.6 TDI CR | 1.6 TDI CR | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to 2017 | from 2015 to 2017 | from 2015 to 2017 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1422 | 1422 | 1422 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/3500 | 66/3500 | 66/3500 | 66/4200 | 66/4200 | 77/4400 |
| Maximum torque [Nm/min-1] | 230/1750-2500 | 230/1750-2500 | 230/1750-2500 | 230/1500-2500 | 230/1500-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 185 | 185 | 185 | 184 | 184 | 190 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 11.8 | 12.0 | 12.2 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.4 | 4.2 | 4.0 | 5.6 | 5.6 | 5.6 |
| Out of town [l] | 3.2 | 3.4 | 3.4 | 3.7 | 3.9 | 3.7 |
| Combined [l] | 3.6 | 3.6 | 3.6 | 4.4 | 4.5 | 4.4 |
| CO2 emissions [g/km] | 94 | 94 | 94 | 114 | 118 | 114 |
| Emission standard | EU6 | EU6 | EU6 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1229 | 1234 | 1255 | 1265 | 1285 | 1265 |
| Overall weight [kg] | 1689 | 1694 | 1715 | 1725 | 1745 | 1725 |
| Maximum trailer weight unbraked/braked [kg] | 610/1000 | 610/1000 | 620/1000 | 630/1200 | 640/1200 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 215/45 R16 | 185/60 R15 | 185/60 R15 | 195/55 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 215/45 R16 | 185/60 R15 | 185/60 R15 | 195/55 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 7.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 7.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | 256 x 22 | 256 x 22 | 256 x 22 | 288 x 25 | 288 x 25 | 288 x 25 |
| Brake dimensions rear | - | - | 230 x 9 | - | - | - |
| Steering | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4482 | 4482 | 4482 | 4482 | 4482 | 4482 |
| Overall width without/including mirrors [mm] | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- | 1706/- |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1463 | 1463 | 1463 | 1463 | 1463 | 1463 |
| Rear wheel track [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Forward overhang [mm] | 876 | 876 | 876 | 876 | 876 | 876 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR | 1.6 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 77/4400 | 85/3500-4000 | ||||
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 190 | 201 | ||||
| Acceleration 0–100 km/h [s] | 10.4 | 10.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.8 | 5.4 | ||||
| Out of town [l] | 3.4 | 3.6 | ||||
| Combined [l] | 3.9 | 4.3-4.4 | ||||
| CO2 emissions [g/km] | 104 | 112-116 | ||||
| Emission standard | EU5 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1265 | 1287 | ||||
| Overall weight [kg] | 1725 | 1747 | ||||
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 640/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 550 | 550 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 55 | 55 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 195/55 R15 | 195/55 R15 | ||||
| Tyre dimensions rear | 195/55 R15 | 195/55 R15 | ||||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | ||||
| Brake dimensions front | 288 x 25 | 288 x 25 | ||||
| Brake dimensions rear | - | 230 x 9 | ||||
| Steering | Rack & pinion with electric power steering m EHPS | Rack & pinion with electric power steering m EHPS | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | ||||
| Overall length [mm] | 4482 | 4482 | ||||
| Overall width without/including mirrors [mm] | 1706/- | 1706/- | ||||
| Overall height [mm] | 1461 | 1461 | ||||
| Wheelbase [mm] | 2602 | 2602 | ||||
| Front wheel track [mm] | 1463 | 1463 | ||||
| Rear wheel track [mm] | 1500 | 1500 | ||||
| Forward overhang [mm] | 876 | 876 | ||||
| Rear overhang [mm] | 1004 | 1004 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1014 | 1014 | ||||
| Headroom rear [mm] | 972 | 972 | ||||
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | ||||
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
