Škoda Citigo
Date of manufacture
10/2011 – 2017 (Three-door hatchback)
10/2011 – 2017 (Five-door hatchback)
Platform
Volkswagen Group NSF
Manufacturing locations
Bratislava, Slovakia
Designer
-
Tags
A-segment
Czech cars

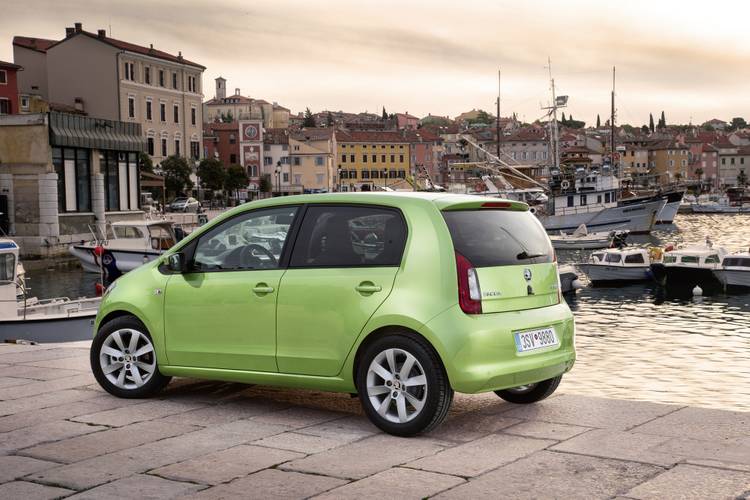

The Skoda Citigo is available as a three-door hatchback and five-door hatchback. This vehicle has been manufactured in Slovakia since 2011, based on the Volkswagen Group NSF platform. It only offers petrol engines with the highest power of 55 kW in the 1.0 MPI Green tec model. The fastest variant, the 1.0 MPI Green tec, reaches a maximum speed of 172 km/h and 0-100 km/h in 13.2 seconds. The 1.0 MPI Green tec model offers the lowest fuel consumption of 4 l/100 km and emissions of 93 g/km CO2. The three-door version has a luggage compartment volume of 251 l, as does the five-door variant. In terms of safety, EURONCAP gave this vehicle a rating of 5 out of 5 in 2011.
Car body style
Three-door hatchback
Date of manufacture
10/2011 – 2017Internal designation
Five-door hatchback
Date of manufacture
10/2011 – 2017Internal designation
Technical data
Three-door hatchback
| 1.0 MPI | 1.0 MPI Green tec | 1.0 MPI | 1.0 MPI Green tec | 1.0 MPI G-TEC | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 11,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 160 | 161 | 160 | 161 | 164 | 171 |
| Acceleration 0–100 km/h [s] | 14.4 | 14.4 | 15.3 | 15.3 | 16.3 | 13.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.0 | 5.3 | 4.6 | [5.5 m³] | 5.8 |
| Out of town [l] | 3.9 | 3.6 | 3.9 | 3.7 | [3.8 m³] | 3.9 |
| Combined [l] | 4.5 | 4.1 | 4.4 | 4.0 | [4.4 m³] | 4.6 |
| CO2 emissions [g/km] | 105 | 95 | 103 | 93 | 79 | 106 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 940 | 932 | 931 | 1031 | 929 |
| Overall weight [kg] | 1290 | 1290 | 1290 | 1300 | 1370 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 251 | 251 | 251 | 251 | 213 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/951 | -/951 | -/951 | -/951 | -/913 | -/951 |
| Boot length [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 10 [11 kg] | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.34 | 0.33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 175/65 R14 | 165/70 R14 | 175/65 R14 | 175/65 R14 | 165/70 R14 |
| Tyre dimensions rear | 165/70 R14 | 175/65 R14 | 165/70 R14 | 175/65 R14 | 175/65 R14 | 165/70 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 |
| Overall length [mm] | 3563 | 3563 | 3563 | 3563 | 3563 | 3563 |
| Overall width without/including mirrors [mm] | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 |
| Overall height [mm] | 1478 | 1463 | 1478 | 1463 | 1480 | 1478 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2420 | 2421 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | 599 | 599 | 599 | 599 | 599 | 599 |
| Rear overhang [mm] | 544 | 544 | 544 | 544 | 544 | 544 |
| Clearance [mm] | 136 | 121 | 136 | 121 | 134 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Rear elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 MPI Green tec | 1.0 MPI | 1.0 MPI Green tec | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Petrol | Petrol | Petrol | |||
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | |||
| Engine displacement [cm³] | 999 | 999 | 999 | |||
| Maximum output / speed [kW/min-1] | 55/6200 | 55/6200 | 55/6200 | |||
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | |||
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | |||
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 172 | 171 | 172 | |||
| Acceleration 0–100 km/h [s] | 13.2 | 13.9 | 13.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.1 | 5.5 | 4.6 | |||
| Out of town [l] | 3.7 | 4.0 | 3.8 | |||
| Combined [l] | 4.2 | 4.5 | 4.1 | |||
| CO2 emissions [g/km] | 98 | 105 | 95 | |||
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 940 | 932 | 931 | |||
| Overall weight [kg] | 1290 | 1290 | 1300 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 251 | 251 | 251 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/951 | -/951 | -/951 | |||
| Boot length [mm] | 632 | 632 | 632 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 35 | 35 | 35 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 175/65 R14 | 165/70 R14 | 175/65 R14 | |||
| Tyre dimensions rear | 175/65 R14 | 165/70 R14 | 175/65 R14 | |||
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | |||
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | |||
| Overall length [mm] | 3563 | 3563 | 3563 | |||
| Overall width without/including mirrors [mm] | 1641/1910 | 1641/1910 | 1641/1910 | |||
| Overall height [mm] | 1463 | 1478 | 1463 | |||
| Wheelbase [mm] | 2420 | 2420 | 2420 | |||
| Front wheel track [mm] | 1428 | 1428 | 1428 | |||
| Rear wheel track [mm] | 1424 | 1424 | 1424 | |||
| Forward overhang [mm] | 599 | 599 | 599 | |||
| Rear overhang [mm] | 544 | 544 | 544 | |||
| Clearance [mm] | 121 | 136 | 121 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | |||
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 993 | 993 | 993 | |||
| Headroom rear [mm] | 947 | 947 | 947 | |||
| Front elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | |||
| Rear elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.0 MPI | 1.0 MPI Green tec | 1.0 MPI | 1.0 MPI Green tec | 1.0 MPI G-TEC | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 11,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - |
|
| - | - |
| Top speed [km/h] | 160 | 161 | 160 | 161 | 164 | 171 |
| Acceleration 0–100 km/h [s] | 14.4 | 14.4 | 15.3 | 15.3 | 16.3 | 13.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.6 | 5.0 | 5.3 | 4.6 | [5.5 m³] | 5.8 |
| Out of town [l] | 3.9 | 3.6 | 3.9 | 3.7 | [3.8 m³] | 3.9 |
| Combined [l] | 4.5 | 4.1 | 4.4 | 4.0 | [4.4 m³] | 4.6 |
| CO2 emissions [g/km] | 105 | 95 | 103 | 93 | 79 | 106 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 940 | 932 | 931 | 1031 | 929 |
| Overall weight [kg] | 1290 | 1290 | 1290 | 1300 | 1370 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 251 | 251 | 251 | 251 | 213 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/959 | -/959 | -/959 | -/959 | -/921 | -/959 |
| Boot length [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 10 [11 kg] | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.34 | 0.33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 175/65 R14 | 165/70 R14 | 175/65 R14 | 175/65 R14 | 165/70 R14 |
| Tyre dimensions rear | 165/70 R14 | 175/65 R14 | 165/70 R14 | 175/65 R14 | 175/65 R14 | 165/70 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 |
| Overall length [mm] | 3563 | 3563 | 3563 | 3563 | 3563 | 3563 |
| Overall width without/including mirrors [mm] | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 |
| Overall height [mm] | 1478 | 1463 | 1478 | 1463 | 1480 | 1478 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2420 | 2421 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | 599 | 599 | 599 | 599 | 599 | 599 |
| Rear overhang [mm] | 544 | 544 | 544 | 544 | 544 | 544 |
| Clearance [mm] | 136 | 121 | 136 | 121 | 134 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- |
| Rear elbow/shoulder width [mm] | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 MPI Green tec | 1.0 MPI | 1.0 MPI Green tec | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Petrol | Petrol | Petrol | |||
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | |||
| Engine displacement [cm³] | 999 | 999 | 999 | |||
| Maximum output / speed [kW/min-1] | 55/6200 | 55/6200 | 55/6200 | |||
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | |||
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | |||
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 172 | 171 | 172 | |||
| Acceleration 0–100 km/h [s] | 13.2 | 13.9 | 13.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.1 | 5.5 | 4.6 | |||
| Out of town [l] | 3.7 | 4.0 | 3.8 | |||
| Combined [l] | 4.2 | 4.5 | 4.1 | |||
| CO2 emissions [g/km] | 98 | 105 | 95 | |||
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 940 | 932 | 931 | |||
| Overall weight [kg] | 1290 | 1290 | 1300 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 251 | 251 | 251 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/959 | -/959 | -/959 | |||
| Boot length [mm] | 632 | 632 | 632 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 35 | 35 | 35 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 175/65 R14 | 165/70 R14 | 175/65 R14 | |||
| Tyre dimensions rear | 175/65 R14 | 165/70 R14 | 175/65 R14 | |||
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | |||
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | |||
| Overall length [mm] | 3563 | 3563 | 3563 | |||
| Overall width without/including mirrors [mm] | 1645/1910 | 1645/1910 | 1645/1910 | |||
| Overall height [mm] | 1463 | 1478 | 1463 | |||
| Wheelbase [mm] | 2420 | 2420 | 2420 | |||
| Front wheel track [mm] | 1428 | 1428 | 1428 | |||
| Rear wheel track [mm] | 1424 | 1424 | 1424 | |||
| Forward overhang [mm] | 599 | 599 | 599 | |||
| Rear overhang [mm] | 544 | 544 | 544 | |||
| Clearance [mm] | 121 | 136 | 121 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | |||
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 993 | 993 | 993 | |||
| Headroom rear [mm] | 947 | 947 | 947 | |||
| Front elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | |||
| Rear elbow/shoulder width [mm] | 1388/- | 1388/- | 1388/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

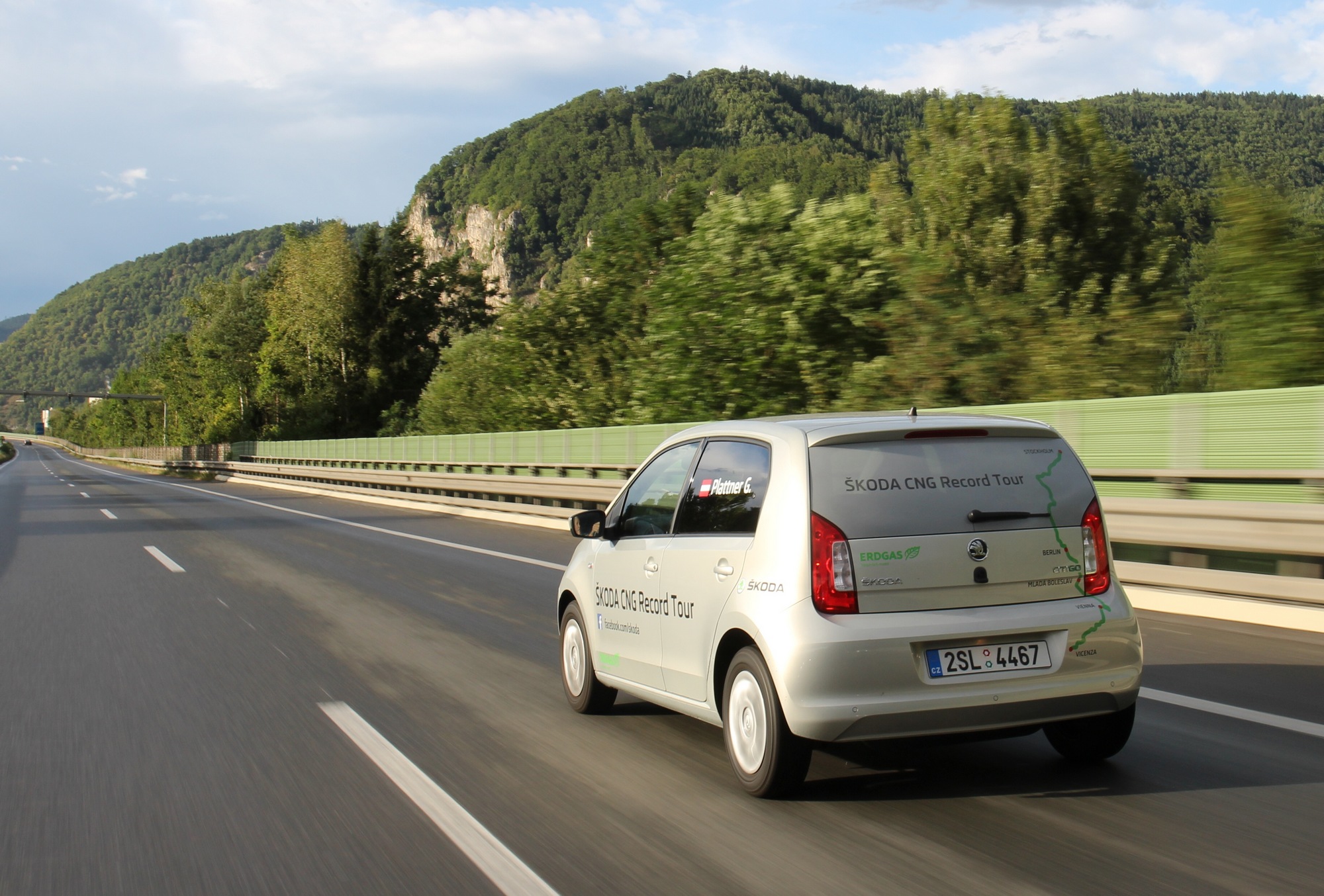

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
