Škoda Citigo
Date of manufacture
2017 – 2020 (Three-door hatchback)
2017 – 2020 (Five-door hatchback)
Platform
Volkswagen Group NSF
Manufacturing locations
Bratislava, Slovakia
Designer
-
Tags
A-segment
Czech cars
The Skoda Citigo is available as a three- and five-door hatchback. It has been manufactured in Slovakia since 2017 on the Volkswagen Group NSF platform. It offers a wide range of engines, including petrol and electric. The most powerful model is the Citigo iV with 61 kW of power, accelerating to 100 km/h in 12.3 seconds. The most economical model 1.0 MPI has a combined consumption of 4.2 l/100 km and CO2 emissions of 96 g/km. The luggage compartment with a capacity of 251 litres is available in both the three- and five-door versions of the car. Safety was tested in 2011 according to EURONCAP and achieved a rating of 5 out of 5.
Car body style
Three-door hatchback
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
-
Technical data
Three-door hatchback
| 1.0 MPI | 1.0 MPI | 1.0 MPI | 1.0 MPI G-TEC | 1.0 MPI | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | - | from to 2018 | from to 2018 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 11,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - |
| - | - | - |
|
| Top speed [km/h] | 162 | 162 | 162 | 165 | 173 | 173 |
| Acceleration 0–100 km/h [s] | 14.4 | 16.7 | 14,4 | 16.3 | 13.5 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 5.3 | 4,8-4,9 | [5.6 m³] | 5.4 | 5.3 |
| Out of town [l] | 3.8 | 3.8 | 3,9 | [3.9 m³] | 3.8 | 3.9 |
| Combined [l] | 4.4 | 4.3 | 4,2 | [4.5 m³] | 4.4 | 4.4 |
| CO2 emissions [g/km] | 101 | 100 | 96-97 | 82 | 101 | 103 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 932 | 934 | 1031 | 929 | 932 |
| Overall weight [kg] | 1290 | 1290 | 1330 | 1370 | 1290 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 251 | 251 | 251 | 213 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/951 | -/951 | -/951 | -/913 | -/951 | -/951 |
| Boot length [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 10 [11 kg] | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.325 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 165/70 R14 | 165/70 R14 | 175/65 R14 | 165/70 R14 | 165/70 R14 |
| Tyre dimensions rear | 165/70 R14 | 165/70 R14 | 165/70 R14 | 175/65 R14 | 165/70 R14 | 165/70 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 |
| Overall length [mm] | 3597 | 3597 | 3597 | 3597 | 3597 | 3597 |
| Overall width without/including mirrors [mm] | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 | 1641/1910 |
| Overall height [mm] | 1478 | 1478 | 1478 | 1480 | 1478 | 1478 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2421 | 2420 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 134 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- | 1417/- |
| Rear elbow/shoulder width [mm] | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- | 1389/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 MPI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | |||||
| Engine type | Petrol | |||||
| Number of cylinders/valves | 3/12 | |||||
| Engine displacement [cm³] | 999 | |||||
| Maximum output / speed [kW/min-1] | 55/6200 | |||||
| Maximum torque [Nm/min-1] | 95/3000-4300 | |||||
| Bore and stroke [mm x mm] | 74,5 x 76,4 | |||||
| Compression ratio | 10,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 5 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 173 | |||||
| Acceleration 0–100 km/h [s] | 13,5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5,1 | |||||
| Out of town [l] | 3,8 | |||||
| Combined [l] | 4,3 | |||||
| CO2 emissions [g/km] | 97-98 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 936 | |||||
| Overall weight [kg] | 1330 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 251 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/951 | |||||
| Boot length [mm] | 632 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 978/1069 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 3 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 35 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.32 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 165/70 R14 | |||||
| Tyre dimensions rear | 165/70 R14 | |||||
| Wheel size front | 5.0J x 14 | |||||
| Wheel size rear | 5.0J x 14 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | -/9.8 | |||||
| Overall length [mm] | 3597 | |||||
| Overall width without/including mirrors [mm] | 1641/1910 | |||||
| Overall height [mm] | 1478 | |||||
| Wheelbase [mm] | 2420 | |||||
| Front wheel track [mm] | 1428 | |||||
| Rear wheel track [mm] | 1424 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 136 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 14.6 | |||||
| Approach angle rear [°] | 22.3 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 993 | |||||
| Headroom rear [mm] | 947 | |||||
| Front elbow/shoulder width [mm] | 1417/- | |||||
| Rear elbow/shoulder width [mm] | 1389/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Five-door hatchback
| 1.0 MPI | 1.0 MPI | 1.0 MPI | 1.0 MPI G-TEC | 1.0 MPI | 1.0 MPI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | - | from to 2018 | from to 2018 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 999 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 44/5000-6000 | 44/5000-6000 | 50/6200 | 55/6200 | 55/6200 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 95/3000-4300 | 90/3000 | 95/3000-4300 | 95/3000-4300 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 11,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - |
| - | - | - |
|
| Top speed [km/h] | 162 | 162 | 162 | 165 | 173 | 173 |
| Acceleration 0–100 km/h [s] | 14.4 | 16.7 | 14,4 | 16.3 | 13.5 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 5.3 | 4,8-4,9 | [5.6 m³] | 5.4 | 5.3 |
| Out of town [l] | 3.8 | 3.8 | 3,9 | [3.9 m³] | 3.8 | 3.9 |
| Combined [l] | 4.4 | 4.3 | 4,2 | [4.5 m³] | 4.4 | 4.4 |
| CO2 emissions [g/km] | 101 | 100 | 96-97 | 82 | 101 | 103 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 929 | 932 | 934 | 1031 | 929 | 932 |
| Overall weight [kg] | 1290 | 1290 | 1330 | 1370 | 1290 | 1290 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 251 | 251 | 251 | 213 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/959 | -/959 | -/959 | -/921 | -/959 | -/959 |
| Boot length [mm] | 632 | 632 | 632 | 632 | 632 | 632 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 | 978/1069 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 10 [11 kg] | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.325 | 0.32 | 0.32 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 165/70 R14 | 165/70 R14 | 165/70 R14 | 175/65 R14 | 165/70 R14 | 165/70 R14 |
| Tyre dimensions rear | 165/70 R14 | 165/70 R14 | 165/70 R14 | 175/65 R14 | 165/70 R14 | 165/70 R14 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 | -/9.8 |
| Overall length [mm] | 3597 | 3597 | 3597 | 3597 | 3597 | 3597 |
| Overall width without/including mirrors [mm] | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 | 1645/1910 |
| Overall height [mm] | 1478 | 1478 | 1478 | 1480 | 1478 | 1478 |
| Wheelbase [mm] | 2420 | 2420 | 2420 | 2421 | 2420 | 2420 |
| Front wheel track [mm] | 1428 | 1428 | 1428 | 1428 | 1428 | 1428 |
| Rear wheel track [mm] | 1424 | 1424 | 1424 | 1424 | 1424 | 1424 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 134 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1369/- | 1369/- | 1369/- | 1369/- | 1369/- | 1369/- |
| Rear elbow/shoulder width [mm] | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- | 1388/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 MPI | Citigo iV | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2019 to | ||||
| Engine type | Petrol | Electric | ||||
| Number of cylinders/valves | 3/12 | - | ||||
| Engine displacement [cm³] | 999 | - | ||||
| Maximum output / speed [kW/min-1] | 55/6200 | 61/2750-5500 | ||||
| Maximum torque [Nm/min-1] | 95/3000-4300 | 212/0-2750 | ||||
| Bore and stroke [mm x mm] | 74,5 x 76,4 | - | ||||
| Compression ratio | 10,5:1 | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 1 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 173 | 130 | ||||
| Acceleration 0–100 km/h [s] | 13,5 | 12.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,1 | - | ||||
| Out of town [l] | 3,8 | - | ||||
| Combined [l] | 4,3 | 12.9-12.8 kWh | ||||
| CO2 emissions [g/km] | 97-98 | - | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | - | 14.8 kWh | ||||
| CO2 emissions [g/km] | - | - | ||||
| Emission standard | Euro 6d-TEMP | - | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | - | 357 | ||||
| Battery type and capacity | - | Lithium-ion, 36.8 kWh (32.3 net) | ||||
| Range with fully charged battery [km] | - | 253-258 | ||||
| Charging time | - |
| ||||
| Number of modules/cells | - | 14/168 | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | 40 kW fast charging, 7.2 kW on-board charger | ||||
| Standby weight [kg] | 936 | 1235-1265 | ||||
| Overall weight [kg] | 1330 | 1530 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | 50/- | ||||
| Boot volume [l] | 251 | 250 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/959 | -/923 | ||||
| Boot length [mm] | 632 | 632 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | 978/1069 | 978/1069 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 35 | 35 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.32 | 0.325 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 165/70 R14 | 175/70 R14 | ||||
| Tyre dimensions rear | 165/70 R14 | 175/70 R14 | ||||
| Wheel size front | 5.0J x 14 | 5.0J x 14 | ||||
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/9.8 | -/9.8 | ||||
| Overall length [mm] | 3597 | 3597 | ||||
| Overall width without/including mirrors [mm] | 1645/1910 | 1645/1910 | ||||
| Overall height [mm] | 1478 | 1481 | ||||
| Wheelbase [mm] | 2420 | 2422 | ||||
| Front wheel track [mm] | 1428 | 1428 | ||||
| Rear wheel track [mm] | 1424 | 1424 | ||||
| Forward overhang [mm] | - | 633 | ||||
| Rear overhang [mm] | - | 542 | ||||
| Clearance [mm] | 136 | 141 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 14.6 | 15.8 | ||||
| Approach angle rear [°] | 22.3 | 27.2 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 993 | 1020 | ||||
| Headroom rear [mm] | 947 | 947 | ||||
| Front elbow/shoulder width [mm] | 1369/- | 1369/- | ||||
| Rear elbow/shoulder width [mm] | 1388/- | 1388/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

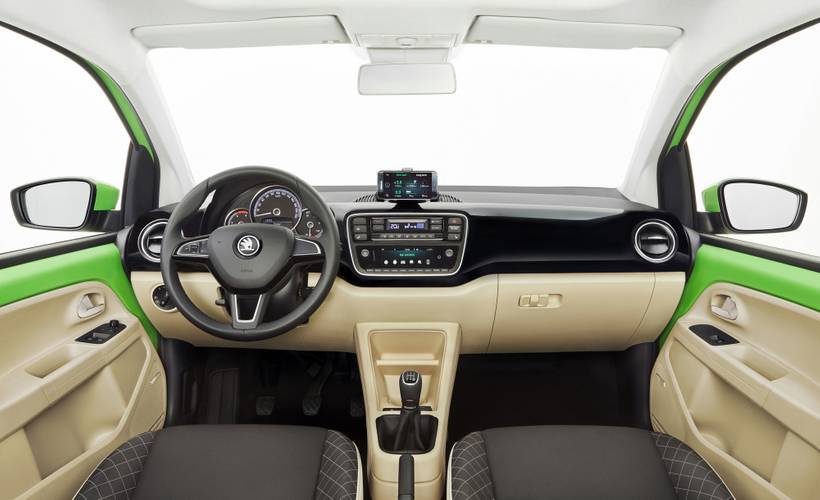

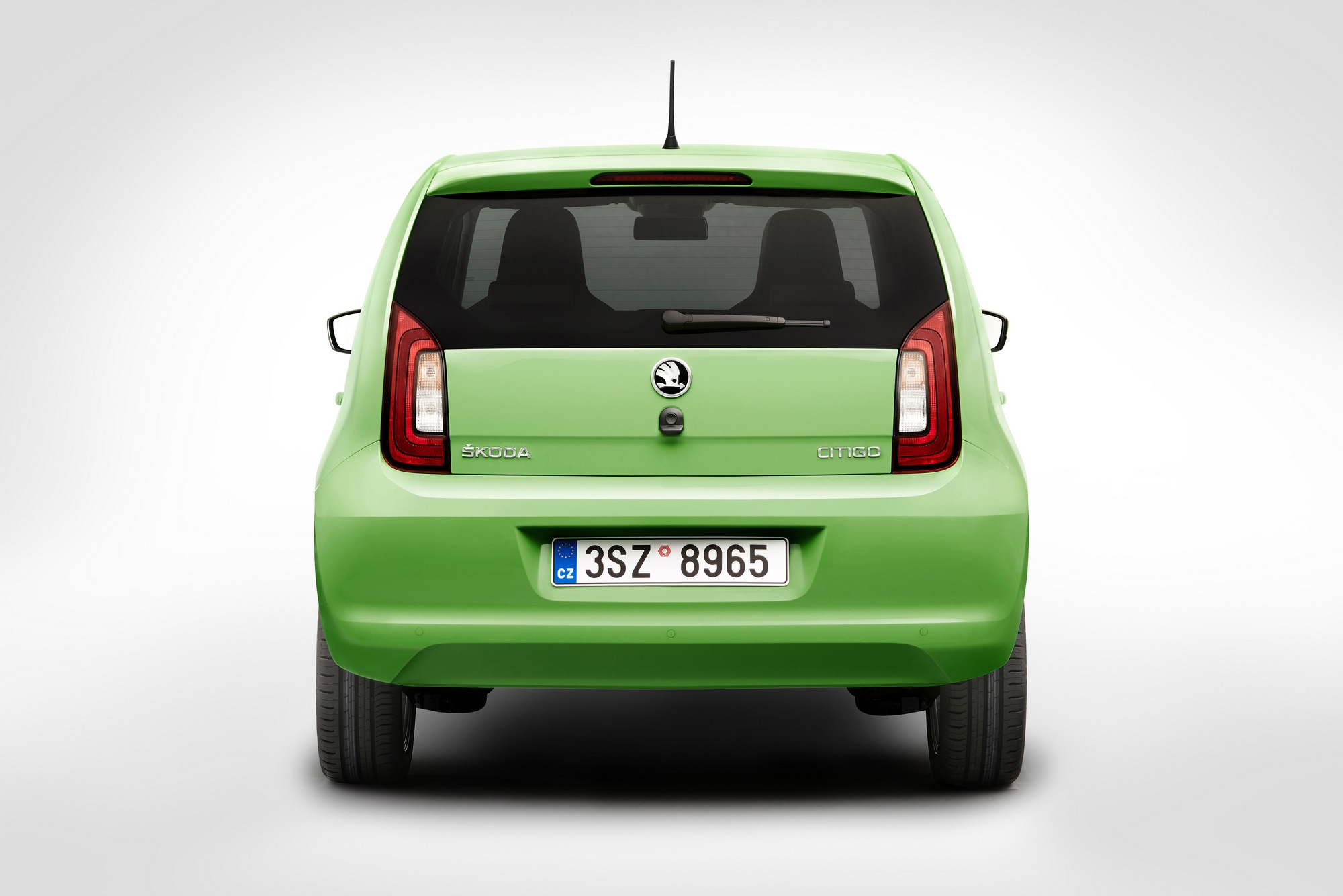

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
