Škoda Fabia
Date of manufacture
2010 – 2014 (Five-door hatchback)
2010 – 2014 (Estate)
Platform
Volkswagen Group A04 (PQ24)
Manufacturing locations
Mladá Boleslav, Czechia
Aurangabad, India
Designer
-
Tags
B-segment
Czech cars
The Škoda Fabia has been produced since 2010 and has two body styles - five-door hatchback and estate. The car is manufactured in the Czech Republic and India on the Volkswagen Group A04 (PQ24) platform. It offers a wide range of engines, including petrol and diesel. The most powerful model is the RS 1.4 TSI with 132 kW of power, a top speed of 226 km/h and a 0-100 km/h acceleration time of 7.3 seconds. The most fuel-efficient is the 1.2 TDI CR GreenLine with a fuel consumption of 3.4 l/100 km and emissions of 88 g/km. The luggage compartment volume reaches 315 litres for the hatchback and 505 litres for the estate version. In terms of safety, the model has been rated 4 out of 5 points by EURONCAP.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2010 – 2014Internal designation
5J Estate
after upgrade (facelift)
Date of manufacture
2010 – 2014Internal designation
5J
Technical data
Five-door hatchback
| 1.2 MPI | 1.2 MPI | 1.2 MPI Green tec | 1.2 TSI | 1.2 TSI Green tec | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/6 | 3/12 | 3/12 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1198 | 1198 | 1198 | 1197 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 44/5200 | 51/5400 | 51/5400 | 63/4800 | 63/4800 | 77/5000 |
| Maximum torque [Nm/min-1] | 108/3000 | 112/3000 | 112/3000 | 160/1500-3500 | 160/1500-3500 | 175/1550-4100 |
| Bore and stroke [mm x mm] | 76,5 x 86,9 | 76,5 x 86,9 | 76,5 x 86,9 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 |
| Compression ratio | 10,3:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 155 | 163 | 163 | 177 | 177 | 191 |
| Acceleration 0–100 km/h [s] | 16.5 | 14.9 | 14.9 | 11.7 | 11.7 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3-7.5 | 7.3 | 6.8 | 6.6 | 5.9 | 6.8 |
| Out of town [l] | 4.5-4.7 | 4.5 | 4.3 | 4.4 | 4.3 | 4.5 |
| Combined [l] | 5.5-5.7 | 5.5 | 5.2 | 5.2 | 4.9 | 5.3 |
| CO2 emissions [g/km] | 128-132 | 128 | 119 | 121 | 114 | 124 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1090-1095 | 1095 | 1095 | 1116 | 1116 | 1130 |
| Overall weight [kg] | 1545-1550 | 1550 | 1550 | 1571 | 1571 | 1585 |
| Maximum trailer weight unbraked/braked [kg] | 540/800 | 540/800 | 540/800 | 550/1100 | 550/1100 | 560/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 315 | 315 | 315 | 315 | 315 | 315 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1180 | -/1180 | -/1180 | -/1180 | -/1180 | -/1180 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 958/1224 | 958/1224 | 958/1224 | 958/1224 | 958/1224 | 958/1224 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 195/55 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 195/55 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 |
| Overall length [mm] | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 |
| Front wheel track [mm] | 1433 | 1433 | 1433 | 1433 | 1433 | 1433 |
| Rear wheel track [mm] | 1426 | 1426 | 1426 | 1426 | 1426 | 1426 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 675 | 675 | 675 | 675 | 675 | 675 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 16.2 | 16.2 | 16.2 | 16.2 | 16.2 | 16.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |

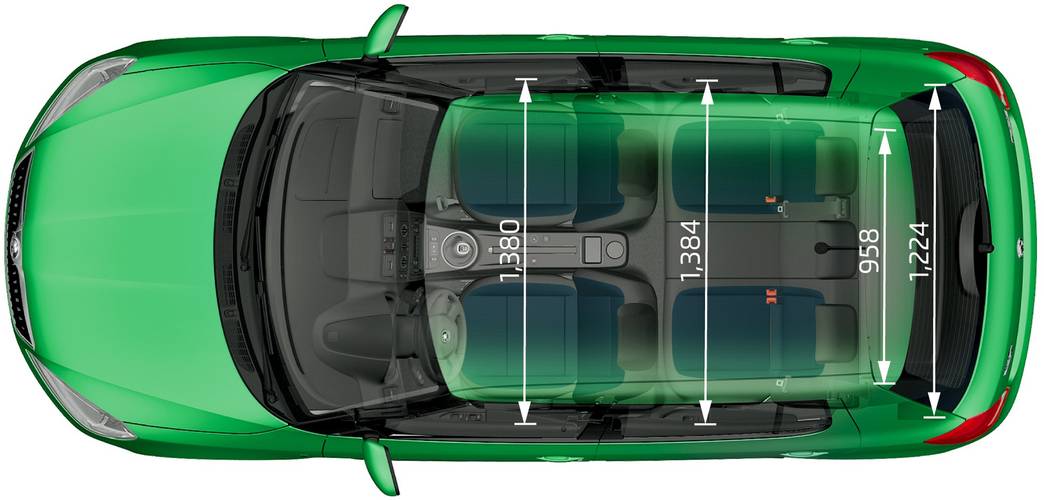

| Front elbow/shoulder width [mm] | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- |
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI Green tec | 1.2 TSI | RS 1.4 TSI | 1.2 TDI CR GreenLine | 1.6 TDI CR | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1390 | 1199 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 132/6200 | 55/4200 | 55/4000 | 66/4200 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1550-4100 | 250/2000-4500 | 180/2000 | 195/1500-2000 | 230/1500-2500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 7 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
|
| - | - | - |
| Top speed [km/h] | 191 | 189 | 224 | 172 | 166 | 176 |
| Acceleration 0–100 km/h [s] | 10.1 | 10.2 | 7.3 | 14.2 | 14.1 | 12.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 7.0 | 7.7 | 4.1 | 5.1 | 5.1 |
| Out of town [l] | 4.4 | 4.4 | 5.2 | 3.0 | 3.6 | 3.6 |
| Combined [l] | 5.1 | 5.3 | 6.2 | 3.4 | 4.2 | 4.2 |
| CO2 emissions [g/km] | 117 | 124 | 148 | 88 | 109 | 109 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1130 | 1164 | 1318 | 1203 | 1204 | 1204 |
| Overall weight [kg] | 1585 | 1619 | 1718 | 1658 | 1659 | 1659 |
| Maximum trailer weight unbraked/braked [kg] | 560/1200 | 580/1200 | - | 590/1000 | 600/1000 | 600/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | - | 75/- | 75/- | 75/- |
| Boot volume [l] | 315 | 315 | 300 | 315 | 315 | 315 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1180 | -/1180 | -/1180 | -/1180 | -/1180 | -/1180 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 958/1224 | 958/1224 | 958/1224 | 958/1224 | 958/1224 | 958/1224 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.33 | 0.345 | 0.3 | 0.33 | 0.33 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R15 | 195/55 R15 | 205/40 R17 | 185/60 R14 | 185/60 R14 | 185/60 R14 |
| Tyre dimensions rear | 195/55 R15 | 195/55 R15 | 205/40 R17 | 185/60 R14 | 185/60 R14 | 185/60 R14 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 14 | 6.0J x 14 | 6.0J x 14 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 14 | 6.0J x 14 | 6.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 |
| Overall length [mm] | 4000 | 4000 | 4029 | 4000 | 4000 | 4000 |
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 |
| Overall height [mm] | 1498 | 1498 | 1492 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2465 | 2465 | 2464 | 2465 | 2465 | 2465 |
| Front wheel track [mm] | 1433 | 1433 | 1423 | 1433 | 1433 | 1433 |
| Rear wheel track [mm] | 1426 | 1426 | 1415 | 1426 | 1426 | 1426 |
| Forward overhang [mm] | 860 | 860 | 888 | 860 | 860 | 860 |
| Rear overhang [mm] | 675 | 675 | 677 | 675 | 675 | 675 |
| Clearance [mm] | 134 | 134 | 129 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 13.6 | 14 | 14 | 14 |
| Approach angle rear [°] | 16.2 | 16.2 | 18.6 | 16.2 | 16.2 | 16.2 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- |
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- | 1384/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 66/4200 | 77/4400 | ||||
| Maximum torque [Nm/min-1] | 230/1500-2500 | 250/1500-2500 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 176 | 188 | ||||
| Acceleration 0–100 km/h [s] | 12.6 | 10.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.5 | 5.1 | ||||
| Out of town [l] | 3.4 | 3.6 | ||||
| Combined [l] | 3.8 | 4.2 | ||||
| CO2 emissions [g/km] | 99 | 109 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1204 | 1219 | ||||
| Overall weight [kg] | 1659 | 1674 | ||||
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 600/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 315 | 315 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1180 | -/1180 | ||||
| Boot length [mm] | 703 | 703 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | 958/1224 | 958/1224 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.33 | 0.33 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/60 R14 | 195/55 R15 | ||||
| Tyre dimensions rear | 185/60 R14 | 195/55 R15 | ||||
| Wheel size front | 6.0J x 14 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 14 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | ||||
| Overall length [mm] | 4000 | 4000 | ||||
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | ||||
| Overall height [mm] | 1498 | 1498 | ||||
| Wheelbase [mm] | 2465 | 2465 | ||||
| Front wheel track [mm] | 1433 | 1433 | ||||
| Rear wheel track [mm] | 1426 | 1426 | ||||
| Forward overhang [mm] | 860 | 860 | ||||
| Rear overhang [mm] | 675 | 675 | ||||
| Clearance [mm] | 134 | 134 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 14 | 14 | ||||
| Approach angle rear [°] | 16.2 | 16.2 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 989 | 989 | ||||
| Headroom rear [mm] | 994 | 994 | ||||
| Front elbow/shoulder width [mm] | 1380/- | 1380/- | ||||
| Rear elbow/shoulder width [mm] | 1384/- | 1384/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate
| 1.2 HTP | 1.2 HTP | 1.2 HTP Green tec | 1.2 TSI | 1.2 TSI Green tec | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/6 | 3/12 | 3/12 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1198 | 1198 | 1198 | 1197 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 44/5200 | 51/5400 | 51/5400 | 63/4800 | 63/4800 | 77/5000 |
| Maximum torque [Nm/min-1] | 108/3000 | 112/3000 | 112/3000 | 160/1500-3500 | 160/1500-3500 | 175/1550-4100 |
| Bore and stroke [mm x mm] | 76,5 x 86,9 | 76,5 x 86,9 | 76,5 x 86,9 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 |
| Compression ratio | 10,3:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 156 | 164 | 164 | 178 | 178 | 193 |
| Acceleration 0–100 km/h [s] | 16.7 | 15.0 | 15.0 | 11.8 | 11.8 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3-7.5 | 7.3 | 6.8 | 6.6 | 5.9 | 6.8 |
| Out of town [l] | 4.5-4.7 | 4.5 | 4.3 | 4.3 | 4.3 | 4.5 |
| Combined [l] | 5.5-5.7 | 5.5 | 5.2 | 5.1 | 4.9 | 5.3 |
| CO2 emissions [g/km] | 128-132 | 128 | 119 | 119 | 114 | 124 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1110-1115 | 1115 | 1115 | 1136 | 1136 | 1150 |
| Overall weight [kg] | 1565-1570 | 1570 | 1570 | 1591 | 1591 | 1605 |
| Maximum trailer weight unbraked/braked [kg] | 550/800 | 550/800 | 550/800 | 560/1100 | 560/1100 | 570/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 505 | 505 | 505 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 |
| Boot length [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 958/1364 | 958/1364 | 958/1364 | 958/1364 | 958/1364 | 958/1364 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 195/55 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 195/55 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 |
| Overall length [mm] | 4247 | 4247 | 4247 | 4247 | 4247 | 4247 |
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 |
| Overall height [mm] | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 |
| Front wheel track [mm] | 1433 | 1433 | 1433 | 1433 | 1433 | 1433 |
| Rear wheel track [mm] | 1426 | 1426 | 1426 | 1426 | 1426 | 1426 |
| Forward overhang [mm] | 860 | 860 | 860 | 860 | 860 | 860 |
| Rear overhang [mm] | 922 | 922 | 922 | 922 | 922 | 922 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- |
| Rear elbow/shoulder width [mm] | 1383/- | 1383/- | 1383/- | 1383/- | 1383/- | 1383/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI Green tec | 1.2 TSI | RS 1.4 TSI | 1.2 TDI CR GreenLine | 1.6 TDI CR | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1390 | 1199 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 132/6200 | 55/4200 | 55/4000 | 66/4200 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1550-4100 | 250/2000-4500 | 180/2000 | 195/1500-2000 | 230/1500-2500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 7 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual |
| Drive specifications | - |
|
| - | - | - |
| Top speed [km/h] | 193 | 190 | 226 | 172 | 167 | 177 |
| Acceleration 0–100 km/h [s] | 10.2 | 10.3 | 7.3 | 14.3 | 14.2 | 12.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 7.0 | 7.7 | 4.1 | 5.1 | 5.1 |
| Out of town [l] | 4.4 | 4.4 | 5.2 | 3.0 | 3.6 | 3.6 |
| Combined [l] | 5.1 | 5.3 | 6.2 | 3.4 | 4.2 | 4.2 |
| CO2 emissions [g/km] | 117 | 124 | 148 | 89 | 109 | 109 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1150 | 1184 | 1313 | 1219 | 1224 | 1224 |
| Overall weight [kg] | 1605 | 1639 | 1713 | 1674 | 1679 | 1679 |
| Maximum trailer weight unbraked/braked [kg] | 570/1200 | 590/1200 | - | 600/1000 | 610/1000 | 610/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | - | 75/- | 75/- | 75/- |
| Boot volume [l] | 505 | 505 | 480 | 505 | 505 | 505 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 | -/1485 |
| Boot length [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 958/1364 | 958/1364 | 958/1364 | 958/1364 | 958/1364 | 958/1364 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.335 | 0.31 | 0.31 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R15 | 195/55 R15 | 205/40 R17 | 185/60 R15 | 185/60 R14 | 185/60 R14 |
| Tyre dimensions rear | 195/55 R15 | 195/55 R15 | 205/40 R17 | 185/60 R15 | 185/60 R14 | 185/60 R14 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 15 | 6.0J x 14 | 6.0J x 14 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 7.0J x 17 | 6.0J x 15 | 6.0J x 14 | 6.0J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 | 9.8/10.0 |
| Overall length [mm] | 4247 | 4247 | 4276 | 4247 | 4247 | 4247 |
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 | 1642/1886 |
| Overall height [mm] | 1498 | 1498 | 1494 | 1498 | 1498 | 1498 |
| Wheelbase [mm] | 2465 | 2465 | 2464 | 2465 | 2465 | 2465 |
| Front wheel track [mm] | 1433 | 1433 | 1423 | 1433 | 1433 | 1433 |
| Rear wheel track [mm] | 1426 | 1426 | 1415 | 1426 | 1426 | 1426 |
| Forward overhang [mm] | 860 | 860 | 888 | 860 | 860 | 860 |
| Rear overhang [mm] | 922 | 922 | 924 | 922 | 922 | 922 |
| Clearance [mm] | 135 | 135 | 129 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 14.1 | 13.7 | 14.1 | 14.1 | 14.1 |
| Approach angle rear [°] | 12.1 | 12.1 | 13.4 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 989 | 989 | 989 | 989 | 989 | 989 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- | 1380/- |
| Rear elbow/shoulder width [mm] | 1383/- | 1383/- | 1383/- | 1383/- | 1383/- | 1383/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 66/4200 | 77/4400 | ||||
| Maximum torque [Nm/min-1] | 230/1500-2500 | 250/1500-2500 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 177 | 190 | ||||
| Acceleration 0–100 km/h [s] | 12.7 | 11.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.5 | 5.1 | ||||
| Out of town [l] | 3.4 | 3.6 | ||||
| Combined [l] | 3.8 | 4.2 | ||||
| CO2 emissions [g/km] | 99 | 109 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1224 | 1239 | ||||
| Overall weight [kg] | 1679 | 1694 | ||||
| Maximum trailer weight unbraked/braked [kg] | 610/1200 | 610/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 505 | 505 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1485 | -/1485 | ||||
| Boot length [mm] | 959 | 959 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | 958/1364 | 958/1364 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 45 | 45 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.31 | 0.31 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/60 R14 | 195/55 R15 | ||||
| Tyre dimensions rear | 185/60 R14 | 195/55 R15 | ||||
| Wheel size front | 6.0J x 14 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 14 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 9.8/10.0 | 9.8/10.0 | ||||
| Overall length [mm] | 4247 | 4247 | ||||
| Overall width without/including mirrors [mm] | 1642/1886 | 1642/1886 | ||||
| Overall height [mm] | 1498 | 1498 | ||||
| Wheelbase [mm] | 2465 | 2465 | ||||
| Front wheel track [mm] | 1433 | 1433 | ||||
| Rear wheel track [mm] | 1426 | 1426 | ||||
| Forward overhang [mm] | 860 | 860 | ||||
| Rear overhang [mm] | 922 | 922 | ||||
| Clearance [mm] | 135 | 135 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 14.1 | 14.1 | ||||
| Approach angle rear [°] | 12.1 | 12.1 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 989 | 989 | ||||
| Headroom rear [mm] | 994 | 994 | ||||
| Front elbow/shoulder width [mm] | 1380/- | 1380/- | ||||
| Rear elbow/shoulder width [mm] | 1383/- | 1383/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

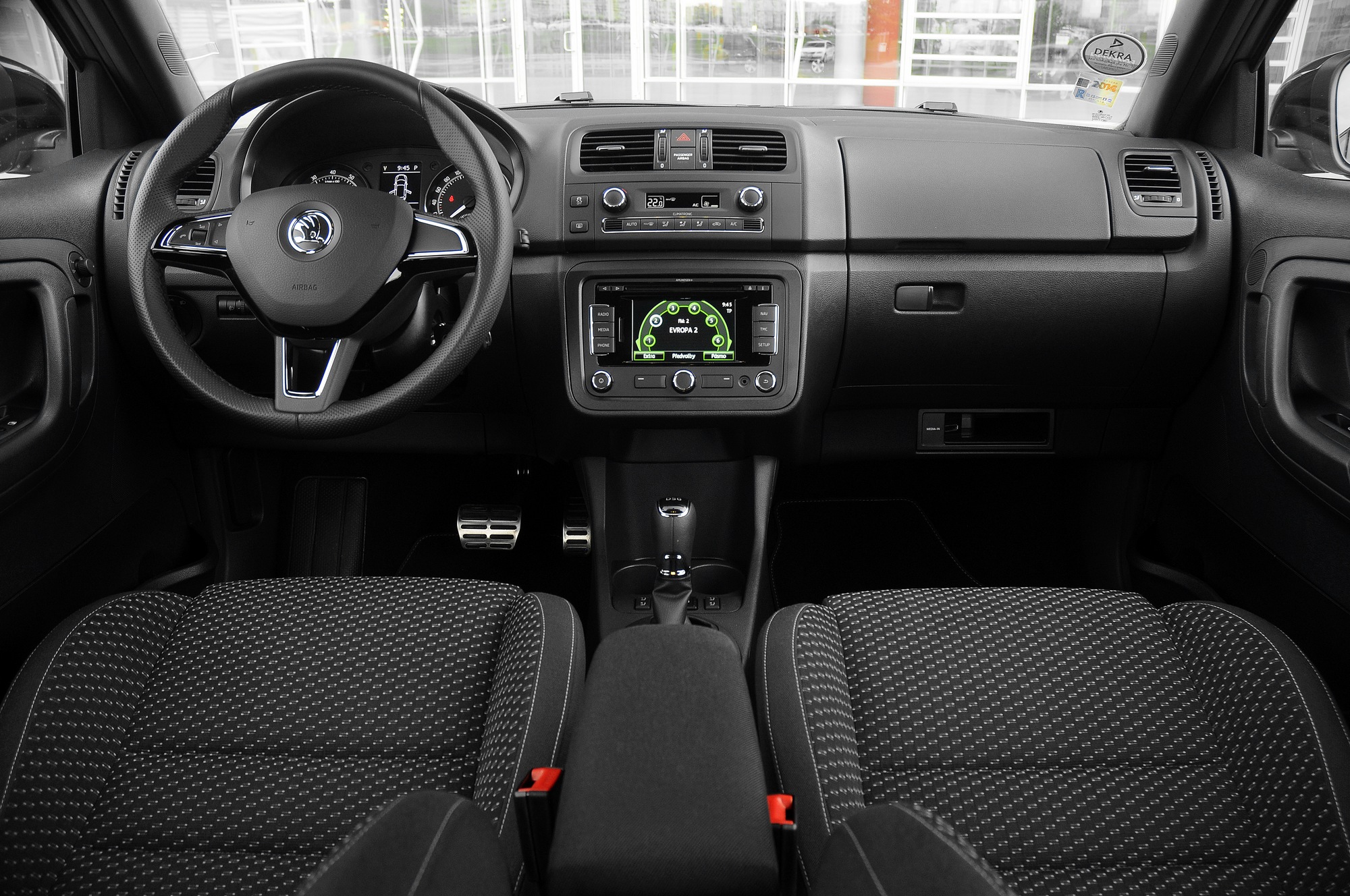

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
