Škoda Fabia
Date of manufacture
8/2014 – 2019 (Five-door hatchback)
12/2014 – 2019 (Estate)
Platform
PQ26
Manufacturing locations
Mladá Boleslav, Czechia
Designer
Jozef Kabaň
Tags
B-segment
Czech cars
The Škoda Fabia has been produced in the Czech Republic on the PQ26 platform since 2014. It offers a wide range of engines, from petrol to diesel. The most powerful engine is the 1.0 TSI 110 with 81 kW, which reaches a maximum speed of 199 km/h. The fastest acceleration from 0-100 km/h is offered by the 1.2 TSI, which can do it in 9.4 seconds. The most economical variant is the 1.4 TDI with CO2 emissions of 95 g/km and fuel consumption of 3.6 l/100 km. The car has enough space for passengers and luggage, 330 l in the hatchback version and 530 l in the estate version. The Škoda Fabia received a 5 out of 5 rating from EURONCAP for vehicle safety in 2014.
Car body style

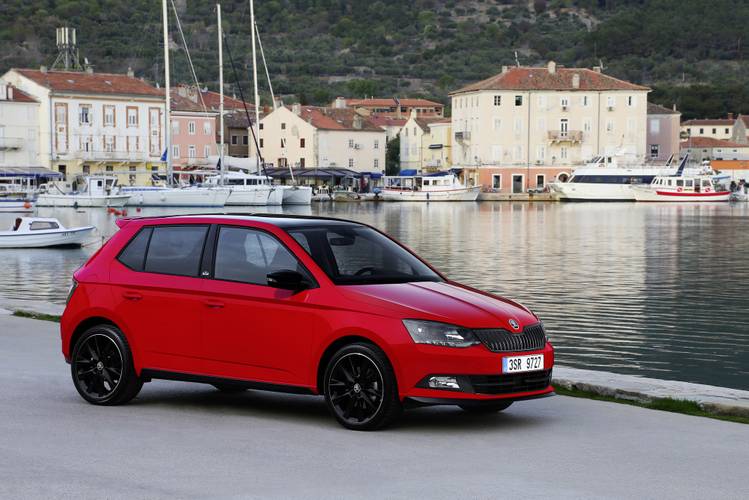

Five-door hatchback
Date of manufacture
8/2014 – 2019Internal designation
NJ3Estate
Date of manufacture
12/2014 – 2019Internal designation
NJ5Engine size
Technical data
Five-door hatchback
| 1.0 MPI | 1.0 MPI | 1.2 TSI | 1.0 TSI 95 | 1.2 TSI | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from to 2017 | from 2017 to 2018 | from to 2017 | from to 2017 |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1197 | 999 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 44/5000-6000 | 55/6200 | 66/4400-5400 | 70/5000-5500 | 81/4600-5600 | 81/4600-5600 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 95/3000-4300 | 160/1400-3500 | 175/2000-3500 | 175/1400-4000 | 175/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 71,0 x 75,6 | 74,5 x 76,4 | 71,0 x 75,6 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10.5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 160 | 172 | 182 | 185 | 196 | 196 |
| Acceleration 0–100 km/h [s] | 15.7 | 14.7 | 10.9 | 10.6 | 9.4 | 9.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-5.7 | 5.9-5.8 | 6.0 | 5.2 | 6.1 | 5.8 |
| Out of town [l] | 4.3-4.1 | 4.4-4.2 | 4.0 | 3.9 | 4.1 | 4.1 |
| Combined [l] | 4.9-4.7 | 4.9-4.8 | 4.7 | 4.4 | 4.8 | 4.7 |
| CO2 emissions [g/km] | 110-106 | 111-108 | 107 | 101 | 110 | 109 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1055-1080 | 1055-1080 | 1109 | 1110 | 1129 | 1154 |
| Overall weight [kg] | 1510-1535 | 1510-1535 | 1564 | 1565 | 1584 | 1609 |
| Maximum trailer weight unbraked/braked [kg] | 520-540/800 | 520-540/800 | 550/1000 | 550/1000 | 560/1100 | 570/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.316 | 0.325 | 0.325 | 0.325 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 |
| Overall length [mm] | 3992 | 3992 | 3992 | 3992 | 3992 | 3992 |
| Overall width without/including mirrors [mm] | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 |
| Overall height [mm] | 1467 | 1467 | 1467 | 1467 | 1467 | 1467 |
| Wheelbase [mm] | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 |
| Front wheel track [mm] | 1463 | 1463 | 1463 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1457 | 1457 | 1457 | 1451 | 1451 | 1451 |
| Forward overhang [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Rear overhang [mm] | 676 | 676 | 676 | 676 | 676 | 676 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Rear elbow/shoulder width [mm] | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 TSI 110 | 1.0 TSI 110 | 1.4 TDI | 1.4 TDI | 1.4 TDI | 1.4 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2018 | from 2017 to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 1422 | 1422 | 1422 | 1422 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 55/3000-3750 | 66/3000-3250 | 66/3000-3250 | 77/3500-3750 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/2000-3500 | 210/1500-2000 | 230/1750-2500 | 230/1750-2500 | 250/1750-2500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 95,5 |
| Compression ratio | 10.5:1 | 10.5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 196 | 196 | 172 | 182 | 182 | 193 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.8 | 13.1 | 11.1 | 11.1 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.4 | 5.4 | 4.1 | 4.5-4.2 | 4.6-4.2 | 4.9-4.1 |
| Out of town [l] | 3.9 | 4.1 | 3.3 | 3.6-3.4 | 3.8-3.6 | 3.8-3.4 |
| Combined [l] | 4.4 | 4.6 | 3.6 | 4.0-3.6 | 4.1-3.8 | 4.2-3.6 |
| CO2 emissions [g/km] | 103 | 103 | 95 | 104-93 | 108-99 | 112-99 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1130 | 1164 | 1156 | 1156-1175 | 1186-1196 | 1165-1184 |
| Overall weight [kg] | 1585 | 1619 | 1611 | 1611-1630 | 1641-1651 | 1620-1639 |
| Maximum trailer weight unbraked/braked [kg] | 560/1100 | 570/1100 | 570/1000 | 570-580/1100 | 590/1100 | 580-590/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 | -/1150 |
| Boot length [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.325 | 0.325 | 0.316 | 0.316 | 0.316 | 0.321 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 |
| Overall length [mm] | 3992 | 3992 | 3992 | 3992 | 3992 | 3992 |
| Overall width without/including mirrors [mm] | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 |
| Overall height [mm] | 1467 | 1467 | 1467 | 1467 | 1467 | 1467 |
| Wheelbase [mm] | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 |
| Front wheel track [mm] | 1457 | 1457 | 1463 | 1463 | 1463 | 1457 |
| Rear wheel track [mm] | 1451 | 1451 | 1457 | 1457 | 1457 | 1451 |
| Forward overhang [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Rear overhang [mm] | 676 | 676 | 676 | 676 | 676 | 676 |
| Clearance [mm] | 133 | 133 | 133 | 133 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 | 17.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 963 | 963 | 963 | 963 | 963 | 963 |
| Front elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Rear elbow/shoulder width [mm] | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

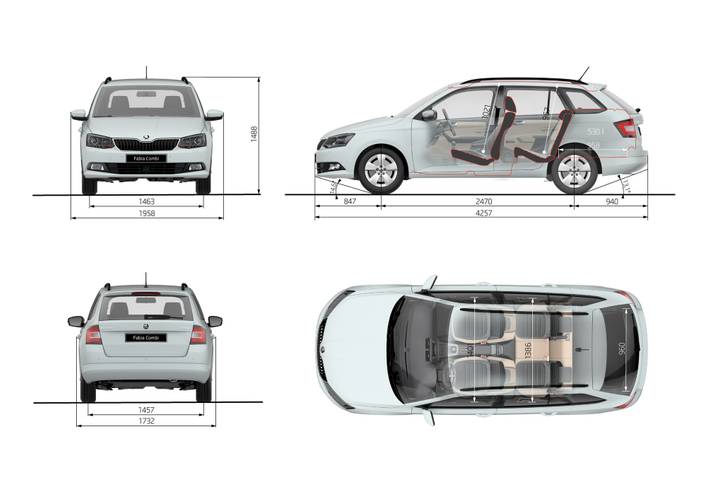

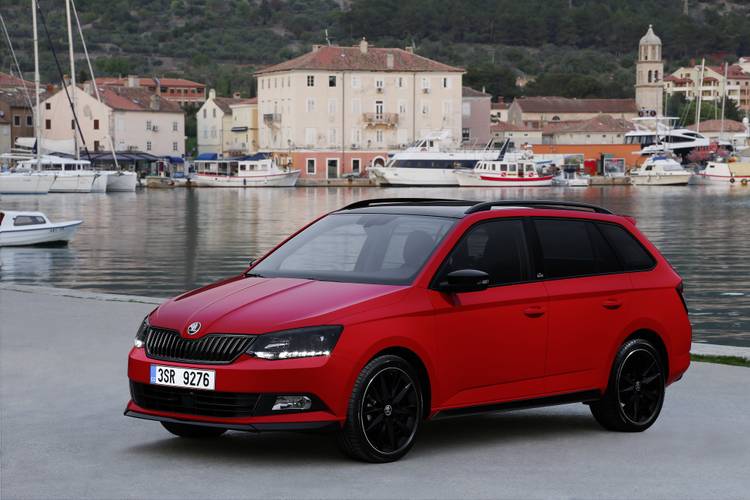

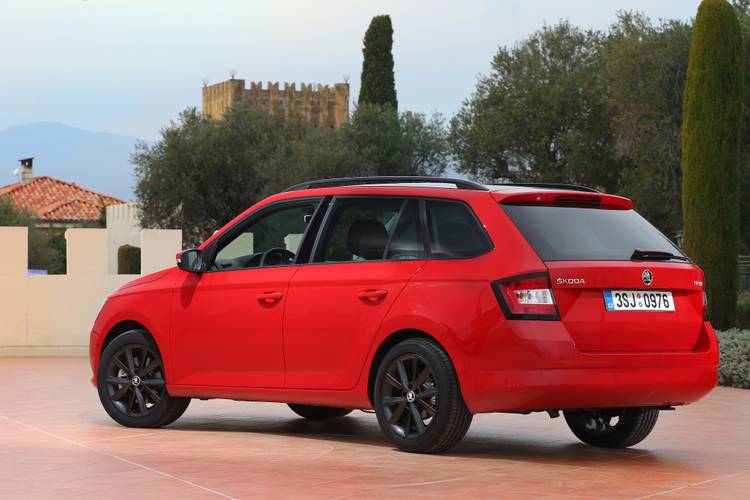

Estate
| 1.0 MPI | 1.2 TSI | 1.0 TSI 95 | 1.2 TSI | 1.2 TSI | 1.0 TSI 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2017 | from 2017 to | from to 2017 | from to 2017 | from 2017 to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 3/12 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 999 | 1197 | 999 | 1197 | 1197 | 999 |
| Maximum output / speed [kW/min-1] | 55/6200 | 66/4400-5400 | 70/5000-5500 | 81/4600-5600 | 81/4600-5600 | 81/5500 |
| Maximum torque [Nm/min-1] | 95/3000-4300 | 160/1400-3500 | 175/2000-3500 | 175/1400-4000 | 175/1400-4000 | 200/2000-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 71,0 x 75,6 | 74,5 x 76,4 | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10.5:1 | 10,5:1 | 10,5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 175 | 185 | 187 | 199 | 199 | 199 |
| Acceleration 0–100 km/h [s] | 14.9 | 11.0 | 10.8 | 9.6 | 9.6 | 9,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9-5.8 | 6.0 | 5.2 | 6.1 | 5.8 | 5,4 |
| Out of town [l] | 4.4-4.2 | 4.0 | 3.9 | 4.1 | 4.1 | 3,9 |
| Combined [l] | 4.9-4.8 | 4.7 | 4.4 | 4.8 | 4.8 | 4,4 |
| CO2 emissions [g/km] | 111-109 | 107 | 101 | 110 | 110 | 103 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1079-1104 | 1133 | 1134 | 1153 | 1178 | 1154 |
| Overall weight [kg] | 1534-1559 | 1588 | 1589 | 1608 | 1633 | 1609 |
| Maximum trailer weight unbraked/braked [kg] | 530-550/800 | 560/1000 | 560/1000 | 570/1100 | 580/1100 | 570/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | 530 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 |
| Boot length [mm] | 958 | 958 | 958 | 958 | 958 | 958 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | -/960 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.304 | 0.307 | 0.306 | 0.309 | 0.309 | 0.306 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 |
| Overall length [mm] | 4257 | 4257 | 4257 | 4257 | 4257 | 4257 |
| Overall width without/including mirrors [mm] | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 |
| Front wheel track [mm] | 1463 | 1463 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1457 | 1457 | 1451 | 1451 | 1451 | 1451 |
| Forward overhang [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Rear overhang [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | 135 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 |
| Approach angle rear [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- |
| Rear elbow/shoulder width [mm] | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 TSI 110 | 1.4 TDI | 1.4 TDI | 1.4 TDI | 1.4 TDI | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | |
| Engine displacement [cm³] | 999 | 1422 | 1422 | 1422 | 1422 | |
| Maximum output / speed [kW/min-1] | 81/5500 | 55/3000-3750 | 66/3000-3250 | 66/3000-3250 | 77/3500-3750 | |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 210/1500-2000 | 230/1750-2500 | 230/1750-2500 | 250/1750-2500 | |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 95,5 | |
| Compression ratio | 10.5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 7 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual | |
| Drive specifications |
| - | - |
| - | |
| Top speed [km/h] | 199 | 175 | 184 | 184 | 196 | |
| Acceleration 0–100 km/h [s] | 9.9 | 13.3 | 11.3 | 11.3 | 10.2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.5 | 4.1 | 4.5-4.2 | 4.6-4.2 | 4.9-4.2 | |
| Out of town [l] | 4.1 | 3.3 | 3.6-3.4 | 3.8-3.6 | 3.8-3.5 | |
| Combined [l] | 4.6 | 3.6 | 4.0-3.6 | 4.1-3.8 | 4.2-3.7 | |
| CO2 emissions [g/km] | 107 | 95 | 104-94 | 108-99 | 112-101 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1188 | 1180 | 1199-1180 | 1210-1220 | 1189-1208 | |
| Overall weight [kg] | 1643 | 1635 | 1635-1654 | 1665-1654 | 1644-1663 | |
| Maximum trailer weight unbraked/braked [kg] | 590/1100 | 590/1000 | 590/1100 | 600/1100 | 590-600/1100 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 530 | 530 | 530 | 530 | 530 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1395 | -/1395 | -/1395 | -/1395 | -/1395 | |
| Boot length [mm] | 958 | 958 | 958 | 958 | 958 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/960 | -/960 | -/960 | -/960 | -/960 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.306 | 0.316 | 0.302 | 0.302 | 0.306 | |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 185/60 R15 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | |
| Tyre dimensions rear | 185/60 R15 | 175/70 R14 | 175/70 R14 | 175/70 R14 | 185/60 R15 | |
| Wheel size front | 6.0J x 15 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | |
| Wheel size rear | 6.0J x 15 | 5.0J x 14 | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | |
| Overall length [mm] | 4257 | 4257 | 4257 | 4257 | 4257 | |
| Overall width without/including mirrors [mm] | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | 1732/1958 | |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | |
| Wheelbase [mm] | 2455 | 2455 | 2455 | 2455 | 2455 | |
| Front wheel track [mm] | 1457 | 1463 | 1463 | 1463 | 1457 | |
| Rear wheel track [mm] | 1451 | 1457 | 1457 | 1457 | 1451 | |
| Forward overhang [mm] | 847 | 847 | 847 | 847 | 847 | |
| Rear overhang [mm] | 940 | 940 | 940 | 940 | 940 | |
| Clearance [mm] | 135 | 135 | 135 | 135 | 135 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 14.6 | 14.6 | 14.6 | 14.6 | 14.6 | |
| Approach angle rear [°] | 13.1 | 13.1 | 13.1 | 13.1 | 13.1 | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | |
| Front elbow/shoulder width [mm] | 1401/- | 1401/- | 1401/- | 1401/- | 1401/- | |
| Rear elbow/shoulder width [mm] | 1386/- | 1386/- | 1386/- | 1386/- | 1386/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
