Škoda Karoq
Date of manufacture
7/2017 – to this day (Medium SUV)
Platform
Volkswagen Group MQB A1
Manufacturing locations
Kvasiny, Czechia
Osnabrück, Germany
Bratislava, Slovakia
Designer
-
Tags
Compact SUV
Czech cars
The Skoda Karoq is a mid-size SUV that has been produced since 2017. It is built on the Volkswagen Group MQB A1 platform and manufactured in three countries - the Czech Republic, Germany and Slovakia. The engine range includes petrol and diesel engines with a maximum power output of 140 kW (2.0 TDI). The best acceleration 0-100 km/h is achieved by the 2.0 TSI (7.3 s) model and the same engine has the highest speed of 217 km/h. The lowest fuel consumption of 4.7 l/100 km and emissions of 123 g/km are for the 2.0 TDI. The luggage compartment has a capacity of 521 [588 VarioFlex] l. During the EURONCAP safety tests, the Skoda Karoq earned a rating of 5 out of 5 according to the 2017 methodology.
Car body style
Technical data
Medium SUV
| 1.0 TSI | 1.0 TSI | 1.0 TSI | 1.5 TSI | 1.5 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from to 2021 | from to 2021 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1498 | 1498 | 1984 |
| Maximum output / speed [kW/min-1] | 81/5500 | 85/5000-5500 | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3500 | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 |
| Compression ratio | 11.5:1 | 10.5:1 | 10.5:1 | 10,5:1 | 10,5:1 | 11.65-12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 186 | 187 | 186 | 204 | 203 | 217 |
| Acceleration 0–100 km/h [s] | 11.1 | 10.6 | 10.7 | 8.4 | 8.6 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-6.5 | 6.2-5.8 | 6.0-5.8 | 6.6 | 6.6 | 8.7-8.5 |
| Out of town [l] | 4.7-4.4 | 4.7-5.1 | 5.1-4.8 | 4.7 | 4.9 | 5.8-5.5 |
| Combined [l] | 5.5-5.2 | 5.3 | 5.5-5.2 | 5.4 | 5.5 | 6.9-6.6 |
| CO2 emissions [g/km] | 125-119 | 121-119 | 124-118 | 123 | 125 | 156-150 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.6-5.7 | - | - | 6.9-6.1 | 6.9-6.1 | - |
| CO2 emissions [g/km] | 149-130 | - | - | 156-138 | 156-138 | - |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1344-1573 | 1340 | 1361 | 1378 | 1393 | 1555-1784 |
| Overall weight [kg] | 1872 | 1878 | 1892 | 1915 | 1929 | 2093-2218 |
| Maximum trailer weight unbraked/braked [kg] | 670/1200 | 660/1200 | 680/1200 | 680/1200-1500 | 690/1200-1500 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- |
| Boot length [mm] | 756 | 756 | 756 | 756 | 756 | 756 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.314-0.370 | 0.314-0.370 | 0.314-0.370 | 0.317-0.370 | 0.317-0.370 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink with torsion bar |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |

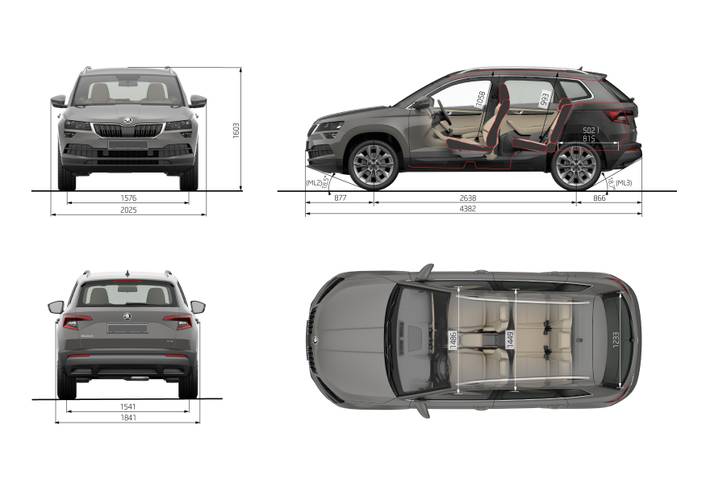

| Overall length [mm] | 4382 | 4382 | 4382 | 4382 | 4382 | 4382 |
| Overall width without/including mirrors [mm] | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 |
| Overall height [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Wheelbase [mm] | 2638 | 2638 | 2638 | 2638 | 2638 | 2638 |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Clearance [mm] | 172 | 172 | 172 | 172 | 172 | 176 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 |
| Approach angle rear [°] | 18.7 | 18.7 | 18.7 | 18.7 | 18.7 | 18.7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Headroom rear [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Front elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Rear elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2020 to | from to 2020 | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3200 | 250/1750-3200 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3250 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 188 | 188 | 206 | 196 | 195 | 214 |
| Acceleration 0–100 km/h [s] | 10.7 | 10.9 | 9.0 | 8.7 | 9.3 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.1-4.9 | 4.6 | 5.7-5.5 | 5.9 | 5.7 | 6.0-5.7 |
| Out of town [l] | 4.4-3.9 | 4.3 | 4.1-4.0 | 4.5 | 4.9 | 4.8-4.6 |
| Combined [l] | 4.6-4.3 | 4.4 | 4.7-4.5 | 5.0 | 5.2 | 5.2-5.0 |
| CO2 emissions [g/km] | 120-113 | 117 | 123-119 | 131 | 137 | 137-131 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 5.3-4.7 | 5.3-4.9 | - | 5.3-4.8 | 6.2-5.5 | - |
| CO2 emissions [g/km] | 139-123 | 140-128 | - | 139-125 | 164-144 | - |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1426-1455 | 1441 | 1468-1697 | 1561 | 1591 | 1602-1831 |
| Overall weight [kg] | 1948 | 1962 | 2005 | 2100 | 2128 | 2149-2252 |
| Maximum trailer weight unbraked/braked [kg] | 710/1500 | 720/1500 | 730/1800 | 750/2000 | 750/2000 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] | 521 [588 VarioFlex] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- | -/1630 [- |
| Boot length [mm] | 756 | 756 | 756 | 756 | 756 | 756 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.322–0.365 | 0.322–0.365 | 0.311–0.361 | 0.311–0.361 | 0.323–0.377 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar | multilink with torsion bar |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4382 | 4382 | 4382 | 4382 | 4382 | 4382 |
| Overall width without/including mirrors [mm] | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 | 1841/2025 |
| Overall height [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Wheelbase [mm] | 2638 | 2638 | 2638 | 2638 | 2638 | 2638 |
| Front wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Rear wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Clearance [mm] | 172 | 172 | 176 | 176 | 176 | 176 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 | 18.4 |
| Approach angle rear [°] | 18.7 | 18.7 | 18.7 | 18.7 | 18.7 | 18.7 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1058 | 1058 | 1058 | 1058 | 1058 | 1058 |
| Headroom rear [mm] | 1020 | 1020 | 1020 | 1020 | 1020 | 1020 |
| Front elbow/shoulder width [mm] | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- | 1486/- |
| Rear elbow/shoulder width [mm] | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- | 1451/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
