Škoda Octavia
Date of manufacture
3/2004 – 2008 (Liftback)
2004 – 2008 (Estate)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Mladá Boleslav, Czechia
Vrchlabí, Czechia
Bratislava, Slovakia
Designer
Thomas Ingenlath
Tags
C-segment
Czech cars

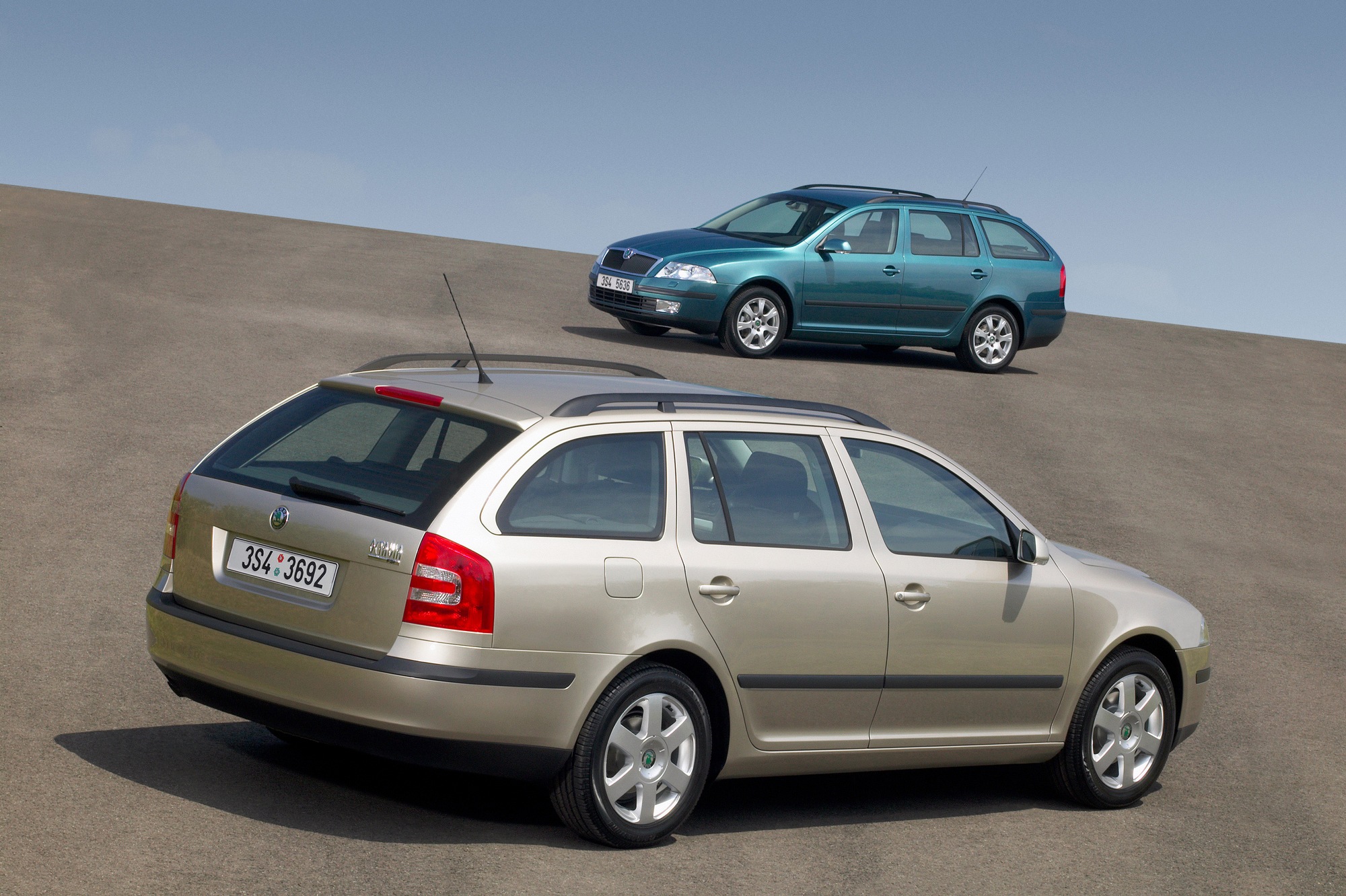

The new Skoda Octavia is available in two body styles - liftback and estate. The car was launched in 2004 and is based on the Volkswagen Group A5 (PQ35) platform. The engine range includes petrol and diesel units, the most powerful model being the RS 2.0 TFSI with 147 kW, reaching a top speed of 240 km/h and the best acceleration 0-100 km/h in 7.3 seconds. The most economical variant is the 1.9 TDI PD with a combined fuel consumption of 4.9 l/100 km and CO2 emissions of 130 g/km. The liftback has a boot capacity of 560 l, the estate 580 l. During the EURONCAP safety tests, the car achieved a rating of 4 out of 5.
Car body style
Liftback
Date of manufacture
3/2004 – 2008Internal designation
1ZEstate
Date of manufacture
2004 – 2008Internal designation
1Z
Technical data
Liftback
| 1.4 MPI | 1.6 MPI | 1.6 MPI | 1.6 FSI | 1.6 FSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1595 | 1595 | 1598 | 1598 | 1798 |
| Maximum output / speed [kW/min-1] | 59/5000 | 75/5600 | 75/5600 | 85/6000 | 85/6000 | 118/5000-6200 |
| Maximum torque [Nm/min-1] | 132/3800 | 148/3800 | 148/3800 | 155/4000 | 155/4000 | 250/1500-4200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 81,0 x 77,4 | 81,0 x 77,4 | 76,5 x 86,9 | 76,5 x 86,9 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 12,0:1 | 12,0:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 173 | 190 | 184 | 198 | 194 | 223 |
| Acceleration 0–100 km/h [s] | 14.2 | 12.3 | 14.1 | 11.2 | 12.4 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6 | 10.0 | 11.2 | 8.7 | 10.6 | 10.1 |
| Out of town [l] | 5.6 | 5.8 | 6.1 | 5.4 | 5.9 | 5.9 |
| Combined [l] | 7.0 | 7.4 | 7.9 | 6.6 | 7.6 | 7.4 |
| CO2 emissions [g/km] | 167 | 176 | 188 | 158 | 181 | 176 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1230 | 1255 | 1290 | 1265 | 1300 | 1325 |
| Overall weight [kg] | 1890 | 1915 | 1950 | 1925 | 1960 | 1985 |
| Maximum trailer weight unbraked/braked [kg] | 600/900 | 600/1200 | 600/1200 | 600/1200 | 600/1200 | 650/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 |
| Overall length [mm] | 4575 | 4575 | 4575 | 4575 | 4575 | 4575 |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1539 | 1539 | 1539 | 1539 | 1539 | 1539 |
| Rear wheel track [mm] | 1528 | 1528 | 1528 | 1528 | 1528 | 1528 |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 1076 | 1076 | 1076 | 1076 | 1076 | 1076 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12 | 12 | 12 | 12 | 12 | 12 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 FSI | RS 2.0 TFSI | 1.9 TDI PD | 1.9 TDI PD | 1.9 TDI PD | 1.9 TDI PD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1984 | 1984 | 1896 | 1896 | 1896 | 1896 |
| Maximum output / speed [kW/min-1] | 110/6000 | 147/5100-6000 | 77/4000 | 77/4000 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 200/3500 | 280/1800-5000 | 250/1900 | 250/1900 | 250/1900 | 250/1900 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 99,5 x 79,0 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 11,5:1 | 10,3:1 | 19,0:1 | 19,0:1 | 19,0:1 | 19,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - | - | - |
|
|
| Top speed [km/h] | 210 | 240 | 192 | 192 | 189 | 189 |
| Acceleration 0–100 km/h [s] | 10.1 | 7.3 | 11.8 | 11.8 | 12.2 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 10.9 | 6.3 | 6.4 | 7.7 | 7.8 |
| Out of town [l] | 6.3 | 6.0 | 4.2 | 4.4 | 5.0 | 5.1 |
| Combined [l] | 8.3 | 7.8 | 4.9 | 5.1 | 5.9 | 6.1 |
| CO2 emissions [g/km] | 198 | 187 | 130 | 135 | 156 | 161 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1335 | 1400 | 1310 | 1310 | 1350 | 1350 |
| Overall weight [kg] | 1995 | 1940 | 1970 | 1970 | 2010 | 2010 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 650/1400 | 650/1400 | 650/1400 | 650/1400 | 650/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 225/45 R17 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 225/45 R17 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | - | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | - | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 |
| Overall length [mm] | 4575 | 4578 | 4575 | 4575 | 4575 | 4575 |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 |
| Overall height [mm] | 1462 | 1447 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2578 | 2577 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1539 | 1526 | 1539 | 1539 | 1539 | 1539 |
| Rear wheel track [mm] | 1528 | 1514 | 1528 | 1528 | 1528 | 1528 |
| Forward overhang [mm] | 918 | - | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 1076 | - | 1076 | 1076 | 1076 | 1076 |
| Clearance [mm] | 140 | - | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | - | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12 | - | 12 | 12 | 12 | 12 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | 966 |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI PD | 2.0 TDI PD | 2.0 TDI PD | 2.0 TDI PD | RS 2.0 TDI CR | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/8 | 4/16 | 4/8 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 103/4000 | 103/4000 | 103/4000 | 103/4000 | 125/4200 | |
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 320/1750 | 320/1750 | 350/1800 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 18,5:1 | 18,5:1 | 18,5:1 | 18,5:1 | 16,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | |
| Drive specifications | - | - |
|
| - | |
| Top speed [km/h] | 208 | 208 | 209 | 209 | 225 | |
| Acceleration 0–100 km/h [s] | 9.6 | 9.6 | 9.6 | 9.6 | 8.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.0 | 7.2 | 7.9 | 7.8 | 7.7 | |
| Out of town [l] | 4.7 | 4.8 | 4.9 | 4.8 | 4.5 | |
| Combined [l] | 5.5 | 5.7 | 6.0 | 5.9 | 5.7 | |
| CO2 emissions [g/km] | 145 | 150 | 158 | 156 | 154 | |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1335 | 1335 | 1370 | 1370 | 1430 | |
| Overall weight [kg] | 1995 | 1995 | 2030 | 2030 | 1970 | |
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 650/1400 | 650/1400 | 650/1400 | 650/1400 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1420 | -/1420 | -/1420 | -/1420 | -/1420 | |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/45 R17 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 225/45 R17 | |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | - | |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | - | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | |
| Overall length [mm] | 4575 | 4575 | 4575 | 4575 | 4578 | |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1447 | |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2577 | |
| Front wheel track [mm] | 1539 | 1539 | 1539 | 1539 | 1526 | |
| Rear wheel track [mm] | 1528 | 1528 | 1528 | 1528 | 1514 | |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | - | |
| Rear overhang [mm] | 1076 | 1076 | 1076 | 1076 | - | |
| Clearance [mm] | 140 | 140 | 140 | 140 | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | - | |
| Approach angle rear [°] | 12 | 12 | 12 | 12 | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | |
| Headroom rear [mm] | 966 | 966 | 966 | 966 | 966 | |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate
| 1.4 MPI | 1.6 MPI | 1.6 MPI | 1.6 FSI | 1.6 FSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1595 | 1595 | 1598 | 1598 | 1798 |
| Maximum output / speed [kW/min-1] | 59/5000 | 75/5600 | 75/5600 | 85/6000 | 85/6000 | 118/5000-6200 |
| Maximum torque [Nm/min-1] | 132/3800 | 148/3800 | 148/3800 | 155/4000 | 155/4000 | 250/1500-4200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 81,0 x 77,4 | 81,0 x 77,4 | 76,5 x 86,9 | 76,5 x 86,9 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 12,0:1 | 12,0:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 172 | 188 | 184 | 198 | 193 | 222 |
| Acceleration 0–100 km/h [s] | 14.3 | 12.4 | 14.2 | 11.4 | 12.5 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6 | 10.0 | 11.2 | 8.7 | 10.6 | 10.1 |
| Out of town [l] | 5.6 | 5.8 | 6.1 | 5.4 | 5.9 | 5.9 |
| Combined [l] | 7.0 | 7.4 | 7.9 | 6.6 | 7.6 | 7.4 |
| CO2 emissions [g/km] | 167 | 176 | 188 | 158 | 181 | 176 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1245 | 1270 | 1305 | 1280 | 1315 | 1340 |
| Overall weight [kg] | 1905 | 1930 | 1965 | 1940 | 1975 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 600/900 | 600/1200 | 600/1200 | 600/1200 | 600/1200 | 650/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 580 | 580 | 580 | 580 | 580 | 580 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 |
| Overall length [mm] | 4572 | 4572 | 4572 | 4572 | 4572 | 4572 |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 |
| Overall height [mm] | 1468 | 1468 | 1468 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1539 | 1539 | 1539 | 1539 | 1539 | 1539 |
| Rear wheel track [mm] | 1528 | 1528 | 1528 | 1528 | 1528 | 1528 |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 1076 | 1076 | 1076 | 1076 | 1076 | 1076 |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12 | 12 | 12 | 12 | 12 | 12 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 FSI | 2.0 FSI | RS 2.0 TFSI | 1.9 TDI PD | 1.9 TDI PD | 1.9 TDI PD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1896 | 1896 | 1896 |
| Maximum output / speed [kW/min-1] | 110/6000 | 110/6000 | 147/5100-6000 | 77/4000 | 77/4000 | 77/4000 |
| Maximum torque [Nm/min-1] | 200/3500 | 200/3500 | 280/1800-5000 | 250/1900 | 250/1900 | 250/1900 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 99,5 x 79,0 | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 11,5:1 | 11,5:1 | 10,3:1 | 19,0:1 | 19,0:1 | 19,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic |
| Drive specifications |
|
| - | - | - |
|
| Top speed [km/h] | 210 | 202 | 238 | 191 | 191 | 189 |
| Acceleration 0–100 km/h [s] | 10.2 | 9.7 | 7.5 | 11.9 | 11.9 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.8 | 11.7 | 10.9 | 6.5 | 6.6 | 7.7 |
| Out of town [l] | 6.3 | 6.8 | 6.0 | 4.4 | 4.6 | 5.0 |
| Combined [l] | 8.3 | 8.6 | 7.8 | 5.1 | 5.2 | 5.9 |
| CO2 emissions [g/km] | 198 | 205 | 187 | 135 | 137 | 156 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350 | 1430 | 1415 | 1325 | 1325 | 1365 |
| Overall weight [kg] | 2010 | 2090 | 1955 | 1985 | 1985 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 650/1500 | 650/1400 | 650/1400 | 650/1400 | 650/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 580 | 580 | 580 | 580 | 580 | 580 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 60 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.32 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 225/45 R17 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 225/45 R17 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 |
| Overall length [mm] | 4572 | 4572 | 4579 | 4572 | 4572 | 4572 |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 |
| Overall height [mm] | 1468 | 1463 | 1451 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2578 | 2578 | 2577 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1539 | 1533 | 1526 | 1539 | 1539 | 1539 |
| Rear wheel track [mm] | 1528 | 1522 | 1514 | 1528 | 1528 | 1528 |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 1076 | 1076 | 1076 | 1076 | 1076 | 1076 |
| Clearance [mm] | 140 | 138 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12 | 12 | 12 | 12 | 12 | 12 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.9 TDI PD | 1.9 TDI PD | 1.9 TDI PD | 2.0 TDI PD | 2.0 TDI PD | 2.0 TDI PD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1896 | 1896 | 1896 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 77/4000 | 103/4000 | 103/4000 | 103/4000 |
| Maximum torque [Nm/min-1] | 250/1900 | 250/1900 | 250/1900 | 320/1750 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 19,0:1 | 19,0:1 | 19,0:1 | 18,5:1 | 18,5:1 | 18,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 5 gear manual | 6 gear automatic | 5 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 189 | 181 | 181 | 207 | 208 | 207 |
| Acceleration 0–100 km/h [s] | 12.3 | 12.9 | 12.9 | 9.7 | 9.7 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 7.7 | 7.8 | 7.0 | 7.9 | 7.2 |
| Out of town [l] | 5.1 | 4.9 | 5.0 | 4.7 | 4.9 | 4.8 |
| Combined [l] | 6.1 | 6.0 | 6.0 | 5.5 | 6.0 | 5.7 |
| CO2 emissions [g/km] | 161 | 159 | 158 | 145 | 158 | 150 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365 | 1460 | 1460 | 1350 | 1385 | 1350 |
| Overall weight [kg] | 2025 | 2120 | 2120 | 2010 | 2045 | 2010 |
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 650/1600 | 650/1600 | 650/1400 | 650/1400 | 650/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 580 | 580 | 580 | 580 | 580 | 580 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 | -/1010 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 60 | 60 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.32 | 0.32 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 |
| Overall length [mm] | 4572 | 4572 | 4572 | 4572 | 4572 | 4572 |
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 | 1769/1973 |
| Overall height [mm] | 1468 | 1463 | 1463 | 1468 | 1468 | 1468 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1539 | 1533 | 1533 | 1539 | 1539 | 1539 |
| Rear wheel track [mm] | 1528 | 1522 | 1522 | 1528 | 1528 | 1528 |
| Forward overhang [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Rear overhang [mm] | 1076 | 1076 | 1076 | 1076 | 1076 | 1076 |
| Clearance [mm] | 140 | 138 | 138 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12 | 12 | 12 | 12 | 12 | 12 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Headroom rear [mm] | 984 | 984 | 984 | 984 | 984 | 984 |
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- | 1415/- |
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- | 1423/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI PD | 2.0 TDI PD | RS 2.0 TDI CR | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 103/4000 | 103/4000 | 125/4200 | |||
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | 350/1800 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 18,5:1 | 18,5:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | Front | |||
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | |||
| Drive specifications |
|
| - | |||
| Top speed [km/h] | 208 | 199 | 224 | |||
| Acceleration 0–100 km/h [s] | 9.7 | 9.9 | 8.6 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.8 | 8.0 | 7.8 | |||
| Out of town [l] | 4.8 | 5.3 | 4.6 | |||
| Combined [l] | 5.9 | 6.3 | 5.8 | |||
| CO2 emissions [g/km] | 156 | 166 | 157 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1385 | 1470 | 1445 | |||
| Overall weight [kg] | 2045 | 2130 | 1985 | |||
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 650/1600 | 650/1400 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 580 | 580 | 580 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | |||
| Boot length [mm] | 1064 | 1064 | 1064 | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | -/1010 | -/1010 | -/1010 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 60 | 55 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.3 | 0.32 | 0.3 | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |||
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 225/45 R17 | |||
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 225/45 R17 | |||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.2/10.85 | 10.2/10.85 | 10.2/10.85 | |||
| Overall length [mm] | 4572 | 4572 | 4579 | |||
| Overall width without/including mirrors [mm] | 1769/1973 | 1769/1973 | 1769/1973 | |||
| Overall height [mm] | 1468 | 1463 | 1451 | |||
| Wheelbase [mm] | 2578 | 2578 | 2577 | |||
| Front wheel track [mm] | 1539 | 1532 | 1526 | |||
| Rear wheel track [mm] | 1528 | 1522 | 1514 | |||
| Forward overhang [mm] | 918 | 918 | 918 | |||
| Rear overhang [mm] | 1076 | 1076 | 1076 | |||
| Clearance [mm] | 140 | 138 | 140 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | |||
| Approach angle rear [°] | 12 | 12 | 12 | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 981 | 981 | 981 | |||
| Headroom rear [mm] | 984 | 984 | 984 | |||
| Front elbow/shoulder width [mm] | 1415/- | 1415/- | 1415/- | |||
| Rear elbow/shoulder width [mm] | 1423/- | 1423/- | 1423/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
