Škoda Octavia
Date of manufacture
11/2019 – to this day (Liftback)
11/2019 – to this day (Estate)
Platform
Volkswagen Group MQB Evo
Manufacturing locations
Kvasiny, Czechia
Ningbo, People's Republic of China
Aurangabad, India
Designer
-
Tags
C-segment
Czech cars
The Škoda Octavia has been manufactured since 2019 in three countries - the Czech Republic, China and India. It is built on the Volkswagen Group MQB Evo platform and offers hybrid or plug-in hybrid versions. The engine list includes petrol, diesel and hybrid engines with the most powerful model being the RS iV with 180 kW of power. The highest speed is achieved by the 2.0 TSI RS model at 250 km/h and the best acceleration from 0-100 km/h is 6.6 seconds for the 2.0 TDI model. The most economical variant is the iV with a combined consumption of 1.1 l/100 km and CO2 emissions of 24 g/km. The liftback body has a luggage capacity of 600 l and the estate body 640 l. In terms of safety, the Škoda Octavia earned a 5 out of 5 rating from EURONCAP already in 2019.
Car body style

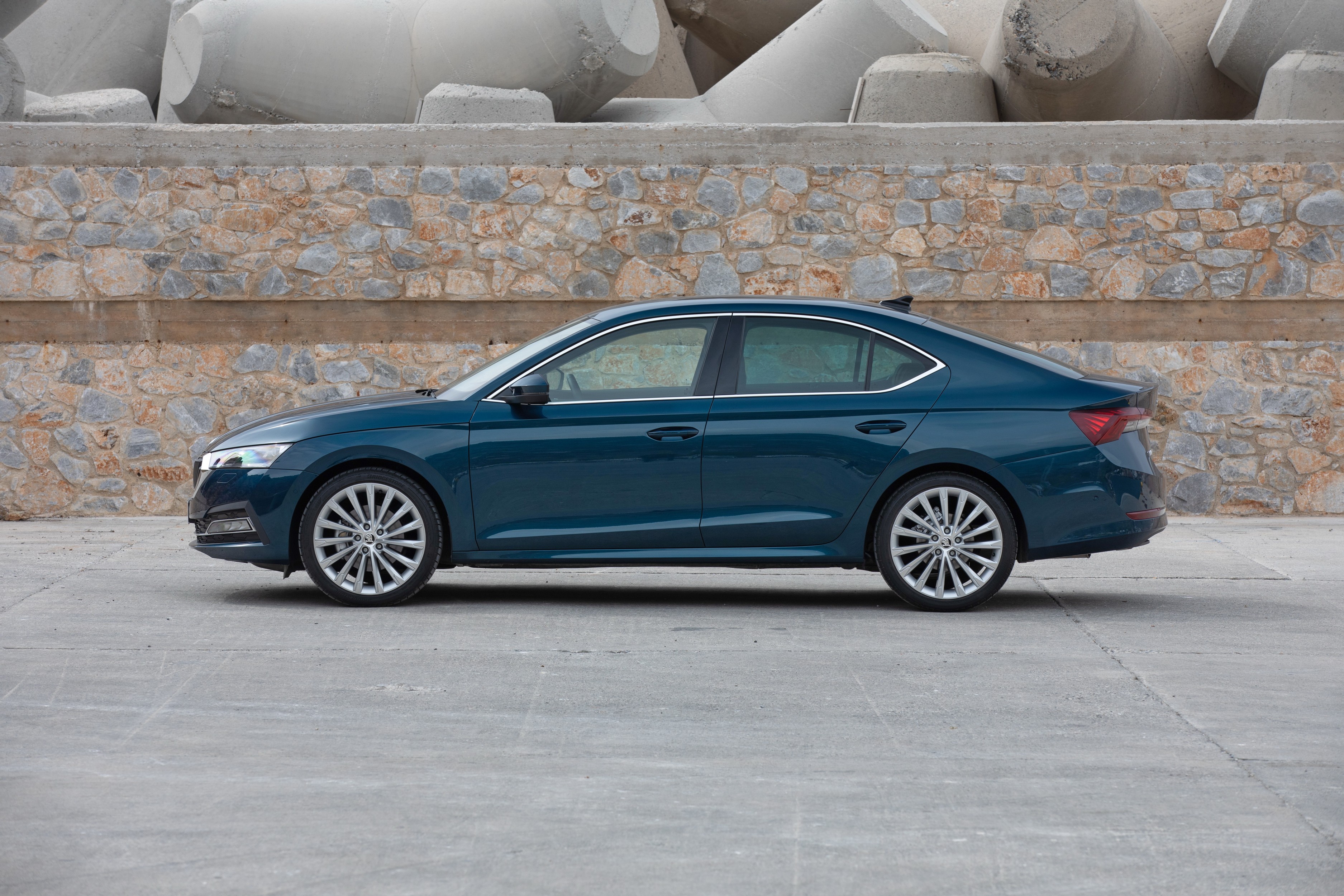

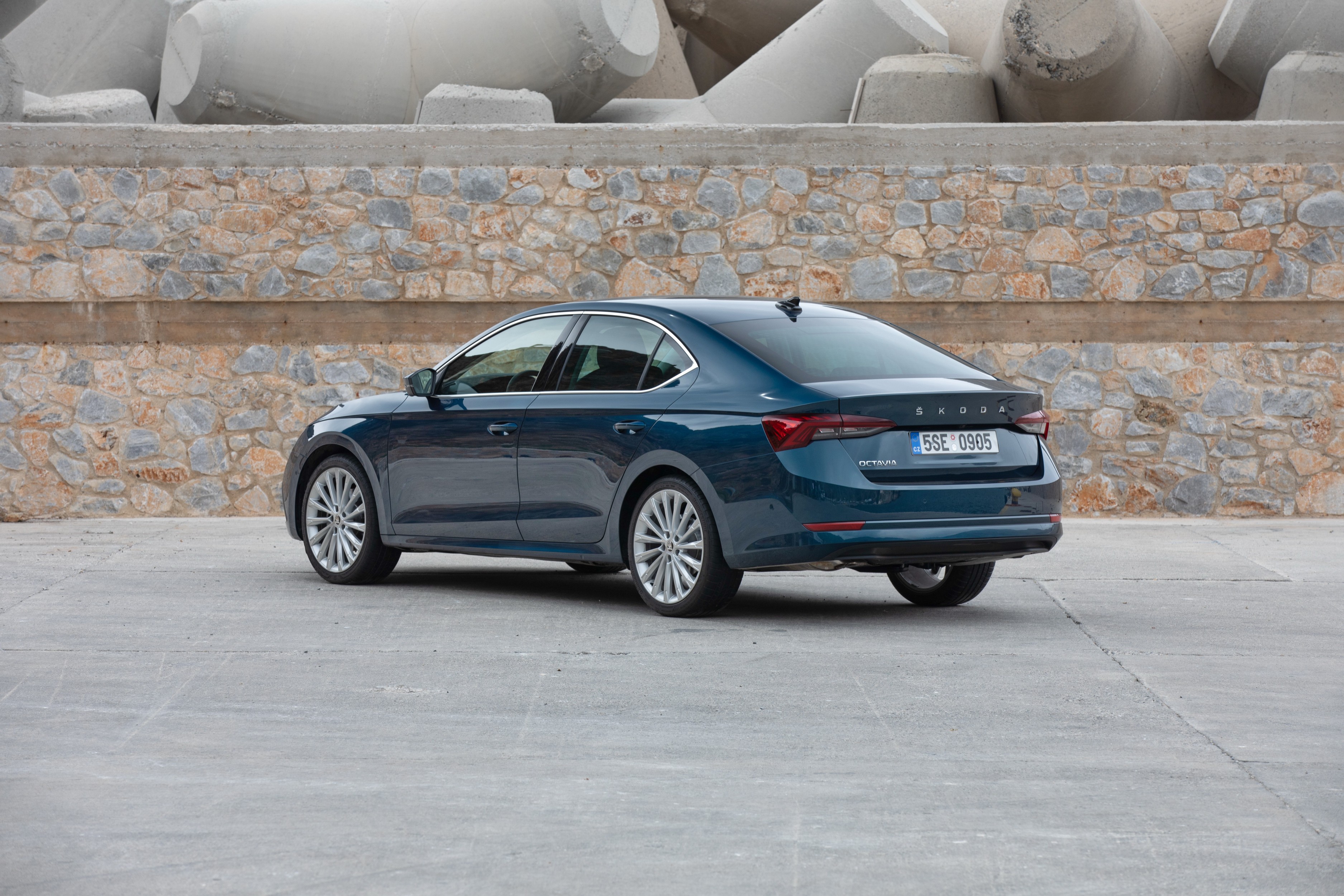

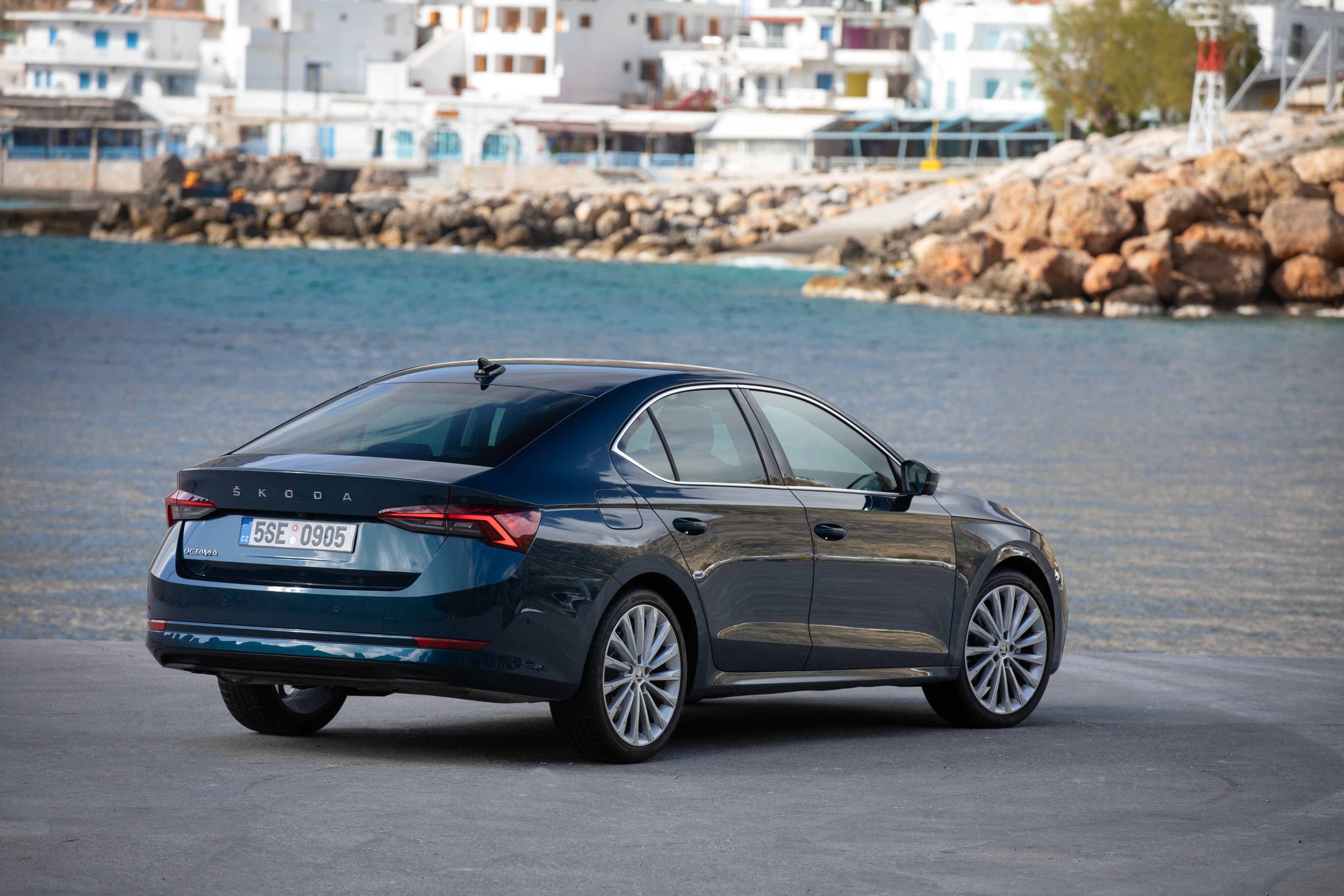

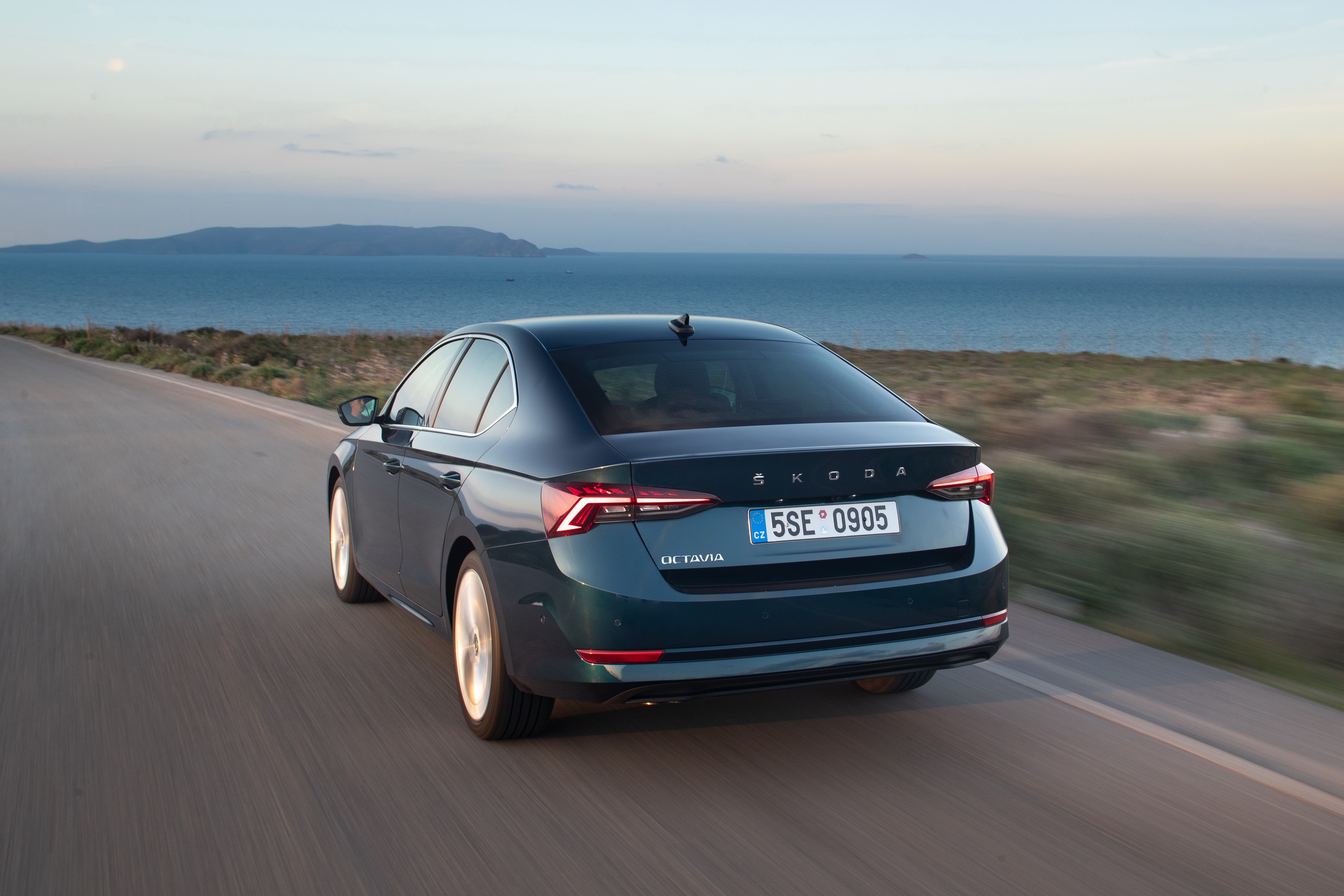

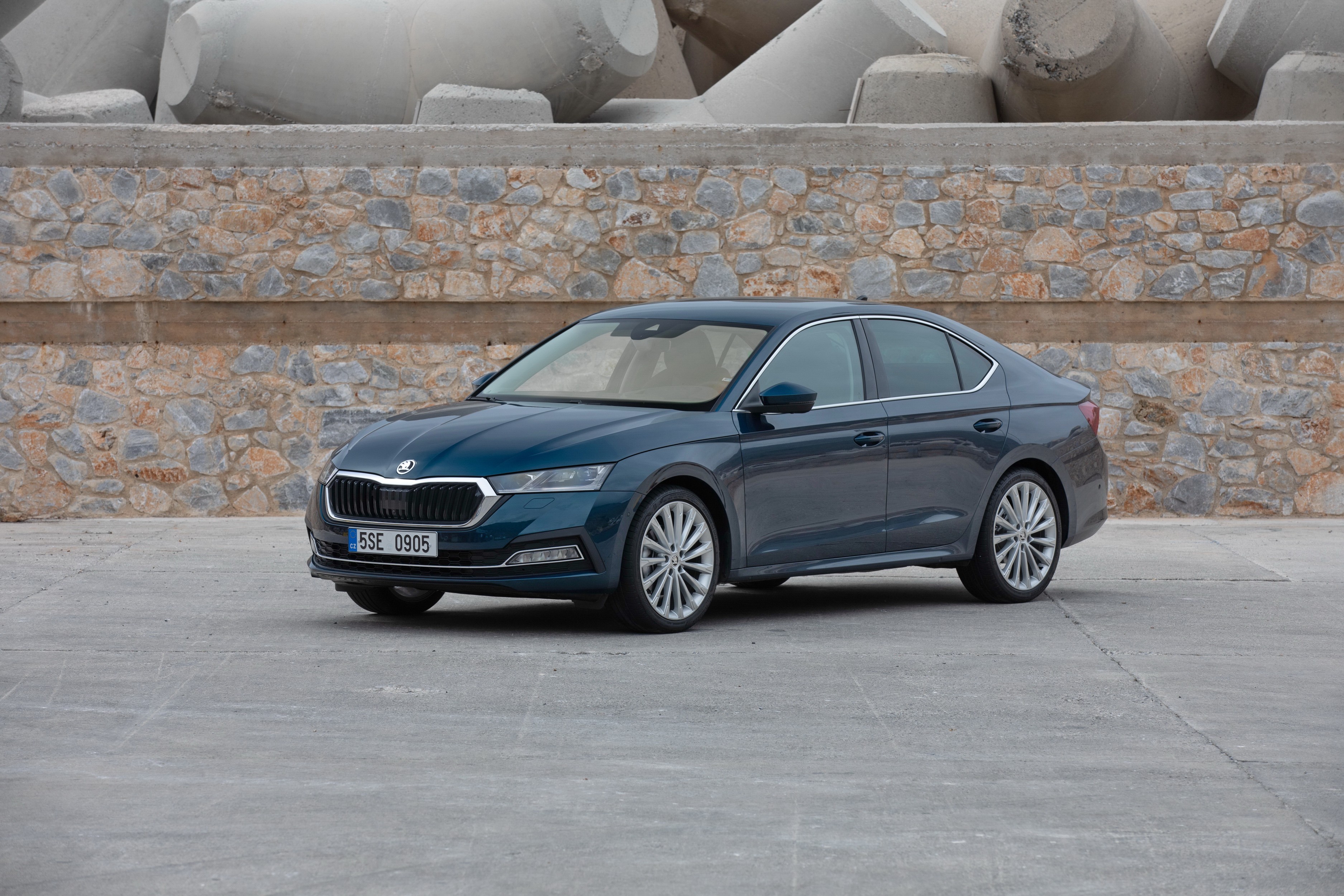

Liftback
Date of manufacture
11/2019 – to this dayInternal designation
NXEngine size

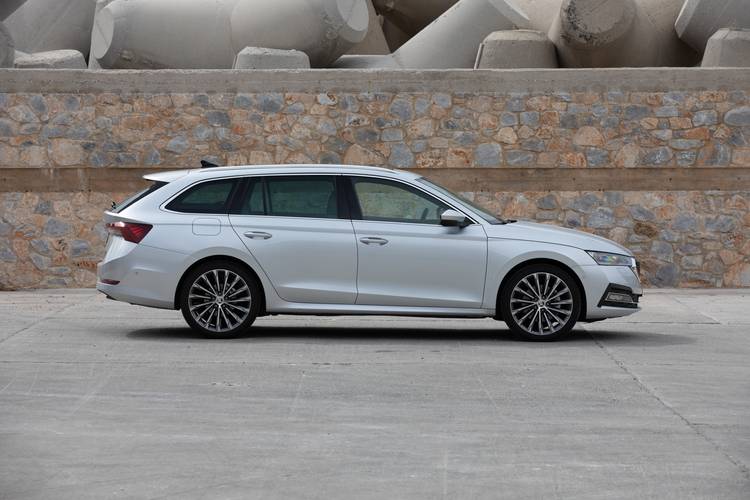

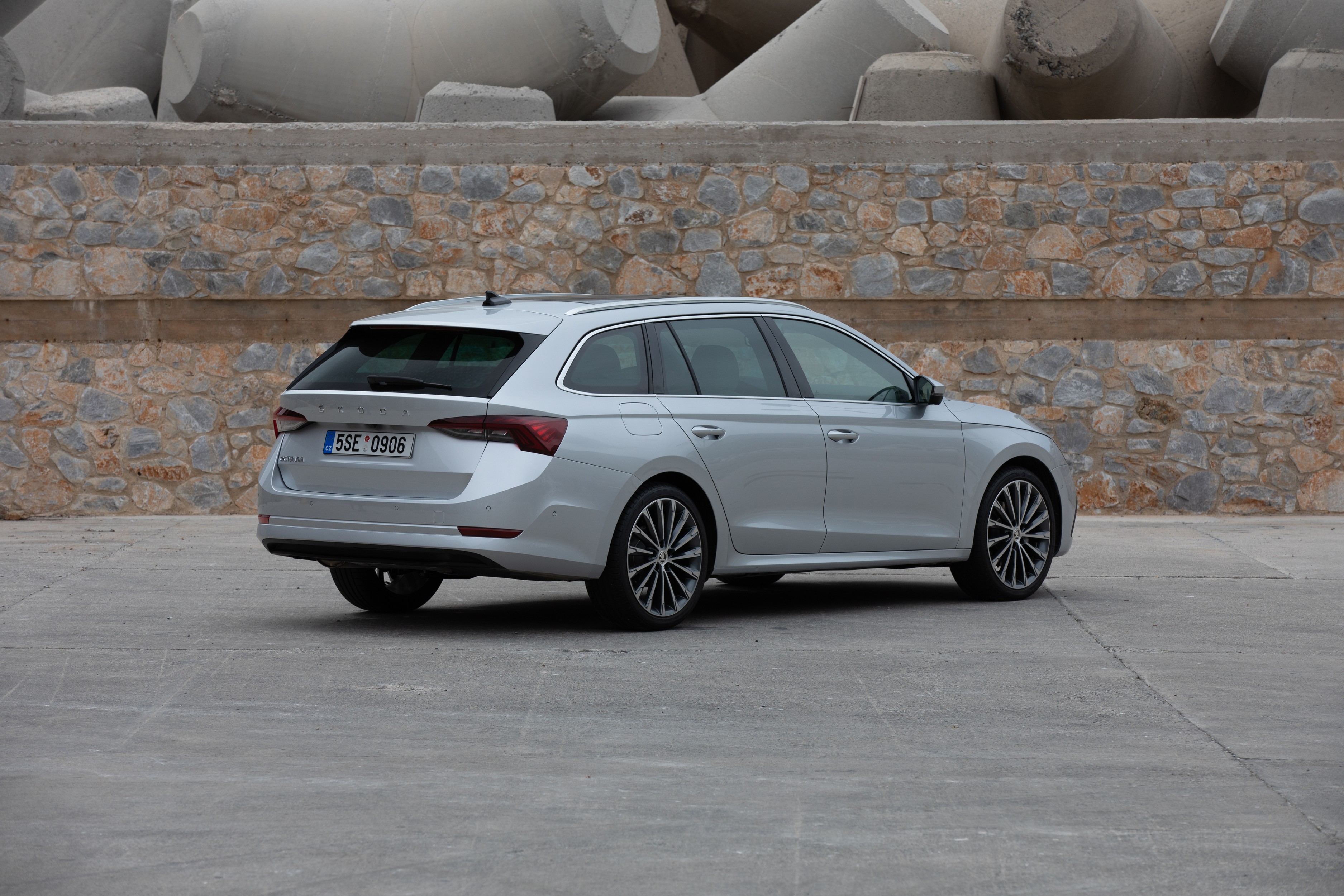

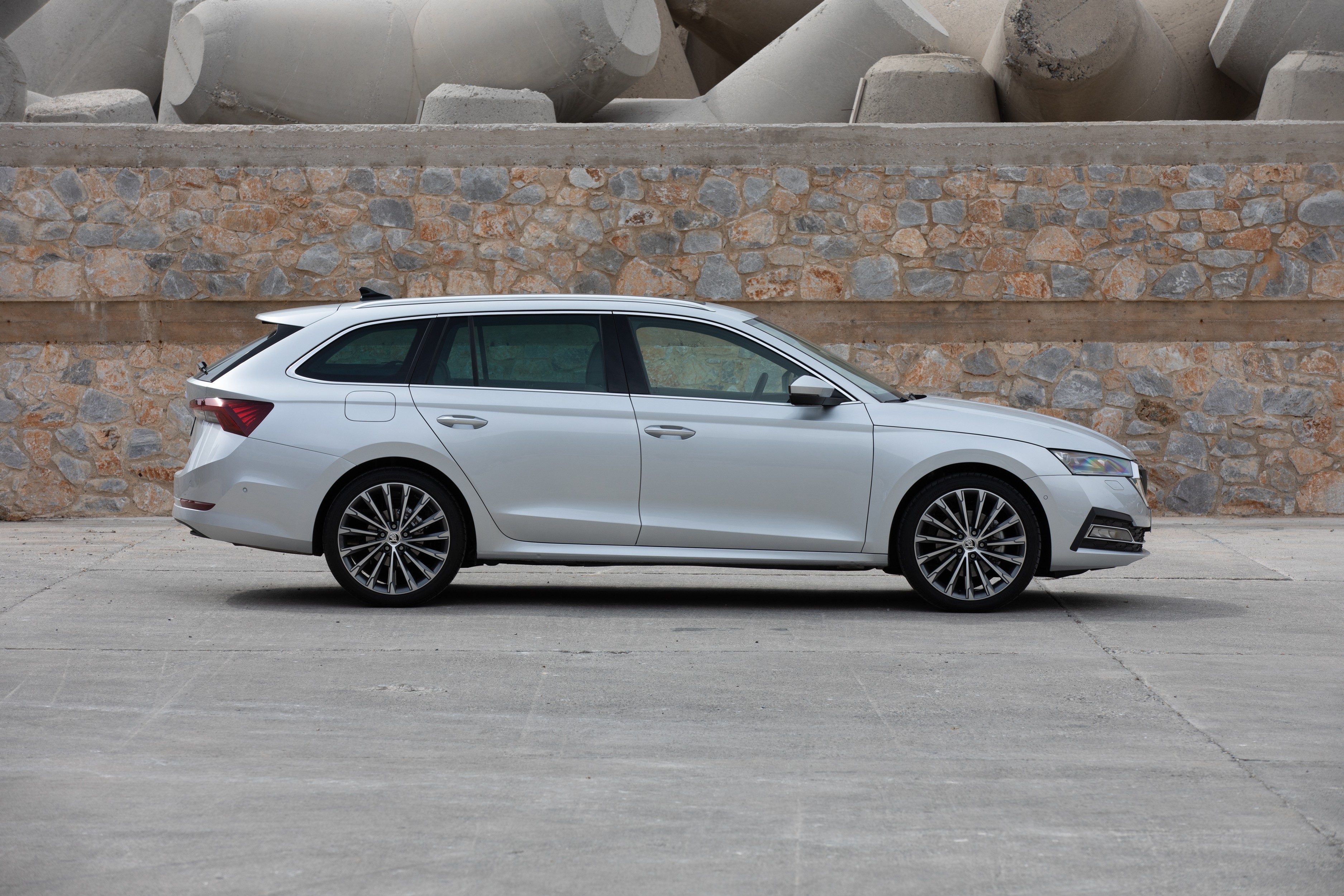

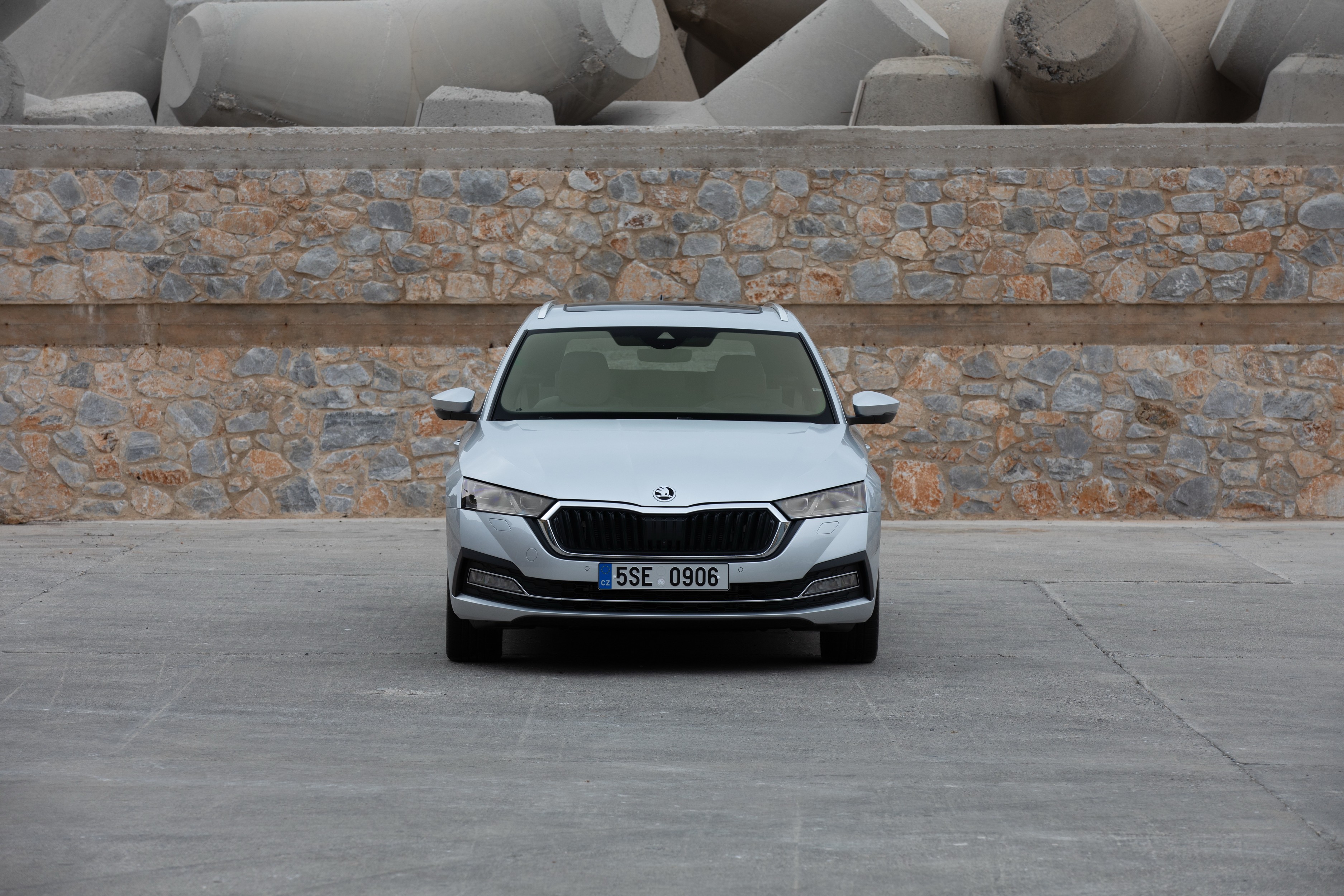

Estate
Date of manufacture
11/2019 – to this dayInternal designation
NX
Technical data
Liftback
| 1.0 TSI | 1.0 TSI eTEC | 1.5 TGI | 1.5 TGI | 1.5 TSI | 1.5 TSI eTEC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74.5 x 76.4 | 74.5 x 76.4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 208 | 208 | 218 | 218 | 231 | 230 |
| Acceleration 0–100 km/h [s] | 10,8 | 10,5 | 9.5 | 9,6 | 8,5 | 8,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,0 | 5,1-5,0 | - | 4,5 kg | 7,1-7,0 | 5,9-5,8 |
| Out of town [l] | 3,9-3,8 | 3,8-3,7 | - | 2,8-2,7 kg | 4,0-3,9 | 4,0-3,9 |
| Combined [l] | 4,7-4,6 | 4,3-4,2 | - | 3,5-3,4 kg | 5,1-5,0 | 4,7-4,6 |
| CO2 emissions [g/km] | 107-105 | 98-96 | - | 95-93 | 117-115 | 107-105 |
| Low speed [l] | 7.0-6.6 | 6.8-6.4 | - [5.5-5.3 m³] | - [5.9-5.7 m³] | 8.0-7.6 | 7.5-7.2 |
| Medium speed [l] | 5.5-5.0 | 5.4-4.9 | - [3.9-3.7 m³] | - [4.1-3.9 m³] | 6.0-5.4 | 5.2-5.1 |
| High speed [l] | 4.9-4.4 | 4.8-4.3 | - [3.3-3.1 m³] | - [3.4-3.2 m³] | 5.1-4.6 | 4.9-4.7 |
| Extra high speed [l] | 5.7-5.1 | 5.7-5.1 | - [3.6-3.3 m³] | - [3.7-3.4 m³] | 5.7-5.1 | 5.9-5.2 |
| Combined speed [l] | 5.6-5.1 | 5.5-5.0 | - [3.8-3.6 m³] | - [4.0-3.7 m³] | 5.9-5.3 | 5.8-5.2 |
| CO2 emissions [g/km] | 127-115 | 125-113 | 104-98 | 109-102 | 133-121 | 130-118 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | - | 48 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1301-1466 | 1341-1506 | 1397-1559 | 1419-1559 | 1336-1501 | 1371-1536 |
| Overall weight [kg] | 1808-1870 | 1853-1900 | 1860 | 1890 | 1850-1900 | 1890-1930 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 670/1300 | 690/1400 | 700/1400 | 660/1500 | 680/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

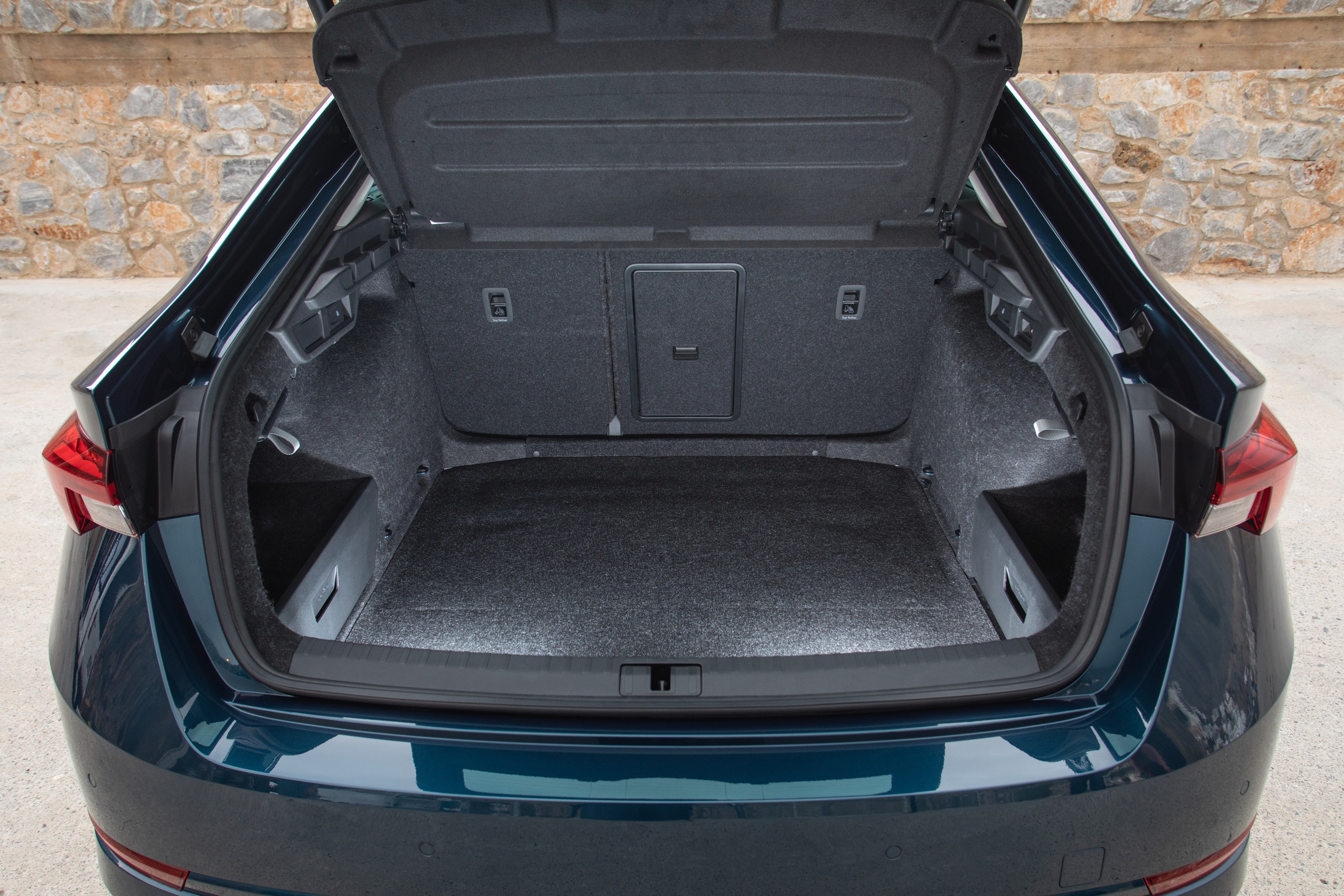

| Boot volume [l] | 600 | 600 | 455 | 455 | 600 | 600 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1555 | -/1555 | -/1410 | -/1410 | -/1555 | -/1555 |
| Boot length [mm] | 1109 | 1109 | 1109 | 1109 | 1109 | 1109 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 9 [17 kg] | 9 [17 kg] | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,245 | 0,243 | - | 0,254 | 0,249 | 0,245 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 |

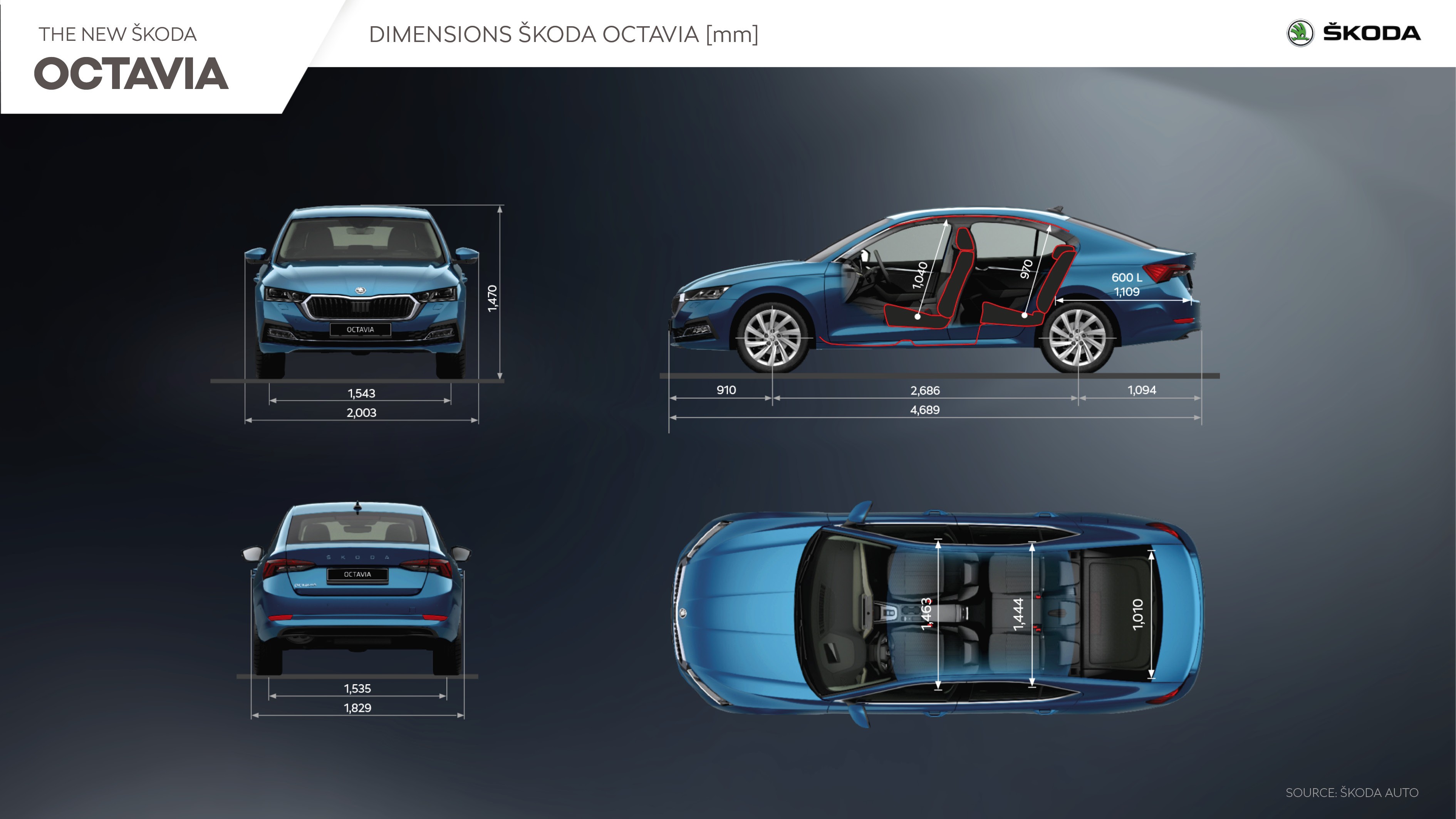

| Overall length [mm] | 4689 | 4689 | 4689 | 4689 | 4689 | 4689 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | 1463/- | 1463/- | 1463/- | 1463/- | 1463/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |
| 2.0 TSI | 2.0 TSI RS | 2.0 TSI RS | iV | RS iV | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1395 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 180/5250-6500 | 180/5250-6500 | 110/5000-6000 85 el. 150 total | 110/5000-6000 85 el. 180 total | 85/2750-4250 |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 370/1600-4300 | 370/1600-4300 | 250/1550-3500 350 total | 250/1550-3500 400 total | 300/1500-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80.0 | 74,5 x 80.0 | 81,0 x 95,5 |
| Compression ratio | 12.2:1 | 12.2:1 | 12.2:1 | 10,0:1 | 10,0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 239 | 250 | 250 | 220 | 225 | 212 |
| Acceleration 0–100 km/h [s] | 6,8 | 6,8 | 6,7 | 7.5 | 7.0 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9 | 9.4-9.3 | 9.0 | - | - | 5,2 |
| Out of town [l] | 5,2 | 5.2-5.1 | 5.1-5.0 | - | - | 3,1-3,0 |
| Combined [l] | 6,2 | 6.8 | 6.5 | - | - | 3,9-3,8 |
| CO2 emissions [g/km] | 143-142 | 155-153 | 150-148 | - | - | 101-99 |
| Low speed [l] | 10.3-10.0 | 10.5-10.2 | 11.1-10.7 | - | - | 6.1-5.8 |
| Medium speed [l] | 7.7-7.4 | 7.1-6.7 | 7.3-7.0 | - | - | 4.4-4.0 |
| High speed [l] | 6.4-6.0 | 6.1-5.8 | 5.9-5.6 | - | - | 3.9-3.5 |
| Extra high speed [l] | 6.9-6.3 | 6.6-6.3 | 6.4-4.1 | - | - | 4.5-4.0 |
| Combined speed [l] | 7.4-6.9 | 7.1-6.7 | 7.1-6.8 | 1.1-1.0 [14.4-13.8 kWh] | 1.2-1.1 [14.8-14.3 kWh] | 4.5-4.1 |
| CO2 emissions [g/km] | 167-157 | 160-153 | 160-153 | 24-21 | 27-25 | 118-107 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-ion, 13 kWh (10 net) | Lithium-ion, 13 kWh (10 net) | - |
| Range with fully charged battery [km] | - | - | - | 65-71 | 62-64 | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1524-1689 | 1489-1598 | 1520-1629 | 1608-1748 | 1695-1780 | 1423-1588 |
| Overall weight [kg] | 2030-2191 | 1985-2040 | 2023-2080 | 2040-2120 | 2135-2166 | 1947-1960 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 740/1700 | 750/1700 | 750/1500 | 750/1500 | 710/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 600 | 600 | 600 | 450 | 450 | 600 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1555 | -/1555 | -/1555 | -/1405 | -/1405 | -/1555 |
| Boot length [mm] | 1109 | 1109 | 1109 | 1109 | 1109 | 1109 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 50 | 50 | 40 | 40 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | 12 |
| Air resistance [Cd] | 0,264 | 0.262 | 0.262 | - | 0,270 | 0,247 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | multilink | multilink | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 205/60 R16 |
| Tyre dimensions rear | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 205/60 R16 |
| Wheel size front | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7.5J x 18 | 7,5J x 18 | 6,5J x 16 |
| Wheel size rear | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7.5J x 18 | 7,5J x 18 | 6,5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 |
| Overall length [mm] | 4689 | 4702 | 4702 | 4689 | 4702 | 4689 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1470 | 1459 | 1459 | 1470 | 1476 | 1470 |
| Wheelbase [mm] | 2686 | 2680 | 2680 | 2686 | 2680 | 2686 |
| Front wheel track [mm] | 1543 | 1541 | 1541 | 1539 | 1539 | 1543 |
| Rear wheel track [mm] | 1535 | 1550 | 1550 | 1539 | 1539 | 1535 |
| Forward overhang [mm] | 910 | 908 | 908 | 910 | 908 | 910 |
| Rear overhang [mm] | 1094 | 1114 | 1114 | 1094 | 1114 | 1094 |
| Clearance [mm] | 143 | 129 | 129 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 13.5 | 13.5 | 14.3 | 13.5 | 14.3 |
| Approach angle rear [°] | 12.8 | 13.6 | 13.6 | 12.8 | 13.6 | 12.8 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | 1463/- | 1413/- | 1413/- | 1463/- | 1413/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1375/- | 1375/- | 1444/- | 1375/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI RS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 85/2750-4250 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 147/3500-4200 | 147/3500-4200 |
| Maximum torque [Nm/min-1] | 300/1500-2500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 400/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16.0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 211 | 231 | 229 | 222 | 241 | 247 |
| Acceleration 0–100 km/h [s] | 10,6 | 8,7 | 8,7 | 8,4 | 6.6 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,0-4,9 | 5,2 | 4,8-4,7 | 5,5-5,4 | - | 5.6 |
| Out of town [l] | 3,2-3,1 | 3,1-3,0 | 3,2-3,1 | 3,8 | - | 3.6 |
| Combined [l] | 3,9-3,8 | 3,9-3,8 | 3,8-3,7 | 4,4 | - | 4.4 |
| CO2 emissions [g/km] | 102-100 | 103-101 | 100-98 | 117-115 | - | 115 |
| Low speed [l] | 6.4-6.1 | 6.0-5.8 | 6.4-6.2 | 7.0-6.7 | 8.6-8.2 | 7.6-7.4 |
| Medium speed [l] | 4.5-4.2 | 4.5-4.1 | 4.7-4.4 | 5.5-5.1 | 5.8-5.5 | 5.2-5.0 |
| High speed [l] | 4.0-3.6 | 3.9-3.5 | 4.0-3.7 | 4.7-4.4 | 4.9-4.6 | 4.3-4.1 |
| Extra high speed [l] | 4.8-4.3 | 4.6-4.1 | 4.6-4.2 | 5.4-4.8 | 5.6-5.1 | 4.8-4.6 |
| Combined speed [l] | 4.7-4.3 | 4.5-4.1 | 4.7-4.3 | 5.4-5.0 | 5.8-5.4 | 5.1-4.9 |
| CO2 emissions [g/km] | 123-113 | 119-108 | 123-114 | 142-131 | 152-142 | 133-129 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1431-1596 | 1424-1589 | 1461-1626 | 1554-1718 | 1548-1713 | 1516-1625 |
| Overall weight [kg] | 1955-1970 | 1949-1960 | 1987-2000 | 2066-2210 | 2061-2210 | 2015-2070 |
| Maximum trailer weight unbraked/braked [kg] | 710/1500 | 710/1600 | 730/1600 | 750/2000 | 750/2000 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 600 | 600 | 600 | 600 | 600 | 600 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1555 | -/1555 | -/1555 | -/1555 | -/1555 | -/1555 |
| Boot length [mm] | 1109 | 1109 | 1109 | 1109 | 1109 | 1109 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 697 | 697 | 697 | 697 | 697 | 697 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 55 | 55 | 55 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | 0,247 | 0,248 | 0,248 | 0,252 | 0.264 | 0,254 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 225/45 R18 |
| Tyre dimensions rear | 205/60 R16 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | 225/45 R18 |
| Wheel size front | 6,5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7,5J x 18 |
| Wheel size rear | 6,5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7,5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 | 10.4/11.1 |
| Overall length [mm] | 4689 | 4689 | 4689 | 4689 | 4689 | 4702 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1459 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2680 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1541 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1550 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 908 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1114 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 13.5 |
| Approach angle rear [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 13.6 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1040 | 1040 | 1040 | 1040 | 1040 | 1040 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | 1463/- | 1463/- | 1463/- | 1463/- | 1463/- | 1413/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1375/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |

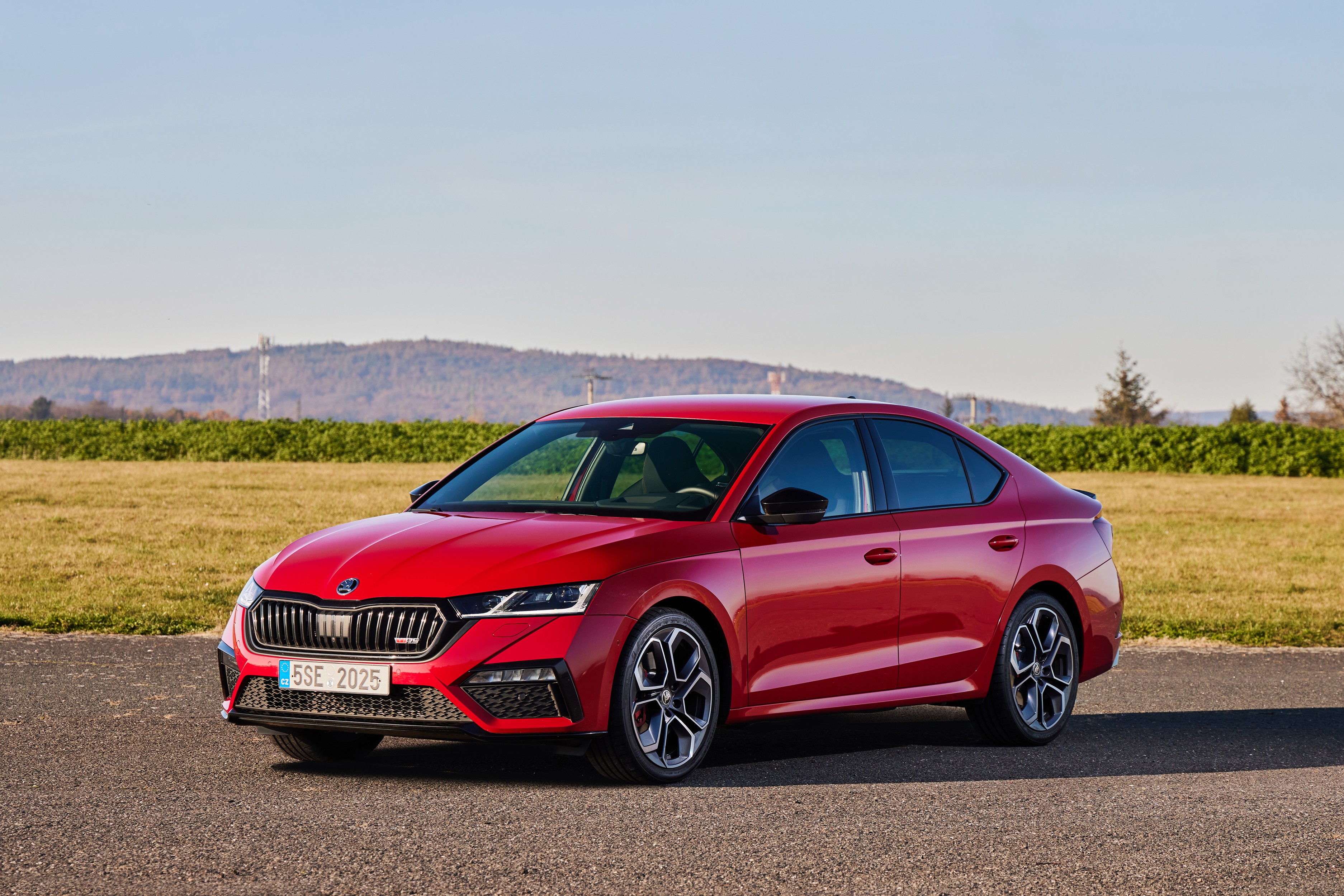

| 2.0 TDI RS | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 147/3500-4200 | |||||
| Maximum torque [Nm/min-1] | 400/1750-3000 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 243 | |||||
| Acceleration 0–100 km/h [s] | 6.8 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.4 | |||||
| Out of town [l] | 4.2 | |||||
| Combined [l] | 5.0 | |||||
| CO2 emissions [g/km] | 131 | |||||
| Low speed [l] | 8.5-8.3 | |||||
| Medium speed [l] | 5.8-5.6 | |||||
| High speed [l] | 4.8-4.6 | |||||
| Extra high speed [l] | 5.3-5.1 | |||||
| Combined speed [l] | 5.6-5.5 | |||||
| CO2 emissions [g/km] | 148-144 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1602-1711 | |||||
| Overall weight [kg] | 2125-2197 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 600 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1555 | |||||
| Boot length [mm] | 1109 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1010/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | 697 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 55 | |||||
| AdBlue tank volume [l] | 12 | |||||
| Air resistance [Cd] | 0,255 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 225/45 R18 | |||||
| Tyre dimensions rear | 225/45 R18 | |||||
| Wheel size front | 7,5J x 18 | |||||
| Wheel size rear | 7,5J x 18 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.4/11.1 | |||||
| Overall length [mm] | 4702 | |||||
| Overall width without/including mirrors [mm] | 1829/2003 | |||||
| Overall height [mm] | 1459 | |||||
| Wheelbase [mm] | 2680 | |||||
| Front wheel track [mm] | 1541 | |||||
| Rear wheel track [mm] | 1550 | |||||
| Forward overhang [mm] | 908 | |||||
| Rear overhang [mm] | 1114 | |||||
| Clearance [mm] | 128 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13.5 | |||||
| Approach angle rear [°] | 13.6 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1040 | |||||
| Headroom rear [mm] | 970 | |||||
| Front elbow/shoulder width [mm] | 1413/- | |||||
| Rear elbow/shoulder width [mm] | 1375/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | 78/- |

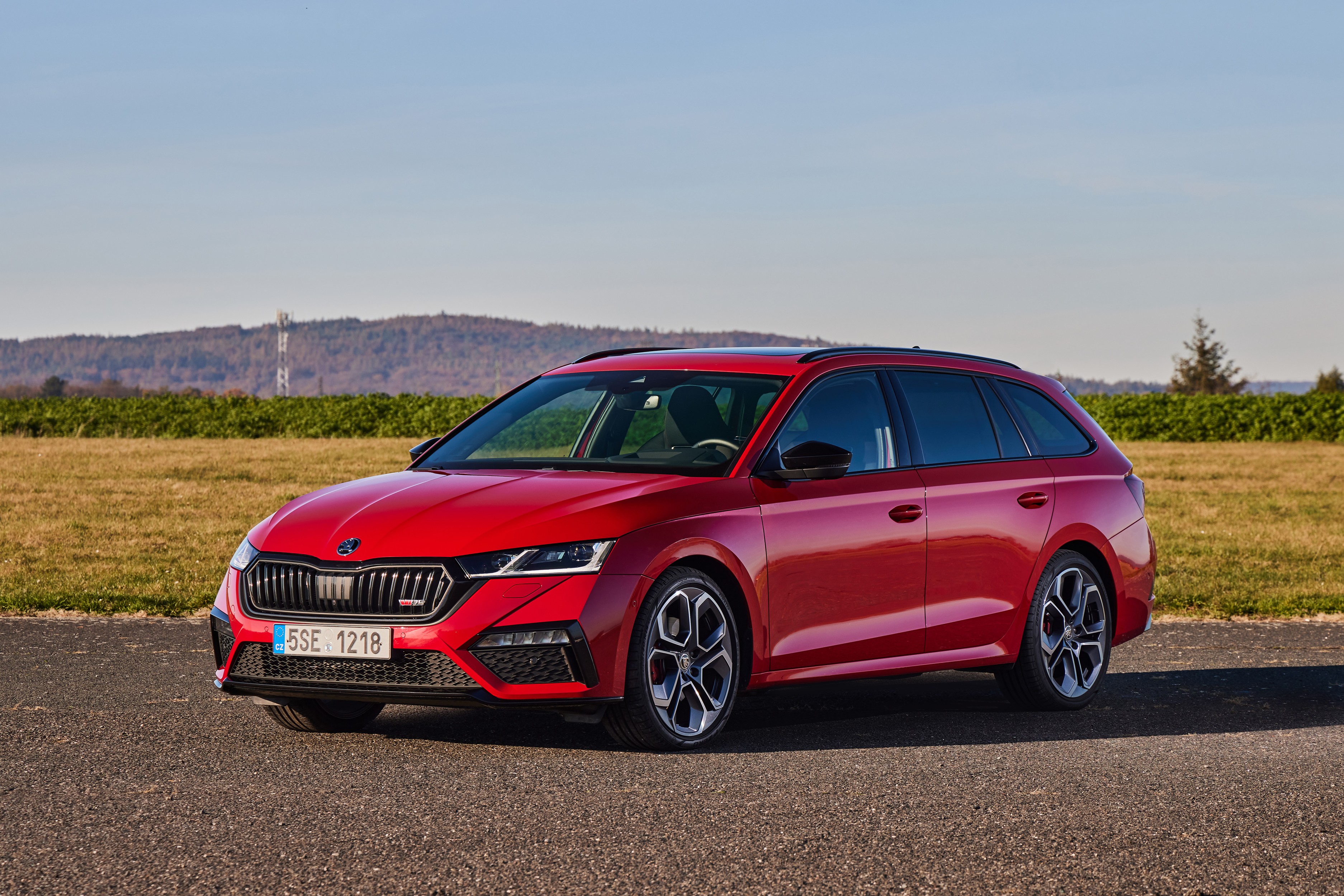

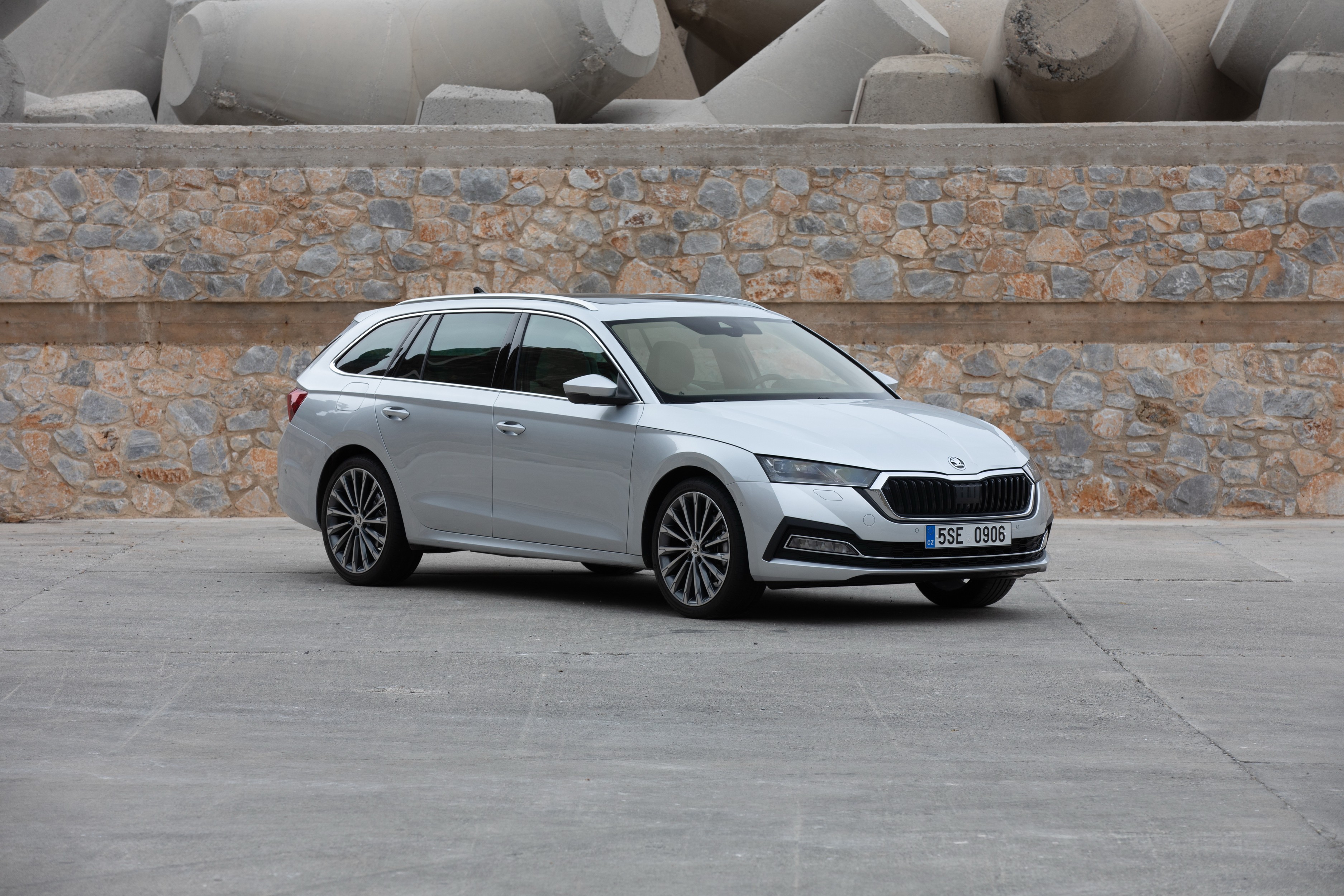

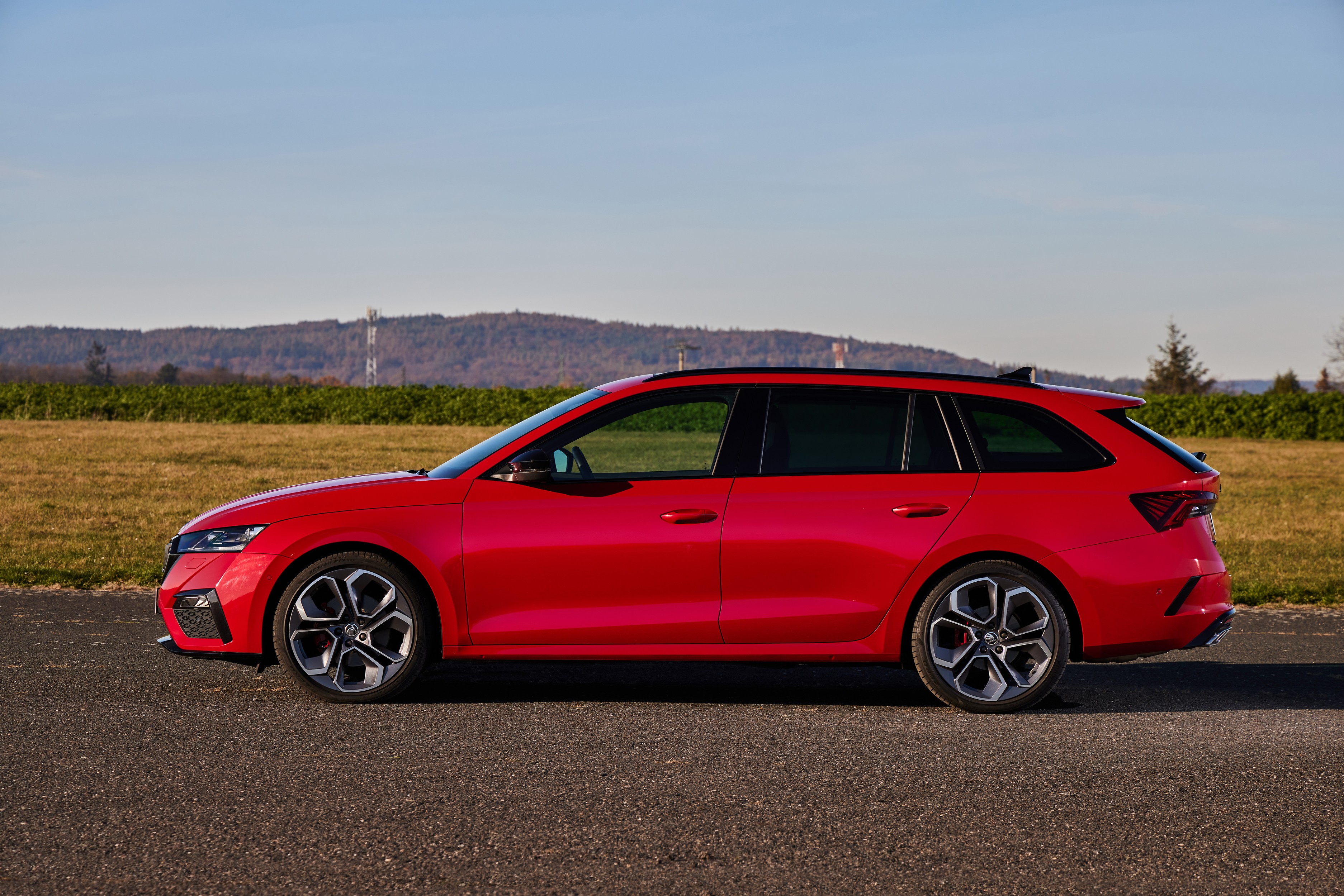

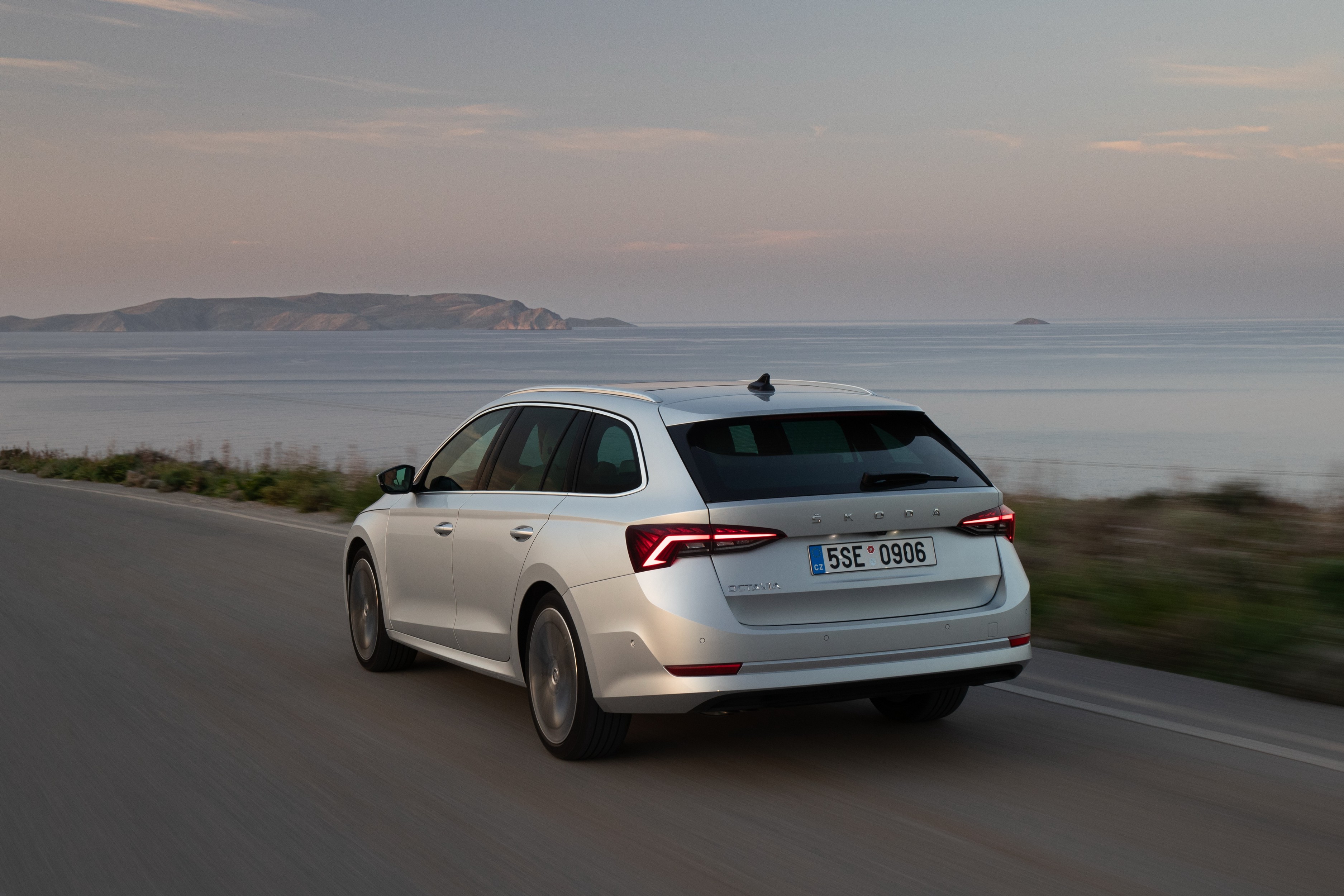

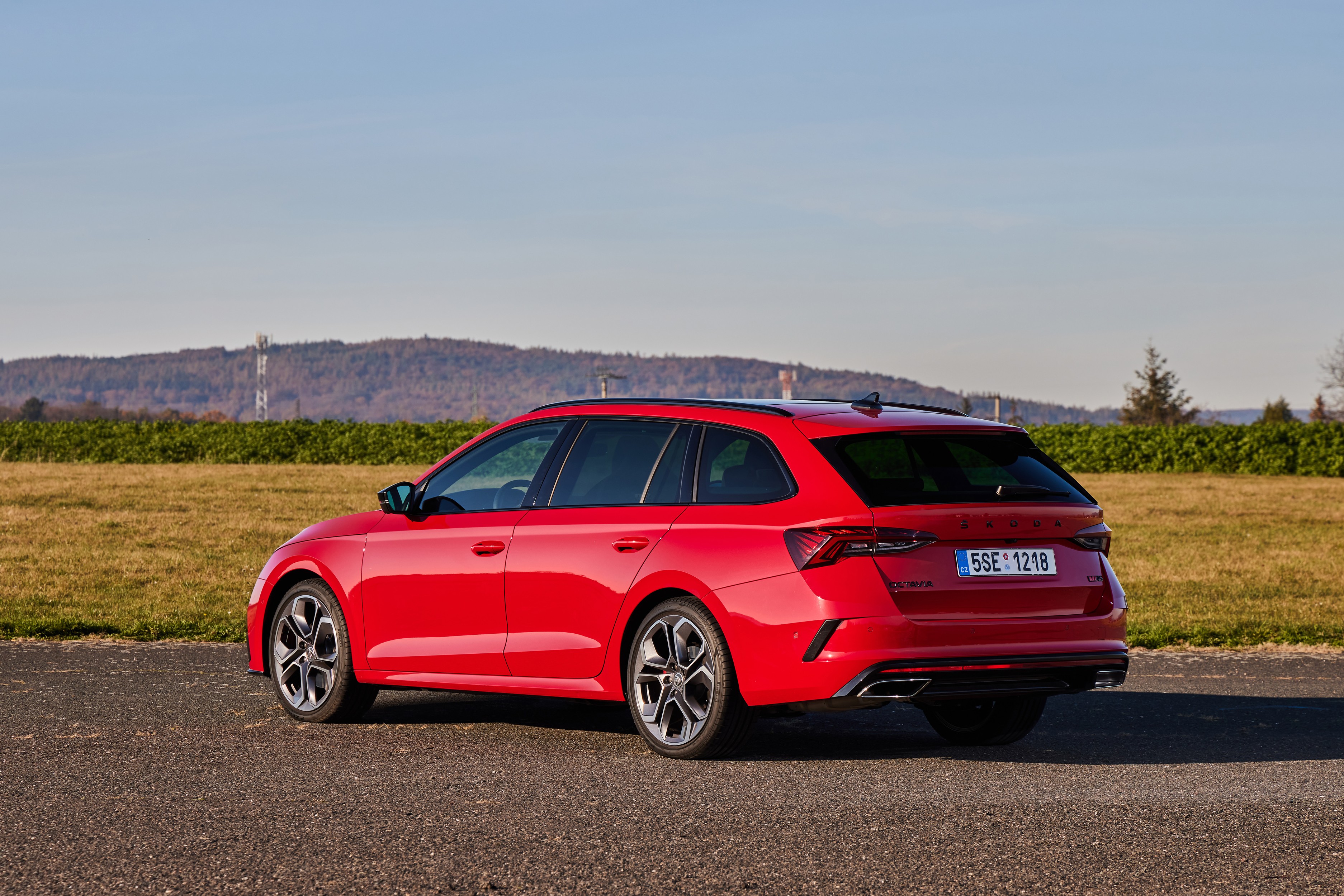

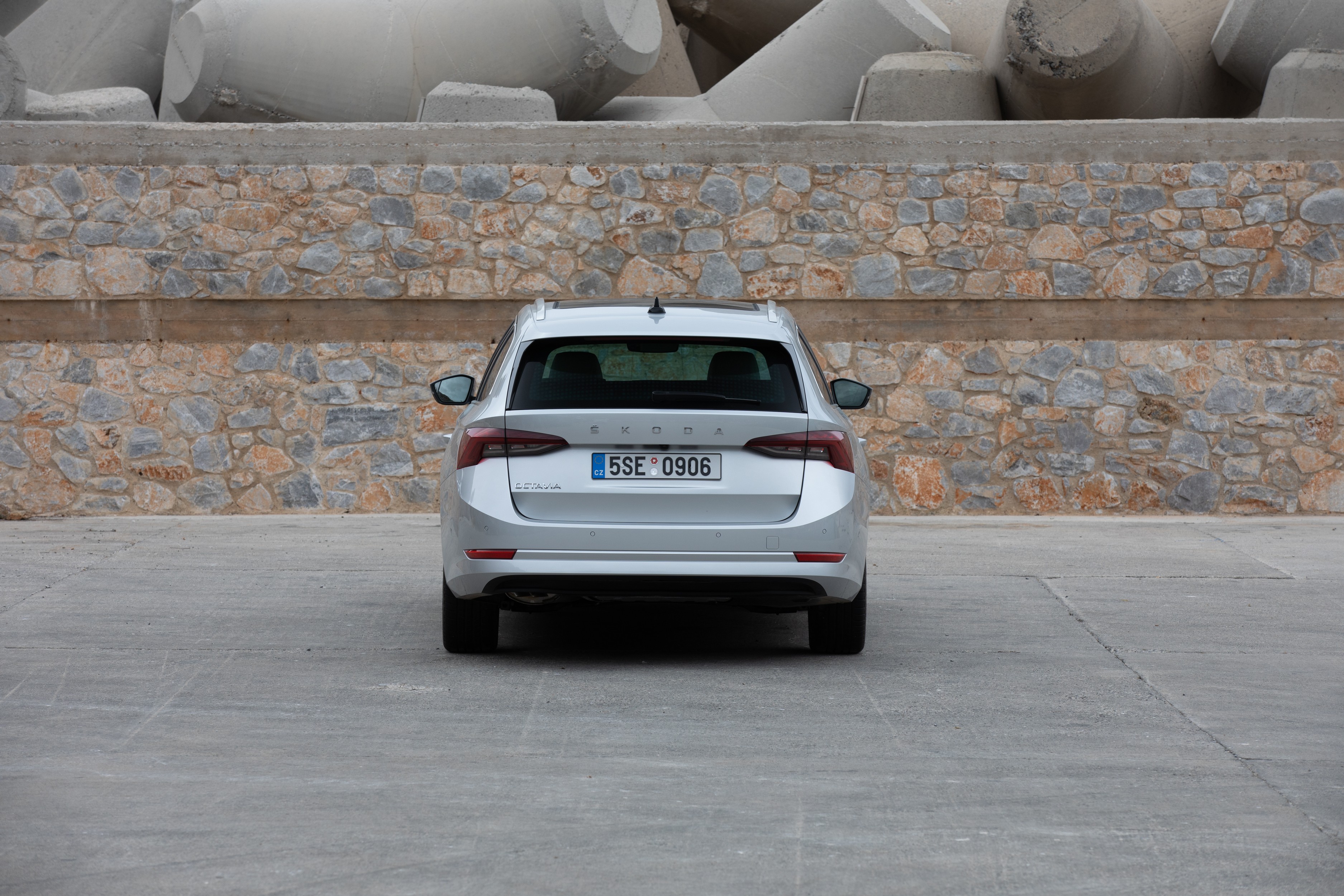

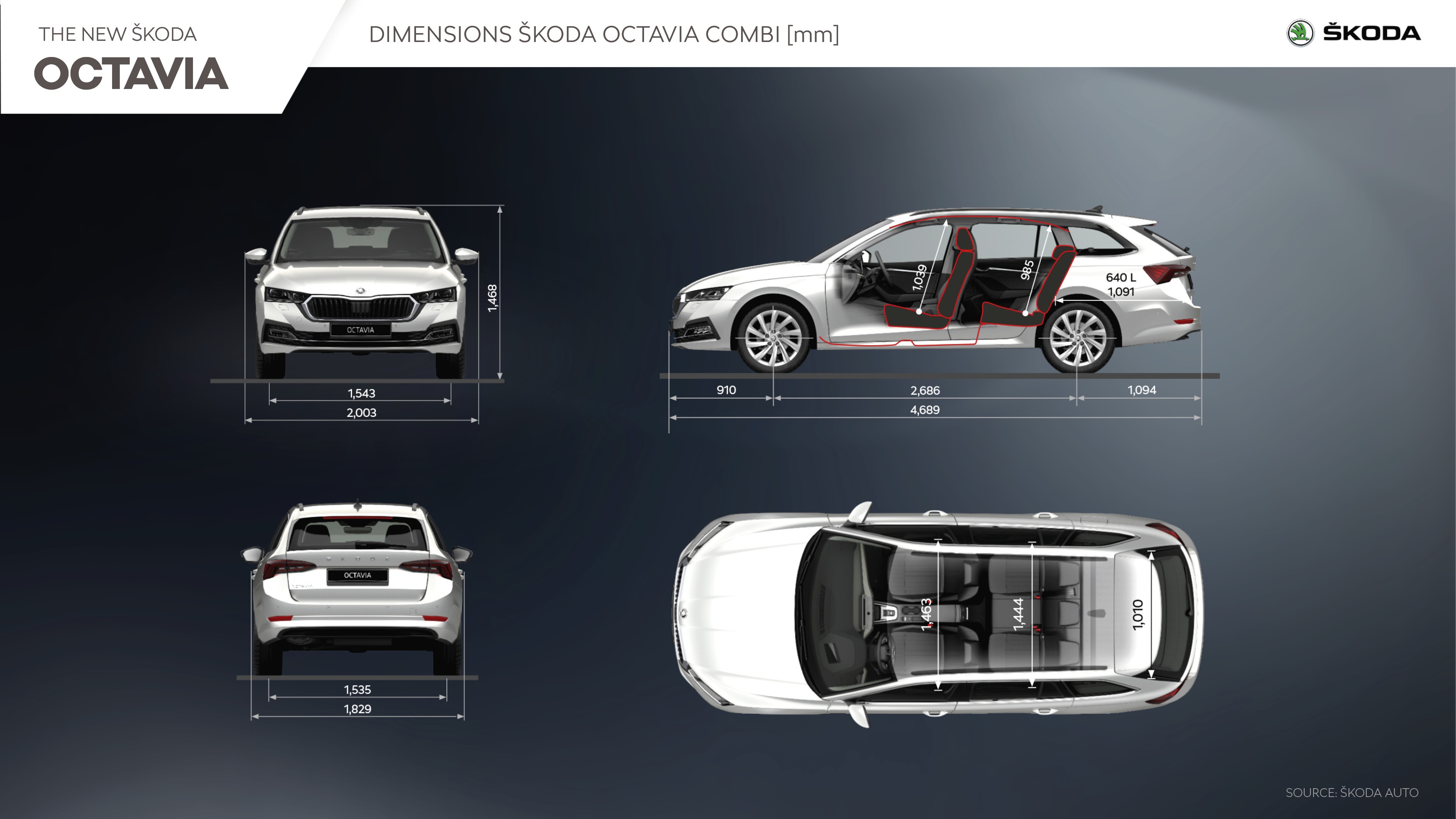

Estate
| 1.0 TSI | 1.0 TSI eTEC | 1.5 TGI | 1.5 TGI | 1.5 TSI | 1.5 TSI eTEC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5500 | 81/5500 | 96/5000-6000 | 96/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3000 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74.5 x 76.4 | 74.5 x 76.4 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 11.5:1 | 11.5:1 | 12,5:1 | 12,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 202 | 201 | 213 | 212 | 225 | 224 |
| Acceleration 0–100 km/h [s] | 10,9 | 10,6 | 9.6 | 9,6 | 8,5 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,1-6,0 | 5,1 | - | 4,6-4,5 kg | 7,1-7,0 | 5,9-5,8 |
| Out of town [l] | 4,0 | 3,9-3,8 | - | 2,9-2,8 kg | 4,1-4,0 | 4,1-4,0 |
| Combined [l] | 4,8-4,7 | 4,4-4,3 | - | 3,5 kg | 5,2-5,1 | 4,8-4,7 |
| CO2 emissions [g/km] | 109-107 | 100-98 | - | 96-95 | 119-117 | 109-107 |
| Low speed [l] | 7.1-6.6 | 7.0-6.4 | - [5.6-5.3 m³] | - [6.0-5.7 m³] | 8.1-7.6 | 7.5-7.2 |
| Medium speed [l] | 5.6-5.1 | 5.5-4.9 | - [4.0-3.7 m³] | - [4.2-3.9 m³] | 6.1-5.5 | 5.7-5.2 |
| High speed [l] | 5,1-4.6 | 4.9-4.4 | - [3.4-3.2 m³] | - [3.4-3.2 m³] | 5.2-4.7 | 5.1-4.6 |
| Extra high speed [l] | 5.9-5.3 | 6.0-5.3 | - [3.7-3.5 m³] | - [3.8-3.6 m³] | 5.9-5.3 | 6.1-5.4 |
| Combined speed [l] | 5.8-5.2 | 5.7-5.1 | - [3.9-3.7 m³] | - [4.0-3.8 m³] | 6.0-5.5 | 5.9-5.3 |
| CO2 emissions [g/km] | 130-118 | 129-116 | 106-100 | 111-104 | 136-124 | 134-121 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 48 | - | - | - | 48 |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, - A⋅h | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1313-1555 | 1348-1550 | 1409-1565 | 1431-1589 | 1348-1550 | 1383-1585 |
| Overall weight [kg] | 1830 | 1860 | 1865 | 1889 | 1869-1900 | 1920 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 670/1300 | 700/1400 | 710/1400 | 670/1500 | 690/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 640 | 640 | 495 | 495 | 640 | 640 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1560 | -/1560 | -/1700 | -/1700 |
| Boot length [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 617-647 | 617-647 | 617-647 | 617-647 | 617-647 | 617-647 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 9 [17 kg] | 9 [17 kg] | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,268 | 0,269 | 0,276 | 0,276 | 0,27 | 0,27 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Wheel size rear | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 | 6,5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 |
| Overall length [mm] | 4689 | 4689 | 4689 | 4689 | 4689 | 4689 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1453 | 1453 | 1475 | 1475 | 1453 | 1453 |
| Wheelbase [mm] | 2686 | 2686 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1463/- | 1463/- | 1463/- | 1463/- | 1463/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |
| 2.0 TSI | 2.0 TSI RS | 2.0 TSI RS | 1.5 TSI Scout | 1.5 TSI Scout | 2.0 TSI Scout | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from 2020 to | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1498 | 1498 | 1984 |
| Maximum output / speed [kW/min-1] | 140/4200-6000 | 180/5250-6500 | 180/5250-6500 | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 |
| Maximum torque [Nm/min-1] | 320/1500-4100 | 370/1600-4300 | 370/1600-4300 | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 |
| Compression ratio | 12.2:1 | 12.2:1 | 12.2:1 | 10,5:1 | 10,5:1 | 12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
| - |
|
|
| Top speed [km/h] | 235 | 250 | 250 | 220 | 218 | 235 |
| Acceleration 0–100 km/h [s] | 6,8 | 6.8 | 6.7 | 8,7 | 8,7 | 6,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,9 | 9.4-9.3 | 9.0 | 7,1-7,0 | 6,1-6,0 | 8,0 |
| Out of town [l] | 5,2 | 5.3-5.2 | 5.1-5.0 | 4,2-4,0 | 4,2-4,1 | 5,3 |
| Combined [l] | 6,2 | 6.8-6.7 | 6.6-6.5 | 5,3-5,2 | 4,9-4,8 | 6,3 |
| CO2 emissions [g/km] | 143-142 | 156-154 | 151-149 | 120-118 | 112-110 | 144 |
| Low speed [l] | 10.3-10.0 | 10.6-10.3 | 11.2-10.8 | 7.8 | 7.4 | 10.1 |
| Medium speed [l] | 7.8-7.5 | 7.2-6.8 | 7.347.0 | 5.8 | 5.4 | 7.6 |
| High speed [l] | 6.5-6.1 | 6.2-5.9 | 6.0-5.7 | 5.0 | 4.9 | 6.3 |
| Extra high speed [l] | 7.0-6.4 | 6.8-6.4 | 6.6-4.3 | 5.8 | 5.9 | 6.8 |
| Combined speed [l] | 7.4-7.0 | 7.2-6.8 | 7.2-6.9 | 5.8 | 5.7 | 7.3 |
| CO2 emissions [g/km] | 169-160 | 162-155 | 163-155 | 132 | 129 | 165 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, - A⋅h | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1536-1738 | 1501-1646 | 1532-1677 | 1390-1554 | 1425-1589 | 1536-1738 |
| Overall weight [kg] | 2187 | 2012-2040 | 2040-2070 | 1924 | 1951 | 2187 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | 750/1600 | 690/1500 | 710/1500 | 750/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 617-647 | 617-647 | 617-647 | 651 | 651 | 650 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 50 | 50 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,277 | 0.276 | 0.276 | 0,288 | 0,288 | 0,277 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 |
| Tyre dimensions rear | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 |
| Wheel size front | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5 x 18 | 7,5 x 18 | 7,5 x 18 |
| Wheel size rear | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5 x 18 | 7,5 x 18 | 7,5 x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11,1 | - | - | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 |
| Overall length [mm] | 4689 | 4702 | 4702 | 4703 | 4703 | 4703 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1453 | 1455 | 1455 | 1488 | 1488 | 1487 |
| Wheelbase [mm] | 2686 | 2681 | 2681 | 2688 | 2688 | 2680 |
| Front wheel track [mm] | 1543 | 1541 | 1541 | 1535 | 1535 | 1533 |
| Rear wheel track [mm] | 1535 | 1550 | 1550 | 1531 | 1531 | 1533 |
| Forward overhang [mm] | 910 | 908 | 908 | - | - | - |
| Rear overhang [mm] | 1094 | 1114 | 1114 | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 163 | 163 | 161 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 13.5 | 13.5 | 15.8 | 15.8 | 15.8 |
| Approach angle rear [°] | 13.0 | 13.6 | 13.6 | 14.4 | 14.4 | 13.9 |
| Transition angle [°] | - | - | - | 19.7 | 19.7 | 19.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1463/- | 1413/- | 1413/- | 1463/- | 1463/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1375/- | 1375/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |
| iV | RS iV | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 85 el. 150 total | 110/5000-6000 85 el. 180 total | 85/2750-4250 | 85/2750-4250 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1550-3500 350 total | 250/1550-3500 400 total | 300/1500-2500 | 300/1500-2500 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80.0 | 74,5 x 80.0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 16.0:1 | 16.0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 220 | 225 | 206 | 205 | 225 | 223 |
| Acceleration 0–100 km/h [s] | 7.5 | 7.3 | 10,4 | 10,8 | 8,8 | 8,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | 5,2 | 5,0-4,9 | 5,3-5,2 | 4,8-4,7 |
| Out of town [l] | - | - | 3,1 | 3,3-3,2 | 3,2-3,1 | 3,3-3,2 |
| Combined [l] | - | - | 3,9-3,8 | 3,9 | 4,0-3,9 | 3,9-3,8 |
| CO2 emissions [g/km] | - | - | 103-101 | 104-102 | 104-103 | 102-100 |
| Low speed [l] | - | - | 6.1-5.8 | 6.5-6.1 | 6.0-5.8 | 6.4-6.2 |
| Medium speed [l] | - | - | 4.5-4.0 | 4.6-4.2 | 4.7-4.2 | 4.8-4.4 |
| High speed [l] | - | - | 4.0-3.6 | 4.1-3.7 | 4.0-3.6 | 4.1-3.8 |
| Extra high speed [l] | - | - | 4.6-4.2 | 4.5-4.5 | 4.8-4.3 | 4.8-4.3 |
| Combined speed [l] | 1.2-1.0 [14.9-14.1 kWh] | 1.2-1.1 [14.8-14.3 kWh] | 4.6-4.2 | 4.8-4.4 | 4.7-4.2 | 4.8-4.4 |
| CO2 emissions [g/km] | 26-22 | 27-25 | 120-109 | 126-116 | 122-111 | 126-116 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |

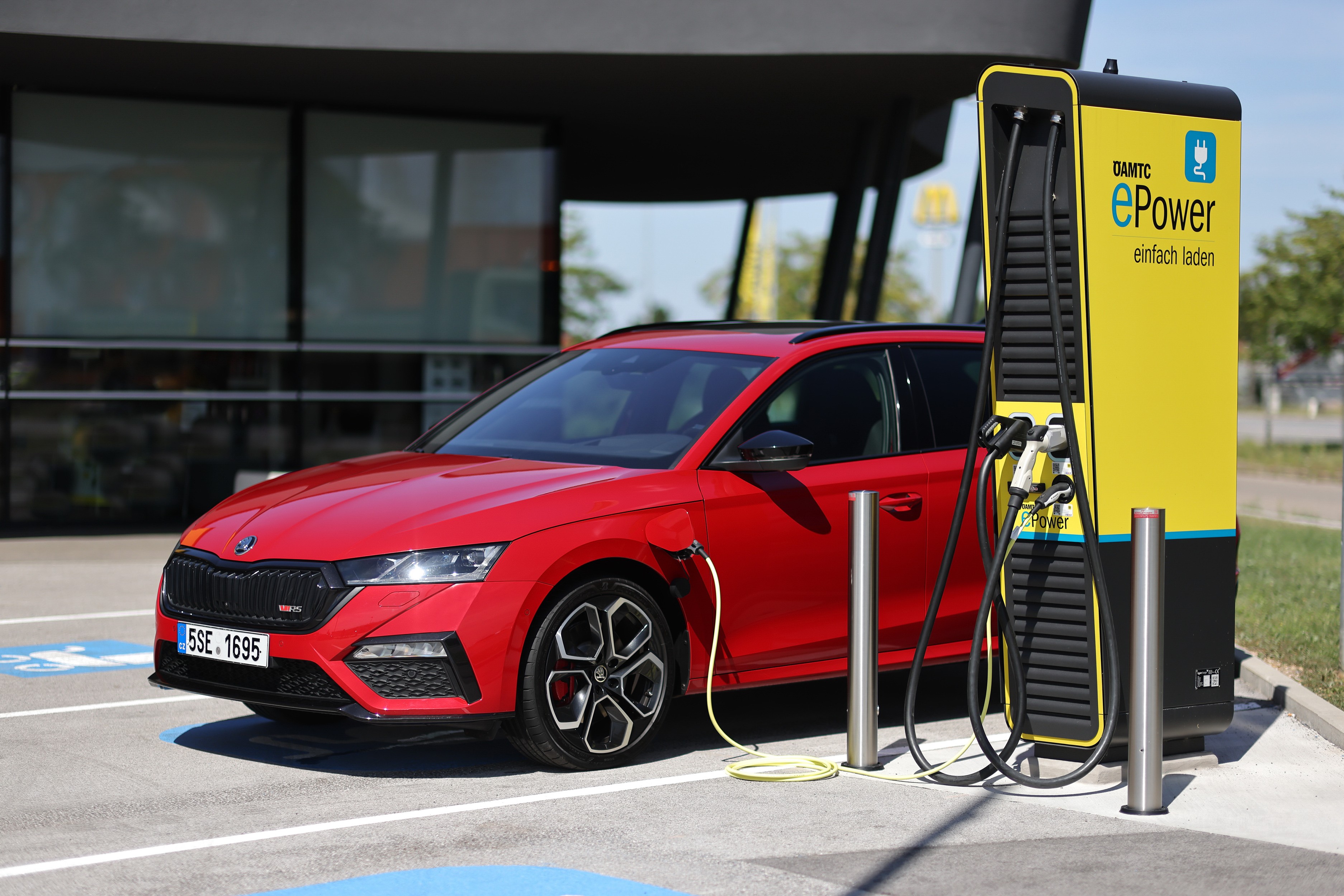

| Battery type and capacity | Lithium-ion, 13 kWh (10 net) | Lithium-ion, 13 kWh (10 net) | - | - | - | - |
| Range with fully charged battery [km] | 62-68 | 62-64 | - | - | - | - |
| Charging time |
|
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1620-1797 | 1707-1828 | 1435-1637 | 1443-1645 | 1436-1638 | 1473-1675 |
| Overall weight [kg] | 2058-2119 | 2141-2163 | 1940 | 1970 | 1960 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 710/1500 | 720/1500 | 710/1600 | 730/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

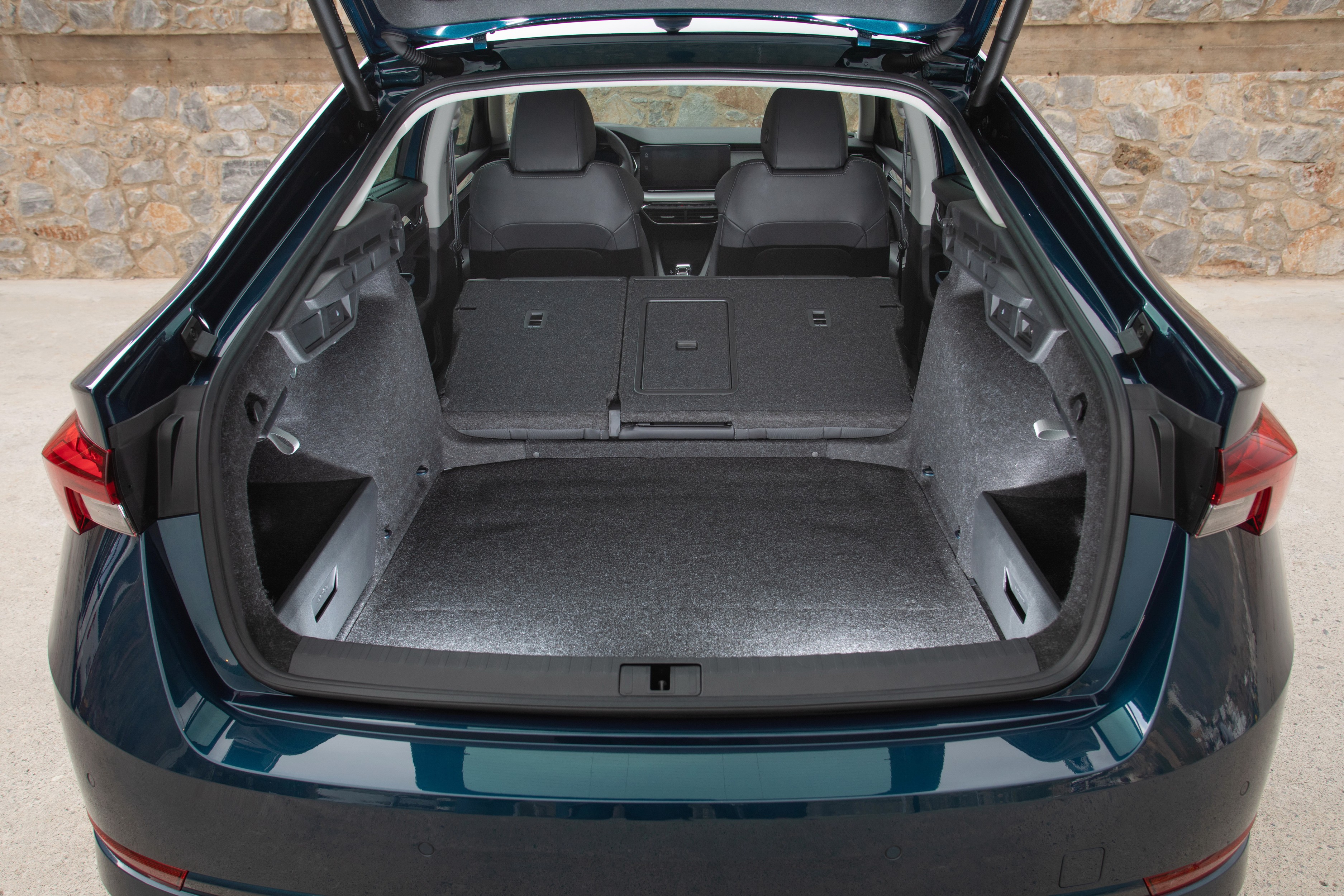

| Boot volume [l] | 490 | 490 | 640 | 640 | 640 | 640 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1555 | -/1555 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 617-647 | 617-647 | 617-647 | 617-647 | 617-647 | 617-647 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | 40 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | 0.289 | 0,272 | 0,272 | 0,271 | 0,271 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/45 R18 | 225/45 R18 | 205/60 R16 | 205/60 R16 | 205/55 R17 | 205/55 R17 |
| Tyre dimensions rear | 225/45 R18 | 225/45 R18 | 205/60 R16 | 205/60 R16 | 205/55 R17 | 205/55 R17 |
| Wheel size front | 7.5J x 18 | 7,5J x 18 | 6,5J x 16 | 6,5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.5J x 18 | 7,5J x 18 | 6,5J x 16 | 6,5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 | 10.4/11,1 |
| Overall length [mm] | 4689 | 4702 | 4689 | 4689 | 4689 | 4689 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1475 | 1474 | 1453 | 1453 | 1453 | 1453 |
| Wheelbase [mm] | 2686 | 2681 | 2686 | 2686 | 2686 | 2686 |
| Front wheel track [mm] | 1539 | 1541 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1539 | 1550 | 1535 | 1535 | 1535 | 1535 |
| Forward overhang [mm] | 910 | 908 | 910 | 910 | 910 | 910 |
| Rear overhang [mm] | 1094 | 1114 | 1094 | 1094 | 1094 | 1094 |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 13.5 | 14.3 | 14.3 | 14.3 | 14.3 |
| Approach angle rear [°] | 13.0 | 13.6 | 13.0 | 13.0 | 13.0 | 13.0 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1463/- | 1413/- | 1463/- | 1463/- | 1463/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1375/- | 1444/- | 1444/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |
| Rating | - | - |    | - | - | - |
| Clean Air Index | - | - | 6.7/10 | - | - | - |
| Energy Efficiency Index | - | - | 7.7/10 | - | - | - |
| GHG index | - | - | 4.6/10 | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI RS | 2.0 TDI RS | 2.0 TDI Scout | 2.0 TDI Scout | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2020 to | from 2020 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 147/3500-4200 | 147/3500-4200 | 147/3500-4200 | 110/3500-4000 | 147/3500-4200 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 400/1750-3000 | 400/1750-3000 | 400/1750-3000 | 340/1750-3000 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 218 | 236 | 245 | 238 | 218 | 230 |
| Acceleration 0–100 km/h [s] | 8,5 | 6.7 | 7.4 | 6.8 | 8,5 | 6,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5-5,4 | - | 5.6 | 6.4 | 5,5 | 6,4 |
| Out of town [l] | 3,9-3,8 | - | 3.7 | 4.2 | 3,9 | 4,3 |
| Combined [l] | 4,5-4,4 | - | 4.4 | 5.0 | 4,5 | 5,1 |
| CO2 emissions [g/km] | 118-117 | - | 116 | 133 | 119 | 135 |
| Low speed [l] | 7.0-6.7 | 8.7-8.3 | 7.7-7.5 | 8.6-8.4 | 6.9 | 8.4 |
| Medium speed [l] | 5.5-5.2 | 5.9-5.6 | 5.3-5.0 | 5.9-5.6 | 5.3 | 5.7 |
| High speed [l] | 4.8-4.4 | 5.0-4.7 | 4.4-4.2 | 4.9-4.7 | 4.6 | 4.8 |
| Extra high speed [l] | 5.5-5.0 | 5.6-5.2 | 5.0-4.8 | 5.4-5.3 | 5.3 | 5.5 |
| Combined speed [l] | 5.5-5.1 | 5.9-5.5 | 5.2-5.0 | 5.8-5.6 | 5.3 | 5.7 |
| CO2 emissions [g/km] | 144-133 | 154-145 | 136-131 | 151-146 | 140 | 150 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1566-1768 | 1560-1762 | 1528-1673 | 1614-1759 | 1608-1772 | 1602-1766 |
| Overall weight [kg] | 2088-2187 | 2083-2184 | 2042-2070 | 2141-2187 | 2197 | 2195 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/1600 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

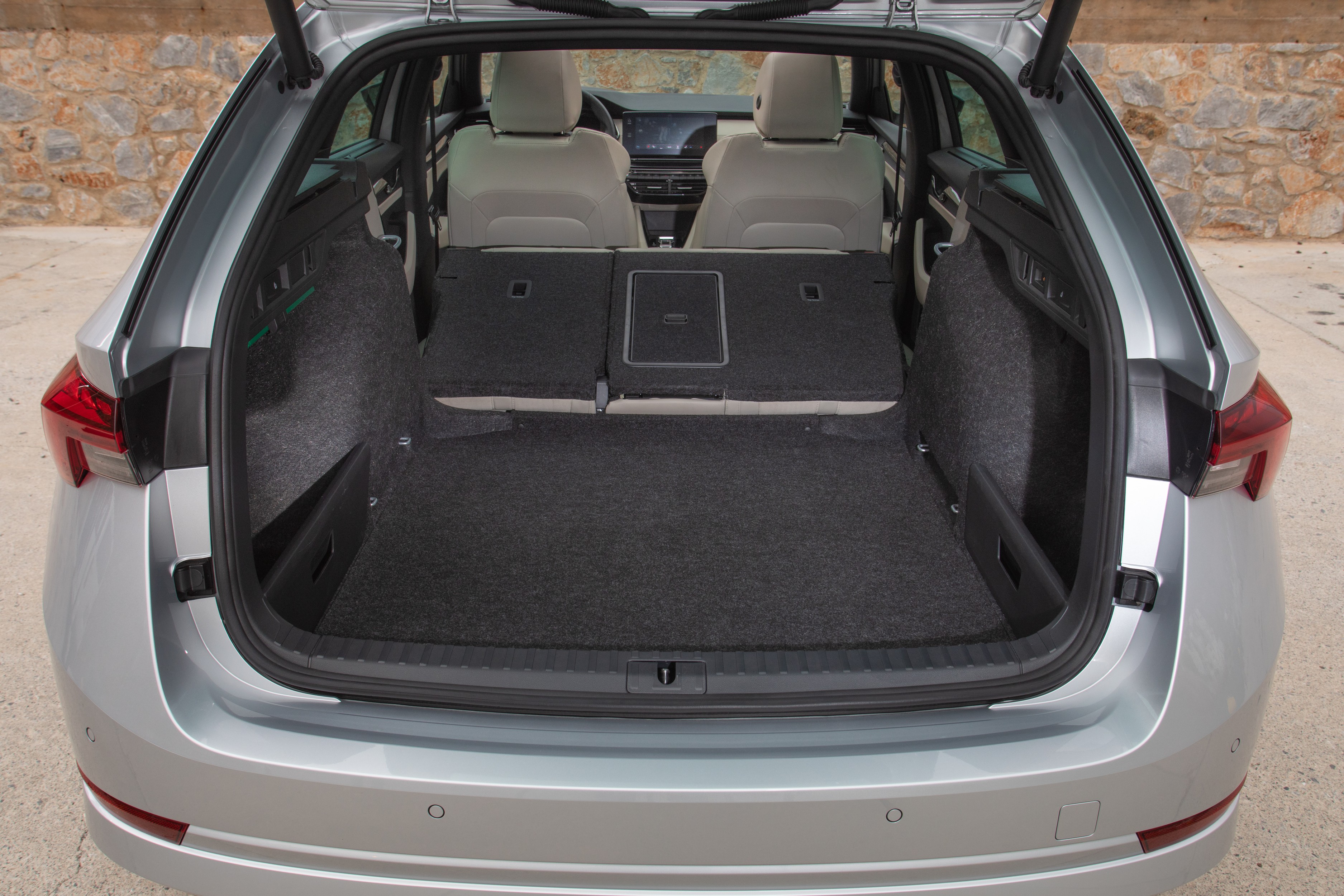

| Boot volume [l] | 640 | 640 | 640 | 640 | 640 | 640 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 | -/1700 |
| Boot length [mm] | 1091 | 1091 | 1091 | 1091 | 1091 | 1091 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 617-647 | 617-647 | 617-647 | 617-647 | 650 | 650 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | 0,272 | - | 0.267 | 0.272 | 0,272 | 0,293 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5 x 18 | 7,5 x 18 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5 x 18 | 7,5 x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.4/11,1 | - | - | - | 10,4/11,1 -/11,1 | 10.4/11,1 |
| Overall length [mm] | 4689 | 4689 | 4702 | 4702 | 4703 | 4703 |
| Overall width without/including mirrors [mm] | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 | 1829/2003 |
| Overall height [mm] | 1453 | 1453 | 1455 | 1454 | 1487 | 1487 |
| Wheelbase [mm] | 2686 | 2686 | 2681 | 2681 | 2680 | 2680 |
| Front wheel track [mm] | 1543 | 1543 | 1541 | 1539 | 1533 | 1533 |
| Rear wheel track [mm] | 1535 | 1535 | 1550 | 1539 | 1533 | 1533 |
| Forward overhang [mm] | 910 | 910 | 908 | 908 | - | - |
| Rear overhang [mm] | 1094 | 1094 | 1114 | 1114 | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 161 | 161 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.3 | 14.3 | 13.5 | 13.5 | 15.8 | 15.8 |
| Approach angle rear [°] | 13.0 | 13.0 | 13.6 | 13.6 | 13.9 | 13.9 |
| Transition angle [°] | - | - | - | - | 19.7 | 19.7 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1039 | 1039 | 1039 | 1039 | 1039 | 1039 |
| Headroom rear [mm] | 985 | 985 | 985 | 985 | 985 | 985 |
| Front elbow/shoulder width [mm] | 1463/- | 1463/- | 1413/- | 1413/- | 1463/- | 1463/- |
| Rear elbow/shoulder width [mm] | 1444/- | 1444/- | 1375/- | 1375/- | 1444/- | 1444/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 78/- | 78/- | 78/- | 78/- | 78/- | 78/- |

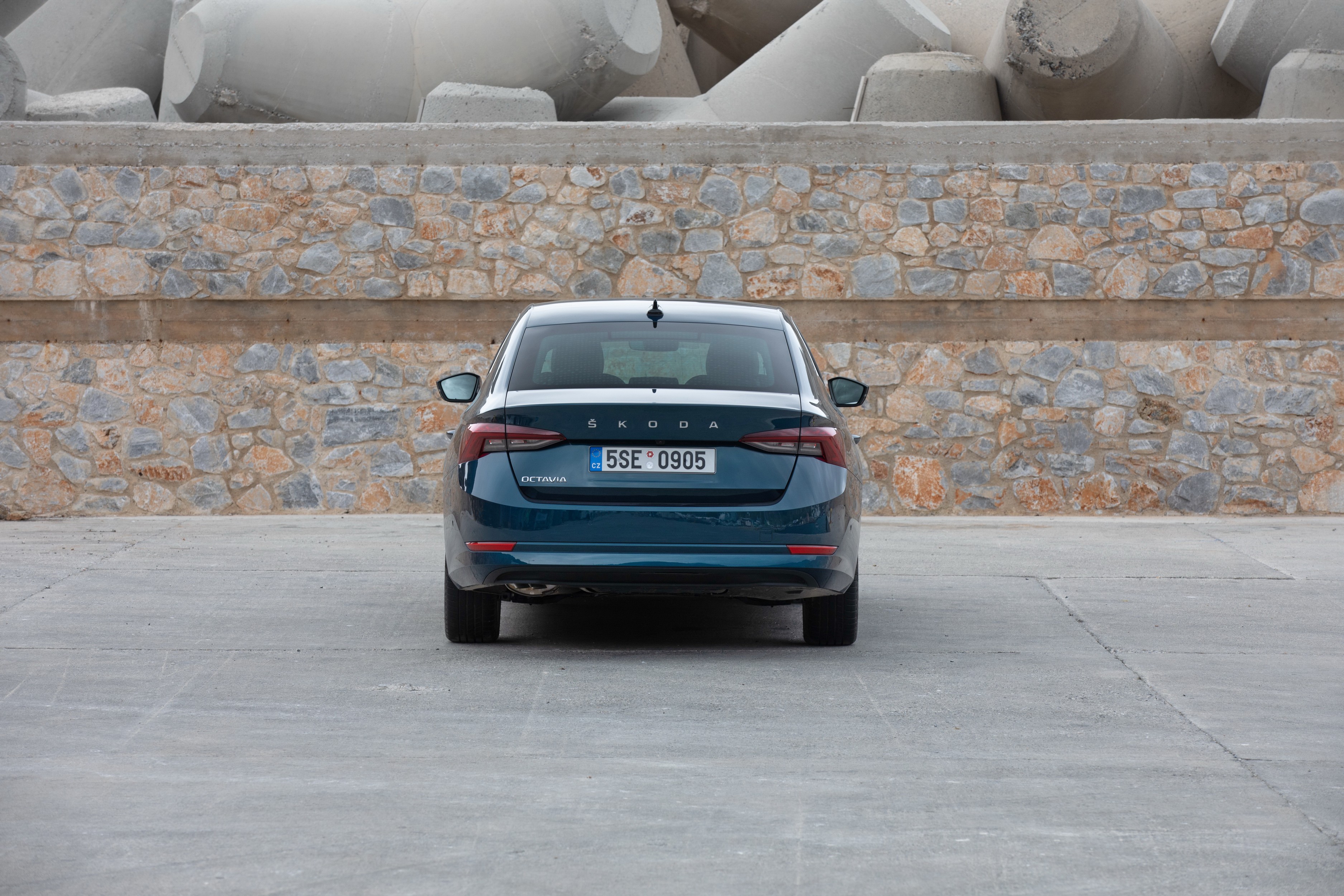

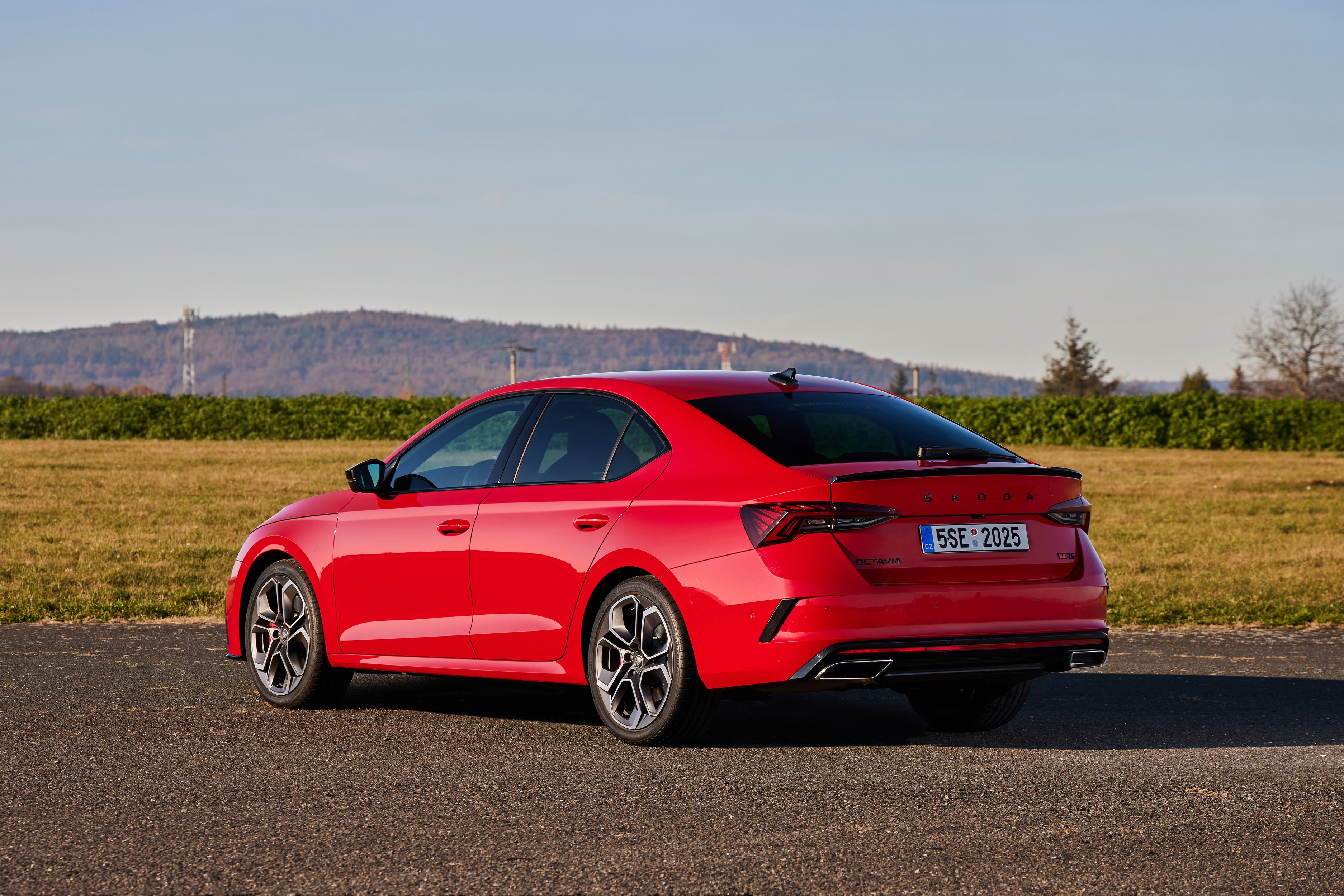

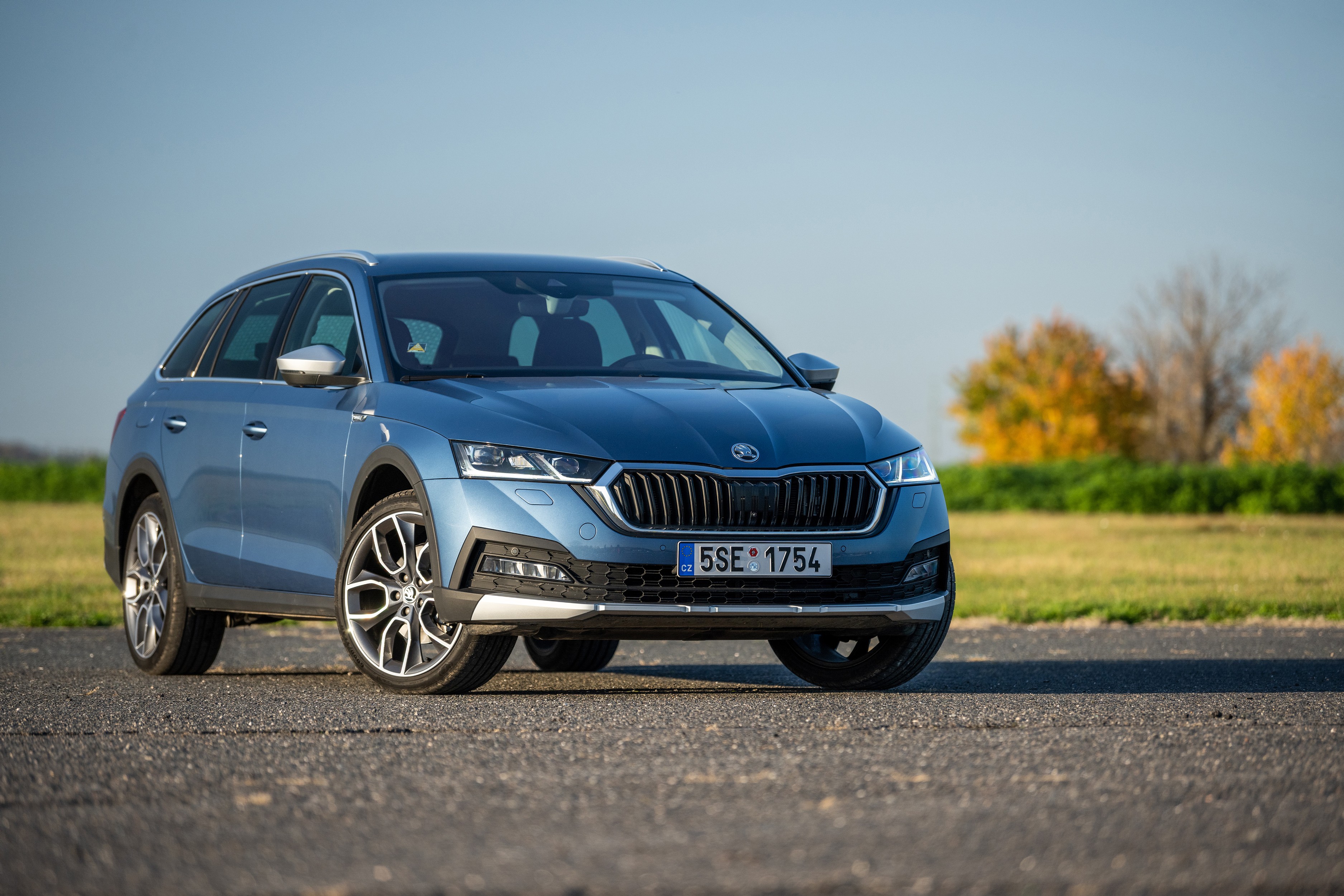

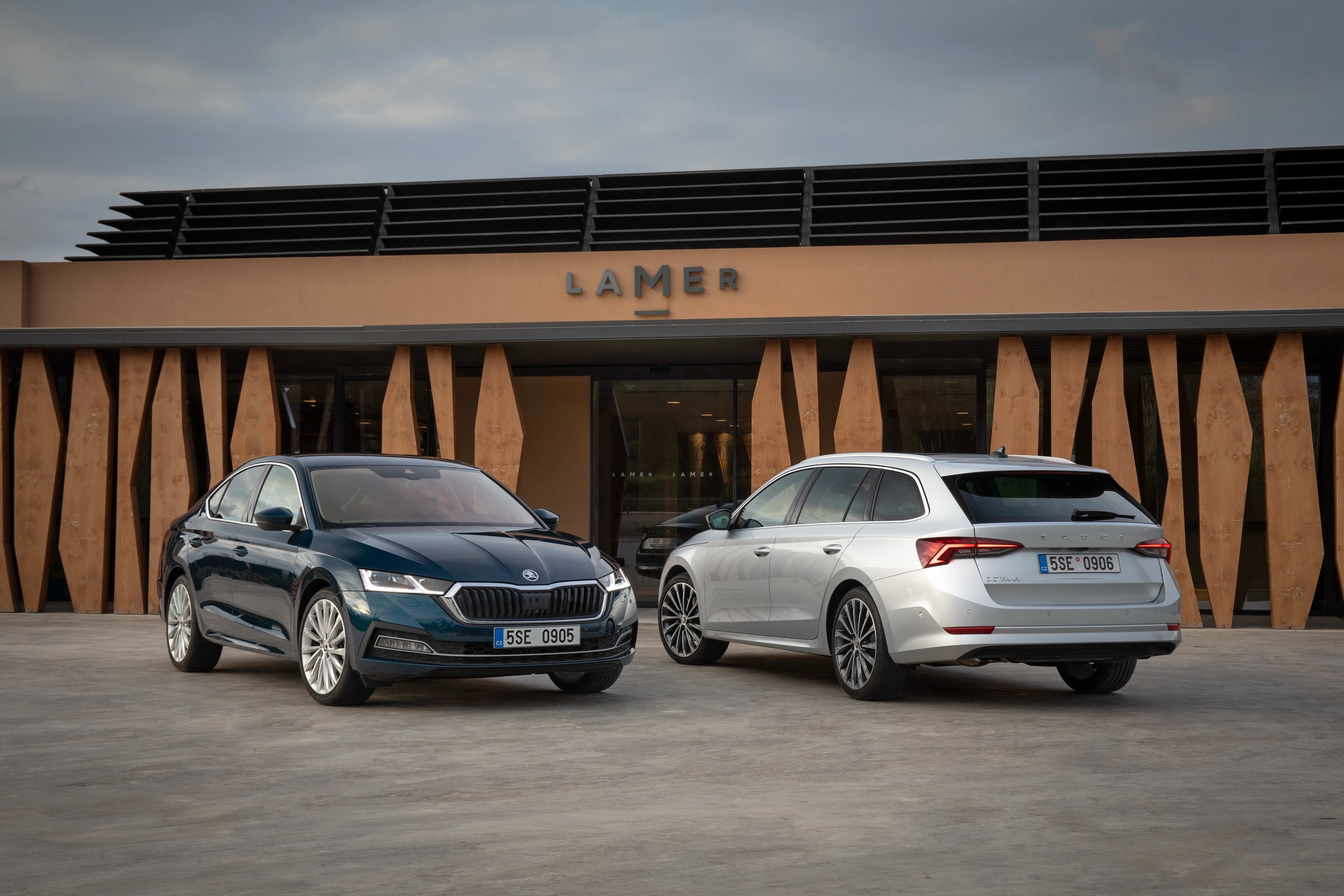

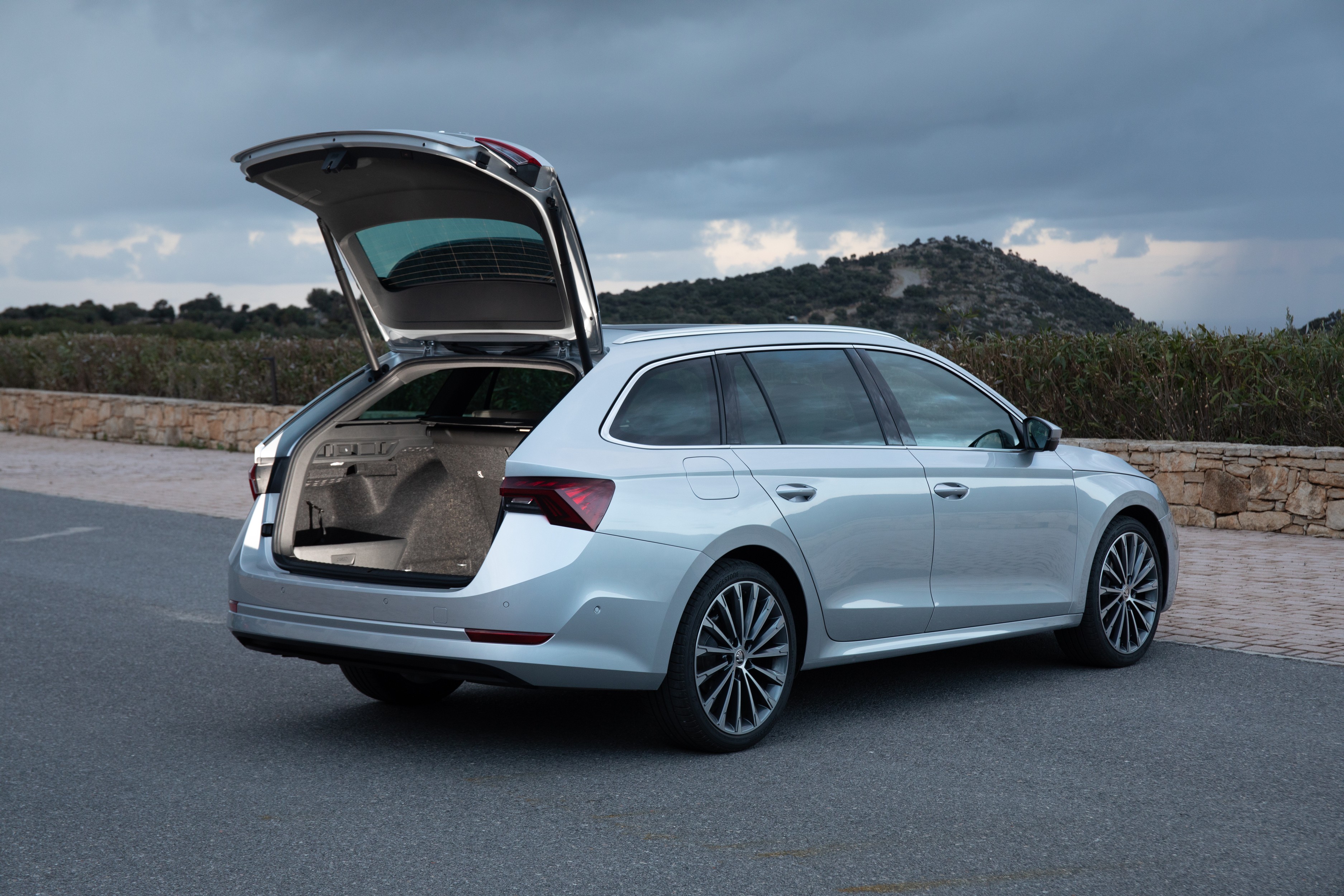

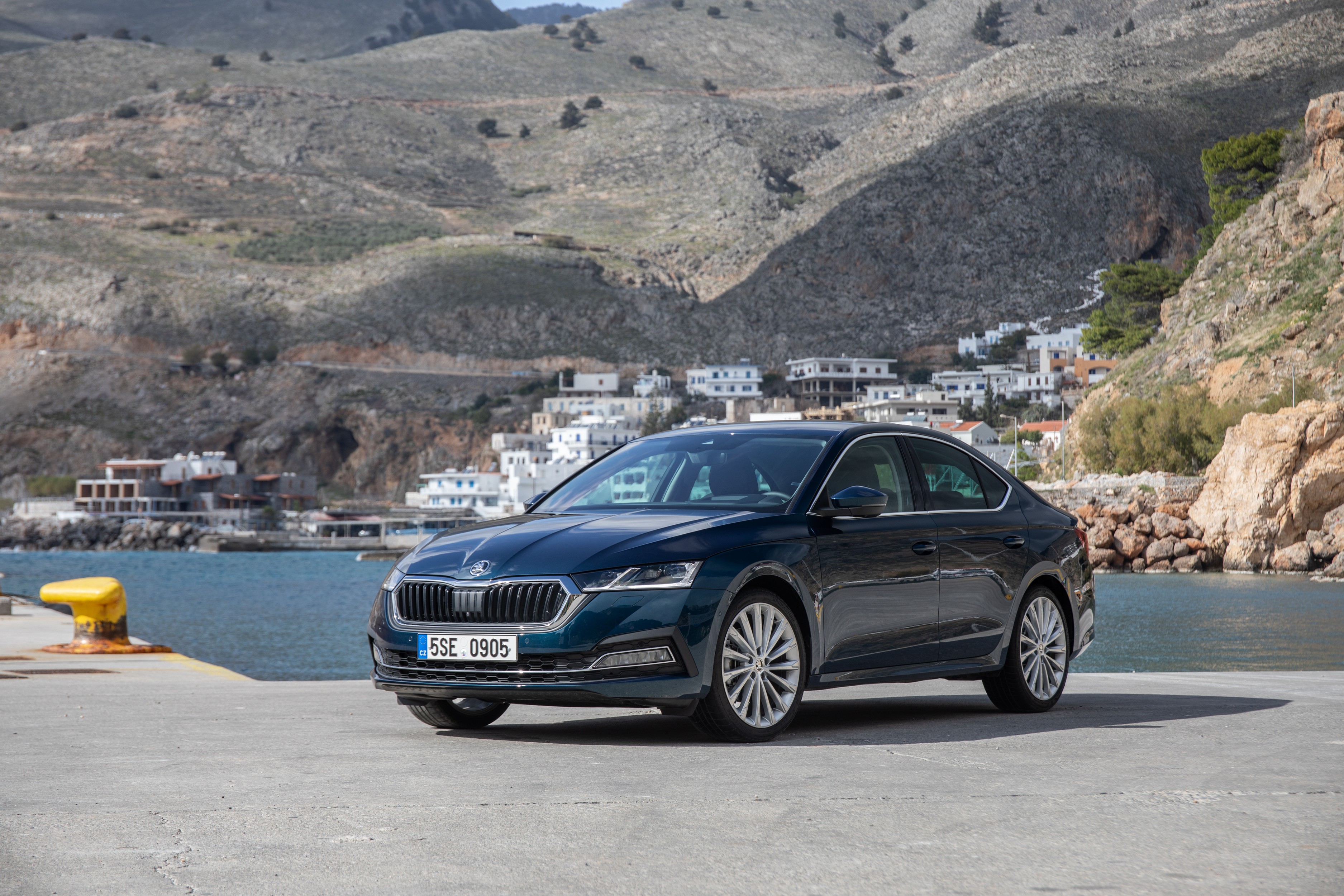

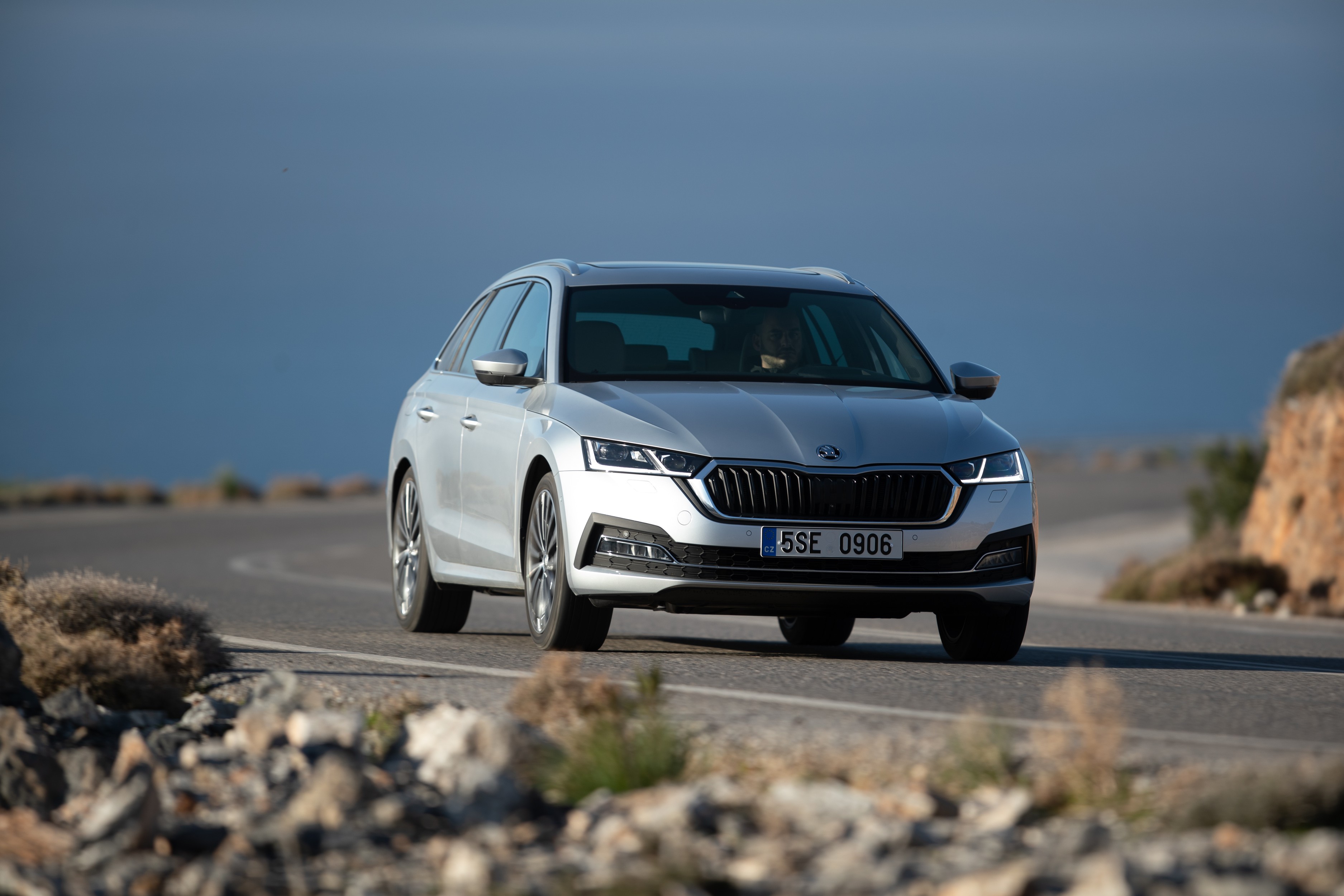

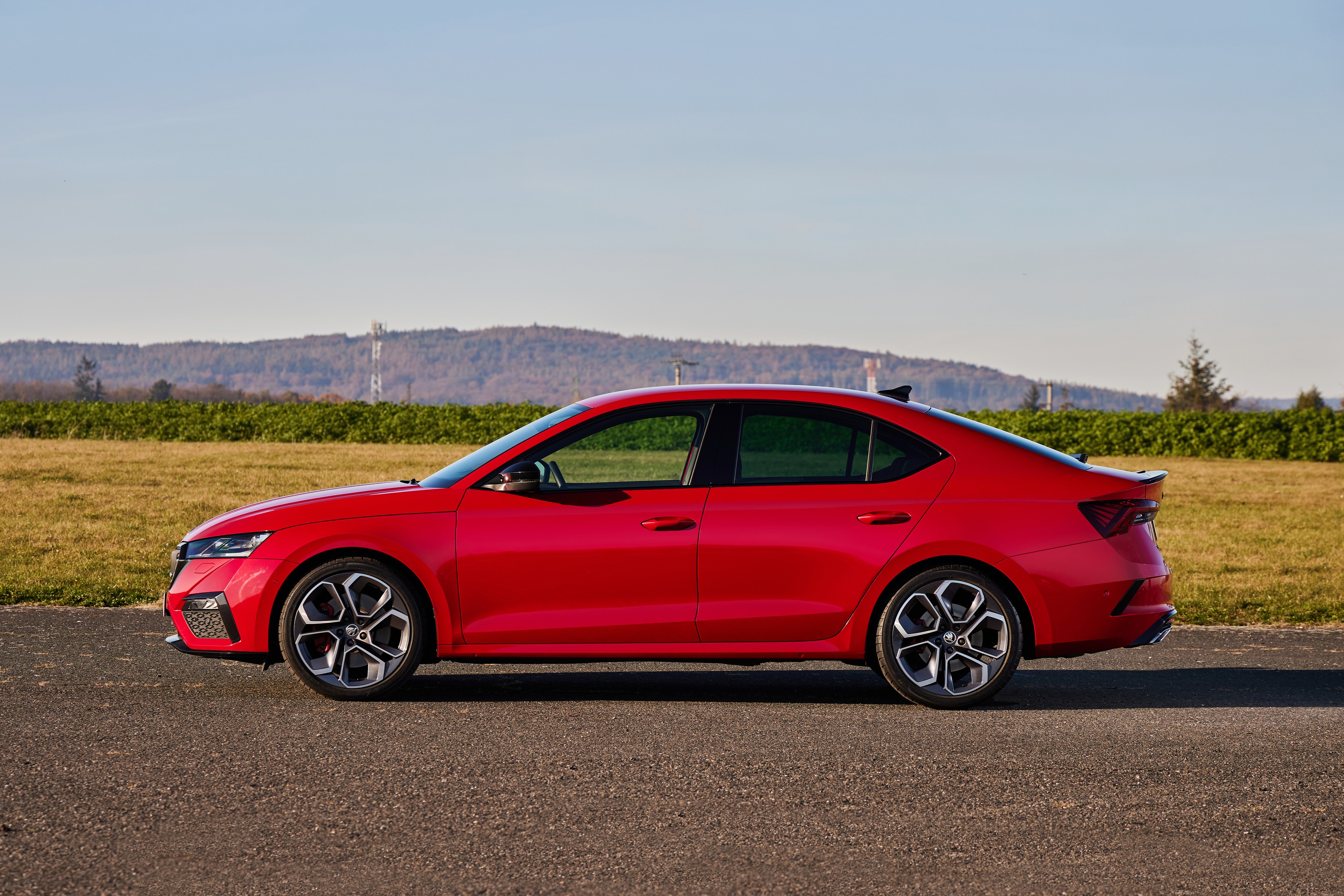

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
