Škoda Rapid
Date of manufacture
8/2013 – 2017 (Five-door hatchback)
8/2012 – 2017 (Liftback)
Platform
Volkswagen Group A05+
Manufacturing locations
Mladá Boleslav, Czechia
Kaluga, Russia
Relizane, Algeria
Designer
Josef Kabaň
Tags
B-segment
Czech cars
The Skoda Rapid is available as a five-door hatchback and liftback since 2012. The car is manufactured in the Czech Republic, Russia and Algeria on the Volkswagen Group A05+ platform. It offers a wide range of engines, with the most powerful being the 1.4 TSI with 92 kW. This provides a maximum speed of 208 km/h and the best 0-100 km/h acceleration in 8.9 seconds. The most fuel-efficient model, the 1.4 TDI CR, has a fuel consumption of 3.6 l/100 km and emissions of 94 g/km. The trunk of the five-door hatchback has a capacity of 415 l, and the liftback 550 l. The car's safety was tested by EURONCAP according to the 2012 methodology, where it achieved a rating of 5 out of 5.
Car body style

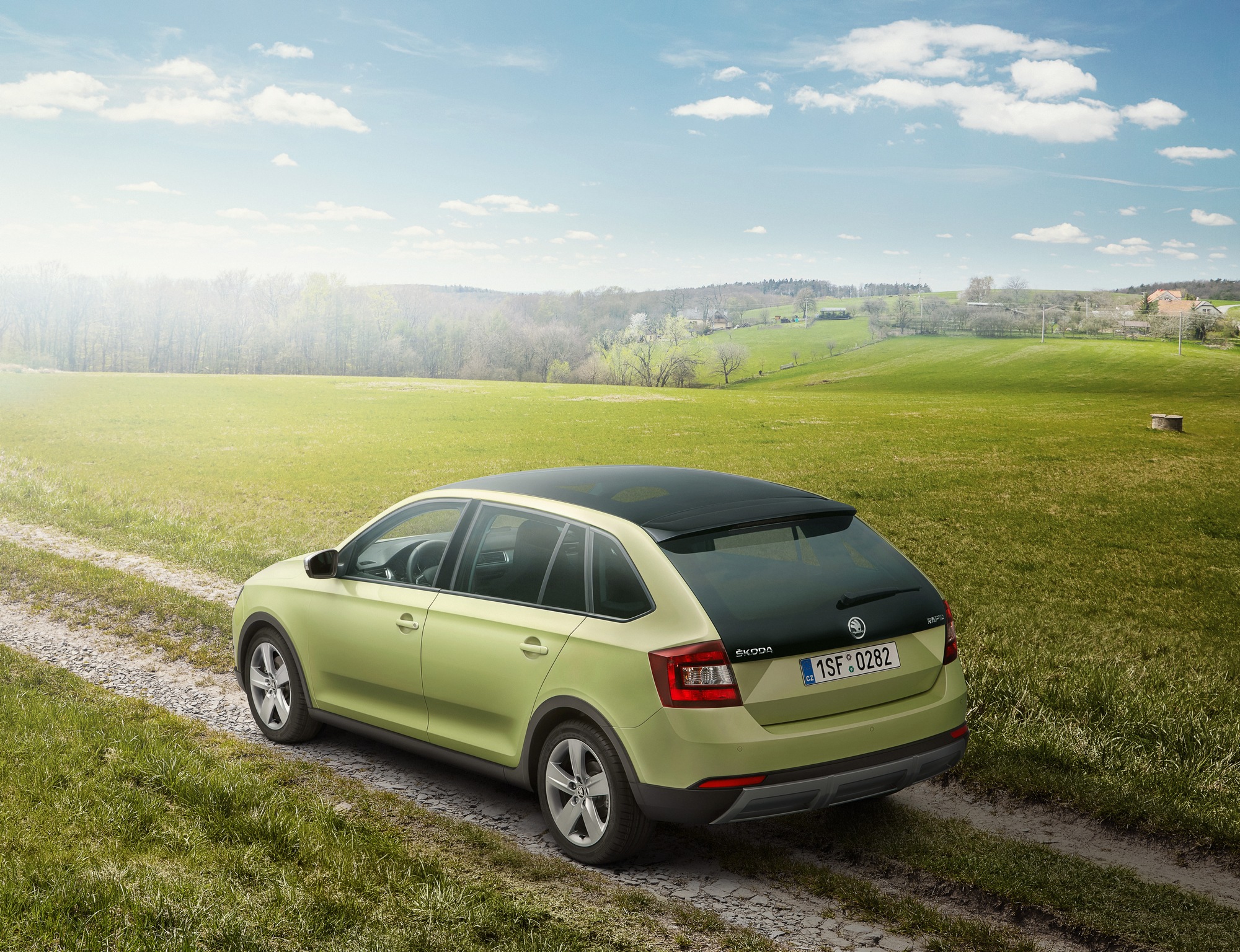

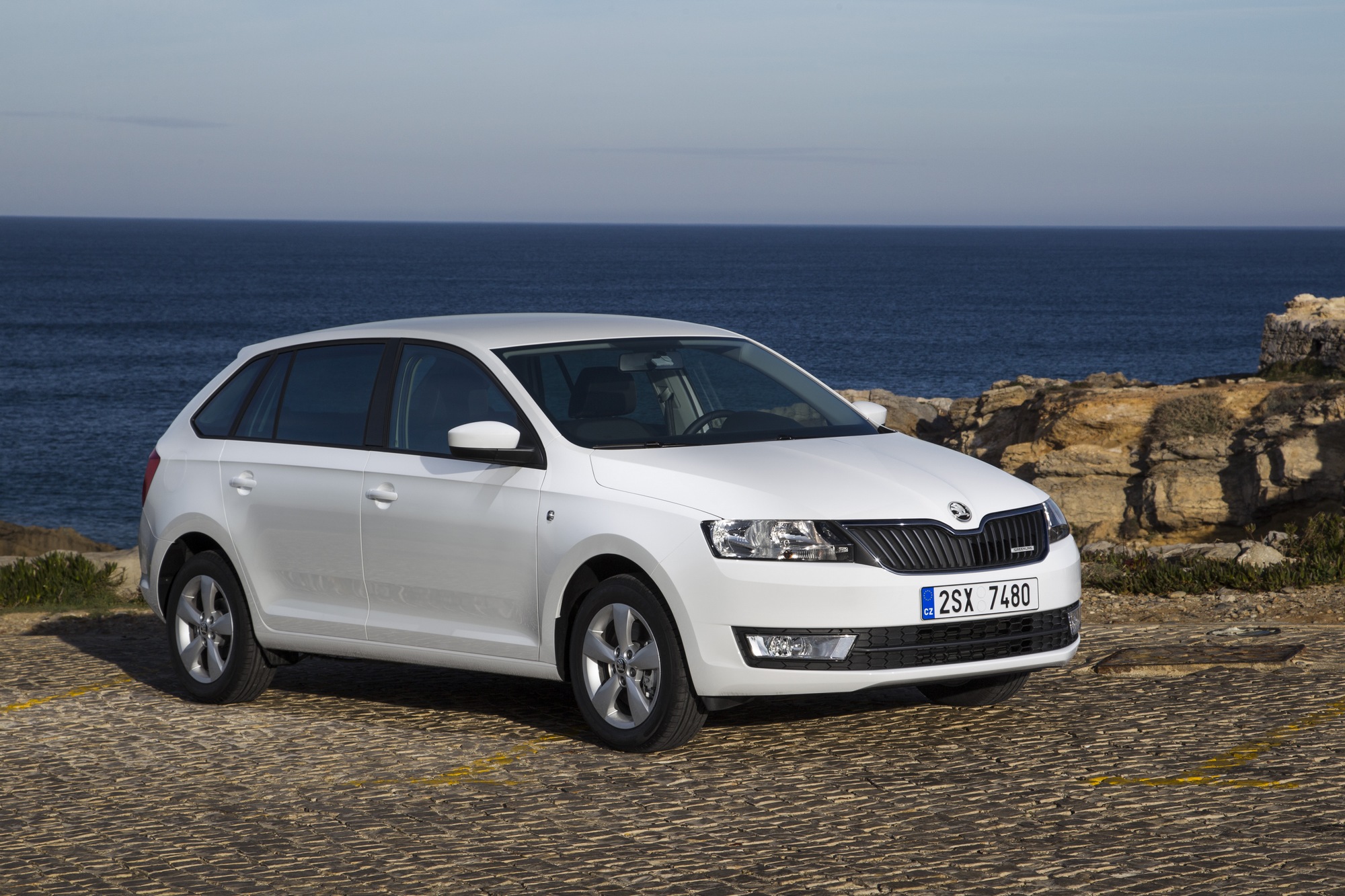

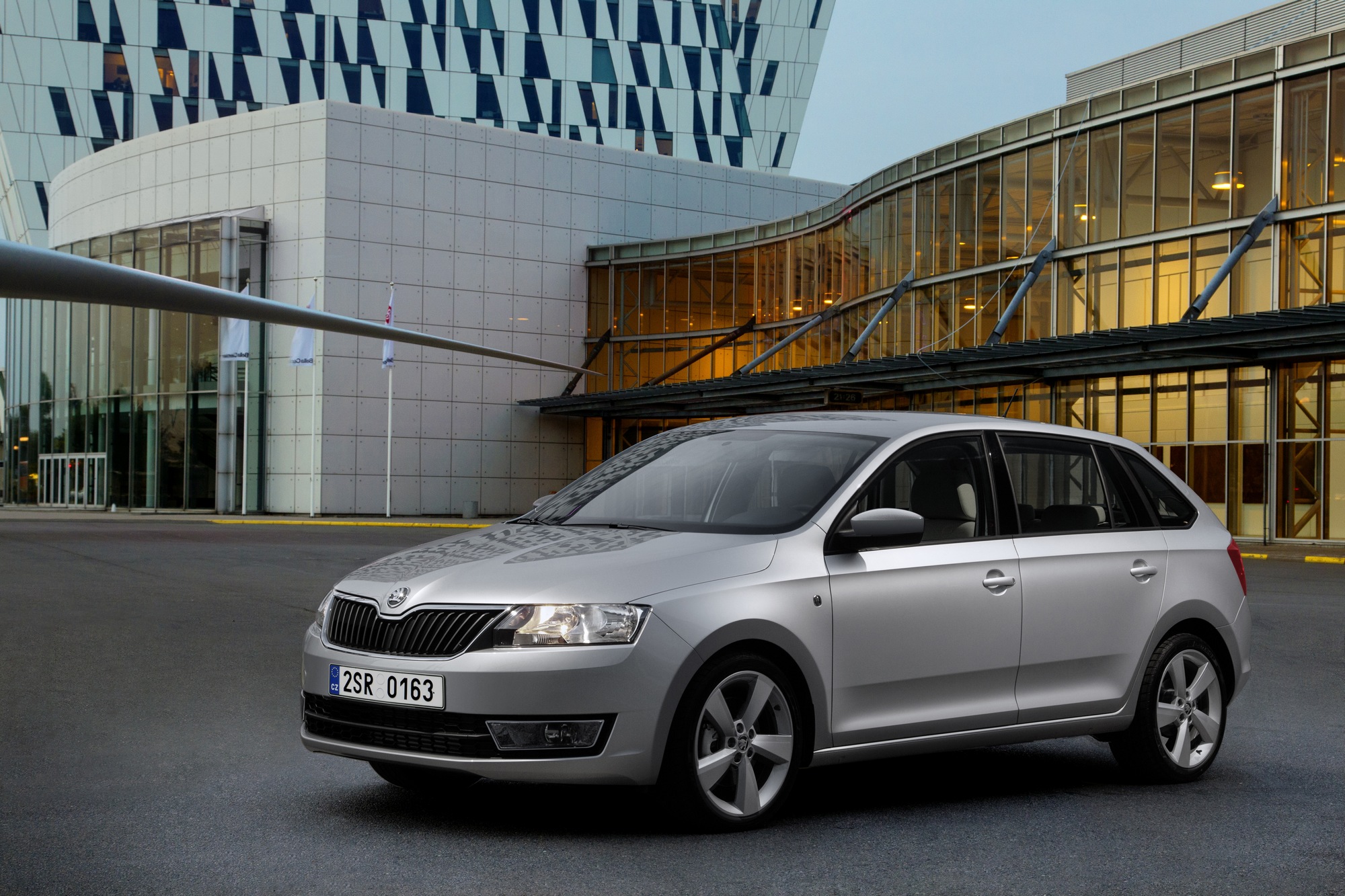

Five-door hatchback (Spaceback)
Date of manufacture
8/2013 – 2017Internal designation

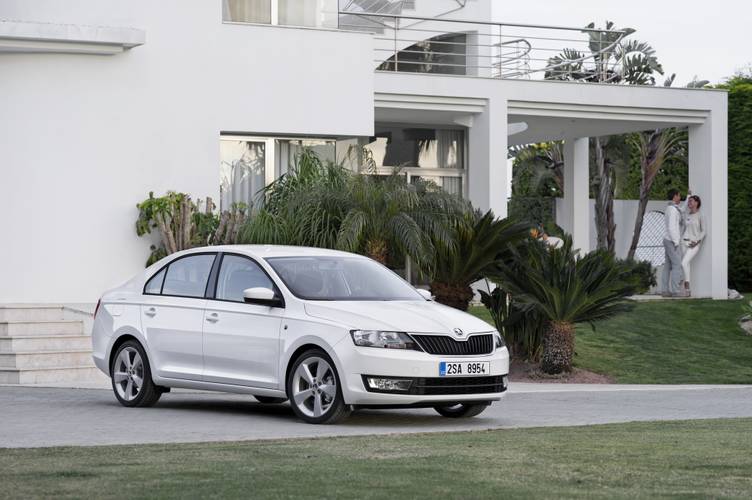

NH3Liftback
Date of manufacture
8/2012 – 2017Internal designation
NH3
Technical data
Five-door hatchback (Spaceback)
| 1.2 MPI | 1.2 TSI | 1.2 TSI Green tec | 1.2 TSI | 1.2 TSI | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/8 | 4/8 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1198 | 1197 | 1197 | 1197 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 55/5400 | 63/4800 | 63/4800 | 66/4400-5400 | 66/4400-5400 | 77/5000 |
| Maximum torque [Nm/min-1] | 112/3750 | 160/1500-3500 | 160/1500-3500 | 160/1400-3500 | 160/1400-3500 | 175/1550-4100 |
| Bore and stroke [mm x mm] | 76,5 x 86,9 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 172 | 180 | 180 | 184 | 184 | 193 |
| Acceleration 0–100 km/h [s] | 13.8 | 11.7 | 11.7 | 11.2 | 11.3 | 10.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 6.5 | 5.9 | 6.0 | 5.8 | 6.9 |
| Out of town [l] | 4.5 | 4.4 | 4.3 | 4.0 | 4.1 | 4.6 |
| Combined [l] | 5.8 | 5.1 | 4.9 | 4.7 | 4.7 | 5.4 |
| CO2 emissions [g/km] | 134 | 119 | 114 | 107 | 109 | 125 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1130 | 1150 | 1150 | 1160 | 1194 | 1170 |
| Overall weight [kg] | 1590 | 1610 | 1610 | 1620 | 1654 | 1630 |
| Maximum trailer weight unbraked/braked [kg] | 560/750 | 570/900 | 570/900 | 580/900 | 590/900 | 580/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 |
| Boot length [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.307 | 0.307 | 0.307 | 0.307 | 0.307 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4304 | 4304 | 4304 | 4304 | 4304 | 4304 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1463 | 1463 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1500 | 1500 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 825 | 825 | 825 | 825 | 825 | 825 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI Green tec | 1.2 TSI | 1.4 TSI | 1.4 TSI Green tec | 1.4 TSI | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1390 | 1390 | 1395 | 1598 |
| Maximum output / speed [kW/min-1] | 77/5000 | 81/4600-5600 | 90/5000 | 90/5000 | 92/5000-6000 | 66/4200 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1400-4000 | 200/1500-4000 | 200/1500-4000 | 200/1400-4000 | 230/1500-2500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 79,5 x 80,5 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 193 | 198 | 203 | 203 | 205 | 182 |
| Acceleration 0–100 km/h [s] | 10.2 | 9.7 | 9.4 | 9.4 | 8.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.2 | 7.4 | 6.8 | 6.1 | 5.6 |
| Out of town [l] | 4.2 | 4.2 | 4.8 | 4.6 | 4.1 | 3.7 |
| Combined [l] | 5.0 | 4.9 | 5.8 | 5.4 | 4.8 | 4.4 |
| CO2 emissions [g/km] | 116 | 110 | 134 | 125 | 114 | 114 |
| Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1170 | 1180 | 1225 | 1225 | 1221 | 1260 |
| Overall weight [kg] | 1630 | 1640 | 1685 | 1685 | 1681 | 1720 |
| Maximum trailer weight unbraked/braked [kg] | 580/1100 | 590/1100 | 610/1200 | 610/1200 | 610/1200 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 |
| Boot length [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.307 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4304 | 4304 | 4304 | 4304 | 4304 | 4304 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 825 | 825 | 825 | 825 | 825 | 825 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | 1.6 TDI CR GreenLine | 1.4 TDI CR | 1.4 TDI CR | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1422 | 1422 | 1598 |
| Maximum output / speed [kW/min-1] | 66/4200 | 66/4200 | 66/4200 | 66/3500 | 66/3500 | 77/4400 |
| Maximum torque [Nm/min-1] | 230/1500-2500 | 230/1500-2500 | 230/1500-2500 | 230/1750-2500 | 230/1750-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,2:1 | 16,2:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 182 | 182 | 184 | 183 | 183 | 190 |
| Acceleration 0–100 km/h [s] | 11.9 | 12.1 | 11.9 | 11.6 | 11.7 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.8 | 5.6 | 4.5 | 4.2 | 4.2 | 5.6 |
| Out of town [l] | 3.4 | 3.9 | 3.4 | 3.4 | 3.6 | 3.7 |
| Combined [l] | 3.9 | 4.5 | 3.8 | 3.6 | 3.8 | 4.4 |
| CO2 emissions [g/km] | 104 | 118 | 99 | 94 | 99 | 114 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1260 | 1280 | 1258 | 1229 | 1250 | 1260 |
| Overall weight [kg] | 1720 | 1740 | 1718 | 1689 | 1710 | 1720 |
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 640/1200 | - | 610/1000 | 620/1000 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 |
| Boot length [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 | -/1004 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.307 | 0.307 | - | 0.307 | 0.307 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4304 | 4304 | 4304 | 4304 | 4304 | 4304 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1459 | 1459 | 1459 | 1459 | 1459 | 1459 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 825 | 825 | 825 | 825 | 825 | 825 |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 77/4400 | 85/3500-4000 | ||||
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-3000 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 190 | 198 | ||||
| Acceleration 0–100 km/h [s] | 10.3 | 9.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.8 | 4.5 | ||||
| Out of town [l] | 3.4 | 3.3 | ||||
| Combined [l] | 3.9 | 3.8 | ||||
| CO2 emissions [g/km] | 104 | 99 | ||||
| Emission standard | EU5 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1260 | 1275 | ||||
| Overall weight [kg] | 1720 | 1735 | ||||
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 630/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 415 | 415 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | ||||
| Boot length [mm] | 842 | 842 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1004 | -/1004 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 55 | 55 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.31 | 0.31 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | ||||
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | ||||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | ||||
| Overall length [mm] | 4304 | 4304 | ||||
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | ||||
| Overall height [mm] | 1459 | 1459 | ||||
| Wheelbase [mm] | 2602 | 2602 | ||||
| Front wheel track [mm] | 1457 | 1457 | ||||
| Rear wheel track [mm] | 1494 | 1494 | ||||
| Forward overhang [mm] | 877 | 877 | ||||
| Rear overhang [mm] | 825 | 825 | ||||
| Clearance [mm] | 134 | 134 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 13.8 | 13.8 | ||||
| Approach angle rear [°] | 16.5 | 16.5 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1014 | 1014 | ||||
| Headroom rear [mm] | 980 | 980 | ||||
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | ||||
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Liftback
| 1.2 MPI | 1.2 TSI | 1.2 TSI Green tec | 1.2 TSI | 1.2 TSI | 1.2 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/8 | 4/8 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1198 | 1197 | 1197 | 1197 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 55/5400 | 63/4800 | 63/4800 | 66/4400-5400 | 66/4400-5400 | 77/5000 |
| Maximum torque [Nm/min-1] | 112/3750 | 160/1500-3500 | 160/1500-3500 | 160/1400-3500 | 160/1400-3500 | 175/1550-4100 |
| Bore and stroke [mm x mm] | 76,5 x 86,9 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 |
| Compression ratio | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 175 | 183 | 183 | 186 | 186 | 195 |
| Acceleration 0–100 km/h [s] | 13.9 | 11.8 | 11.8 | 11.3 | 11.4 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.0 | 6.5 | 5.9 | 6.0 | 5.8 | 6.9 |
| Out of town [l] | 4.5 | 4.4 | 4.3 | 4.0 | 4.1 | 4.6 |
| Combined [l] | 5.8 | 5.1 | 4.9 | 4.7 | 4.7 | 5.4 |
| CO2 emissions [g/km] | 134 | 119 | 114 | 107 | 109 | 125 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1135 | 1155 | 1155 | 1165 | 1199 | 1175 |
| Overall weight [kg] | 1595 | 1615 | 1615 | 1625 | 1659 | 1635 |
| Maximum trailer weight unbraked/braked [kg] | 560/750 | 570/900 | 570/900 | 580/900 | 590/900 | 580/1100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.295 | 0.295 | 0.31 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 175/70 R14 | 175/70 R14 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 5.0J x 14 | 5.0J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4483 | 4483 | 4483 | 4483 | 4483 | 4483 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1463 | 1463 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1500 | 1500 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 TSI Green tec | 1.2 TSI | 1.4 TSI | 1.4 TSI Green tec | 1.4 TSI | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1390 | 1390 | 1395 | 1598 |
| Maximum output / speed [kW/min-1] | 77/5000 | 81/4600-5600 | 90/5000 | 90/5000 | 92/5000-6000 | 66/4200 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1400-4000 | 200/1500-4000 | 200/1500-4000 | 200/1400-4000 | 230/1500-2500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 80,0 | 79,5 x 80,5 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear manual |
| Drive specifications | - | - |
|
|
| - |
| Top speed [km/h] | 195 | 200 | 206 | 206 | 208 | 184 |
| Acceleration 0–100 km/h [s] | 10.3 | 9.8 | 9.5 | 9.5 | 9.0 | 12.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.2 | 7.4 | 6.8 | 6.1 | 5.6 |
| Out of town [l] | 4.2 | 4.2 | 4.8 | 4.6 | 4.1 | 3.7 |
| Combined [l] | 5.0 | 4.9 | 5.8 | 5.4 | 4.8 | 4.4 |
| CO2 emissions [g/km] | 116 | 110 | 134 | 125 | 114 | 114 |
| Emission standard | EU5 | EU6 | EU5 | EU5 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1175 | 1185 | 1230 | 1230 | 1226 | 1265 |
| Overall weight [kg] | 1635 | 1645 | 1690 | 1690 | 1686 | 1725 |
| Maximum trailer weight unbraked/braked [kg] | 580/1100 | 590/1100 | 610/1200 | 610/1200 | 610/1200 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.297 | 0.3 | 0.3 | 0.294 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4483 | 4483 | 4483 | 4483 | 4483 | 4483 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | 1.6 TDI CR GreenLine | 1.4 TDI CR | 1.4 TDI CR | 1.6 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1422 | 1422 | 1598 |
| Maximum output / speed [kW/min-1] | 66/4200 | 66/4200 | 66/4200 | 66/3500 | 66/3500 | 77/4400 |
| Maximum torque [Nm/min-1] | 230/1500-2500 | 230/1500-2500 | 230/1500-2500 | 230/1750-2500 | 230/1750-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 95,5 | 79,5 x 95,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,2:1 | 16,2:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 5 gear manual | 5 gear manual | 7 gear automatic | 5 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 184 | 184 | 186 | 185 | 185 | 190 |
| Acceleration 0–100 km/h [s] | 12.0 | 12.2 | 12.0 | 11.7 | 11.8 | 10.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.8 | 5.6 | 4.5 | 4.2 | 4.2 | 5.6 |
| Out of town [l] | 3.4 | 3.9 | 3.4 | 3.4 | 3.6 | 3.7 |
| Combined [l] | 3.9 | 4.5 | 3.8 | 3.6 | 3.8 | 4.4 |
| CO2 emissions [g/km] | 104 | 118 | 99 | 94 | 99 | 114 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1265 | 1285 | 1263 | 1234 | 1255 | 1265 |
| Overall weight [kg] | 1725 | 1745 | 1723 | 1694 | 1715 | 1725 |
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 640/1200 | - | 610/1000 | 620/1000 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 | -/1490 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 | -/1008 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.296 | 0.296 | 0.3 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 | 10.2/10.9 |
| Overall length [mm] | 4483 | 4483 | 4483 | 4483 | 4483 | 4483 |
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 | 1706/1940 |
| Overall height [mm] | 1461 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Wheelbase [mm] | 2602 | 2602 | 2602 | 2602 | 2602 | 2602 |
| Front wheel track [mm] | 1457 | 1457 | 1457 | 1457 | 1457 | 1457 |
| Rear wheel track [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 1004 | 1004 | 1004 | 1004 | 1004 | 1004 |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14 | 14 | 14 | 14 | 14 | 14 |
| Approach angle rear [°] | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- | 1418/- |
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- | 1428/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR Green tec | 1.6 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 77/4400 | 85/3500-4000 | ||||
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-3000 | ||||
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | ||||
| Compression ratio | 16,5:1 | 16,2:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 190 | 201 | ||||
| Acceleration 0–100 km/h [s] | 10.4 | 10.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 4.8 | 4.5 | ||||
| Out of town [l] | 3.4 | 3.3 | ||||
| Combined [l] | 3.9 | 3.8 | ||||
| CO2 emissions [g/km] | 104 | 99 | ||||
| Emission standard | EU5 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1265 | 1280 | ||||
| Overall weight [kg] | 1725 | 1740 | ||||
| Maximum trailer weight unbraked/braked [kg] | 630/1200 | 640/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 550 | 550 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1490 | -/1490 | ||||
| Boot length [mm] | 1048 | 1048 | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1008 | -/1008 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 55 | 55 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.3 | 0.298 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 185/60 R15 | 185/60 R15 | ||||
| Tyre dimensions rear | 185/60 R15 | 185/60 R15 | ||||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.2/10.9 | 10.2/10.9 | ||||
| Overall length [mm] | 4483 | 4483 | ||||
| Overall width without/including mirrors [mm] | 1706/1940 | 1706/1940 | ||||
| Overall height [mm] | 1461 | 1461 | ||||
| Wheelbase [mm] | 2602 | 2602 | ||||
| Front wheel track [mm] | 1457 | 1457 | ||||
| Rear wheel track [mm] | 1494 | 1494 | ||||
| Forward overhang [mm] | 877 | 877 | ||||
| Rear overhang [mm] | 1004 | 1004 | ||||
| Clearance [mm] | 136 | 136 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 14 | 14 | ||||
| Approach angle rear [°] | 12.3 | 12.3 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1014 | 1014 | ||||
| Headroom rear [mm] | 972 | 972 | ||||
| Front elbow/shoulder width [mm] | 1418/- | 1418/- | ||||
| Rear elbow/shoulder width [mm] | 1428/- | 1428/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
