Škoda Superb
Date of manufacture
2019 – to this day (Sedan)
2019 – to this day (Estate)
Platform
MQB
Manufacturing locations
Kvasiny, Czechia
Nanjing, People's Republic of China
Aurangabad, India
Designer
Jozef Kabaň
Tags
D-segment
Czech cars
The new Skoda Superb is available in two body styles - sedan and estate. It has been produced since 2019 and can have a country of origin such as the Czech Republic, the People's Republic of China or India. It is built on the MQB platform and offers hybrid or plug-in hybrid versions. The engine range includes petrol, diesel and hybrid engines, the most powerful being the 2.0 TSI with 206 kW. The top speed of the 2.0 TSI version is 250 km/h, 0-100 km/h acceleration takes 5.2 seconds. The most economical model is the iV with a combined consumption of 1.3 kWh/100 km and CO2 emissions of 35 g/km. The sedan has a boot capacity of 625 l, the estate 660 l. EURONCAP safety tests rated the model 5 out of 5 according to the 2015 methodology.
Car body style

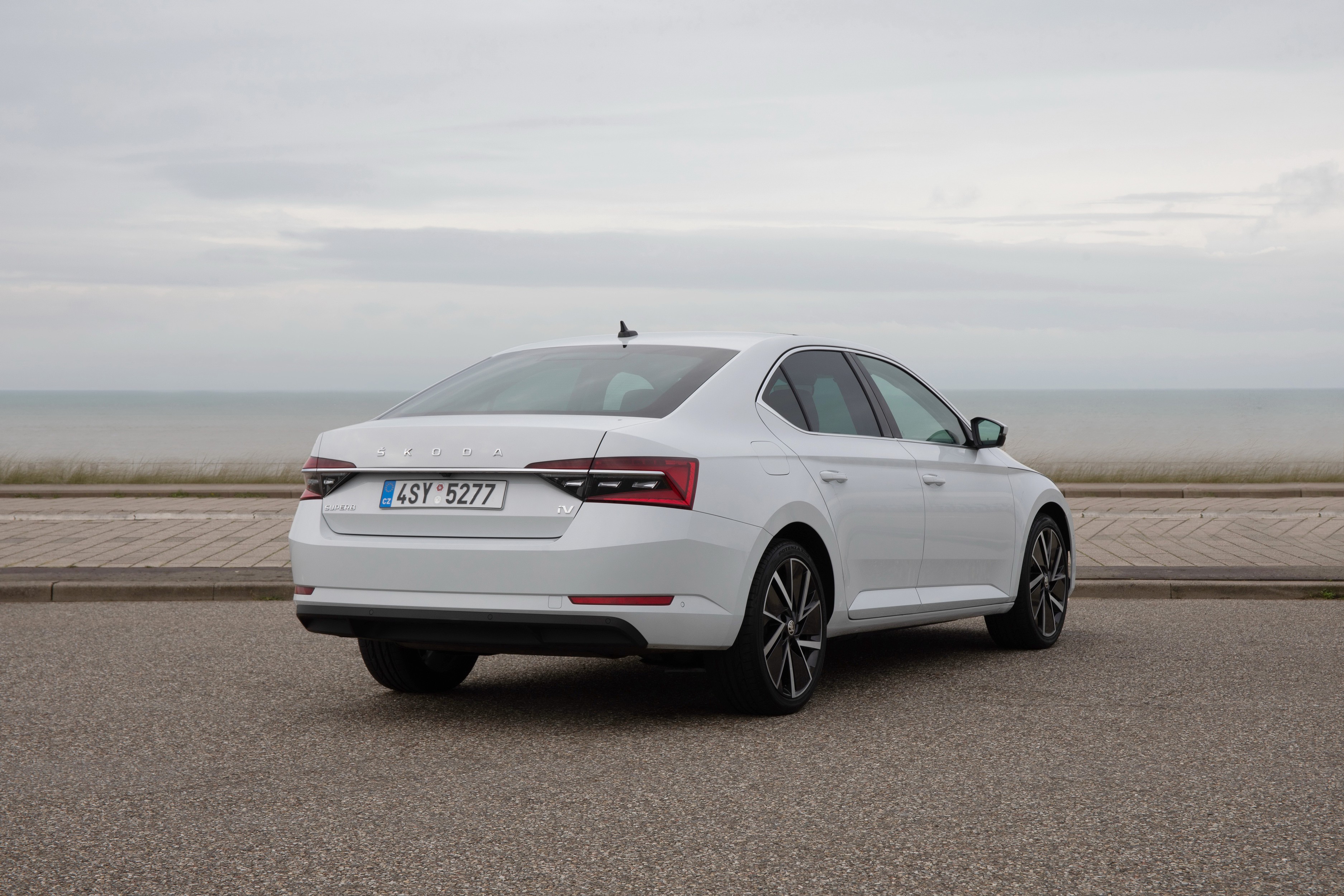

Sedan
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation

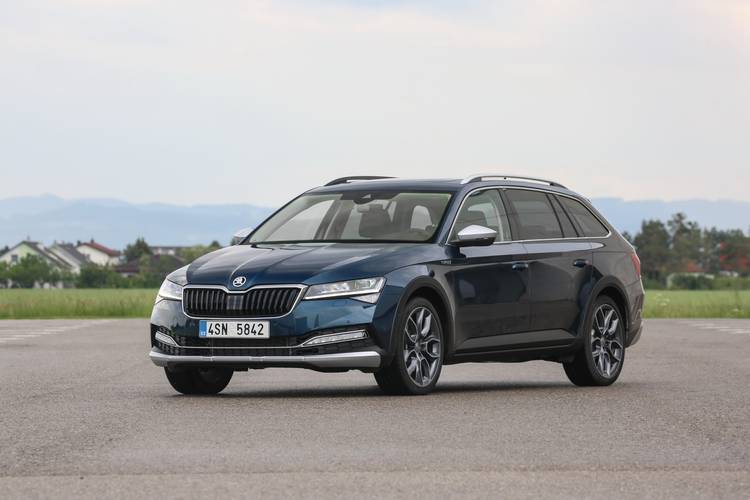

B8 3V3Estate
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
B8 3V5Engine size
Technical data
Sedan
| 1.5 TSI | 1.5 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | iV | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2020 | from to 2020 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1395 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 200/5500-6500 | 206/5000-6500 | 115/5000-6000 85 el. 160 total |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 350/2000-5400 | 400/2000-4900 | 250/1550-3500 330 el. 400 total |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80.0 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 9,3:1 | 9,3:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 221 | 220 | 241 | 250 | 250 | 225 |
| Acceleration 0–100 km/h [s] | 9,1 | 9,2 | 7,7 | 5.6 | 5,2 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,8-6,6 | 6,8-6,6 | 8.5-7,2 | 9.0-8.9 | 9,7-9,6 | - |
| Out of town [l] | 4,5-4,3 | 4,7-4,4 | 4,8-4,7 | 5.9-5.8 | 5,9-5,8 | - |
| Combined [l] | 5,3-5,1 | 5,5-5,2 | 6.2-5,7 | 7.1-7.0 | 7,3-7,2 | - |
| CO2 emissions [g/km] | 122-117 | 125-119 | 140-129 | 160-159 | 167-165 | - |
| Low speed [l] | 8.0 | 8.3 | 9.2 | - | 12.5 | 7.1 |
| Medium speed [l] | 6.1 | 6.2 | 7.0 | - | 8.3 | 5.1 |
| High speed [l] | 5.1 | 5.3 | 5.8 | - | 6.9 | 4.7 |
| Extra high speed [l] | 5.8 | 6.0 | 6.3 | - | 7.6 | 5.6 |
| Combined speed [l] | 5.9 | 6.1 | 6.7 | - | 8.2 | 1.3-1.2 [12.2-11.3 kWh] |
| CO2 emissions [g/km] | 135 | 139 | 152 | - | 185 | 35-32 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-ion, 13 kWh (10 net) |
| Range with fully charged battery [km] | - | - | - | - | - | 52-60 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1467-1648 | 1477-1648 | 1535-1725 | 1645-1821 | 1655-1836 | 1730-1861 |
| Overall weight [kg] | 2053 | 2065 | 2098-2128 | 2250 | 2268 | 2250 |
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | 750/1800 | 750/2200 | 750/2200 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 625 | 625 | 625 | 625 | 625 | 485 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 | -/1610 |
| Boot length [mm] | 1116 | 1116 | 1116 | 1116 | 1116 | 1116 |
| Boot length with rear seats folded [mm] | 2067 | 2067 | 2067 | 2067 | 2067 | 2067 |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,280 | 0,280 | 0,268 | 0.295 | 0,291 | 0.268 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7,0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7,0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 |
| Overall length [mm] | 4869 | 4869 | 4869 | 4869 | 4869 | 4869 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1468 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2841 |
| Front wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1584 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1570 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1123 | 1123 | 1123 | 1123 | 1123 | 1123 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 158 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1038 | 1038 | 1038 | 1038 | 1038 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 158/- | 158/- | 158/- | 158/- | 158/- | 158/- |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 90/3500-4250 | 110/3250-4200 | 110/3000-4200 | 140/3500-4000 | 140/3500-4000 | 147/3600-4100 |
| Maximum torque [Nm/min-1] | 250/1500-3250 | 340/1600-3000 | 360/1600-2750 | 400/1900-3300 | 400/1900-3300 | 400/1750-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 207 | 221-223 | 220-222 | 220 | 232 | 243 |
| Acceleration 0–100 km/h [s] | 11,0 | 9,1 | 9,1 | 9.1 | 8.0 | 8,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,2-5,1 | 5,6-5,5 | 5,0-4,9 | 5.3 | 5.8-5.7 | 6,0-5,9 |
| Out of town [l] | 3,6-3,4 | 3,7-3,5 | 3,5-3,4 | 3.9 | 4.4-4.3 | 3,8 |
| Combined [l] | 4,2-4,0 | 4,4-4,2 | 4,1-3,9 | 4.4 | 4.9-4.8 | 4,6 |
| CO2 emissions [g/km] | 111-106 | 116-111 | 107-103 | 117-116 | 129-127 | 122-120 |
| Low speed [l] | - | 6.6 | 6.9 | - | - | 7.4 |
| Medium speed [l] | - | 4.7 | 4.9 | - | - | 5.3 |
| High speed [l] | - | 4.0 | 4.1 | - | - | 4.6 |
| Extra high speed [l] | - | 4.7 | 4.6 | - | - | 5.2 |
| Combined speed [l] | - | 4.7 | 4.8 | - | - | 5.3 |
| CO2 emissions [g/km] | - | 124 | 126 | - | - | 139 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1552-1733 | 1555-1736 | 1585-1766 | 1589-1765 | 1665-1831 | 1576-1757 |
| Overall weight [kg] | 2140 | 2137 | 2156 | 2261 | 2295 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 625 | 625 | 625 | 625 | 625 | 625 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 | -/1760 |
| Boot length [mm] | 1116 | 1116 | 1116 | 1116 | 1116 | 1116 |
| Boot length with rear seats folded [mm] | 2067 | 2067 | 2067 | 2067 | 2067 | 2067 |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,271 | 0,267 | 0,265 | 0.269 | 0.279 | 0,279 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 |
| Overall length [mm] | 4869 | 4869 | 4869 | 4869 | 4869 | 4869 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1454 | 1454 | 1454 | 1454 | 1454 | 1454 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2836 |
| Front wheel track [mm] | 1581 | 1581 | 1581 | 1581 | 1581 | 1581 |
| Rear wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1123 | 1123 | 1123 | 1123 | 1123 | 1123 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1038 | 1038 | 1038 | 1038 | 1038 | 1038 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- | 1520/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 158/- | 158/- | 158/- | 158/- | 158/- | 158/- |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 147/3600-4100 | |||||
| Maximum torque [Nm/min-1] | 400/1750-3500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 237 | |||||
| Acceleration 0–100 km/h [s] | 8,0 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6,4-6,3 | |||||
| Out of town [l] | 4,3-4,2 | |||||
| Combined [l] | 5,0 | |||||
| CO2 emissions [g/km] | 133-131 | |||||
| Low speed [l] | 8.3 | |||||
| Medium speed [l] | 5.9 | |||||
| High speed [l] | 5.1 | |||||
| Extra high speed [l] | 5.7 | |||||
| Combined speed [l] | 5.9 | |||||
| CO2 emissions [g/km] | 155 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1652-1833 | |||||
| Overall weight [kg] | 2259 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 90 | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 625 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1760 | |||||
| Boot length [mm] | 1116 | |||||
| Boot length with rear seats folded [mm] | 2067 | |||||
| Boot width between wheels/max [mm] | 1010/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 66 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0,279 | |||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | |||||
| Rear suspension | multilink, stabiliser bar | |||||
| Tyre dimensions front | 215/55 R17 | |||||
| Tyre dimensions rear | 215/55 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | -/11,7 | |||||
| Overall length [mm] | 4869 | |||||
| Overall width without/including mirrors [mm] | 1864/2031 | |||||
| Overall height [mm] | 1454 | |||||
| Wheelbase [mm] | 2836 | |||||
| Front wheel track [mm] | 1581 | |||||
| Rear wheel track [mm] | 1567 | |||||
| Forward overhang [mm] | 905 | |||||
| Rear overhang [mm] | 1123 | |||||
| Clearance [mm] | 165 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 13.8 | |||||
| Approach angle rear [°] | 12.1 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1038 | |||||
| Headroom rear [mm] | 980 | |||||
| Front elbow/shoulder width [mm] | 1507/- | |||||
| Rear elbow/shoulder width [mm] | 1520/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | 158/- |
Estate
| 1.5 TSI | 1.5 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI Scout | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 200/5500-6500 | 206/5000-6500 | 200/5500-6500 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 350/2000-5400 | 400/2000-4900 | 350/2000-5400 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 9,3:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 213 | 212 | 231 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 9.1-9,2 | 9,3 | 7,7 | 5.7 | 5,3 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,7-6,6 | 6,8-6,6 | 8.5-7,3 | 9.0 | 9,7 | 9.0 |
| Out of town [l] | 4,5-4,3 | 4,7-4,5 | 5,0-4,9 | 6.0 | 6,1-5,9 | 6.0 |
| Combined [l] | 5,4-5,2 | 5,3-5,2 | 6.2-5,8 | 7.1 | 7,4-7,3 | 7.1 |
| CO2 emissions [g/km] | 122-118 | 125-120 | 141-132 | 162-161 | 169-167 | 162-161 |
| Low speed [l] | 8.0 | 8.4 | 9.3 | - | 12.6 | - |
| Medium speed [l] | 6.1 | 6.4 | 7.2 | - | 8.6 | - |
| High speed [l] | 5.3 | 5.5 | 6.0 | - | 7.3 | - |
| Extra high speed [l] | 6.2 | 6.4 | 6.7 | - | 8.1 | - |
| Combined speed [l] | 6.2 | 6.4 | 6.9 | - | 8.5 | - |
| CO2 emissions [g/km] | 140 | 145 | 157 | - | 194 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1482-1690 | 1492-1700 | 1559-1767 | 1667-1870 | 1670-1878 | 1667-1870 |
| Overall weight [kg] | 2049-2091 | 2129 | 2146-2192 | 2307 | 2318 | 2307 |
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 740/1600 | 750/1800 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1131 | 1131 | 1131 | 1131 | 1131 | 1131 |
| Boot length with rear seats folded [mm] | 2067 | 2067 | 2067 | 2067 | 2067 | 2067 |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,314 | 0,314 | 0,306 | - | 0,314 | 0.318 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 235/45 R18 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 235/45 R18 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8,5J x 18 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8,5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 |
| Overall length [mm] | 4862 | 4862 | 4862 | 4862 | 4862 | 4863 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1511 |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2836 | 2836 | 2841 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1581 |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1568 | 1568 | 1565 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1117 | 1117 | 1117 | 1117 | 1117 | 1117 |
| Clearance [mm] | 165-121 | 165-121 | 165-121 | 165-121 | 165-121 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1042 | 1042 | 1042 | 1042 | 1042 | 1042 |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1519/- | 1519/- | 1519/- | 1519/- | 1519/- | 1519/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 158/- | 158/- | 158/- | 158/- | 158/- | 158/- |
| 2.0 TSI Scout | iV | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | from to 2020 | - | - | from to 2020 |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1395 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 206/5000-6500 | 115/5000-6000 85 el. 160 total | 90/3500-4250 | 110/3250-4200 | 110/3000-4200 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 400/2000-4900 | 250/1550-3500 330 el. 400 total | 250/1500-3250 | 340/1600-3000 | 360/1600-2750 | 400/1900-3300 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 74,5 x 80.0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,3:1 | 10,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
| - |
|
|
| Top speed [km/h] | 250 | 225 | 200 | 215 | 213 | 230 |
| Acceleration 0–100 km/h [s] | 5,3 | 7.8 | 11,1 | 9,2 | 9,2 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.8-9,7 | - | 5,2-5,1 | 5,7-4.4 | 5,0-4,3 | 5.3 |
| Out of town [l] | 6,2-6.0 | - | 3,8-3,6 | 3,8-3,5 | 3,8-3,5 | 4.0 |
| Combined [l] | 7,5-7,4 | - | 4,3-4,1 | 4,3-3.8 | 4,5-3.9 | 4.5-4.4 |
| CO2 emissions [g/km] | 171-168 | - | 113-109 | 113-101 | 118-102 | 118-117 |
| Low speed [l] | 12.5 | - | - | 6.6 | 7.0 | - |
| Medium speed [l] | 8.4 | - | - | 4.8 | 5.0 | - |
| High speed [l] | 7.1 | - | - | 4.1 | 4.2 | - |
| Extra high speed [l] | 7.9 | - | - | 4.9 | 4.9 | - |
| Combined speed [l] | 8.4 | 1.4-1.3 [12.9-12.1 kWh] | - | 4.9 | 5.0 | - |
| CO2 emissions [g/km] | 190 | - | - | 128 | 131 | - |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | Lithium-ion, 13 kWh (10 net) | - | - | - | - |
| Range with fully charged battery [km] | - | 52-60 | - | - | - | - |
| Charging time | - |
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1670-1878 | 1752-1926 | 1574-1782 | 1577-1785 | 1607-1815 | 1611-1814 |
| Overall weight [kg] | 2318 | 2260 | 2202 | 2176-2213 | 2196-2232 | 2210 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/1600 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1131 | 1131 | 1131 | 1131 | 1131 | 1131 |
| Boot length with rear seats folded [mm] | 2067 | 2067 | 2067 | 2067 | 2067 | 2067 |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 50 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0,314 | 0.310 | 0,305 | 0,301 | 0,301 | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 235/45 R18 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 235/45 R18 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 8,5J x 18 | 7,0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 8,5J x 18 | 7,0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 |
| Overall length [mm] | 4863 | 4862 | 4862 | 4862 | 4862 | 4862 |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 |
| Overall height [mm] | 1511 | 1477 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2841 | 2841 | 2836 | 2836 | 2836 | 2836 |
| Front wheel track [mm] | 1581 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1565 | 1570 | 1568 | 1568 | 1568 | 1568 |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Rear overhang [mm] | 1117 | 1117 | 1117 | 1117 | 1117 | 1117 |
| Clearance [mm] | 151 | 138 | 165-121 | 165-121 | 165-121 | 165-121 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1042 | 1042 | 1042 | 1042 | 1042 | 1042 |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1519/- | 1519/- | 1519/- | 1519/- | 1519/- | 1519/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 158/- | 158/- | 158/- | 158/- | 158/- | 158/- |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI Scout | 2.0 TDI Scout | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from to 2020 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 147/3600-4100 | 147/3600-4100 | 140/3500-4000 | 147/3600-4100 | |
| Maximum torque [Nm/min-1] | 400/1900-3300 | 400/1750-3500 | 400/1750-3500 | 400/1900-3300 | 400/1750-3500 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 223 | 234 | 229 | 223 | 229 | |
| Acceleration 0–100 km/h [s] | 8.1 | 7,9 | 7,3 | 8.1 | 7,3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.8-5.7 | 6,0 | 6,4-6,3 | 5.8-5.7 | 6,5-6,4 | |
| Out of town [l] | 4.6-4.5 | 4,0-3,9 | 4,4-4,3 | 4.6-4.5 | 4,5-4,4 | |
| Combined [l] | 5.0-4.9 | 4,7-4,6 | 5,1-5,0 | 5.0-4.9 | 5,2-5,1 | |
| CO2 emissions [g/km] | 132-129 | 124-122 | 135-132 | 132-129 | 137-134 | |
| Low speed [l] | - | 7.4 | 8.3 | - | 8.3 | |
| Medium speed [l] | - | 5.4 | 6.0 | - | 6.0 | |
| High speed [l] | - | 4.7 | 5.3 | - | 5.2 | |
| Extra high speed [l] | - | 5.6 | 6.0 | - | 6.0 | |
| Combined speed [l] | - | 5.5 | 6.1 | - | 6.0 | |
| CO2 emissions [g/km] | - | 144 | 159 | - | 158 | |
| Emission standard | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1687-1890 | 1598-1806 | 1674-1882 | 1687-1890 | 1674-1882 | |
| Overall weight [kg] | 2327 | 2237 | 2280 | 2327 | 2280 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2000 | 750/2200 | 750/2200 | 750/2200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 660 | 660 | 660 | 660 | 660 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | |
| Boot length [mm] | 1131 | 1131 | 1131 | 1131 | 1131 | |
| Boot length with rear seats folded [mm] | 2067 | 2067 | 2067 | 2067 | 2067 | |
| Boot width between wheels/max [mm] | 1010/- | 1010/- | 1010/- | 1010/- | 1010/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | 0,304 | 0,308 | 0.314 | 0,314 | |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | 215/55 R17 | 235/45 R18 | 235/45 R18 | |
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | 215/55 R17 | 235/45 R18 | 235/45 R18 | |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 8,5J x 18 | 8,5J x 18 | |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 8,5J x 18 | 8,5J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11,7 | -/11,7 | -/11,7 | -/11,7 | -/11,7 | |
| Overall length [mm] | 4862 | 4862 | 4862 | 4863 | 4863 | |
| Overall width without/including mirrors [mm] | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | 1864/2031 | |
| Overall height [mm] | 1462 | 1462 | 1462 | 1511 | 1511 | |
| Wheelbase [mm] | 2836 | 2836 | 2836 | 2841 | 2841 | |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1581 | 1581 | |
| Rear wheel track [mm] | 1568 | 1568 | 1568 | 1565 | 1565 | |
| Forward overhang [mm] | 905 | 905 | 905 | 905 | 905 | |
| Rear overhang [mm] | 1117 | 1117 | 1117 | 1117 | 1117 | |
| Clearance [mm] | 165-121 | 165-121 | 165-121 | 151 | 151 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | |
| Approach angle rear [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1042 | 1042 | 1042 | 1042 | 1042 | |
| Headroom rear [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | |
| Rear elbow/shoulder width [mm] | 1519/- | 1519/- | 1519/- | 1519/- | 1519/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 158/- | 158/- | 158/- | 158/- | 158/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
