Škoda Yeti
Date of manufacture
11/2013 – 2017 (SUV)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Kvasiny, Czechia
Nizhny Novgorod, Russia
Aurangabad, India
Designer
Thomas Ingenlath
Tags
Small SUV
Czech cars
The Škoda Yeti has been available in SUV form since 2013. The vehicle is manufactured in the Czech Republic, Russia and India on the Volkswagen Group A5 (PQ35) platform. It offers a wide range of petrol and diesel engines with a maximum power of 125 kW for the 2.0 TDI CR model. The highest speed of 201 km/h is achieved by the 2.0 TDI CR version and the best acceleration from 0-100 km/h is 8.4 seconds for the 1.8 TSI model. The lowest combined consumption of 4.5 l/100 km is again offered by the 2.0 TDI CR version with CO2 emissions of 118 g/km. The volume of the luggage compartment is then 415 l and in 2009 the vehicle passed the EURONCAP safety tests, where it received a rating of 5 out of 5.
Car body style
SUV

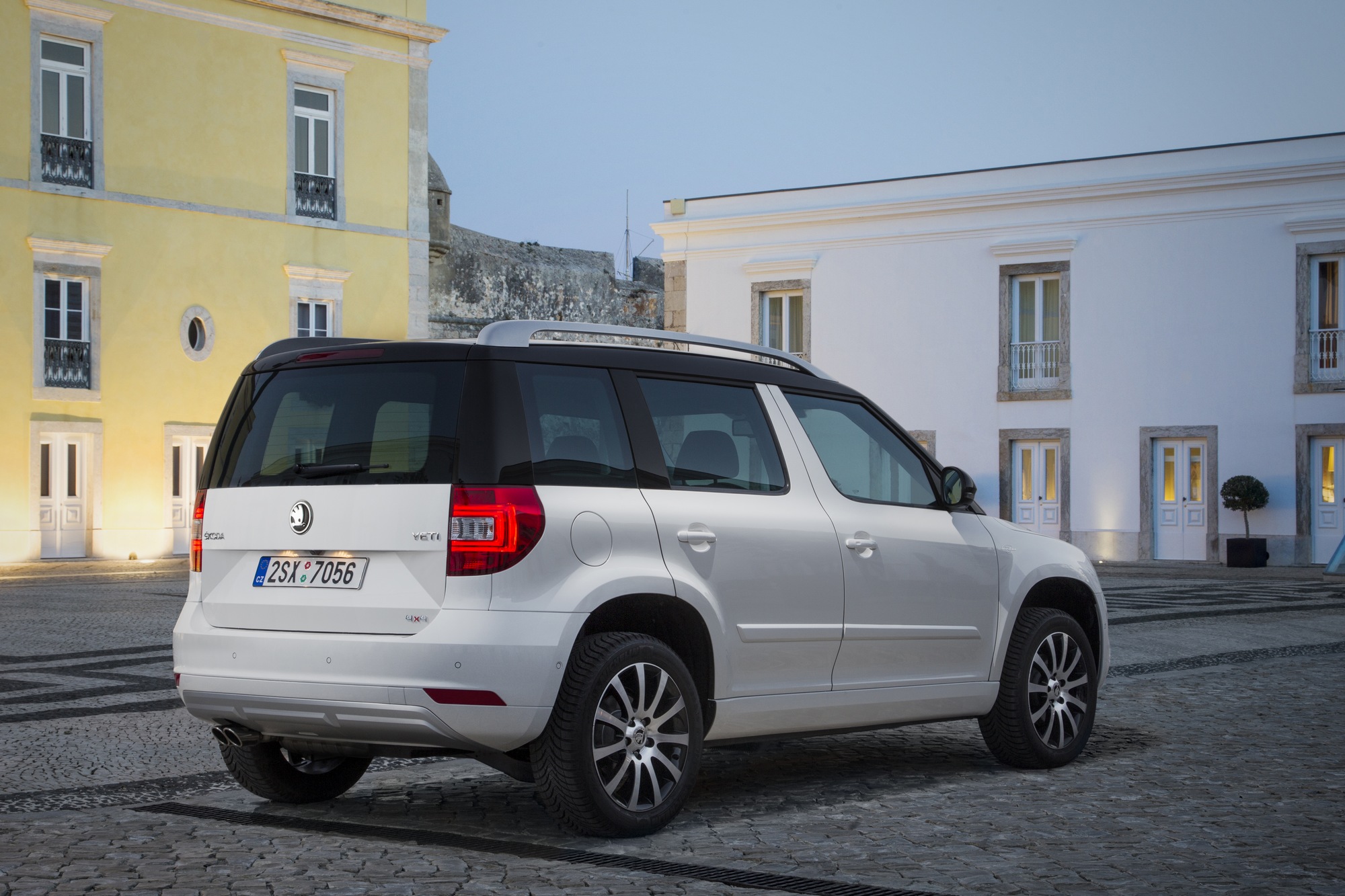

after upgrade (facelift)
Date of manufacture
11/2013 – 2017Internal designation
5L
Technical data
SUV
| 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.4 TSI Green tec | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1197 | 1390 | 1390 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 81/4600-5600 | 81/4600-5600 | 90/5000 | 90/5000 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1550-4100 | 175/1400-4000 | 175/1400-4000 | 200/1500-4000 | 200/1500-4000 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 177 | 176 | 179 | 178 | 185 | 182 |
| Acceleration 0–100 km/h [s] | 11.4 | 11.7 | 10.9 | 11.4 | 10.6 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.1 | 7.2 | 6.7 | 6.5 | 7.9 | 8.3 |
| Out of town [l] | 5.4 | 5.5 | 4.8 | 5.0 | 5.5 | 5.7 |
| Combined [l] | 6.0 | 6.1 | 5.5 | 5.5 | 6.4 | 6.6 |
| CO2 emissions [g/km] | 140 | 142 | 128 | 128 | 148 | 154 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1334 | 1359 | 1340 | 1360 | 1390 | 1405 |
| Overall weight [kg] | 1879 | 1904 | 1885 | 1905 | 1935 | 1950 |
| Maximum trailer weight unbraked/braked [kg] | 660/1200 | 670/1200 | 670/1200 | 680/1200 | 690/1300 | 700/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.364 | 0.364 | 0.368 | 0.368 | 0.367 | 0.367 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.32 | -/10.3 |
| Overall length [mm] | 4222 | 4222 | 4222 | 4222 | 4222 | 4222 |
| Overall width without/including mirrors [mm] | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 |
| Overall height [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1537 | 1537 | 1537 | 1537 | 1537 | 1537 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 767 | 767 | 767 | 767 | 767 | 767 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Approach angle rear [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- |
| Rear elbow/shoulder width [mm] | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI | 1.4 TSI | 1.4 TSI | 1.4 TSI | 1.8 TSI | 1.8 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1395 | 1395 | 1798 | 1798 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 92/5000-6000 | 110/5000-6000 | 110/5000-6000 | 112/4300-6200 | 118/4500-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 | 250/1500-4200 | 250/1500-4500 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 84,1 | 82,5 x 84,1 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 187 | 186 | 195 | 191 | 192 | 200 |
| Acceleration 0–100 km/h [s] | 9.9 | 10.1 | 8.7 | 8.9 | 9.0 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.9 | 7.5 | 7.6 | 10.2 | 9.8 |
| Out of town [l] | 5.0 | 5.2 | 5.6 | 5.6 | 6.6 | 6.6 |
| Combined [l] | 5.8 | 5.8 | 6.3 | 6.4 | 7.9 | 7.8 |
| CO2 emissions [g/km] | 134 | 134 | 147 | 147 | 184 | 184 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1355 | 1380 | 1471 | 1496 | 1540 | 1505 |
| Overall weight [kg] | 1900 | 1925 | 2016 | 2041 | 2085 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 670/1300 | 690/1300 | 730/1800 | 740/1800 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.364 | 0.364 | - | - | 0.367 | 0.367 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 |
| Overall length [mm] | 4222 | 4222 | 4222 | 4222 | 4222 | 4222 |
| Overall width without/including mirrors [mm] | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 |
| Overall height [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1537 | 1537 | 1537 | 1537 | 1537 | 1537 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 767 | 767 | 767 | 767 | 767 | 767 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Approach angle rear [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- |
| Rear elbow/shoulder width [mm] | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI CR GreenLine | 1.6 TDI CR Green tec | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 77/4400 | 77/4400 | 81/4200 | 81/4200 | 81/3500 | 81/3500 |
| Maximum torque [Nm/min-1] | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1750-3000 | 250/1750-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 5 gear manual | 7 gear automatic | 5 gear manual | 6 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 176 | 175 | 177 | 174 | 180 | 175 |
| Acceleration 0–100 km/h [s] | 12.1 | 12.2 | 11.6 | 12.2 | 11.7 | 12.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2 | 5.7 | 6.4 | 7.4 | 5.3 | 6.3 |
| Out of town [l] | 4.2 | 4.7 | 4.3 | 4.9 | 4.1 | 4.6 |
| Combined [l] | 4.6 | 5.0 | 5.1 | 5.8 | 4.5 | 5.3 |
| CO2 emissions [g/km] | 119 | 132 | 132 | 152 | 118 | 137 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1410 | 1445 | 1420 | 1525 | 1452 | 1550 |
| Overall weight [kg] | 1955 | 1990 | 1965 | 2070 | 1997 | 2095 |
| Maximum trailer weight unbraked/braked [kg] | 700/1400 | 700/1400 | 700/1500 | 750/1800 | 720/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 60 | 55 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.355 | 0.355 | 0.369 | 0.369 | 0.36 | 0.36 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 |
| Overall length [mm] | 4222 | 4222 | 4222 | 4222 | 4222 | 4222 |
| Overall width without/including mirrors [mm] | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 |
| Overall height [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1537 | 1537 | 1537 | 1537 | 1537 | 1537 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 767 | 767 | 767 | 767 | 767 | 767 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Approach angle rear [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- |
| Rear elbow/shoulder width [mm] | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI CR Green tec | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | 2.0 TDI CR | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 103/4200 | 103/4200 | 103/4200 | 110/3500 | 110/3500 | 110/3500 |
| Maximum torque [Nm/min-1] | 320/1750-2500 | 320/1750-2500 | 320/1750-2500 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 193 | 190 | 187 | 199 | 195 | 192 |
| Acceleration 0–100 km/h [s] | 9.7 | 9.9 | 10.2 | 9.0 | 9.1 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.1 | 6.5 | 7.5 | 5.6 | 6.0 | 6.3 |
| Out of town [l] | 4.5 | 5.1 | 5.5 | 4.3 | 4.6 | 5.0 |
| Combined [l] | 5.1 | 5.6 | 6.3 | 4.8 | 5.1 | 5.5 |
| CO2 emissions [g/km] | 134 | 149 | 164 | 126 | 134 | 144 |
| Emission standard | EU5 | EU5 | EU5 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1465 | 1535 | 1560 | 1486 | 1565 | 1585 |
| Overall weight [kg] | 2010 | 2105 | 2130 | 2031 | 2135 | 2155 |
| Maximum trailer weight unbraked/braked [kg] | 730/1800 | 750/2100 | 750/2100 | 740/1800 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 415 | 415 | 415 | 415 | 415 | 415 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 | -/1580 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 | -/1027 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 60 | 60 | 55 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.359 | 0.361 | 0.361 | 0.36 | 0.36 | 0.36 |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 | -/10.3 |
| Overall length [mm] | 4222 | 4222 | 4222 | 4222 | 4222 | 4222 |
| Overall width without/including mirrors [mm] | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 | 1793/1956 |
| Overall height [mm] | 1691 | 1691 | 1691 | 1691 | 1691 | 1691 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Rear wheel track [mm] | 1537 | 1537 | 1537 | 1537 | 1537 | 1537 |
| Forward overhang [mm] | 877 | 877 | 877 | 877 | 877 | 877 |
| Rear overhang [mm] | 767 | 767 | 767 | 767 | 767 | 767 |
| Clearance [mm] | 180 | 180 | 180 | 180 | 180 | 180 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Approach angle rear [°] | 30 | 30 | 30 | 30 | 30 | 30 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 1027 | 1027 | 1027 | 1027 | 1027 | 1027 |
| Front elbow/shoulder width [mm] | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- | 1446/- |
| Rear elbow/shoulder width [mm] | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- | 1437/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI CR | 2.0 TDI CR | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 125/4200 | 125/4200 | ||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | 350/1750-2500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 201 | 197 | ||||
| Acceleration 0–100 km/h [s] | 8.4 | 8.6 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.1 | 7.7 | ||||
| Out of town [l] | 4.9 | 5.4 | ||||
| Combined [l] | 5.7 | 6.3 | ||||
| CO2 emissions [g/km] | 149 | 164 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1540 | 1565 | ||||
| Overall weight [kg] | 2110 | 2135 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 415 | 415 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1580 | -/1580 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | -/1027 | -/1027 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.361 | 0.361 | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | ||||
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | ||||
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | ||||
| Wheel size front | 7.0J x 16 | 7.0J x 16 | ||||
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/10.3 | -/10.3 | ||||
| Overall length [mm] | 4222 | 4222 | ||||
| Overall width without/including mirrors [mm] | 1793/1956 | 1793/1956 | ||||
| Overall height [mm] | 1691 | 1691 | ||||
| Wheelbase [mm] | 2578 | 2578 | ||||
| Front wheel track [mm] | 1541 | 1541 | ||||
| Rear wheel track [mm] | 1537 | 1537 | ||||
| Forward overhang [mm] | 877 | 877 | ||||
| Rear overhang [mm] | 767 | 767 | ||||
| Clearance [mm] | 180 | 180 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 17.1 | 17.1 | ||||
| Approach angle rear [°] | 30 | 30 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1034 | 1034 | ||||
| Headroom rear [mm] | 1027 | 1027 | ||||
| Front elbow/shoulder width [mm] | 1446/- | 1446/- | ||||
| Rear elbow/shoulder width [mm] | 1437/- | 1437/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
