Subaru Forester
Date of manufacture
2008 – 2013 (SUV)
Platform
-
Manufacturing locations
Ōta, Japan
Designer
-
Tags
Compact SUV
Japanese cars
The Subaru Forester can be purchased in the SUV body style. The vehicle has been manufactured since 2008. Japan is the country of production of the car. The list of power units has gasoline and diesel engines. The highest power is achieved by the 2.5 XT (169 kW). The 2.5 XT is the fastest model in the range. The maximum speed is 214 km/h. The most economical model is the 2.0 D with a combined consumption of 5.9 l/100 km and CO2 emissions of 155 g/km. The size of the luggage compartment is 450 l.
Technical data
SUV
| 2.0 | 2.0 | 2.0 | 2.0 | 2.5 XT | 2.5 XT | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1994 | 1994 | 1995 | 1995 | 2457 | 2457 |
| Maximum output / speed [kW/min-1] | 110/6000 | 110/6000 | 110/6000 | 110/6000 | 169/5200 | 169/5200 |
| Maximum torque [Nm/min-1] | 196/3200 | 196/3200 | 198/4200 | 198/4200 | 320/2800 | 320/2800 |
| Bore and stroke [mm x mm] | 92,0 x 75,0 | 92,0 x 75,0 | 84,0 x 90,0 | 84,0 x 90,0 | 99,5 x 79,0 | 99,5 x 79,0 |
| Compression ratio | 10,2:1 | 10,2:1 | 10,5:1 | 10,5:1 | 8,4:1 | 8,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 184 | 185 | 185 | 185 | 214 | 207 |
| Acceleration 0–100 km/h [s] | 11.0 | 12.7 | 10.7 | 12.4 | 7.1 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.9 | 11.2 | 9.4 | 9.7 | 14.4 | 14.5 |
| Out of town [l] | 7.0 | 6.9 | 6.4 | 6.3 | 8.2 | 8.2 |
| Combined [l] | 8.4 | 8.4 | 7.5 | 7.5 | 10.5 | 10.5 |
| CO2 emissions [g/km] | 198 | 199 | 173 | 174 | 248 | 248 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1540-1600 | 1550-1610 | 1540-1600 | 1550-1610 | 1585-1630 | 1600-1640 |
| Overall weight [kg] | 2015 | 2015 | 2015 | 2015 | 2015 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1500 | 750/2000 | 750/1500 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 | -/1660 |
| Boot length [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Boot length with rear seats folded [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Boot width between wheels/max [mm] | 1073/1587 | 1073/1587 | 1073/1587 | 1073/1587 | 1073/1587 | 1073/1587 |
| Boot height to headliner/ceiling [mm] | -/863 | -/863 | -/863 | -/863 | -/863 | -/863 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 225/55 R17 97V | 225/55 R17 97V |
| Tyre dimensions rear | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 215/65 R16 98V | 225/55 R17 97V | 225/55 R17 97V |
| Wheel size front | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 7.0JJ x 17 ET48 | 7.0JJ x 17 ET48 |
| Wheel size rear | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 6.5JJ x 16 ET48 | 7.0JJ x 17 ET48 | 7.0JJ x 17 ET48 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with electric power steering m | Rack & pinion with hydraulic power steering | Rack & pinion with hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4560 | 4560 | 4560 | 4560 | 4560 | 4560 |
| Overall width without/including mirrors [mm] | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- | 1780/- |
| Overall height [mm] | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Wheelbase [mm] | 2615 | 2615 | 2615 | 2615 | 2615 | 2615 |
| Front wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 215 | 215 | 215 | 215 | 225 | 225 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 25 | 25 | 25 | 25 | 25 | 25 |
| Approach angle rear [°] | 27 | 27 | 27 | 27 | 27 | 27 |
| Transition angle [°] | 23 | 23 | 23 | 23 | 23 | 23 |
| Climbing rate [°] | 35 | 35 | 35 | 35 | 35 | 35 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 D | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1998 | |||||
| Maximum output / speed [kW/min-1] | 108/3600 | |||||
| Maximum torque [Nm/min-1] | 350/1800-2400 | |||||
| Bore and stroke [mm x mm] | 86,0 x 86,0 | |||||
| Compression ratio | 16,0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 186 | |||||
| Acceleration 0–100 km/h [s] | 10.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.1-7.2 | |||||
| Out of town [l] | 5.2-5.8 | |||||
| Combined [l] | 5.9-6.3 | |||||
| CO2 emissions [g/km] | 155-167 | |||||
| Emission standard | EU4-EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1615 | |||||
| Overall weight [kg] | 2050 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 450 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1660 | |||||
| Boot length [mm] | 960 | |||||
| Boot length with rear seats folded [mm] | 1570 | |||||
| Boot width between wheels/max [mm] | 1073/1587 | |||||
| Boot height to headliner/ceiling [mm] | -/863 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 64 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.36 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | double wishbone | |||||
| Tyre dimensions front | 215/65 R16 98V | |||||
| Tyre dimensions rear | 215/65 R16 98V | |||||
| Wheel size front | 6.5JJ x 16 ET48 | |||||
| Wheel size rear | 6.5JJ x 16 ET48 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering m | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.6/- | |||||
| Overall length [mm] | 4560 | |||||
| Overall width without/including mirrors [mm] | 1780/- | |||||
| Overall height [mm] | 1700 | |||||
| Wheelbase [mm] | 2615 | |||||
| Front wheel track [mm] | 1530 | |||||
| Rear wheel track [mm] | 1530 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 215 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 25 | |||||
| Approach angle rear [°] | 27 | |||||
| Transition angle [°] | 23 | |||||
| Climbing rate [°] | 35 | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |

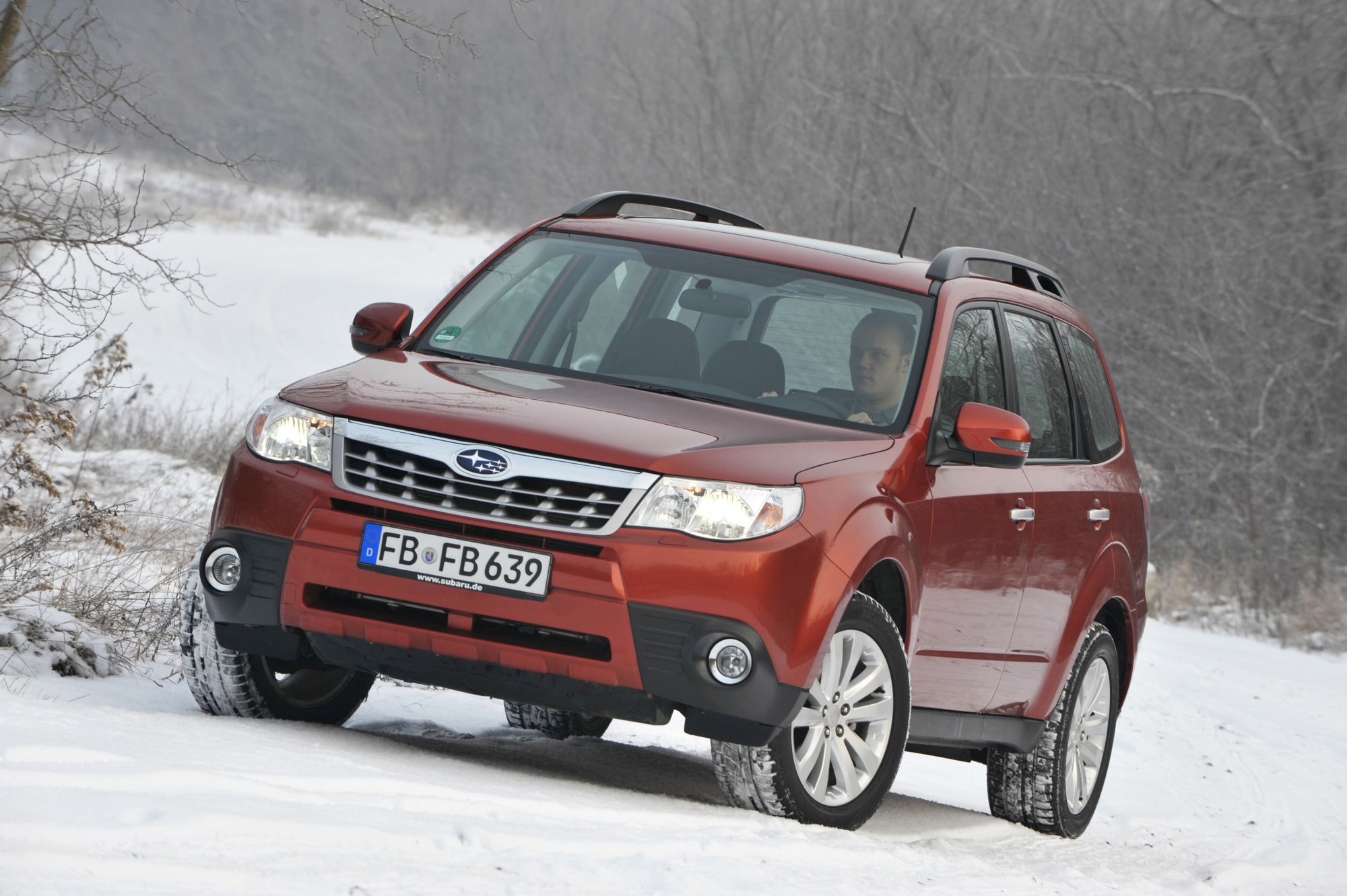

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
