Suzuki Alto

Date of manufacture

2009 – 2013 (Five-door hatchback)

Platform

Manufacturing locations

Manesar, India

Chongqing, People's Republic of China

Designer

Car body style

Five-door hatchback

Date of manufacture

2009 – 2013

Internal designation

HA25

Engine size

1.0

Euro NCAP

Technical data

Five-door hatchback

	1.0
Date of sale	-
Engine type	Petrol
Number of cylinders/valves	3/12
Engine displacement [cm³]	996
Maximum output / speed [kW/min-1]	50/6000
Maximum torque [Nm/min-1]	90/3400
Bore and stroke [mm x mm]	73,0 x 79,4
Compression ratio	11,0:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	variable timing of intake and exhaust valves Dual VVT

Drive axle	Front
Gearbox	5 gear manual
Drive specifications	-

Top speed [km/h]	155
Acceleration 0–100 km/h [s]	14.0
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	5.5
Out of town [l]	3.8
Combined [l]	4.4
CO2 emissions [g/km]	103

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	885
Overall weight [kg]	1250
Maximum trailer weight unbraked/braked [kg]	-
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	-

Boot volume [l]	129
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	367/774
Boot length [mm]	-
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	-
Boot height to headliner/ceiling [mm]	-
Loading edge height [mm]	-
Height of the open boot door [mm]	-
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	3
Number of seats	4
Fuel tank volume [l]	35
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson, coil springs
Rear suspension	rigid, coil springs
Tyre dimensions front	155/65 R14
Tyre dimensions rear	155/65 R14
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	Rack & pinion with electric power steering m
Number of steering wheel turns	-
Turning diameter track/circumference [m]	-

Overall length [mm]	3500
Overall width without/including mirrors [mm]	1600/-
Overall height [mm]	1470
Wheelbase [mm]	2360
Front wheel track [mm]	1405
Rear wheel track [mm]	1400
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	150
Wading depth [mm]	-
Approach angle front [°]	-
Approach angle rear [°]	-
Transition angle [°]	-
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	-
Headroom rear [mm]	-
Front elbow/shoulder width [mm]	-
Rear elbow/shoulder width [mm]	-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

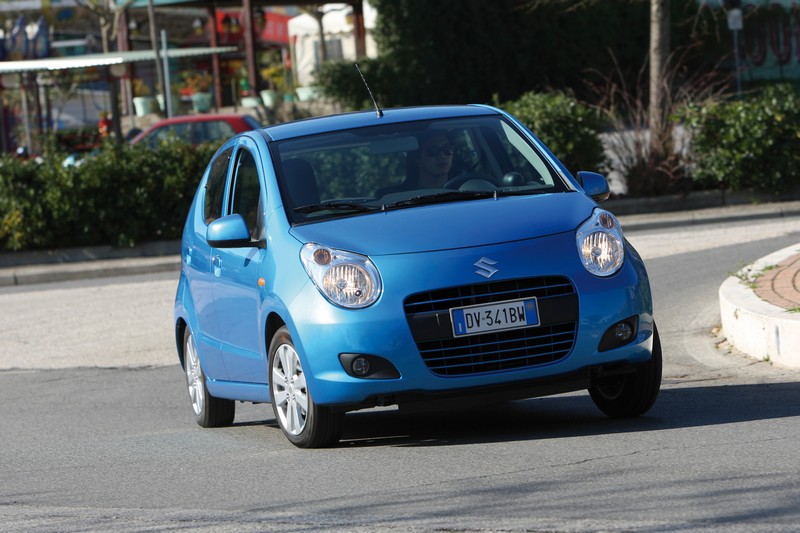

Gallery
