Toyota Auris
Date of manufacture
2/2007 – 2010 (Three-door hatchback)
2/2007 – 2010 (Five-door hatchback)
Platform
Toyota New MC platform
Manufacturing locations
Toyota, Japan
Burnaston, United Kingdom
Adapazarı, Turkey
Designer
Koichi Suga
Samuel Guinefoleau
Tags
C-segment
Japanese cars
Toyota Auris is available in two body styles: three-door hatchback and five-door hatchback. It has been produced since 2007 in countries such as Japan, the United Kingdom or Turkey on the Toyota New MC platform. It offers a wide range of petrol and diesel engines with a maximum power of 130 kW (2.2 D-CAT), a top speed of 210 km/h and a lowest fuel consumption of 4.7 l/100 km and emissions of 124 g/km (1.4 D-4D). The luggage compartment volume varies depending on the type of body: the three-door has 354 l and the five-door has 354 l. The car has passed EURONCAP safety tests with a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2/2007 – 2010Internal designation

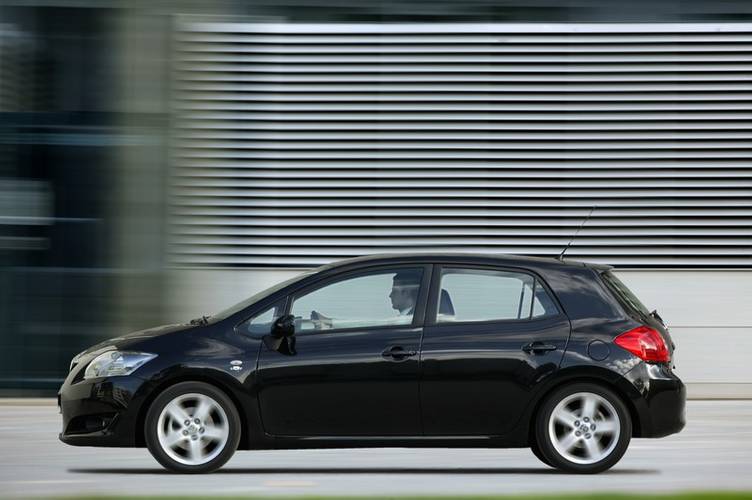

E150Five-door hatchback
Date of manufacture
2/2007 – 2010Internal designation
E150
Technical data
Three-door hatchback
| 1.4 VVT-i | 1.4 D-4D | 1.4 D-4D | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | |||
| Engine displacement [cm³] | 1398 | 1364 | 1364 | |||
| Maximum output / speed [kW/min-1] | 71/6000 | 66/3800 | 66/3800 | |||
| Maximum torque [Nm/min-1] | 130/4400 | 190/1800-3000 | 205/1800-2800 | |||
| Bore and stroke [mm x mm] | 79,0 x 71,3 | 73,0 x 81,5 | 73,0 x 81,5 | |||
| Compression ratio | 10,5:1 | 18,0:1 | 18,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 170 | 175 | 175 | |||
| Acceleration 0–100 km/h [s] | 13.0 | 12.0 | 11.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 8.7 | 5.8 | 5.6 | |||
| Out of town [l] | 5.9 | 4.5 | 4.2 | |||
| Combined [l] | 6.9 | 5.0 | 4.7 | |||
| CO2 emissions [g/km] | 163 | 131 | 124 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1295-1340 | 1335-1390 | 1335-1390 | |||
| Overall weight [kg] | 1720 | 1760 | 1760 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | 450/1000 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 354 | 354 | 354 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1335 | -/1335 | -/1335 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | torsion bar | torsion bar | torsion bar | |||
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | |||
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | |||
| Overall length [mm] | 4220 | 4220 | 4220 | |||
| Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | |||
| Overall height [mm] | 1515 | 1515 | 1515 | |||
| Wheelbase [mm] | 2600 | 2600 | 2600 | |||
| Front wheel track [mm] | 1536 | 1536 | 1536 | |||
| Rear wheel track [mm] | 1533 | 1533 | 1533 | |||
| Forward overhang [mm] | 890 | 890 | 890 | |||
| Rear overhang [mm] | 730 | 730 | 730 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.4 VVT-i | 1.33 Dual VVT-i | 1.6 Dual VVT-i | 1.6 Dual VVT-i | 1.6 Valvematic | 1.6 Valvematic | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1398 | 1329 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 71/6000 | 74/6000 | 91/6000 | 91/6000 | 97/6400 | 97/6400 |
| Maximum torque [Nm/min-1] | 130/4400 | 132/3800 | 157/5200 | 157/5200 | 160/4400 | 160/4400 |
| Bore and stroke [mm x mm] | 79,0 x 71,3 | 72,5 x 80,5 | 80,5 x 78,5 | 80,5 x 78,5 | 80,5 x 78,5 | 80,5 x 78,5 |
| Compression ratio | 10,5:1 | 11,5:1 | 10,2:1 | 10,2:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 6 gear robotic manual |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 170 | 175 | 190 | 190 | 195 | 195 |
| Acceleration 0–100 km/h [s] | 13.0 | 13.1 | 10.4 | 12.1 | 10.0 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 7.3 | 9.0 | 8.5 | 8.4 | 7.9 |
| Out of town [l] | 5.9 | 5.1 | 5.9 | 5.9 | 5.4 | 5.3 |
| Combined [l] | 6.9 | 5.9 | 7.1 | 6.9 | 6.5 | 6.2 |
| CO2 emissions [g/km] | 163 | 139 | 166 | 161 | 152 | 146 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295-1340 | 1295-1360 | 1305-1380 | 1305-1380 | 1320-1395 | 1320-1395 |
| Overall weight [kg] | 1720 | 1720 | 1750 | 1750 | 1750 | 1750 |
| Maximum trailer weight unbraked/braked [kg] | - | 450/1000 | - | - | 450/1300 | 450/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 354 | 354 | 354 | 354 | 354 | 354 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 |
| Overall length [mm] | 4220 | 4220 | 4220 | 4220 | 4220 | 4220 |
| Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- |
| Overall height [mm] | 1515 | 1515 | 1515 | 1515 | 1515 | 1515 |
| Wheelbase [mm] | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Front wheel track [mm] | 1536 | 1536 | 1524 | 1524 | 1524 | 1524 |
| Rear wheel track [mm] | 1533 | 1533 | 1522 | 1522 | 1522 | 1522 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 730 | 730 | 730 | 730 | 730 | 730 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.8 Valvematic | 1.4 D-4D | 1.4 D-4D | 1.4 D-4D | 1.4 D-4D | 2.0 D-4D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1798 | 1364 | 1364 | 1364 | 1364 | 1998 |
| Maximum output / speed [kW/min-1] | 108/6400 | 66/3800 | 66/3800 | 66/3800 | 66/3800 | 93/3600 |
| Maximum torque [Nm/min-1] | 180/4000 | 190/1800-3000 | 190/1800-3000 | 205/1800-2800 | 205/1800-2800 | 300/2000-2800 |
| Bore and stroke [mm x mm] | 80,5 x 88,3 | 73,0 x 81,5 | 73,0 x 81,5 | 73,0 x 81,5 | 73,0 x 81,5 | 86,0 x 86,0 |
| Compression ratio | 10,5:1 | 18,0:1 | 18,0:1 | 18,0:1 | 18,0:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear robotic manual | 6 gear manual | 6 gear robotic manual | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 175 | 175 | 175 | 175 | 195 |
| Acceleration 0–100 km/h [s] | 9.5 | 12.0 | 14.7 | 11.9 | 14.7 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 5.8 | 5.8 | 5.6 | 5.8 | 7.0 |
| Out of town [l] | 5.4 | 4.5 | 4.5 | 4.2 | 4.3 | 4. |
| Combined [l] | 6.6 | 5.0 | 5.0 | 4.7 | 4.8 | 5.4 |
| CO2 emissions [g/km] | 155 | 131 | 131 | 124 | 127 | 144 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1350-1390 | 1335-1390 | 1335-1390 | 1335-1390 | 1335-1390 | 1480-1515 |
| Overall weight [kg] | 1750 | 1760 | 1760 | 1760 | 1760 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 450/1300 | - | - | 450/1000 | 450/1000 | 450/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 354 | 354 | 354 | 354 | 354 | 354 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 | -/1335 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 | -/10.4 |
| Overall length [mm] | 4220 | 4220 | 4220 | 4220 | 4220 | 4220 |
| Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- | 1760/- |
| Overall height [mm] | 1515 | 1515 | 1515 | 1515 | 1515 | 1515 |
| Wheelbase [mm] | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Front wheel track [mm] | 1524 | 1536 | 1536 | 1536 | 1536 | 1524 |
| Rear wheel track [mm] | 1522 | 1533 | 1533 | 1533 | 1533 | 1522 |
| Forward overhang [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Rear overhang [mm] | 730 | 730 | 730 | 730 | 730 | 730 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 D-4D | 2.2 D-CAT | 2.2 D-CAT | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1998 | 2231 | 2231 | |||
| Maximum output / speed [kW/min-1] | 93/3600 | 130/3600 | 130/3600 | |||
| Maximum torque [Nm/min-1] | 310/2000-2800 | 400/2000-2800 | 400/2000-2800 | |||
| Bore and stroke [mm x mm] | 86,0 x 86,0 | 86,0 x 96,0 | 86,0 x 96,0 | |||
| Compression ratio | 15,8:1 | 15,7:1 | 15,7:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 195 | 210 | 210 | |||
| Acceleration 0–100 km/h [s] | 10.3 | 8.1 | 8.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6.5 | 7.9 | 7.3 | |||
| Out of town [l] | 4.4 | 5.2 | 5.0 | |||
| Combined [l] | 5.2 | 6.2 | 5.9 | |||
| CO2 emissions [g/km] | 138 | 164 | 154 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1480-1515 | 1505-1545 | 1505-1545 | |||
| Overall weight [kg] | 1890 | 1920 | 1920 | |||
| Maximum trailer weight unbraked/braked [kg] | 450/1500 | 450/1500 | 450/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 354 | 354 | 354 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1335 | -/1335 | -/1335 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 55 | 55 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | torsion bar | double wishbone | double wishbone | |||
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/10.4 | -/10.4 | -/10.4 | |||
| Overall length [mm] | 4220 | 4220 | 4220 | |||
| Overall width without/including mirrors [mm] | 1760/- | 1760/- | 1760/- | |||
| Overall height [mm] | 1515 | 1515 | 1515 | |||
| Wheelbase [mm] | 2600 | 2600 | 2600 | |||
| Front wheel track [mm] | 1524 | 1515 | 1515 | |||
| Rear wheel track [mm] | 1522 | 1515 | 1515 | |||
| Forward overhang [mm] | 890 | 890 | 890 | |||
| Rear overhang [mm] | 730 | 730 | 730 | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
