Toyota Avensis
Date of manufacture
11/2008 – 11/2011 (Sedan)
11/2008 – 11/2011 (Estate)
Platform
Toyota New MC platform
Manufacturing locations
Burnaston, United Kingdom
Designer
-
Tags
D-segment
Japanese cars
Toyota Avensis has been manufactured since 2008 in the United Kingdom and built on the Toyota New MC platform. It offers petrol and diesel engines, with the highest power being the 2.2 D-CAT (130 kW) with a top speed of 220 km/h. The most fuel-efficient engine is the 2.0 D-4D with a consumption of 5.1 l/100 km and emissions of 135 g/km. The sedan body version has a luggage compartment volume of 509 l, while the estate has 543 l. In terms of safety, the car received a 5 out of 5 rating from EURONCAP in 2009.
Car body style
Sedan
Date of manufacture
11/2008 – 11/2011Internal designation
T270Estate
Date of manufacture
11/2008 – 11/2011Internal designation
T270
Technical data
Sedan
| 1.6 Valvematic | 1.8 Valvematic | 1.8 Valvematic | 2.0 Valvematic | 2.0 Valvematic | 2.0 D-4D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1798 | 1798 | 1987 | 1987 | 1998 |
| Maximum output / speed [kW/min-1] | 97/6400 | 108/6400 | 108/6400 | 112/6200 | 112/6200 | 93/3600 |
| Maximum torque [Nm/min-1] | 160/4400 | 180/4000 | 180/4000 | 196/4000 | 196/4000 | 310/1800-2400 |
| Bore and stroke [mm x mm] | 80,5 x 78,5 | 80,5 x 88,3 | 80,5 x 88,3 | 80,5 x 97,6 | 80,5 x 97,6 | 86,0 x 86,0 |
| Compression ratio | 10,7:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 200 | 200 | 205 | 205 | 200 |
| Acceleration 0–100 km/h [s] | 10.4 | 9.4 | 10.4 | 9.0 | 10.0 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.3-8.5 | 8.5-8.6 | 8.6-8.7 | 9.1-9.2 | 9.2 | 6.6 |
| Out of town [l] | 5.4-5.5 | 5.4-5.5 | 5.6-5.7 | 5.6-5.7 | 5.7-5.9 | 4.3 |
| Combined [l] | 6.5-6.6 | 6.5-6.6 | 6.7-5.8 | 6.9-7.0 | 7.0-7.1 | 5.1 |
| CO2 emissions [g/km] | 152 | 154 | 157 | 163 | 164 | 135 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1440-1485 | 1445-1530 | 1480-1550 | 1485-1555 | 1520-1580 | 1565-1655 |
| Overall weight [kg] | 1950 | 2000 | 2020 | 2020 | 2050 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 500/1400 | 500/1500 | 500/1600 | 500/1500 | 500/1800 | 500/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |

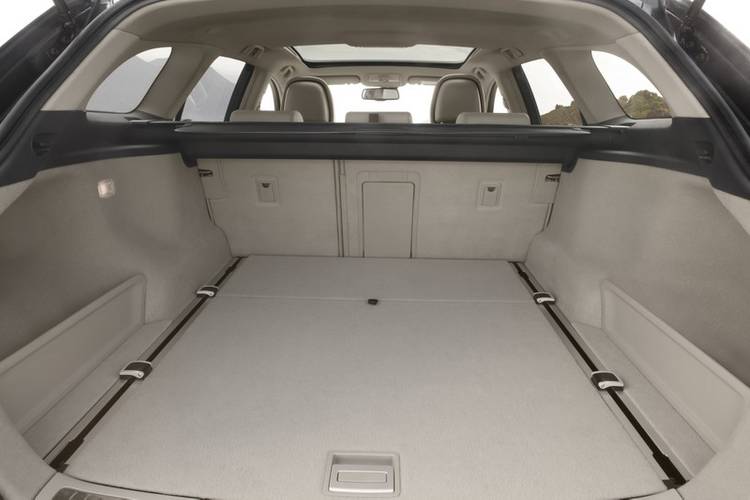

| Boot volume [l] | 509 | 509 | 509 | 509 | 509 | 509 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 960 | 960 | 960 | 960 | 960 | 960 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1470 | -/1470 | -/1470 | -/1470 | -/1470 | -/1470 |
| Boot height to headliner/ceiling [mm] | -/530 | -/530 | -/530 | -/530 | -/530 | -/530 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/55 R17 | 215/55 R17 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/55 R17 | 215/55 R17 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 |
| Overall length [mm] | 4695 | 4695 | 4695 | 4695 | 4695 | 4695 |
| Overall width without/including mirrors [mm] | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1550 | 1550 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1550 | 1550 | 1560 |
| Forward overhang [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 D-4D | 2.2 D-4D | 2.2 D-4D | 2.2 D-CAT | 2.2 D-CAT | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1998 | 2231 | 2231 | 2231 | 2231 | |
| Maximum output / speed [kW/min-1] | 93/3600 | 110/3600 | 110/3600 | 110/3600 | 130/3600 | |
| Maximum torque [Nm/min-1] | 310/1800-2400 | 340/2000-2800 | 340/2000-2800 | 340/2000-2800 | 400/2000-2800 | |
| Bore and stroke [mm x mm] | 86,0 x 86,0 | 86,0 x 96,0 | 86,0 x 96,0 | 86,0 x 96,0 | 86,0 x 96,0 | |
| Compression ratio | 15,8:1 | 15,7:1 | 15,7:1 | 15,7:1 | 15,7:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | |
| Drive specifications | - | - | - |
| - | |
| Top speed [km/h] | 200 | 210 | 210 | 205 | 220 | |
| Acceleration 0–100 km/h [s] | 9.7 | 8.9 | 8.9 | 9.5 | 8.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.7 | 7.0 | 7.0 | 8.2 | 7.4 | |
| Out of town [l] | 4.6 | 4.7 | 4.7 | 5.3 | 5.0 | |
| Combined [l] | 5.4 | 5.5 | 5.5 | 6.4 | 5.9 | |
| CO2 emissions [g/km] | 141 | 147 | 147 | 149 | 157 | |
| Emission standard | EU5 | EU4 | EU5 | EU4-EU5 | EU4-EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1565-1655 | 1590-1675 | 1590-1675 | 1605-1690 | 1590-1685 | |
| Overall weight [kg] | 2100 | 2140 | 2140 | 2140 | 2140 | |
| Maximum trailer weight unbraked/braked [kg] | 500/1600 | 500/1800 | 500/1800 | 500/1600 | 500/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 509 | 509 | 509 | 509 | 509 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 960 | 960 | 960 | 960 | 960 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/1470 | -/1470 | -/1470 | -/1470 | -/1470 | |
| Boot height to headliner/ceiling [mm] | -/530 | -/530 | -/530 | -/530 | -/530 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Tyre dimensions front | 205/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | |
| Tyre dimensions rear | 205/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 295 x 26 | 320 x 26 | 320 x 26 | 320 x 26 | 320 x 26 | |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 | |
| Overall length [mm] | 4695 | 4695 | 4695 | 4695 | 4695 | |
| Overall width without/including mirrors [mm] | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- | |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Front wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1550 | |
| Rear wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1550 | |
| Forward overhang [mm] | 965 | 965 | 965 | 965 | 965 | |
| Rear overhang [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

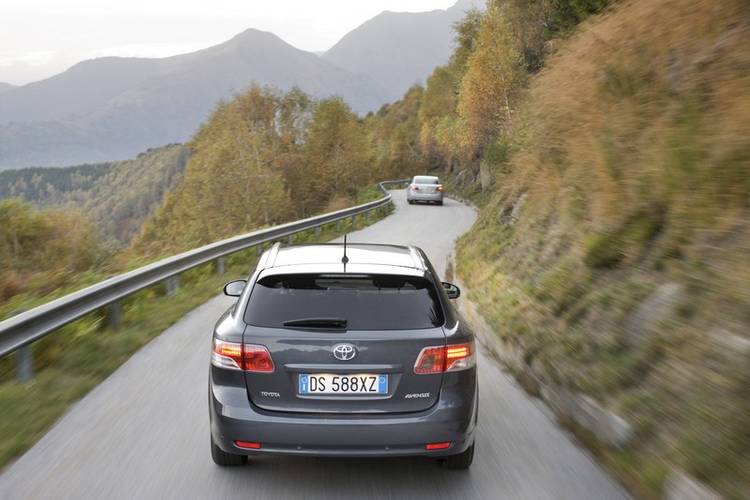

Estate
| 1.6 Valvematic | 1.8 Valvematic | 1.8 Valvematic | 2.0 Valvematic | 2.0 Valvematic | 2.0 D-4D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1798 | 1798 | 1987 | 1987 | 1998 |
| Maximum output / speed [kW/min-1] | 97/6400 | 108/6400 | 108/6400 | 112/6200 | 112/6200 | 93/3600 |
| Maximum torque [Nm/min-1] | 160/4400 | 180/4000 | 180/4000 | 196/4000 | 196/4000 | 310/1800-2400 |
| Bore and stroke [mm x mm] | 80,5 x 78,5 | 80,5 x 88,3 | 80,5 x 88,3 | 80,5 x 97,6 | 80,5 x 97,6 | 86,0 x 86,0 |
| Compression ratio | 10,7:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | 1 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 195 | 200 | 200 | 200 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 10.6 | 9.7 | 10.7 | 9.3 | 10.3 | 10.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4-8.5 | 8.6 | 8.6-8.7 | 9.2-9.3 | 9.2-9.4 | 6.6 |
| Out of town [l] | 5.4-5.5 | 5.5-5.6 | 5.6-5.7 | 5.6-5.7 | 5.8-5.9 | 4.3 |
| Combined [l] | 6.5-6.6 | 6.6-6.7 | 6.7-6.8 | 6.9-7.0 | 7.0-7.2 | 5.2 |
| CO2 emissions [g/km] | 153 | 155 | 158-158 | 164 | 165 | 136 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1475-1520 | 1480-1585 | 1505-1605 | 1505-1600 | 1550-1635 | 1595-1710 |
| Overall weight [kg] | 1950 | 2000 | 2020 | 2020 | 2050 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 500/1400 | 500/1500 | 500/1600 | 500/1500 | 500/1800 | 500/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 543 | 543 | 543 | 543 | 543 | 543 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1609 | -/1609 | -/1609 | -/1609 | -/1609 | -/1609 |
| Boot length [mm] | 1105 | 1105 | 1105 | 1105 | 1105 | 1105 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot height to headliner/ceiling [mm] | -/765 | -/765 | -/765 | -/765 | -/765 | -/765 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/55 R17 | 215/55 R17 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 215/55 R17 | 215/55 R17 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 | 295 x 26 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 |
| Overall length [mm] | 4765 | 4765 | 4765 | 4765 | 4765 | 4765 |
| Overall width without/including mirrors [mm] | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1550 | 1550 | 1560 |
| Rear wheel track [mm] | 1560 | 1560 | 1560 | 1550 | 1550 | 1560 |
| Forward overhang [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Rear overhang [mm] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 D-4D | 2.2 D-4D | 2.2 D-4D | 2.2 D-CAT | 2.2 D-CAT | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1998 | 2231 | 2231 | 2231 | 2231 | |
| Maximum output / speed [kW/min-1] | 93/3600 | 110/3600 | 110/3600 | 110/3600 | 130/3600 | |
| Maximum torque [Nm/min-1] | 310/1800-2400 | 340/2000-2800 | 340/2000-2800 | 340/2000-2800 | 400/2000-2800 | |
| Bore and stroke [mm x mm] | 86,0 x 86,0 | 86,0 x 96,0 | 86,0 x 96,0 | 86,0 x 96,0 | 86,0 x 96,0 | |
| Compression ratio | 15,8:1 | 15,7:1 | 15,7:1 | 15,7:1 | 15,7:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | |
| Drive specifications | - | - | - |
| - | |
| Top speed [km/h] | 200 | 210 | 210 | 205 | 220 | |
| Acceleration 0–100 km/h [s] | 10.0 | 9.2 | 9.2 | 9.8 | 8.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6.7 | 7.1 | 7.1 | 8.4 | 7.4 | |
| Out of town [l] | 4.7 | 4.8 | 4.8 | 5.5 | 5.1 | |
| Combined [l] | 5.4 | 5.6 | 5.6 | 6.6 | 6.0 | |
| CO2 emissions [g/km] | 142 | 150 | 150 | 174 | 160 | |
| Emission standard | EU5 | EU4 | EU5 | EU4-EU5 | EU4-EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1595-1710 | 1620-1710 | 1620-1710 | 1635-1725 | 1625-1725 | |
| Overall weight [kg] | 2130 | 2140 | 2140 | 2140 | 2140 | |
| Maximum trailer weight unbraked/braked [kg] | 500/1600 | 500/1800 | 500/1800 | 500/1600 | 500/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 543 | 543 | 543 | 543 | 543 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1609 | -/1609 | -/1609 | -/1609 | -/1609 | |
| Boot length [mm] | 1105 | 1105 | 1105 | 1105 | 1105 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | |
| Boot height to headliner/ceiling [mm] | -/765 | -/765 | -/765 | -/765 | -/765 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Tyre dimensions front | 205/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | |
| Tyre dimensions rear | 205/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 295 x 26 | 320 x 26 | 320 x 26 | 320 x 26 | 320 x 26 | |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/10.8 | -/10.8 | -/10.8 | -/10.8 | -/10.8 | |
| Overall length [mm] | 4765 | 4765 | 4765 | 4765 | 4765 | |
| Overall width without/including mirrors [mm] | 1810/- | 1810/- | 1810/- | 1810/- | 1810/- | |
| Overall height [mm] | 1480 | 1480 | 1480 | 1480 | 1480 | |
| Wheelbase [mm] | 2700 | 2700 | 2700 | 2700 | 2700 | |
| Front wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1550 | |
| Rear wheel track [mm] | 1560 | 1550 | 1550 | 1550 | 1550 | |
| Forward overhang [mm] | 965 | 965 | 965 | 965 | 965 | |
| Rear overhang [mm] | 1100 | 1100 | 1100 | 1100 | 1100 | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
