	1.33 Dual VVT-i	1.6 Valvematic	1.6 Valvematic	1.4 D-4D	2.0 D-4D
Date of sale	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/8	4/16
Engine displacement [cm³]	1329	1598	1598	1364	1998
Maximum output / speed [kW/min-1]	73/6000	97/6400	97/6400	66/3800	93/3600
Maximum torque [Nm/min-1]	128/3800	160/4400	160/4400	205/1800-2800	310/1800-2400
Bore and stroke [mm x mm]	72,5 x 80,5	80,5 x 78,5	80,5 x 78,5	73,0 x 81,5	86,0 x 86,0
Compression ratio	11,5:1	10,7:1	10,7:1	18,0:1	15,8:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves Dual VVT‐i	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear robotic manual	6 gear manual	6 gear manual
Drive specifications	-	-	robotic gearbox MultiMode	-	-

Top speed [km/h]	180	200	200	175	200
Acceleration 0–100 km/h [s]	13.1	10.0	12.0	11.9	10.1
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	7.4	8.6	8.0	5.7	6.5
Out of town [l]	5.0	5.3	5.2	4.2	4.3
Combined [l]	5.9	6.5	6.2	4.7	5.2
CO2 emissions [g/km]	136	150	144	125	136

Emission standard	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-

Standby weight [kg]	1280	1305	1310	1310	1435
Overall weight [kg]	1735	1760	1760	1780	1890
Maximum trailer weight unbraked/braked [kg]	450/1000	450/1300	450/1300	450/1000	450/1300
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	450	450	450	450	450
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.28	0.28	0.28	0.28	0.28
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	torsion bar	torsion bar	torsion bar	torsion bar	torsion bar
Tyre dimensions front	195/65 R15	205/55 R16	205/55 R16	195/65 R15	205/55 R16
Tyre dimensions rear	195/65 R15	205/55 R16	205/55 R16	195/65 R15	205/55 R16
Wheel size front	-	-	-	-	-
Wheel size rear	-	-	-	-	-
Brake dimensions front	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-
Steering	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-
Turning diameter track/circumference [m]	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0

Overall length [mm]	4545	4545	4545	4545	4545
Overall width without/including mirrors [mm]	1760/-	1760/-	1760/-	1760/-	1760/-
Overall height [mm]	1470	1470	1470	1470	1470
Wheelbase [mm]	2600	2600	2600	2600	2600
Front wheel track [mm]	1535	1525	1525	1535	1525
Rear wheel track [mm]	1535	1520	1520	1535	1520
Forward overhang [mm]	935	935	935	935	935
Rear overhang [mm]	1010	1010	1010	1010	1010
Clearance [mm]	-	-	-	-	-
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

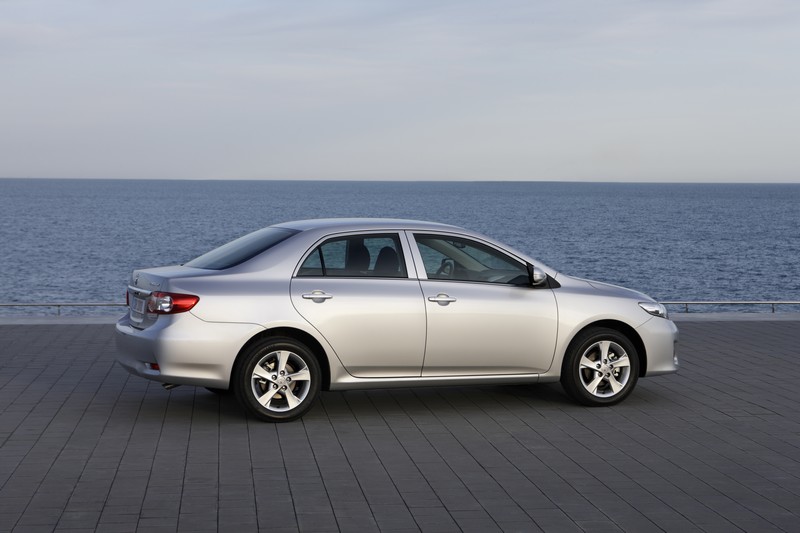

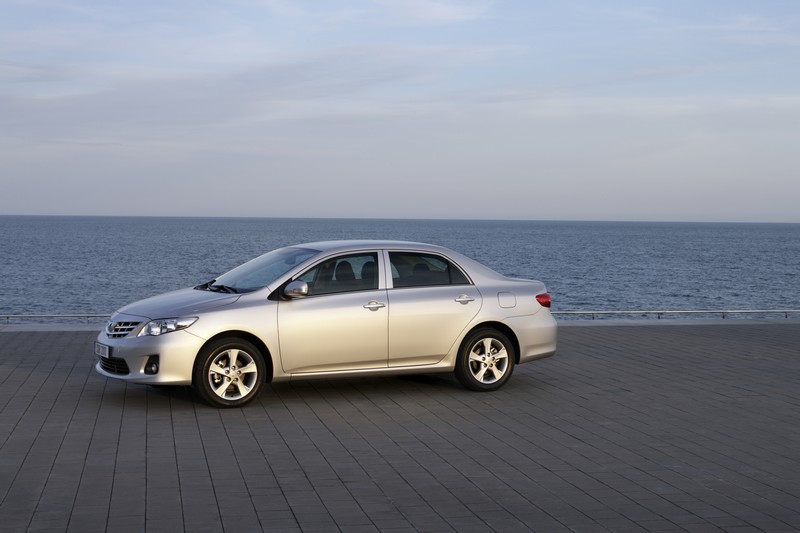

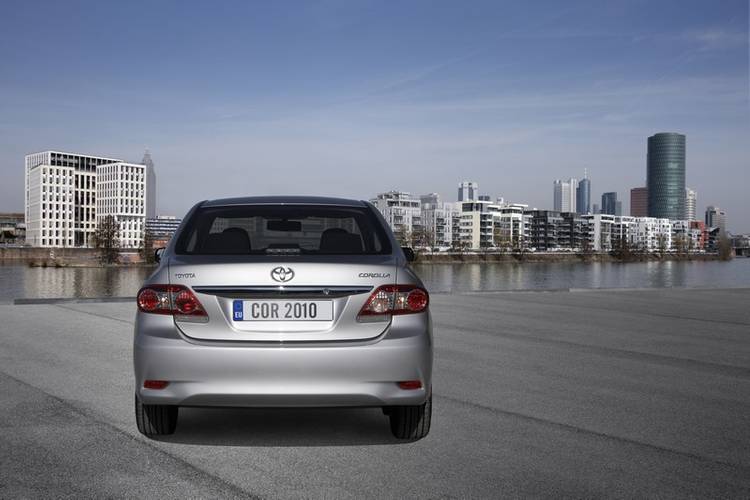

Gallery

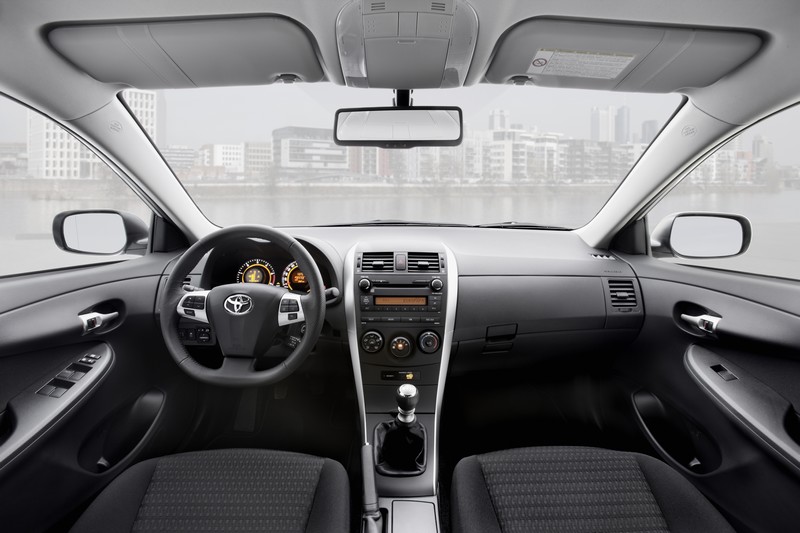

Toyota Corolla E150 facelift 2010 2011 2012 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
