Toyota Corolla

Corolla E210 2018

Date of manufacture

6/2018 – to this day (Five-door hatchback)

1/2019 – to this day (Estate)

1/2019 – to this day (Sedan)

Platform

TNGA-C (GA-C)

Manufacturing locations

Toyota, Japan

Guangzhou, People's Republic of China

Tianjin, People's Republic of China

Chachoengsao, Thailand

Adapazarı, Turkey

Burnaston, United Kingdom

Designer

Yoshiki Konishi

Tags

C-segment

Japanese cars

Car body style

Five-door hatchback

Date of manufacture

6/2018 – to this day

Internal designation

E210

Engine size

Petrol

Petrol + Electric

Estate (Touring Sports)

Date of manufacture

1/2019 – to this day

Internal designation

E210

Engine size

Petrol

Petrol + Electric

Sedan

Date of manufacture

1/2019 – to this day

Internal designation

E210

Engine size

Petrol

1.5 Dynamic Force

1.5 Dynamic Force

Petrol + Electric

Euro NCAP

Technical data

Five-door hatchback

	1.2 Turbo	1.2 Turbo	1.8 Hybrid	2.0 Hybrid
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol + Electric	Petrol + Electric
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1798	1987
Maximum output / speed [kW/min-1]	85/5200	85/5200	72/5200 combustion 53 el. 90/5200 total	112/6000 combustion 80 el. 135/6000 total
Maximum torque [Nm/min-1]	185/1500-4000	185/1500-4000	142/3600 combustion 163 el.	190/4400-5200 combustion 202 el.
Bore and stroke [mm x mm]	71,5 x 74,5	71,5 x 74,5	80,5 x 88,3	80,5 x 97.6
Compression ratio	10,0:1	10,0:1	13,0:1	14.0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection D‐4 turbo-supercharged variable intake and exhaust valve timing Dual VVT‐iW (switches between Atkinson and Otto cycle) start&stop system	direct injection D‐4 turbo-supercharged variable intake and exhaust valve timing Dual VVT‐iW (switches between Atkinson and Otto cycle) start&stop system	Full Hybrid electric synchronous motor with permanent magnet engine operation in the Atkinson cycle variable timing of intake valves VVT‐i	Full Hybrid electric synchronous motor with permanent magnet direct and indirect injection system D4-S variable timing of intake valves Dual VVT‐i

Drive axle	Front	Front	Front	Front
Gearbox	6 gear manual	1 gear automatic	1 gear automatic	1 gear automatic
Drive specifications	-	automatic gearbox Multidrive S with one variable ratio	automatic gearbox e‐CVT with one variable ratio	automatic gearbox e‐CVT with one variable ratio

Top speed [km/h]	200	195	180	180
Acceleration 0–100 km/h [s]	9.3	10.0	10.9	7.9
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.0-6.6	6.1-5.9	3.8-3.6	4.0-3.8
Out of town [l]	4.8	4.8-4.6	3.5-3.2	3.6-3.4
Combined [l]	5.6	5.3-5.1	3.6-3.3	3.9-3.7
CO2 emissions [g/km]	128-125	120-116	83-76	89-85

Low speed [l]	-	-	-	-
Medium speed [l]	-	-	-	-
High speed [l]	-	-	-	-
Extra high speed [l]	-	-	-	-
Combined speed [l]	6.6-6.2	6.9-6.6	5.0-4.5	5.3-4.9
CO2 emissions [g/km]	151-141	156-149	113-101	120-110

Emission standard	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	71.8	71.8	67.3	66.4
Driving noise [dB]	67	67	67	67

System voltage [V]	-	-	-	-
Battery type and capacity	-	-	Lithium-Ionen-Akkumulator, - A⋅h	Nickel-metal hydride
Range with fully charged battery [km]	-	-	-	-
Charging time	-	-	-	-
Number of modules/cells	-	-	-	-
Battery weight [kg]	-	-	-	-
Charger	-	-	-	-

Standby weight [kg]	1315-1465	1315-1485	1360-1475	1415-1585
Overall weight [kg]	1820	1840	1820	1910
Maximum trailer weight unbraked/braked [kg]	450/1300	450/1300	450/750	450/750
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-

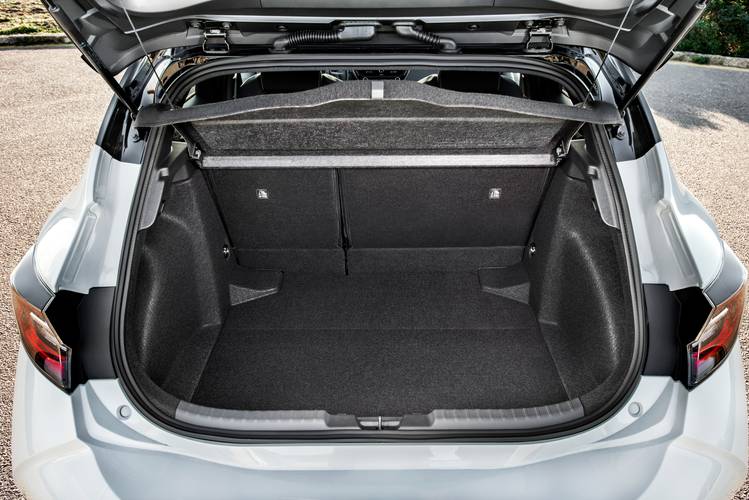

Boot volume [l]	361	361	361	313
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1052	-/1052	-/1052	-/1004
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	50	50	43	43
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.31-0.32	0.31-0.32	0.31-0.32	0.32
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	282	282	282	282
Brake dimensions rear	270	270	274	274
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	2.76	2.76	2.76	2.76
Turning diameter track/circumference [m]	10.2/11.0	10.2/11.0	10.2/11.0	10.2/11.0

Overall length [mm]	4370	4370	4370	4370
Overall width without/including mirrors [mm]	1790/-	1790/-	1790/-	1790/-
Overall height [mm]	1435	1435	1435	1435
Wheelbase [mm]	2640	2640	2640	2640
Front wheel track [mm]	1530	1530	1530	1530
Rear wheel track [mm]	1530	1530	1530	1530
Forward overhang [mm]	935	935	935	935
Rear overhang [mm]	795	795	795	795
Clearance [mm]	135	135	135	135
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

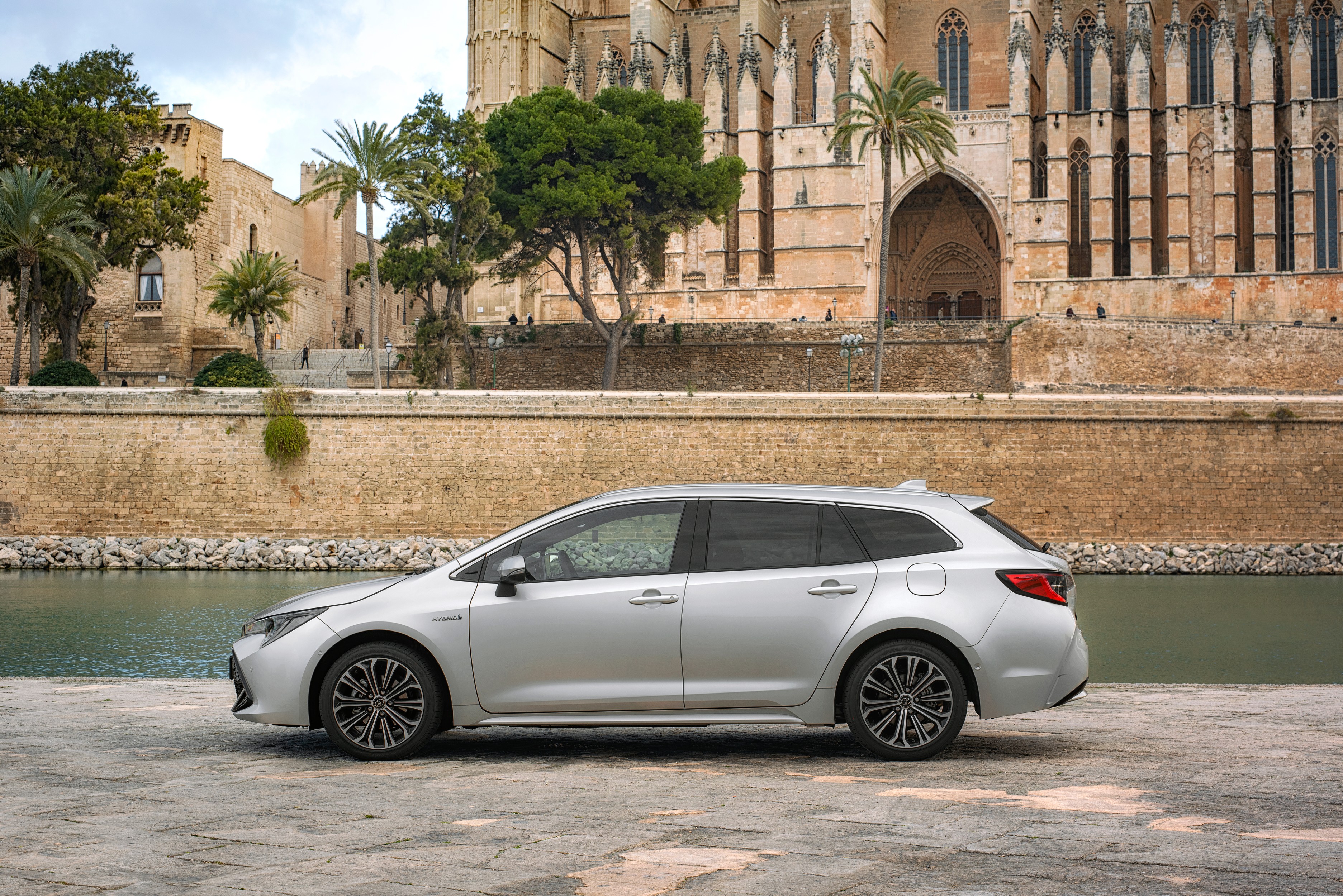

Estate (Touring Sports)

	1.2 Turbo	1.2 Turbo	1.8 Hybrid	2.0 Hybrid
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Petrol + Electric	Petrol + Electric
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1798	1987
Maximum output / speed [kW/min-1]	85/5200	85/5200	72/5200 combustion 53 el. 90/5200 total	112/6000 combustion 80 el. 135/6000 total
Maximum torque [Nm/min-1]	185/1500-4000	185/1500-4000	142/3600 combustion 163 el.	190/4400-5200 combustion 202 el.
Bore and stroke [mm x mm]	71,5 x 74,5	71,5 x 74,5	80,5 x 88,3	80,5 x 97.6
Compression ratio	10,0:1	10,0:1	13,0:1	14.0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection D‐4 turbo-supercharged variable intake and exhaust valve timing Dual VVT‐iW (switches between Atkinson and Otto cycle) start&stop system	direct injection D‐4 turbo-supercharged variable intake and exhaust valve timing Dual VVT‐iW (switches between Atkinson and Otto cycle) start&stop system	Full Hybrid electric synchronous motor with permanent magnet engine operation in the Atkinson cycle variable timing of intake valves VVT‐i	Full Hybrid electric synchronous motor with permanent magnet direct and indirect injection system D4-S variable timing of intake valves Dual VVT‐i

Drive axle	Front	Front	Front	Front
Gearbox	6 gear manual	1 gear automatic	1 gear automatic	1 gear automatic
Drive specifications	-	automatic gearbox Multidrive S with one variable ratio	automatic gearbox e‐CVT with one variable ratio	automatic gearbox e‐CVT with one variable ratio

Top speed [km/h]	195	195	180	180
Acceleration 0–100 km/h [s]	9.6	10.3	11.1	8.1
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	7.0-6.6	6.1-5.9	3.8-3.6	4.0-3.8
Out of town [l]	4.8-4.7	4.8-4.6	3.5-3.2	3.6-3.4
Combined [l]	5.6-5.5	5.3-5.1	3.6-3.3	3.9-3.7
CO2 emissions [g/km]	128-125	120-116	83-76	89-85

Low speed [l]	-	-	-	-
Medium speed [l]	-	-	-	-
High speed [l]	-	-	-	-
Extra high speed [l]	-	-	-	-
Combined speed [l]	6.6-6.2	6.9-6.6	5.0-4.5	5.4-4.9
CO2 emissions [g/km]	153-144	155-149	113-102	121-112

Emission standard	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	71.8	71.8	67.3	66.4
Driving noise [dB]	67	67	67	67

System voltage [V]	-	-	-	-
Battery type and capacity	-	-	Lithium-Ionen-Akkumulator, - A⋅h	Nickel-metal hydride
Range with fully charged battery [km]	-	-	-	-
Charging time	-	-	-	-
Number of modules/cells	-	-	-	-
Battery weight [kg]	-	-	-	-
Charger	-	-	-	-

Standby weight [kg]	1380-1505	1390-1535	1365-1505	1445-1635
Overall weight [kg]	1850	1870	1835	1955
Maximum trailer weight unbraked/braked [kg]	450/1300	450/1300	450/750	450/750
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-

Boot volume [l]	361	361	361	313
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1052	-/1052	-/1052	-/1004
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	50	50	43	43
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.31-0.33	0.31-0.33	0.31-0.33	0.33
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	205/55 R16 91V
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	282	282	282	282
Brake dimensions rear	270	270	274	274
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	2.76	2.76	2.76	2.76
Turning diameter track/circumference [m]	10.4/11.0	10.4/11.0	10.4/11.0	10.4/11.0

Overall length [mm]	4650	4650	4650	4650
Overall width without/including mirrors [mm]	1790/-	1790/-	1790/-	1790/-
Overall height [mm]	1435	1435	1435	1435
Wheelbase [mm]	2700	2700	2700	2700
Front wheel track [mm]	1530	1530	1530	1530
Rear wheel track [mm]	1530	1530	1530	1530
Forward overhang [mm]	935	935	935	935
Rear overhang [mm]	1018	1018	1018	1018
Clearance [mm]	135	135	135	135
Wading depth [mm]	-	-	-	-
Approach angle front [°]	-	-	-	-
Approach angle rear [°]	-	-	-	-
Transition angle [°]	-	-	-	-
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Sedan

	1.5 Dynamic Force	1.5 Dynamic Force	1.6 Valvematic	1.6 Valvematic	1.8 Hybrid
Date of sale	from 2020 to	from 2020 to	from to 2020	from to 2020	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol + Electric
Number of cylinders/valves	3/12	3/12	4/16	4/16	4/16
Engine displacement [cm³]	1490	1490	1598	1598	1798
Maximum output / speed [kW/min-1]	92/6600	92/6600	97/6400	97/6400	72/5200 combustion 53 el. 90/5200 total
Maximum torque [Nm/min-1]	153/4800-5000	153/4800-5000	160/4400	160/4400	142/3600 combustion 163 el.
Bore and stroke [mm x mm]	80.5 x 97.6	80.5 x 97.6	80,5 x 78,5	80,5 x 78,5	80,5 x 88,3
Compression ratio	13.9:1	13.9:1	10,7:1	10,7:1	13,0:1
Oil volume [l]	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-
Technical specifications	direct injection D-4 engine operation in the Atkinson cycle variable timing of intake valves VVT-iW variable exhaust valve timing VVT-i	direct injection D-4 engine operation in the Atkinson cycle variable timing of intake valves VVT-iW variable exhaust valve timing VVT-i	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	variable timing of intake and exhaust valves variable lift of intake valves Valvematic	Full Hybrid electric synchronous motor with permanent magnet engine operation in the Atkinson cycle variable timing of intake valves VVT‐i

Drive axle	Front	Front	Front	Front	Front
Gearbox	6 gear manual	1 gear automatic	6 gear manual	1 gear automatic	1 gear automatic
Drive specifications	-	automatic gearbox Multidrive S with one variable ratio	-	automatic gearbox Multidrive S with one variable ratio	automatic gearbox e‐CVT with one variable ratio

Top speed [km/h]	190	190	200	190	180
Acceleration 0–100 km/h [s]	12.1	12.1	9.7	10.2	11.0
Acceleration 0–80 km/h [s]	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-

City [l]	-	-	8.0-7.6	7.6-7.2	3.6-3.1
Out of town [l]	-	-	4.9-4.6	4.8-4.5	3.9-3.5
Combined [l]	-	-	6.0-5.7	5.8-5.5	3.8-3.4
CO2 emissions [g/km]	-	-	138-130	133-125	87-77

Low speed [l]	-	-	-	-	-
Medium speed [l]	-	-	-	-	-
High speed [l]	-	-	-	-	-
Extra high speed [l]	-	-	-	-	-
Combined speed [l]	6.2-5.6	6.5-5.8	-	-	5.2-4.4
CO2 emissions [g/km]	139-127	148-132	-	-	116-99

Emission standard	Euro 6d	Euro 6d	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-
Energy class	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	67.3
Driving noise [dB]	-	-	-	-	67

System voltage [V]	-	-	-	-	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, - A⋅h
Range with fully charged battery [km]	-	-	-	-	-
Charging time	-	-	-	-	-
Number of modules/cells	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-
Charger	-	-	-	-	-

Standby weight [kg]	1350-1410	1375-1430	1260-1455	1280-1460	1385-1500
Overall weight [kg]	1795	1795	1815	1830	1835
Maximum trailer weight unbraked/braked [kg]	450/1000	450/1000	450/1300	450/1300	450/1300
Maximum front/rear axle load [kg]	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	75	75	75	75	75
Maximum load on roof/carrier [kg]	-	-	-	-	-

Boot volume [l]	471	471	471	471	471
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-
Boot length [mm]	-	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-	-
Loading edge height [mm]	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-

Number of doors	4	4	4	4	4
Number of seats	5	5	5	5	5
Fuel tank volume [l]	50	50	50	50	43
AdBlue tank volume [l]	-	-	-	-	-
Air resistance [Cd]	0.28	0.28	0.28	0.28	0.28
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Tyre dimensions rear	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H	195/65 R15 91H
Wheel size front	-	-	-	-	-
Wheel size rear	-	-	-	-	-
Brake dimensions front	282	282	282	282	282
Brake dimensions rear	274	274	274	274	274
Steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering	Rack & pinion with electric power steering
Number of steering wheel turns	2.76	2.76	2.76	2.76	2.76
Turning diameter track/circumference [m]	10.4/11.2	10.4/11.2	10.4/11.2	10.4/11.2	10.4/11.2

Overall length [mm]	4630	4630	4630	4630	4630
Overall width without/including mirrors [mm]	1780/-	1780/-	1780/-	1780/-	1780/-
Overall height [mm]	1435	1435	1435	1435	1435
Wheelbase [mm]	2700	2700	2700	2700	2640
Front wheel track [mm]	1531	1531	1531	1531	1531
Rear wheel track [mm]	1544	1544	1544	1544	1544
Forward overhang [mm]	935	935	935	935	935
Rear overhang [mm]	995	995	995	995	995
Clearance [mm]	130	130	130	130	130
Wading depth [mm]	-	-	-	-	-
Approach angle front [°]	-	-	-	-	-
Approach angle rear [°]	-	-	-	-	-
Transition angle [°]	-	-	-	-	-
Climbing rate [°]	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-

Gallery

Toyota Corolla E210 2019 interior

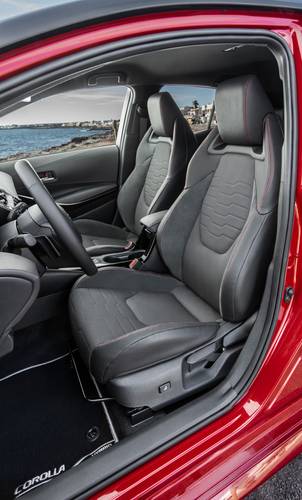

Toyota Corolla E210 2020 front seats

Toyota Corolla E210 2021 rear seats

Toyota Corolla E210 2019 boot

Toyota Corolla E210 2019 sedan

Toyota Corolla E210 2020 sedan

Toyota Corolla E210 2021 sedan

Toyota Corolla E210 2019 sedan

Toyota Corolla E210 2021 sedan

Toyota Corolla E210 2019 sedan

Toyota Corolla E210 2020 sedan

Toyota Corolla E210 2019 interior

Toyota Corolla E210 2019 front seats

Toyota Corolla E210 2020 rear seats

Toyota Corolla E210 2021 boot

Toyota Corolla Touring Sports E210 2019 wagon

Toyota Corolla Touring Sports E210 2021 wagon

Toyota Corolla Touring Sports E210 2020 wagon

Toyota Corolla Touring Sports E210 2019 wagon

Toyota Corolla Touring Sports E210 2020 wagon

Toyota Corolla Touring Sports E210 2019 wagon

Toyota Corolla Touring Sports E210 2020 wagon

Toyota Corolla Touring Sports E210 2021 wagon

Toyota Corolla Touring Sports E210 2019 wagon

Toyota Corolla Touring Sports E210 2021 wagon

Toyota Corolla Touring Sports E210 2019 rear seats

Toyota Corolla Touring Sports E210 2020 boot

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
