Toyota Hilux
Date of manufacture
2020 – to this day (Pick-up)
Platform
Toyota IMV
Manufacturing locations
Chachoengsao, Thailand
Designer
Hiroki Nakajima
Tags
Pick-up
Japanese cars
The Toyota Hilux is a pick-up body model, produced since 2020 in Thailand. The vehicle is built on the Toyota IMV platform and offers only diesel engines. The most powerful model is the 2.8 D-4D Double Cab with a maximum power of 150 kW and a top speed of 175 km/h. The most economical model is the 2.8 D-4D Extra Cab with a fuel consumption of 7.8 l/100 km and emissions of 207 g/km. In terms of safety, the Toyota Hilux earned a rating of 5 out of 5 in the EURONCAP in 2016.
Car body style
Pick-up
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
AN120/AN130
Technical data
Pick-up
| 2.4 D-4D Single Cab | 2.4 D-4D Single Cab | 2.4 D-4D Extra Cab | 2.4 D-4D Extra Cab | 2.4 D-4D Double Cab | 2.4 D-4D Double Cab | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2393 | 2393 | 2393 | 2393 | 2393 | 2393 |
| Maximum output / speed [kW/min-1] | 110/3400 | 110/3400 | 110/3400 | 110/3400 | 110/3400 | 110/3400 |
| Maximum torque [Nm/min-1] | 400/1600-2000 | 400/1600-2000 | 400/1600-2000 | 400/1600-2000 | 400/1600-2000 | 400/1600-2000 |
| Bore and stroke [mm x mm] | 92,0 x 90,0 | 92,0 x 90,0 | 92,0 x 90,0 | 92,0 x 90,0 | 92,0 x 90,0 | 92,0 x 90,0 |
| Compression ratio | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 170 | 170 | 170 | 170 | 170 | 170 |
| Acceleration 0–100 km/h [s] | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8-7.5 | 7.8-7.5 | 7.8-7.5 | 7.8-7.5 | 7.8-7.5 | 7.8-7.5 |
| Out of town [l] | 6.6-5.9 | 6.6-5.9 | 6.6-5.9 | 6.6-5.9 | 6.6-5.9 | 6.6-5.9 |
| Combined [l] | 7.1-6.5 | 7.1-6.5 | 7.1-6.5 | 7.1-6.5 | 7.1-6.5 | 7.1-6.5 |
| CO2 emissions [g/km] | 186-171 | 186-171 | 186-171 | 186-171 | 186-171 | 186-171 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 9.5-8.8 | 10.3-8.9 | 9.5-8.8 | 10.3-8.9 | 9.8-8.8 | 10.3-8.9 |
| CO2 emissions [g/km] | 252-233 | 274-235 | 252-233 | 274-235 | 260-233 | 274-235 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1700-1725 | 1800-1850 | 1790-1825 | 1915-1965 | 1995-2005 | 2100-2160 |
| Overall weight [kg] | 3000 | 3000 | 3000 | 3150 | 3050 | 3210 |
| Maximum trailer weight unbraked/braked [kg] | 750/2800 | 750/3500 | 750/2800 | 750/3500 | 750/2800 | 750/3500 |
| Maximum front/rear axle load [kg] | 1450/1920 | 1450/1920 | 1450/1920 | 1450/1920 | 1450/1920 | 1450/1920 |
| Maximum vertical load on the tow bar [kg] | 120 | 140 | 120 | 140 | 120 | 140 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | - | - | - | - | - | - |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 2315 | 2315 | 1846 | 1846 | 1525 | 1525 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | -/1575 | -/1575 | -/1540 | -/1540 | -/1540 | -/1540 |
| Boot height to headliner/ceiling [mm] | 480/- | 480/- | 480/- | 480/- | 480/- | 480/- |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 4 | 4 | 4 | 4 |
| Number of seats | 2 | 2 | 4 | 4 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.394 | 0.394 | 0.394 | 0.394 | 0.394 | 0.394 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs |
| Tyre dimensions front | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C |
| Tyre dimensions rear | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C | 225/70 R17C |
| Wheel size front | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 |
| Wheel size rear | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 | 6J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 |
| Overall length [mm] | 5325 | 5325 | 5325 | 5325 | 5325 | 5325 |
| Overall width without/including mirrors [mm] | 1800/- | 1800/- | 1855/- | 1855/- | 1855/- | 1855/- |
| Overall height [mm] | 1795 | 1795 | 1810 | 1810 | 1815 | 1815 |
| Wheelbase [mm] | 3085 | 3085 | 3085 | 3085 | 3085 | 3085 |
| Front wheel track [mm] | 1500 | 1500 | 1540 | 1540 | 1540 | 1540 |
| Rear wheel track [mm] | 1510 | 1510 | 1550 | 1550 | 1550 | 1550 |
| Forward overhang [mm] | 1000 | 1000 | 900 | 900 | 900 | 900 |
| Rear overhang [mm] | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Clearance [mm] | 227 | 227 | 289 | 289 | 310 | 310 |
| Wading depth [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Approach angle front [°] | 29 | 29 | 29 | 29 | 29 | 29 |
| Approach angle rear [°] | 25 | 25 | 26 | 26 | 26 | 26 |
| Transition angle [°] | 23 | 23 | 23 | 23 | 23 | 23 |
| Climbing rate [°] | 42 | 42 | 42 | 42 | 42 | 42 |
| Maximum side tilt [°] | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Headroom rear [mm] | - | - | 969 | 969 | 969 | 969 |
| Front elbow/shoulder width [mm] | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- |
| Rear elbow/shoulder width [mm] | - | - | 1410/- | 1410/- | 1410/- | 1410/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.4 D-4D Double Cab | 2.8 D-4D Extra Cab | 2.8 D-4D Extra Cab | 2.8 D-4D Double Cab | 2.8 D-4D Double Cab | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2393 | 2755 | 2755 | 2755 | 2755 | |
| Maximum output / speed [kW/min-1] | 110/3400 | 150/3400 | 150/3400 | 150/3400 | 150/3400 | |
| Maximum torque [Nm/min-1] | 400/1600-2000 | 420/1400-3400 | 500/1600-2800 | 420/1400-3400 | 500/1600-2800 | |
| Bore and stroke [mm x mm] | 92,0 x 90,0 | 92,0 x 103.6 | 92,0 x 103.6 | 92,0 x 103.6 | 92,0 x 103.6 | |
| Compression ratio | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | 15,6:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 170 | 175 | 175 | 175 | 175 | |
| Acceleration 0–100 km/h [s] | 12.8 | 10.1 | 10.7 | 10.1 | 10.7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.8-7.5 | 8.3-7.9 | 8.3-7.9 | 8.3-7.9 | 8.3-7.9 | |
| Out of town [l] | 6.6-5.9 | 6.8-6.5 | 6.8-6.5 | 6.8-6.5 | 6.8-6.5 | |
| Combined [l] | 7.1-6.5 | 7.3-7.0 | 7.3-7.0 | 7.3-7.0 | 7.3-7.0 | |
| CO2 emissions [g/km] | 186-171 | 194-185 | 194-185 | 194-185 | 194-185 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 10.1-8.7 | 8.9-7.8 | 10.1-8.8 | 8.9-7.8 | 10.1-8.8 | |
| CO2 emissions [g/km] | 267-229 | 236-207 | 266-233 | 236-207 | 266-233 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 2095-2155 | 2090-2300 | 2090-2300 | 2120-2335 | 2125-2340 | |
| Overall weight [kg] | 3210 | 3150 | 3150 | 3210 | 3210 | |
| Maximum trailer weight unbraked/braked [kg] | 750/3500 | 750/3500 | 750/3500 | 750/3500 | 750/3500 | |
| Maximum front/rear axle load [kg] | 1450/1920 | 1450/1920 | 1450/1920 | 1450/1920 | 1450/1920 | |
| Maximum vertical load on the tow bar [kg] | 140 | 140 | 140 | 140 | 140 | |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | |
| Boot volume [l] | - | - | - | - | - | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1525 | 1846 | 1846 | 1525 | 1525 | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | -/1540 | -/1540 | -/1540 | -/1540 | -/1540 | |
| Boot height to headliner/ceiling [mm] | 480/- | 480/- | 480/- | 480/- | 480/- | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 4 | 4 | 5 | 5 | |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.394 | 0.394 | 0.394 | 0.394 | 0.394 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | rigid with leaf springs | |
| Tyre dimensions front | 225/70 R17C | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 | |
| Tyre dimensions rear | 225/70 R17C | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 | |
| Wheel size front | 6J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Wheel size rear | 6J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | 12.8/13.4 | |
| Overall length [mm] | 5325 | 5325 | 5325 | 5325 | 5325 | |
| Overall width without/including mirrors [mm] | 1855/- | 1855/- | 1855/- | 1855/- | 1855/- | |
| Overall height [mm] | 1815 | 1810 | 1810 | 1815 | 1815 | |
| Wheelbase [mm] | 3085 | 3085 | 3085 | 3085 | 3085 | |
| Front wheel track [mm] | 1540 | 1540 | 1540 | 1540 | 1540 | |
| Rear wheel track [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | |
| Forward overhang [mm] | 900 | 900 | 900 | 900 | 900 | |
| Rear overhang [mm] | 1250 | 1250 | 1250 | 1250 | 1250 | |
| Clearance [mm] | 310 | 289 | 289 | 310 | 310 | |
| Wading depth [mm] | 700 | 700 | 700 | 700 | 700 | |
| Approach angle front [°] | 29 | 29 | 29 | 29 | 29 | |
| Approach angle rear [°] | 26 | 26 | 26 | 26 | 26 | |
| Transition angle [°] | 23 | 23 | 23 | 23 | 23 | |
| Climbing rate [°] | 42 | 42 | 42 | 42 | 42 | |
| Maximum side tilt [°] | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | |
| Headroom front [mm] | 997 | 997 | 997 | 997 | 997 | |
| Headroom rear [mm] | 969 | 969 | 969 | 969 | 969 | |
| Front elbow/shoulder width [mm] | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- | |
| Rear elbow/shoulder width [mm] | 1410/- | 1410/- | 1410/- | 1410/- | 1410/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

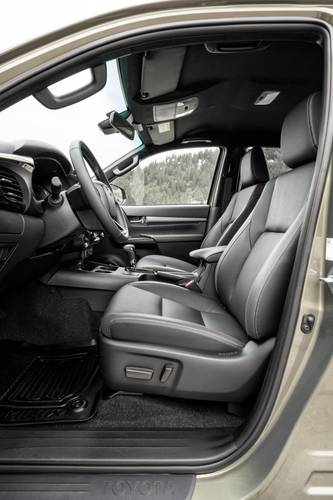

Gallery
