Volkswagen Arteon
Date of manufacture
2020 – to this day (Liftback)
2020 – to this day (Estate)
Platform
Volkswagen Group MQB
Manufacturing locations
Emden, Germany
Osnabrück, Germany
Changchun, People's Republic of China
Designer
Tobias Suhlmann
Marc Lichte
Tags
D-segment
German cars

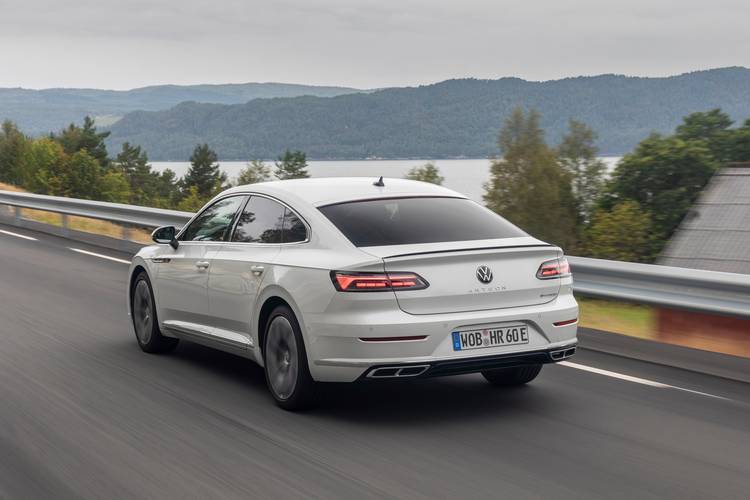

The Volkswagen Arteon is available as a liftback and estate and has been produced since 2020 in countries such as Germany, Spain and the People's Republic of China. It is built on the Volkswagen Group MQB platform and offers hybrid and plug-in hybrid powertrains. The strongest model is the 2.0 TSI R 4MOTION with 235 kW of power and the highest speed reaches 250 km/h. The most economical version 1.4 eHybrid has a consumption of 1.1 l/100 km and CO2 emissions of only 25 g/km. The liftback has a capacity of 563 l, while the estate has a capacity of 565 l. The vehicle has earned a 5 out of 5 rating in the EURONCAP safety tests according to the 2017 methodology.
Car body style
Liftback
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
3H7Engine size
Estate (Shooting Brake)
Date of manufacture
2020 – to this dayInternal designation
3H7Engine size
Technical data
Liftback
| 1.5 TSI ACT | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI R 4MOTION | 1.4 eHybrid | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1984 | 1984 | 1984 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 140/4180-6000 | 206/5100-6500 | 235 | 115 combustion 85/2500 el. 160 total | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 320/1500-4180 | 400/2000-4900 | 420/2100-5350 | 250/1550-3500 combustion 400 total | 340/1600-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 12.2:1 | 9,3:1 | 9,3:1 | 10,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 221 | 237 | 250 | 250 | 222 | 222 |
| Acceleration 0–100 km/h [s] | 8.9 | 7,7 | 5,5 | 4.9 | 7,8 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 7,0 | 9,3 | 9,9 | - | 5.6 |
| Out of town [l] | 4.6 | 4,8 | 5,9 | 6.4 | - | 3.6 |
| Combined [l] | 5.3 | 5,6 | 7,1 | 7.7 | 4,5 [11,1 kWh] | 4.3 |
| CO2 emissions [g/km] | 120 | 128 | 162 | 176 | 35 | 114 |
| Low speed [l] | 8.3 | 9,4 | 13,1 | 13,3 | - | 6.7 |
| Medium speed [l] | 6.4 | 7,2 | 8,5 | 9.1 | - | 4.8 |
| High speed [l] | 5.4 | 5,9 | 6,8 | 7.6 | - | 4.0 |
| Extra high speed [l] | 6.0 | 6,5 | 7,2 | 8.1 | - | 4.7 |
| Combined speed [l] | 6.2 | 6,8 | 8,1 | 8.8 | 1,1 [14,7 kWh] | 4.8 |
| CO2 emissions [g/km] | 142 | 155 | 184 | 200 | 25 | 125 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 59 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1585 | 1608 | 1728 | 1773 | 1798 | 1690 |
| Overall weight [kg] | 2070 | 2160 | 2270 | 2290 | 2300 | 2170 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/2200 | 750/2200 | 750/1600 | 750/2000 |
| Maximum front/rear axle load [kg] | 1040/1080 | 1130/1080 | 1160/1160 | 1160/1180 | 1150/1200 | 1120/1100 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 100 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 90/- | 100/- |
| Boot volume [l] | 563 | 563 | 563 | 563 | - | 563 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1557 | -/1557 | -/1557 | -/1557 | - | -/1557 |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot length with rear seats folded [mm] | 2092 | 2092 | 2092 | 2092 | 2092 | 2092 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2172 | 2172 | 2172 | 2172 | 2172 | 2172 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4866 | 4866 | 4866 | 4866 | 4866 | 4866 |
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Wheelbase [mm] | 2837 | 2837 | 2837 | 2837 | 2837 | 2837 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Forward overhang [mm] | 913 | 913 | 913 | 913 | 913 | 913 |
| Rear overhang [mm] | 1113 | 1113 | 1113 | 1113 | 1113 | 1113 |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | 1008 |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | 940 |
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- |
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI 4MOTION | ||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | 147/3500-4200 | 147/3500-4200 | |
| Maximum torque [Nm/min-1] | 360/1600-2750 | 400/1900-3000 | 400/1900-3000 | 400/1750-3500 | 400/1750-3500 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 16,2:1 | 15,8:1 | 15,8:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | Front | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 220 | 237 | 233 | 237 | 234 | |
| Acceleration 0–100 km/h [s] | 9.5 | - | - | 7.9 | 7.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.1-5.0 | 5.4-5.2 | 5.9-5.7 | 6.0-5.8 | 6.3-6.1 | |
| Out of town [l] | 3.6-3.5 | 4.1-4.0 | 4.5-4.3 | 4.0-3.9 | 4.4-4.2 | |
| Combined [l] | 4.2-4.0 | 4.6-4.4 | 5.0-4.8 | 4.7-4.6 | 5.1-4.9 | |
| CO2 emissions [g/km] | 110-107 | 121-117 | 132-126 | 125-120 | 134-128 | |
| Low speed [l] | 6,8 | - | - | 7,3 | 8,1 | |
| Medium speed [l] | 4,9 | - | - | 5,2 | 5,8 | |
| High speed [l] | 4,1 | - | - | 4,4 | 4,8 | |
| Extra high speed [l] | 4,6 | - | - | 5,0 | 5,4 | |
| Combined speed [l] | 4,8 | - | - | 5,2 | 5,6 | |
| CO2 emissions [g/km] | 125 | - | - | 136 | 148 | |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1650 | 1664 | 1740 | 1648 | 1724 | |
| Overall weight [kg] | 2200 | 2220 | 2300 | 2220 | 2280 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2200 | 750/2000 | 750/2200 | |
| Maximum front/rear axle load [kg] | 1150/1100 | 1160/1110 | 1180/1170 | 1140/1110 | 1160/1170 | |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 90/- | 90/- | |
| Boot volume [l] | 563 | 563 | 563 | 563 | 563 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1557 | -/1557 | -/1557 | -/1557 | -/1557 | |
| Boot length [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | |
| Boot length with rear seats folded [mm] | 2092 | 2092 | 2092 | 2092 | 2092 | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | 2172 | 2172 | 2172 | 2172 | 2172 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | 16 | 16 | 16 | 16 | 16 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | |
| Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | |
| Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | |
| Wheel size front | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | |
| Overall length [mm] | 4866 | 4866 | 4866 | 4866 | 4866 | |
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | |
| Overall height [mm] | 1450 | 1450 | 1450 | 1450 | 1450 | |
| Wheelbase [mm] | 2837 | 2837 | 2837 | 2837 | 2837 | |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | |
| Rear wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | |
| Forward overhang [mm] | 913 | 913 | 913 | 913 | 913 | |
| Rear overhang [mm] | 1113 | 1113 | 1113 | 1113 | 1113 | |
| Clearance [mm] | 138 | 138 | 138 | 138 | 138 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1008 | 1008 | 1008 | 1008 | 1008 | |
| Headroom rear [mm] | 940 | 940 | 940 | 940 | 940 | |
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- | |
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Estate (Shooting Brake)
| 1.5 TSI ACT | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI R 4MOTION | 1.4 eHybrid | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1984 | 1984 | 1984 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 140/4180-6000 | 206/5100-6500 | 235 | 115 combustion 85/2500 el. 160 total | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 320/1500-4180 | 400/2000-4900 | 420/2100-5350 | 250/1550-3500 combustion 400 total | 340/1600-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 12.2:1 | 9,3:1 | 9,3:1 | 10,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 217 | 233 | 250 | 250 | 222 | 218 |
| Acceleration 0–100 km/h [s] | 8.9 | 7.9 | 5.5 | 4.9 | 7.8 | 9.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 7.2 | 9.3 | 9.9 | - | 5.6 |
| Out of town [l] | 4.7 | 4.9 | 6.0 | 6.5 | - | 3.7 |
| Combined [l] | 5.3 | 5.7 | 7.2 | 7.7 | 1.6 [11.2 kWh] | 4.4 |
| CO2 emissions [g/km] | 122 | 131 | 165 | 177 | 36 | 115 |
| Low speed [l] | 8.3 | 9.5 | 13.1 | 13.3 | - | 6.7 |
| Medium speed [l] | 6.4 | 7.3 | 8.6 | 9.1 | - | 4.8 |
| High speed [l] | 5.5 | 6.0 | 6.9 | 7.6 | - | 4.1 |
| Extra high speed [l] | 6.2 | 6.6 | 7.4 | 8.2 | - | 4.8 |
| Combined speed [l] | 6.3 | 6.9 | 8.3 | 8.9 | 1.2 [15.0 kWh] | 4.9 |
| CO2 emissions [g/km] | 143 | 158 | 188 | 202 | 26 | 127 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 57 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1593 | 1617 | 1751 | 1783 | 1814 | 1701 |
| Overall weight [kg] | 2080 | 2170 | 2290 | 2290 | 2290 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/2200 | 750/2200 | 750/1600 | 750/2000 |
| Maximum front/rear axle load [kg] | 1040/1090 | 1120/1100 | 1170/1170 | 1160/1180 | 1140/1200 | 1120/1130 |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 100 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 90/- | 100/- |
| Boot volume [l] | 565 | 565 | 565 | 565 | 455 | 565 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1632 | -/1632 | -/1632 | -/1632 | -/1497 | -/1632 |
| Boot length [mm] | 1179 | 1179 | 1179 | 1179 | 1179 | 1179 |
| Boot length with rear seats folded [mm] | 2091 | 2091 | 2091 | 2091 | 2091 | 2091 |
| Boot width between wheels/max [mm] | 976/- | 976/- | 976/- | 976/- | 976/- | 976/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2002 | 2002 | 2002 | 2002 | 2002 | 2002 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 |
| Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 225/55 R17 |
| Wheel size front | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 |
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4866 | 4866 | 4866 | 4866 | 4866 | 4866 |
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | 1462 |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | 2835 |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- |
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI 4MOTION | ||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from to 2020 | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | 147/3500-4200 | 147/3500-4200 | |
| Maximum torque [Nm/min-1] | 360/1600-2750 | 400/1900-3000 | 400/1900-3000 | 400/1750-3500 | 400/1750-3500 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 16,2:1 | 15,8:1 | 15,8:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | Front | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 216 | 233 | 233 | 233 | 230 | |
| Acceleration 0–100 km/h [s] | 9.5 | - | - | 7.9 | 7.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.2-5.0 | 5.4-5.2 | 6.0-5.7 | 5.8 | 6.1 | |
| Out of town [l] | 3.7-3.5 | 4.2-4.0 | 4.6-4.4 | 3.9 | 4.2 | |
| Combined [l] | 4.2-4.1 | 4.7-4.5 | 5.1-4.9 | 4.6 | 4.9 | |
| CO2 emissions [g/km] | 111-107 | 122-118 | 134-128 | 122 | 129 | |
| Low speed [l] | 6.8 | - | - | 7.3 | 8.1 | |
| Medium speed [l] | 4.9 | - | - | 5.2 | 5.8 | |
| High speed [l] | 4.1 | - | - | 4.5 | 4.9 | |
| Extra high speed [l] | 4.7 | - | - | 5.2 | 5.5 | |
| Combined speed [l] | 4.8 | - | - | 5.3 | 5.7 | |
| CO2 emissions [g/km] | 127 | - | - | 138 | 150 | |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1660 | 1667 | 1751 | 1651 | 1733 | |
| Overall weight [kg] | 2210 | 2220 | 2290 | 2200 | 2290 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2200 | 750/2000 | 750/2200 | |
| Maximum front/rear axle load [kg] | 1150/1110 | 1150/1120 | 1160/1180 | 1140/1110 | 1160/1180 | |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 100 | 100 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 90/- | 90/- | |
| Boot volume [l] | 565 | 565 | 565 | 565 | 565 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1632 | -/1632 | -/1632 | -/1632 | -/1632 | |
| Boot length [mm] | 1179 | 1179 | 1179 | 1179 | 1179 | |
| Boot length with rear seats folded [mm] | 2091 | 2091 | 2091 | 2091 | 2091 | |
| Boot width between wheels/max [mm] | 976/- | 976/- | 976/- | 976/- | 976/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | 2002 | 2002 | 2002 | 2002 | 2002 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | |
| AdBlue tank volume [l] | 16 | 16 | 16 | 16 | 16 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | |
| Tyre dimensions front | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | |
| Tyre dimensions rear | 225/55 R17 | 245/45 R18 | 245/45 R18 | 245/45 R18 | 245/45 R18 | |
| Wheel size front | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |
| Wheel size rear | 7.5J x 17 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | |
| Overall length [mm] | 4866 | 4866 | 4866 | 4866 | 4866 | |
| Overall width without/including mirrors [mm] | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | 1871/2127 | |
| Overall height [mm] | 1462 | 1462 | 1462 | 1462 | 1462 | |
| Wheelbase [mm] | 2835 | 2835 | 2835 | 2835 | 2835 | |
| Front wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | |
| Headroom rear [mm] | 982 | 982 | 982 | 982 | 982 | |
| Front elbow/shoulder width [mm] | 1500/- | 1500/- | 1500/- | 1500/- | 1500/- | |
| Rear elbow/shoulder width [mm] | 1481/- | 1481/- | 1481/- | 1481/- | 1481/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
