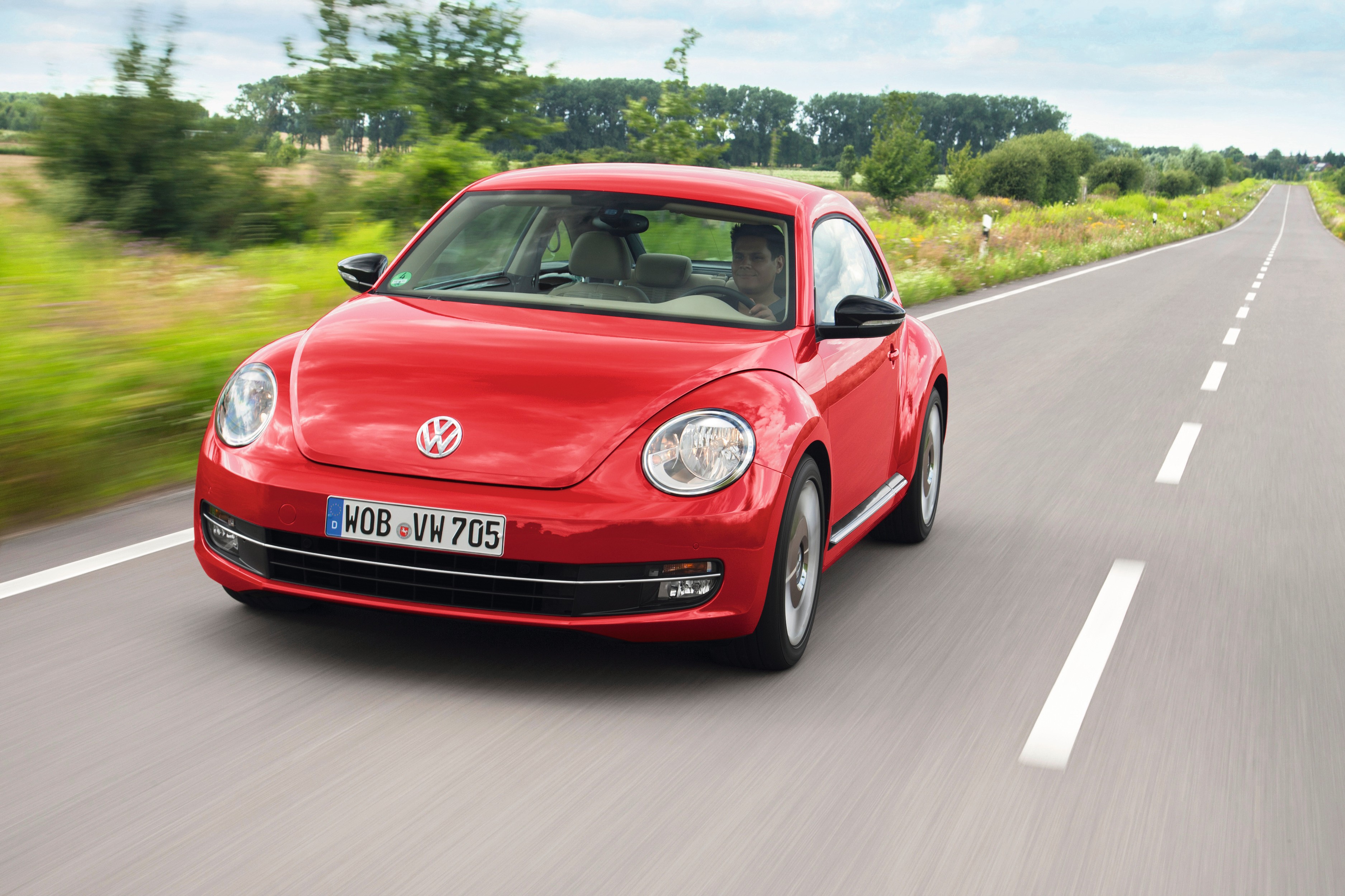

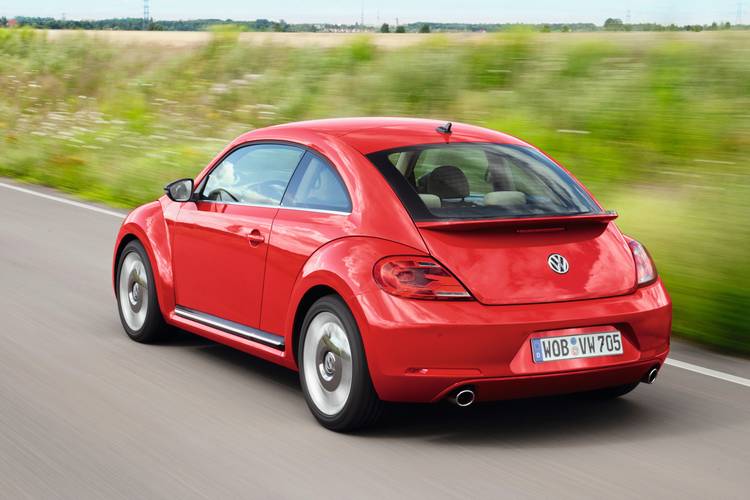

Volkswagen Beetle
Date of manufacture
7/2011 – 2016 (Coupé)
2012 – 2016 (Convertible)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Puebla, Mexico
Designer
Walter de Silva
Marc Lichte
Tags
C-segment
German cars
The Volkswagen Beetle is available as a coupe and a convertible. The car was developed in 2011 and is built on the Volkswagen Group A5 (PQ35) platform. It offers petrol and diesel engines, the most powerful being the 2.0 TSI with 162 kW, allowing for a maximum speed of 233 km/h. The most fuel-efficient engine is the 2.0 TDI with a combined consumption of 4.1 l/100 km and CO2 emissions of 107 g/km. The car's trunk has a capacity of 310 liters for the coupe body and 225 liters for the convertible body. During EURONCAP safety tests, the Volkswagen Beetle received a rating of 5 out of 5 according to the 2011 methodology.
Car body style
Coupé
Date of manufacture
7/2011 – 2016Internal designation
A5
Technical data
Coupé
| 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1197 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 77/4500-5500 | 77/4500-5500 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1550-4100 | 175/1400-4000 | 175/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 180 | 180 | 180 | 180 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 10.9 | 10.9 | 8.7 | 8.7 |
| Acceleration 0–80 km/h [s] | 7.2 | 7.2 | 7.2 | 7.2 | 6.1 | 6.1 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 7.3 | 6.6-6.5 | 6.1-6.0 | 7.0-6.9 | 6.5-6.4 |
| Out of town [l] | 5.0 | 5.0 | 4.7-4.6 | 4.7-4.6 | 4.9-4.8 | 4.8-4.7 |
| Combined [l] | 5.9-5.6 | 5.9 | 5.4-5.3 | 5.2-5.1 | 5.7-5.6 | 5.4-5.3 |
| CO2 emissions [g/km] | 137-129 | 139 | 125-123 | 121-119 | 131-129 | 124-122 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1274 | 1297 | 1316 | 1342 | 1347 | 1364 |
| Overall weight [kg] | 1680 | 1700 | 1760 | 1790 | 1790 | 1810 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 910/820 | 930/820 | 940/870 | 970/870 | 970/870 | 990/870 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 310 | 310 | 310 | 310 | 310 | 310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
| Wheelbase [mm] | 2537 | 2537 | 2537 | 2537 | 2537 | 2537 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2013 | from to 2013 | from 2013 to | from 2013 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/5800 | 118/5800 | 147/5100 | 147/5100 | 155/5300-6200 | 155/5300-6200 |
| Maximum torque [Nm/min-1] | 240/1500-4500 | 240/1500-4500 | 280/1700-5000 | 280/1700-5000 | 280/1700-5200 | 280/1700-5200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,3:1 | 10,3:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 208 | 207 | 225 | 223 | 229 | 227 |
| Acceleration 0–100 km/h [s] | 8.3 | 8.3 | 7.5 | 7.5 | 7.3 | 7.3 |
| Acceleration 0–80 km/h [s] | 5.9 | 5.9 | 5.4 | 5.4 | 5.3 | 5.3 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.7 | 7.7 | 9.8 | 10.1 | - | - |
| Out of town [l] | 5.3 | 5.3 | 5.9 | 6.1 | - | - |
| Combined [l] | 6.6 | 6.2 | 7.4 | 7.7 | 7.3 | 7.6 |
| CO2 emissions [g/km] | 153 | 143 | 172 | 179 | 169 | 176 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1359 | 1373 | 1417 | 1439 | 1391 | 1412 |
| Overall weight [kg] | 1750 | 1770 | 1830 | 1850 | 1840 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 980/820 | 1000/820 | 1010/870 | 1030/870 | 1020/870 | 1040/870 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 310 | 310 | 310 | 310 | 310 | 310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
| Wheelbase [mm] | 2537 | 2537 | 2537 | 2537 | 2537 | 2537 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TSI | 2.0 TSI | 1.6 TDI | 1.6 TDI | 1.6 TDI BMT | 1.6 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 162/4500-6200 | 77/4400 | 77/4400 | 77/4400 | 77/4400 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1500-4400 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 7 gear automatic | 5 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 233 | 231 | 180 | 178 | 180 | 178 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.7 | 11.5 | 11.5 | 11.5 | 11.5 |
| Acceleration 0–80 km/h [s] | 5.1 | 5.1 | 7.6 | - | 7.6 | 7.6 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | 5.4 | 5.5 | - | - |
| Out of town [l] | - | - | 4.1 | 4.4 | - | - |
| Combined [l] | 6.4 | 6.6 | 4.5 | 4.7 | 4.3 | 4.3 |
| CO2 emissions [g/km] | 148 | 154 | 119 | 124 | 113 | 114 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1420 | 1361 | 1381 | 1368 | 1388 |
| Overall weight [kg] | 1840 | 1860 | 1750 | 1789 | 1760 | 1780 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1020/870 | 1040/870 | 980/820 | - | 990/820 | 1010/820 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 310 | 310 | 310 | 310 | 310 | 310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
| Wheelbase [mm] | 2537 | 2537 | 2537 | 2537 | 2537 | 2537 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 81/3500 | 81/3500 | 103/4200 | 103/4200 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3000 | 250/1750-3000 | 320/1750-2500 | 320/1750-2500 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 182 | 182 | 198 | 195 | 202 | 200 |
| Acceleration 0–100 km/h [s] | 11.0 | 11.0 | 9.4 | 9.4 | 8.9 | 8.9 |
| Acceleration 0–80 km/h [s] | 7.5 | 7.5 | 6.5 | 6.5 | 6.3 | 6.3 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.8-4.7 | 4.8-4.7 | 6.3 | 6.9 | - | - |
| Out of town [l] | 3.8-3.7 | 4.1-4.0 | 4.2 | 4.6 | - | - |
| Combined [l] | 4.2-4.1 | 4.3-4.2 | 4.9 | 5.4 | 4.6-4.5 | 4.8-4.7 |
| CO2 emissions [g/km] | 109-107 | 113-111 | 129 | 140 | 117-115 | 124-122 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1380 | 1395 | 1395 | 1417 | 1421 | 1445 |
| Overall weight [kg] | 1840 | 1860 | 1790 | 1810 | 1880 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1020/870 | 1040/870 | 1020/820 | 1040/820 | 1060/870 | 1080/870 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 310 | 310 | 310 | 310 | 310 | 310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1486 | 1486 | 1486 | 1486 | 1486 | 1486 |
| Wheelbase [mm] | 2537 | 2537 | 2537 | 2537 | 2537 | 2537 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
Convertible
| 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.2 TSI | 1.4 TSI | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from 2015 to | from 2015 to | from 2015 to | from 2015 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1197 | 1197 | 1395 | 1395 |
| Maximum output / speed [kW/min-1] | 77/5000 | 77/5000 | 77/4500-5500 | 77/4500-5500 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 175/1550-4100 | 175/1550-4100 | 175/1400-4000 | 175/1400-4000 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 178 | 178 | 178 | 178 | 201 | 201 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 11.7 | 11.7 | 9.1 | 9.1 |
| Acceleration 0–80 km/h [s] | 7.6 | 7.6 | 7.6 | 7.6 | 6.3 | 6.3 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 7.3 | 6.7-6.6 | 6.2-6.1 | 7.2-7.1 | 6.6-6.5 |
| Out of town [l] | 5.2 | 5.2 | 4.7-4.6 | 4.8-4.7 | 5.0-4.9 | 4.9 |
| Combined [l] | 6.1-5.8 | 5.9 | 5.5-5.4 | 5.3-5.2 | 5.8-5.7 | 5.6-5.5 |
| CO2 emissions [g/km] | 142-134 | 139 | 126-124 | 124-122 | 135-133 | 127-126 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1388 | 1409 | 1395 | 1421 | 1434 | 1452 |
| Overall weight [kg] | 1760 | 1780 | 1780 | 1800 | 1810 | 1830 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 930/880 | 950/880 | 950/880 | 970/880 | 980/880 | 1000/880 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 225 | 225 | 225 | 225 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | 826/- | 826/- |
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | -/411 | -/411 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | from to 2015 | from to 2013 | from to 2013 | from 2013 to | from 2013 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 118/5800 | 118/5800 | 147/5100 | 147/5100 | 155/5300-6200 | 155/5300-6200 |
| Maximum torque [Nm/min-1] | 240/1500-4500 | 240/1500-4500 | 280/1700-5000 | 280/1700-5000 | 280/1700-5200 | 280/1700-5200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,3:1 | 10,3:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 206 | 205 | 223 | 221 | 227 | 227 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.6 | 7.6 | 7.6 | 7.4 | 7.4 |
| Acceleration 0–80 km/h [s] | 6.1 | 6.1 | - | - | 5.4 | 5.4 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 8.0 | 10.0 | 10.3 | - | - |
| Out of town [l] | 5.6 | 5.5 | 6.1 | 6.3 | - | - |
| Combined [l] | 6.8 | 6.4 | 7.5 | 7.8 | 7.5 | 7.8 |
| CO2 emissions [g/km] | 158 | 148 | 174 | 180 | 174 | 180 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1454 | 1468 | 1487 | 1505 | 1487 | 1505 |
| Overall weight [kg] | 1830 | 1850 | 1870 | 1890 | 1870 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1000/880 | 1020/880 | - | - | 1040/880 | 1060/880 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 225 | 225 | 225 | 225 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | 826/- | 826/- |
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | -/411 | -/411 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TSI | 2.0 TSI | 1.6 TDI | 1.6 TDI | 1.6 TDI BMT | 1.6 TDI BMT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from to 2015 | from to 2015 |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 162/4500-6200 | 162/4500-6200 | 77/4400 | 77/4400 | 77/4400 | 77/4400 |
| Maximum torque [Nm/min-1] | 350/1500-4400 | 350/1500-4400 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 | 250/1500-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 9,6:1 | 9,6:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 5 gear manual | 7 gear automatic | 5 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 230 | 228 | 178 | 176 | 178 | 176 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.9 | 12.1 | 12.1 | 12.1 | 12.1 |
| Acceleration 0–80 km/h [s] | 5.2 | 5.2 | - | - | 8.0 | 8.0 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | 5.6 | 5.6 | - | - |
| Out of town [l] | - | - | 4.3 | 4.6 | - | - |
| Combined [l] | 6.6 | 6.7 | 4.7 | 4.9 | 4.5 | 4.5 |
| CO2 emissions [g/km] | 152 | 156 | 124 | 128 | 118 | 119 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1481 | 1505 | 1462 | 1479 | 1466 | 1483 |
| Overall weight [kg] | 1870 | 1890 | 1850 | 1870 | 1850 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1040/880 | 1060/880 | - | - | 1020/880 | 1030/880 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 225 | 225 | 225 | 225 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | 826/- | 826/- |
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | -/411 | -/411 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2015 to | from 2015 to | from to 2015 | from to 2015 | from 2015 to | from 2015 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 81/3500 | 81/3500 | 103/4200 | 103/4200 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3000 | 250/1750-3000 | 320/1750-2500 | 320/1750-2500 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,9 | 81,0 x 95,9 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,0:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 180 | 180 | 196 | 193 | 200 | 198 |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 9.9 | 9.9 | 9.3 | 9.3 |
| Acceleration 0–80 km/h [s] | 7.8 | 7.8 | 6.8 | 6.8 | 6.5 | 6.5 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.9 | 4.9 | 6.4 | 7.0 | - | - |
| Out of town [l] | 3.9 | 4.2 | 4.4 | 4.8 | - | - |
| Combined [l] | 4.3-4.2 | 4.4 | 5.1 | 5.6 | 4.6-4.5 | 4.9-4.8 |
| CO2 emissions [g/km] | 112-110 | 116-114 | 134 | 145 | 118-116 | 127-125 |
| Emission standard | EU6 | EU6 | EU5 | EU5 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1485 | 1505 | 1482 | 1505 | 1505 | 1529 |
| Overall weight [kg] | 1880 | 1900 | 1870 | 1900 | 1890 | 1910 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 1050/880 | 1070/880 | 1040/880 | 1070/880 | 1060/880 | 1080/880 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 225 | 225 | 225 | 225 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | 826/- | 826/- |
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | -/411 | -/411 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4278 | 4278 | 4278 | 4278 | 4278 | 4278 |
| Overall width without/including mirrors [mm] | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 | 1808/2021 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
