Volkswagen Beetle
Date of manufacture
2016 – 7/2019 (Coupé)
2016 – 7/2019 (Convertible)
Platform
Volkswagen Group A5 (PQ35)
Manufacturing locations
Puebla, Mexico
Designer
Walter de Silva
Marc Lichte
Tags
C-segment
German cars
The Volkswagen Beetle is a model of car produced since 2016. It is built on the Volkswagen Group A5 (PQ35) platform and can be purchased in two body styles - coupe or convertible. The engine range includes petrol and diesel engines, the most powerful of which is the 2.0 TSI with 162 kW, guaranteeing a top speed of 233 km/h. The most economical version is the 2.0 TDI with a combined fuel consumption of 4.2 l/100 km and CO2 emissions of 110 g/km. The luggage compartment volume varies depending on the body type - for the coupe it is 310 l, for the convertible 225 l. The car successfully passed the EURONCAP safety tests and received a rating of 5 out of 5.
Car body style
Coupé
after upgrade (facelift)
Date of manufacture
2016 – 7/2019Internal designation
A5
Technical data
Coupé
| 1.2 TSI | 1.2 TSI | 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1395 | 1395 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 77/4500-5500 | 77/4500-5500 | 110/5000-6000 | 110/5000-6000 | 162/4500-6200 | 162/4500-6200 |
| Maximum torque [Nm/min-1] | 175/1400-4000 | 175/1400-4000 | 250/1500-3500 | 250/1500-3500 | 350/1500-4400 | 350/1500-4400 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 180 | 180 | 203 | 203 | 233 | 231 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 8.7 | 8.7 | 6.7 | 6.7 |
| Acceleration 0–80 km/h [s] | 7.2 | 7.2 | 6.1 | 6.1 | 5.1 | 5.1 |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.6-6.5 | 6.1-6.0 | 7.0-6.9 | 6.5-6.4 | - | - |
| Out of town [l] | 4.7-4.6 | 4.7-4.6 | 4.9-4.8 | 4.8-4.7 | - | - |
| Combined [l] | 5.4-5.3 | 5.2-5.1 | 5.7-5.6 | 5.4-5.3 | 6.6 | 6.8 |
| CO2 emissions [g/km] | 125-123 | 121-119 | 131-129 | 124-122 | 152 | 157 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1314 | 1340 | 1346 | 1363 | 1426 | 1451 |
| Overall weight [kg] | 1760 | 1790 | 1780 | 1800 | 1840 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 940/870 | 960/870 | 960/870 | 990/870 | 1020/870 | 1050/870 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 310 | 310 | 310 | 310 | 310 | 310 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | -/905 | -/905 |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | 1493 | 1493 |
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | 960/- | 960/- |
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 | 545/813 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | 4288 | 4288 |
| Overall width without/including mirrors [mm] | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2524 | 2524 | 2524 | 2524 | 2524 | 2524 |
| Front wheel track [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Rear wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1044 | 1044 | 1044 | 1044 | 1044 | 1044 |
| Headroom rear [mm] | 942 | 942 | 942 | 942 | 942 | 942 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- | 1308/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 81/3500 | 81/3500 | 110/3500-4000 | 110/3500-4000 | ||
| Maximum torque [Nm/min-1] | 250/1750-3000 | 250/1750-3000 | 340/1750-3000 | 340/1750-3000 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 182 | 182 | 202 | 200 | ||
| Acceleration 0–100 km/h [s] | 11.0 | 11.0 | 8.9 | 8.9 | ||
| Acceleration 0–80 km/h [s] | 7.5 | 7.5 | 6.3 | 6.3 | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | - | - | - | - | ||
| Out of town [l] | - | - | - | - | ||
| Combined [l] | 4.3-4.2 | 4.6-4.5 | 4.6-4.5 | 4.8-4.7 | ||
| CO2 emissions [g/km] | 113-110 | 121-119 | 119-115 | 126-124 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1393 | 1395 | 1421 | 1445 | ||
| Overall weight [kg] | 1860 | 1860 | 1870 | 1890 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | 1020/870 | 1040/870 | 1050/870 | 1080/870 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | ||
| Boot volume [l] | 310 | 310 | 310 | 310 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/905 | -/905 | -/905 | -/905 | ||
| Boot length [mm] | 838 | 838 | 838 | 838 | ||
| Boot length with rear seats folded [mm] | 1493 | 1493 | 1493 | 1493 | ||
| Boot width between wheels/max [mm] | 960/- | 960/- | 960/- | 960/- | ||
| Boot height to headliner/ceiling [mm] | 545/813 | 545/813 | 545/813 | 545/813 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | ||
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | ||
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | ||
| Overall width without/including mirrors [mm] | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | ||
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | ||
| Wheelbase [mm] | 2524 | 2524 | 2524 | 2524 | ||
| Front wheel track [mm] | 1571 | 1571 | 1571 | 1571 | ||
| Rear wheel track [mm] | 1543 | 1543 | 1543 | 1543 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 136 | 136 | 136 | 136 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 13.5 | 13.5 | 13.5 | 13.5 | ||
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | ||
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1044 | 1044 | 1044 | 1044 | ||
| Headroom rear [mm] | 942 | 942 | 942 | 942 | ||
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | ||
| Rear elbow/shoulder width [mm] | 1308/- | 1308/- | 1308/- | 1308/- | ||
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | ||
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 |

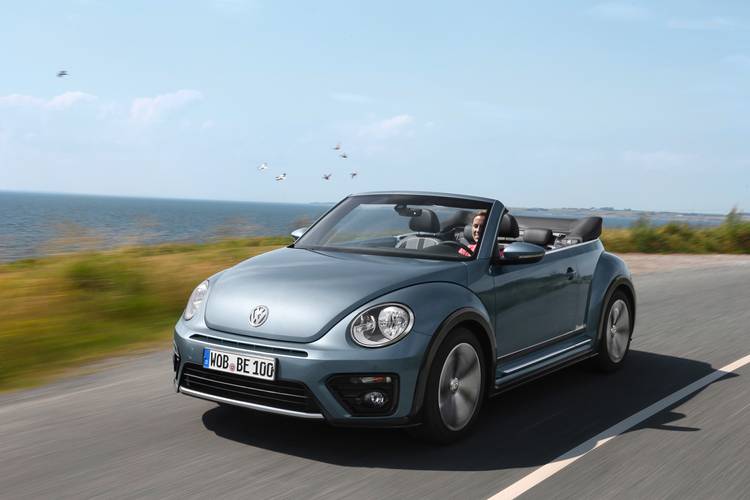

Convertible
| 1.2 TSI | 1.2 TSI | 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1197 | 1197 | 1395 | 1395 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 77/4500-5500 | 77/4500-5500 | 110/5000-6000 | 110/5000-6000 | 162/4500-6200 | 162/4500-6200 |
| Maximum torque [Nm/min-1] | 175/1400-4000 | 175/1400-4000 | 250/1500-3500 | 250/1500-3500 | 350/1500-4400 | 350/1500-4400 |
| Bore and stroke [mm x mm] | 71,0 x 75,6 | 71,0 x 75,6 | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 178 | 178 | 201 | 201 | 230 | 228 |
| Acceleration 0–100 km/h [s] | 11,7 | 11,7 | 9,1 | 9,1 | 6,9 | 6,9 |
| Acceleration 0–80 km/h [s] | 7,6 | 7,6 | 6,3 | 6,3 | 5,2 | 5,2 |
| Acceleration 80–120 km/h [s] | 12.0 (16.0 (4th/5th gear) | - | 8,5 (10,0 (4th/5th gear) | - | 6,0 (7,5 (4th/5th gear) | - |
| City [l] | 6,7-6,6 | 6,3-6,2 | 7,2-7,1 | 6,8-6,7 | 8,5 | 9,2 |
| Out of town [l] | 4,8-4,7 | 4,8-4,7 | 5,1-5,0 | 5,0-4,9 | 5,6 | 5,6 |
| Combined [l] | 5,5-5,4 | 5,4-5,3 | 5,9-5,8 | 5,7-5,6 | 6,6 | 6,9 |
| CO2 emissions [g/km] | 127-125 | 125-123 | 136-134 | 130-128 | 154 | 160 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1421 | 1432 | 1452 | 1504 | 1528 |
| Overall weight [kg] | 1790 | 1820 | 1810 | 1830 | 1870 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 960/880 | 990/880 | 980/880 | 1000/880 | 1040/880 | 1070/880 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 225 | 225 | 225 | 225 | 225 | 225 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 838 | 838 | 838 | 838 | 838 | 838 |
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | 826/- | 826/- |
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | -/411 | -/411 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | 1544 | 1544 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | 4288 | 4288 |
| Overall width without/including mirrors [mm] | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 |
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | 1473 | 1473 |
| Wheelbase [mm] | 2538 | 2538 | 2538 | 2538 | 2538 | 2538 |
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Headroom rear [mm] | 956 | 956 | 956 | 956 | 956 | 956 |
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- | 1459/- |
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- | 1157/- |
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 | -/1048 |
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 | -/797 | -/797 |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 81/3500 | 81/3500 | 110/3500-4000 | 110/3500-4000 | ||
| Maximum torque [Nm/min-1] | 250/1750-3000 | 250/1750-3000 | 340/1750-3000 | 340/1750-3000 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | 81,0 x 95,9 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 180 | 180 | 200 | 198 | ||
| Acceleration 0–100 km/h [s] | 11,7 | 11,7 | 9,3 | 9,3 | ||
| Acceleration 0–80 km/h [s] | 7,8 | 7,8 | 6,5 | 6,5 | ||
| Acceleration 80–120 km/h [s] | 12,5 (17,5 (4th/5th gear) | - | 8,5 (10,5 (4th/5th gear) | - | ||
| City [l] | 5,1-5,0 | 5,1-5,0 | 5,4-5,3 | 5,8-5,7 | ||
| Out of town [l] | 4,0-3,9 | 4,3-4,2 | 4,2-4,1 | 4,5-4,4 | ||
| Combined [l] | 4,4-4,3 | 4,6-4,5 | 4,6-4,5 | 4,9-4,8 | ||
| CO2 emissions [g/km] | 116-114 | 121-119 | 120-118 | 129-127 | ||
| Emission standard | EU6 | EU6 | EU6 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1484 | 1504 | 1505 | 1526 | ||
| Overall weight [kg] | 1890 | 1910 | 1900 | 1920 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | 1060/880 | 1080/880 | 1070/880 | 1090/880 | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 225 | 225 | 225 | 225 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 838 | 838 | 838 | 838 | ||
| Boot length with rear seats folded [mm] | 1495 | 1495 | 1495 | 1495 | ||
| Boot width between wheels/max [mm] | 826/- | 826/- | 826/- | 826/- | ||
| Boot height to headliner/ceiling [mm] | -/411 | -/411 | -/411 | -/411 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 1544 | 1544 | 1544 | 1544 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | ||
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | ||
| Overall length [mm] | 4288 | 4288 | 4288 | 4288 | ||
| Overall width without/including mirrors [mm] | 1825/2021 | 1825/2021 | 1825/2021 | 1825/2021 | ||
| Overall height [mm] | 1473 | 1473 | 1473 | 1473 | ||
| Wheelbase [mm] | 2538 | 2538 | 2538 | 2538 | ||
| Front wheel track [mm] | 1570 | 1570 | 1570 | 1570 | ||
| Rear wheel track [mm] | 1546 | 1546 | 1546 | 1546 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 136 | 136 | 136 | 136 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | 13.6 | 13.6 | 13.6 | 13.6 | ||
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | ||
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 998 | 998 | 998 | 998 | ||
| Headroom rear [mm] | 956 | 956 | 956 | 956 | ||
| Front elbow/shoulder width [mm] | 1459/- | 1459/- | 1459/- | 1459/- | ||
| Rear elbow/shoulder width [mm] | 1157/- | 1157/- | 1157/- | 1157/- | ||
| Legroom front knees/total [mm] | -/1048 | -/1048 | -/1048 | -/1048 | ||
| Legroom rear knees/total [mm] | -/797 | -/797 | -/797 | -/797 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
