Volkswagen Golf

Golf 5K 2008

Date of manufacture

2008 – 7/2012 (Three-door hatchback)

2008 – 7/2012 (Five-door hatchback)

2009 – 2013 (Estate)

2011 – 2016 (Convertible)

2009 – 2014 (MPV)

Platform

Volkswagen Group A5 (PQ35)

Manufacturing locations

Wolfsburg, Germany

Osnabrück, Germany

Brussels, Belgium

Changchun, People's Republic of China

Puebla, Mexico

Designer

Walter de Silva

Tags

C-segment

German cars

The Volkswagen Golf is available in six different body variants - three-door hatchback, five-door hatchback, estate, cabriolet and MPV. The first generation of the car was launched in 2008 and is manufactured in Germany, Belgium, People's Republic of China and Mexico. The vehicle is built on the Volkswagen Group A5 (PQ35) platform. The powertrain offering includes petrol and diesel engines. The most powerful version of the Golf R has a maximum power output of 199 kW and can reach speeds of up to 250 km/h. The most fuel-efficient engine is the 1.6 TDI BMT with a combined fuel consumption of 4.1 l/100 km and CO2 emissions of 107 g/km. The luggage compartment volume varies depending on the body type - the three-door hatchback has 350 l, the five-door hatchback 350 l, the estate 505 l, the MPV 395-505 l and the cabriolet 250 l. In 2011, the Volkswagen Golf underwent the EURONCAP safety test with a rating of 5 out of 5.

Car body style

Three-door hatchback

Date of manufacture

2008 – 7/2012

Internal designation

5K

Engine size

Petrol

2.0 TSI GTI Edition 35

2.0 TSI GTI Edition 35

Diesel

2.0 TDI 4MOTION

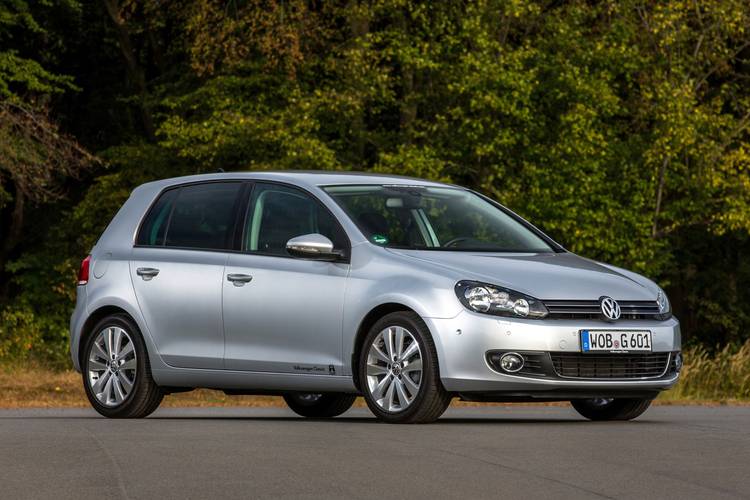

Five-door hatchback

Date of manufacture

2008 – 7/2012

Internal designation

5K

Engine size

Petrol

2.0 TSI GTI Edition 35

2.0 TSI GTI Edition 35

Diesel

2.0 TDI 4MOTION

Estate (Variant)

Date of manufacture

2009 – 2013

Internal designation

5K

Engine size

Petrol

Diesel

1.6 TDI 4MOTION

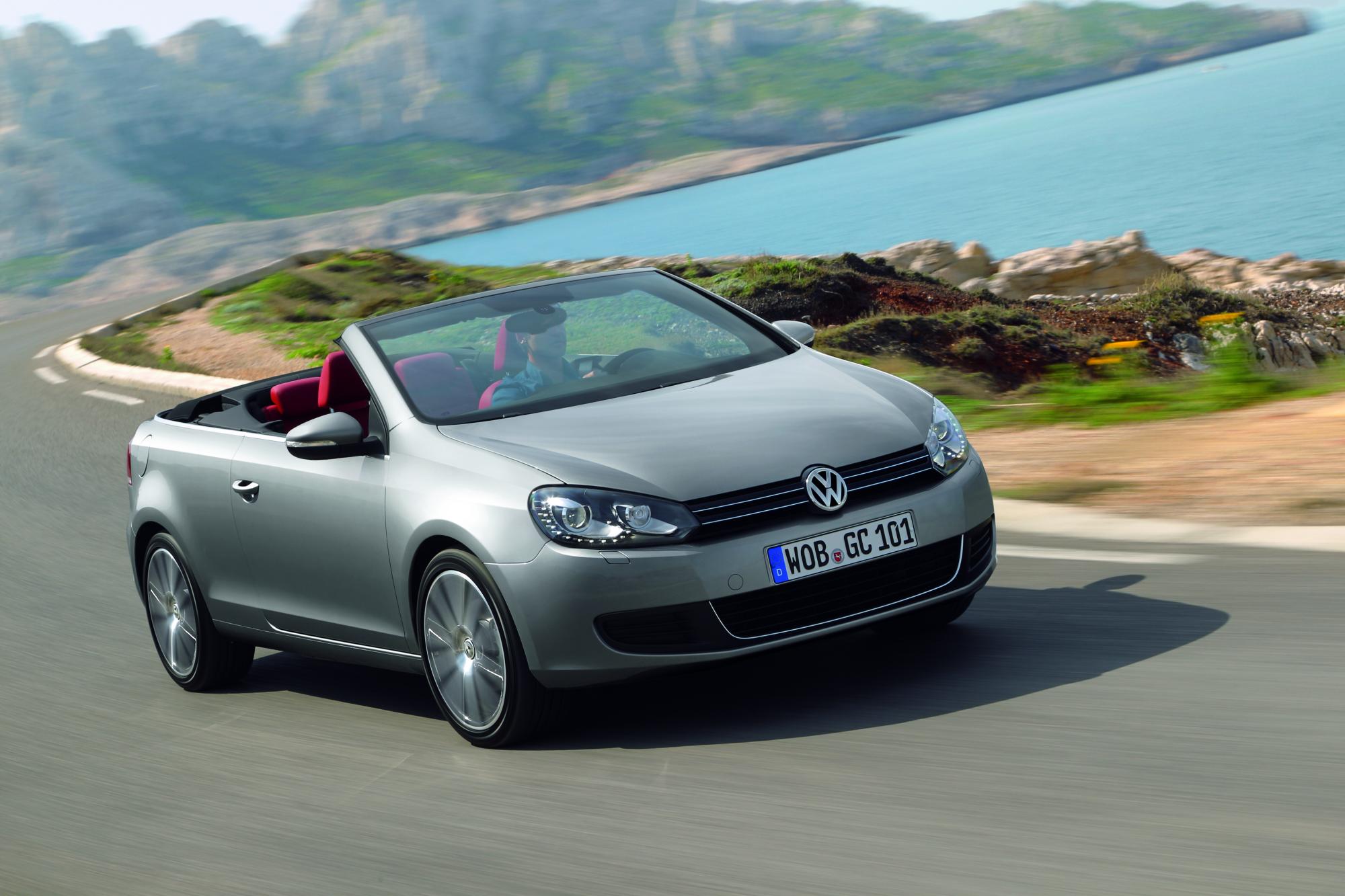

Convertible

Date of manufacture

2011 – 2016

Internal designation

5K

Engine size

Petrol

Diesel

MPV (Golf Plus)

Date of manufacture

2009 – 2014

Internal designation

5K

Engine size

Petrol

Diesel

Euro NCAP

Technical data

Three-door hatchback

	1.4	1.2 TSI	1.2 TSI	1.6	1.6	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	4/8	4/8	4/16	4/16	4/8
Engine displacement [cm³]	1390	1197	1197	1595	1595	1197
Maximum output / speed [kW/min-1]	59/5000	63/4800	63/4800	75/5600	75/5600	77/5000
Maximum torque [Nm/min-1]	132/3800	160/1500-3500	160/1500-3500	148/3800	148/3800	175/1550-4100
Bore and stroke [mm x mm]	76,5 x 75,6	71,0 x 75,6	71,0 x 75,6	81,0 x 77,4	81,0 x 77,4	71,0 x 75,6
Compression ratio	10,5:1	10,0:1	10,0:1	10,3:1	10,3:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	direct injection turbo-supercharged	direct injection turbo-supercharged	-	-	direct injection turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	172	178	178	188	188	190
Acceleration 0–100 km/h [s]	13.9	12.3	12.3	11.3	11.3	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.5	7.0	7.3	9.7	8.8	7.1
Out of town [l]	5.1	4.6	4.9	5.6	5.5	4.9
Combined [l]	6.4	5.5	5.8	7.1	6.7	5.7
CO2 emissions [g/km]	149	129	134	166	157	134

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1217	1229	1260	-	-	1233
Overall weight [kg]	1750	1780	1810	-	-	1790
Maximum trailer weight unbraked/braked [kg]	600/800	610/1100	630/1100	-	-	610/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.2 TSI BMT	1.2 TSI BMT	1.4 TSI	1.4 TSI	1.4 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/8	4/8	4/8	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1197	1390	1390	1390
Maximum output / speed [kW/min-1]	77/5000	77/5000	77/5000	90/5000	90/5000	118/5800
Maximum torque [Nm/min-1]	175/1550-4100	175/1550-4100	175/1550-4100	200/1500-4000	200/1500-4000	240/1500-4500
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6
Compression ratio	10,0:1	10,0:1	10,0:1	10,0:1	10,0:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	190	190	190	200	200	220
Acceleration 0–100 km/h [s]	10.6	10.5	10.5	9.5	9.5	8.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.3	6.5	-	8.2	7.7	8.1
Out of town [l]	4.9	4.5	-	5.1	5.0	5.2
Combined [l]	5.8	5.2	5.3	6.2	6.0	6.3
CO2 emissions [g/km]	134	121	123	144	138	145

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1264	1234	1271	1290	1316	1346
Overall weight [kg]	1820	1750	1790	1820	1850	1840
Maximum trailer weight unbraked/braked [kg]	630/1200	610/1200	630/1200	640/1300	650/1300	670/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 TSI	2.0 TSI GTI	2.0 TSI GTI	2.0 TSI GTI Edition 35	2.0 TSI GTI Edition 35	Golf R
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1390	1984	1984	1984	1984	1984
Maximum output / speed [kW/min-1]	118/5800	155/5300-6200	155/5300-6200	173/5500-6300	173/5500-6300	199/6000
Maximum torque [Nm/min-1]	240/1500-4500	280/1700-5200	280/1700-5200	300/1700-5200	300/1700-5200	350/2500-5000
Bore and stroke [mm x mm]	76,5 x 75,6	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	9,6:1	9,6:1	9,8:1	9,8:1	9,8:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	4x4
Gearbox	7 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation

Top speed [km/h]	220	240	238	247	246	250
Acceleration 0–100 km/h [s]	8.0	6.9	6.9	6.6	6.6	5.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.5	10.0	10.0	10.9	10.7	11.8
Out of town [l]	5.2	5.8	5.9	6.4	6.4	6.7
Combined [l]	6.0	7.3	7.4	8.1	8.0	8.5
CO2 emissions [g/km]	139	170	173	189	189	199

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1361	1393	1414	-	-	1521
Overall weight [kg]	1860	1870	1890	-	-	2010
Maximum trailer weight unbraked/braked [kg]	680/1400	690/1400	700/1400	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	275
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1230
Boot length [mm]	828	828	828	828	828	789
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1560
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	225/45 R17	225/45 R17	225/40 R18	225/40 R18	225/40 R18
Tyre dimensions rear	205/55 R16	225/45 R17	225/45 R17	225/40 R18	225/40 R18	225/40 R18
Wheel size front	6.5J x 16	7.5J x 17	7.5J x 17	7.5J x 18	7.5J x 18	7.5J x 18
Wheel size rear	6.5J x 16	7.5J x 17	7.5J x 17	7.5J x 18	7.5J x 18	7.5J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4213	4213	4213	4213	4212
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1469	1469	1469	1469	1461
Wheelbase [mm]	2575	2575	2575	2575	2575	2578
Front wheel track [mm]	1541	1533	1533	1533	1533	1533
Rear wheel track [mm]	1514	1514	1514	1514	1514	1515
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	140	140	140	140	132
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	11.2	11.2	11.2	11.2	10.7
Approach angle rear [°]	17.6	14	14	14	14	12.9
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	9.7
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Golf R	1.6 TDI	1.6 TDI	1.6 TDI	1.6 TDI BMT	1.6 TDI BMT
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1598	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	199/6000	66/4200	77/4400	77/4400	77/4400	77/4400
Maximum torque [Nm/min-1]	350/2500-5000	230/1800	250/1500-2500	250/1500-2500	250/1500-2500	250/1500-2500
Bore and stroke [mm x mm]	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	9,8:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system

Drive axle	4x4	Front	Front	Front	Front	Front
Gearbox	6 gear automatic	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic
Drive specifications	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation dual-clutch automatic gearbox DSG	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	250	178	189	189	190	190
Acceleration 0–100 km/h [s]	5.5	12.9	11.3	11.2	11.3	11.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.2	5.7	5.7	5.6	5.2	-
Out of town [l]	6.8	3.8	3.9	4.2	3.5	-
Combined [l]	8.4	4.5	4.5	4.7	4.1	4.2
CO2 emissions [g/km]	195	118	119	123	107	109

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1541	1314	1314	1337	1314	1318
Overall weight [kg]	2030	1860	1870	1890	1870	1840
Maximum trailer weight unbraked/braked [kg]	-	650/1400	650/1400	660/1400	650/1400	660/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	275	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1230	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	789	828	828	828	828	828
Boot length with rear seats folded [mm]	1560	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/40 R18	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	225/40 R18	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	7.5J x 18	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	7.5J x 18	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4212	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1461	1480	1480	1480	1480	1480
Wheelbase [mm]	2578	2575	2575	2575	2575	2575
Front wheel track [mm]	1533	1541	1541	1541	1541	1541
Rear wheel track [mm]	1515	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	132	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	10.7	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	12.9	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	9.7	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI	2.0 TDI	2.0 TDI	2.0 TDI	2.0 TDI BMT	2.0 TDI BMT
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	81/4100	81/4100	103/4200	103/4200	103/4200	103/4200
Maximum torque [Nm/min-1]	250/1750	250/1750	320/1750-2500	320/1750-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,0:1	16,0:1	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	193	191	209	207	210	210
Acceleration 0–100 km/h [s]	10.7	10.7	9.3	9.3	9.3	9.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4	6.9	6.1	6.7	-	-
Out of town [l]	4.0	4.4	4.1	4.5	-	-
Combined [l]	4.9	5.3	4.8	5.3	4.3	4.9
CO2 emissions [g/km]	128	140	126	138	114	127

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	-	-	1351	1372	1366	1389
Overall weight [kg]	-	-	1920	1940	1880	1900
Maximum trailer weight unbraked/braked [kg]	-	-	680/1500	690/1500	680/1500	690/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	3	3	3	3	3	3
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 4MOTION	2.0 TDI GTD	2.0 TDI GTD
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968
Maximum output / speed [kW/min-1]	103/4200	125/4200	125/4200
Maximum torque [Nm/min-1]	320/1750-2500	350/1750-2500	350/1750-2500
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,0:1	16,5:1	16,5:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	4x4	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	206	222	220
Acceleration 0–100 km/h [s]	9.4	8.1	8.1
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	6.9	7.0	7.2
Out of town [l]	4.7	4.3	4.7
Combined [l]	5.5	5.3	5.6
CO2 emissions [g/km]	143	139	147

Emission standard	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1451	1404	1426
Overall weight [kg]	2020	1880	1910
Maximum trailer weight unbraked/braked [kg]	730/1600	700/1500	710/1500
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-

Boot volume [l]	275	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1230	-/1305	-/1305
Boot length [mm]	789	828	828
Boot length with rear seats folded [mm]	1560	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	2017	2017	2017
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	3	3	3
Number of seats	5	5	5
Fuel tank volume [l]	60	55	55
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	225/45 R17	225/45 R17
Tyre dimensions rear	205/55 R16	225/45 R17	225/45 R17
Wheel size front	6.5J x 16	7.5J x 17	7.5J x 17
Wheel size rear	6.5J x 16	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480
Wheelbase [mm]	2575	2575	2575
Front wheel track [mm]	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	150	150	140
Wading depth [mm]	-	-	-
Approach angle front [°]	13.1	13.1	11.2
Approach angle rear [°]	17.6	17.6	14
Transition angle [°]	8.8	8.8	8.8
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	987	987	987
Headroom rear [mm]	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Five-door hatchback

	1.4	1.2 TSI	1.2 TSI	1.6	1.6	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	4/8	4/8	4/16	4/16	4/8
Engine displacement [cm³]	1390	1197	1197	1595	1595	1197
Maximum output / speed [kW/min-1]	59/5000	63/4800	63/4800	75/5600	75/5600	77/5000
Maximum torque [Nm/min-1]	132/3800	160/1500-3500	160/1500-3500	148/3800	148/3800	175/1550-4100
Bore and stroke [mm x mm]	76,5 x 75,6	71,0 x 75,6	71,0 x 75,6	81,0 x 77,4	81,0 x 77,4	71,0 x 75,6
Compression ratio	10,5:1	10,0:1	10,0:1	10,3:1	10,3:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	direct injection turbo-supercharged	direct injection turbo-supercharged	-	-	direct injection turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic	7 gear automatic
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	dual-clutch automatic gearbox DSG

Top speed [km/h]	172	178	178	188	188	190
Acceleration 0–100 km/h [s]	13.9	12.3	12.3	11.3	11.3	10.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.5	7.0	7.3	9.7	8.8	7.3
Out of town [l]	5.1	4.6	4.9	5.6	5.5	4.9
Combined [l]	6.4	5.5	5.8	7.1	6.7	5.8
CO2 emissions [g/km]	149	129	134	166	157	134

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1217	1229	1260	-	-	1264
Overall weight [kg]	1750	1780	1810	-	-	1820
Maximum trailer weight unbraked/braked [kg]	600/800	610/1100	630/1100	-	-	630/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.2 TSI BMT	1.2 TSI BMT	1.4 TSI	1.4 TSI	1.4 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/8	4/8	4/8	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1197	1390	1390	1390
Maximum output / speed [kW/min-1]	77/5000	77/5000	77/5000	90/5000	90/5000	118/5800
Maximum torque [Nm/min-1]	175/1550-4100	175/1550-4100	175/1550-4100	200/1500-4000	200/1500-4000	240/1500-4500
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6
Compression ratio	10,0:1	10,0:1	10,0:1	10,0:1	10,0:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	190	190	190	200	200	220
Acceleration 0–100 km/h [s]	10.6	10.5	10.5	9.5	9.5	8.0
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.1	6.5	-	8.2	7.7	8.1
Out of town [l]	4.9	4.5	-	5.1	5.0	5.2
Combined [l]	5.7	5.2	5.3	6.2	6.0	6.3
CO2 emissions [g/km]	134	121	123	144	138	145

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1233	1234	1271	1290	1316	1346
Overall weight [kg]	1790	1750	1790	1820	1850	1840
Maximum trailer weight unbraked/braked [kg]	610/1200	610/1200	630/1200	640/1300	650/1300	670/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 TSI	2.0 TSI GTI	2.0 TSI GTI	2.0 TSI GTI Edition 35	2.0 TSI GTI Edition 35	Golf R
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1390	1984	1984	1984	1984	1984
Maximum output / speed [kW/min-1]	118/5800	155/5300-6200	155/5300-6200	173/5500-6300	173/5500-6300	199/6000
Maximum torque [Nm/min-1]	240/1500-4500	280/1700-5200	280/1700-5200	300/1700-5200	300/1700-5200	350/2500-5000
Bore and stroke [mm x mm]	76,5 x 75,6	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8	82,5 x 92,8
Compression ratio	10,5:1	9,6:1	9,6:1	9,8:1	9,8:1	9,8:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	4x4
Gearbox	7 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual
Drive specifications	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation

Top speed [km/h]	220	240	238	247	246	250
Acceleration 0–100 km/h [s]	8.0	6.9	6.9	6.6	6.6	5.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.5	10.0	10.0	10.9	10.7	11.8
Out of town [l]	5.2	5.8	5.9	6.4	6.4	6.7
Combined [l]	6.0	7.3	7.4	8.1	8.0	8.5
CO2 emissions [g/km]	139	170	173	189	189	199

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1361	1393	1414	-	-	1521
Overall weight [kg]	1860	1870	1890	-	-	2010
Maximum trailer weight unbraked/braked [kg]	680/1400	690/1400	700/1400	-	-	-
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	275
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1230
Boot length [mm]	828	828	828	828	828	789
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1560
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	60
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	225/45 R17	225/45 R17	225/40 R18	225/40 R18	225/40 R18
Tyre dimensions rear	205/55 R16	225/45 R17	225/45 R17	225/40 R18	225/40 R18	225/40 R18
Wheel size front	6.5J x 16	7.5J x 17	7.5J x 17	7.5J x 18	7.5J x 18	7.5J x 18
Wheel size rear	6.5J x 16	7.5J x 17	7.5J x 17	7.5J x 18	7.5J x 18	7.5J x 18
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4213	4213	4213	4213	4212
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1469	1469	1469	1469	1461
Wheelbase [mm]	2575	2575	2575	2575	2575	2578
Front wheel track [mm]	1541	1533	1533	1533	1533	1533
Rear wheel track [mm]	1514	1514	1514	1514	1514	1515
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	140	140	140	140	132
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	11.2	11.2	11.2	11.2	10.7
Approach angle rear [°]	17.6	14	14	14	14	12.9
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	9.7
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	Golf R	1.6 TDI	1.6 TDI	1.6 TDI	1.6 TDI BMT	1.6 TDI BMT
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1598	1598	1598	1598	1598
Maximum output / speed [kW/min-1]	199/6000	66/4200	77/4400	77/4400	77/4400	77/4400
Maximum torque [Nm/min-1]	350/2500-5000	230/1800	250/1500-2500	250/1500-2500	250/1500-2500	250/1500-2500
Bore and stroke [mm x mm]	82,5 x 92,8	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5
Compression ratio	9,8:1	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system

Drive axle	4x4	Front	Front	Front	Front	Front
Gearbox	6 gear automatic	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic
Drive specifications	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation dual-clutch automatic gearbox DSG	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	250	178	189	189	190	190
Acceleration 0–100 km/h [s]	5.5	12.9	11.3	11.2	11.3	11.2
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	11.2	5.7	5.7	5.6	5.2	-
Out of town [l]	6.8	3.8	3.9	4.2	3.5	-
Combined [l]	8.4	4.5	4.5	4.7	4.1	4.2
CO2 emissions [g/km]	195	118	119	123	107	109

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1541	1314	1314	1337	1314	1318
Overall weight [kg]	2030	1860	1870	1890	1870	1840
Maximum trailer weight unbraked/braked [kg]	-	650/1400	650/1400	660/1400	650/1400	660/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	275	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1230	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	789	828	828	828	828	828
Boot length with rear seats folded [mm]	1560	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	60	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	225/40 R18	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	225/40 R18	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	7.5J x 18	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	7.5J x 18	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4212	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1461	1480	1480	1480	1480	1480
Wheelbase [mm]	2578	2575	2575	2575	2575	2575
Front wheel track [mm]	1533	1541	1541	1541	1541	1541
Rear wheel track [mm]	1515	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	132	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	10.7	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	12.9	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	9.7	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI	2.0 TDI	2.0 TDI	2.0 TDI	2.0 TDI BMT	2.0 TDI BMT
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968	1968	1968	1968
Maximum output / speed [kW/min-1]	81/4100	81/4100	103/4200	103/4200	103/4200	103/4200
Maximum torque [Nm/min-1]	250/1750	250/1750	320/1750-2500	320/1750-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,0:1	16,0:1	16,0:1	16,0:1	16,0:1	16,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	6 gear automatic	6 gear manual	6 gear automatic	6 gear manual	6 gear automatic
Drive specifications	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	193	191	209	207	210	210
Acceleration 0–100 km/h [s]	10.7	10.7	9.3	9.3	9.3	9.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.4	6.9	6.1	6.7	-	-
Out of town [l]	4.0	4.4	4.1	4.5	-	-
Combined [l]	4.9	5.3	4.8	5.3	4.3	4.9
CO2 emissions [g/km]	128	140	126	138	114	127

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	-	-	1351	1372	1366	1389
Overall weight [kg]	-	-	1920	1940	1880	1900
Maximum trailer weight unbraked/braked [kg]	-	-	680/1500	690/1500	680/1500	690/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	350	350	350	350	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1305	-/1305	-/1305	-/1305	-/1305	-/1305
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1581	1581	1581	1581	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927	585/927	585/927	585/927
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2017	2017	2017	2017	2017	2017
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480	1480	1480	1480
Wheelbase [mm]	2575	2575	2575	2575	2575	2575
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514	1514	1514	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	150	150	150	150	150	150
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.1	13.1	13.1	13.1	13.1	13.1
Approach angle rear [°]	17.6	17.6	17.6	17.6	17.6	17.6
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	987	987	987	987	987	987
Headroom rear [mm]	979	979	979	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI 4MOTION	2.0 TDI GTD	2.0 TDI GTD
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16
Engine displacement [cm³]	1968	1968	1968
Maximum output / speed [kW/min-1]	103/4200	125/4200	125/4200
Maximum torque [Nm/min-1]	320/1750-2500	350/1750-2500	350/1750-2500
Bore and stroke [mm x mm]	81,0 x 95,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,0:1	16,5:1	16,5:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	4x4	Front	Front
Gearbox	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	206	222	220
Acceleration 0–100 km/h [s]	9.4	8.1	8.1
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	6.9	7.0	7.2
Out of town [l]	4.7	4.3	4.7
Combined [l]	5.5	5.3	5.6
CO2 emissions [g/km]	143	139	147

Emission standard	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	1451	1404	1426
Overall weight [kg]	2020	1880	1910
Maximum trailer weight unbraked/braked [kg]	730/1600	700/1500	710/1500
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-

Boot volume [l]	275	350	350
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1230	-/1305	-/1305
Boot length [mm]	789	828	828
Boot length with rear seats folded [mm]	1560	1581	1581
Boot width between wheels/max [mm]	1006/1044	1006/1044	1006/1044
Boot height to headliner/ceiling [mm]	585/927	585/927	585/927
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	2017	2017	2017
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	5	5	5
Number of seats	5	5	5
Fuel tank volume [l]	60	55	55
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	225/45 R17	225/45 R17
Tyre dimensions rear	205/55 R16	225/45 R17	225/45 R17
Wheel size front	6.5J x 16	7.5J x 17	7.5J x 17
Wheel size rear	6.5J x 16	7.5J x 17	7.5J x 17
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	-	-	-
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-

Overall length [mm]	4199	4199	4199
Overall width without/including mirrors [mm]	1786/2048	1786/2048	1786/2048
Overall height [mm]	1480	1480	1480
Wheelbase [mm]	2575	2575	2575
Front wheel track [mm]	1541	1541	1541
Rear wheel track [mm]	1514	1514	1514
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	150	150	140
Wading depth [mm]	-	-	-
Approach angle front [°]	13.1	13.1	11.2
Approach angle rear [°]	17.6	17.6	14
Transition angle [°]	8.8	8.8	8.8
Climbing rate [°]	-	-	-
Maximum side tilt [°]	-	-	-

Headroom front [mm]	987	987	987
Headroom rear [mm]	979	979	979
Front elbow/shoulder width [mm]	1447/-	1447/-	1447/-
Rear elbow/shoulder width [mm]	1420/-	1420/-	1420/-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

Estate (Variant)

	1.4	1.2 TSI	1.6	1.2 TSI	1.2 TSI BMT	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Petrol	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	4/8	4/16	4/8	4/8	4/8
Engine displacement [cm³]	1390	1197	1595	1197	1197	1197
Maximum output / speed [kW/min-1]	59/5000	63/4800	75/5600	77/5000	77/5000	77/5000
Maximum torque [Nm/min-1]	132/3800	160/1500-3500	148/3800	175/1550-4100	175/1550-4100	175/1550-4100
Bore and stroke [mm x mm]	76,5 x 75,6	71,0 x 75,6	81,0 x 77,4	71,0 x 75,6	71,0 x 75,6	71,0 x 75,6
Compression ratio	10,5:1	10,0:1	10,3:1	10,0:1	10,0:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	direct injection turbo-supercharged	-	direct injection turbo-supercharged	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	5 gear manual	6 gear manual	6 gear manual	7 gear automatic
Drive specifications	-	-	-	-	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	173	178	189	190	190	190
Acceleration 0–100 km/h [s]	14.9	13.3	12.2	11.3	11.3	11.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.5	7.1	9.8	7.2	6.6	7.0
Out of town [l]	5.1	4.7	5.7	5.0	4.6	5.2
Combined [l]	6.4	5.6	7.2	5.8	5.3	5.9
CO2 emissions [g/km]	149	132	168	136	123	136

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1331	1347	1347	1368	1375	1409
Overall weight [kg]	1870	1900	1890	1910	1890	1950
Maximum trailer weight unbraked/braked [kg]	660/800	670/1100	-	680/1200	680/1200	700/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	505	505	505	505	505	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1495	-/1495	-/1495	-/1495	-/1495	-/1495
Boot length [mm]	1072	1072	1072	1072	1072	1072
Boot length with rear seats folded [mm]	1700	1700	1700	1700	1700	1700
Boot width between wheels/max [mm]	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010
Boot height to headliner/ceiling [mm]	483/832	483/832	483/832	483/832	483/832	483/832
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2061	2061	2061	2061	2061	2061
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4534	4534	4534	4534	4534	4534
Overall width without/including mirrors [mm]	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003
Overall height [mm]	1504	1504	1504	1504	1504	1504
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1535	1535	1535	1535	1535	1535
Rear wheel track [mm]	1508	1508	1508	1508	1508	1508
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.3	13.3	13.3	13.3	13.3	13.3
Approach angle rear [°]	11.9	11.9	11.9	11.9	11.9	11.9
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	972	972	972	972	972	972
Headroom rear [mm]	969	969	969	969	969	969
Front elbow/shoulder width [mm]	1466/-	1466/-	1466/-	1466/-	1466/-	1466/-
Rear elbow/shoulder width [mm]	1437/-	1437/-	1437/-	1437/-	1437/-	1437/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI	1.6 TDI	1.6 TDI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1390	1390	1390	1390	1598	1598
Maximum output / speed [kW/min-1]	90/5000	90/5000	118/5800	118/5800	66/4200	77/4400
Maximum torque [Nm/min-1]	200/1500-4000	200/1500-4000	240/1500-4500	240/1500-4500	230/1800	250/1500-2500
Bore and stroke [mm x mm]	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6	79,5 x 80,5	79,5 x 80,5
Compression ratio	10,0:1	10,0:1	10,5:1	10,5:1	16,2:1	16,2:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	5 gear manual	5 gear manual
Drive specifications	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-	-

Top speed [km/h]	201	201	220	220	179	190
Acceleration 0–100 km/h [s]	9.9	9.9	8.4	8.4	13.8	11.9
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.3	7.7	8.4	7.7	5.6	5.7
Out of town [l]	5.3	5.1	5.3	5.3	3.9	3.9
Combined [l]	6.3	6.0	6.4	6.1	4.5	4.5
CO2 emissions [g/km]	146	139	149	143	119	119

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1394	1426	1448	1460	1445	1445
Overall weight [kg]	1940	1970	1960	1970	1980	1980
Maximum trailer weight unbraked/braked [kg]	690/1300	710/1300	720/1400	730/1400	720/1400	720/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	505	505	505	505	505	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1495	-/1495	-/1495	-/1495	-/1495	-/1495
Boot length [mm]	1072	1072	1072	1072	1072	1072
Boot length with rear seats folded [mm]	1700	1700	1700	1700	1700	1700
Boot width between wheels/max [mm]	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010
Boot height to headliner/ceiling [mm]	483/832	483/832	483/832	483/832	483/832	483/832
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2061	2061	2061	2061	2061	2061
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4534	4534	4534	4534	4534	4534
Overall width without/including mirrors [mm]	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003
Overall height [mm]	1504	1504	1504	1504	1504	1504
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1535	1535	1535	1535	1535	1535
Rear wheel track [mm]	1508	1508	1508	1508	1508	1508
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.3	13.3	13.3	13.3	13.3	13.3
Approach angle rear [°]	11.9	11.9	11.9	11.9	11.9	11.9
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	972	972	972	972	972	972
Headroom rear [mm]	969	969	969	969	969	969
Front elbow/shoulder width [mm]	1466/-	1466/-	1466/-	1466/-	1466/-	1466/-
Rear elbow/shoulder width [mm]	1437/-	1437/-	1437/-	1437/-	1437/-	1437/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI	1.6 TDI BMT	1.6 TDI BMT	1.6 TDI 4MOTION	2.0 TDI	2.0 TDI
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1968	1968
Maximum output / speed [kW/min-1]	77/4400	77/4400	77/4400	77/4400	103/4200	103/4200
Maximum torque [Nm/min-1]	250/1500-2500	250/1500-2500	250/1500-2500	250/1500-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,0:1	16,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	4x4	Front	Front
Gearbox	7 gear automatic	5 gear manual	7 gear automatic	6 gear manual	6 gear manual	6 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	automatically controlled all-wheel drive 4Motion with Haldex inter-axle clutch 4. generation	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	190	190	190	187	210	208
Acceleration 0–100 km/h [s]	11.9	11.9	11.9	13.1	9.7	9.7
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	5.7	5.2	-	6.8	6.3-6.5	6.9-7.1
Out of town [l]	4.2	3.6	-	4.7	4.1	4.5
Combined [l]	4.8	4.2	4.3	5.5	4.9-5.0	5.4-5.5
CO2 emissions [g/km]	125	109	113	143	128-132	139-144

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1466	1452	1473	1571	1495	1521
Overall weight [kg]	2000	1960	1980	2100	2030	2050
Maximum trailer weight unbraked/braked [kg]	730/1400	-	730/1400	750/1500	740/1500	750/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	505	505	505	505	505	505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1495	-/1495	-/1495	-/1495	-/1495	-/1495
Boot length [mm]	1072	1072	1072	1072	1072	1072
Boot length with rear seats folded [mm]	1700	1700	1700	1700	1700	1700
Boot width between wheels/max [mm]	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010	1292/1010
Boot height to headliner/ceiling [mm]	483/832	483/832	483/832	483/832	483/832	483/832
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2061	2061	2061	2061	2061	2061
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4534	4534	4534	4534	4534	4534
Overall width without/including mirrors [mm]	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003	1781/2003
Overall height [mm]	1504	1504	1504	1504	1504	1504
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1535	1535	1535	1535	1535	1535
Rear wheel track [mm]	1508	1508	1508	1508	1508	1508
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.3	13.3	13.3	13.3	13.3	13.3
Approach angle rear [°]	11.9	11.9	11.9	11.9	11.9	11.9
Transition angle [°]	8.8	8.8	8.8	8.8	8.8	8.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	972	972	972	972	972	972
Headroom rear [mm]	969	969	969	969	969	969
Front elbow/shoulder width [mm]	1466/-	1466/-	1466/-	1466/-	1466/-	1466/-
Rear elbow/shoulder width [mm]	1437/-	1437/-	1437/-	1437/-	1437/-	1437/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

Convertible

	1.2 TSI BMT	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI	2.0 TSI GTI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/8	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1390	1390	1390	1390	1984
Maximum output / speed [kW/min-1]	77/5000	90/5000	90/5000	118/5800	118/5800	155/5300-6200
Maximum torque [Nm/min-1]	175/1550-4100	200/1500-4000	200/1500-4000	240/1500-4500	240/1500-4500	280/1700-5200
Bore and stroke [mm x mm]	71,0 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6	82,5 x 92,8
Compression ratio	10,0:1	10,0:1	10,0:1	10,5:1	10,5:1	9,6:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged pro vyšší otáčky variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged pro vyšší otáčky variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	6 gear manual	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	188	197	197	216	216	237
Acceleration 0–100 km/h [s]	11.7	10.5	10.5	8.4	8.4	7.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	-	-	-	-	-	-
Out of town [l]	-	-	-	-	-	-
Combined [l]	5.7	6.4	6.3	6.4	6.3	7.6
CO2 emissions [g/km]	132	149	147	150	148	177

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1421	1456	1479	1484	1503	1533
Overall weight [kg]	1850	1890	1920	1920	1940	1960
Maximum trailer weight unbraked/braked [kg]	710/1200	720/1300	730/1300	740/1400	750/1400	750/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	250	250	250	250	250	250
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	691	691	691	691	691	691
Boot length with rear seats folded [mm]	1534	1534	1534	1534	1534	1534
Boot width between wheels/max [mm]	926/-	926/-	926/-	926/-	926/-	926/-
Boot height to headliner/ceiling [mm]	-/382	-/382	-/382	-/382	-/382	-/382
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	1471	1471	1471	1471	1471	1471
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	2	2	2	2	2	2
Number of seats	4	4	4	4	4	4
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	225/45 R17
Tyre dimensions rear	205/55 R16	205/55 R16	205/55 R16	205/55 R16	205/55 R16	225/45 R17
Wheel size front	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.5J x 17
Wheel size rear	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	6.5J x 16	7.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4246	4246	4246	4246	4246	4258
Overall width without/including mirrors [mm]	1782/2044	1782/2044	1782/2044	1782/2044	1782/2044	1782/2044
Overall height [mm]	1423	1423	1423	1423	1423	1414
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1535	1535	1535	1535	1535	1533
Rear wheel track [mm]	1508	1508	1508	1508	1508	1514
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	139	139	139	139	139	139
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	13.6	13.6	13.6	13.6	13.6	13.6
Approach angle rear [°]	15.4	15.4	15.4	15.4	15.4	15.4
Transition angle [°]	9.7	9.7	9.7	9.7	9.7	9.7
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	971	971	971	971	971	971
Headroom rear [mm]	948	948	948	948	948	948
Front elbow/shoulder width [mm]	1468/-	1468/-	1468/-	1468/-	1468/-	1468/-
Rear elbow/shoulder width [mm]	1228/-	1228/-	1228/-	1228/-	1228/-	1228/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TSI GTI	1.6 TDI BMT	2.0 TDI BMT	2.0 TDI BMT
Date of sale	-	-	-	-
Engine type	Ignition supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1984	1598	1968	1968
Maximum output / speed [kW/min-1]	155/5300-6200	77/4400	103/4200	103/4200
Maximum torque [Nm/min-1]	280/1700-5200	250/1500-2500	320/1750-2500	320/1750-2500
Bore and stroke [mm x mm]	82,5 x 92,8	79,5 x 80,5	81,0 x 95,5	81,0 x 95,5
Compression ratio	9,6:1	16,2:1	16,0:1	16,0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake valves	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system

Drive axle	Front	Front	Front	Front
Gearbox	6 gear automatic	5 gear manual	6 gear manual	6 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG	-	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	235	188	207	207
Acceleration 0–100 km/h [s]	7.3	12.1	9.9	9.9
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	-	-	-	-
Out of town [l]	-	-	-	-
Combined [l]	7.7	4.4	4.5	5.1
CO2 emissions [g/km]	180	117	119	134

Emission standard	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1555	1501	1521	1545
Overall weight [kg]	1980	1920	1960	1980
Maximum trailer weight unbraked/braked [kg]	750/1400	750/1400	750/1500	750/1500
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-

Boot volume [l]	250	250	250	250
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-
Boot length [mm]	691	691	691	691
Boot length with rear seats folded [mm]	1534	1534	1534	1534
Boot width between wheels/max [mm]	926/-	926/-	926/-	926/-
Boot height to headliner/ceiling [mm]	-/382	-/382	-/382	-/382
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	1471	1471	1471	1471
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	2	2	2	2
Number of seats	4	4	4	4
Fuel tank volume [l]	55	55	55	55
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	225/45 R17	205/55 R16	205/55 R16	205/55 R16
Tyre dimensions rear	225/45 R17	205/55 R16	205/55 R16	205/55 R16
Wheel size front	7.5J x 17	6.5J x 16	6.5J x 16	6.5J x 16
Wheel size rear	7.5J x 17	6.5J x 16	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	10.9/-	10.9/-	10.9/-	10.9/-

Overall length [mm]	4246	4246	4246	4246
Overall width without/including mirrors [mm]	1782/2044	1782/2044	1782/2044	1782/2044
Overall height [mm]	1423	1423	1423	1423
Wheelbase [mm]	2578	2578	2578	2578
Front wheel track [mm]	1535	1535	1535	1535
Rear wheel track [mm]	1508	1508	1508	1508
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	139	139	139	139
Wading depth [mm]	-	-	-	-
Approach angle front [°]	13.6	13.6	13.6	13.6
Approach angle rear [°]	15.4	15.4	15.4	15.4
Transition angle [°]	9.7	9.7	9.7	9.7
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	971	971	971	971
Headroom rear [mm]	948	948	948	948
Front elbow/shoulder width [mm]	1468/-	1468/-	1468/-	1468/-
Rear elbow/shoulder width [mm]	1228/-	1228/-	1228/-	1228/-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

MPV (Golf Plus)

	1.4	1.2 TSI	1.2 TSI	1.6	1.6	1.2 TSI
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Ignition supercharged	Ignition supercharged	Petrol	Petrol	Ignition supercharged
Number of cylinders/valves	4/16	4/8	4/8	4/16	4/16	4/8
Engine displacement [cm³]	1390	1197	1197	1595	1595	1197
Maximum output / speed [kW/min-1]	59/5000	63/4800	63/4800	75/5600	75/5600	77/5000
Maximum torque [Nm/min-1]	132/3800	160/1500-3500	160/1500-3500	148/3800	148/3800	175/1500-4000
Bore and stroke [mm x mm]	76,5 x 75,6	71,0 x 75,6	71,0 x 75,6	81,0 x 77,4	81,0 x 77,4	71,0 x 75,6
Compression ratio	10,5:1	10,0:1	10,0:1	10,3:1	10,3:1	10,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	-	direct injection turbo-supercharged	direct injection turbo-supercharged	-	-	direct injection turbo-supercharged

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	169	175	188	184	184	188
Acceleration 0–100 km/h [s]	14.9	13.4	13.4	11.8	11.8	11.3
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8.7	7.2	7.3	10.2	9.1	7.3
Out of town [l]	5.4	4.9	5.2	6.0	5.5	5.1
Combined [l]	6.6	5.8	5.9	7.6	6.8	5.9
CO2 emissions [g/km]	154	136	139	176	159	139

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1337	1355	1399	1348	1414	1356
Overall weight [kg]	1890	1930	1980	1910	1920	1920
Maximum trailer weight unbraked/braked [kg]	660/800	670/1100	690/1100	-	-	670/1200
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	395-505	395-505	395-505	395-505	395-505	395-505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1450	-/1450	-/1450	-/1450	-/1450	-/1450
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1621	1621	1621	1621	1621	1621
Boot width between wheels/max [mm]	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008
Boot height to headliner/ceiling [mm]	661/984	661/984	661/984	661/984	661/984	661/984
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2048	2048	2048	2048	2048	2048
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-

Overall length [mm]	4204	4204	4204	4204	4204	4204
Overall width without/including mirrors [mm]	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946
Overall height [mm]	1583	1583	1583	1583	1583	1583
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1517	1517	1517	1517	1517	1517
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	14.3	14.3	14.3	14.3	14.3	14.3
Approach angle rear [°]	17.1	17.1	17.1	17.1	17.1	17.1
Transition angle [°]	9	9	9	9	9	9
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1007	1007	1007	1007	1007	1007
Headroom rear [mm]	976	976	976	976	976	976
Front elbow/shoulder width [mm]	1468/-	1468/-	1468/-	1468/-	1468/-	1468/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.2 TSI	1.2 TSI BMT	1.4 TSI	1.4 TSI	1.4 TSI	1.4 TSI
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/8	4/8	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1197	1197	1390	1390	1390	1390
Maximum output / speed [kW/min-1]	77/5000	77/5000	90/5000	90/5000	118/5800	118/5800
Maximum torque [Nm/min-1]	175/1500-4000	175/1500-4000	200/1500-4000	200/1500-4000	240/1500-4500	240/1500-4500
Bore and stroke [mm x mm]	71,0 x 75,6	71,0 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6	76,5 x 75,6
Compression ratio	10,0:1	10,0:1	10,0:1	10,0:1	10,5:1	10,5:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged	direct injection turbo-supercharged start&stop system	direct injection turbo-supercharged variable timing of intake valves	direct injection turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves	direct injection supercharging with compressor for low speed turbo-supercharged variable timing of intake valves

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	6 gear manual	6 gear manual	7 gear automatic	6 gear manual	7 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG

Top speed [km/h]	188	188	195	195	214	214
Acceleration 0–100 km/h [s]	10.6	11.3	10.2	10.2	8.5	8.5
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	7.3	6.7	8.4	8.0	8.4	7.9
Out of town [l]	5.2	4.8	5.4	5.3	5.4	5.4
Combined [l]	5.9	5.5	6.5	6.3	6.5	6.3
CO2 emissions [g/km]	139	126	152	146	153	147

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1400	1364	1416	1438	1481	1499
Overall weight [kg]	1970	1880	1970	1990	1990	2010
Maximum trailer weight unbraked/braked [kg]	700/1200	670/1200	700/1300	700/1300	740/1400	740/1400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	395-505	395-505	395-505	395-505	395-505	395-505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1450	-/1450	-/1450	-/1450	-/1450	-/1450
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1621	1621	1621	1621	1621	1621
Boot width between wheels/max [mm]	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008
Boot height to headliner/ceiling [mm]	661/984	661/984	661/984	661/984	661/984	661/984
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2048	2048	2048	2048	2048	2048
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16	205/55 R16
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	205/55 R16	205/55 R16
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16	6.5J x 16
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.5J x 16	6.5J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-

Overall length [mm]	4204	4204	4204	4204	4204	4204
Overall width without/including mirrors [mm]	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946
Overall height [mm]	1583	1583	1583	1583	1583	1583
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1517	1517	1517	1517	1517	1517
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	14.3	14.3	14.3	14.3	14.3	14.3
Approach angle rear [°]	17.1	17.1	17.1	17.1	17.1	17.1
Transition angle [°]	9	9	9	9	9	9
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1007	1007	1007	1007	1007	1007
Headroom rear [mm]	976	976	976	976	976	976
Front elbow/shoulder width [mm]	1468/-	1468/-	1468/-	1468/-	1468/-	1468/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	1.6 TDI	1.6 TDI	1.6 TDI	1.6 TDI BMT	1.6 TDI BMT	2.0 TDI
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1598	1598	1598	1598	1598	1968
Maximum output / speed [kW/min-1]	66/4200	77/4400	77/4400	77/4400	77/4400	103/4200
Maximum torque [Nm/min-1]	230/1500-2500	250/1500-2500	250/1500-2500	250/1500-2500	250/1500-2500	320/1750-2500
Bore and stroke [mm x mm]	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	79,5 x 80,5	81,0 x 95,5
Compression ratio	16,2:1	16,2:1	16,2:1	16,2:1	16,2:1	16,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF start&stop system	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	5 gear manual	5 gear manual	7 gear automatic	5 gear manual	7 gear automatic	6 gear manual
Drive specifications	-	-	dual-clutch automatic gearbox DSG	-	dual-clutch automatic gearbox DSG	-

Top speed [km/h]	174	184	184	186	189	204
Acceleration 0–100 km/h [s]	13.5	12.1	12.0	12.1	12.0	9.8
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	6.0	5.9	5.8	5.2	-	6.3
Out of town [l]	4.1	4.2	4.4	3.9	-	4.3
Combined [l]	4.7	4.8	4.9	4.3	4.4	5.1
CO2 emissions [g/km]	125	126	129	114	115	132

Emission standard	EU5	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1365	1446	1467	1450	1471	1476
Overall weight [kg]	2000	2010	2030	1970	1990	2040
Maximum trailer weight unbraked/braked [kg]	720/1400	720/1400	730/1400	720/1400	730/1400	740/1500
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-	75/-	75/-

Boot volume [l]	395-505	395-505	395-505	395-505	395-505	395-505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1450	-/1450	-/1450	-/1450	-/1450	-/1450
Boot length [mm]	828	828	828	828	828	828
Boot length with rear seats folded [mm]	1621	1621	1621	1621	1621	1621
Boot width between wheels/max [mm]	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008	1008/1008
Boot height to headliner/ceiling [mm]	661/984	661/984	661/984	661/984	661/984	661/984
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2048	2048	2048	2048	2048	2048
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	55	55	55	55	55	55
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	multilink	multilink	multilink	multilink	multilink	multilink
Tyre dimensions front	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Tyre dimensions rear	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15	195/65 R15
Wheel size front	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Wheel size rear	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15	6.0J x 15
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-	10.8/-

Overall length [mm]	4204	4204	4204	4204	4204	4204
Overall width without/including mirrors [mm]	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946	1759/1946
Overall height [mm]	1583	1583	1583	1583	1583	1583
Wheelbase [mm]	2578	2578	2578	2578	2578	2578
Front wheel track [mm]	1541	1541	1541	1541	1541	1541
Rear wheel track [mm]	1517	1517	1517	1517	1517	1517
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	141	141	141	141	141	141
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	14.3	14.3	14.3	14.3	14.3	14.3
Approach angle rear [°]	17.1	17.1	17.1	17.1	17.1	17.1
Transition angle [°]	9	9	9	9	9	9
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	1007	1007	1007	1007	1007	1007
Headroom rear [mm]	976	976	976	976	976	976
Front elbow/shoulder width [mm]	1468/-	1468/-	1468/-	1468/-	1468/-	1468/-
Rear elbow/shoulder width [mm]	1452/-	1452/-	1452/-	1452/-	1452/-	1452/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.0 TDI
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	4/16
Engine displacement [cm³]	1968
Maximum output / speed [kW/min-1]	103/4200
Maximum torque [Nm/min-1]	320/1750-2500
Bore and stroke [mm x mm]	81,0 x 95,5
Compression ratio	16,0:1
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter DPF

Drive axle	Front
Gearbox	6 gear automatic
Drive specifications	dual-clutch automatic gearbox DSG

Top speed [km/h]	202
Acceleration 0–100 km/h [s]	9.8
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	6.9
Out of town [l]	4.7
Combined [l]	5.5
CO2 emissions [g/km]	144

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	1501
Overall weight [kg]	2070
Maximum trailer weight unbraked/braked [kg]	750/1500
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	-
Maximum load on roof/carrier [kg]	75/-

Boot volume [l]	395-505
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1450
Boot length [mm]	828
Boot length with rear seats folded [mm]	1621
Boot width between wheels/max [mm]	1008/1008
Boot height to headliner/ceiling [mm]	661/984
Loading edge height [mm]	-
Height of the open boot door [mm]	2048
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	5
Number of seats	5
Fuel tank volume [l]	55
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	MacPherson
Rear suspension	multilink
Tyre dimensions front	195/65 R15
Tyre dimensions rear	195/65 R15
Wheel size front	6.0J x 15
Wheel size rear	6.0J x 15
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	10.8/-

Overall length [mm]	4204
Overall width without/including mirrors [mm]	1759/1946
Overall height [mm]	1583
Wheelbase [mm]	2578
Front wheel track [mm]	1541
Rear wheel track [mm]	1517
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	141
Wading depth [mm]	-
Approach angle front [°]	14.3
Approach angle rear [°]	17.1
Transition angle [°]	9
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	1007
Headroom rear [mm]	976
Front elbow/shoulder width [mm]	1468/-
Rear elbow/shoulder width [mm]	1452/-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

Volkswagen Golf Variant 5K 2010 wagon

Volkswagen Golf Variant 5K 2011 wagon

Volkswagen Golf Variant 5K 2012 wagon

Volkswagen Golf 5K 2012 convertible

Volkswagen Golf 5K 2014 convertible

Volkswagen Golf 5K 2015 interior

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
