Volkswagen Golf
Date of manufacture
2017 – 2020 (Five-door hatchback)
2017 – 2020 (Estate)
2017 – 2020 (Three-door hatchback)
Platform
MQB platform
Manufacturing locations
Wolfsburg, Germany
Zwickau, Germany
Changchun, People's Republic of China
Puebla, Mexico
São José dos Pinhais, Brazil
Designer
Marc Lichte
Klaus Bischoff
Tags
C-segment
German cars
The Volkswagen Golf is available as a five-door hatchback, estate and three-door hatchback. It has been produced since 2017 in countries such as Germany, the People's Republic of China, Mexico and Brazil on the MQB platform. Plug-in hybrid versions are also available. It offers a wide range of powertrains - including petrol, diesel, hybrid and electric motors - with the highest power output (228 kW) from the 2.0 TSI R engine and a top speed of 250 km/h. The most fuel-efficient engine, the 1.4 TSI GTE, has a fuel consumption of 1.6 l/100 km and emissions of 36 g/km. The luggage compartment of the five-door hatchback is 380 litres, the estate 605 litres and the three-door hatchback 380 litres. Safety was rated 5 out of 5 by EURONCAP in 2012.
Car body style
Five-door hatchback
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
5G Engine size

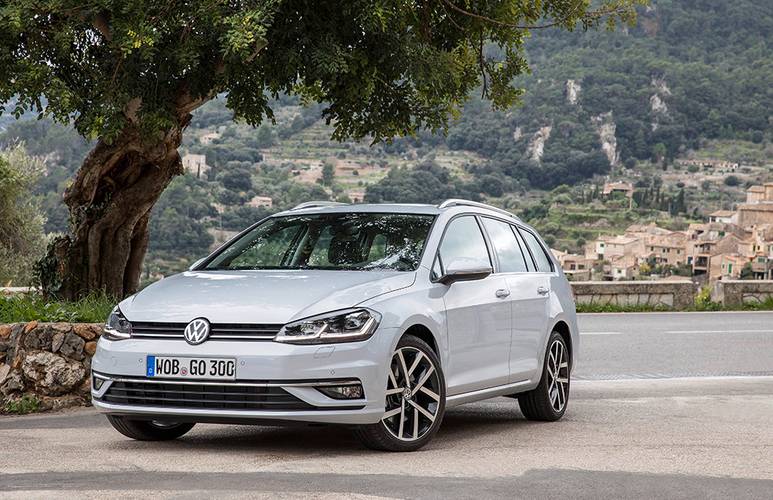

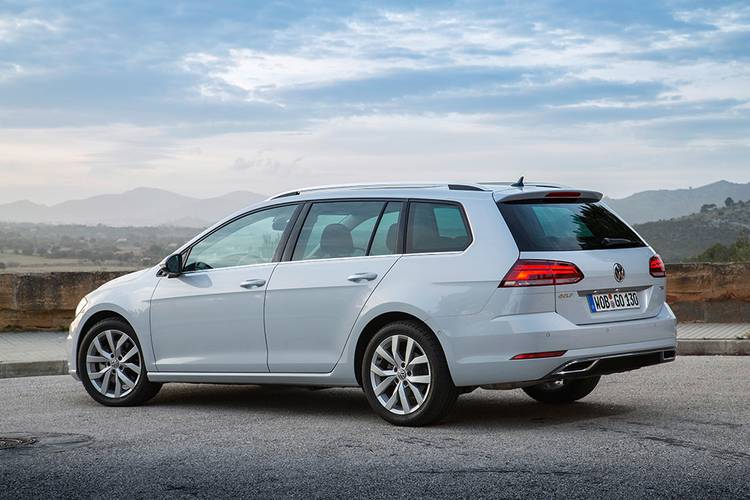

Estate (Variant)
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
5G Engine size
Diesel
Three-door hatchback
after upgrade (facelift)
Date of manufacture
2017 – 2020Internal designation
5G
Technical data
Five-door hatchback
| 1.0 TSI | 1.0 TSI | 1.0 TSI | 1.4 TGI | 1.4 TGI | 1.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1395 | 1395 | 999 |
| Maximum output / speed [kW/min-1] | 63/5000-5500 | 81/5000-5500 | 81/5000-5500 | 81/4800-6000 | 81/4800-6000 | 85/5000-5500 |
| Maximum torque [Nm/min-1] | 175/2000-3000 | 200/2000-3500 | 200/2000-3500 | 200/1500-3500 | 200/1500-3500 | 200/2000-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 180 | 196 | 196 | 195 | 195 | 198 |
| Acceleration 0–100 km/h [s] | 11.9 | 9.9 | 9.9 | 10.6 | 10.6 | 9,8 |
| Acceleration 0–80 km/h [s] | 7,6 | - | - | - | - | 6,5 |
| Acceleration 80–120 km/h [s] | 12.5 (16.0 (4th/5th gear) | - | - | - | - | 8.5 (11.0 (4th/5th gear) |
| City [l] | 5,7-6.0 | 5.9-6.0 | 5.6-5.8 | 7.3 [4.8 kg] | 6.6 [4.4 kg] | 5,7-5,4 |
| Out of town [l] | 4,1-4,3 | 4.1-4.2 | 4.2-4.3 | 4.6 [3.0 kg] | 4.6 [3.1 kg] | 4,6-4,4 |
| Combined [l] | 4,8-4,9 | 4.8-4.9 | 4.7-4.9 | 5.6 [3.6 kg] | 5.3 [3.5 kg] | 5,0-4,8 |
| CO2 emissions [g/km] | 109-112 | 109-112 | 107-111 | 127 [98 CNG] | 122 [127 kg] | 113-109 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1206-1240 | 1216 | 1236 | 1317 | 1336 | 1245 |
| Overall weight [kg] | 1720-1750 | 1720 | 1740 | 1850 | 1870 | 1760 |
| Maximum trailer weight unbraked/braked [kg] | 600-620/1100 | 600/1300 | 610/1300 | 650/1400 | 660/1400 | 620/1300 |
| Maximum front/rear axle load [kg] | 920/880 | - | - | - | - | 930/880 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 291 | 291 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1181 | -/1181 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 744 | 744 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1515 | 1515 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | - | - | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | - | - | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 [15 kg] | 50 [15 kg] | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4258 | 4258 | 4258 | 4258 | 4258 | 4258 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 TSI | 1.4 TSI | 1.4 TSI | 1.5 TGI | 1.5 TGI | 1.5 TSI ACT | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | from 2018 to | from 2018 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 1395 | 1395 | 1498 | 1498 | 1498 |
| Maximum output / speed [kW/min-1] | 85/5000-5500 | 92/5000-6000 | 92/5000-6000 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 198 | 204 | 204 | 206 | 206 | 210 |
| Acceleration 0–100 km/h [s] | 9,8 | 9.1 | 9.1 | 9.6 | 9.6 | 9.1 |
| Acceleration 0–80 km/h [s] | 6,5 | - | - | 6.6 | 6.6 | 6,2 |
| Acceleration 80–120 km/h [s] | - | - | - | 9.0 (12.0 (4th/5th gear) | - | 9.0 (11.5 (4th/5th gear) |
| City [l] | 5,5-5,4 | 6.7-6.9 | 6.1-6.4 | 4.7 kg | 4.5 kg | 6,2-6.7 |
| Out of town [l] | 4,5-4,4 | 4.3-4.5 | 4.3-4.6 | 2.6 kg | 2.9 kg | 4,0-4.4 |
| Combined [l] | 4,9-4,8 | 5.2-5.4 | 5.0-5.3 | 3.6 kg | 3.5 kg | 4,8-5.2 |
| CO2 emissions [g/km] | 111-109 | 120-122 | 116-121 | 98 | 95 | 110-119 |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1265 | 1246 | 1270 | 1350 | 1370 | 1280-1315 |
| Overall weight [kg] | 1780 | 1750 | 1770 | 1860 | 1890 | 1780-1800 |
| Maximum trailer weight unbraked/braked [kg] | 630/1300 | 620/1400 | 630/1400 | 670/1400 | 680/1700 | 640-650/1400 |
| Maximum front/rear axle load [kg] | 950/880 | - | - | 950/960 | 980/960 | 950/900 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 291 | 291 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1181 | -/1181 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 744 | 744 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1515 | 1515 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | - | - | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | - | - | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 9 [17.3 kg] | 9 [17.3 kg] | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4258 | 4258 | 4258 | 4258 | 4258 | 4258 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1492 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI ACT | 1.4 TSI | 1.4 TSI | 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI GTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from to 2018 | - | - | from to 2017 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1395 | 1395 | 1498 | 1498 | 1984 |
| Maximum output / speed [kW/min-1] | 96/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 169/4700-6200 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 350/1500-4600 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 |
| Compression ratio | 12,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 210 | 216 | 216 | 216 | 216 | 250 |
| Acceleration 0–100 km/h [s] | 9.1 | 8.2 | 8.2 | 8.3 | 8.3 | 6.4 |
| Acceleration 0–80 km/h [s] | 6,2 | - | - | 5.9 | 5.9 | - |
| Acceleration 80–120 km/h [s] | - | - | - | 7.5 (9.0 (4th/5th gear) | - | - |
| City [l] | 6,1-6.2 | 6.6-6.7 | 6.2-6.4 | 6.1-6.8 | 6.1-6.9 | 7.8 |
| Out of town [l] | 4,1-4.3 | 4.3-4.4 | 4.4-4.6 | 4.3-4.6 | 4.2-4.5 | 5.5 |
| Combined [l] | 4,8-5.0 | 5.2-5.3 | 5.0-5.2 | 5.0-5.4 | 4.9-5.2 | 6.4 |
| CO2 emissions [g/km] | 110-113 | 119-121 | 116-121 | 114-123 | 112-119 | 148 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1322-1340 | 1258 | 1280 | 1294-1320 | 1317-1340 | 1364 |
| Overall weight [kg] | 1810-1820 | 1760 | 1780 | 1790-1810 | 1810-1830 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | 660-670/1400 | - | - | 640-660/1500 | 650-670/1500 | 680/1600 |
| Maximum front/rear axle load [kg] | 970/900 | - | - | 960/900 | 980/900 | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2006 | 2006 | 2006 | 2006 | 2006 | 1996 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Wheel size rear | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4258 | 4258 | 4258 | 4258 | 4258 | 4268 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1492 | 1492 | 1492 | 1492 | 1492 | 1482 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2626 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1527 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1503 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | 12.4 | 12.4 | - |
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | - |
| Transition angle [°] | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI GTI | 2.0 TSI GTI Performance | 2.0 TSI GTI Performance | 2.0 TSI R | 2.0 TSI R | 2.0 TSI R | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | - | - | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 169/4700-6200 | 180/5000-62000 | 180/5000-62000 | 221/5500 | 228/5500-6500 | 228/5500-6500 |
| Maximum torque [Nm/min-1] | 350/1500-4600 | 370/1600-4300 | 370/1600-4300 | 400/2000-5200 | 380/2000-5400 | 380/2000-5400 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,3:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 248 | 250 | 248 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.4 | 6.2 | 6.2 | 4.7 | 5.1 | 4.6 |
| Acceleration 0–80 km/h [s] | - | 4.8 | 4.8 | 3.3 | - | - |
| Acceleration 80–120 km/h [s] | - | 5.0 (6.0 (4th/5th gear) | - | - | - | - |
| City [l] | 8.1-8.2 | 8.6-9.0 | 8.2-7.5 | 8.2-8.0 | 10.0-10.2 | 8.6-8.9 |
| Out of town [l] | 5.3-5.4 | 5.3-5.5 | 5.2-5.6 | 6.6-6.4 | 6.5-6.7 | 5.9-6.2 |
| Combined [l] | 6.3-6.4 | 6.5-6.8 | 6.3-6.3 | 7.2-7.0 | 7.8-8.0 | 6.9-7.2 |
| CO2 emissions [g/km] | 145-148 | 148-155 | 144-140 | 164-158 | 177-182 | 157-165 |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1386 | 1387-1405 | 1415-1425 | 1505 | 1483 | 1505 |
| Overall weight [kg] | 1870 | 1860-1870 | 1890-1910 | 1990 | 1960 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 690/1600 | 690-700/1600 | 700-710/1600 | - | - | - |
| Maximum front/rear axle load [kg] | - | 1020/900 | 1060/900 | 1070/970 | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | - | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 343 | 343 | 343 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1233 | -/1233 | -/1233 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1996 | 1996 | 1996 | 1996 | 1996 | 1996 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 225/40 R18 | 225/40 R18 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 225/40 R18 | 225/40 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4268 | 4268 | 4268 | 4263 | 4263 | 4263 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1482 | 1482 | 1482 | 1465 | 1465 | 1465 |
| Wheelbase [mm] | 2626 | 2626 | 2626 | 2626 | 2626 | 2626 |
| Front wheel track [mm] | 1527 | 1527 | 1527 | 1533 | 1533 | 1533 |
| Rear wheel track [mm] | 1503 | 1503 | 1503 | 1503 | 1503 | 1503 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 133 | 133 | 133 | 128 | 128 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI GTE | e-Golf | 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol supercharged + Electric | Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | - | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | - | 1598 | 1598 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 combustion 75/2500 el. 150 total | 100/3000-12000 | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3000 combustion 350 total | 290/0-3000 | 250/1500-3200 | 250/1500-3200 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | - | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | - | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 1 gear automatic | 5 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 222 [130 el.] | 150 | 198 | 198 | 216 | 214 |
| Acceleration 0–100 km/h [s] | 7.6 | 9.6 | 10.2 | 10,5 | 8,6-8,7 | 8,6-8,7 |
| Acceleration 0–80 km/h [s] | 4.9 | 6.9 | 7,0 | 7,2 | 6,3 | 6,3 |
| Acceleration 80–120 km/h [s] | - | 7.5 | 9.5 (13.0 (4th/5th gear) | - | 7.0 (9.0 (4th/5th gear) | - |
| City [l] | - | - | 4,6-4,8 | 4,1-4,8 | 5,0-5,4 | 5,0-5,4 |
| Out of town [l] | - | - | 3,8-3,9 | 3,8-3,9 | 3,7-3,8 | 3,8-4,0 |
| Combined [l] | 1.6-1.8 [11.4-12.0 kWh] | 13.2-14.1 kWh | 4,1-4,2 | 3,9-4,2 | 4,2-4,4 | 4,3-4,5 |
| CO2 emissions [g/km] | 36-40 | - | 106-111 | 102-107 | 109-115 | 111-118 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | 323 | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 8.7 kWh | Lithium-Ionen-Akkumulator, 35.8 kWh | - | - | - | - |
| Range with fully charged battery [km] | 45‐50 | 215-231 | - | - | - | - |
| Charging time |
|
| - | - | - | - |
| Number of modules/cells | - | 27/264 | - | - | - | - |
| Battery weight [kg] | - | 318 | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1615 | 1301-1355 | 1321-1375 | 1366-1415 | 1391-1445 |
| Overall weight [kg] | 2040 | 2020 | 1800-1860 | 1820-1880 | 1850-1930 | 1880-1960 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | - | 650-570/1500 | 660-680/1500 | 680-700/1600 | 690-720/1600 |
| Maximum front/rear axle load [kg] | 1080/1010 | 1020/1050 | 1020/890 | 1040/890 | 1050/930 | 1080/930 |
| Maximum vertical load on the tow bar [kg] | 80 | - | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 272 | 341 | 380 | 380 | 380 | 380 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1162 | -/1231 | -/1270 | -/1270 | -/1270 | -/1270 |
| Boot length [mm] | 744 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1515 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | - | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | - | - | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2016 | 2002 | 2006 | 2006 | 2006 | 2006 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | - | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4276 | 4270 | 4258 | 4258 | 4258 | 4258 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1484 | 1482 | 1492 | 1492 | 1492 | 1492 |
| Wheelbase [mm] | 2630 | 2629 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1533 | 1533 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1503 | 1503 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 143 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | 12.4 | 12.4 | 12.4 | 12.4 |
| Approach angle rear [°] | - | - | 17.5 | 17.5 | 17.5 | 17.5 |
| Transition angle [°] | - | - | 9.6 | 9.6 | 9.6 | 9.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 4MOTION | 2.0 TDI GTD | 2.0 TDI GTD | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | |||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 135/3500-4000 | 135/3500-4000 | |||
| Maximum torque [Nm/min-1] | 340/1750-3000 | 380/1750-3250 | 380/1750-3250 | |||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |||
| Compression ratio | 16,2:1 | 15,8:1 | 15,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Front | Front | |||
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | |||
| Drive specifications |
| - |
| |||
| Top speed [km/h] | 211 | 231 | 230 | |||
| Acceleration 0–100 km/h [s] | 8,6-8,7 | 7.5 | 7.4 | |||
| Acceleration 0–80 km/h [s] | 6,3 | - | 5.6 | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.6-6.0 | 5.2-5.5 | 5.1-5.3 | |||
| Out of town [l] | 4.2-4.7 | 4.0-4.3 | 3.8-4.4 | |||
| Combined [l] | 4.8-5.1 | 4.4-4.7 | 4.3-4.7 | |||
| CO2 emissions [g/km] | 127-134 | 116-125 | 113-124 | |||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1498-1535 | 1395 | 1416-1455 | |||
| Overall weight [kg] | 2000-2030 | 1890 | 1900-1930 | |||
| Maximum trailer weight unbraked/braked [kg] | 740-750/1700 | 690/1600 | 700-720/1600 | |||
| Maximum front/rear axle load [kg] | 1090/990 | - | 1080/900 | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 343 | 380 | 380 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1233 | -/1270 | -/1270 | |||
| Boot length [mm] | 839 | 839 | 839 | |||
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | |||
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | |||
| Boot height to headliner/ceiling [mm] | - | 587/900 | 587/900 | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 2006 | 1996 | 1996 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 55 | 50 | 50 | |||
| AdBlue tank volume [l] | 12 | 12 | 12 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |||
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Wheel size front | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | |||
| Wheel size rear | 6.5J x 16 | 7.5J x 17 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | |||
| Overall length [mm] | 4258 | 4258 | 4258 | |||
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | |||
| Overall height [mm] | 1492 | 1492 | 1492 | |||
| Wheelbase [mm] | 2620 | 2620 | 2620 | |||
| Front wheel track [mm] | 1549 | 1549 | 1549 | |||
| Rear wheel track [mm] | 1521 | 1521 | 1521 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 142 | 142 | 142 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 12.4 | 12.4 | 12.4 | |||
| Approach angle rear [°] | 17.5 | 17.5 | 17.5 | |||
| Transition angle [°] | 9.6 | 9.6 | 9.6 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1018 | 1018 | 1018 | |||
| Headroom rear [mm] | 967 | 967 | 967 | |||
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | |||
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Variant)
| 1.0 TSI | 1.0 TSI | 1.4 TGI | 1.4 TGI | 1.0 TSI | 1.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 1395 | 1395 | 999 | 999 |
| Maximum output / speed [kW/min-1] | 81/5000-5500 | 81/5000-5500 | 81/4800-6000 | 81/4800-6000 | 85/5000-5500 | 85/5000-5500 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/2000-3500 | 200/1500-3500 | 200/1500-3500 | 200/2000-3500 | 200/2000-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 76,5 x 75,6 | 76,5 x 75,6 | 74,5 x 76,4 | 74,5 x 76,4 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 197 | 197 | 196 | 196 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 10.4 | 10.4 | 10.9 | 10.9 | 10,2 | 10,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | 6,8 | 6,8 |
| Acceleration 80–120 km/h [s] | - | - | - | - | 9.0 (12.0 (4th/5th gear) | - |
| City [l] | 6.0-6.1 | 5.9-6.0 | 7.3 [4.8 kg] | 6.6 [4.4 kg] | 5,9-5,6 | 5,7-5,5 |
| Out of town [l] | 4.2-4.3 | 4.3-4.4 | 4.6 [3.0 kg] | 4.6 [3.1 kg] | 4,7-4,5 | 4,7-4,6 |
| Combined [l] | 4.9-5.0 | 4.9-5.0 | 5.6 [3.6 kg] | 5.3 [3.5 kg] | 5,1-4,9 | 5,0-4,9 |
| CO2 emissions [g/km] | 112-115 | 111-114 | 127 [98 CNG] | 122 [127 CNG] | 116-111 | 114-112 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1295 | 1317 | 1363 | 1391 | 1310 | 1330 |
| Overall weight [kg] | 1850 | 1860 | 1860 | 1890 | 1860 | 1880 |
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 650/1500 | 650/1400 | 660/1400 | 650/1300 | 660/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | 910/1000 | 930/1000 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 424 | 424 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1439 | -/1439 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1826 | 1826 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | - | - | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 [15 kg] | 50 [15 kg] | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | 4567 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1496 | 1496 | 1496 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI | 1.4 TSI | 1.5 TGI | 1.5 TSI ACT | 1.5 TSI ACT | 1.4 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | - | - | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1498 | 1498 | 1498 | 1395 |
| Maximum output / speed [kW/min-1] | 92/5000-6000 | 92/5000-6000 | 96/5000-6000 | 96/5000-6000 | 96/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 200/1400-4000 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 80,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
| - |
| Top speed [km/h] | 205 | 205 | 207 | 211 | 211 | 218 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.5 | 10.9 | 9.5 | 9.5 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | 6.8 | 6,4 | 6,4 | - |
| Acceleration 80–120 km/h [s] | - | - | - | 9,5 (12,5 (4th/5th gear) | - | - |
| City [l] | 7.0-7.1 | 6.3-6.4 | 4.7 kg | 6,3-6.7 | 6,1-6.2 | 6.7-6.8 |
| Out of town [l] | 4.5-4.6 | 4.5-4.6 | 3.0 kg | 4,1-4.4 | 4,1-4.2 | 4.5-4.6 |
| Combined [l] | 5.4-5.5 | 5.2-5.3 | 3.6 kg | 4,9-5.2 | 4,8-5.0 | 5.3-5.4 |
| CO2 emissions [g/km] | 123-125 | 118-120 | 99 | 113-119 | 110-113 | 122-124 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1316 | 1338 | 1435 | 1346-1370 | 1378-1395 | 1332 |
| Overall weight [kg] | 1850 | 1880 | 1930 | 1870-1900 | 1910-1920 | 1870 |
| Maximum trailer weight unbraked/braked [kg] | 650/1400 | 660/1400 | 710/1400 | 670-680/1400 | 680-690/1400 | - |
| Maximum front/rear axle load [kg] | - | - | 950/1030 | 930/1020 | 950/1020 | - |
| Maximum vertical load on the tow bar [kg] | - | - | 80 | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 424 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1439 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | - | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 9 [17.3 kg] | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | 4567 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1496 | 1496 | 1496 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 TSI | 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI R | 2.0 TSI R | 1.8 TSI Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | - | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1498 | 1498 | 1984 | 1984 | 1798 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 | 221/5500 | 228/5500-6500 | 132/5100-6200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 | 400/2000-5200 | 380/2000-5400 | 250/1250-5000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 84,2 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 9,3:1 | 9,3:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 218 | 218 | 218 | - | 250 | 217 |
| Acceleration 0–100 km/h [s] | 8.6 | 8.7 | 8.7 | - | 4.8 | 7.8 |
| Acceleration 0–80 km/h [s] | - | 6,1 | 6,1 | - | - | - |
| Acceleration 80–120 km/h [s] | - | 8,0 (9,5 (4th/5th gear) | - | - | - | - |
| City [l] | 6.2-6.3 | 6,1-6.8 | 6,1-6.9 | - | 8.8-9.0 | 8.2-8.3 |
| Out of town [l] | 4.4-4.5 | 4,3-4.6 | 4,2-4.5 | - | 6.1-6.3 | 5.8 |
| Combined [l] | 5.0-5.1 | 5,0-5.4 | 4,9-5.2 | - | 7.1-7.3 | 6.7 |
| CO2 emissions [g/km] | 116-119 | 114-123 | 112-118 | - | 161-166 | 156-157 |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1357 | 1360-1375 | 1384-1395 | - | 1593 | 1537 |
| Overall weight [kg] | 1890 | 1890-1910 | 1910-1930 | - | 2110 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | - | 640-680/1500 | 650-690/1500 | - | - | 750/1500 |
| Maximum front/rear axle load [kg] | - | 940/1020 | 960/1020 | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2020 | 2020 | 2020 | 2007 | 2007 | 2020 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 225/40 R18 | 205/55 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 225/40 R18 | 205/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.5J x 18 | 7.5J x 18 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4580 | 4586 | 4567 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1472 | 1472 | 1515 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2627 | 2620 | 2629 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1533 | 1533 | 1533 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1504 | 1504 | 1504 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 126 | 126 | 175 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3200 | 250/1500-3200 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 5 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 200 | 200 | 218 | 216 | 214 | 214 |
| Acceleration 0–100 km/h [s] | 10,7-10,8 | 10,7-10,8 | 8,9-9,0 | 8,9-9,0 | 8.9 | 8,9-9,0 |
| Acceleration 0–80 km/h [s] | 7,4 | 7,4 | 6,5 | 6,5 | - | 6,5 |
| Acceleration 80–120 km/h [s] | 10,0 (14,0 (4th/5th gear) | - | 7,5 (9,5 (4th/5th gear) | - | - | - |
| City [l] | 4,6-4.8 | 4,2-4.8 | 5,2-5.4 | 5,1-5.3 | 5.9-6.0 | 5,6-6,1 |
| Out of town [l] | 3,8-3.9 | 3,8-3.9 | 3,7-3.9 | 3.8-4.1 | 4.4-4.5 | 4,3-4,6 |
| Combined [l] | 4,1-4.2 | 4,0-4.2 | 4,3-4.4 | 4,4-4.5 | 5.0-5.1 | 4,9-5,1 |
| CO2 emissions [g/km] | 106-111 | 103-111 | 111-115 | 114-117 | 130-132 | 128-132 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1376-1395 | 1395-1420 | 1438-1460 | 1458-1485 | 1523 | 1554-1580 |
| Overall weight [kg] | 1930-1950 | 1940-1970 | 1970-1990 | 1990-2020 | 2050 | 2080-2110 |
| Maximum trailer weight unbraked/braked [kg] | 680-690/1500 | 690-710/1500 | 710-730/1600 | 720-740/1600 | - | 750/2000 |
| Maximum front/rear axle load [kg] | 990/1010 | 1010/1010 | 1020/1020 | 1050/1020 | - | 1080/1080 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | 605 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | 1055 |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | 4567 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1496 | 1496 | 1496 |
| Wheelbase [mm] | 2620 | 2620 | 2620 | 2620 | 2620 | 2620 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1520 | 1520 | 1520 | 1520 | 1520 | 1520 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 140 | 140 | 140 | 140 | 140 | 140 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | 980 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI GTD | 2.0 TDI GTD | 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | |
| Maximum output / speed [kW/min-1] | 135/3500-4000 | 135/3500-4000 | 110/3500-4000 | 110/3500-4000 | 135/3500-4000 | |
| Maximum torque [Nm/min-1] | 380/1750-3250 | 380/1750-3250 | 340/1750-3000 | 340/1750-3000 | 380/1750-3250 | |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | |
| Compression ratio | 15,8:1 | 15,8:1 | 16,2:1 | 16,2:1 | 15,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | |
| Drive specifications | - |
|
|
|
| |
| Top speed [km/h] | 231 | 230 | 207 | 207 | 219 | |
| Acceleration 0–100 km/h [s] | 7.9 | 7.8 | 8.9 | 8,9-9,0 | 7,8-7,9 | |
| Acceleration 0–80 km/h [s] | - | 5.9 | - | 6,5 | 5,4 | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.5 | 5.4-5.3 | 6.0-6.1 | 5,6-6,2 | 5,9-6,0 | |
| Out of town [l] | 4.3 | 4.5-4.1 | 4.5-4.6 | 4,5-4,7 | 4,5-4,9 | |
| Combined [l] | 4.7 | 4.8-4.6 | 5.1-5.2 | 4,9-5,2 | 5,0-5,3 | |
| CO2 emissions [g/km] | 124 | 125-120 | 133-135 | 129-136 | 131-139 | |
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1466 | 1492-1520 | 1541 | 1572-1595 | 1576-1605 | |
| Overall weight [kg] | 1990 | 2020-2050 | 2050 | 2080-2110 | 2090-2120 | |
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 740-750/1600 | - | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | 1060/1040 | - | 1080/1080 | 1090/1080 | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 605 | 605 | 605 | 605 | 605 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1620 | -/1620 | -/1620 | -/1620 | -/1620 | |
| Boot length [mm] | 1055 | 1055 | 1055 | 1055 | 1055 | |
| Boot length with rear seats folded [mm] | 1831 | 1831 | 1831 | 1831 | 1831 | |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | |
| Boot height to headliner/ceiling [mm] | 584/936 | 584/936 | 584/936 | 584/936 | 584/936 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | 2020 | 2020 | 2020 | 2020 | 2020 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 55 | 55 | 55 | |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 205/55 R17 | 205/55 R17 | 205/55 R17 | |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | |
| Overall height [mm] | 1515 | 1515 | 1515 | 1515 | 1515 | |
| Wheelbase [mm] | 2620 | 2620 | 2629 | 2629 | 2629 | |
| Front wheel track [mm] | 1533 | 1533 | 1533 | 1533 | 1533 | |
| Rear wheel track [mm] | 1504 | 1504 | 1504 | 1504 | 1504 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 131 | 131 | 175 | 175 | 175 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | |
| Headroom rear [mm] | 980 | 980 | 980 | 980 | 980 | |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | |
| Rear elbow/shoulder width [mm] | 1441/- | 1441/- | 1441/- | 1441/- | 1441/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Three-door hatchback
| 2.0 TSI GTI | 2.0 TSI GTI | 2.0 TSI GTI Performance | 2.0 TSI GTI Performance | 2.0 TSI R | 2.0 TSI R | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from to 2017 | - | - | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 169/4700-6200 | 169/4700-6200 | 180/5000-6200 | 180/5000-6200 | 228/5500-6500 | 228/5500-6500 |
| Maximum torque [Nm/min-1] | 350/1500-4600 | 350/1500-4600 | 370/1600-4300 | 370/1600-4300 | 380/2000-5400 | 380/2000-5400 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 9,6:1 | 9,6:1 | 9,6:1 | 9,6:1 | 9,3:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 250 | 248 | 250 | 248 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.4 | 6.4 | 6.4 | 6.4 | 5.1 | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.8 | 8.1-8.2 | 8.7-7.8 | 8.1-8.2 | 10.0-10.2 | 8.6-8.9 |
| Out of town [l] | 5.5 | 5.3-5.4 | 5.5-5.3 | 5.3-5.4 | 6.5-6.7 | 5.9-6.2 |
| Combined [l] | 6.4 | 6.3-6.4 | 6.6-6.4 | 6.3-6.4 | 7.8-8.0 | 6.9-7.2 |
| CO2 emissions [g/km] | 148 | 145-148 | 150-148 | 144-148 | 177-182 | 157-165 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1364 | 1386 | 1364-1387 | 1386-1415 | 1483 | 1505 |
| Overall weight [kg] | 1850 | 1870 | 1850-1860 | 1870-1890 | 1960 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 680/1600 | 690/1600 | 680-690/1600 | 690-700/1600 | - | - |
| Maximum front/rear axle load [kg] | - | - | 1010/900 | 1040/900 | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | 80 | 80 | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 380 | 380 | 380 | 380 | 343 | 343 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | -/1270 | -/1270 | -/1233 | -/1233 |
| Boot length [mm] | 839 | 839 | 839 | 839 | 839 | 839 |
| Boot length with rear seats folded [mm] | 1558 | 1558 | 1558 | 1558 | 1558 | 1558 |
| Boot width between wheels/max [mm] | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- | 1003/- |
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 | 587/900 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1996 | 1996 | 1996 | 1996 | 1996 | 1996 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser |
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar | multilink, stabiliser bar |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 225/40 R18 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/45 R17 | 225/40 R18 | 225/40 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 18 | 7.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- | 10.9/- |
| Overall length [mm] | 4268 | 4268 | 4268 | 4268 | 4263 | 4263 |
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 | 1799/2027 |
| Overall height [mm] | 1482 | 1482 | 1482 | 1482 | 1465 | 1465 |
| Wheelbase [mm] | 2626 | 2626 | 2626 | 2626 | 2626 | 2626 |
| Front wheel track [mm] | 1527 | 1527 | 1527 | 1527 | 1533 | 1533 |
| Rear wheel track [mm] | 1503 | 1503 | 1503 | 1503 | 1503 | 1503 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 133 | 133 | 133 | 133 | 128 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 967 | 967 | 967 | 967 | 967 | 967 |
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- | 1469/- |
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- | 1440/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI GTD | 2.0 TDI GTD | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 135/3500-4000 | 135/3500-4000 | ||||
| Maximum torque [Nm/min-1] | 380/1750-3250 | 380/1750-3250 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 15,8:1 | 15,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 230 | 230 | ||||
| Acceleration 0–100 km/h [s] | 7.4-7.5 | 7.4 | ||||
| Acceleration 0–80 km/h [s] | - | 5.6 | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.2-5.5 | 5.1-5.3 | ||||
| Out of town [l] | 4.0-4.3 | 3.8-4.4 | ||||
| Combined [l] | 4.4-4.7 | 4.3-4.7 | ||||
| CO2 emissions [g/km] | 116-125 | 113-124 | ||||
| Emission standard | EU6 | EU6 - Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1395 | 1416-1455 | ||||
| Overall weight [kg] | 1890 | 1900-1930 | ||||
| Maximum trailer weight unbraked/braked [kg] | 690/1600 | 700-720/1600 | ||||
| Maximum front/rear axle load [kg] | - | 1080/900 | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 380 | 380 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1270 | -/1270 | ||||
| Boot length [mm] | 839 | 839 | ||||
| Boot length with rear seats folded [mm] | 1558 | 1558 | ||||
| Boot width between wheels/max [mm] | 1003/- | 1003/- | ||||
| Boot height to headliner/ceiling [mm] | 587/900 | 587/900 | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 1996 | 1996 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | - | 12 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson, lower triangular arms, torsion stabiliser | MacPherson, lower triangular arms, torsion stabiliser | ||||
| Rear suspension | multilink, stabiliser bar | multilink, stabiliser bar | ||||
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | ||||
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | ||||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | ||||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.9/- | 10.9/- | ||||
| Overall length [mm] | 4258 | 4258 | ||||
| Overall width without/including mirrors [mm] | 1799/2027 | 1799/2027 | ||||
| Overall height [mm] | 1492 | 1492 | ||||
| Wheelbase [mm] | 2620 | 2620 | ||||
| Front wheel track [mm] | 1549 | 1549 | ||||
| Rear wheel track [mm] | 1521 | 1521 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 142 | 142 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 12.4 | 12.4 | ||||
| Approach angle rear [°] | 17.5 | 17.5 | ||||
| Transition angle [°] | 9.6 | 9.6 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1018 | 1018 | ||||
| Headroom rear [mm] | 967 | 967 | ||||
| Front elbow/shoulder width [mm] | 1469/- | 1469/- | ||||
| Rear elbow/shoulder width [mm] | 1440/- | 1440/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
