Volkswagen Multivan

Date of manufacture

10/2021 – to this day (VAN)

Platform

MQB

Manufacturing locations

Hanover, Germany

Designer

Car body style

VAN

Date of manufacture

10/2021 – to this day

Internal designation

Engine size

Petrol

1.5 TSI

2.0 TSI

long

Petrol + Electric

1.4 eHybrid

long

Euro NCAP

Technical data

VAN

	1.5 TSI	2.0 TSI	long	long	1.4 eHybrid	long
Date of sale	-	-	-	-	-	-
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged	Petrol supercharged + Electric	Petrol supercharged + Electric
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	1498	1984	1498	1984	1395	1395
Maximum output / speed [kW/min-1]	100/5000-6000	150/5000-6000	100/5000-6000	150/5000-6000	110/5000-6000 combustion 85/2500-4500 el. 160/4900-6500 total	110/5000-6000 combustion 85/2500-4500 el. 160/4900-6500 total
Maximum torque [Nm/min-1]	220/1750-3500	320/1600-4300	220/1750-3500	320/1600-4300	250/1550-3500 combustion 350/1000-4100 total	250/1550-3500 combustion 350/1000-4100 total
Bore and stroke [mm x mm]	74,5 x 85,9	82,5 x 92,8	74,5 x 85,9	82,5 x 92,8	74,5 x 80,0	74,5 x 80,0
Compression ratio	-	-	-	-	-	-
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection turbo-supercharged variable timing of intake and exhaust valves operation of engine in the Miller cycle Gasoline Particulate Filter start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift Gasoline Particulate Filter start&stop system brake energy recuperation	direct injection turbo-supercharged variable timing of intake and exhaust valves operation of engine in the Miller cycle Gasoline Particulate Filter start&stop system brake energy recuperation	direct and indirect injection system turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Audi valvelift Gasoline Particulate Filter start&stop system brake energy recuperation	Plug‐in Hybrid direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation	Plug‐in Hybrid direct injection turbo-supercharged variable timing of intake and exhaust valves Gasoline Particulate Filter start&stop system brake energy recuperation

Drive axle	Front	Front	Front	Front	Front	Front
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic	6 gear automatic	6 gear automatic
Drive specifications	-	seven-speed dual-clutch automatic gearbox DSG	-	seven-speed dual-clutch automatic gearbox DSG	six-speed dual-clutch automatic gearbox DSG	six-speed dual-clutch automatic gearbox DSG

Top speed [km/h]	182	200	182	200	190	190
Acceleration 0–100 km/h [s]	13,5	9,4	13.5	9.4	11,6	11.6
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	8,0-7,8	9,5	8.0	9.5	-	-
Out of town [l]	6,0-5,9	6,6	6.0	6.6	-	-
Combined [l]	7,8-8,7	9,8-8,8	8.7-7.8	9.8-8.8	1.5 [14.6 kWh]	1.5 [14.6 kWh]
CO2 emissions [g/km]	153-150	221-199	198-178	221-199	34	34

Low speed [l]	9.7	12.5	9.7	12.5	-	-
Medium speed [l]	7.6	8.4	7.6	8.5	-	-
High speed [l]	6.7	7.3	6.7	7.3	-	-
Extra high speed [l]	8.1	8.7	8.1	8.8	-	-
Combined speed [l]	7.8	8.7	7.8	8.7	1.7 [17.0 kWh]	1.7 [16.9 kWh]
CO2 emissions [g/km]	176	198	177	198	39	38

Emission standard	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d	Euro 6d
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

System voltage [V]	-	-	-	-	-	-
Battery type and capacity	-	-	-	-	Lithium-Ionen-Akkumulator, 13.0 kWh	Lithium-Ionen-Akkumulator, 13.0 kWh
Range with fully charged battery [km]	-	-	-	-	46-50 [WLTP]	46-50 [WLTP]
Charging time	-	-	-	-	to 100%, 5:00 hodiny, charger 2.3 kW AC to 100%, 3:40 hodiny, charger 3.6 kW AC	to 100%, 5:00 hodiny, charger 2.3 kW AC to 100%, 3:40 hodiny, charger 3.6 kW AC
Number of modules/cells	-	-	-	-	-	-
Battery weight [kg]	-	-	-	-	-	-
Charger	-	-	-	-	-	-

Standby weight [kg]	1942	2001	1964	2023	2120	2133
Overall weight [kg]	2600	2850	2600	2850	2750	2750
Maximum trailer weight unbraked/braked [kg]	750/1600	750/2000	750/1600	750/2000	750/1600	750/1600
Maximum front/rear axle load [kg]	1400/1400	1510/1450	1400/1400	1510/1450	1510/1460	1510/1450
Maximum vertical load on the tow bar [kg]	80	80	80	80	80	80
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	469	469	763	763	469	763
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1850-3672	-/1850-3672	-/2171-4005	-/2171-4005	-/1850-3672	-/2171-4005
Boot length [mm]	461	461	661	661	461	661
Boot length with rear seats folded [mm]	1316-2425	1316-2425	1516-2625	1516-2625	1316-2425	1516-2625
Boot width between wheels/max [mm]	1207/1665	1207/1665	1207/1665	1207/1665	1207/1665	1207/1665
Boot height to headliner/ceiling [mm]	-/1312	-/1312	-/1312	-/1312	-/1312	-/1312
Loading edge height [mm]	580	580	583	583	580	583
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	1169	1169	1169	1169	1169	1169
Boot opening width min/max [mm]	1312/-	1312/-	1312/-	1312/-	1312/-	1312/-

Number of doors	5	5	5	5	5	5
Number of seats	6-7	6-7	6-7	6-7	6-7	6-7
Fuel tank volume [l]	60	60	60	60	45	45
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	0.30	0.30	0.30	0.30	0.30	0.30
Front suspension	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson	MacPherson
Rear suspension	angled swing axle	angled swing axle	angled swing axle	angled swing axle	angled swing axle	angled swing axle
Tyre dimensions front	215/65 R16 102H XL	235/55 R17 103H XL	215/65 R16 102H XL	235/55 R17 103H XL	235/55 R17 103H XL	235/55 R17 103H XL
Tyre dimensions rear	215/65 R16 102H XL	235/55 R17 103H XL	215/65 R16 102H XL	235/55 R17 103H XL	235/55 R17 103H XL	235/55 R17 103H XL
Wheel size front	6.5J x 16	6.5J x 17	6.5J x 16	6.5J x 17	6.5J x 17	6.5J x 17
Wheel size rear	6.5J x 16	6.5J x 17	6.5J x 16	6.5J x 17	6.5J x 17	6.5J x 17
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.1/-	12.1/-	12.1/-	12.1/-	12.1/-	12.1/-

Overall length [mm]	4973	4973	5173	5173	4973	5173
Overall width without/including mirrors [mm]	1941/2252	1941/2252	1941/2252	1941/2252	1941/2252	1941/2252
Overall height [mm]	1907	1907	1907	1907	1907	1907
Wheelbase [mm]	3124	3124	3124	3124	3124	3124
Front wheel track [mm]	-	-	-	-	-	-
Rear wheel track [mm]	-	-	-	-	-	-
Forward overhang [mm]	952	952	952	952	952	952
Rear overhang [mm]	897	897	1097	1097	897	1097
Clearance [mm]	152	152	152	152	152	152
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	18.0	18.0	18.0	18.0	18.0	18.0
Approach angle rear [°]	16.6	16.6	13.2	13.2	16.6	13.2
Transition angle [°]	11.8	11.8	11.8	11.8	11.8	11.8
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

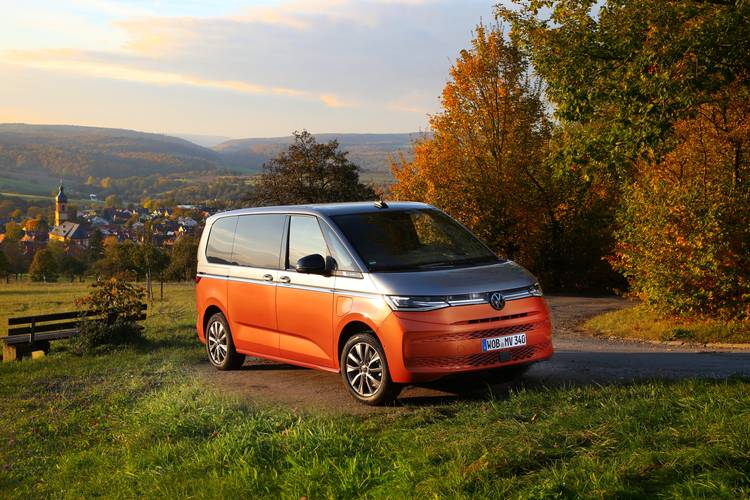

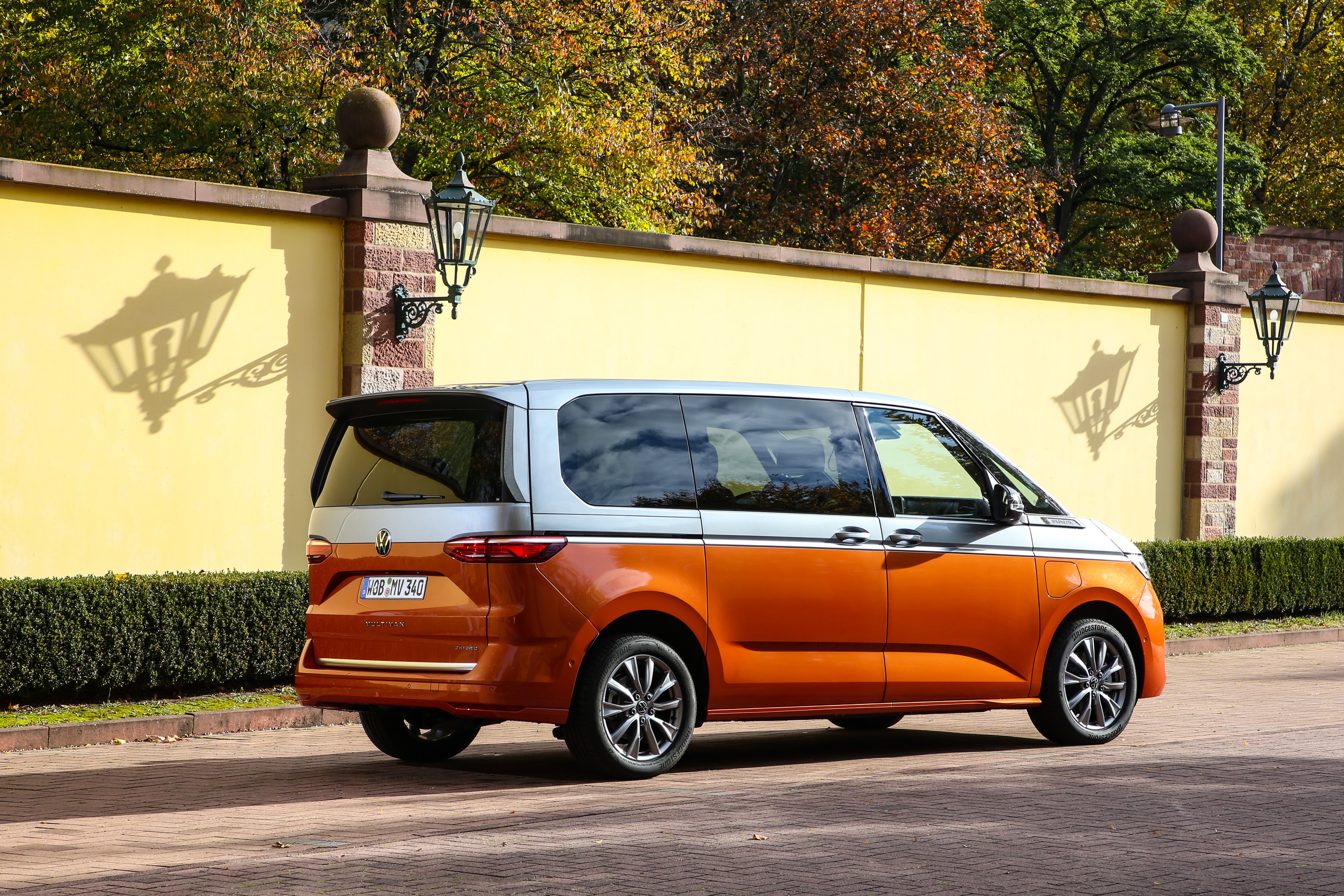

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
