Volkswagen Passat
Date of manufacture
2019 – 12/2021 (Sedan)
2019 – to this day (Estate)
Platform
Volkswagen Group MQB
Manufacturing locations
Emden, Germany
Zwickau, Germany
Changchun, People's Republic of China
Designer
Philipp Römers
Tags
D-segment
German cars
The Volkswagen Passat is available in sedan and estate versions, manufactured since 2019. The car is built on the Volkswagen Group MQB platform and offers petrol, diesel and hybrid powertrains with a maximum output of 206 kW from the 2.0 TSI Alltrack 4MOTION. The top speed is 250 km/h. The most efficient version, the 1.4 TSI GTE, has a combined fuel consumption of 1.1 l/100 km and CO2 emissions of 24 g/km. The sedan version has a luggage compartment volume of 586 l, and the estate version has 650 l. The model successfully passed the EURONCAP 2014 safety tests and received a rating of 5 out of 5. The car is manufactured in Germany, Czech Republic and the People's Republic of China and also offers hybrid and plug-in hybrid models.
Car body style

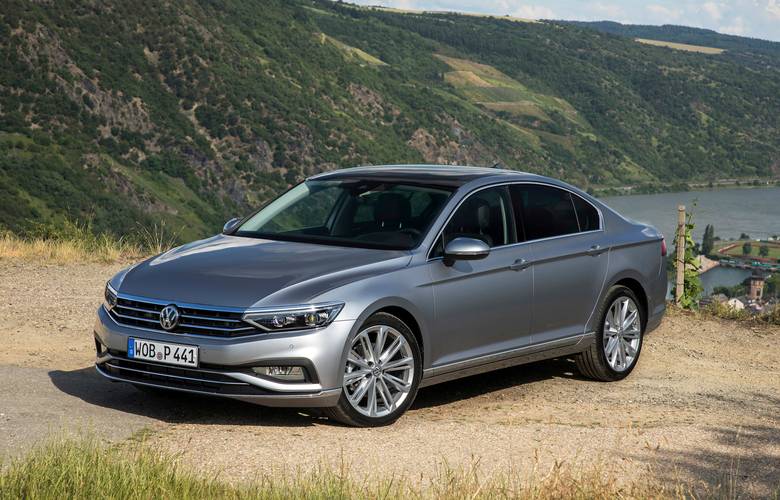

Sedan
after upgrade (facelift)
Date of manufacture
2019 – 12/2021Internal designation
B8Engine size
Estate (Variant)
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
B8Engine size
PetrolPetrol + Electric
Diesel
Technical data
Sedan
| 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI | 2.0 TSI 4MOTION | 1.4 TSI GTE | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 200 | 115 combustion 85/2500 el. 160 total | 88 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 350/2000-4500 | 250/1550-3500 combustion 400 total | 250/1500-3250 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 10,5:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 220 | 220 | 232 | 250 | 222 | 205 |
| Acceleration 0–100 km/h [s] | 8.7 | 8.7 | 7.7 | 5.8 | 7.4 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.3 | 6.2 | 8.4-8.0 | 9.0-8.9 | - | 4.6 |
| Out of town [l] | 4.4 | 4.8 | 5.3-5.2 | 6.1-6.0 | - | 3.9-3.7 |
| Combined [l] | 5.1 | 5.3 | 6.4-6.3 | 7.1 | - | 4.2-4.1 |
| CO2 emissions [g/km] | - | - | 146-143 | 163-162 | - | 109-105 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7.4-6.1 | 7.6-6.2 | 6.9 | - | 1.7-1.1 [15.3-14.3 kWh] | - |
| CO2 emissions [g/km] | 167-138 | 171-141 | 158 | - | 38-24 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.0 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 59 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1433 | 1441 | 1570 | 1680 | 1729 | 1500 |
| Overall weight [kg] | 2000 | 2000 | 2130 | 2230 | 2230 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 710/1600 | 720/1600 | 750/1800 | 750/2200 | 750/1600 | 750/1500 |
| Maximum front/rear axle load [kg] | 1020/1030 | 1030/1020 | 1070/1110 | 1110/1170 | 1130/1150 | 1070/1030 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |

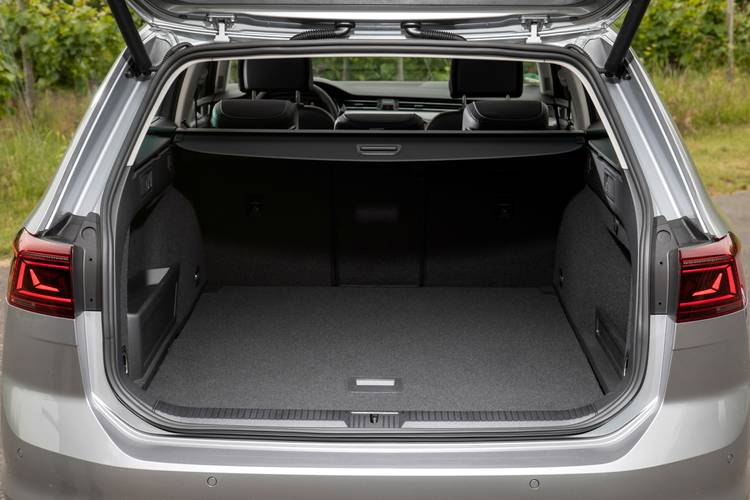

| Boot volume [l] | 586 | 586 | 586 | 586 | 402 | 586 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/1152 | -/1152 | -/968 | -/1152 |
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | 1194 | 1194 |

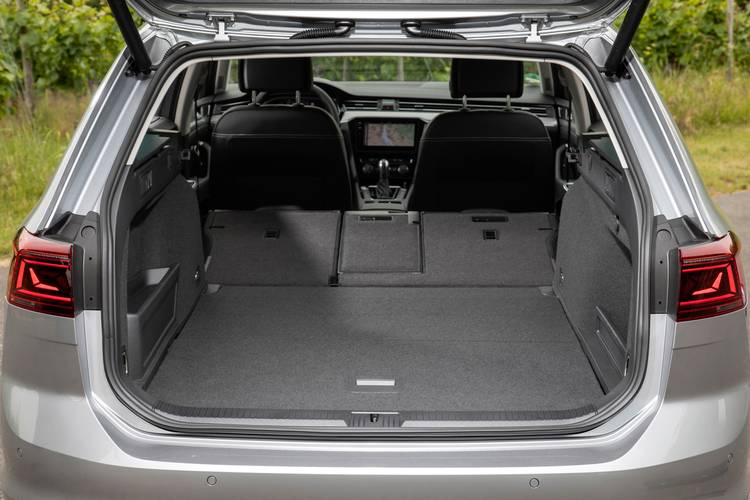

| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | 2052 | 2052 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | 1752 | 1747 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 50 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4775 | 4775 | 4775 | 4775 | 4775 | 4775 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2786 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | from to 2020 | from to 2020 | from 2020 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 90 | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | 147/3500-4200 |
| Maximum torque [Nm/min-1] | 250/1500-3250 | 340/1600-3000 | 360/1600-2750 | 400/1750-3000 | 400/1750-3000 | 400/1750-3500 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 204 | 223 | 220 | 236 | 231 | 237 |
| Acceleration 0–100 km/h [s] | 11.0 | 8.9 | 8.9 | 7.9 | 7.7 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 4.6-4.5 | 4.5-4.4 | 5.2 | 5.8-5.6 | - |
| Out of town [l] | - | 3.6-3.5 | 3.7-3.6 | 4.0-3.9 | 4.4-4.3 | - |
| Combined [l] | - | 4.0-3.8 | 4.0-3.9 | 4.5-4.4 | 4.9-4.8 | - |
| CO2 emissions [g/km] | - | 105-101 | 106-103 | 117-116 | 129-126 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 5.7-4.7 | 5.7-4.7 | 5.6-4.7 | - | - | 6.2-5.3 |
| CO2 emissions [g/km] | 148-123 | 149-124 | 148-123 | - | - | 161-139 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1527 | 1531 | 1562 | 1560 | 1635 | 1554 |
| Overall weight [kg] | 2100 | 2100 | 2130 | 2110 | 2210 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/2000 | 750/2000 | 750/2000 | 750/2200 | 750/2000 |
| Maximum front/rear axle load [kg] | 1100/1050 | 1100/1050 | 1130/1050 | 1120/1040 | 1130/1130 | 1110/1060 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 586 | 586 | 586 | 586 | 586 | 586 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot length [mm] | 1194 | 1194 | 1194 | 1194 | 1194 | 1194 |
| Boot length with rear seats folded [mm] | 2052 | 2052 | 2052 | 2052 | 2052 | 2052 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1747 | 1747 | 1747 | 1747 | 1747 | 1747 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 16 | 16 | 16 | 16 | 16 | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4775 | 4775 | 4775 | 4775 | 4775 | 4775 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2786 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1034 | 1034 | 1034 | 1034 | 1034 | 1034 |
| Headroom rear [mm] | 964 | 964 | 964 | 964 | 964 | 964 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - |    | - | - |
| Clean Air Index | - | - | - | 4.6/10 | - | - |
| Energy Efficiency Index | - | - | - | 6.0/10 | - | - |
| GHG index | - | - | - | 2.1/10 | - | - |
| 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 147/3500-4200 | 176/4000 | ||||
| Maximum torque [Nm/min-1] | 400/1750-3500 | 500/1750-2500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 16,0:1 | 15,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 234 | 247 | ||||
| Acceleration 0–100 km/h [s] | 7.0 | 6.4 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | - | 6.8-6.7 | ||||
| Out of town [l] | - | 5.1 | ||||
| Combined [l] | - | 5.8-5.7 | ||||
| CO2 emissions [g/km] | - | 151-148 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 6.7-5.8 | - | ||||
| CO2 emissions [g/km] | 175-153 | - | ||||
| Emission standard | Euro 6d | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1634 | 1730 | ||||
| Overall weight [kg] | 2200 | 2270 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | ||||
| Maximum front/rear axle load [kg] | 1140/1110 | 1170/1150 | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | ||||
| Boot volume [l] | 586 | 586 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1152 | -/1152 | ||||
| Boot length [mm] | 1194 | 1194 | ||||
| Boot length with rear seats folded [mm] | 2052 | 2052 | ||||
| Boot width between wheels/max [mm] | 1005/- | 1005/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 1747 | 1747 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 66 | 66 | ||||
| AdBlue tank volume [l] | 16 | 16 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | ||||
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | ||||
| Wheel size front | 6.5J x 16 | 7.0J x 17 | ||||
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | ||||
| Overall length [mm] | 4775 | 4775 | ||||
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | ||||
| Overall height [mm] | 1483 | 1483 | ||||
| Wheelbase [mm] | 2786 | 2786 | ||||
| Front wheel track [mm] | 1578 | 1578 | ||||
| Rear wheel track [mm] | 1564 | 1564 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 144 | 144 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1034 | 1034 | ||||
| Headroom rear [mm] | 964 | 964 | ||||
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | ||||
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate (Variant)
| 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | 2.0 TSI Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | from to 2020 | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 200 | 206 | 200 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 350/2000-4500 | 400/2000-4900 | 350/2000-4500 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 12.2:1 | 12.2:1 | 12.2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 214 | 214 | 232 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8,9 | 8,9 | 7,7 | 5,8 | 5.3 | 5,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,8-6,3 | 6,8-6,6 | 8,4-7.1 | 9,0-8,9 | 9.3 | 9.0 |
| Out of town [l] | 4,7-4,5 | 4,7-4,5 | 5,3-5,0 | 6,1-6,0 | 6.1 | 6,1 |
| Combined [l] | 5,5-5,2 | 5,5-5,3 | 6,4-5.8 | 7,1 | 7.3 | 7,1 |
| CO2 emissions [g/km] | 125-120 | 125-120 | 146-132 | 163-162 | 167 | 164-163 |
| Low speed [l] | 8.2 | 6.4 | 9.5 | - | 13.3 | - |
| Medium speed [l] | 6.2 | 6.3 | 7.3 | - | 8.9 | - |
| High speed [l] | 5.4 | 5.5 | 6.1 | - | 7.4 | - |
| Extra high speed [l] | 6.2 | 6.4 | 6.9 | - | 8.2 | - |
| Combined speed [l] | 6.2 | 8.4 | 7.1 | - | 8.8 | - |
| CO2 emissions [g/km] | 141 | 144 | 160 | - | 199 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1465 | 1470 | 1570 | 1680 | 1689 | 1695 |
| Overall weight [kg] | 2050-2060 | 2060 | 2130-2150 | 2230 | 2260 | 2290 |
| Maximum trailer weight unbraked/braked [kg] | 730/1600 | 730/1600 | 750/1800 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | 1020/1090 | 1010/1100 | 1090/1110 | 1110/1170 | 1140/1170 | 1110/1230 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 639 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1769 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2072 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/55 R17 | 215/55 R17 | 215/55 R17 | 225/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4773 | 4773 | 4773 | 4773 | 4773 | 4780 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1853/2083 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1527 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2788 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1580 |
| Rear wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1563 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 173 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TSI Alltrack 4MOTION | 1.4 TSI GTE | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | from to 2020 | from 2020 to | - | - |
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1395 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 206 | 115 combustion 85/2500 el. 160 total | 88 | 90 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 400/2000-4900 | 250/1550-3500 combustion 400 total | 250/1500-3250 | 250/1500-3250 | 340/1600-3000 | 360/1600-2750 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 74,5 x 80,0 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 12.2:1 | 10,5:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 250 | 222 | 199 | 198 | 213 | 210 |
| Acceleration 0–100 km/h [s] | 5.4 | 7.6 | 11,5 | 11.2 | 9,1 | 9,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3 | - | 4,8-4,7 | 5.0 | 5.5-4,5 | 4,9-4,4 |
| Out of town [l] | 6.1 | - | 4,2-4,1 | 4.1 | 3,8-3,6 | 3,9-3,5 |
| Combined [l] | 7.2 | - | 4,4-4,3 | 3.6 | 4,3-4,0 | 4,1-4,0 |
| CO2 emissions [g/km] | 166 | - | 116-111 | 108 | 114-104 | 109-105 |
| Low speed [l] | 13.3 | - | - | 6.4 | 6.5 | 6.7 |
| Medium speed [l] | 8.8 | - | - | 4.6 | 4.7 | 4.8 |
| High speed [l] | 7.3 | - | - | 4.1 | 4.1 | 4.1 |
| Extra high speed [l] | 8.2 | - | - | 5.0 | 4.9 | 4.7 |
| Combined speed [l] | 8.7 | 1.2 [15.4 kWh] | - | 4.9 | 4.8 | 4.8 |
| CO2 emissions [g/km] | 198 | 28 | - | 127 | 127 | 126 |
| Emission standard | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 13.0 kWh | - | - | - | - |
| Range with fully charged battery [km] | - | 57 [WLTP] | - | - | - | - |
| Charging time | - |
| - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1709 | 1759 | 1545 | 1555 | 1560 | 1590 |
| Overall weight [kg] | 2270 | 2270 | 2120 | 2170 | 2140-2170 | 2170-2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/1600 | 750/1500 | 750/1500 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1140/1180 | 1120/1200 | 1060/1110 | 1100/1120 | 1090/1130 | 1130/1120 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 639 | 650 | 650 | 650 | 650 | 650 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1769 | -/1613 | -/1780 | -/1780 | -/1780 | -/1780 |
| Boot length [mm] | 1172 | 1138 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 1997 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2072 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 50 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | 16 | 16 | 16 | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 225/55 R17 | 215/55 R17 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 8.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 8.0J x 17 | 7.0J x 17 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4780 | 4773 | 4773 | 4773 | 4773 | 4773 |
| Overall width without/including mirrors [mm] | 1853/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 |
| Overall height [mm] | 1527 | 1521 | 1516 | 1516 | 1516 | 1516 |
| Wheelbase [mm] | 2788 | 2786 | 2786 | 2786 | 2786 | 2786 |
| Front wheel track [mm] | 1580 | 1578 | 1578 | 1578 | 1578 | 1578 |
| Rear wheel track [mm] | 1563 | 1564 | 1564 | 1564 | 1564 | 1564 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 173 | 144 | 144 | 144 | 144 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI Alltrack 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2020 to | from 2020 to | from to 2020 | from to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 140/3500-4000 | 140/3500-4000 | 147/3500-4200 | 147/3500-4200 | 176/4000 | 140/3500-4000 |
| Maximum torque [Nm/min-1] | 400/1750-3000 | 400/1750-3000 | 400/1750-3500 | 400/1750-3500 | 500/1750-2500 | 400/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 15,8:1 | 15,8:1 | 16,0:1 | 16,0:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 232 | 225 | 233 | - | 241 | 223 |
| Acceleration 0–100 km/h [s] | 8,1 | 7,9 | 7.6 | - | 6,7 | 8,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,3-5,2 | 5,8-5,7 | 5.8 | 6.2 | 6,9-6,8 | 5,8-5,6 |
| Out of town [l] | 4,2-4,1 | 4,6-4,5 | 4.0 | 4.4 | 5,4-5,3 | 4,6-4,4 |
| Combined [l] | 4,6-4,5 | 5,0-4,9 | 4.6 | 5.0 | 5,9-5,8 | 5,1-4,8 |
| CO2 emissions [g/km] | 120-118 | 132-129 | 122 | 132 | 156-153 | 133-127 |
| Low speed [l] | - | - | 7.3 | 8.1 | - | - |
| Medium speed [l] | - | - | 5.2 | 5.8 | - | - |
| High speed [l] | - | - | 4.6 | 5.0 | - | - |
| Extra high speed [l] | - | - | 5.4 | 5.7 | - | - |
| Combined speed [l] | - | - | 5.4 | 5.8 | - | - |
| CO2 emissions [g/km] | - | - | 141 | 153 | - | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1600 | 1690 | 1586 | 1673 | 1770 | 1725 |
| Overall weight [kg] | 2190 | 2280 | 2180 | 2270 | 2330 | 2320 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2200 | 750/2000 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | 1110/1130 | 1140/1190 | 1110/1120 | 1130/1190 | 1160-1220 | 1140/1230 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 90/- | 90/- | 90/- | 90/- | 90/- | 90/- |
| Boot volume [l] | 650 | 650 | 650 | 650 | 650 | 639 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1780 | -/1780 | -/1780 | -/1780 | -/1780 | -/1769 |
| Boot length [mm] | 1172 | 1172 | 1172 | 1172 | 1172 | 1172 |
| Boot length with rear seats folded [mm] | 2018 | 2018 | 2018 | 2018 | 2018 | 2018 |
| Boot width between wheels/max [mm] | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- | 1005/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2072 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | 16 | 16 | 16 | 16 | 16 | 16 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/55 R17 | 225/55 R17 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 8.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 8.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- | 11.7/- |
| Overall length [mm] | 4773 | 4773 | 4773 | 4773 | 4773 | 4780 |
| Overall width without/including mirrors [mm] | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1832/2083 | 1853/2083 |
| Overall height [mm] | 1516 | 1516 | 1516 | 1516 | 1516 | 1527 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2788 |
| Front wheel track [mm] | 1578 | 1578 | 1578 | 1578 | 1578 | 1580 |
| Rear wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1564 | 1563 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 144 | 144 | 144 | 144 | 144 | 173 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Headroom rear [mm] | 1007 | 1007 | 1007 | 1007 | 1007 | 1007 |
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- | 1506/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI Alltrack 4MOTION | 2.0 TDI Alltrack 4MOTION | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 147/3500-4200 | 176/4000 | ||||
| Maximum torque [Nm/min-1] | 400/1750-3500 | 500/1750-2500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 16,0:1 | 15,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 228 | 239 | ||||
| Acceleration 0–100 km/h [s] | 7.3 | 6,8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.3 | 6,9-6,8 | ||||
| Out of town [l] | 4.5 | 5,4-5,2 | ||||
| Combined [l] | 5.2 | 5,9-5,8 | ||||
| CO2 emissions [g/km] | 136 | 157-152 | ||||
| Low speed [l] | 8.2 | - | ||||
| Medium speed [l] | 6.0 | - | ||||
| High speed [l] | 5.2 | - | ||||
| Extra high speed [l] | 6.0 | - | ||||
| Combined speed [l] | 6.0 | - | ||||
| CO2 emissions [g/km] | 158 | - | ||||
| Emission standard | Euro 6d | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1709 | 1790 | ||||
| Overall weight [kg] | 2280 | 2370 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | ||||
| Maximum front/rear axle load [kg] | 1130/1200 | 1170/1250 | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 90/- | 90/- | ||||
| Boot volume [l] | 639 | 639 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1769 | -/1769 | ||||
| Boot length [mm] | 1172 | 1172 | ||||
| Boot length with rear seats folded [mm] | 2018 | 2018 | ||||
| Boot width between wheels/max [mm] | 1005/- | 1005/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 2072 | 2072 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 66 | 66 | ||||
| AdBlue tank volume [l] | 16 | 16 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | ||||
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | ||||
| Wheel size front | 8.0J x 17 | 8.0J x 17 | ||||
| Wheel size rear | 8.0J x 17 | 8.0J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.7/- | 11.7/- | ||||
| Overall length [mm] | 4780 | 4780 | ||||
| Overall width without/including mirrors [mm] | 1853/2083 | 1853/2083 | ||||
| Overall height [mm] | 1527 | 1527 | ||||
| Wheelbase [mm] | 2788 | 2788 | ||||
| Front wheel track [mm] | 1580 | 1580 | ||||
| Rear wheel track [mm] | 1563 | 1563 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 173 | 173 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1031 | 1031 | ||||
| Headroom rear [mm] | 1007 | 1007 | ||||
| Front elbow/shoulder width [mm] | 1506/- | 1506/- | ||||
| Rear elbow/shoulder width [mm] | 1506/- | 1506/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
