	3.2 V6 4MOTION	3.6 V6 4MOTION	4.2 V8 4MOTION	long	W12 4MOTION	long
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Number of cylinders/valves	6/24	6/24	8/32	8/32	12/48	12/48
Engine displacement [cm³]	3189	3597	4172	4172	5998	5998
Maximum output / speed [kW/min-1]	177/6200	206/6250	246/6500	246/6500	331/6050	331/6050
Maximum torque [Nm/min-1]	315/2400	370/3500	430/3500	430/3500	560/2750-5200	560/2750-5200
Bore and stroke [mm x mm]	84,0 x 95,9	89,0 x 96,4	84,5 x 93,0	84,5 x 93,0	84,0 x 90,2	84,0 x 90,2
Compression ratio	11.3:1	-	10.3:1	10.3:1	-	-
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	variable timing of intake and exhaust valves	direct injection FSI variable timing of intake and exhaust valves	-	-	variable valve timing	variable valve timing

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear automatic	6 gear automatic	6 gear automatic	6 gear automatic	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION five-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION five-speed automatic gearbox Tiptronic

Top speed [km/h]	239	250	250	250	250	250
Acceleration 0–100 km/h [s]	9,4	8,6	6,9	6,9	6,1	6,1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	17,4	17,1	18,9	18,9	21,2-21,4	21,2-21,4
Out of town [l]	8,9	8,6	9,6	9,6	10,5	10,5
Combined [l]	12,1	11,7	12,9-13,0	12,9-13,1	14,5	14,5
CO2 emissions [g/km]	288	273	298-310	298-310	348	348

Emission standard	EU4	EU5	EU5	EU5	EU5	EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2087	2079	2107	2198	2317	2358
Overall weight [kg]	2680	2680	2700	2780	2910	2910
Maximum trailer weight unbraked/braked [kg]	-	750/2400	750/2400	750/2400	750/2400	750/2400
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	100	100	100	100	100	100
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	500	500	500	500	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	1158	1158	1158	1158	1158	1158
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	965/1312	965/1312	965/1312	965/1312	965/1312	965/1312
Boot height to headliner/ceiling [mm]	-/471	-/471	-/471	-/471	-/471	-/471
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	1749	1749	1749	1749	1749	1749
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	4-5	4-5	4-5	4-5	4-5	4-5
Fuel tank volume [l]	90	90	90	90	90	90
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	four-link	four-link	four-link	four-link	four-link	four-link
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	235/55 R17	235/55 R17	235/55 R17	235/55 R17	255/45 R18	255/45 R18
Tyre dimensions rear	235/55 R17	235/55 R17	235/55 R17	235/55 R17	255/45 R18	255/45 R18
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	12.0/-	12.0/-	12.0/-	12.5/-	12.0/-	12.5/-

Overall length [mm]	5055	5055	5055	5175	5055	5175
Overall width without/including mirrors [mm]	1903/2129	1903/2129	1903/2129	1903/2129	1903/2129	1903/2129
Overall height [mm]	1450	1450	1450	1450	1450	1450
Wheelbase [mm]	2881	2881	2881	3001	2881	3001
Front wheel track [mm]	1628	1628	1628	1628	1628	1628
Rear wheel track [mm]	1612	1612	1612	1612	1612	1612
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	128	128	128	128	128	128
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	12.9	12.9	12.9	12.9	12.9	12.9
Approach angle rear [°]	15.9	15.9	15.9	15.9	15.9	15.9
Transition angle [°]	11.5	11.5	11.5	11.5	11.5	11.5
Climbing rate [°]	-	-	-	-	-	-
Maximum side tilt [°]	-	-	-	-	-	-

Headroom front [mm]	974	974	974	945	974	945
Headroom rear [mm]	970	970	970	969	970	969
Front elbow/shoulder width [mm]	1562/-	1562/-	1562/-	1562/-	1562/-	1562/-
Rear elbow/shoulder width [mm]	1528/-	1528/-	1528/-	1524/-	1528/-	1524/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	3.0 V6 TDI 4MOTION
Date of sale	-
Engine type	Diesel supercharged
Number of cylinders/valves	6/24
Engine displacement [cm³]	2967
Maximum output / speed [kW/min-1]	176/4000
Maximum torque [Nm/min-1]	500/1500-3000
Bore and stroke [mm x mm]	83,0 x 91,4
Compression ratio	-
Oil volume [l]	-
Coolant volume [l]	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	4x4
Gearbox	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic

Top speed [km/h]	237
Acceleration 0–100 km/h [s]	8,3
Acceleration 0–80 km/h [s]	-
Acceleration 80–120 km/h [s]	-

City [l]	12,0
Out of town [l]	7,2
Combined [l]	9,0
CO2 emissions [g/km]	239

Emission standard	EU5
Standard for fuel consumption measurement	-
Energy class	-
Stationary vehicle noise [dB]	-
Driving noise [dB]	-

Standby weight [kg]	2158
Overall weight [kg]	2760
Maximum trailer weight unbraked/braked [kg]	750/2500
Maximum front/rear axle load [kg]	-
Maximum vertical load on the tow bar [kg]	100
Maximum load on roof/carrier [kg]	100/-

Boot volume [l]	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-
Boot length [mm]	1158
Boot length with rear seats folded [mm]	-
Boot width between wheels/max [mm]	965/1312
Boot height to headliner/ceiling [mm]	-/471
Loading edge height [mm]	-
Height of the open boot door [mm]	1749
Boot opening height [mm]	-
Boot opening width min/max [mm]	-

Number of doors	4
Number of seats	4-5
Fuel tank volume [l]	90
AdBlue tank volume [l]	-
Air resistance [Cd]	-
Front suspension	four-link
Rear suspension	double wishbone
Tyre dimensions front	235/55 R17
Tyre dimensions rear	235/55 R17
Wheel size front	-
Wheel size rear	-
Brake dimensions front	-
Brake dimensions rear	-
Steering	-
Number of steering wheel turns	-
Turning diameter track/circumference [m]	12.0/-

Overall length [mm]	5055
Overall width without/including mirrors [mm]	1903/2129
Overall height [mm]	1450
Wheelbase [mm]	2881
Front wheel track [mm]	1628
Rear wheel track [mm]	1612
Forward overhang [mm]	-
Rear overhang [mm]	-
Clearance [mm]	128
Wading depth [mm]	-
Approach angle front [°]	12.9
Approach angle rear [°]	15.9
Transition angle [°]	11.5
Climbing rate [°]	-
Maximum side tilt [°]	-

Headroom front [mm]	974
Headroom rear [mm]	970
Front elbow/shoulder width [mm]	1562/-
Rear elbow/shoulder width [mm]	1528/-
Legroom front knees/total [mm]	-
Legroom rear knees/total [mm]	-

Gallery

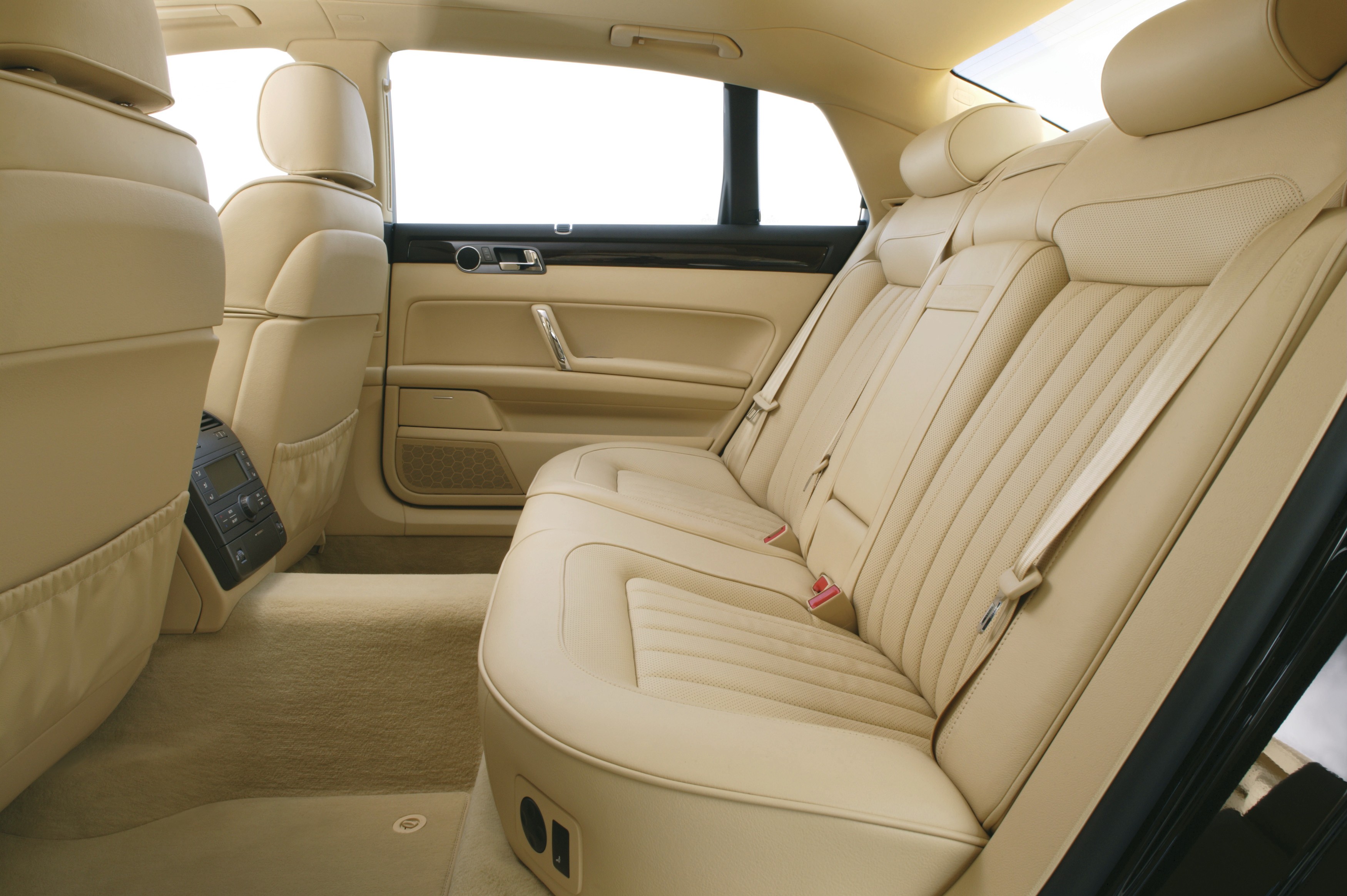

Vokswagen Phaeton GP2 facelift 2007 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
