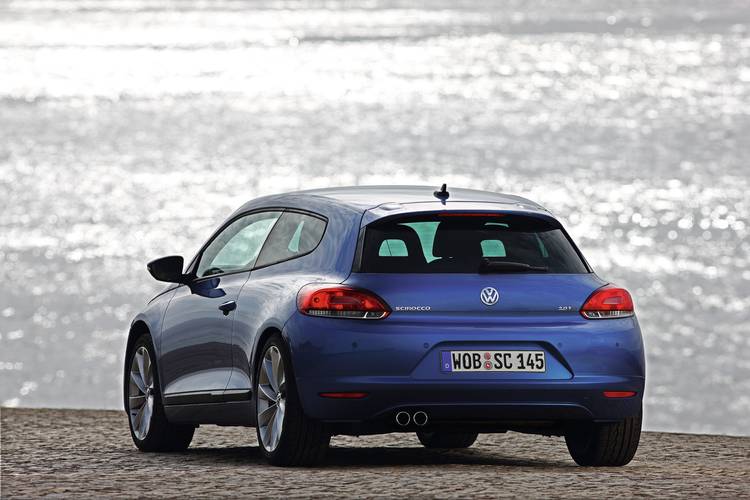

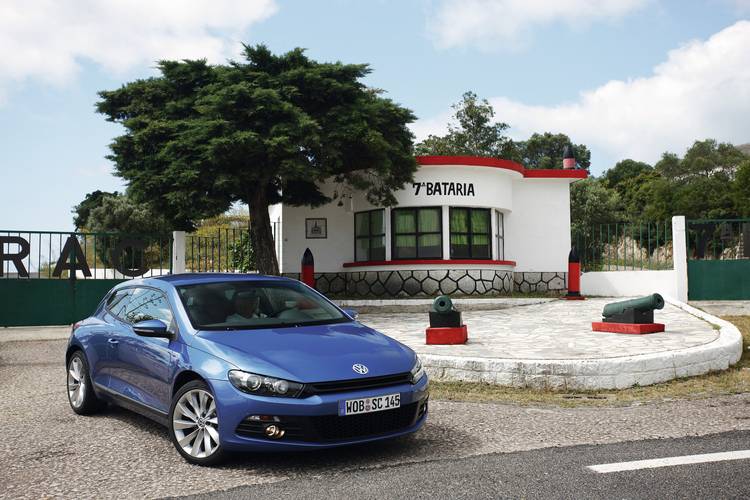

Volkswagen Scirocco
Date of manufacture
2008 – 2014 (Coupé)
Platform
Volkswagen Group A5 platform
Manufacturing locations
Palmela, Portugal
Designer
Walter de Silva
Marc Lichte
Tags
S-segment
German cars
The Volkswagen Scirocco has been available as a coupe since 2008. The car is manufactured in Portugal and built on the Volkswagen Group A5 platform. It offers a wide range of petrol and diesel engines, the most powerful of which is the Scirocco R with 195 kW. The fastest version reaches a top speed of 250 km/h. The most fuel-efficient model is the 2.0 TDI with a consumption of 5.1 l/100 km and emissions of 134 g/km. The trunk has a capacity of 312 l. The car successfully passed the EURONCAP 2009 safety tests, scoring 5 out of 5.
Car body style
Technical data
Coupé
| 1.4 TSI | 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TSI | 2.0 TSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1390 | 1390 | 1390 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 90/5000 | 118/5800 | 118/5800 | 147/5100 | 147/5100 | 155/5300-6200 |
| Maximum torque [Nm/min-1] | 200/1500-4000 | 240/1500-4500 | 240/1500-4500 | 280/1700-5000 | 280/1700-5000 | 280/1700-5200 |
| Bore and stroke [mm x mm] | 76,5 x 75,6 | 76,5 x 75,6 | 76,5 x 75,6 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,5:1 | 10,3:1 | 10,3:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 218 | 218 | 235 | 233 | 240 |
| Acceleration 0–100 km/h [s] | 9.7 | 8.0 | 8.0 | 7.2 | 7.1 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.7 | 8.0 | 10.6 | 10.5 | 10.1 |
| Out of town [l] | 5.3 | 5.4 | 5.4 | 5.9 | 5.9 | 5.9 |
| Combined [l] | 6.4 | 6.6 | 6.3 | 7.6 | 7.6 | 7.4 |
| CO2 emissions [g/km] | 149 | 154 | 147 | 179 | 179 | 172 |
| Emission standard | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1319 | 1346 | 1360 | 1373 | 1393 | 1373 |
| Overall weight [kg] | 1690 | 1720 | 1730 | 1740 | 1760 | 1740 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 312 | 312 | 312 | 312 | 312 | 312 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1006 | -/1006 | -/1006 | -/1006 | -/1006 | -/1006 |
| Boot length [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Boot length with rear seats folded [mm] | 1532 | 1532 | 1532 | 1532 | 1532 | 1532 |
| Boot width between wheels/max [mm] | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 |
| Boot height to headliner/ceiling [mm] | 475/750 | 475/750 | 475/750 | 475/750 | 475/750 | 475/750 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1856 | 1856 | 1856 | 1856 | 1856 | 1856 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4256 | 4256 | 4256 | 4256 | 4256 | 4256 |
| Overall width without/including mirrors [mm] | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 |
| Overall height [mm] | 1404 | 1404 | 1404 | 1404 | 1404 | 1404 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 122-92 | 122-92 | 122-92 | 122-92 | 122-92 | 122-92 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 |
| Approach angle rear [°] | 19 | 19 | 19 | 19 | 19 | 19 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Headroom rear [mm] | 924 | 924 | 924 | 924 | 924 | 924 |
| Front elbow/shoulder width [mm] | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- |
| Rear elbow/shoulder width [mm] | 1272/- | 1272/- | 1272/- | 1272/- | 1272/- | 1272/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

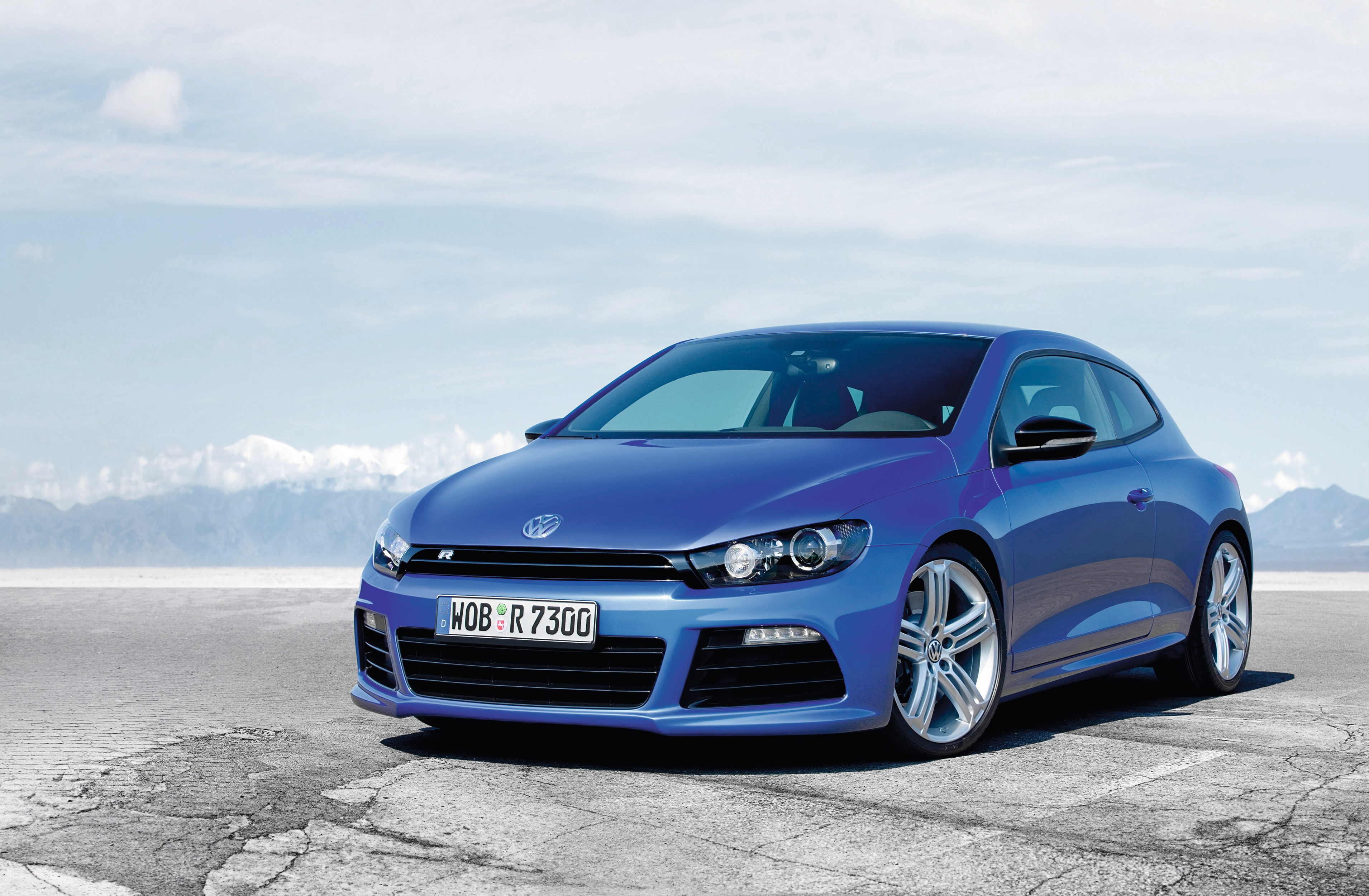

| 2.0 TSI | Scirocco R | Scirocco R | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2009 to | from 2009 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 155/5300-6200 | 195/6000 | 195/6000 | 103/4000 | 103/4000 | 125/4200 |
| Maximum torque [Nm/min-1] | 280/1700-5200 | 350/2500-5000 | 350/2500-5000 | 320/1750-2500 | 320/1750-2500 | 350/1750-2500 |
| Bore and stroke [mm x mm] | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 9,6:1 | 9,3:1 | 9,3:1 | 16,0:1 | 16,0:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 238 | 250 | 250 | 207 | 205 | 222 |
| Acceleration 0–100 km/h [s] | 6.9 | 6.0 | 5.8 | 9.3 | 9.3 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0 | 11.3 | 10.9 | 6.6 | 7.1 | 7.0 |
| Out of town [l] | 6.0 | 6.2 | 6.3 | 4.2 | 4.6 | 4.3 |
| Combined [l] | 7.5 | 8.1 | 8.0 | 5.1 | 5.5 | 5.3 |
| CO2 emissions [g/km] | 174 | 189 | 187 | 134 | 145 | 139 |
| Emission standard | EU5 | EU5 | EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1393 | 1419 | 1439 | 1379 | 1395 | 1395 |
| Overall weight [kg] | 1760 | 1770 | 1790 | 1750 | 1770 | 1770 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 312 | 312 | 312 | 312 | 312 | 312 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1006 | -/1006 | -/1006 | -/1006 | -/1006 | -/1006 |
| Boot length [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Boot length with rear seats folded [mm] | 1532 | 1532 | 1532 | 1532 | 1532 | 1532 |
| Boot width between wheels/max [mm] | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 | 1005/1181 |
| Boot height to headliner/ceiling [mm] | 475/750 | 475/750 | 475/750 | 475/750 | 475/750 | 475/750 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1856 | 1856 | 1856 | 1856 | 1856 | 1856 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/50 R17 | 235/40 R18 | 235/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 235/40 R18 | 235/40 R18 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 17 | 8.0J x 18 | 8.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 8.0J x 18 | 8.0J x 18 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4256 | 4256 | 4256 | 4256 | 4256 | 4256 |
| Overall width without/including mirrors [mm] | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 | 1810/2080 |
| Overall height [mm] | 1404 | 1394 | 1394 | 1404 | 1404 | 1404 |
| Wheelbase [mm] | 2578 | 2578 | 2578 | 2578 | 2578 | 2578 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1575 | 1575 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 122-92 | 122-92 | 122-92 | 122-92 | 122-92 | 122-92 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 10.9 | 12.0 | 12.0 | 10.9 | 10.9 | 10.9 |
| Approach angle rear [°] | 19 | 11.7 | 11.7 | 19 | 19 | 19 |
| Transition angle [°] | 9.4 | 11.7 | 11.7 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 953 | 953 | 953 | 953 | 953 | 953 |
| Headroom rear [mm] | 924 | 924 | 924 | 924 | 924 | 924 |
| Front elbow/shoulder width [mm] | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- | 1443/- |
| Rear elbow/shoulder width [mm] | 1272/- | 1272/- | 1272/- | 1272/- | 1272/- | 1272/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 125/4200 | |||||
| Maximum torque [Nm/min-1] | 350/1750-2500 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 16,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 220 | |||||
| Acceleration 0–100 km/h [s] | 8.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.3 | |||||
| Out of town [l] | 4.7 | |||||
| Combined [l] | 5.6 | |||||
| CO2 emissions [g/km] | 147 | |||||
| Emission standard | EU4-EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1421 | |||||
| Overall weight [kg] | 1800 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 312 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1006 | |||||
| Boot length [mm] | 707 | |||||
| Boot length with rear seats folded [mm] | 1532 | |||||
| Boot width between wheels/max [mm] | 1005/1181 | |||||
| Boot height to headliner/ceiling [mm] | 475/750 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 1856 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 3 | |||||
| Number of seats | 4 | |||||
| Fuel tank volume [l] | 50 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | four-link | |||||
| Tyre dimensions front | 225/50 R17 | |||||
| Tyre dimensions rear | 225/50 R17 | |||||
| Wheel size front | 7.0J x 17 | |||||
| Wheel size rear | 7.0J x 17 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.0/- | |||||
| Overall length [mm] | 4256 | |||||
| Overall width without/including mirrors [mm] | 1810/2080 | |||||
| Overall height [mm] | 1404 | |||||
| Wheelbase [mm] | 2578 | |||||
| Front wheel track [mm] | 1569 | |||||
| Rear wheel track [mm] | 1575 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 122-92 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 10.9 | |||||
| Approach angle rear [°] | 19 | |||||
| Transition angle [°] | 9.4 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 953 | |||||
| Headroom rear [mm] | 924 | |||||
| Front elbow/shoulder width [mm] | 1443/- | |||||
| Rear elbow/shoulder width [mm] | 1272/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
