Volkswagen Sharan
Date of manufacture
2015 – 2021 (Large MPV)
Platform
Volkswagen Group A6 PQ46
Manufacturing locations
Palmela, Portugal
Designer
-
Tags
Large MPV
German cars
The Volkswagen Sharan is a large MPV that has been manufactured since 2015. Portugal is the country of production of this vehicle built on the Volkswagen Group A6 PQ46 platform. The powertrain offering includes both petrol and diesel engines, the most powerful 2.0 TSI version reaches 162 kW and the fastest 2.0 TSI can reach a speed of up to 226 km/h. The most economical 2.0 TDI variant consumes 5 l/100 km with emissions of 130 g/km. The 955 l trunk provides sufficient storage space for cargo transport. In terms of safety, the Volkswagen Sharan has earned a rating of 4 out of 5 from EURONCAP 2019.
Car body style
Large MPV
after upgrade (facelift)
Date of manufacture
2015 – 2021Internal designation
7N
Technical data
Large MPV
| 1.4 TSI ACT | 1.4 TSI ACT | 2.0 TSI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | from to 2020 | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 162/4500-6200 | 85/4200 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 350/1500-4400 | 280/1750-2750 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | - | - | 9,6:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - | - |
|
| Top speed [km/h] | 200 | 198 | 226 | 184 | 200 | 198 |
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | 7,8 | 12.6 | 10,3 | 10,3 |
| Acceleration 0–80 km/h [s] | 6.7 | 6.7 | 5,4 | 8.4 | 7,3 | 7,3 |
| Acceleration 80–120 km/h [s] | 9,0 (12,0 (4th/5th gear) | - | - | - | 8,5 (11,0 (4th/5th gear) | - |
| City [l] | 8,0-7,9 | 8,1-8,0 | 9,3-9,2 | - | 6,2-6,0 | 6.3-5,9 |
| Out of town [l] | 5,6-5,5 | 5,9-5,8 | 6,1-6,0 | - | 4,7-4,5 | 5.0-4,7 |
| Combined [l] | 6,8-6,4 | 7.1-6,6 | 7,3-7,2 | 5.2-5.0 | 5,2-5,0 | 5,4-5.2 |
| CO2 emissions [g/km] | 155-148 | 160-154 | 168-167 | 135-130 | 137-130 | 143-136 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8.7-7.8 | 9.3-8.5 | - | - | - | - |
| CO2 emissions [g/km] | 198-177 | 211-194 | - | - | - | - |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1703-1745 | 1717-1765 | 1790 | 1772-1830 | 1772-1835 | 1793-1855 |
| Overall weight [kg] | 2290-2420 | 2310-2430 | 2490 | 2390-2510 | 2390-2520 | 2410-2540 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2200 | 750/2000 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | 1190/1160-1280 | 1200/1160-1280 | 1250/1290 | 1260/1180 | 1260/1180-1310 | 1280/1180-1310 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 955 | 955 | 955 | 955 | 955 | 955 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] |
| Boot length with rear seats folded [mm] | 2088 | 2088 | 2088 | 2088 | 2088 | 2088 |
| Boot width between wheels/max [mm] | 1088/- | 1088/- | 1088/- | 1088/- | 1088/- | 1088/- |
| Boot height to headliner/ceiling [mm] | 659/1099 | 659/1099 | 659/1099 | 659/1099 | 659/1099 | 659/1099 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 |
| Overall height [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 163-152 | 163-152 | 163-152 | 163-152 | 163-152 | 163-152 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1077 | 1077 | 1077 | 1077 | 1077 | 1077 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |
| 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2018 | from to 2018 | from 2016 to 2018 | from 2018 to 2020 | from 2018 to 2020 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 135/3500-4000 | 135/3500-4000 | 135/3500-4000 | 130/4200 | 130/4200 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 380/1750-3000 | 380/1750-3000 | 380/1750-3250 | 380/1750-3250 | 380/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 | 15,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear automatic | 7 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 198 | 215 | 213 | 211 | 210 | 208 |
| Acceleration 0–100 km/h [s] | 10,6 | 8,9 | 8,9 | 8,9 | 9.3 | 9.1 |
| Acceleration 0–80 km/h [s] | 7,1 | 6,4 | 6,4 | 5,7 | 6.5 | 5.8 |
| Acceleration 80–120 km/h [s] | 8,0 (10,5 (4th/5th gear) | 7,0/10,0 | - | - | - | - |
| City [l] | 6,7 | 6,7 | 6,3-6,2 | 6,8-6,6 | 6.5 | 7.8-7.1 |
| Out of town [l] | 5,0 | 4,5 | 4,9-4,8 | 5,3-5,1 | 5.1-4.9 | 5.6-5.3 |
| Combined [l] | 6.5-5,6 | 5,3 | 5,3 | 5,9-5,7 | 5.6-5.5 | 6.4-5.9 |
| CO2 emissions [g/km] | 170-146 | 139-138 | 141-140 | 154-149 | 147-144 | 168-157 |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1891-1935 | 1800 | 1804 | 1923 | 1815-1865 | 1915-1965 |
| Overall weight [kg] | 2540-2590 | 2550 | 2550 | 2590 | 2390-2540 | 2560-2590 |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2200 | 750/2200 | 750/2400 | 750/2200 | 750/2400 |
| Maximum front/rear axle load [kg] | 1300-1320/1290-1320 | 1290/1310 | 1290/1310 | 1320/1320 | 1280/1160 | 1320/1290 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 955 | 955 | 955 | 955 | 955 | 955 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- | -/2430 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] | 1329 [444 seven seats] |
| Boot length with rear seats folded [mm] | 2088 | 2088 | 2088 | 2088 | 2088 | 2088 |
| Boot width between wheels/max [mm] | 1088/- | 1088/- | 1088/- | 1088/- | 1088/- | 1088/- |
| Boot height to headliner/ceiling [mm] | 659/1099 | 659/1099 | 659/1099 | 659/1099 | 659/1099 | 659/1099 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2045 | 2045 | 2045 | 2045 | 2045 | 2045 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 |
| Overall height [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1605 | 1605 | 1605 | 1605 | 1605 | 1605 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 163-152 | 163-152 | 163-152 | 163-152 | 163-152 | 163-152 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1077 | 1077 | 1077 | 1077 | 1077 | 1077 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |

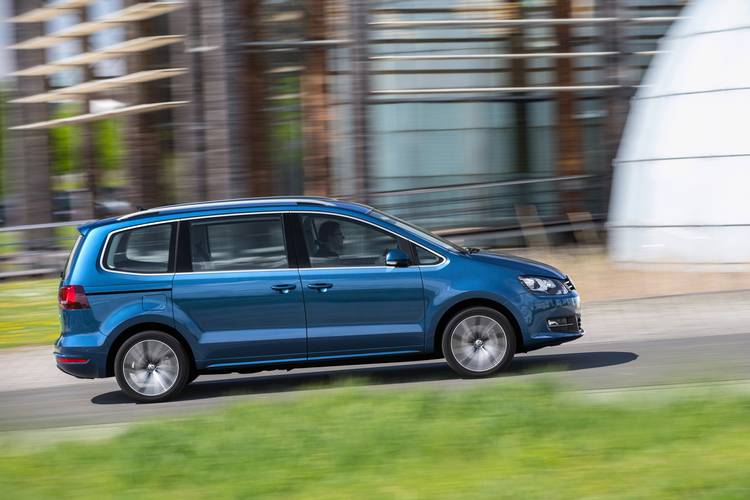

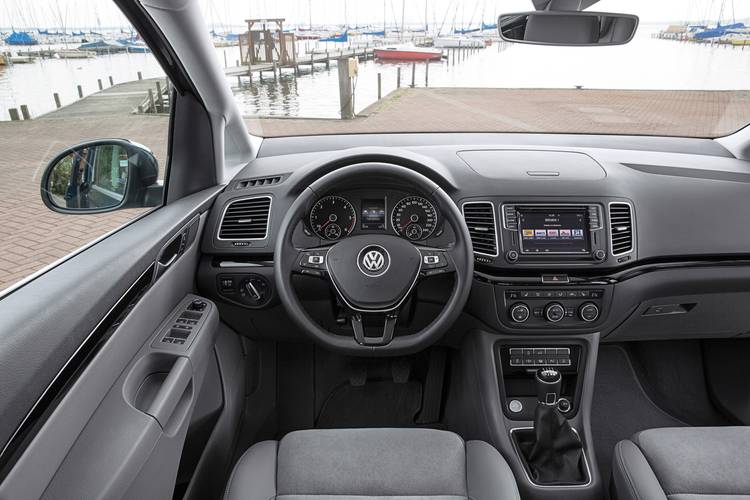

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
