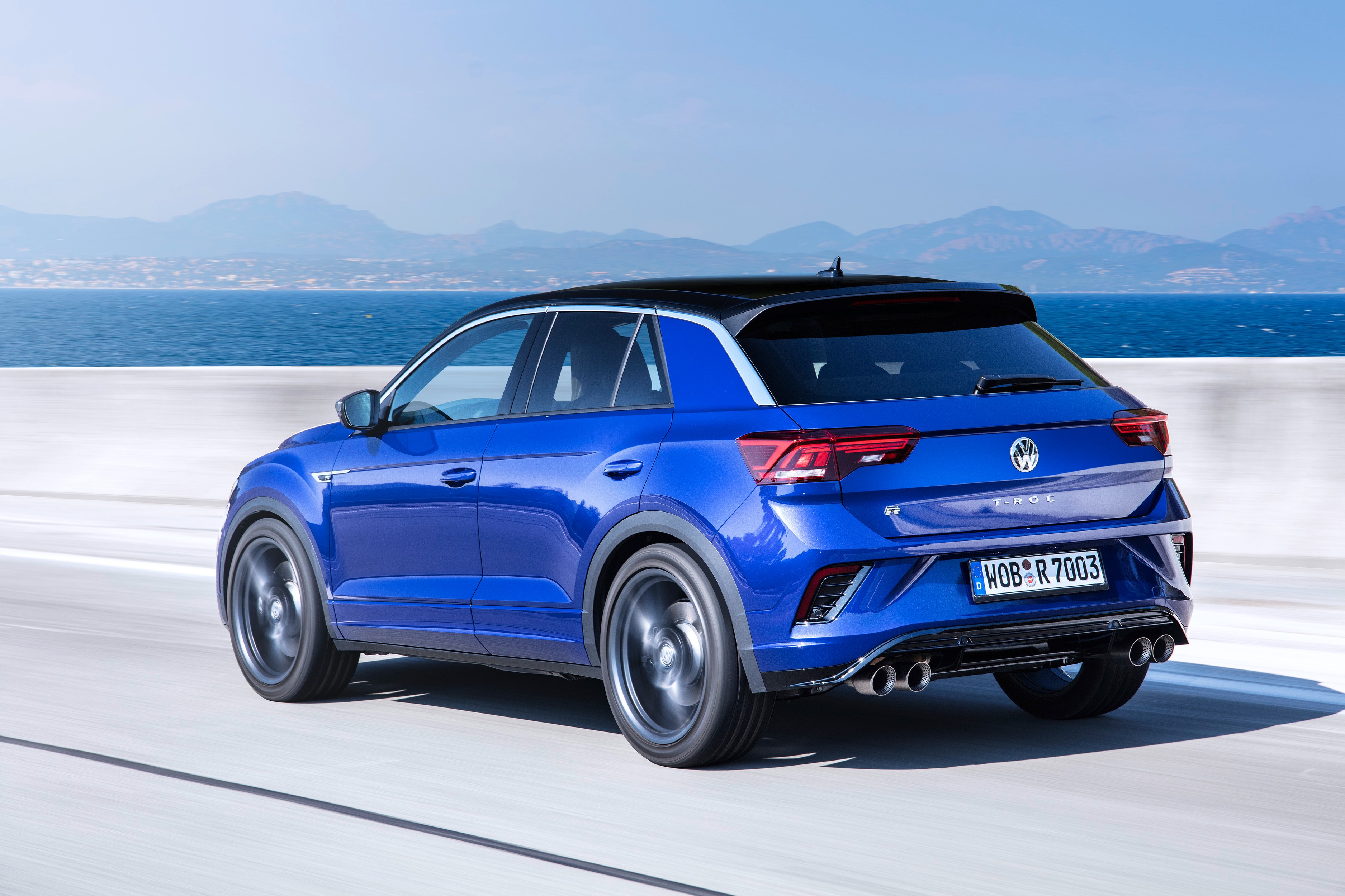

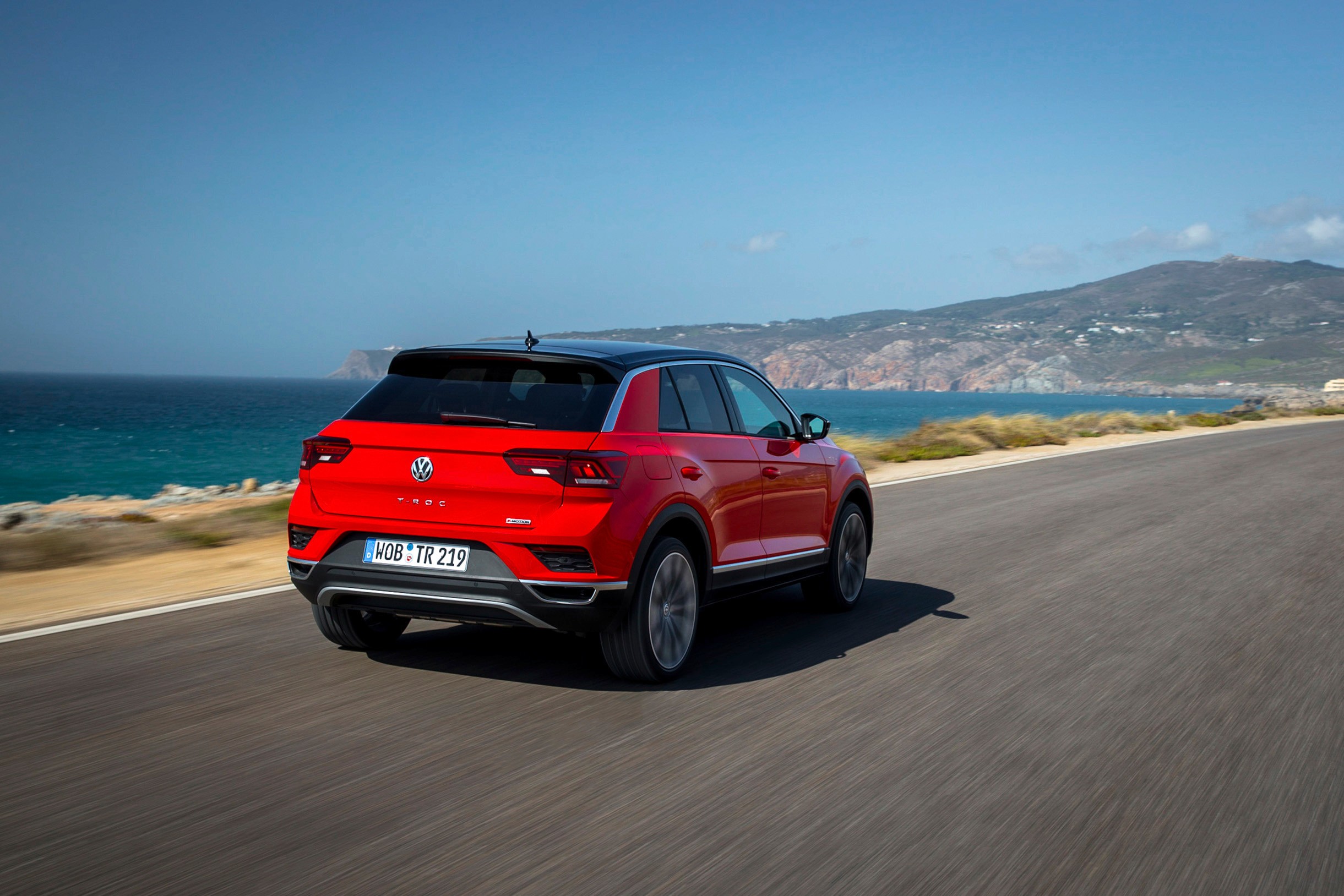

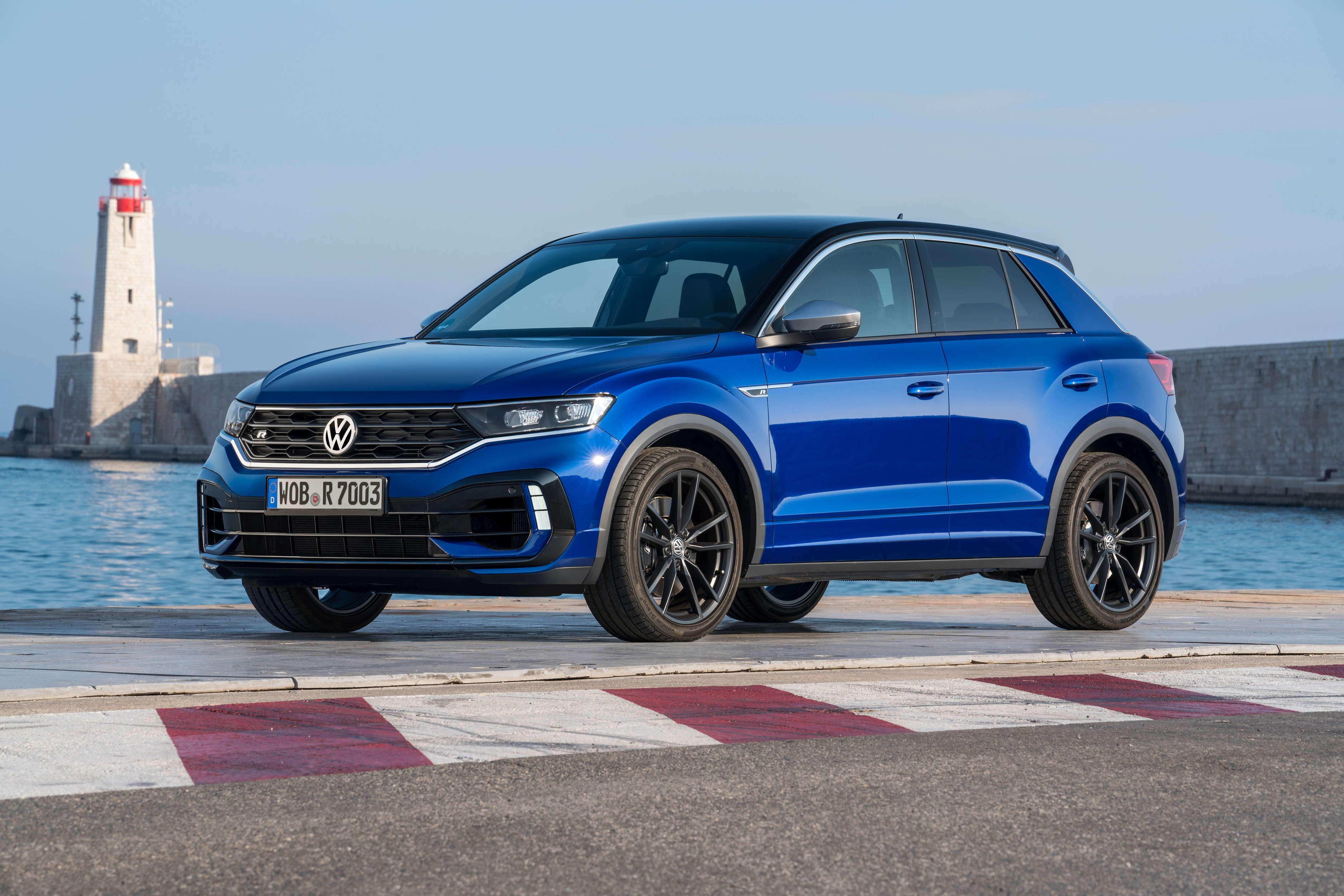

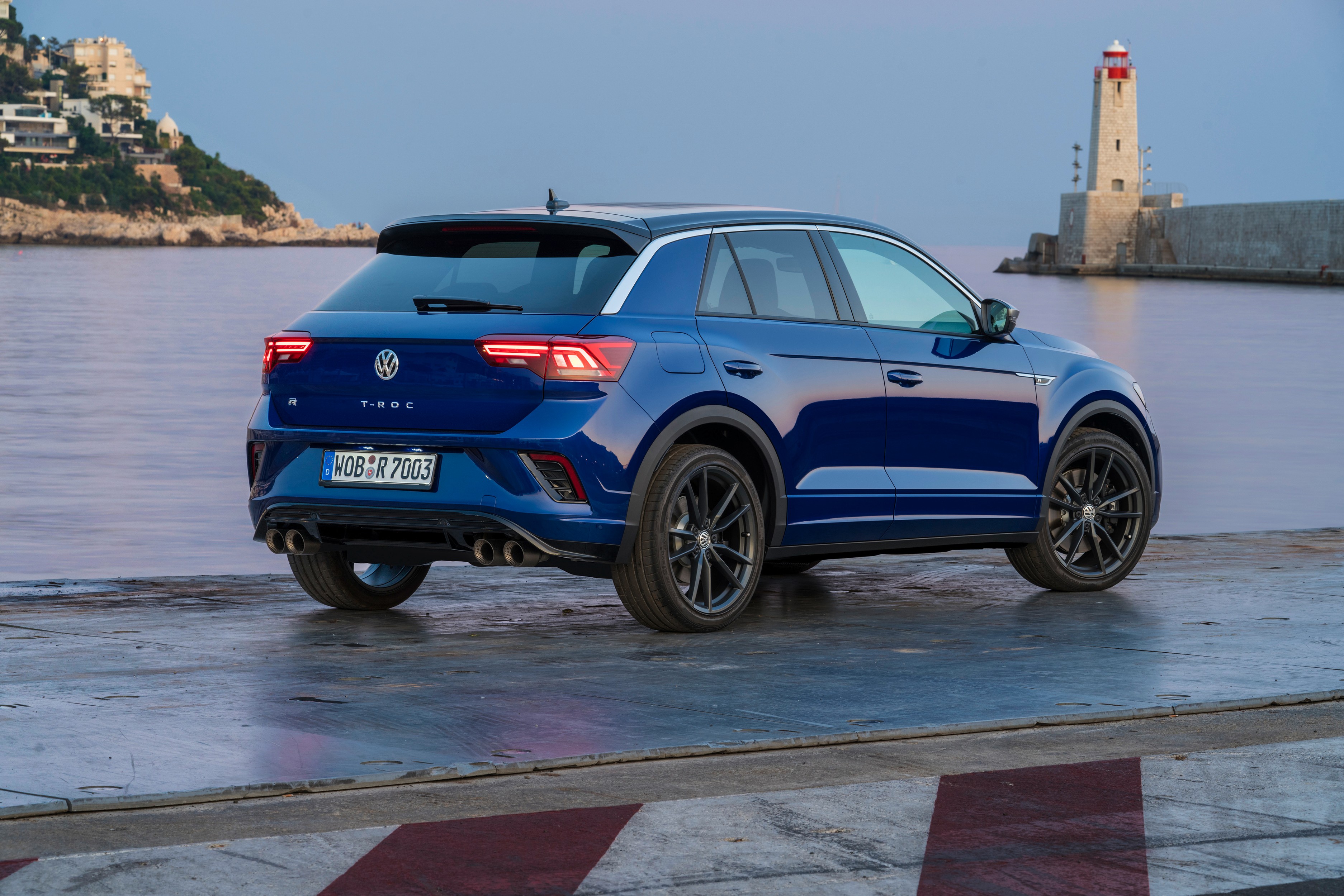

Volkswagen T-Roc
Date of manufacture

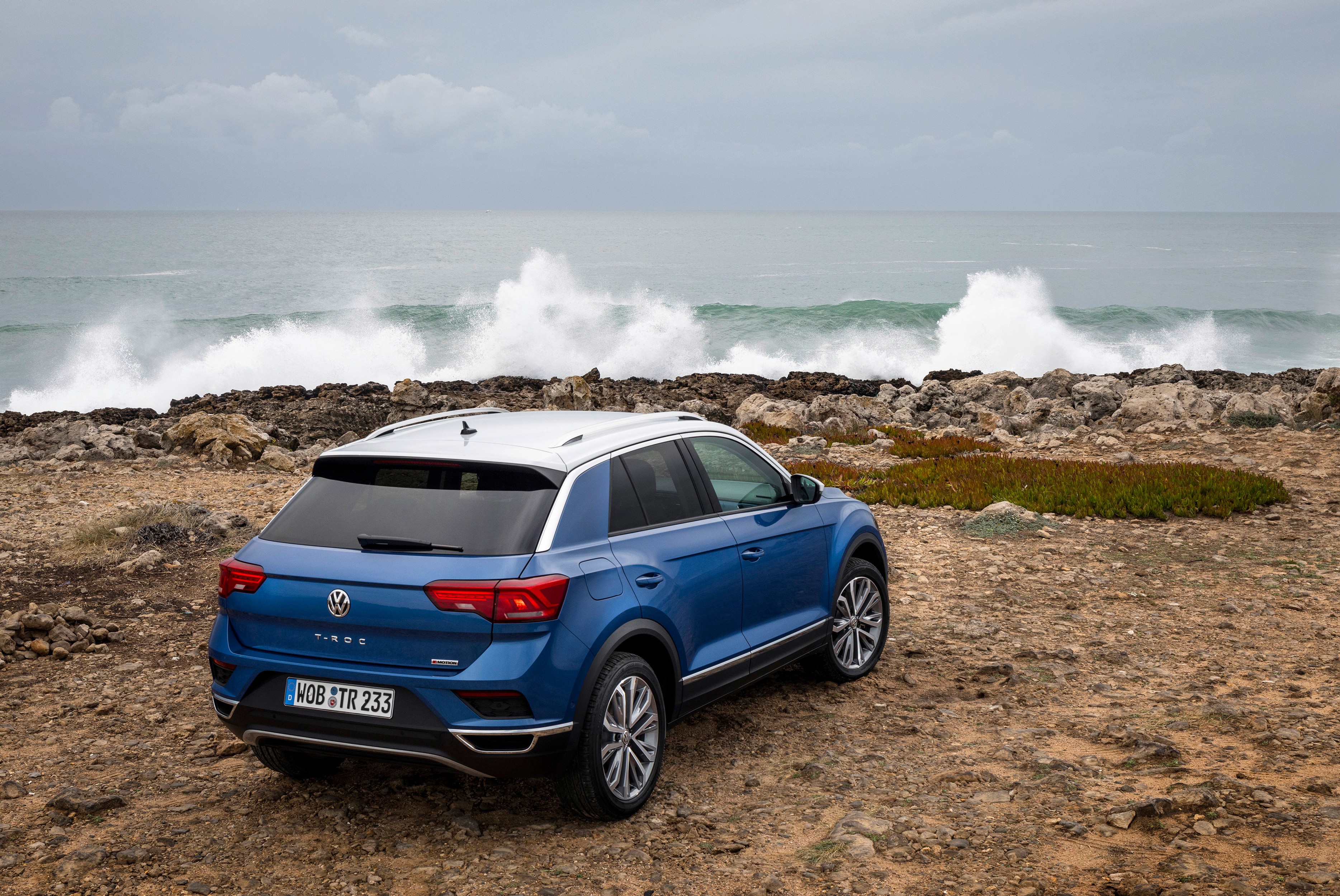

11/2017 – to this day (Small SUV)

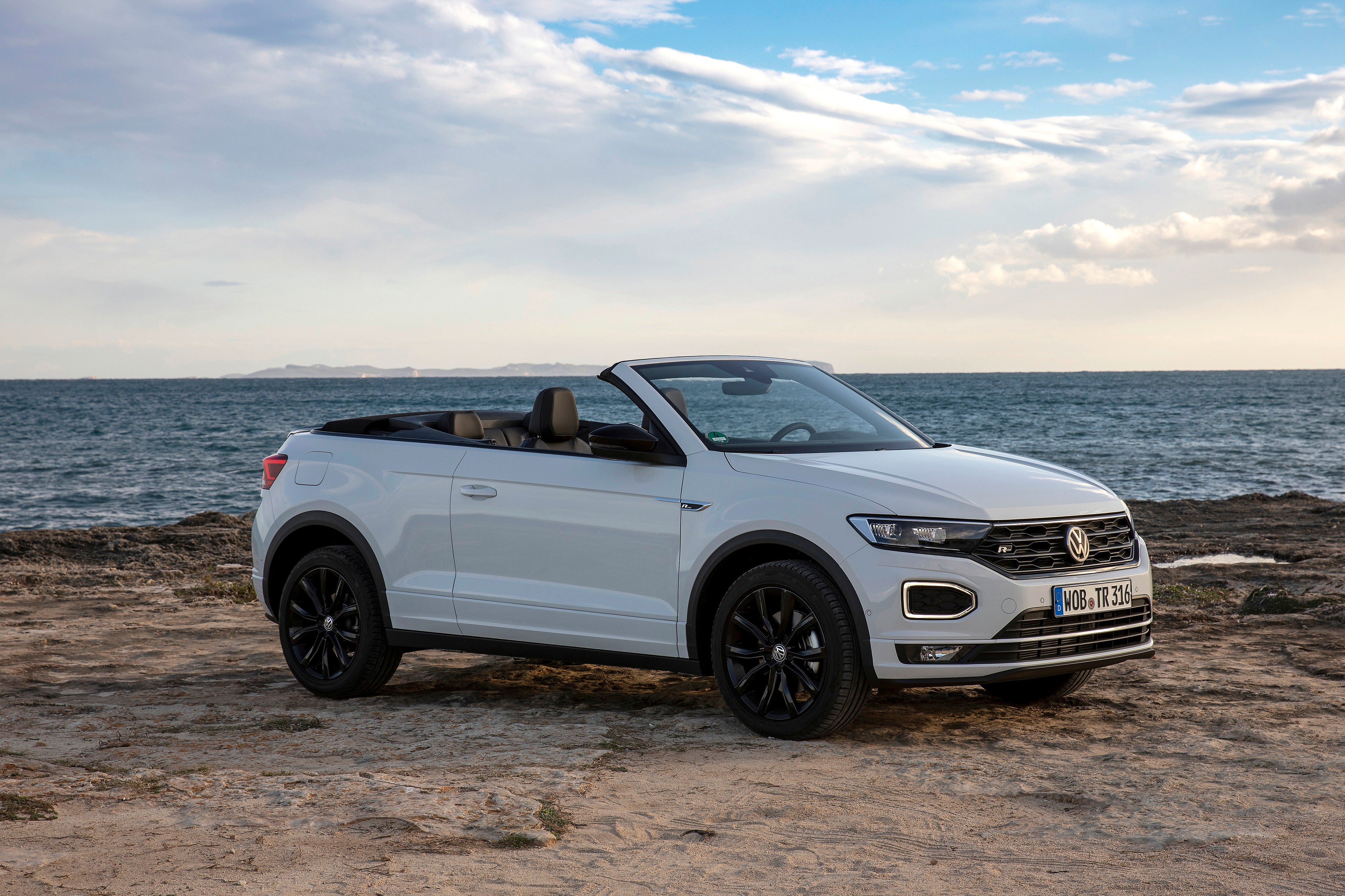

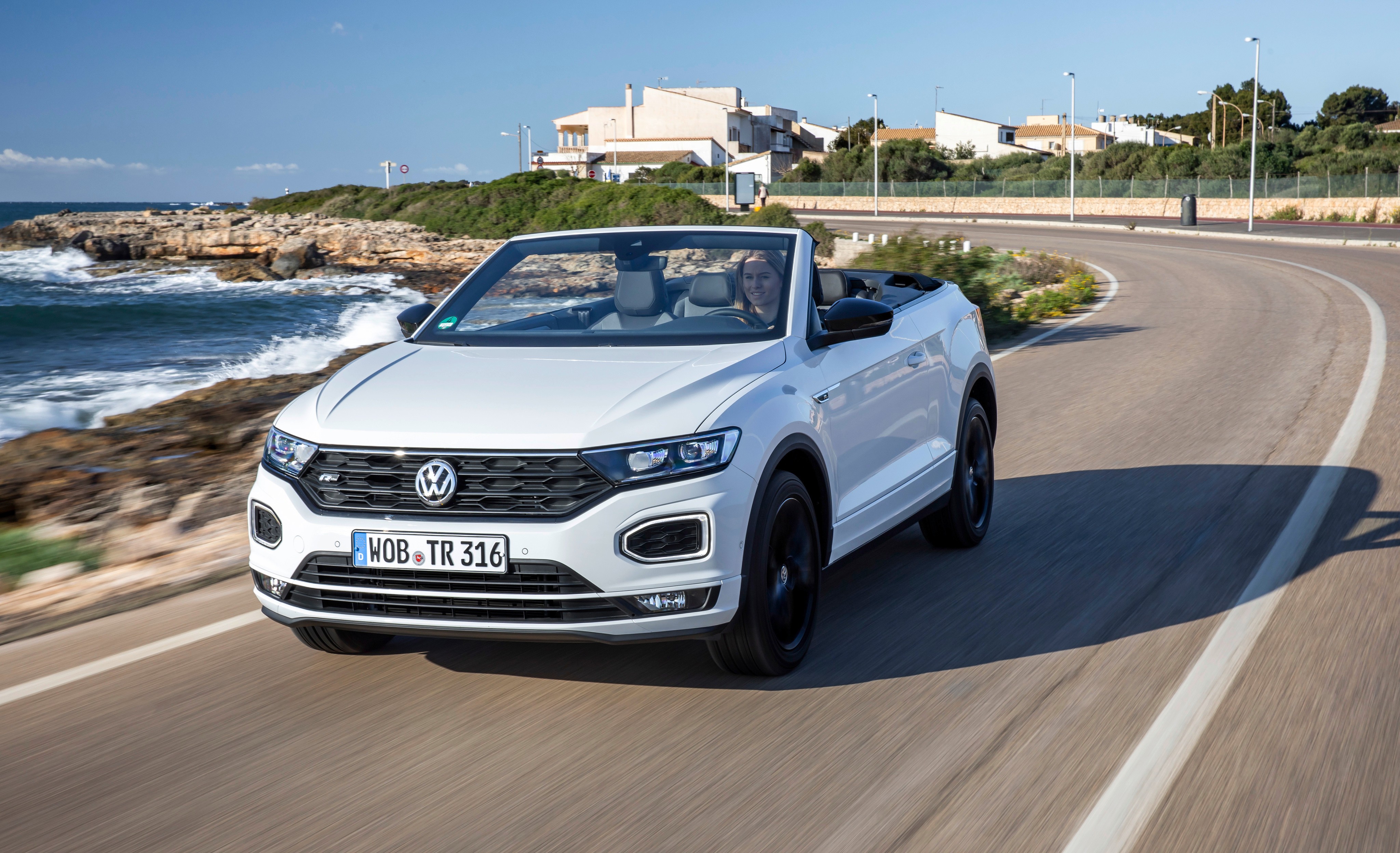

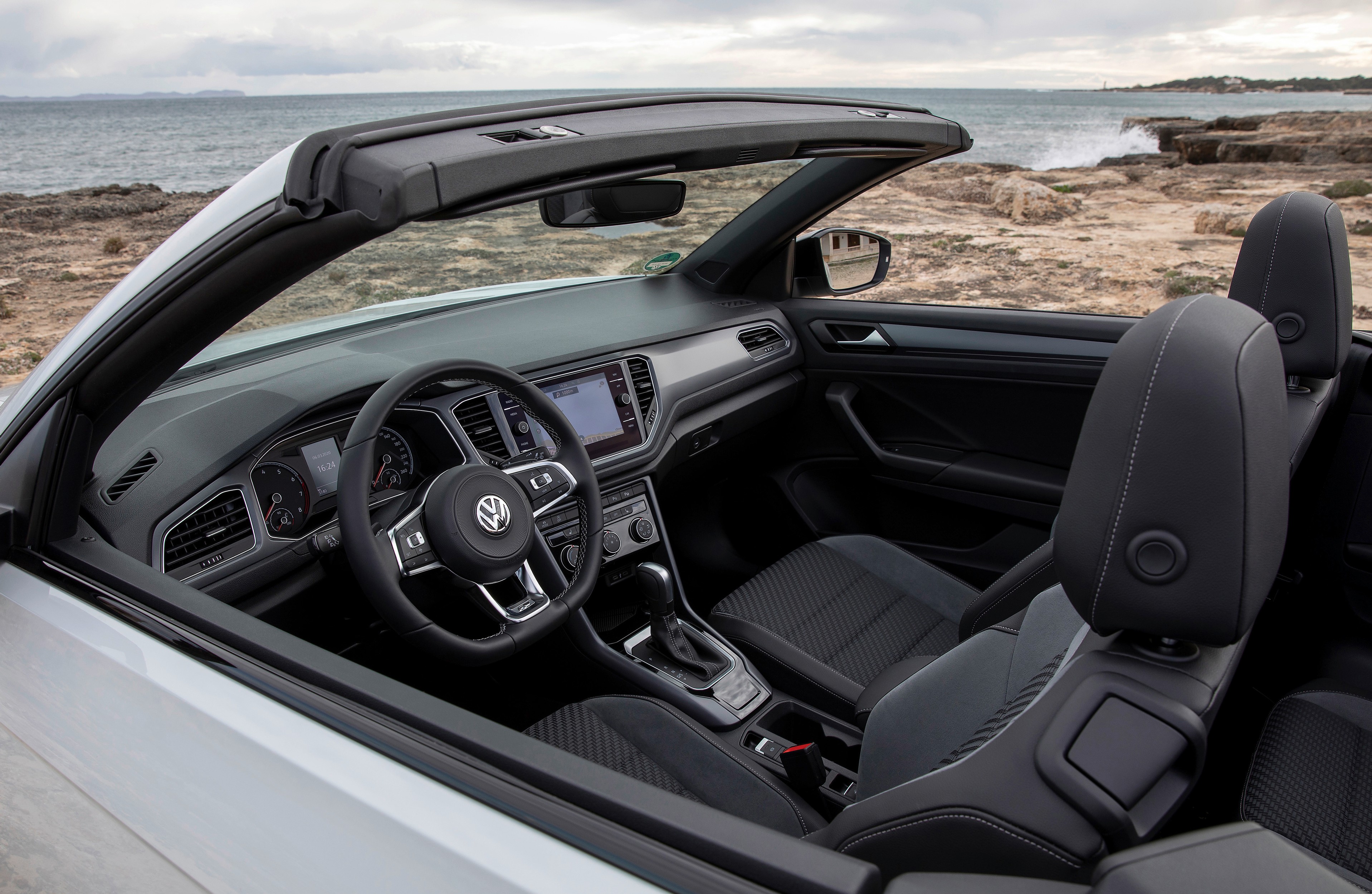

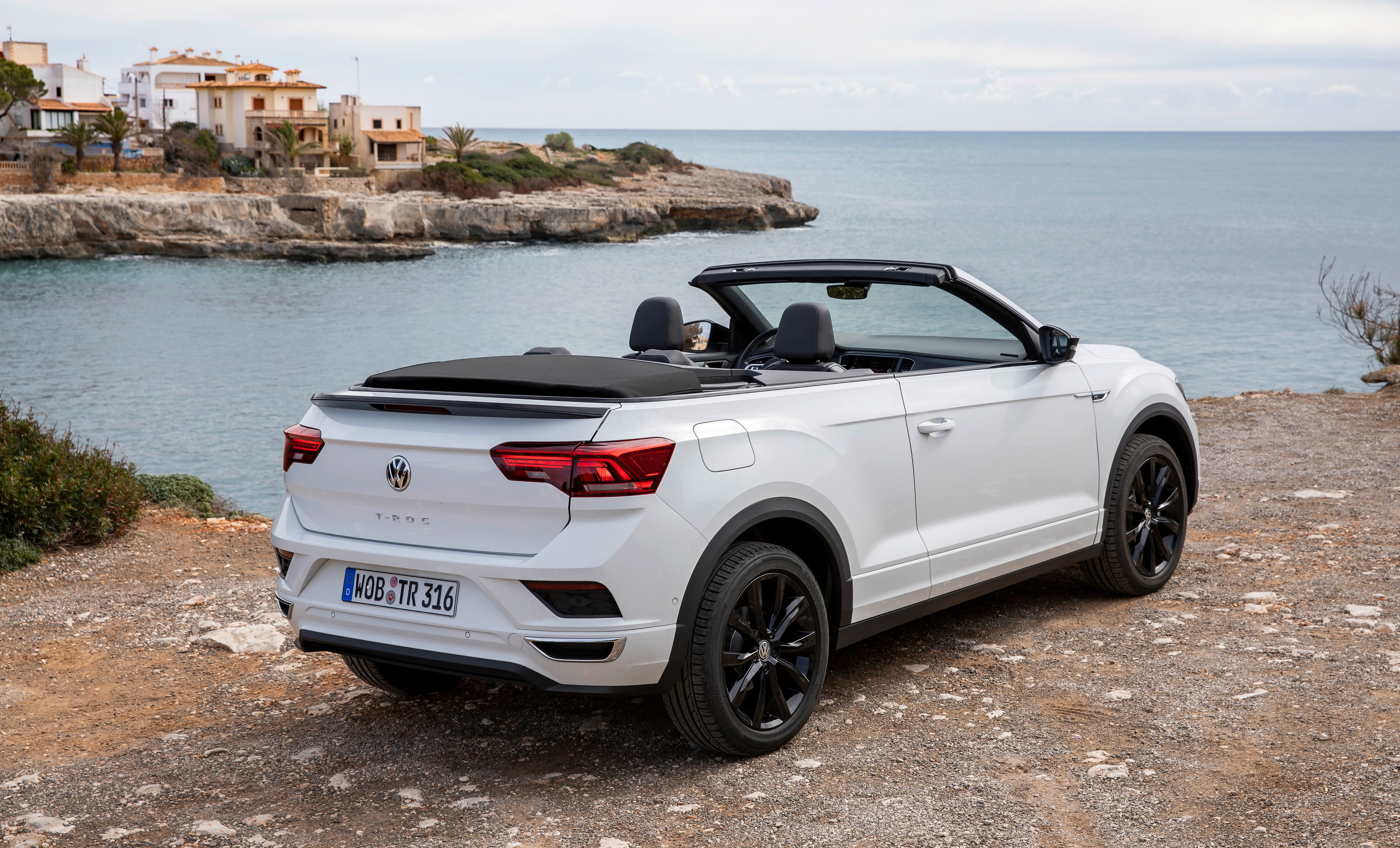

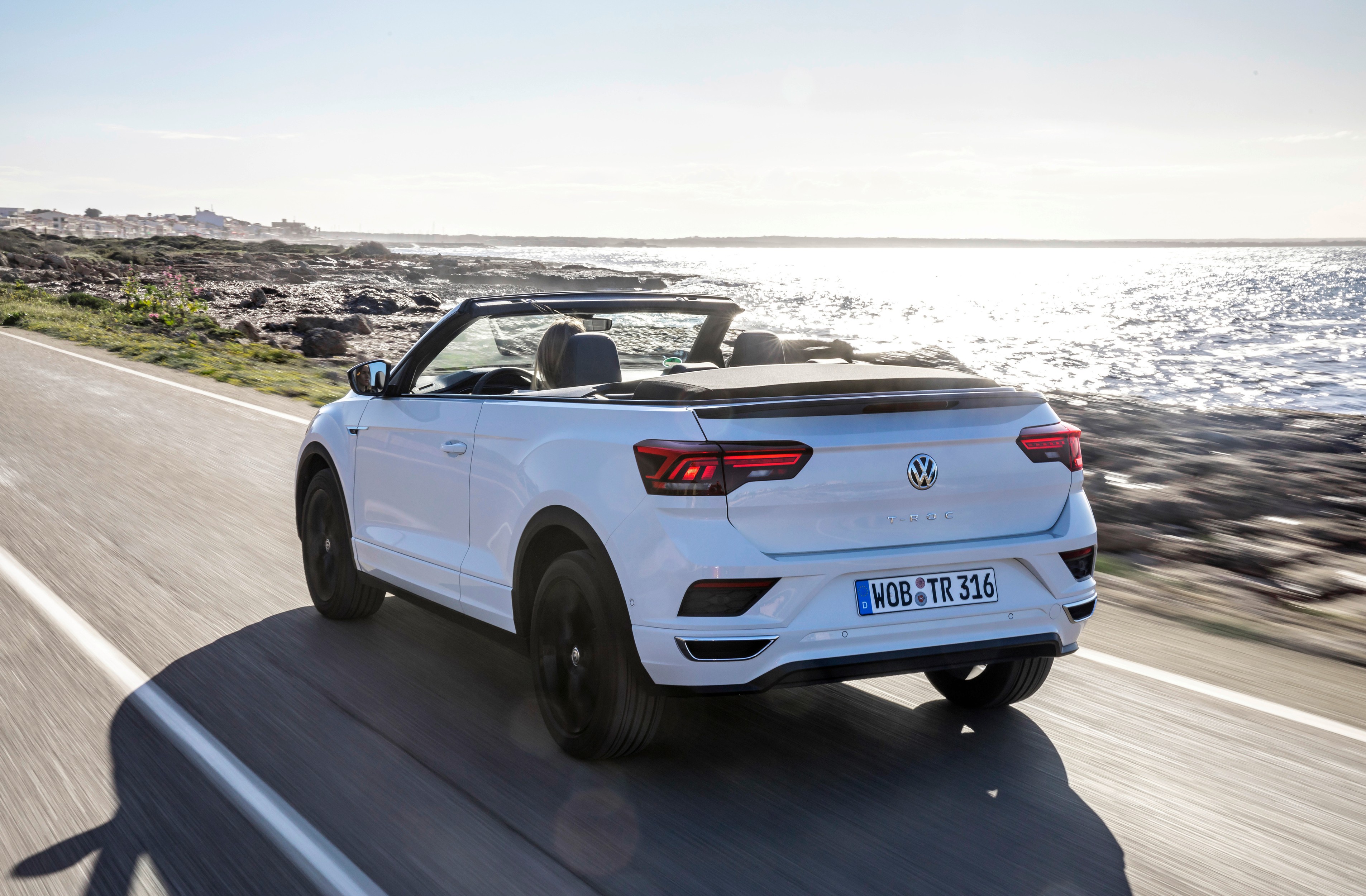

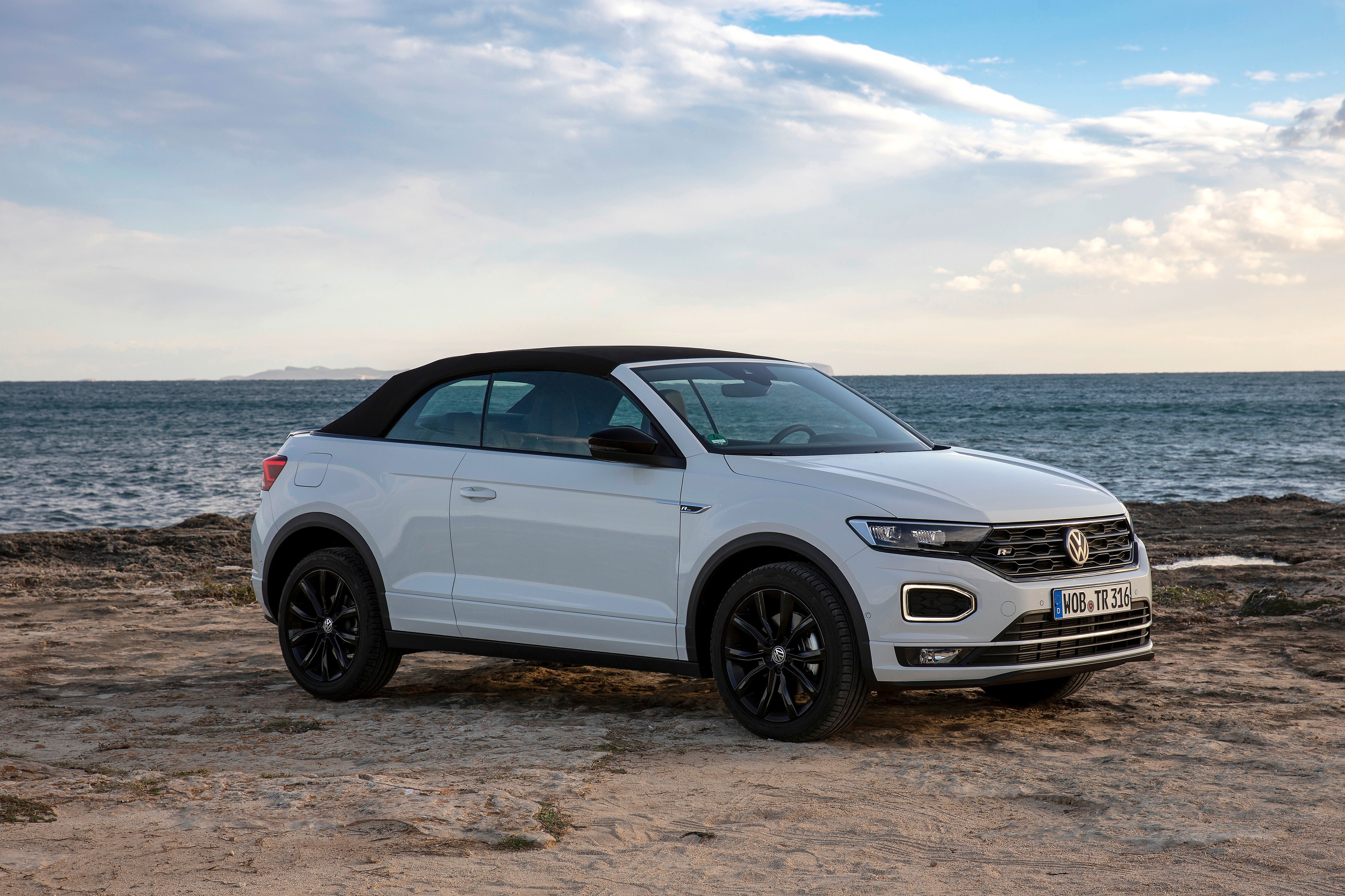

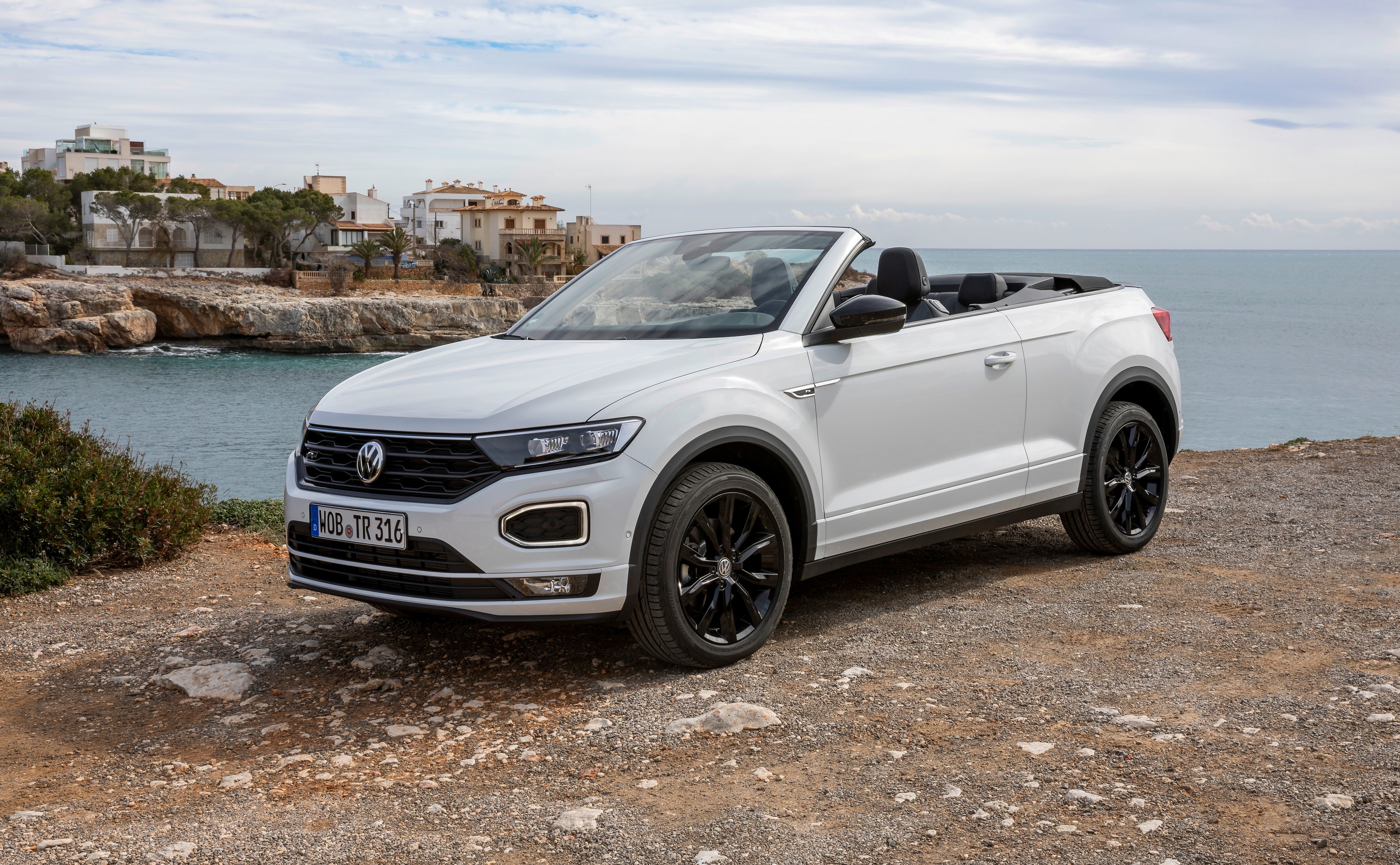

2020 – to this day (Convertible)
Platform
Volkswagen Group MQB A1
Manufacturing locations
Palmela, Portugal
Foshan, People's Republic of China
Osnabrück, Germany
Designer
-
Tags
Small SUV
German cars

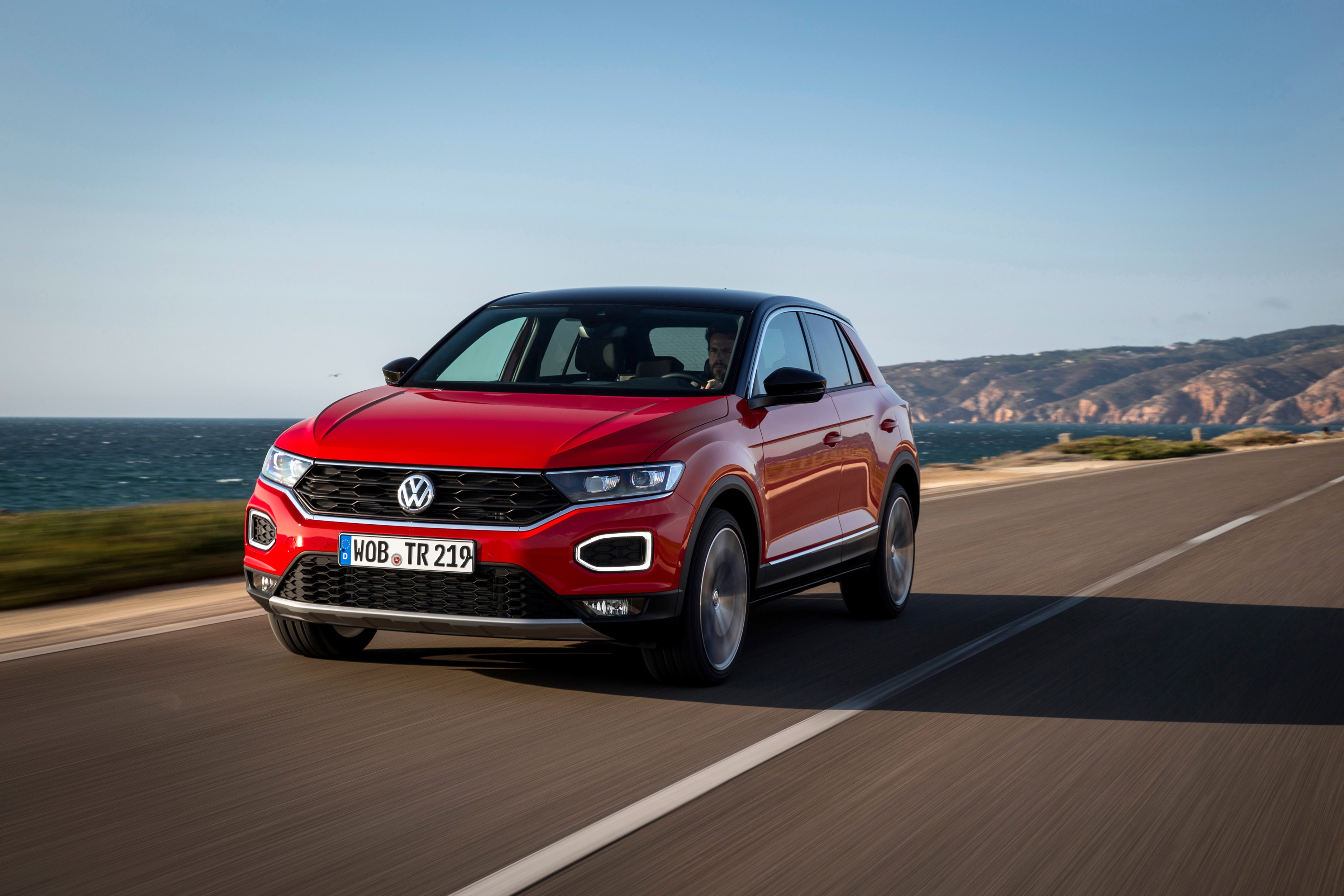

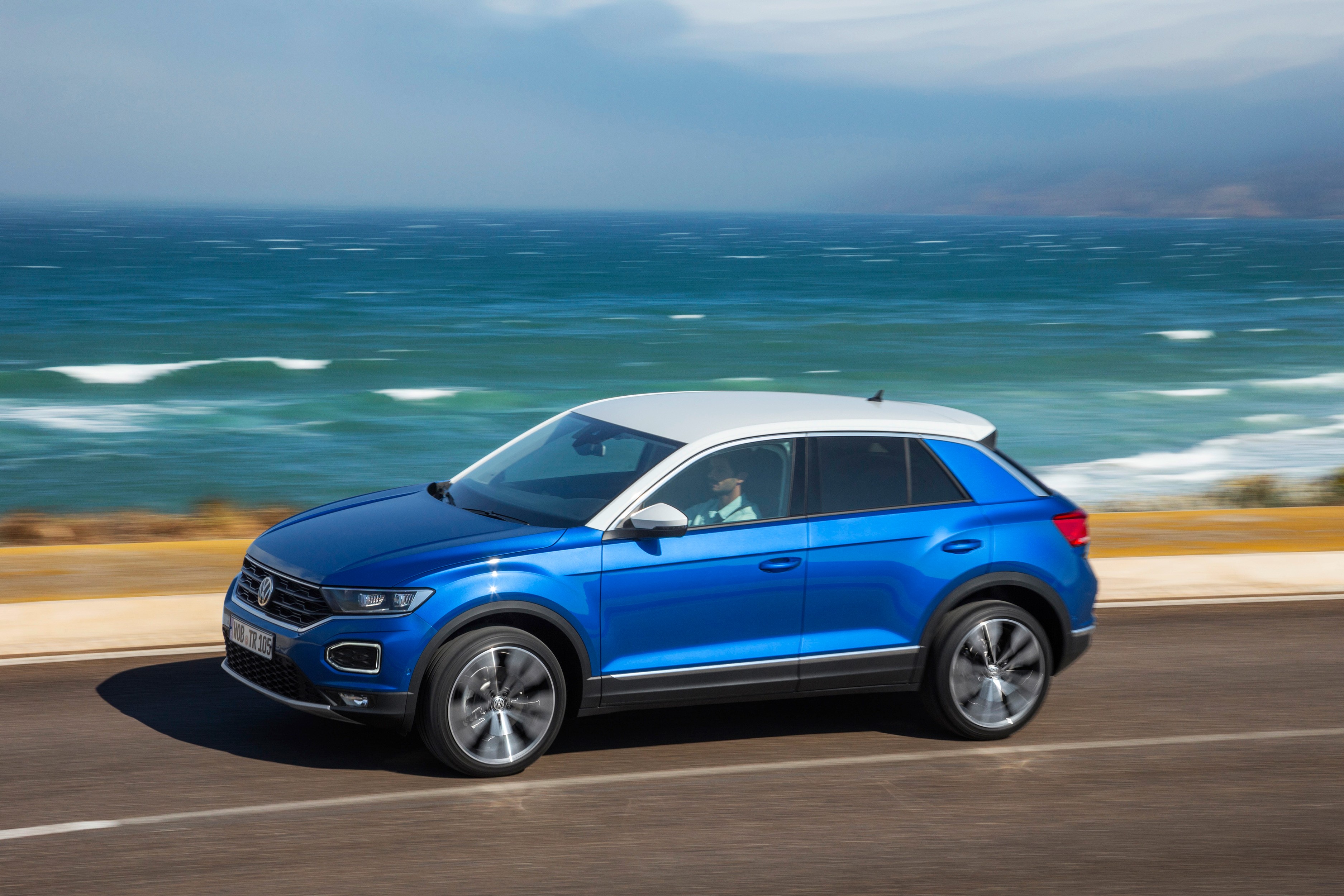

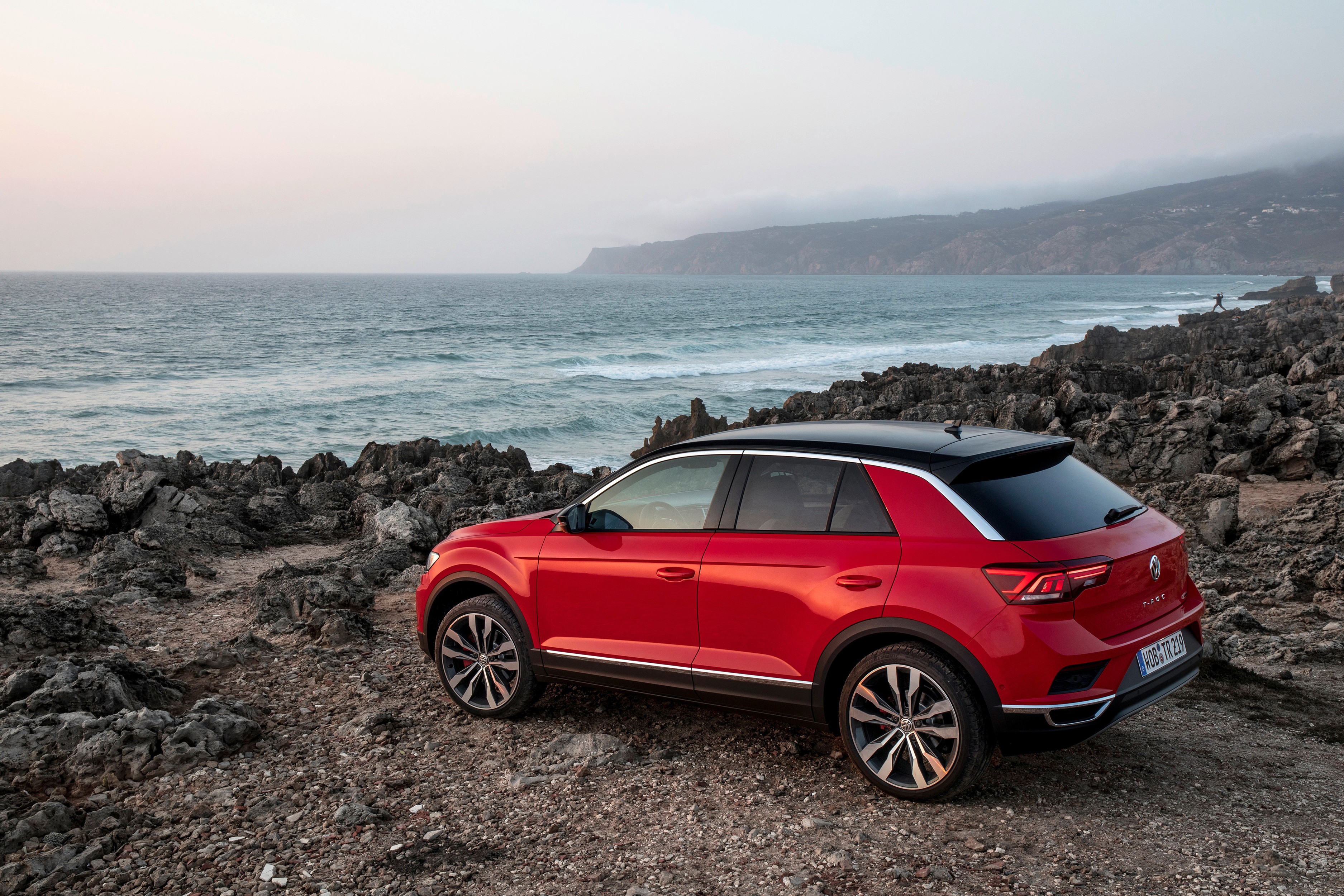

The Volkswagen T-Roc is a small SUV and convertible, produced since 2017. The vehicle can be built in Portugal, China or Germany on the Volkswagen Group MQB A1 platform. The engine range includes petrol and diesel units with a maximum power of 221 kW (2.0 TSI R 4MOTION) and a maximum speed of 250 km/h. The most economical version 1.6 TDI has a combined fuel consumption of 4.2 l/100 km and CO2 emissions of 111 g/km. The size of the luggage compartment for the small SUV is 445 l, for the convertible 284 l. The model was successful in the EURONCAP 2017 safety tests with a rating of 5 out of 5 points.
Car body style
Small SUV
Date of manufacture
11/2017 – to this dayInternal designation
A11
Technical data
Small SUV
| 1.0 TSI | 1.0 TSI BMT | 1.5 TSI | 1.5 TSI | 2.0 TSI 4MOTION | 2.0 TSI R 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from to 2020 | - | - | - | from 2019 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 81/5500 | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 221/5500 |
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 400/2000-5200 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 11.5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 12.2:1 | 9,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 185 | 187 | 205 | 205 | 216 | 250 |
| Acceleration 0–100 km/h [s] | 10.8 | 10.1 | 8.4 | 8.4 | 7.2 | 4.8 |
| Acceleration 0–80 km/h [s] | - | 6.7 | 6.0 | 6.0 | 5.0 | - |
| Acceleration 80–120 km/h [s] | - | 11.5 (15.5 (4th/5th gear) | 9.5 (12.5 (4th/5th gear) | - | - | - |
| City [l] | - | 6,6-6,3 | 6,3-6,2 | 6,1-6,0 | 8,7-8,6 | 9.5-9.1 |
| Out of town [l] | - | 4,7-4,5 | 5,1-4,7 | 5,0-4,8 | 5,7-5,5 | 6.6-6.5 |
| Combined [l] | - | 5,4-5,2 | 5,5-5,3 | 5,4-5,2 | 6,8-6,6 | 7.7-7.5 |
| CO2 emissions [g/km] | - | 123-118 | 127-120 | 124-119 | 155-151 | 176-171 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7.3-5.9 | - | 7.4-6.2 | 7.3-6.3 | 8.8-7.4 | 9.4-8.6 |
| CO2 emissions [g/km] | 165-135 | - | 169-142 | 166-144 | 199-168 | 213-195 |
| Emission standard | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d | EU6 - Euro 6d | EU6 - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1297 | 1297 | 1347 | 1354 | 1504 | 1575 |
| Overall weight [kg] | 1790 | 1790 | 1860 | 1870 | 2000 | 2070-2080 |
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 640/1300 | 670/1500 | 670/1500 | 750/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 930/910 | 930/910 | 980/930 | 990/930 | 1060/990 | 1070/1050 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 392 | 392 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1290 | -/1290 | -/1290 | -/1290 | -/1237 | -/1237 |
| Boot length [mm] | 830 | 830 | 830 | 830 | 801 | 801 |
| Boot length with rear seats folded [mm] | 1532 | 1532 | 1532 | 1532 | 1551 | 1551 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2089 | 2089 | 2089 | 2089 | 2089 | 2089 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/50 R18 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/50 R18 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 7.0J x 18 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 7.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4234 | 4234 | 4234 | 4234 | 4234 | 4234 |
| Overall width without/including mirrors [mm] | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 |
| Overall height [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Wheelbase [mm] | 2590 | 2590 | 2590 | 2590 | 2593 | 2593 |
| Front wheel track [mm] | 1538 | 1538 | 1538 | 1538 | 1538 | 1538 |
| Rear wheel track [mm] | 1533 | 1533 | 1533 | 1533 | 1539 | 1539 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 161 | 161 | 161 | 161 | 158 | 158 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.4 | 16.4 | 16.4 | 16.4 | 16.4 | 16.4 |
| Approach angle rear [°] | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 |
| Transition angle [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.5 | 12.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1474/- | 1474/- | 1474/- | 1474/- | 1474/- | 1474/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2021 to | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 85/3250-4000 | 85/3250-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1750-3200 | 250/1750-3200 | 340/1600-3000 | 340/1750-3000 | 340/1600-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 187 | 187 | 205 | 205 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.4 | 8.8 | 8.8 | 8.7 | 8.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | 6.2 | 5.6 |
| Acceleration 80–120 km/h [s] | - | - | - | - | 9.5 (12.5 (4th/5th gear) | - |
| City [l] | 5,0-4,8 | - | 5.5 | 5,4-5,2 | 6.0 | 5,8-5,7 |
| Out of town [l] | 4,0-3,9 | - | 4.0 | 4,3-4,1 | 4.6-4.5 | 4,7-4,5 |
| Combined [l] | 4,4-4,2 | - | 4.6 | 4,7-4,5 | 5.0 | 5,1-4,9 |
| CO2 emissions [g/km] | 115-111 | - | - | 123-119 | 132-131 | 135-129 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 5.5-4.6 | 5.6-4.8 | 5.6-4.9 | - | 6.6-5.6 |
| CO2 emissions [g/km] | - | 145-121 | 147-126 | 145-128 | - | 172-146 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d | EU6 - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1391 | 1414 | 1423 | 1445 | 1505 | 1532 |
| Overall weight [kg] | 1890 | 1920 | 1930 | 1960 | 2020 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 690/1500 | 700/1500 | 700/1600 | 720/1600 | 740/1700 | 750/1700 |
| Maximum front/rear axle load [kg] | 1020/920 | 1040/930 | 1030/940 | 1070/940 | 1060/980 | 1080/1010 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 445 | 445 | 445 | 445 | 392 | 392 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1290 | -/1290 | -/1290 | -/1290 | -/1237 | -/1237 |
| Boot length [mm] | 830 | 830 | 830 | 830 | 801 | 801 |
| Boot length with rear seats folded [mm] | 1532 | 1532 | 1532 | 1532 | 1551 | 1551 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2089 | 2089 | 2089 | 2089 | 2089 | 2089 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 55 | 55 |
| AdBlue tank volume [l] | 12 | 12 | 12 | 12 | 12 | 12 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Tyre dimensions rear | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 | 215/60 R16 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4234 | 4234 | 4234 | 4234 | 4234 | 4234 |
| Overall width without/including mirrors [mm] | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 | 1819/1992 |
| Overall height [mm] | 1573 | 1573 | 1573 | 1573 | 1573 | 1573 |
| Wheelbase [mm] | 2590 | 2590 | 2590 | 2590 | 2593 | 2593 |
| Front wheel track [mm] | 1538 | 1538 | 1538 | 1538 | 1538 | 1538 |
| Rear wheel track [mm] | 1533 | 1533 | 1533 | 1533 | 1539 | 1539 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 161 | 161 | 161 | 161 | 158 | 158 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.4 | 16.4 | 16.4 | 16.4 | 16.4 | 16.4 |
| Approach angle rear [°] | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 | 18.8 |
| Transition angle [°] | 12.8 | 12.8 | 12.8 | 12.8 | 12.5 | 12.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1043 | 1043 | 1043 | 1043 | 1043 | 1043 |
| Headroom rear [mm] | 982 | 982 | 982 | 982 | 982 | 982 |
| Front elbow/shoulder width [mm] | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- | 1471/- |
| Rear elbow/shoulder width [mm] | 1474/- | 1474/- | 1474/- | 1474/- | 1474/- | 1474/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI 4MOTION | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1968 | |||||
| Maximum output / speed [kW/min-1] | 140/3500-4000 | |||||
| Maximum torque [Nm/min-1] | 400/1900-3300 | |||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | |||||
| Compression ratio | 15,8:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 216 | |||||
| Acceleration 0–100 km/h [s] | 7.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6,1-5,8 | |||||
| Out of town [l] | 4,7-4,5 | |||||
| Combined [l] | 5,2-5,0 | |||||
| CO2 emissions [g/km] | 138-131 | |||||
| Emission standard | Euro 6d-TEMP - Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1556 | |||||
| Overall weight [kg] | 2070 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | |||||
| Maximum front/rear axle load [kg] | 1100/1020 | |||||
| Maximum vertical load on the tow bar [kg] | 80 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 392 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1237 | |||||
| Boot length [mm] | 801 | |||||
| Boot length with rear seats folded [mm] | 1551 | |||||
| Boot width between wheels/max [mm] | 1011/- | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 2089 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 55 | |||||
| AdBlue tank volume [l] | 12 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 215/60 R16 | |||||
| Tyre dimensions rear | 215/60 R16 | |||||
| Wheel size front | 6.0J x 16 | |||||
| Wheel size rear | 6.0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.1/- | |||||
| Overall length [mm] | 4234 | |||||
| Overall width without/including mirrors [mm] | 1819/1992 | |||||
| Overall height [mm] | 1573 | |||||
| Wheelbase [mm] | 2593 | |||||
| Front wheel track [mm] | 1538 | |||||
| Rear wheel track [mm] | 1539 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 158 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 16.4 | |||||
| Approach angle rear [°] | 18.8 | |||||
| Transition angle [°] | 12.5 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1043 | |||||
| Headroom rear [mm] | 982 | |||||
| Front elbow/shoulder width [mm] | 1471/- | |||||
| Rear elbow/shoulder width [mm] | 1474/- | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Convertible
| 1.0 TSI | 1.0 TSI | 1.5 TSI | 1.5 TSI | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2021 to | from to 2020 | - | - | ||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | ||
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 999 | 999 | 1498 | 1498 | ||
| Maximum output / speed [kW/min-1] | 81/5500 | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 | ||
| Maximum torque [Nm/min-1] | 200/2000-3000 | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 | ||
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 85,9 | 74,5 x 85,9 | ||
| Compression ratio | 11.5:1 | 10,5:1 | 10,5:1 | 10,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | ||
| Drive specifications | - | - | - |
| ||
| Top speed [km/h] | 185 | 187 | 205 | 205 | ||
| Acceleration 0–100 km/h [s] | 12.3 | - | 9.5 | 9.5 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | - | 6,6-6,3 | 6,9-6,7 | 6,7-6,5 | ||
| Out of town [l] | - | 5,1-4,8 | 5,0-4,8 | 5,3-5,0 | ||
| Combined [l] | - | 5,6-5,4 | 5,7-5,5 | 5,8-5,6 | ||
| CO2 emissions [g/km] | - | 129-123 | 130-125 | 132-127 | ||
| Low speed [l] | - | - | - | - | ||
| Medium speed [l] | - | - | - | - | ||
| High speed [l] | - | - | - | - | ||
| Extra high speed [l] | - | - | - | - | ||
| Combined speed [l] | 7.3-6.3 | - | 7.4-6.6 | 7.3-6.6 | ||
| CO2 emissions [g/km] | 165-143 | - | 169-150 | 166-149 | ||
| Emission standard | Euro 6d | EU6 - Euro 6d-TEMP | EU6 - Euro 6d | EU6 - Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1482 | 1487 | 1524 | 1540 | ||
| Overall weight [kg] | 1840 | 1850 | 1880 | 1900 | ||
| Maximum trailer weight unbraked/braked [kg] | 740/1300 | 740/1300 | 750/1500 | 750/1500 | ||
| Maximum front/rear axle load [kg] | 960/930 | 970/930 | 1000/930 | 1020/930 | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 284 | 284 | 284 | 284 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 841 | 841 | 841 | 841 | ||
| Boot length with rear seats folded [mm] | 1563 | 1563 | 1563 | 1563 | ||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 1579 | 1579 | 1579 | 1579 | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 4 | 4 | 4 | 4 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | ||
| Tyre dimensions rear | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 | ||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | ||
| Overall length [mm] | 4268 | 4268 | 4268 | 4268 | ||
| Overall width without/including mirrors [mm] | 1811/1998 | 1811/1998 | 1811/1998 | 1811/1998 | ||
| Overall height [mm] | 1522 | 1522 | 1522 | 1522 | ||
| Wheelbase [mm] | 2630 | 2630 | 2630 | 2630 | ||
| Front wheel track [mm] | 1538 | 1538 | 1538 | 1538 | ||
| Rear wheel track [mm] | 1539 | 1539 | 1539 | 1539 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | ||
| Headroom rear [mm] | 967 | 967 | 967 | 967 | ||
| Front elbow/shoulder width [mm] | 1494/- | 1494/- | 1494/- | 1494/- | ||
| Rear elbow/shoulder width [mm] | 1230/- | 1230/- | 1230/- | 1230/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
