Volkswagen Tiguan
Date of manufacture
2020 – to this day (Medium SUV)
Platform
Volkswagen Group MQB A2
Manufacturing locations
Wolfsburg, Germany
Puebla, Mexico
Shanghai, People's Republic of China
Kaluga, Russia
Relizane, Algeria
Designer
-
Tags
Compact SUV
German cars
The Volkswagen Tiguan is a mid-size SUV that was launched in 2020. The vehicle is manufactured in countries such as Germany, Mexico, the People's Republic of China, Russia and Algeria and is built on the Volkswagen Group MQB A2 platform. A plug-in hybrid version is also available. The engine range includes petrol, diesel and hybrid engines with the most powerful model being the 2.0 TSI R 4MOTION with a power output of 235 kW and a top speed of 250 km/h. The most fuel-efficient variant is the 1.4 eHybrid with a combined fuel consumption of 1.5 l/100 km and CO2 emissions of 35 g/km. The luggage compartment volume reaches 476 l. In terms of safety, EURONCAP rated this model 5 out of 5 points in 2016.
Car body style
Medium SUV
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
AD/BWEngine size
Petrol
Petrol + ElectricDiesel
Technical data
Medium SUV
| 1.5 TSI ACT | 1.5 TSI ACT | 1.5 TSI ACT | 2.0 TSI 4MOTION | 2.0 TSI 4MOTION | 2.0 TSI R 4MOTION | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1498 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 96/5000-6000 | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 180/5250-6500 | 235 |
| Maximum torque [Nm/min-1] | 220/1750-3500 | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 370/1600-4300 | 420/2100-5350 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 82,5 x 92,8 |
| Compression ratio | 12,5:1 | 10,5:1 | 10,5:1 | 12.2:1 | 9,6:1 | 9,6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
|
|
|
|
| Top speed [km/h] | 195 | 203 | 202 | 214 | 229 | 250 |
| Acceleration 0–100 km/h [s] | 10.9 | 9.9 | 9.2 | 7.4 | 6.0 | 4,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4 | 6.7 | 6.5 | 7.6 | 9.0 | 10.2 |
| Out of town [l] | 5.0 | 4.9 | 5.2 | 6.1 | 6.3 | 7.0 |
| Combined [l] | 5.5 | 5.5 | 5.7 | 6.7 | 7.3 | 8.1 |
| CO2 emissions [g/km] | 126 | 127 | 130 | 152 | 167 | 186 |
| Low speed [l] | 7.6 | 8.1 | 8.6 | 10.0 | 12.1 | 13.9 |
| Medium speed [l] | 6.1 | 6.1 | 6.7 | 7.9 | 8.5 | 9.7 |
| High speed [l] | 5.4 | 5.5 | 5.8 | 6.9 | 7.4 | 8.3 |
| Extra high speed [l] | 6.5 | 6.8 | 7.0 | 7.9 | 8.6 | 9.7 |
| Combined speed [l] | 6.2 | 6.4 | 6.8 | 7.9 | 8.7 | 9.8 |
| CO2 emissions [g/km] | 141 | 145 | 154 | 179 | 197 | 223 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1504 | 1502 | 1536 | 1676 | 1688 | 1746 |
| Overall weight [kg] | 1970 | 1970 | 2000 | 2190 | 2230 | 2260 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1800 | 750/1800 | 750/2500 | 750/2500 | 750/2200 |
| Maximum front/rear axle load [kg] | 1050/970 | 1050/970 | 1080/970 | 1160/1080 | 1160/1120 | 1190/1120 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 615 | 615 | 615 | 615 | 615 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 | -/1655 |
| Boot length [mm] | 977 | 977 | 977 | 985 | 985 | 985 |
| Boot length with rear seats folded [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | 1746 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2096 | 2096 | 2096 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 255/45 R19 | 255/40 R20 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 255/45 R19 | 255/40 R20 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8.5 J x 19 | 8.5J x 20 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 8.5 J x 19 | 8.5J x 20 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4509 | 4509 | 4509 | 4509 | 4511 | 4514 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1859/2099 | 1859/2099 |
| Overall height [mm] | 1684 | 1684 | 1684 | 1684 | 1684 | 1677 |
| Wheelbase [mm] | 2678 | 2678 | 2678 | 2679 | 2679 | 2678 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1576 | 1576 | 1579 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1566 | 1566 | 1570 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 191 | 191 | 191 | 201 | 201 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.9 | 16.9 | 16.9 | 17.9 | 17.9 | - |
| Approach angle rear [°] | 17.0 | 17.0 | 17.0 | 17.9 | 17.9 | - |
| Transition angle [°] | 15.3 | 15.3 | 15.3 | 16.0 | 16.0 | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1049 | 1049 | 1049 | 1049 | 1049 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 TSI ACT Allspace | 1.5 TSI ACT Allspace | 2.0 TSI Allspace 4MOTION | 2.0 TSI Allspace 4MOTION | 1.4 eHybrid | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1498 | 1984 | 1984 | 1395 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 140/4200-6000 | 180/5250-6500 | 110/5000-6000 combustion 85 el. 180 total | 90/3500-4250 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 320/1500-4100 | 370/1600-4300 | 250/1550-3500 combustion 400 total | 320/1600-2500 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 74,5 x 85,9 | 82,5 x 92,8 | 82,5 x 92,8 | 74,5 x 80,0 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 12.2:1 | 9,6:1 | 10,5:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 201 | 200 | 213 | 229 | 205 | 191 |
| Acceleration 0–100 km/h [s] | 10.3 | 9.6 | 7,7 | 6.2 | 7.5 | 10.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7 | 6.5 | 7,6 | 9.2 | - | 5.7 |
| Out of town [l] | 5.1 | 5.3 | 6,2 | 6.4 | - | 3.8 |
| Combined [l] | 5.7 | 5.7 | 6,7 | 7.4 | 1.8 [13.4 kWh] | 4.5 |
| CO2 emissions [g/km] | 131 | 131 | 153 | 170 | 42 | 119 |
| Low speed [l] | 8.2 | 8.9 | 10,2 | 12.3 | - | 6.2 |
| Medium speed [l] | 6.4 | 7.1 | 8,1 | 8.7 | - | 4.8 |
| High speed [l] | 5.8 | 6.0 | 7,1 | 7.5 | - | 4.3 |
| Extra high speed [l] | 7.1 | 7.2 | 8,1 | 8.6 | - | 5.3 |
| Combined speed [l] | 6.7 | 7.1 | 8,1 | 8.8 | 1.5 [15.2 kWh] | 5.0 |
| CO2 emissions [g/km] | 152 | 160 | 183 | 200 | 35 | 131 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 10.4 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 45-49 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1571 | 1604 | 1735 | 1743 | 1819 | 1590 |
| Overall weight [kg] | 2110 | 2140 | 2300 | 2360 | 2280 | 2040 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2500 | 750/2500 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | 1080/1080 | 1110/1080 | 1180/1170 | 1180/1230 | 1150/1180 | 1120/970 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 760 | 760 | 760 | 760 | 476 | 615 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1920 [- | -/1920 [- | -/1920 [- | -/1920 [- | -/1516 | -/1655 |
| Boot length [mm] | 1046 | 1046 | 1046 | 1046 | 977 | 977 |
| Boot length with rear seats folded [mm] | 1921 | 1921 | 1921 | 1921 | 1746 | 1746 |
| Boot width between wheels/max [mm] | 1002/- | 1002/- | 1002/- | 1002/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2102 | 2102 | 2102 | 2102 | 2096 | 2087 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 45 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | 18 |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson, lower triangular arms, torsion stabiliser | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | multilink, stabiliser bar | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 | 225/45 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 235/55 R18 | 225/45 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | 7.5J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | 7.5J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | 11,9/- | 11,9/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4728 | 4728 | 4728 | 4728 | 4486 | 4509 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1859/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1674 | 1674 | 1674 | 1686 | 1681 | 1684 |
| Wheelbase [mm] | 2789 | 2789 | 2789 | 2789 | 2680 | 2678 |
| Front wheel track [mm] | 1575 | 1575 | 1575 | 1575 | 1576 | 1579 |
| Rear wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1567 | 1570 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 201 | 201 | 201 | 201 | - | 191 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.8 | 16.8 | 16.8 | 16.8 | 17.5 | 16.9 |
| Approach angle rear [°] | 15.6 | 15.6 | 15.6 | 15.6 | 18.9 | 17.0 |
| Transition angle [°] | 16.1 | 16.1 | 16.1 | 16.1 | 16.5 | 15.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1054 | 1054 | 1054 | 1054 | 1049 | 1049 |
| Headroom rear [mm] | 1002 | 1002 | 1002 | 1002 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1491/- | 1491/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI | 2.0 TDI | 2.0 TDI 4MOTION | 2.0 TDI 4MOTION | 2.0 TDI Allspace | 2.0 TDI Allspace | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 110/3500-4000 | 147/3500-4200 | 110/3500-4000 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1600-3000 | 360/1600-2750 | 360/1600-2750 | 400/1750-3500 | 340/1600-3000 | 360/1600-2750 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,0:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 201 | 200 | 198 | 216 | 200 | 199 |
| Acceleration 0–100 km/h [s] | 9.4 | 9.4 | 9.3 | 7.5 | 9,8 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.8 | 5.4 | 5.6 | 6.2 | 6,0 | 5,4 |
| Out of town [l] | 3.9 | 4.0 | 4.3 | 4.6 | 3,9 | 4,0 |
| Combined [l] | 4.6 | 4.5 | 4.8 | 5.2 | 4,7 | 4,5 |
| CO2 emissions [g/km] | 121 | 119 | 126 | 136 | 124 | 119 |
| Low speed [l] | 6.6 | 7.3 | 7.6 | 8.5 | 6,6 | 7,5 |
| Medium speed [l] | 4.8 | 5.2 | 5.8 | 6.0 | 5,1 | 5,5 |
| High speed [l] | 4.3 | 4.6 | 5.2 | 5.3 | 4,5 | 4,8 |
| Extra high speed [l] | 5.3 | 5.5 | 6.1 | 6.4 | 5,5 | 5,7 |
| Combined speed [l] | 5.1 | 5.4 | 6.0 | 6.3 | 5,2 | 5,6 |
| CO2 emissions [g/km] | 133 | 141 | 156 | 164 | 138 | 146 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1609 | 1631 | 1716 | 1705 | 1684 | 1714 |
| Overall weight [kg] | 2060 | 2090 | 2260 | 2250 | 2280 | 2310 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2500 | 750/2500 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | 1140/970 | 1170/970 | 1190/1120 | 1180/1120 | 1160/1170 | 1190/1170 |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 615 | 615 | 615 | 615 | 760 | 760 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1655 | -/1655 | -/1655 | -/1655 | -/1920 [- | -/1920 [- |
| Boot length [mm] | 977 | 977 | 985 | 985 | 1046 | 1046 |
| Boot length with rear seats folded [mm] | 1746 | 1746 | 1746 | 1746 | 1921 | 1921 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1002/- | 1002/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2087 | 2087 | 2096 | 2096 | 2102 | 2102 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | 18 | 18 | 18 | 18 | 18 | 18 |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 | 215/65 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11,9/- | 11,9/- |
| Overall length [mm] | 4509 | 4509 | 4509 | 4509 | 4728 | 4728 |
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 | 1839/2099 |
| Overall height [mm] | 1684 | 1684 | 1684 | 1684 | 1674 | 1674 |
| Wheelbase [mm] | 2678 | 2678 | 2679 | 2679 | 2789 | 2789 |
| Front wheel track [mm] | 1579 | 1579 | 1576 | 1576 | 1575 | 1575 |
| Rear wheel track [mm] | 1570 | 1570 | 1566 | 1566 | 1565 | 1565 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 191 | 191 | 201 | 201 | 201 | 201 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 16.9 | 16.9 | 17.9 | 17.9 | 16.8 | 16.8 |
| Approach angle rear [°] | 17.0 | 17.0 | 17.9 | 17.9 | 15.6 | 15.6 |
| Transition angle [°] | 15.3 | 15.3 | 16.0 | 16.0 | 16.1 | 16.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1049 | 1049 | 1049 | 1049 | 1054 | 1054 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1002 | 1002 |
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- | 1503/- |
| Rear elbow/shoulder width [mm] | 1491/- | 1491/- | 1491/- | 1491/- | 1503/- | 1503/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 TDI Allspace 4MOTION | 2.0 TDI Allspace 4MOTION | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1968 | 1968 | ||||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 147/3500-4200 | ||||
| Maximum torque [Nm/min-1] | 360/1600-2750 | 400/1750-3500 | ||||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | ||||
| Compression ratio | 16,2:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 197 | 216 | ||||
| Acceleration 0–100 km/h [s] | 9.7 | 7.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.8 | 6.3 | ||||
| Out of town [l] | 4.4 | 4.7 | ||||
| Combined [l] | 4.9 | 5.3 | ||||
| CO2 emissions [g/km] | 129 | 139 | ||||
| Low speed [l] | 7.8 | 8.6 | ||||
| Medium speed [l] | 6.0 | 6.2 | ||||
| High speed [l] | 5.3 | 5.5 | ||||
| Extra high speed [l] | 6.3 | 6.5 | ||||
| Combined speed [l] | 6.1 | 6.4 | ||||
| CO2 emissions [g/km] | 161 | 168 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1795 | 1790 | ||||
| Overall weight [kg] | 2400 | 2380 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | ||||
| Maximum front/rear axle load [kg] | 1220/1230 | 1200/1230 | ||||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | ||||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | ||||
| Boot volume [l] | 760 | 760 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1920 [- | -/1920 [- | ||||
| Boot length [mm] | 1046 | 1046 | ||||
| Boot length with rear seats folded [mm] | 1921 | 1921 | ||||
| Boot width between wheels/max [mm] | 1002/- | 1002/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 2102 | 2102 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5-7 | 5-7 | ||||
| Fuel tank volume [l] | 58 | 58 | ||||
| AdBlue tank volume [l] | 18 | 18 | ||||
| Air resistance [Cd] | 0.34 | 0.34 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | four-link | four-link | ||||
| Tyre dimensions front | 215/65 R17 | 215/65 R17 | ||||
| Tyre dimensions rear | 215/65 R17 | 215/65 R17 | ||||
| Wheel size front | 7.0J x 17 | 7.0J x 17 | ||||
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11,9/- | 11,9/- | ||||
| Overall length [mm] | 4728 | 4728 | ||||
| Overall width without/including mirrors [mm] | 1839/2099 | 1839/2099 | ||||
| Overall height [mm] | 1674 | 1674 | ||||
| Wheelbase [mm] | 2789 | 2789 | ||||
| Front wheel track [mm] | 1575 | 1575 | ||||
| Rear wheel track [mm] | 1565 | 1565 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 201 | 201 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 16.8 | 16.8 | ||||
| Approach angle rear [°] | 15.6 | 15.6 | ||||
| Transition angle [°] | 16.1 | 16.1 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1054 | 1054 | ||||
| Headroom rear [mm] | 1002 | 1002 | ||||
| Front elbow/shoulder width [mm] | 1503/- | 1503/- | ||||
| Rear elbow/shoulder width [mm] | 1503/- | 1503/- | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

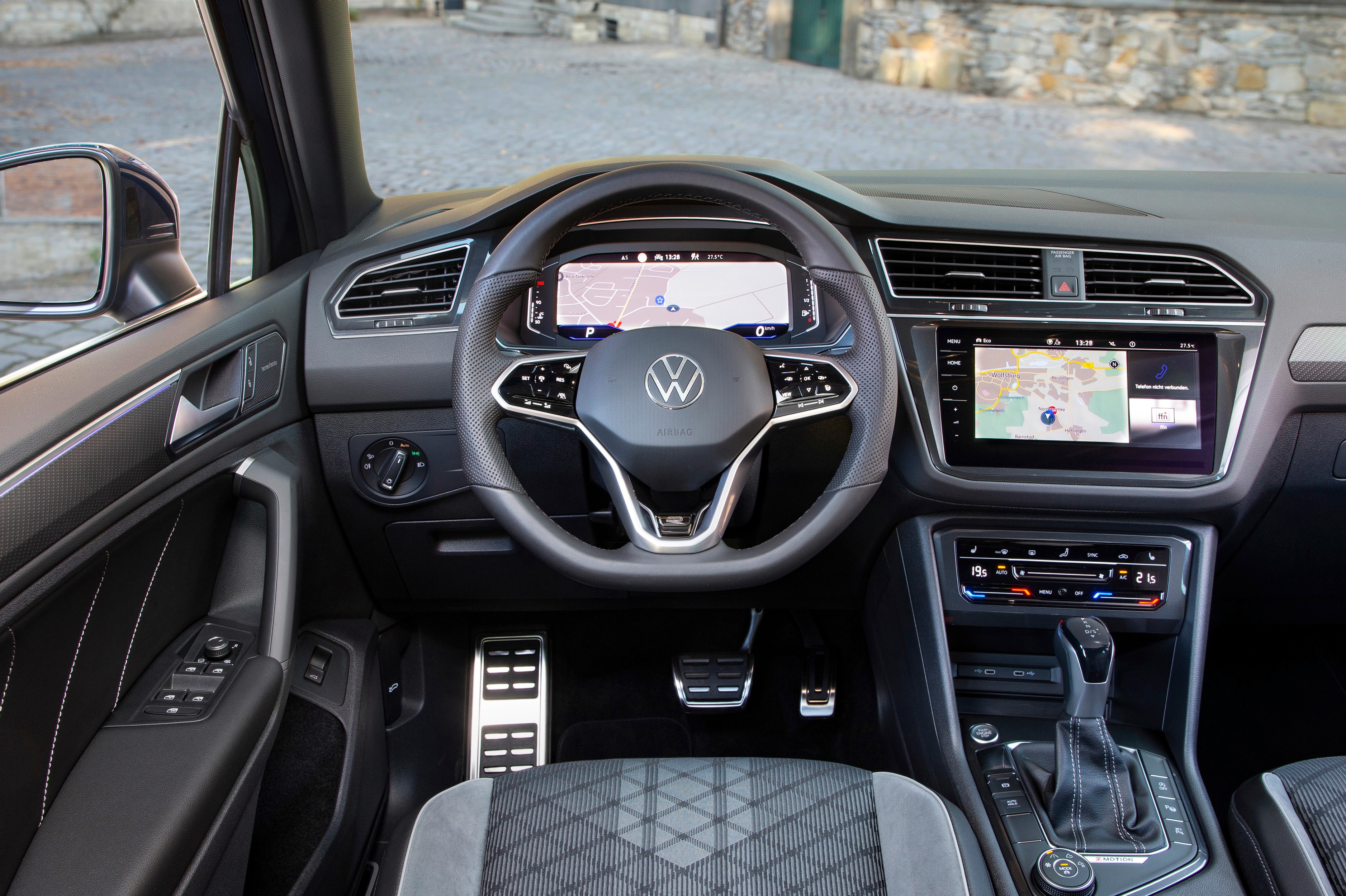

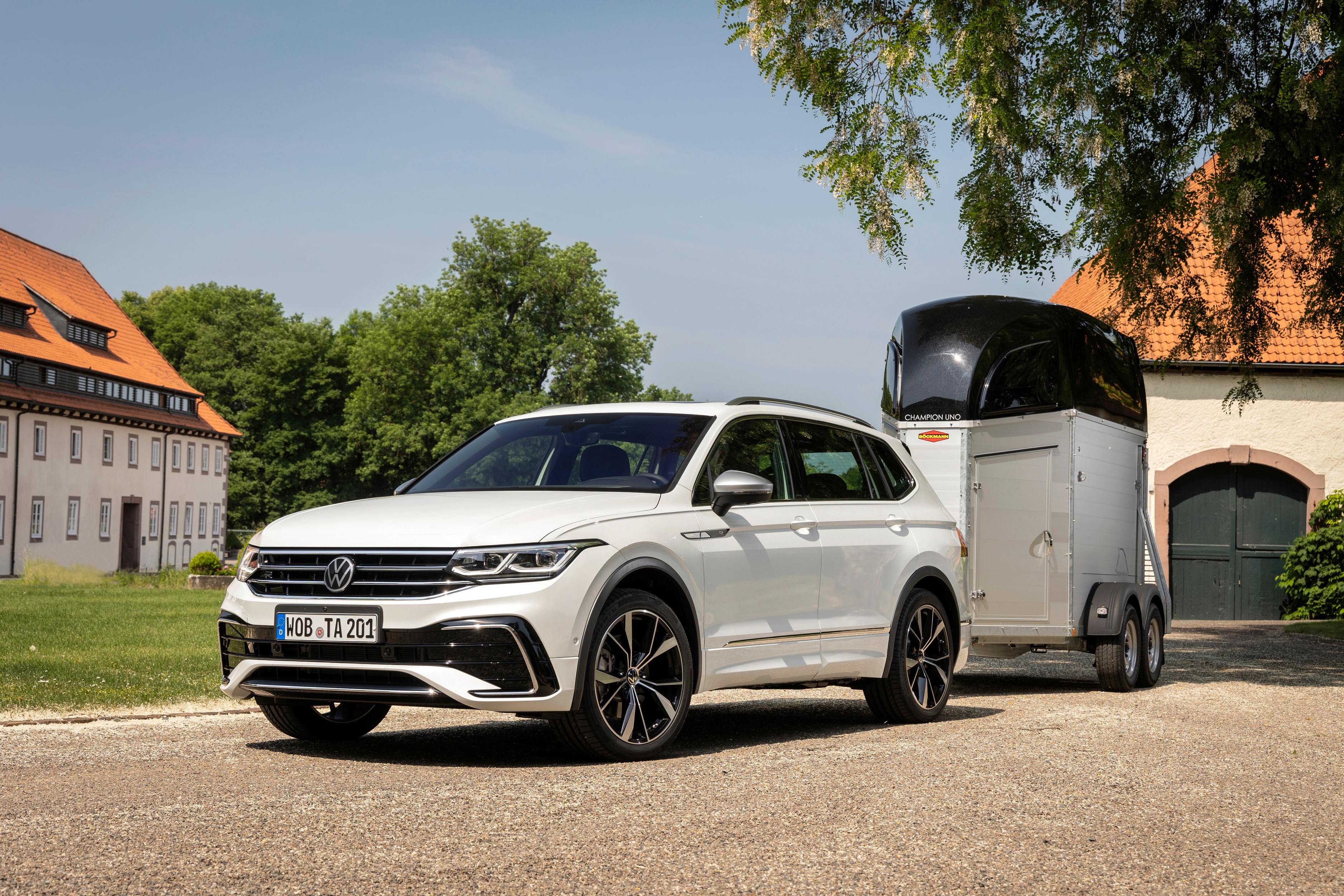

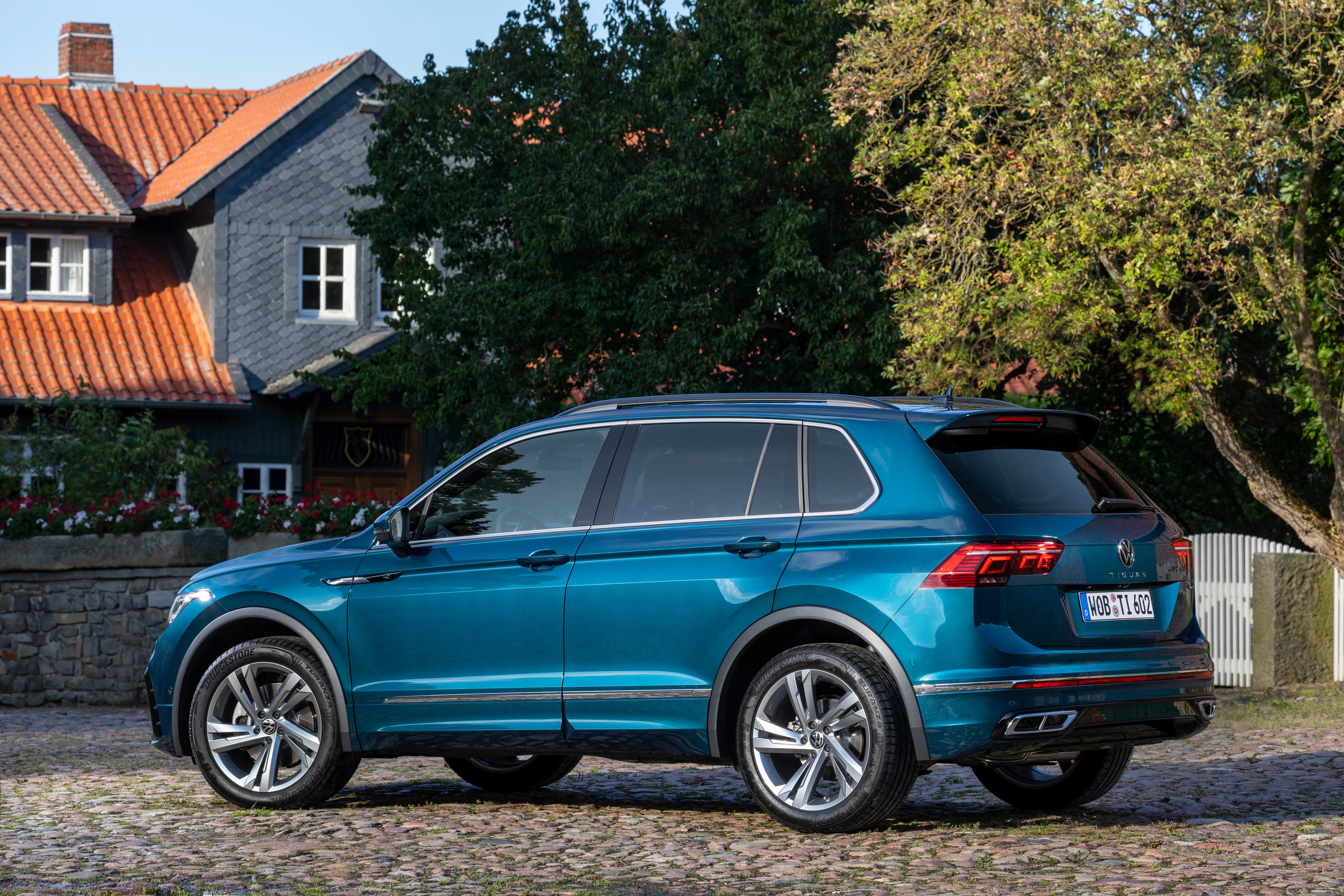

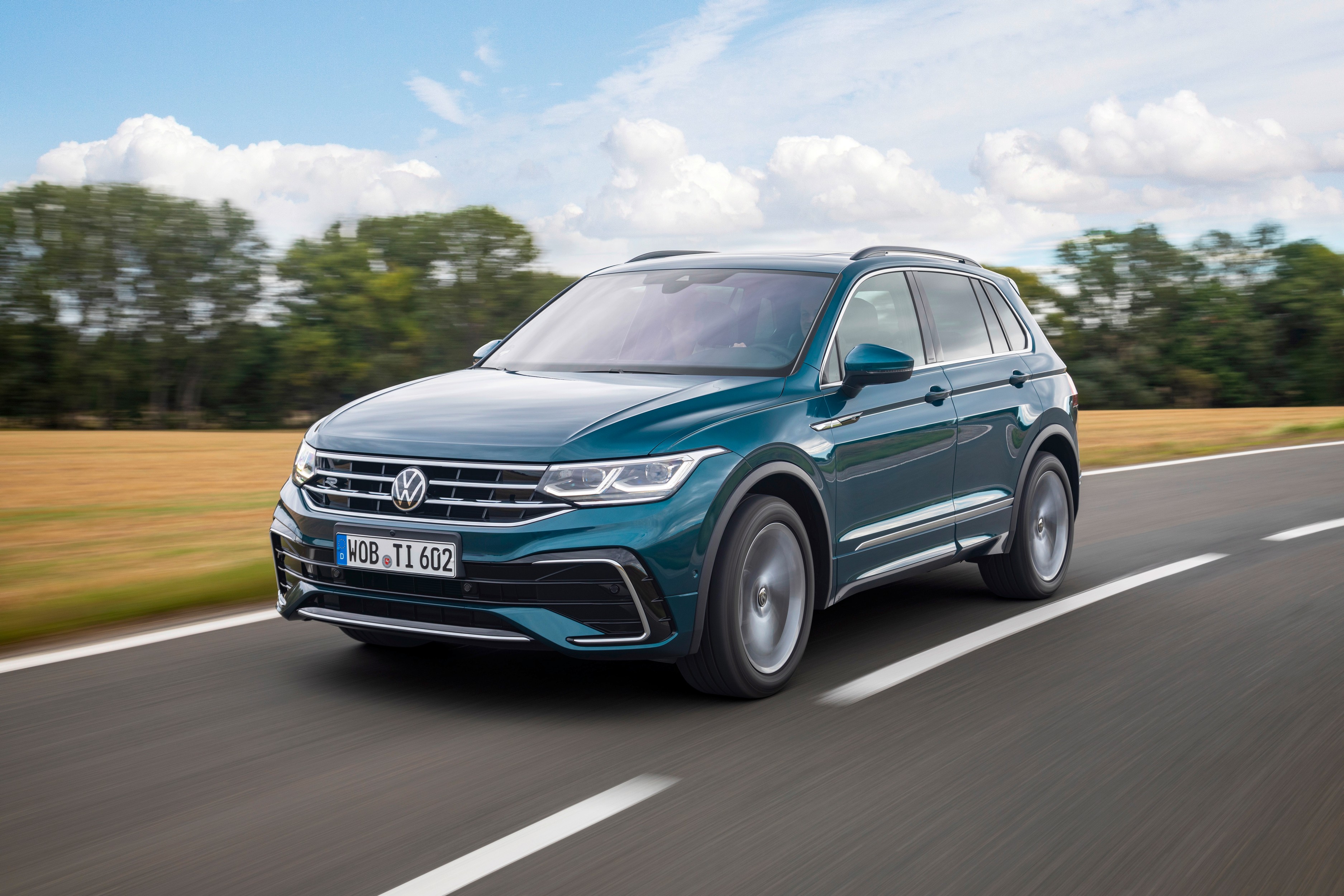

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
