Volkswagen Touareg

Date of manufacture

2006 – 2010 (Large SUV)

Platform

Volkswagen Group PL7

Manufacturing locations

Bratislava, Slovakia

Designer

Car body style

Large SUV

after upgrade (facelift)

Date of manufacture

2006 – 2010

Internal designation

Engine size

Petrol

Diesel

3.0 V6 TDI BMT 4MOTION

3.0 V6 TDI 4MOTION

V10 5.0 TDI 4MOTION

R50 TDI 4MOTION

Euro NCAP

Pre-2009 Rating

pre-facelift version (2004)

Adults

Children

Pedestrians

Technical data

Large SUV

	3.6 V6 4MOTION	4.2 V8 4MOTION	W12 4MOTION	R5 2.5 TDI 4MOTION	R5 2.5 TDI 4MOTION	3.0 V6 TDI BMT 4MOTION
Date of sale	-	-	-	-	-	-
Engine type	Petrol	Petrol	Petrol	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	8/32	12/48	5/10	5/10	6/24
Engine displacement [cm³]	3597	4163	5998	2461	2461	2967
Maximum output / speed [kW/min-1]	206/6250	257/6800	331/6000	128/3500	128/3500	165/3500
Maximum torque [Nm/min-1]	360/2500-5000	440/3500	600/3250	400/2250	400/2250	550/2000-2250
Bore and stroke [mm x mm]	89,0 x 96,4	84,5 x 92,8	84,0 x 90,2	81,0 x 95,5	81,0 x 95,5	83,0 x 91,4
Compression ratio	-	-	-	-	-	-
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection FSI variable timing of intake and exhaust valves	direct injection FSI variable timing of intake and exhaust valves	variable valve timing	direct injection Pumpe Düse (PD) turbo-supercharged particulate filter	direct injection Pumpe Düse (PD) turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear automatic	6 gear automatic	6 gear automatic	6 gear manual	6 gear automatic	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION five-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic

Top speed [km/h]	218	234	250	188	183	202
Acceleration 0–100 km/h [s]	8,6	7,5	5,9	11,5	11,6	8,5
Acceleration 0–80 km/h [s]	5.8	5.2	-	7.4	7.7	5.8
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	18,0	19,7	22,5	12,4	12,4	10,5
Out of town [l]	9,2	10,7	11,7	7,4	7,8	7,1
Combined [l]	12,4	13,8	15,7	8,2	9,5	8,3
CO2 emissions [g/km]	296	329	375	243	249	219

Emission standard	EU4	EU4	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	2313	2407	2555	2322	2342	2396
Overall weight [kg]	2945	3000	3080	2850	2850	2945
Maximum trailer weight unbraked/braked [kg]	750/3500	750/3500	750/3500	750/3500	750/3500	750/3500
Maximum front/rear axle load [kg]	1415/1640	1475/1650	-	1425/1640	1425/1640	1510/1650
Maximum vertical load on the tow bar [kg]	140	140	140	140	140	140
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-	100/-	100/-

Boot volume [l]	555	555	500	555	555	555
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1570	-/1570	-/1525	-/1570	-/1570	-/1570
Boot length [mm]	982	982	982	982	982	982
Boot length with rear seats folded [mm]	1671	1671	1671	1671	1671	1671
Boot width between wheels/max [mm]	1168/-	1168/-	1168/-	1168/-	1168/-	1168/-
Boot height to headliner/ceiling [mm]	600/945	600/945	600/945	600/945	600/945	600/945
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	2182	2182	2182	2182	2182	2182
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	5	5	5	5	5	5
Number of seats	5	5	5	5	5	5
Fuel tank volume [l]	100	100	100	100	100	100
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	235/65 R17	255/55 R18	275/45 R19	235/65 R17	235/65 R17	235/65 R17
Tyre dimensions rear	235/65 R17	255/55 R18	275/45 R19	235/65 R17	235/65 R17	235/65 R17
Wheel size front	-	-	-	-	-	-
Wheel size rear	-	-	-	-	-	-
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	-	-	-	-	-	-
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	11.6/-	11.6/-	11.6/-	11.6/-	11.6/-	11.6/-

Overall length [mm]	4754	4754	4754	4754	4754	4754
Overall width without/including mirrors [mm]	1928/2217	1928/2217	1928/2217	1928/2217	1928/2217	1928/2217
Overall height [mm]	1726	1726	1726	1726	1726	1726
Wheelbase [mm]	2855	2855	2855	2855	2855	2855
Front wheel track [mm]	1649	1645	1645	1649	1649	1649
Rear wheel track [mm]	1661	1657	1657	1661	1661	1661
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	163	163	163	163	163	163
Wading depth [mm]	500	500	500	500	500	500
Approach angle front [°]	29.0	29.0	29.0	29.0	29.0	29.0
Approach angle rear [°]	29.7	29.7	29.7	29.7	29.7	29.7
Transition angle [°]	22.0	22.0	22.0	22.0	22.0	22.0
Climbing rate [°]	45	45	45	45	45	45
Maximum side tilt [°]	35	35	35	35	35	35

Headroom front [mm]	1008	1008	1008	1008	1008	1008
Headroom rear [mm]	987	987	987	987	987	987
Front elbow/shoulder width [mm]	1504/-	1504/-	1504/-	1504/-	1504/-	1504/-
Rear elbow/shoulder width [mm]	1505/-	1505/-	1505/-	1505/-	1505/-	1505/-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	3.0 V6 TDI 4MOTION	3.0 V6 TDI 4MOTION	V10 5.0 TDI 4MOTION	R50 TDI 4MOTION
Date of sale	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	6/24	6/24	10/20	10/20
Engine displacement [cm³]	2967	2967	4921	4921
Maximum output / speed [kW/min-1]	176/4000-4400	176/4000-4400	230/3750	258/3500
Maximum torque [Nm/min-1]	500/1500-3000	550/1500-3000	750/2000	850/2500
Bore and stroke [mm x mm]	83,0 x 91,4	83,0 x 91,4	81,0 x 95,5	81,0 x 95,5
Compression ratio	-	-	18.0:1	18.0:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection Common Rail turbo-supercharged particulate filter	direct injection Common Rail turbo-supercharged particulate filter	direct injection Pumpe Düse (PD) supercharging by twin turbochargers particulate filter	direct injection Pumpe Düse (PD) supercharging by twin turbochargers particulate filter

Drive axle	4x4	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear automatic	6 gear automatic	6 gear automatic
Drive specifications	automatically controlled all-wheel drive 4MOTION	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic	automatically controlled all-wheel drive 4MOTION six-speed automatic gearbox Tiptronic

Top speed [km/h]	207	204	231	235
Acceleration 0–100 km/h [s]	8,0	8,3	7,4	6,7
Acceleration 0–80 km/h [s]	5.5	5.7	5.1	-
Acceleration 80–120 km/h [s]	-	-	-	-

City [l]	12,2	11,6	16,7	16,7
Out of town [l]	7,7	7,9	9,2	9,2
Combined [l]	9,3	9,3	11,9	11,9
CO2 emissions [g/km]	246	244	315	315

Emission standard	EU4	EU4	EU4	EU4
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	2376	2396	2677	2677
Overall weight [kg]	2945	2945	3200	3200
Maximum trailer weight unbraked/braked [kg]	750/3500	750/3500	750/3500	750/3500
Maximum front/rear axle load [kg]	1510/1650	1510/1650	1635/1670	1635/1670
Maximum vertical load on the tow bar [kg]	140	140	140	140
Maximum load on roof/carrier [kg]	100/-	100/-	100/-	100/-

Boot volume [l]	555	555	500	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1570	-/1570	-/1525	-/1525
Boot length [mm]	982	982	982	982
Boot length with rear seats folded [mm]	1671	1671	1671	1671
Boot width between wheels/max [mm]	1168/-	1168/-	1168/-	1168/-
Boot height to headliner/ceiling [mm]	600/945	600/945	600/945	600/945
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	2182	2182	2153	2153
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	100	100	100	100
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	-	-	-	-
Front suspension	double wishbone	double wishbone	double wishbone	double wishbone
Rear suspension	double wishbone	double wishbone	double wishbone	double wishbone
Tyre dimensions front	235/65 R17	235/65 R17	255/55 R18	295/35 R21
Tyre dimensions rear	235/65 R17	235/65 R17	255/55 R18	295/35 R21
Wheel size front	-	-	-	-
Wheel size rear	-	-	-	-
Brake dimensions front	-	-	-	-
Brake dimensions rear	-	-	-	-
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.6/-	11.6/-	11.6/-	11.6/-

Overall length [mm]	4754	4754	4754	4754
Overall width without/including mirrors [mm]	1928/2217	1928/2217	1928/2217	1928/2217
Overall height [mm]	1726	1726	1703	1703
Wheelbase [mm]	2855	2855	2855	2855
Front wheel track [mm]	1649	1649	1645	1645
Rear wheel track [mm]	1661	1661	1657	1657
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	163	163	195	195
Wading depth [mm]	500	500	580	580
Approach angle front [°]	29.0	29.0	27.9-33.2	27.9-33.2
Approach angle rear [°]	29.7	29.7	27.9-33.6	27.9-33.6
Transition angle [°]	22.0	22.0	20.4	20.4
Climbing rate [°]	45	45	45	45
Maximum side tilt [°]	35	35	35	35

Headroom front [mm]	1008	1008	1008	1008
Headroom rear [mm]	987	987	987	987
Front elbow/shoulder width [mm]	1504/-	1504/-	1504/-	1504/-
Rear elbow/shoulder width [mm]	1505/-	1505/-	1505/-	1505/-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

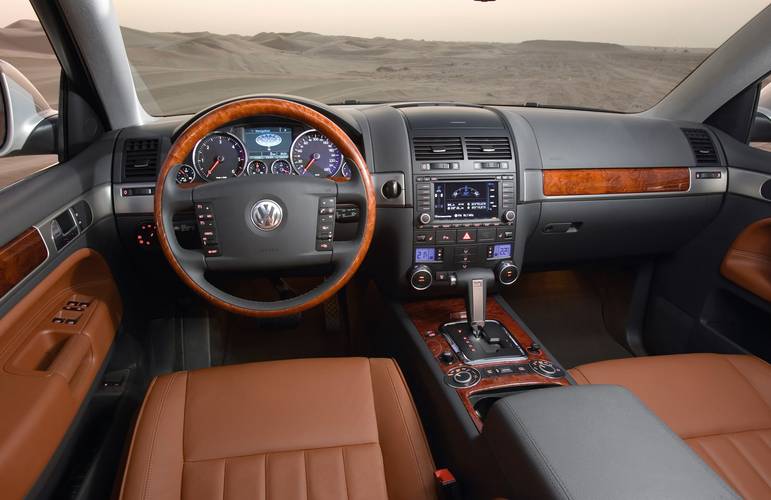

Volkswagen VW Touareg 7L facelift 2007 interior

Volkswagen VW Touareg 7L facelift 2008 rear seats

Volkswagen VW Touareg 7L facelift 2008 boot

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
