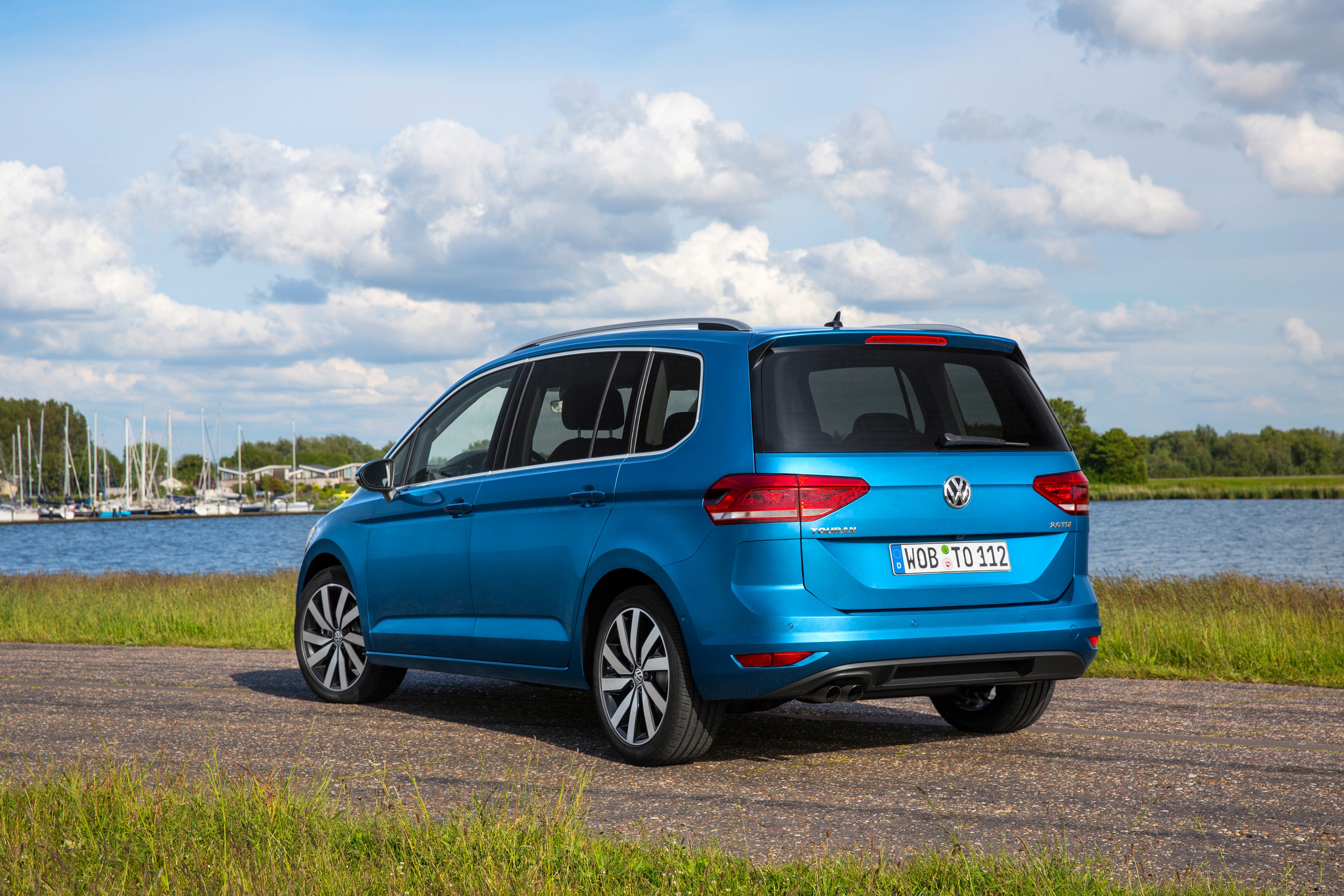

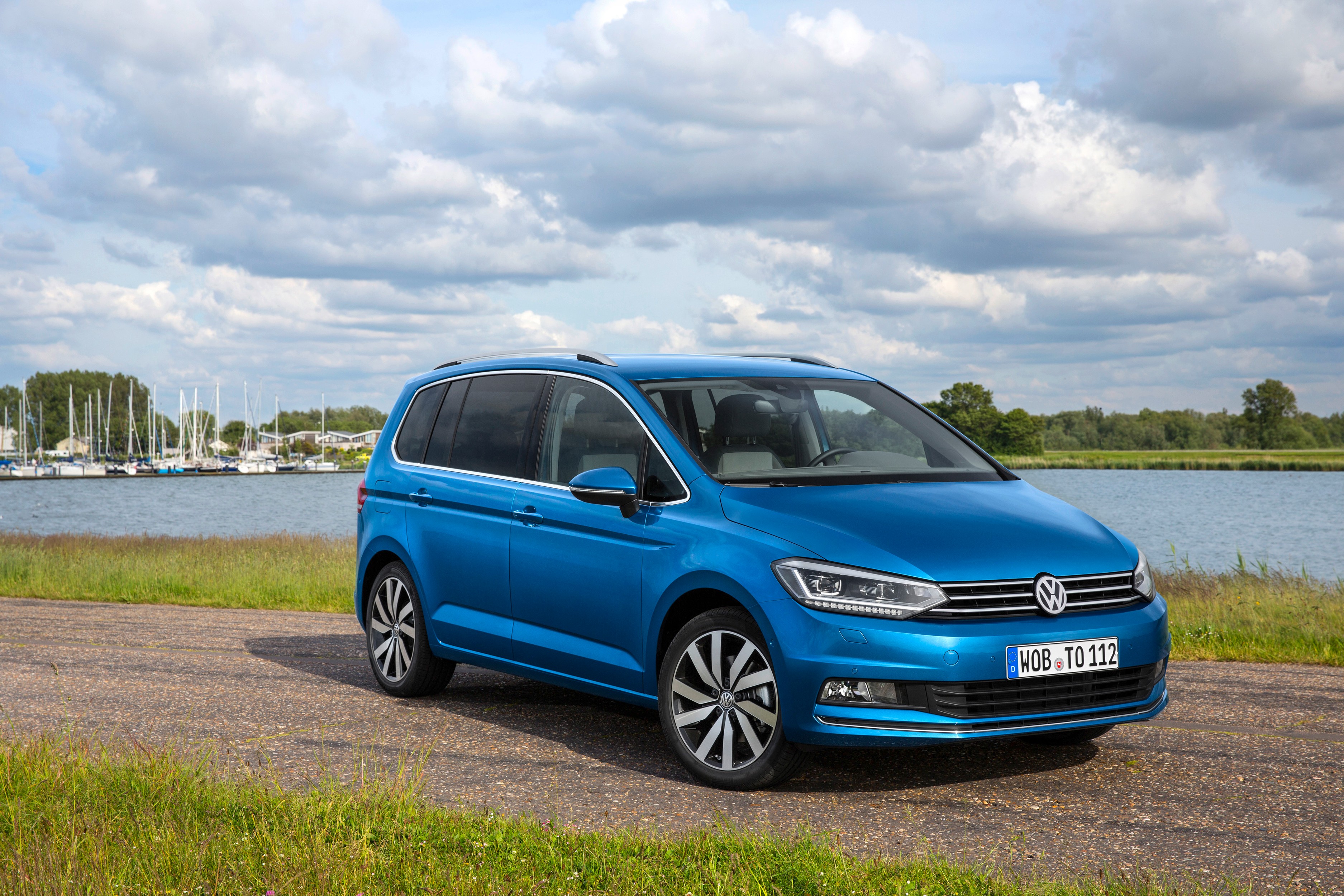

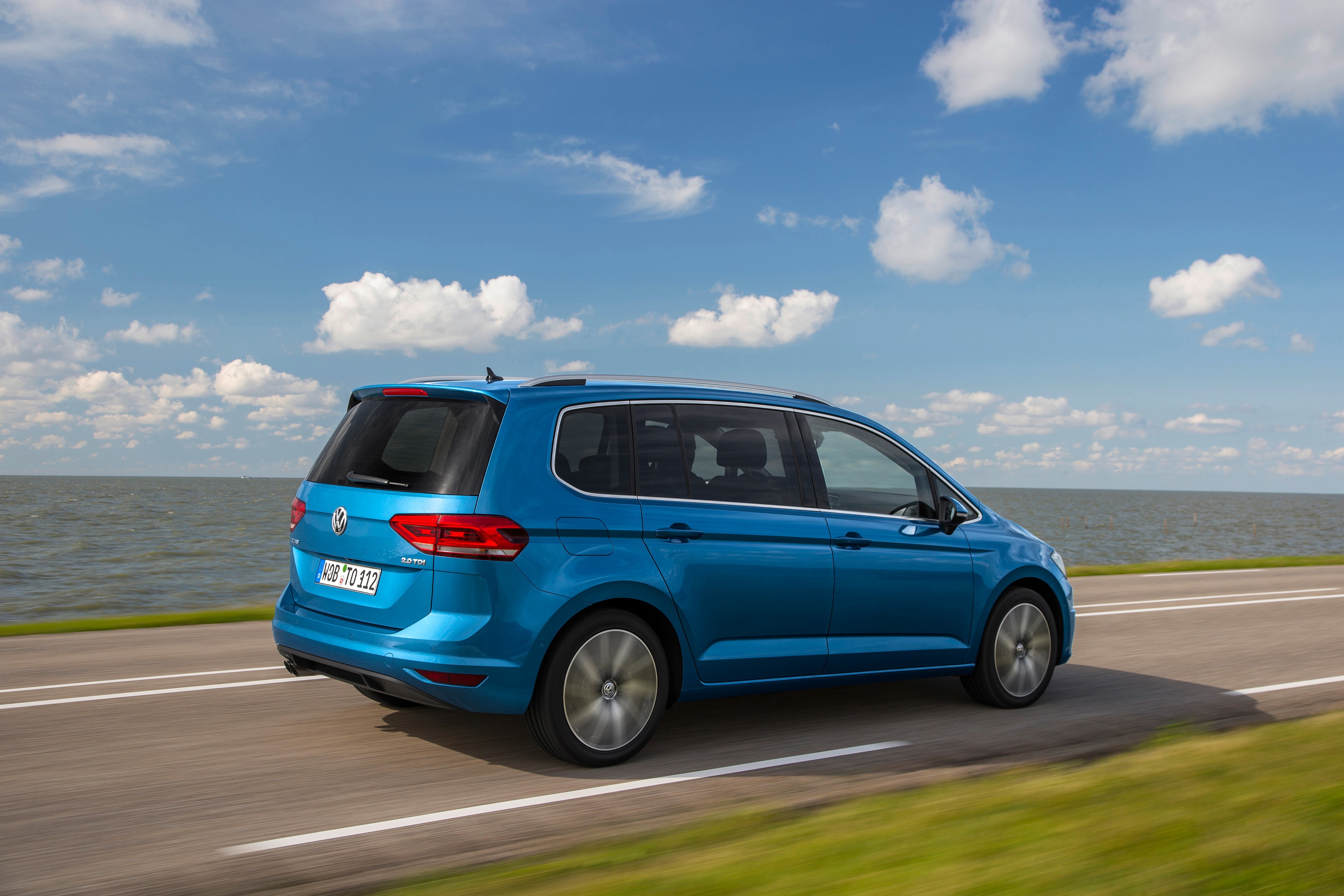

Volkswagen Touran
Date of manufacture
5/2015 – to this day (Medium MPV)
Platform
Volkswagen Group MQB
Manufacturing locations
Wolfsburg, Germany
Shanghai, People's Republic of China
Designer
Walter de Silva
Tags
Mid-size MPV
German cars
The Volkswagen Touran is a mid-size MPV that was first produced in 2015. This model is manufactured in two countries - Germany and China. It is built on the Volkswagen Group MQB platform and offers petrol and diesel engines. The most powerful version is the 2.0 TDI with a maximum output of 140 kW, the same engine reaches a top speed of 220 km/h. The most economical variant is the 1.6 TDI with a combined consumption of 4.3 l/100 km and CO2 emissions of 113 g/km. The luggage compartment volume is 834 l and the EURONCAP safety test rated this model 5 stars out of 5 possible.
Car body style
Technical data
Medium MPV
| 1.0 TSI | 1.0 TSI | 1.0 TSI | 1.4 TSI | 1.4 TSI | 1.5 TSI ACT | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to 2019 | from 2018 to 2019 | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1395 | 1395 | 1498 |
| Maximum output / speed [kW/min-1] | 81/5000-5500 | 85/5000-5500 | 85/5000-5500 | 110/5000-6000 | 110/5000-6000 | 110/5000-6000 |
| Maximum torque [Nm/min-1] | 200/2000-3500 | 200/2000-3500 | 200/2000-3500 | 250/1500-3500 | 250/1500-3500 | 250/1500-3500 |
| Bore and stroke [mm x mm] | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 76,4 | 74,5 x 80,0 | 74,5 x 80,0 | 74,5 x 85,9 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 189 | 191 | - | 209 | 209 | 209 |
| Acceleration 0–100 km/h [s] | 11,3 | 11.3 | - | 8,9 | 8,9 | 8.9 |
| Acceleration 0–80 km/h [s] | 7,4 | 7.4 | - | 6,3 | 6,3 | 6.3 |
| Acceleration 80–120 km/h [s] | 10,5 (13,5 (4th/5th gear) | - | - | 8,5 (10,5 (4th/5th gear) | - | - |
| City [l] | 7,0-6,9 | - | - | 7,0-6,9 | 6,7-6,5 | 6.7 |
| Out of town [l] | 4,8-4,6 | - | - | 5,1-4,9 | 5,0-4,8 | 5.3-4.8 |
| Combined [l] | 5,6-5,5 | 5.6 | - | 5,8-5,6 | 5,6-5,4 | 5.8-5.6 |
| CO2 emissions [g/km] | 130-126 | 128 | - | 135-130 | 129-125 | 133-128 |
| Low speed [l] | - | - | - | - | - | 8.2 |
| Medium speed [l] | - | - | - | - | - | 6.5 |
| High speed [l] | - | - | - | - | - | 5.8 |
| Extra high speed [l] | - | - | - | - | - | 6.8 |
| Combined speed [l] | - | - | - | - | - | 6.6 |
| CO2 emissions [g/km] | - | - | - | - | - | 150 |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1436 | 1460-1505 | - | 1454 | 1478 | 1490-1535 |
| Overall weight [kg] | 2060 | 2050-2180 | - | 2050 | 2100 | 2090-2230 |
| Maximum trailer weight unbraked/braked [kg] | 710/1300 | 730/1300 | - | 720/1500 | 730/1500 | 740-750/1500 |
| Maximum front/rear axle load [kg] | 1040/1070 | 1030/1070 | - | 1040/1060 | 1080/1070 | 1070-1080/1070 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

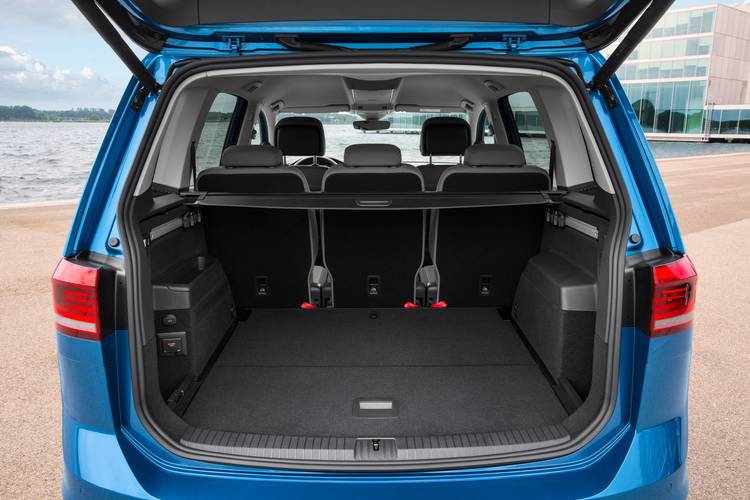

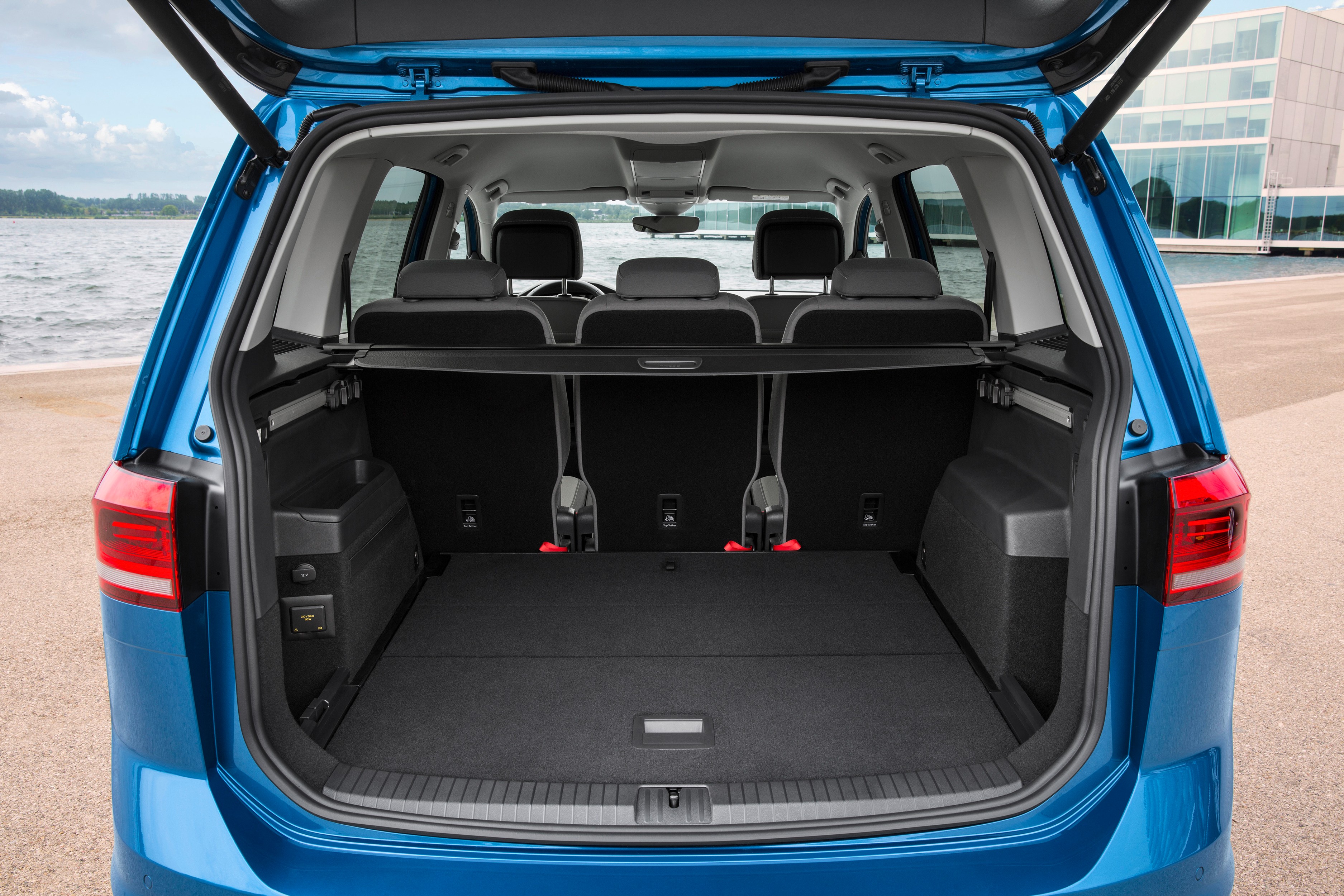

| Boot volume [l] | 834 | 834 | 834 | 834 | 834 | 834 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1980 | -/1980 | -/1980 | -/1980 | -/1980 | -/1980 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] |

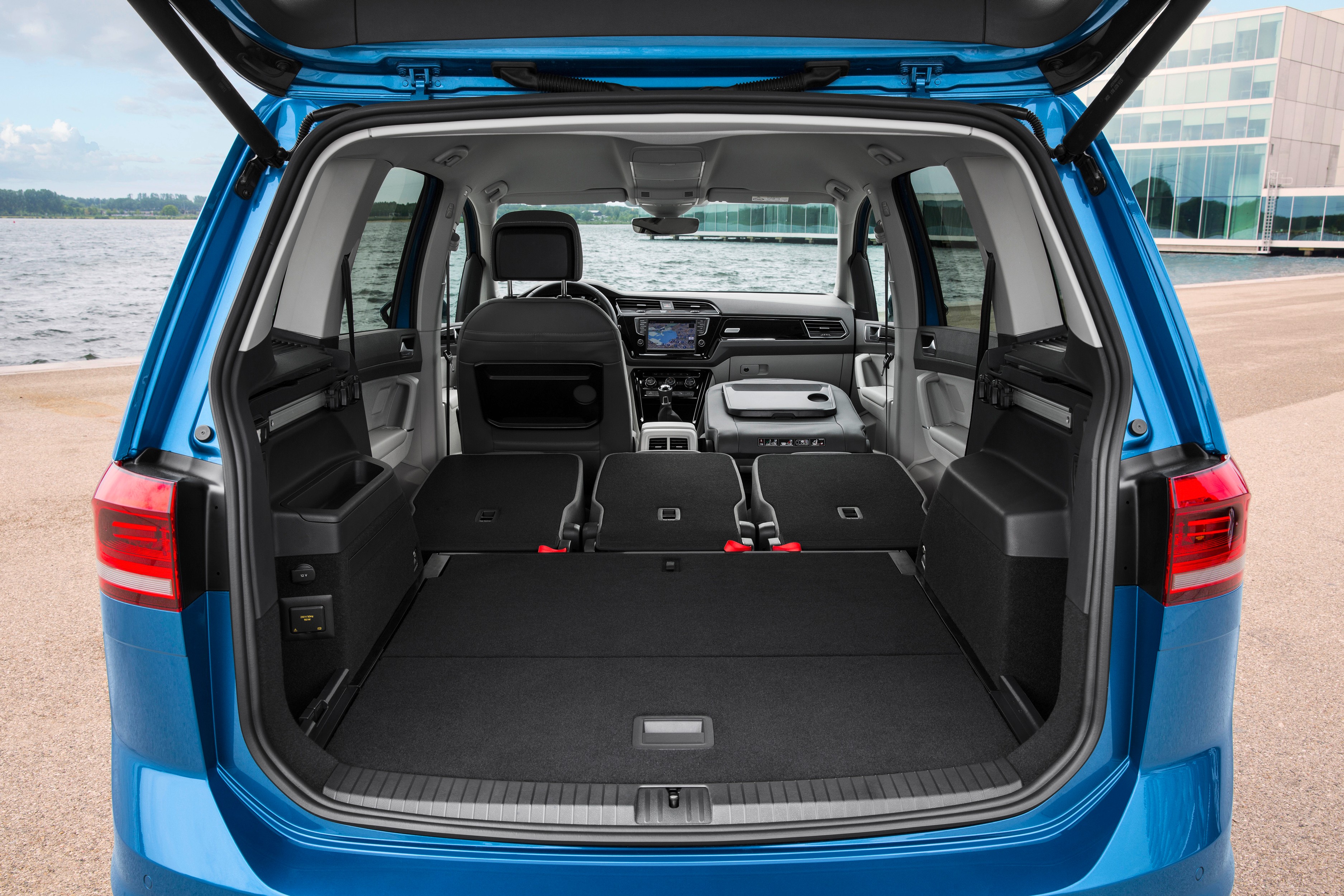

| Boot length with rear seats folded [mm] | 1865 | 1865 | 1865 | 1865 | 1865 | 1865 |
| Boot width between wheels/max [mm] | 1048/- | 1048/- | 1048/- | 1048/- | 1048/- | 1048/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2035 | 2035 | 2035 | 2035 | 2035 | 2035 |
| Boot opening height [mm] | 865 | 865 | 865 | 865 | 865 | 865 |
| Boot opening width min/max [mm] | -/1049 | -/1049 | -/1049 | -/1049 | -/1049 | -/1049 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | - | - | - | - | - | - |
| Tyre dimensions rear | - | - | - | - | - | - |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 |
| Overall height [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2786 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 156 | 156 | 156 | 156 | 156 | 156 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Headroom rear [mm] | 979 | 979 | 979 | 979 | 979 | 979 |
| Front elbow/shoulder width [mm] | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- |
| Rear elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

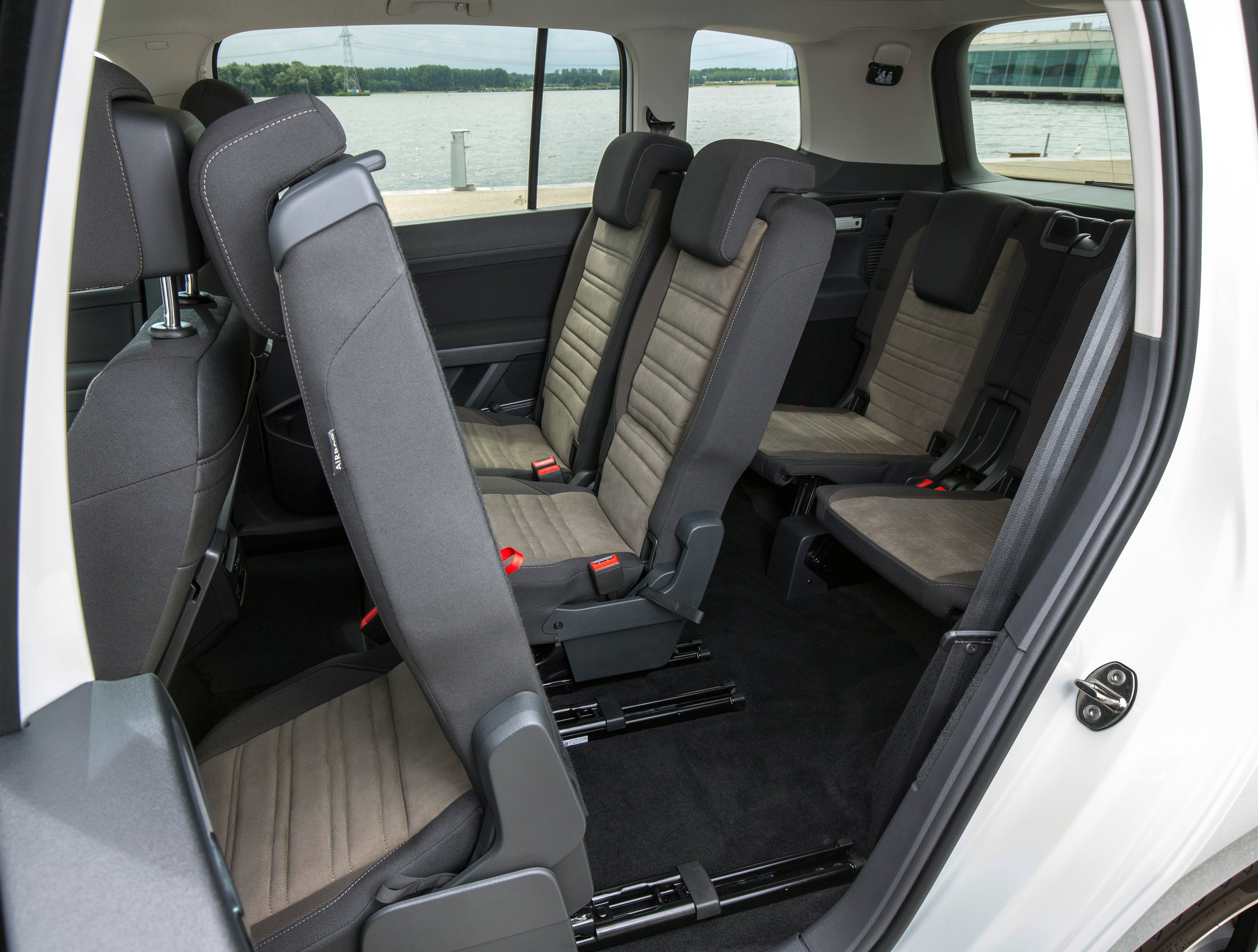

| Third row of seats, headroom [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Third row elbow/shoulder width [mm] | 1269/- | 1269/- | 1269/- | 1269/- | 1269/- | 1269/- |
| 1.5 TSI ACT | 1.8 TSI | 1.6 TDI | 1.6 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2016 to 2017 | from to 2019 | from to 2019 | from 2020 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1498 | 1798 | 1598 | 1598 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 132/5100-6200 | 85/3250-4000 | 85/3250-4000 | 90 | 110/3500-4000 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1250-5000 | 250/1500-3200 | 250/1500-3200 | 250/1500-3250 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 85,9 | 82,5 x 84,2 | 79,5 x 80,5 | 79,5 x 80,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,5:1 | 9,6:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 209 | 218 | 190 | 190 | 196 | 208 |
| Acceleration 0–100 km/h [s] | 8.9 | 8,3 | 11,4 | 11,4 | 10.8 | 9,3 |
| Acceleration 0–80 km/h [s] | 6.3 | 5.9 | 7,6 | 7,6 | - | 6,5 |
| Acceleration 80–120 km/h [s] | - | - | 10,0 (13,0 (4th/5th gear) | - | - | 8,0 (10,5 (4th/5th gear) |
| City [l] | 6.8-6.0 | - | 5,5-5,3 | 4,9-4,8 | 5.6 | 5,5-5,3 |
| Out of town [l] | 4.8-5.0 | - | 4,2-4,1 | 4,3-4,1 | 4.3 | 4,2-4,1 |
| Combined [l] | 5.7-5.4 | 6.1 | 4,7-4,5 | 4,5-4,3 | 3.6 | 4,7-4,5 |
| CO2 emissions [g/km] | 130-123 | 139 | 121-118 | 117-113 | 113 | 121-118 |
| Low speed [l] | 8.3 | - | - | - | 6.4 | - |
| Medium speed [l] | 6.3 | - | - | - | 4.7 | - |
| High speed [l] | 5.4 | - | - | - | 4.2 | - |
| Extra high speed [l] | 6.5 | - | - | - | 5.1 | - |
| Combined speed [l] | 6.4 | - | - | - | 4.9 | - |
| CO2 emissions [g/km] | 145 | - | - | - | 129 | - |
| Emission standard | Euro 6d-TEMP - Euro 6d | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505-1550 | 1541 | 1550 | 1570 | 1589 | 1552-1635 |
| Overall weight [kg] | 2110-2250 | 230 | 2150 | 2170 | 2190 | 2180-2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | 1090/1070 | 1110/1070 | 1120/1140 | 1080/1080 | 1150/1090 | 1160/1090 |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 834 | 834 | 834 | 834 | 834 | 834 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1980 | -/1980 | -/1980 | -/1980 | -/1980 | -/1980 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] |
| Boot length with rear seats folded [mm] | 1865 | 1865 | 1865 | 1865 | 1865 | 1865 |
| Boot width between wheels/max [mm] | 1048/- | 1048/- | 1048/- | 1048/- | 1048/- | 1048/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2035 | 2035 | 2035 | 2035 | 2035 | 2035 |
| Boot opening height [mm] | 865 | 865 | 865 | 865 | 865 | 865 |
| Boot opening width min/max [mm] | -/1049 | -/1049 | -/1049 | -/1049 | -/1049 | -/1049 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | 11 | 11 | 11 | 11 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | - | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | - | - | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | - | - | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Overall width without/including mirrors [mm] | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 |
| Overall height [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | 2786 | 2786 |
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | 1561 | 1561 |
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | 1534 | 1534 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 156 | 156 | 156 | 156 | 156 | 156 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Headroom rear [mm] | 979 | 979 | 979 | 979 | 979 | 979 |
| Front elbow/shoulder width [mm] | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- | 1490/- |
| Rear elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- | 1518/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 930 | 930 | 930 | 930 | 930 | 930 |
| Third row elbow/shoulder width [mm] | 1269/- | 1269/- | 1269/- | 1269/- | 1269/- | 1269/- |
| 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2017 | from 2018 to 2019 | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | ||
| Maximum output / speed [kW/min-1] | 110/3500-4000 | 110/3500-4000 | 140/3500-4000 | 140/3500-4000 | ||
| Maximum torque [Nm/min-1] | 340/1750-3000 | 340/1750-3000 | 400/1750-3000 | 400/1750-3000 | ||
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | ||
| Compression ratio | 16,2:1 | 16,2:1 | 15,8:1 | 15,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear automatic | 7 gear automatic | 6 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 206 | 206 | 220 | 220 | ||
| Acceleration 0–100 km/h [s] | 9,3 | 9.3 | 8,2 | 8.2 | ||
| Acceleration 0–80 km/h [s] | 6,5 | 6.5 | 5,9 | 5.9 | ||
| Acceleration 80–120 km/h [s] | 8,0 (10,5 (4th/5th gear) | - | - | - | ||
| City [l] | 5,5-5,3 | 5.4 | 5,5-5,4 | - | ||
| Out of town [l] | 4,4-4,2 | 3.8 | 4,4-4,3 | - | ||
| Combined [l] | 4,8-4,6 | 4.9-4.4 | 4,8-4,7 | 4.8 | ||
| CO2 emissions [g/km] | 124-120 | 129-116 | 125-122 | 125 | ||
| Low speed [l] | - | 7.1 | - | - | ||
| Medium speed [l] | - | 5.1 | - | - | ||
| High speed [l] | - | 4.4 | - | - | ||
| Extra high speed [l] | - | 5.2 | - | - | ||
| Combined speed [l] | - | 5.2 | - | - | ||
| CO2 emissions [g/km] | - | 136 | - | - | ||
| Emission standard | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | Euro 6d-TEMP | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1571 | 1620-1665 | 1615 | 1645-1690 | ||
| Overall weight [kg] | 2200 | 2220-2340 | 2240 | 2240-2350 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
| Maximum front/rear axle load [kg] | 1180/1110 | 1180/1090 | 1180/1110 | 1180/1110 | ||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 834 | 834 | 834 | 834 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1980 | -/1980 | -/1980 | -/1980 | ||
| Boot volume, third row of seats [l] | - | - | - | - | ||
| Boot volume, third row seats folded [l] | - | - | - | - | ||
| Boot length [mm] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | 1139 [344 seven seats] | ||
| Boot length with rear seats folded [mm] | 1865 | 1865 | 1865 | 1865 | ||
| Boot width between wheels/max [mm] | 1048/- | 1048/- | 1048/- | 1048/- | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | 2035 | 2035 | 2035 | 2035 | ||
| Boot opening height [mm] | 865 | 865 | 865 | 865 | ||
| Boot opening width min/max [mm] | -/1049 | -/1049 | -/1049 | -/1049 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | ||
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | ||
| AdBlue tank volume [l] | 11 | 11 | 11 | 11 | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | four-link | four-link | four-link | four-link | ||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | ||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | ||
| Overall length [mm] | 4527 | 4527 | 4527 | 4527 | ||
| Overall width without/including mirrors [mm] | 1829/2087 | 1829/2087 | 1829/2087 | 1829/2087 | ||
| Overall height [mm] | 1674 | 1674 | 1674 | 1674 | ||
| Wheelbase [mm] | 2786 | 2786 | 2786 | 2786 | ||
| Front wheel track [mm] | 1561 | 1561 | 1561 | 1561 | ||
| Rear wheel track [mm] | 1534 | 1534 | 1534 | 1534 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | 156 | 156 | 156 | 156 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | ||
| Headroom rear [mm] | 979 | 979 | 979 | 979 | ||
| Front elbow/shoulder width [mm] | 1490/- | 1490/- | 1490/- | 1490/- | ||
| Rear elbow/shoulder width [mm] | 1518/- | 1518/- | 1518/- | 1518/- | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - | ||
| Third row of seats, headroom [mm] | 930 | 930 | 930 | 930 | ||
| Third row elbow/shoulder width [mm] | 1269/- | 1269/- | 1269/- | 1269/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
