Volvo C30
Date of manufacture
2009 – 2013 (Three-door hatchback)
Platform
Volvo P1 platform
Manufacturing locations
Ghent, Belgium
Designer
-
Tags
C-segment
Swedish cars

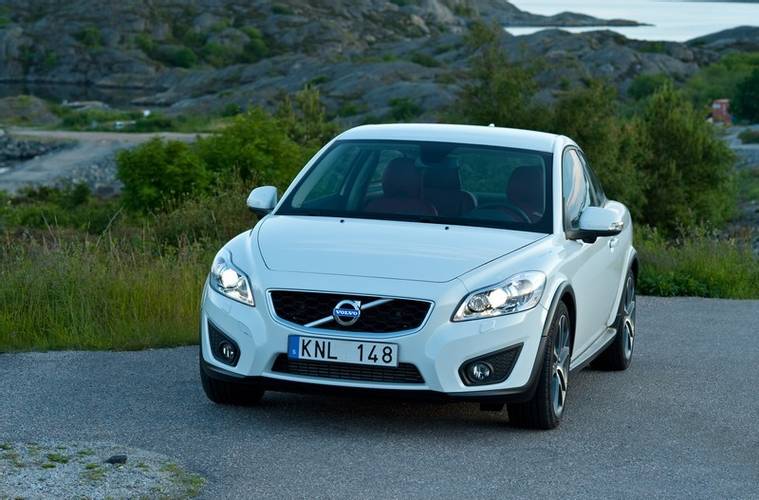

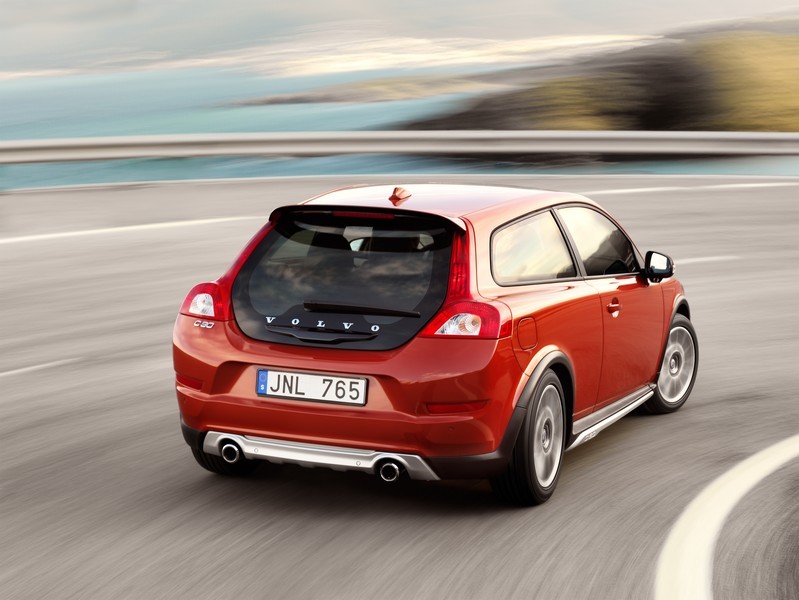

Volvo C30 is a three-door hatchback based on the Volvo P1 platform. It was manufactured in 2009 in Belgium and offers a wide range of engine and transmission options. The most powerful engine is the T5 with a power output of 169 kW, which achieves a maximum speed of 240 km/h. The most fuel-efficient engine is the 1.6 D DRIVe with emissions of 99 g/km and a fuel consumption of 3.8 l/100 km. The cargo capacity is 251 l. The car successfully passed successful tests with EURONCAP and received a rating of 5 out of 5.
Car body style
Technical data
Three-door hatchback
| 1.6 | 2.0 | 2.0 FlexiFuel | 2.4i | 2.4i | T5 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2010 | - | - | from to 2010 | from to 2010 | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1596 | 1999 | 1999 | 2435 | 2435 | 2521 |
| Maximum output / speed [kW/min-1] | 74/6000 | 107/6000 | 107/6000 | 125/6000 | 125/6000 | 169/5000 |
| Maximum torque [Nm/min-1] | 150/4000 | 185/4500 | 185/4500 | 230/4400 | 230/4400 | 320/1500-5000 |
| Bore and stroke [mm x mm] | 79,0 x 81,4 | 87,5 x 83,1 | 87,5 x 83,1 | 83,0 x 90,0 | 83,0 x 90,0 | 83,0 x 90,0 |
| Compression ratio | 11.0:1 | 10.8:1 | 10.8:1 | 10.3:1 | 10.3:1 | 9.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 185 | 210 | 210 | 220 | 215 | 240 |
| Acceleration 0–100 km/h [s] | 11,8 | 9,4 | 9,4 | 8,1 | 8,8 | 6,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,3 | 10,8 | 11,0 | 12,0 | 13,1 | 12,6 |
| Out of town [l] | 5,7 | 5,8 | 5,9 | 6,3 | 6,6 | 6,4 |
| Combined [l] | 7,0 | 7,6 | 7,8 | 8,4 | 9,0 | 8,7 |
| CO2 emissions [g/km] | 167 | 177 | 185 | 200 | 214 | 203 |
| Emission standard | EU4 | EU5 | EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1278 | 1329 | 1409 | 1407 | 1429 | 1420 |
| Overall weight [kg] | 1700 | 1750 | 1750 | 1840 | 1840 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 600/1200 | 650/1350 | 650/1350 | 700/1500 | 700/1500 | 700/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 251 | 251 | 251 | 251 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 55 | 55 | 55 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4266 | 4266 | 4266 | 4266 | 4266 | 4266 |
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- |
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- |
| Legroom front knees/total [mm] | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 |
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 | -/869 | -/869 | -/869 |
| T5 | 1.6 D DRIVe | 1.6 D DRIVe | D2 | 2.0D | 2.0D | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2010 | from to 2010 | from 2010 to | from to 2010 | from to 2010 |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 4/16 | 4/16 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2521 | 1560 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 169/5000 | 80/4000 | 80/4000 | 84/3600 | 100/4000 | 100/4000 |
| Maximum torque [Nm/min-1] | 320/1500-5000 | 240/1750 | 240/1750 | 270/1750-2500 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 83,0 x 90,0 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 9.0:1 | 18.3:1 | 18.3:1 | 16.0:1 | 18.5:1 | 18.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - | - | - | - |
|
| Top speed [km/h] | 235 | 190 | 190 | 195 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 7,1 | 11,3 | 11,3 | 11,3 | 9,4 | 9,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13,5 | 5,7 | 4,6 | 5,7 | 7,6 | 7,9 |
| Out of town [l] | 6,5 | 3,8 | 3,3 | 3,8 | 4,6 | 4,9 |
| Combined [l] | 9,0 | 4,5 | 3,8 | 4,3 | 5,7 | 5,9 |
| CO2 emissions [g/km] | 211 | 119 | 99 | 114 | 151 | 156 |
| Emission standard | EU5 | EU4 | EU4 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1431 | 1346 | 1356 | 1334 | 1420 | 1437 |
| Overall weight [kg] | 1860 | 1780 | 1780 | 1780 | 1840 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 700/1500 | 600/1300 | - | 650/1300 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 251 | 251 | 251 | 251 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 62 | 52 | 52 | 52 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4266 | 4266 | 4266 | 4266 | 4266 | 4266 |
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- |
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- |
| Legroom front knees/total [mm] | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 |
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 | -/869 | -/869 | -/869 |
| D3 | D3 | D4 | D4 | D5 | D5 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | from 2010 to | from 2010 to | from 2010 to | from to 2010 | from to 2010 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 110/3500 | 110/3500 | 130/3500 | 130/3500 | 132/4000 | 132/4000 |
| Maximum torque [Nm/min-1] | 350/1500-2750 | 350/1500-2750 | 400/1750-2750 | 400/1750-2750 | 400350/2000-2750 | 350/1750-3250 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 17.3:1 | 17.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 205 | 215 | 220 | 220 | 220 |
| Acceleration 0–100 km/h [s] | 9,5 | 9,4 | 8,6 | 8,7 | 7,7 | 8,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,0 | 7,9 | 7,0 | 7,9 | 8,3 | 9,5 |
| Out of town [l] | 4,0 | 4,6 | 4,0 | 4,6 | 5,0 | 5,4 |
| Combined [l] | 5,1 | 5,8 | 5,1 | 5,8 | 6,2 | 6,9 |
| CO2 emissions [g/km] | 134 | 154 | 134 | 154 | 164 | 182 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1384 | 1384 | 1449 | 1449 | 1461 | 1477 |
| Overall weight [kg] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 251 | 251 | 251 | 251 | 251 | 251 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/894 | -/894 | -/894 | -/894 | -/894 | -/894 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 807 | 807 | 807 | 807 | 807 | 807 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- | 10.6/- |
| Overall length [mm] | 4266 | 4266 | 4266 | 4266 | 4266 | 4266 |
| Overall width without/including mirrors [mm] | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 | 1782/2039 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1535 | 1535 | 1535 | 1535 | 1535 | 1535 |
| Rear wheel track [mm] | 1531 | 1531 | 1531 | 1531 | 1531 | 1531 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 988 | 988 | 988 | 988 | 988 | 988 |
| Headroom rear [mm] | 959 | 959 | 959 | 959 | 959 | 959 |
| Front elbow/shoulder width [mm] | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- | 1390/- |
| Rear elbow/shoulder width [mm] | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- | 1303/- |
| Legroom front knees/total [mm] | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 | -/1507 |
| Legroom rear knees/total [mm] | -/869 | -/869 | -/869 | -/869 | -/869 | -/869 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
