Volvo S60
Date of manufacture
2018 – to this day (Sedan)
Platform
SPA
Manufacturing locations
Ridgeville, South Carolina, USA
Chengdu, People's Republic of China
Designer
-
Tags
D-segment
Swedish cars
The Volvo S60 is a sedan car built on the SPA platform. The first car was released to the market in 2018 and is now produced in the United States and China. The engine range includes petrol and hybrid engines, with the most powerful Polestar Engineered producing 233 kW. The top speed is achieved by the T6 AWD model, which can reach 250 km/h, while the T8 Recharge AWD has the lowest fuel consumption of 0.7 l/100 km and emissions of 16 g/km. The car has a large boot with a capacity of 391 litres and EURONCAP safety tests rated the Volvo S60 5 out of 5.
Car body style
Sedan
Date of manufacture
2018 – to this dayInternal designation
-Engine size
Technical data
Sedan
| T4 | T5 | T5 AWD | T6 AWD | B3 | B4 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from to 2020 | from to 2020 | from 2020 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 140/5000 | 184/5500 | 184/5500 | 228/5700 | 120/4800 combustion 10 el. | 145/4800-5400 combustion 10 el. |
| Maximum torque [Nm/min-1] | 300/1700-4000 | 350/1800-4800 | 350/1800-4800 | 400/2200-5100 | 265 combustion 40 el. | 300/1500-4200 combustion 40 el. |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.8:1 | 10.8:1 | 10.8:1 | 10.3:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 220 | 240 | 240 | 250 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 7.1 | 6.5 | 6.4 | 5.5 | 9.0 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.9-8.6 | 9.0-8.7 | - | - | - | 8.7-8.6 |
| Out of town [l] | 5.6-5.4 | 5.5-5.2 | - | - | - | 5.2-5.0 |
| Combined [l] | 6.8-6.6 | 6.8-6.5 | 7.4-7.0 | 7.5-7.2 | - | 6.5-6.3 |
| CO2 emissions [g/km] | 155-149 | 155-149 | 168-160 | 171-165 | - | 149-145 |
| Low speed [l] | - | - | 12.3-12.0 | 13.0-12.2 | 10.8-10.2 | 10.9-10.3 |
| Medium speed [l] | - | - | 9.0-8.1 | 9.3-8.2 | 7.4-6.7 | 7.4-6.7 |
| High speed [l] | - | - | 7.4-6.3 | 7.6-6.5 | 6.3-5.3 | 6.2-5.5 |
| Extra high speed [l] | - | - | 8.2-6.6 | 8.4-6.7 | 7.3-5.8 | 7.2-6.2 |
| Combined speed [l] | 8.0-7.1 | 8.0-7.1 | 8.7-7.1 | 9.0-7.6 | 7.5-6.4 | 7.4-6.6 |
| CO2 emissions [g/km] | 181-161 | 181-161 | 197-171 | 203-173 | 169-144 | 168-150 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 48 | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1677 | 1677 | 1677-2055 | 1677-2055 | 1733-2060 | 1735 |
| Overall weight [kg] | 2190 | 2190 | 2190-2500 | 2190-2500 | 2210-2500 | 2230 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/2000 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

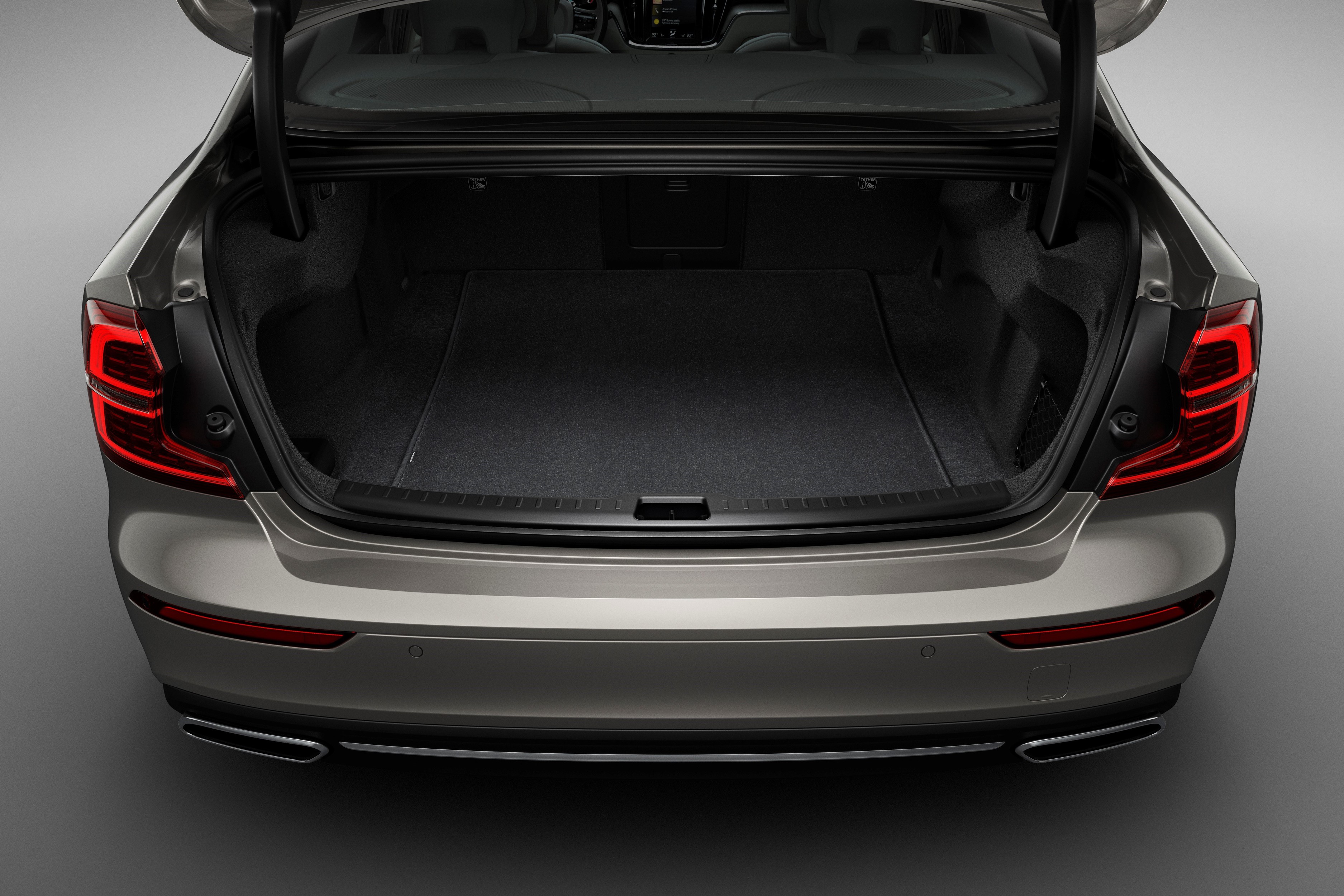

| Boot volume [l] | 442 | 442 | 442 | 436 | 436 | 427 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1797 | 1797 | 1797 | 1797 | 1797 | 1797 |
| Boot width between wheels/max [mm] | 996/- | 996/- | 996/- | 996/- | 996/- | 996/- |
| Boot height to headliner/ceiling [mm] | 485/554 | 485/554 | 485/554 | 485/554 | 485/554 | 485/554 |
| Loading edge height [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 384 | 384 | 384 | 384 | 384 | 384 |
| Boot opening width min/max [mm] | 867/- | 867/- | 867/- | 867/- | 867/- | 867/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 |
| Tyre dimensions rear | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 |
| Wheel size front | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 |
| Wheel size rear | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | 3 | 3 | 3 | 3 | 3 | 3 |
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 |
| Overall length [mm] | 4761 | 4761 | 4761 | 4761 | 4761 | 4761 |
| Overall width without/including mirrors [mm] | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 |
| Overall height [mm] | 1431 | 1431 | 1431 | 1431 | 1431 | 1431 |
| Wheelbase [mm] | 2872 | 2872 | 2872 | 2872 | 2872 | 2872 |
| Front wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Rear wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 |
| Rear elbow/shoulder width [mm] | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/895 | -/895 | -/895 | -/895 | -/895 | -/895 |
| B5 | B5 AWD | B6 AWD | T6 Recharge AWD | T8 Recharge AWD | T8 Recharge AWD | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from 2020 to | from 2020 to | from 2019 to 2021 | from 2021 to |
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1969 | 1969 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 184/5400-5700 combustion 10 el. | 184/5400-5700 combustion 10 el. | 220/5400 combustion 10 el. | 186/5500 combustion 65/7000 el. | 223/6000 combustion 65/7000 el. | 228/6000 combustion 107/15900 el. |
| Maximum torque [Nm/min-1] | 350/1800-4800 combustion 40 el. | 350/1800-4800 combustion 40 el. | 420 combustion 40 el. | 350 combustion 240/0-3000 el. | 400/4500 combustion 240/0-3000 el. | 400/3000-4800 combustion 309/0-3280 el. |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.5:1 | 10.5:1 | 9.0:1 | 10.3:1 | 10.3:1 | 10.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 180 | 180 | 180 | 180 [125 el.] | 250/180 [125 el.] | 180 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.5 | 5.9 | 5.2 | 4.6 | 4.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | - | - | - | - | - |
| Out of town [l] | 5.3-5.1 | - | - | - | - | - |
| Combined [l] | 6.6-6.5 | - | - | - | 1.8-1.5 [14.8-14.0 kWh] | - |
| CO2 emissions [g/km] | 150-148 | - | - | - | 42-39 | - |
| Low speed [l] | 11.0-10.8 | 11.0-10.5 | 11.8-11.3 | - | - | 9.2-8.2 |
| Medium speed [l] | 7.3-6.6 | 7.7-7.0 | 8.3-7.5 | - | - | 6.8-5.8 |
| High speed [l] | 6.2-5.5 | 6.5-5.7 | 7.0-6.0 | - | - | 6.6-5.5 |
| Extra high speed [l] | 7.2-6.2 | 7.5-6.1 | 8.0-6.6 | - | - | 7.9-6.5 |
| Combined speed [l] | 7.4-6.7 | 7.7-6.7 | 8.3-7.2 | - | 2.1-1.7 [16.8-14.8 kWh] | 1.1-0.7 [20.0-16.9 kWh] |
| CO2 emissions [g/km] | 168-151 | 173-152 | 186-163 | - | 46-37 | 25-16 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 11.6 kWh | Lithium-Ionen-Akkumulator, 11.6 kWh | Lithium-Ionen-Akkumulator, 18.8 kWh |
| Range with fully charged battery [km] | - | - | - | 58-50 | 58-50 | 75-94 |
| Charging time | - | - | - |
|
|
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1752 | 1733-2060 | 1733-2060 | 1733-2060 | 2031 | 2039 |
| Overall weight [kg] | 2230 | 2210-2500 | 2210-2500 | 2210-2500 | 2500 | 2500 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 427 | 436 | 436 | 391 | 391 | 391 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1797 | 1797 | 1797 | 1797 | 1797 | 1797 |
| Boot width between wheels/max [mm] | 996/- | 996/- | 996/- | 996/- | 996/- | 996/- |
| Boot height to headliner/ceiling [mm] | 485/554 | 485/554 | 485/554 | 485/554 | 485/554 | 485/554 |
| Loading edge height [mm] | 660 | 660 | 660 | 660 | 660 | 660 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 384 | 384 | 384 | 384 | 384 | 384 |
| Boot opening width min/max [mm] | 867/- | 867/- | 867/- | 867/- | 867/- | 867/- |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension | multilink Integral Blade suspension |
| Tyre dimensions front | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 |
| Tyre dimensions rear | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 | 235/45 R18 |
| Wheel size front | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 |
| Wheel size rear | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 | 8,0 x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering | rack & pinion with electro-hydraulic power steering |
| Number of steering wheel turns | 3 | 3 | 3 | 3 | 3 | 3 |
| Turning diameter track/circumference [m] | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 | 11.0/11.4 |
| Overall length [mm] | 4761 | 4761 | 4761 | 4761 | 4761 | 4761 |
| Overall width without/including mirrors [mm] | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 | 1850/2040 |
| Overall height [mm] | 1431 | 1431 | 1431 | 1431 | 1431 | 1431 |
| Wheelbase [mm] | 2872 | 2872 | 2872 | 2872 | 2872 | 2872 |
| Front wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Rear wheel track [mm] | 1603 | 1603 | 1603 | 1603 | 1603 | 1603 |
| Forward overhang [mm] | 848 | 848 | 848 | 848 | 848 | 848 |
| Rear overhang [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Clearance [mm] | 142 | 142 | 142 | 142 | 142 | 142 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1019 | 1019 | 1019 | 1019 | 1019 | 1019 |
| Headroom rear [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Front elbow/shoulder width [mm] | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 | 1404/1425 |
| Rear elbow/shoulder width [mm] | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 | 1356/1384 |
| Legroom front knees/total [mm] | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 | -/1074 |
| Legroom rear knees/total [mm] | -/895 | -/895 | -/895 | -/895 | -/895 | -/895 |
| Polestar Engineered | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to | |||||
| Engine type | Petrol supercharged + Electric | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1969 | |||||
| Maximum output / speed [kW/min-1] | 233/5800-6100 combustion 65/7000 el. | |||||
| Maximum torque [Nm/min-1] | 430/4500 combustion 240/0-3000 el. | |||||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | |||||
| Compression ratio | 10.3:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 180 [125 el.] | |||||
| Acceleration 0–100 km/h [s] | 4.4 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | - | |||||
| CO2 emissions [g/km] | - | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 2.1 | |||||
| CO2 emissions [g/km] | - | |||||
| Emission standard | Euro 6d-TEMP - Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | - | |||||
| Battery type and capacity | Lithium-Ionen-Akkumulator, 11.6 kWh | |||||
| Range with fully charged battery [km] | 63-55 | |||||
| Charging time |
| |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 1733-2060 | |||||
| Overall weight [kg] | 2500 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 100 | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 391 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | 1005 | |||||
| Boot length with rear seats folded [mm] | 1797 | |||||
| Boot width between wheels/max [mm] | 996/- | |||||
| Boot height to headliner/ceiling [mm] | 485/554 | |||||
| Loading edge height [mm] | 660 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 384 | |||||
| Boot opening width min/max [mm] | 867/- | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.27 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink Integral Blade suspension | |||||
| Tyre dimensions front | 235/40 R19 | |||||
| Tyre dimensions rear | 235/40 R19 | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | rack & pinion with electro-hydraulic power steering | |||||
| Number of steering wheel turns | 3 | |||||
| Turning diameter track/circumference [m] | 11.0/11.4 | |||||
| Overall length [mm] | 4761 | |||||
| Overall width without/including mirrors [mm] | 1850/2040 | |||||
| Overall height [mm] | 1431 | |||||
| Wheelbase [mm] | 2872 | |||||
| Front wheel track [mm] | 1603 | |||||
| Rear wheel track [mm] | 1603 | |||||
| Forward overhang [mm] | 848 | |||||
| Rear overhang [mm] | 1041 | |||||
| Clearance [mm] | 142 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1019 | |||||
| Headroom rear [mm] | 945 | |||||
| Front elbow/shoulder width [mm] | 1404/1425 | |||||
| Rear elbow/shoulder width [mm] | 1356/1384 | |||||
| Legroom front knees/total [mm] | -/1074 | |||||
| Legroom rear knees/total [mm] | -/895 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
