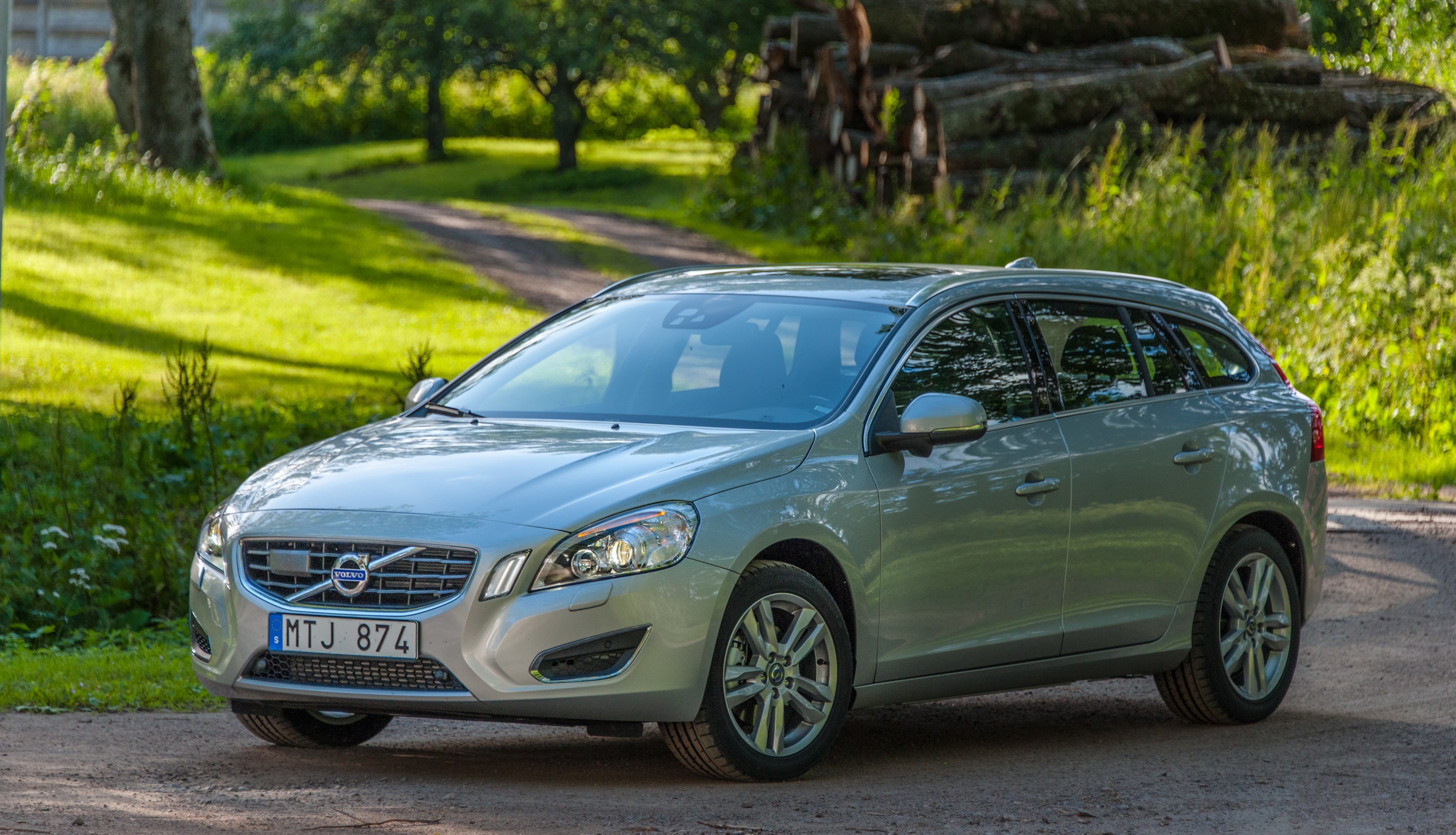

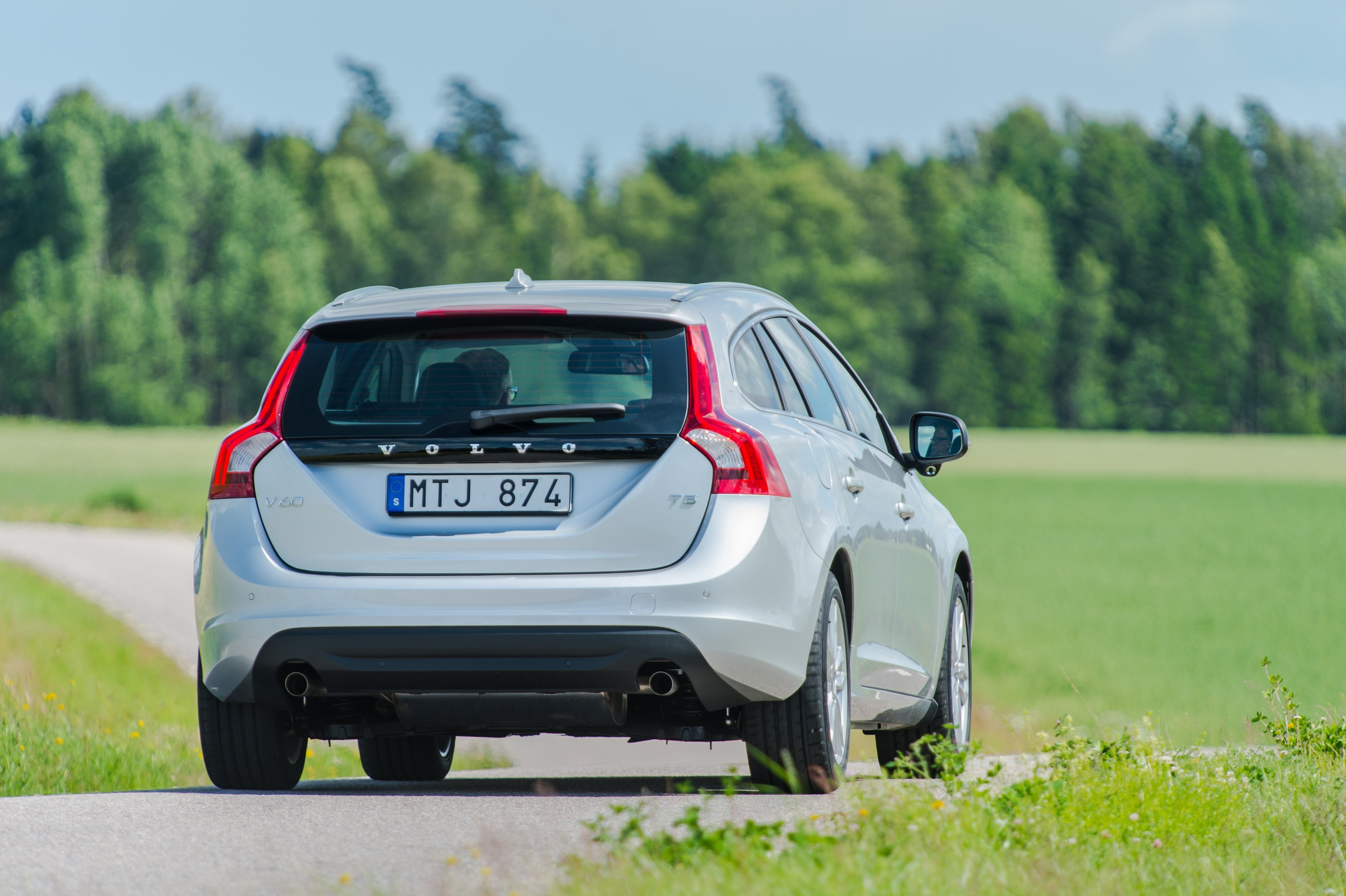

Volvo V60
Date of manufacture
2010 – 2013 (Estate)
Platform
Volvo P3
Manufacturing locations
Torslanda, Sweden
Designer
-
Tags
D-segment
Swedish cars
The Volvo V60 is a Swedish-origin estate car built on the Volvo P3 platform. The model was first manufactured in 2010 and offers petrol and diesel engines. The highest performance is achieved by the T6 AWD POLESTAR with 242 kW, the highest speed is 250 km/h and the lowest consumption is 4.5 l/100 km and emissions 119 g/km. The luggage compartment volume is 430 l. In 2012, this model received 5 stars out of 5 possible according to EURONCAP for safety.
Car body style
Technical data
Estate
| T3 | T3 | T4 | T4 | 2.0T | 2.0T | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2011 | from to 2011 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1999 | 1999 |
| Maximum output / speed [kW/min-1] | 110/5700 | 110/5700 | 132/5700 | 132/5700 | 149/6000 | 149/6000 |
| Maximum torque [Nm/min-1] | 240/1600-4000 | 240/1600-4000 | 240/1600-5000 | 240/1600-5000 | 300/1750-4000 | 300/1750-4000 |
| Bore and stroke [mm x mm] | 79.0 x 81.4 | 79.0 x 81.4 | 79.0 x 81.4 | 79.0 x 81.4 | 87,5 x 83,1 | 87,5 x 83,1 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 10.0:1 | 10.0:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 200-205 | 205 | 220 | 220 | 235 | 230 |
| Acceleration 0–100 km/h [s] | 9,6-9,7 | 10,4 | 8,5 | 9,2 | 7.7 | 8.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-8,6 | 9,9 | 8,6-8,7 | 9,9-10,2 | - | - |
| Out of town [l] | 5,1-5,6 | 5,8 | 5,4-5,6 | 5,8 | - | - |
| Combined [l] | 6,0-6,7 | 7,2 | 6,6-6,7 | 7,2-7,5 | 8.1 | 8.3 |
| CO2 emissions [g/km] | 139-155 | 167 | 153-155 | 167-173 | 189 | 194 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1637 | 1663 | 1637 | 1663 | 1643 | 1668 |
| Overall weight [kg] | 2100 | 2110 | 2100 | 2110 | 2040 | 2060 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 646 | 646 | 646 | 646 | 646 | 646 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4628 | 4628 | 4628 | 4628 | 4628 | 4628 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 936 | 936 | 936 | 936 | 936 | 936 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| T5 | T5 | T6 AWD | T6 AWD POLESTAR | D2 | D2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2011 to | from 2011 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1999 | 1999 | 2953 | 2953 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 177/5500 | 177/5500 | 224/5600 | 242/5400-6500 | 84/3600 | 84/3600 |
| Maximum torque [Nm/min-1] | 320/1800-5000 | 320/1800-5000 | 440/2100-4200 | 480/3000-3600 | 270/1750-2500 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 87,5 x 83,1 | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10.0:1 | 10.0:1 | 9.3:1 | 9.3:1 | 16.0:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 230 | 230 | 250 | 250 | 190 | 185 |
| Acceleration 0–100 km/h [s] | 7,5 | 7,7 | 6.2 | 6.2 | 11,3 | 12,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,2-11,3 | 11,3-11,5 | 14.8 | 14.8 | 5,2 | 5,1 |
| Out of town [l] | 6,1-6,3 | 6,3-6,6 | 7.5 | 7.5 | 4,1 | 4,2 |
| Combined [l] | 8,0-8,1 | 8,2-8,3 | 10.2 | 10.2 | 4,5 | 4,5 |
| CO2 emissions [g/km] | 186-189 | 192-194 | 237 | 237 | 119 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1674 | 1699 | 1844 | 1844 | 1648 | 1674 |
| Overall weight [kg] | 2130 | 2140 | 2310 | 2310 | 2110 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | 750/1300 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 646 | 646 | 646 | 646 | 646 | 646 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 225/50 R17 | 215/55 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 225/50 R17 | 215/55 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4628 | 4628 | 4628 | 4628 | 4628 | 4628 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 936 | 936 | 936 | 936 | 936 | 936 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D3 | D3 | D3 | D3 | D4 | D4 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2011 to | from to 2011 | from to 2011 | from 2011 to | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 1984 | 1984 |
| Maximum output / speed [kW/min-1] | 100/3500 | 100/3500 | 120/3500 | 120/3500 | 120/2900 | 120/2900 |
| Maximum torque [Nm/min-1] | 350/1500-2250 | 350/1500-2250 | 400/1500-2750 | 400/1500-2750 | 400/1400-2850 | 400/1400-2850 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 205 | 200 | 220 | 215 | 220 | 215 |
| Acceleration 0–100 km/h [s] | 10,4 | 10,4 | 9,4 | 9,4 | 9,4 | 9,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,2 | 6,1 | 6,4 | 7,1 | 5,2 | 6,1 |
| Out of town [l] | 4,1 | 4,3 | 4,3 | 4,8 | 4,1 | 4,3 |
| Combined [l] | 4,5 | 4,9 | 5,1 | 5,7 | 4,5 | 4,9 |
| CO2 emissions [g/km] | 119 | 129 | 132 | 149 | 119 | 12 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1705 | 1731 | 1705 | 1731 | 1705 | 1731 |
| Overall weight [kg] | - | -5 | 2180 | 2200 | 2180 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 646 | 646 | 646 | 646 | 646 | 646 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4628 | 4628 | 4628 | 4628 | 4628 | 4628 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 936 | 936 | 936 | 936 | 936 | 936 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D4 AWD | D5 | D5 | D5 AWD | D5 | D5 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from to 2011 | from to 2011 | from to 2011 | from 2011 to | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 120/4000 | 151/4000 | 151/4000 | 151/4000 | 158/4000 | 158/4000 |
| Maximum torque [Nm/min-1] | 420/1500-2500 | 420/1500-3250 | 440/1500-3000 | 440/1500-3000 | 420/1500-3250 | 440/1500-3000 |
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
|
| - |
|
| Top speed [km/h] | 215 | 230 | 230 | 225 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 10.4 | 7.8 | 7.8 | 8.1 | 7,5 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6 | 6.9 | 8.9 | 9.5 | 6,0 | 8,5 |
| Out of town [l] | 5.2 | 4.5 | 5.0 | 5.4 | 4,3 | 4,9 |
| Combined [l] | 6.4 | 5.4 | 6.4 | 6.9 | 4,9 | 6,2 |
| CO2 emissions [g/km] | 169 | 142 | 169 | 183 | 129 | 162 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1861 | 1688 | 1705 | 1786 | 1724 | 1749 |
| Overall weight [kg] | - | 2090 | 2110 | 2220 | 2180 | 2200 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1600 | 750/1800 | 750/1800 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 75 | 75 | 75 | 75 | 75 or 90 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 430 | 430 | 430 | 430 | 430 | 430 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 | -/1241 |
| Boot length [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | 1749 | 1749 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 646 | 646 | 646 | 646 | 646 | 646 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 | 67,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 |
| Overall length [mm] | 4628 | 4628 | 4628 | 4628 | 4628 | 4628 |
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | 2776 | 2776 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Forward overhang [mm] | 936 | 936 | 936 | 936 | 936 | 936 |
| Rear overhang [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Headroom rear [mm] | 954 | 954 | 954 | 954 | 954 | 954 |
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- | 1447/- |
| Rear elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- | 1402/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| D5 AWD | D5 POLESTAR | D5 POLESTAR | D5 AWD POLESTAR | |||
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2012 to | from 2012 to | from 2012 to | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | ||
| Engine displacement [cm³] | 2400 | 2400 | 2400 | 2400 | ||
| Maximum output / speed [kW/min-1] | 158/4000 | 169/4000 | 169/4000 | 169/4000 | ||
| Maximum torque [Nm/min-1] | 440/1500-3000 | 470/1750-2250 | 470/1750-2250 | 470/1750-2250 | ||
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | ||
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | Front | Front | 4x4 | ||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications |
| - |
|
| ||
| Top speed [km/h] | 225 | 230 | 230 | 225 | ||
| Acceleration 0–100 km/h [s] | 7.7 | 7,5 | 7,7 | 7.7 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 8.6 | 6,0 | 8,5 | 8.6 | ||
| Out of town [l] | 5.2 | 4,3 | 4,9 | 5.2 | ||
| Combined [l] | 6.4 | 4,9 | 6,2 | 6.4 | ||
| CO2 emissions [g/km] | 169 | 129 | 162 | 169 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1821 | 1724 | 1749 | 1821 | ||
| Overall weight [kg] | 2280 | 2180 | 2200 | 2280 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 90 | 75 | 75 or 90 | 90 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 430 | 430 | 430 | 430 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1241 | -/1241 | -/1241 | -/1241 | ||
| Boot length [mm] | 978 | 978 | 978 | 978 | ||
| Boot length with rear seats folded [mm] | 1749 | 1749 | 1749 | 1749 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | 646 | 646 | 646 | 646 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 67,5 | 67,5 | 67,5 | 67,5 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Tyre dimensions rear | 215/55 R16 | 215/55 R16 | 215/55 R16 | 215/55 R16 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | Electro-hydraulic power steering | ||
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | ||
| Turning diameter track/circumference [m] | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | 11.3/11.5 | ||
| Overall length [mm] | 4628 | 4628 | 4628 | 4628 | ||
| Overall width without/including mirrors [mm] | 1865/2097 | 1865/2097 | 1865/2097 | 1865/2097 | ||
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | ||
| Wheelbase [mm] | 2776 | 2776 | 2776 | 2776 | ||
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | ||
| Rear wheel track [mm] | 1585 | 1585 | 1585 | 1585 | ||
| Forward overhang [mm] | 936 | 936 | 936 | 936 | ||
| Rear overhang [mm] | 916 | 916 | 916 | 916 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 973 | 973 | 973 | 973 | ||
| Headroom rear [mm] | 954 | 954 | 954 | 954 | ||
| Front elbow/shoulder width [mm] | 1447/- | 1447/- | 1447/- | 1447/- | ||
| Rear elbow/shoulder width [mm] | 1402/- | 1402/- | 1402/- | 1402/- | ||
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | ||
| Legroom rear knees/total [mm] | -/850 | -/850 | -/850 | -/850 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
