Volvo V70
Date of manufacture
2007 – 2012 (Estate)
Platform
Volvo P3
Manufacturing locations
Torslanda, Sweden
Designer
Stefan Jansson
Jonathan Disley
Tags
E-segment
Swedish cars

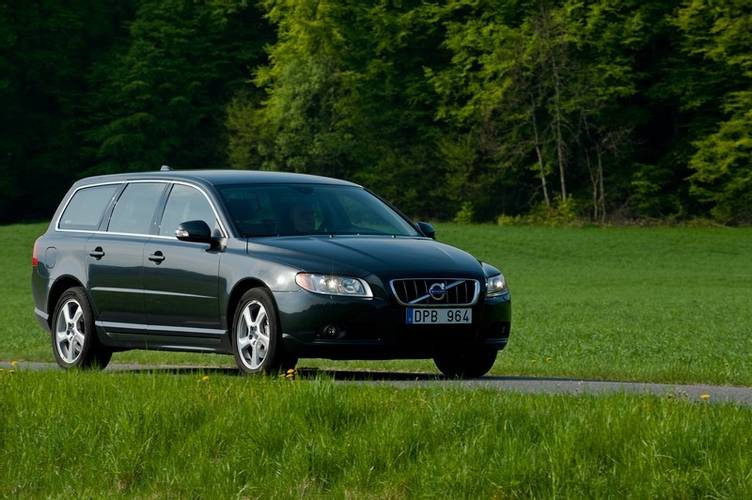

The Volvo V70 is a station wagon manufactured by the Swedish automaker Volvo since 2007. The car is built on the P3 platform and offers both petrol and diesel engines. The strongest engine, the T6 AWD POLESTAR, has a power output of 242 kW and reaches a top speed of 250 km/h. The most economical version, the D2, consumes 4.5 l/100 km with CO2 emissions of 119 g/km. The trunk volume is 575 l. In terms of safety, the model received a 5 out of 5 EURONCAP rating in 2009.
Car body style
Technical data
Estate
| 2.0 | T4 | T4 | 2.5T | 2.5T | 2.0T | |
|---|---|---|---|---|---|---|
| Date of sale | from 2008 to 2010 | from 2010 to | from 2010 to | from 2008 to 2010 | from 2008 to 2010 | from 2010 to 2011 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 5/20 | 5/20 | 4/16 |
| Engine displacement [cm³] | 1999 | 1595 | 1595 | 2521 | 2521 | 1999 |
| Maximum output / speed [kW/min-1] | 107/6000 | 132/5700 | 132/5700 | 147/4800 | 147/4800 | 149/6000 |
| Maximum torque [Nm/min-1] | 185/4500 | 240/1600-5000 | 240/1600-5000 | 300/1500-4500 | 300/1500-4500 | 300/1750-4000 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 79.0 x 81.4 | 79.0 x 81.4 | 83,0 x 93,2 | 83,0 x 93,2 | 87,5 x 83,1 |
| Compression ratio | 10.8:1 | 10.0:1 | 10.0:1 | 9.0:1 | 9.0:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 200 | 215 | 215 | 230 | 220 | 230 |
| Acceleration 0–100 km/h [s] | 11,3 | 8,7 | 9,9 | 8,1 | 8,5 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,7 | 9,0 | 9,8 | 13,5 | 15,3 | 11.1 |
| Out of town [l] | 6,9 | 5,5 | 5,8 | 7,2 | 7,5 | 6.4 |
| Combined [l] | 8,6 | 6,8 | 7,2 | 9,5 | 10,4 | 8.1 |
| CO2 emissions [g/km] | 206 | 157 | 168 | 227 | 248 | 189 |
| Emission standard | EU4 | EU5 | EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1567 | 1714 | 1737 | 1652 | 1667 | 1770 |
| Overall weight [kg] | 2180 | 2190 | 2210 | 2260 | 2280 | 2220 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1600 | 750/1600 | - | - | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1578-1588 | 1588 | 1588 | 1578-1588 | 1578-1588 | 1588 |
| Rear wheel track [mm] | 1576-1586 | 1586 | 1586 | 1576-1586 | 1576-1586 | 1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| 2.0T | 2.5T | 2.5T | 3.2 | 3.2 AWD | T5 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from 2010 to 2011 | from 2010 to 2011 | - | - | from 2010 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 5/20 | 5/20 | 6/24 | 6/24 | 4/16 |
| Engine displacement [cm³] | 1999 | 2521 | 2521 | 3192 | 3192 | 1999 |
| Maximum output / speed [kW/min-1] | 149/6000 | 170/4800 | 170/4800 | 175/6200 | 175/6200 | 177/5500 |
| Maximum torque [Nm/min-1] | 300/1750-4000 | 340/1700-4800 | 340/1700-4800 | 320/3200 | 320/3200 | 320/1800-5000 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 83,0 x 93,2 | 83,0 x 93,2 | 84,0 x 96,0 | 84,0 x 96,0 | 87,5 x 83,1 |
| Compression ratio | 10.0:1 | 9.0:1 | 9.0:1 | 10.8:1 | 10.8:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 225 | 235 | 230 | 235 | 230 | 240 |
| Acceleration 0–100 km/h [s] | 8.9 | 7,7 | 7,9 | 8,4 | 8,6 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.3 | 12,5 | 14,2 | 15,1-15,4 | 16,9 | 11,3 |
| Out of town [l] | 6.7 | 9,9 | 7,1 | 7,4-7,7 | 8,4 | 6,2 |
| Combined [l] | 8.4 | 8,8 | 9,7 | 10,2-10,5 | 11,7 | 8,1 |
| CO2 emissions [g/km] | 195 | 209 | 232 | 244-251 | 275 | 189 |
| Emission standard | EU5 | EU4 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1795 | 1652 | 1667 | 1710 | 1780 | 1751 |
| Overall weight [kg] | 2240 | 2260 | 2280 | 2310 | 2390 | 2220 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | - | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1588 | 1578-1588 | 1578-1588 | 1578-1588 | 1578-1588 | 1588 |
| Rear wheel track [mm] | 1586 | 1576-1586 | 1576-1586 | 1576-1586 | 1576-1586 | 1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| T5 | T6 AWD | T6 AWD | T6 AWD POLESTAR | 1.6 D DRIVe | D2 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to | from 2008 to 2010 | from 2010 to | from 2010 to | from to 2010 | from 2011 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 6/24 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1999 | 2953 | 2953 | 2953 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 177/5500 | 210/5600 | 224/5600 | 242/5400-6500 | 80/4000 | 84/3600 |
| Maximum torque [Nm/min-1] | 320/1800-5000 | 400/1500-4800 | 440/2100-4200 | 480/3000-3600 | 240/1750 | 270/1750-2500 |
| Bore and stroke [mm x mm] | 87,5 x 83,1 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | 10.0:1 | 9.3:1 | 9.3:1 | 9.3:1 | 18.3:1 | 16.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear automatic | 6 gear automatic | 5 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 235 | 245 | 250 | 250 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 7,9 | 7,2 | 6.9 | 6.9 | 12,8 | 11,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,6 | 16,7-17,2 | 14.8 | 14.8 | 5,9 | 5,3 |
| Out of town [l] | 6,5 | 8,1-8,3 | 7.5 | 7.5 | 4,3 | 4,1 |
| Combined [l] | 8,4 | 11,5-11,6 | 10.2 | 10.2 | 4,9 | 4,5 |
| CO2 emissions [g/km] | 195 | 270 | 237 | 237 | 129 | 119 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1776 | 1803 | 1927 | 1927 | 1614 | 1714 |
| Overall weight [kg] | 2240 | 2410 | 2410 | 2410 | 2220 | 2220 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | - | 750/2000 | 750/2000 | - | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 75 | 90 | 90 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 205/60 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 205/60 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1588 | 1578-1588 | 1588 | 1588 | 1578-1588 | 1588 |
| Rear wheel track [mm] | 1586 | 1576-1586 | 1586 | 1586 | 1576-1586 | 1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| D2 | 2.0 D | D3 | D3 | 2.4D | 2.4D | |
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from to 2010 | from 2011 to | from 2011 to | from to 2010 | from to 2010 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1560 | 1997 | 1984 | 1984 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 84/3600 | 100/4000 | 100/3500 | 100/3500 | 120/4000 | 120/4000 |
| Maximum torque [Nm/min-1] | 270/1750-2500 | 320/2000 | 350/1500-2250 | 350/1500-2250 | 340/1750-2750 | 340/1750-2750 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 85,0 x 88,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.0:1 | 18.3:1 | 16.5:1 | 16.5:1 | 17.3:1 | 17.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 180 | 200 | 200 | 195 | 210 | 205 |
| Acceleration 0–100 km/h [s] | 13,2 | 11,1 | 10.6 | 10.6 | 9,9 | 10,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,1 | 7,5 | 5.3 | 6.0 | 8,6 | 10,1 |
| Out of town [l] | 4,2 | 5,0 | 4.1 | 4.3 | 5,7 | 6,2 |
| Combined [l] | 4,5 | 5,9 | 4.5 | 4.9 | 6,7 | 7,7 |
| CO2 emissions [g/km] | 119 | 157 | 119 | 130 | 178 | 203 |
| Emission standard | EU5 | EU4 | EU5 | EU5 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1734 | 1652 | 1787 | 1804 | 1652 | 1652 |
| Overall weight [kg] | 2240 | 2180 | - | - | 2180 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 750/1300 | - | 750/1600 | 750/1600 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1588 | 1578-1588 | 1588 | 1588 | 1578-1588 | 1578-1588 |
| Rear wheel track [mm] | 1586 | 1576-1586 | 1586 | 1586 | 1576-1586 | 1576-1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| D3 | D3 | D4 | D4 | D4 AWD | 2.4D | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from 2010 to 2011 | from 2011 to | from 2011 to | from 2011 to | from 2010 to 2011 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 1984 | 1984 | 1984 | 1984 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 120/2900 | 120/2900 | 120/3500 | 120/3500 | 120/4000 | 129/3000-4000 |
| Maximum torque [Nm/min-1] | 400/1400-2850 | 400/1400-2850 | 400/1500-2750 | 400/1500-2750 | 420/1500-2500 | 420/1500-2750 |
| Bore and stroke [mm x mm] | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 77,0 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 17.3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - | - |
|
| - |
| Top speed [km/h] | 205 | 210 | 210 | 205 | 205 | 215 |
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | 9,9 | 9,9 | 10.8 | 9,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.2 | 7.2 | 5,3 | 6,0 | 8.8 | 8,1 |
| Out of town [l] | 4.8 | 4.6 | 4,1 | 4,3 | 5.4 | 4,8 |
| Combined [l] | 6.1 | 5.5 | 4,5 | 4,9 | 6.6 | 6,0 |
| CO2 emissions [g/km] | 159 | 144 | 119 | 130 | 175 | 159 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1838 | 1822 | 1787 | 1804 | 1909 | 1674 |
| Overall weight [kg] | 2310 | 2300 | 2300 | 2310 | - | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1600 | 750/1800 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1578-1588 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1576-1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| 2.4D | D5 | D5 | D5 AWD | D5 AWD | D5 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from 2008 to 2010 | from 2008 to 2010 | from 2008 to 2010 | from 2008 to 2010 | from 2010 to 2011 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 129/3000-4000 | 136/4000 | 136/4000 | 136/4000 | 136/4000 | 151/4000 |
| Maximum torque [Nm/min-1] | 420/1500-2750 | 400/2750 | 400/2750 | 400/2750 | 400/2750 | 420/1500-3250 |
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 17.3:1 | 17.3:1 | 17.3:1 | 17.3:1 | 17.3:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
|
|
| - |
| Top speed [km/h] | 210 | 225 | 215 | 220 | 210 | 225 |
| Acceleration 0–100 km/h [s] | 9,9 | 8,9 | 9,4 | 9,1 | 9,7 | 8,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,2 | 8,6 | 10,1 | 9,5 | 10,9 | 8,7-6.7 |
| Out of town [l] | 5,4 | 5,7 | 6,2 | 6,1 | 6,5 | 5,1-4.7 |
| Combined [l] | 6,8 | 6,7 | 7,7 | 7,3 | 8,1 | 6,4-5.4 |
| CO2 emissions [g/km] | 179 | 178 | 203 | 194 | 214 | 169-144 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1690 | 1652 | 1652 | 1652 | 1652 | 1679 |
| Overall weight [kg] | 2310 | 2180 | 2180 | 2180 | 2180 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1578-1588 | 1578-1588 | 1578-1588 | 1578-1588 | 1578-1588 | 1578-1588 |
| Rear wheel track [mm] | 1576-1586 | 1576-1586 | 1576-1586 | 1576-1586 | 1576-1586 | 1576-1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| D5 | D5 AWD | D5 | D5 | D5 AWD | D5 POLESTAR | |
|---|---|---|---|---|---|---|
| Date of sale | from 2010 to 2011 | from 2010 to 2011 | from 2011 to | from 2011 to | from 2011 to | from 2011 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 | 5/20 |
| Engine displacement [cm³] | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 |
| Maximum output / speed [kW/min-1] | 151/4000 | 151/4000 | 158/4000 | 158/4000 | 158/4000 | 169/4000 |
| Maximum torque [Nm/min-1] | 440/1500-3000 | 440/1500-3000 | 420/1500-3250 | 440/1500-3000 | 440/1500-3000 | 470/1750-2250 |
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 | 81,0 x 93,15 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | Front | 4x4 | Front |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual |
| Drive specifications |
|
| - |
|
| - |
| Top speed [km/h] | 220 | 220 | 225 | 220 | 220 | 225 |
| Acceleration 0–100 km/h [s] | 8,7 | 8,7 | 7,8 | 8,0 | 8.0 | 7,8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,5-8.8 | 10,2-9.7 | 5,8 | 8,5 | 8.8 | 5,8 |
| Out of town [l] | 5,4-5.0 | 6,0-5.6 | 4,2 | 4,9 | 5.4 | 4,2 |
| Combined [l] | 6,9-6.4 | 7,5-7.1 | 4,8 | 6,2 | 6.6 | 4,8 |
| CO2 emissions [g/km] | 183-169 | 198-187 | 126 | 164 | 175 | 126 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1696 | 1773 | 1819 | 1829 | 1909 | 1819 |
| Overall weight [kg] | 2310 | 2390 | 2300 | 2310 | 2390 | 2300 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/1800 | 750/2000 | 750/2000 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 90 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 |
| Boot length [mm] | 1089 | 1089 | 1089 | 1089 | 1089 | 1089 |
| Boot length with rear seats folded [mm] | 1878 | 1878 | 1878 | 1878 | 1878 | 1878 |
| Boot width between wheels/max [mm] | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 | -/1223 |
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | -/801 | -/801 | -/801 | -/801 |
| Loading edge height [mm] | 640 | 640 | 640 | 640 | 640 | 640 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 724 | 724 | 724 | 724 | 724 | 724 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 | 225/55 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering | Rack & pinion with power steering |
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 | 2.8-2.6 |
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 |
| Overall length [mm] | 4823 | 4823 | 4823 | 4823 | 4823 | 4823 |
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 | 1861/2106 |
| Overall height [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Wheelbase [mm] | 2816 | 2816 | 2816 | 2816 | 2816 | 2816 |
| Front wheel track [mm] | 1578-1588 | 1578-1588 | 1588 | 1588 | 1588 | 1588 |
| Rear wheel track [mm] | 1576-1586 | 1576-1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 978 | 978 | 978 | 978 | 978 | 978 |
| Rear overhang [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Clearance [mm] | 143 | 143 | 143 | 143 | 143 | 143 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 981 | 981 | 981 | 981 | 981 | 981 |
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- | 1457/- |
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- | 1434/- |
| Legroom front knees/total [mm] | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 | -/1064 |
| Legroom rear knees/total [mm] | -/880 | -/880 | -/880 | -/880 | -/880 | -/880 |
| D5 POLESTAR | D5 AWD POLESTAR | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2011 to | from 2011 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 5/20 | 5/20 | ||||
| Engine displacement [cm³] | 2400 | 2400 | ||||
| Maximum output / speed [kW/min-1] | 169/4000 | 169/4000 | ||||
| Maximum torque [Nm/min-1] | 470/1750-2250 | 470/1750-2250 | ||||
| Bore and stroke [mm x mm] | 81,0 x 93,15 | 81,0 x 93,15 | ||||
| Compression ratio | 16.5:1 | 16.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 6 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 220 | 220 | ||||
| Acceleration 0–100 km/h [s] | 8,0 | 8.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 8,5 | 8.8 | ||||
| Out of town [l] | 4,9 | 5.4 | ||||
| Combined [l] | 6,2 | 6.6 | ||||
| CO2 emissions [g/km] | 164 | 175 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1829 | 1909 | ||||
| Overall weight [kg] | 2310 | 2390 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 90 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 575 | 575 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | ||||
| Boot length [mm] | 1089 | 1089 | ||||
| Boot length with rear seats folded [mm] | 1878 | 1878 | ||||
| Boot width between wheels/max [mm] | -/1223 | -/1223 | ||||
| Boot height to headliner/ceiling [mm] | -/801 | -/801 | ||||
| Loading edge height [mm] | 640 | 640 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 724 | 724 | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 70 | 70 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 225/55 R16 | 225/55 R16 | ||||
| Tyre dimensions rear | 225/55 R16 | 225/55 R16 | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with power steering | Rack & pinion with power steering | ||||
| Number of steering wheel turns | 2.8-2.6 | 2.8-2.6 | ||||
| Turning diameter track/circumference [m] | 11.2-12.2/11.7-12.7 | 11.2-12.2/11.7-12.7 | ||||
| Overall length [mm] | 4823 | 4823 | ||||
| Overall width without/including mirrors [mm] | 1861/2106 | 1861/2106 | ||||
| Overall height [mm] | 1547 | 1547 | ||||
| Wheelbase [mm] | 2816 | 2816 | ||||
| Front wheel track [mm] | 1588 | 1588 | ||||
| Rear wheel track [mm] | 1586 | 1586 | ||||
| Forward overhang [mm] | 978 | 978 | ||||
| Rear overhang [mm] | 1029 | 1029 | ||||
| Clearance [mm] | 143 | 143 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1010 | 1010 | ||||
| Headroom rear [mm] | 981 | 981 | ||||
| Front elbow/shoulder width [mm] | 1457/- | 1457/- | ||||
| Rear elbow/shoulder width [mm] | 1434/- | 1434/- | ||||
| Legroom front knees/total [mm] | -/1064 | -/1064 | ||||
| Legroom rear knees/total [mm] | -/880 | -/880 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
