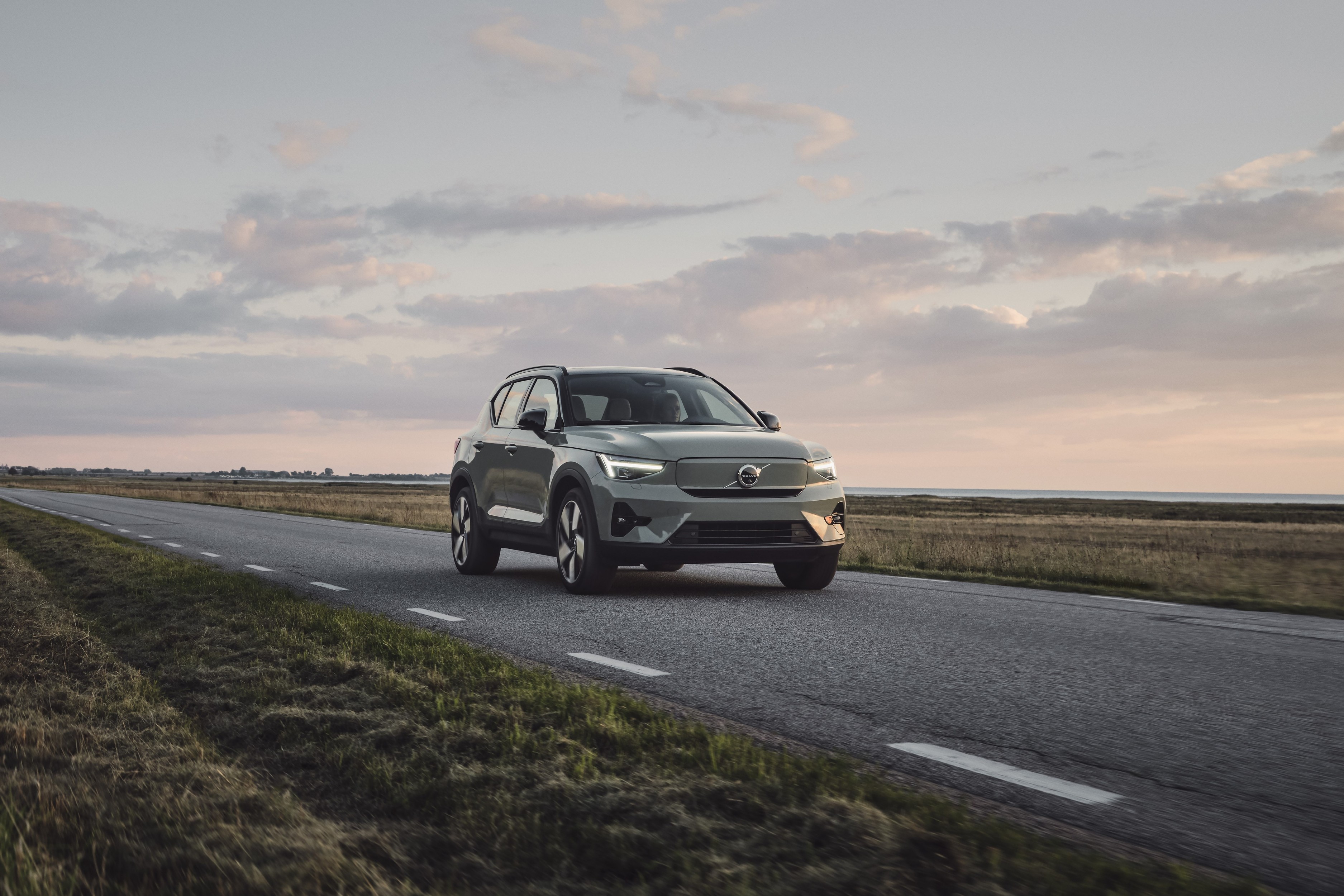

Volvo XC40
Date of manufacture
2021 – to this day (Medium SUV)
Platform
CMA
Manufacturing locations
Ghent, Belgium
Luqiao, People's Republic of China
Designer
Ian Kettle
Thomas Ingenlath
Tags
Compact SUV
Swedish cars
The Volvo XC40 is a mid-size SUV that was developed and started selling from 2021. The vehicle is built on the CMA platform and offers various types of powertrains, including gasoline, hybrid and electric power units. The most powerful version B5 AWD has 184 kW and reaches a top speed of 180 km/h. The most fuel-efficient model T4 Recharge consumes 2.1 l/100 km with CO2 emissions of 47 g/km. The luggage compartment is 405 l. The XC40 model successfully passed the EURONCAP safety tests in 2018 and received a rating of 5 out of 5. It is produced in two countries - Belgium and China.
Car body style
Medium SUV
after upgrade (facelift)
Date of manufacture
2021 – to this dayInternal designation
-Engine size
Electric
Technical data
Medium SUV
| T2 | T2 | B3 | B4 | B4 AWD | B5 AWD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1477 | 1477 | 1969 | 1969 | 1969 | 1969 |
| Maximum output / speed [kW/min-1] | 95/5000 | 95/5000 | 120/4750-5250 combustion 10 el. | 145/4800-5400 combustion 10 el. | 145/4800-5400 combustion 10 el. | 184/5400-5700 combustion 10 el. |
| Maximum torque [Nm/min-1] | 245/1600-3000 | 245/1600-3000 | 265/1500-4000 combustion 40 el. | 300/1500-4200 combustion 40 el. | 300/1500-4200 combustion 40 el. | 350/1800-4800 combustion 40 el. |
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 | 82.0 x 93.2 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 180 | 180 | 180 | 180 | 180 | 180 |
| Acceleration 0–100 km/h [s] | 10.9 | 10.9 | 9.6 | 7.4 | 7.4 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.9 | - | - | - | - | 9.1-8.9 |
| Out of town [l] | 5.6-5.3 | - | - | - | - | 6.0-5.8 |
| Combined [l] | 6.4-6.3 | - | - | - | - | 7.1-6.9 |
| CO2 emissions [g/km] | 146-142 | - | - | - | - | 163-158 |
| Low speed [l] | 9.6-8.9 | 10.6-10.0 | 10.6-9.9 | 11.0-10.6 | 11.9-11.3 | 11.7-11.3 |
| Medium speed [l] | 7.4-6.7 | 7.8-7.2 | 7.8-7.2 | 7.5-6.9 | 8.0-7.5 | 7.9-7.4 |
| High speed [l] | 6.6-5.9 | 6.7-6.2 | 6.7-6.2 | 6.5-6.0 | 7.0-6.5 | 6.9-6.4 |
| Extra high speed [l] | 8.0-7.2 | 8.0-7.3 | 8.0-7.2 | 7.9-7.2 | 8.1-7.5 | 8.3-7.6 |
| Combined speed [l] | 7.6-7.0 | 7.9-7.3 | 7.9-7.3 | 7.8-7.2 | 8.2-7.7 | 8.2-7.7 |
| CO2 emissions [g/km] | 173-158 | 179-165 | 179-164 | 177-164 | 188-175 | 187-174 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | 48 | 48 | 48 | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1580 | 1580 | 1688 | 1688 | 1735 | 1775 |
| Overall weight [kg] | 2080 | 2080 | 2220 | 2220 | 2270 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1600 | 750/1600 | 750/1800 | 750/1800 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 110 | 110 | 110 | 110 | 110 | 110 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 433 | 433 | 433 | 428 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1309 | -/1309 | -/1309 | -/1304 | -/1336 | -/1336 |
| Boot length [mm] | 887 | 887 | 887 | 887 | 887 | 887 |
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | 1670 | 1670 |
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- | 1004/- |
| Boot height to headliner/ceiling [mm] | -/746 | -/746 | -/746 | -/746 | -/746 | -/746 |
| Loading edge height [mm] | 755 | 755 | 755 | 755 | 755 | 755 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 733 | 733 | 733 | 733 | 733 | 733 |
| Boot opening width min/max [mm] | 1059 | 1059 | 1059 | 1059 | 1059 | 1059 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R17 | 235/60 R17 | 235/60 R17 | 235/55 R18 | 235/55 R18 | 235/55 R18 |
| Tyre dimensions rear | 235/60 R17 | 235/60 R17 | 235/60 R17 | 235/55 R18 | 235/55 R18 | 235/55 R18 |
| Wheel size front | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5J x 18 |
| Wheel size rear | 7,5J x 17 | 7,5J x 17 | 7,5J x 17 | 7,5J x 18 | 7,5J x 18 | 7,5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| Turning diameter track/circumference [m] | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 |
| Overall length [mm] | 4425 | 4425 | 4425 | 4425 | 4425 | 4425 |
| Overall width without/including mirrors [mm] | 1863/2034 | 1863/2034 | 1863/2034 | 1863/2034 | 1863/2034 | 1863/2034 |
| Overall height [mm] | 1652 | 1652 | 1652 | 1652 | 1652 | 1652 |
| Wheelbase [mm] | 2702 | 2702 | 2702 | 2702 | 2702 | 2702 |
| Front wheel track [mm] | 1601 | 1601 | 1601 | 1601 | 1601 | 1601 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | 855 | 855 | 855 | 855 | 855 | 855 |
| Rear overhang [mm] | 868 | 868 | 868 | 868 | 868 | 868 |
| Clearance [mm] | 205 | 205 | 205 | 205 | 205 | 205 |
| Wading depth [mm] | 450 | 450 | 450 | 450 | 450 | 450 |
| Approach angle front [°] | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 | 21.7 |
| Approach angle rear [°] | 21.9 | 21.9 | 21.9 | 21.9 | 21.9 | 21.9 |
| Transition angle [°] | 30.4 | 30.4 | 30.4 | 30.4 | 30.4 | 30.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Headroom rear [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Front elbow/shoulder width [mm] | 1440/1390 | 1440/1390 | 1440/1390 | 1440/1390 | 1440/1390 | 1440/1390 |
| Rear elbow/shoulder width [mm] | 1429/1388 | 1429/1388 | 1429/1388 | 1429/1388 | 1429/1388 | 1429/1388 |
| Legroom front knees/total [mm] | -/1040 | -/1040 | -/1040 | -/1040 | -/1040 | -/1040 |
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 | -/917 | -/917 |
| T4 Recharge | T5 Recharge | Single Motor | Twin Motor | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | Electric | Electric | ||
| Number of cylinders/valves | 3/12 | 3/12 | - | - | ||
| Engine displacement [cm³] | 1477 | 1477 | - | - | ||
| Maximum output / speed [kW/min-1] | 95/5000 combustion 60/4000 el. | 132/5800 combustion 60/4000 el. | 170/4919-11000 | 150/4350-13900 150/4350-13900 | ||
| Maximum torque [Nm/min-1] | 245/1600-3000 combustion 160/3500 el. | 265/1500-3000 combustion 160/3500 el. | 330/0-4919 | 330/0-4350 330/0-4350 | ||
| Bore and stroke [mm x mm] | 82.0 x 93.2 | 82.0 x 93.2 | - | - | ||
| Compression ratio | 10.5:1 | 10.5:1 | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | 4x4 | ||
| Gearbox | 7 gear automatic | 7 gear automatic | 1 gear automatic | 1 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 180 [125 el.] | 180 [125 el.] | 160 | 180 | ||
| Acceleration 0–100 km/h [s] | 8.5 | 7.3 | 7.4 | 4.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | - | - | - | - | ||
| Out of town [l] | - | - | - | - | ||
| Combined [l] | 1.9-1.8 [15.9-15.6 kWh] | 1.9-1.8 [15.9-15.6 kWh] | - | - | ||
| CO2 emissions [g/km] | 45-41 | 45-41 | - | - | ||
| Low speed [l] | 8.8-8.5 | 8.8-8.5 | - | - | ||
| Medium speed [l] | 7.0-6.7 | 7.0-6.7 | - | - | ||
| High speed [l] | 6.4-5.5 | 6.4-5.5 | - | - | ||
| Extra high speed [l] | 8.2-7.3 | 8.2-7.3 | - | - | ||
| Combined speed [l] | 2.3-2.1 [16.1-15.2 kWh] | 2.3-2.1 [16.1-15.2 kWh] | 19.7-18.7 kWh | 25.0-23.8 kWh | ||
| CO2 emissions [g/km] | 52-47 | 52-47 | - | - | ||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| System voltage [V] | 400 | 400 | 400 | 400 | ||
| Battery type and capacity | Lithium-ion, 10.7 kWh (8.5 net) | Lithium-ion, 10.7 kWh (8.5 net) | Lithium-Ionen-Akkumulator, 69 kWh | Lithium-ion, 78 kWh (75 net) | ||
| Range with fully charged battery [km] | 43-45 | 43-45 | 400-423 [WLTP] | 400-418 [WLTP] | ||
| Charging time |
|
|
|
| ||
| Number of modules/cells | - | - | - | - | ||
| Battery weight [kg] | - | - | - | - | ||
| Charger | - | - | - | - | ||
| Standby weight [kg] | 1812 | 1812 | 2030 | 2188 | ||
| Overall weight [kg] | 2290 | 2290 | 2480 | 2650 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1500 | 750/1800 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | ||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | ||
| Boot volume [l] | 405 | 405 | 419 | 419 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1281 | -/1281 | -/1295 | -/1295 | ||
| Boot length [mm] | 887 | 887 | 887 | 887 | ||
| Boot length with rear seats folded [mm] | 1670 | 1670 | 1670 | 1670 | ||
| Boot width between wheels/max [mm] | 1004/- | 1004/- | 1004/- | 1004/- | ||
| Boot height to headliner/ceiling [mm] | -/746 | -/746 | -/746 | -/746 | ||
| Loading edge height [mm] | 755 | 755 | 755 | 755 | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | 733 | 733 | 733 | 733 | ||
| Boot opening width min/max [mm] | 1059 | 1059 | 1059 | 1059 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 48 | 48 | - | - | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 | 0.34-0.37 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 235/55 R18 | 235/55 R18 | 235/50 R19 | 235/50 R19 | ||
| Tyre dimensions rear | 235/55 R18 | 235/55 R18 | 255/45 R19 | 255/45 R19 | ||
| Wheel size front | 7,5J x 18 | 7,5J x 18 | 7.5J x 19 | 7.5J x 19 | ||
| Wheel size rear | 7,5J x 18 | 7,5J x 18 | 8.5J x 19 | 8.5J x 19 | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | ||
| Number of steering wheel turns | 2.7 | 2.7 | 2.7 | 2.7 | ||
| Turning diameter track/circumference [m] | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 | 11.4/11.8 | ||
| Overall length [mm] | 4425 | 4425 | 4425 | 4425 | ||
| Overall width without/including mirrors [mm] | 1863/2034 | 1863/2034 | 1863/2034 | 1863/2034 | ||
| Overall height [mm] | 1652 | 1652 | 1647 | 1647 | ||
| Wheelbase [mm] | 2702 | 2702 | 2702 | 2702 | ||
| Front wheel track [mm] | 1601 | 1601 | 1601 | 1601 | ||
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | ||
| Forward overhang [mm] | 855 | 855 | 855 | 855 | ||
| Rear overhang [mm] | 868 | 868 | 868 | 868 | ||
| Clearance [mm] | 205 | 205 | 171 | 171 | ||
| Wading depth [mm] | 450 | 450 | 450 | 450 | ||
| Approach angle front [°] | 21.7 | 21.7 | 21.7 | 21.7 | ||
| Approach angle rear [°] | 21.9 | 21.9 | 21.9 | 21.9 | ||
| Transition angle [°] | 30.4 | 30.4 | 30.4 | 30.4 | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1030 | 1030 | 1030 | 1030 | ||
| Headroom rear [mm] | 994 | 994 | 994 | 994 | ||
| Front elbow/shoulder width [mm] | 1440/1390 | 1440/1390 | 1440/1390 | 1440/1390 | ||
| Rear elbow/shoulder width [mm] | 1429/1388 | 1429/1388 | 1429/1388 | 1429/1388 | ||
| Legroom front knees/total [mm] | -/1040 | -/1040 | -/1040 | -/1040 | ||
| Legroom rear knees/total [mm] | -/917 | -/917 | -/917 | -/917 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
